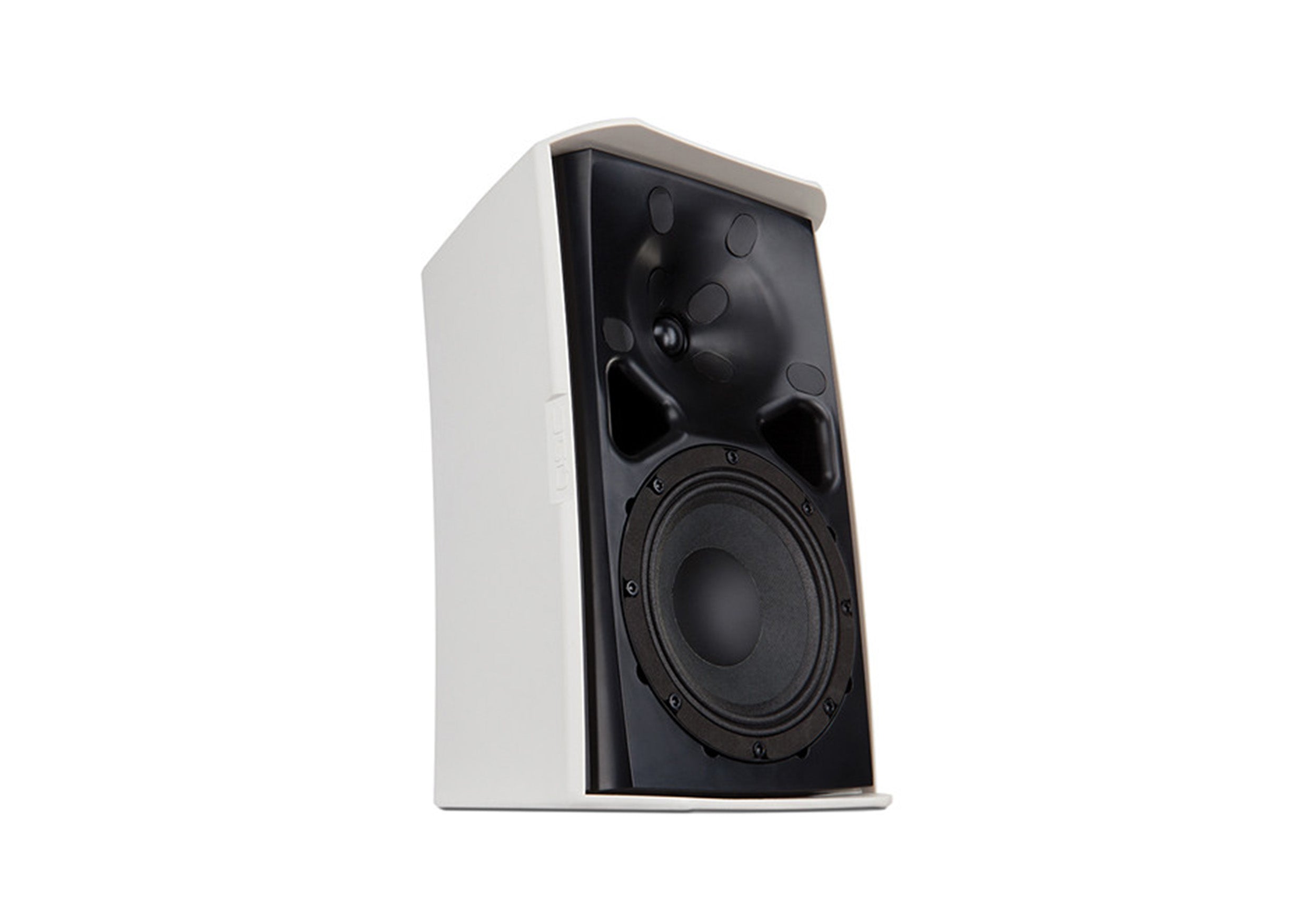

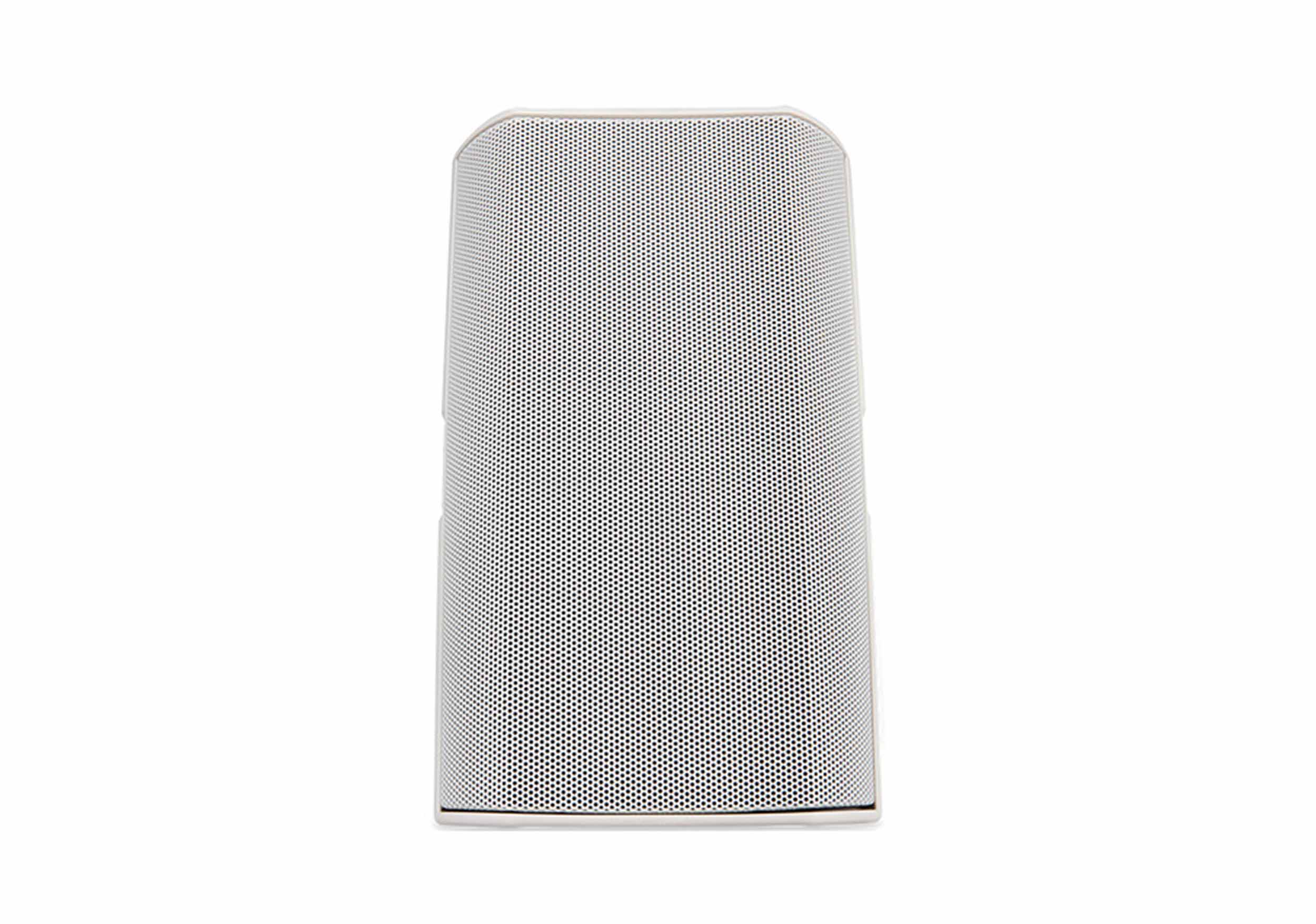

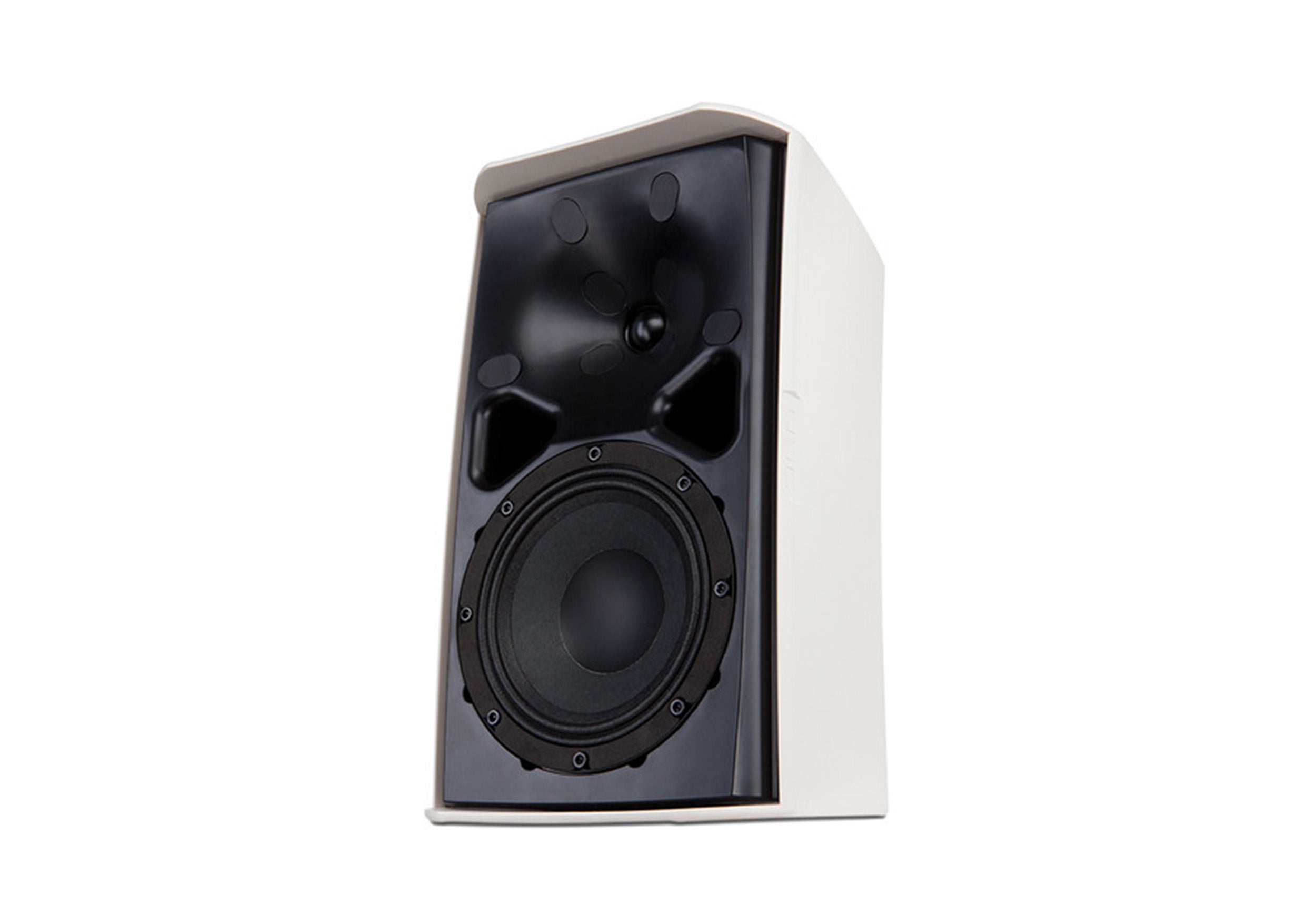

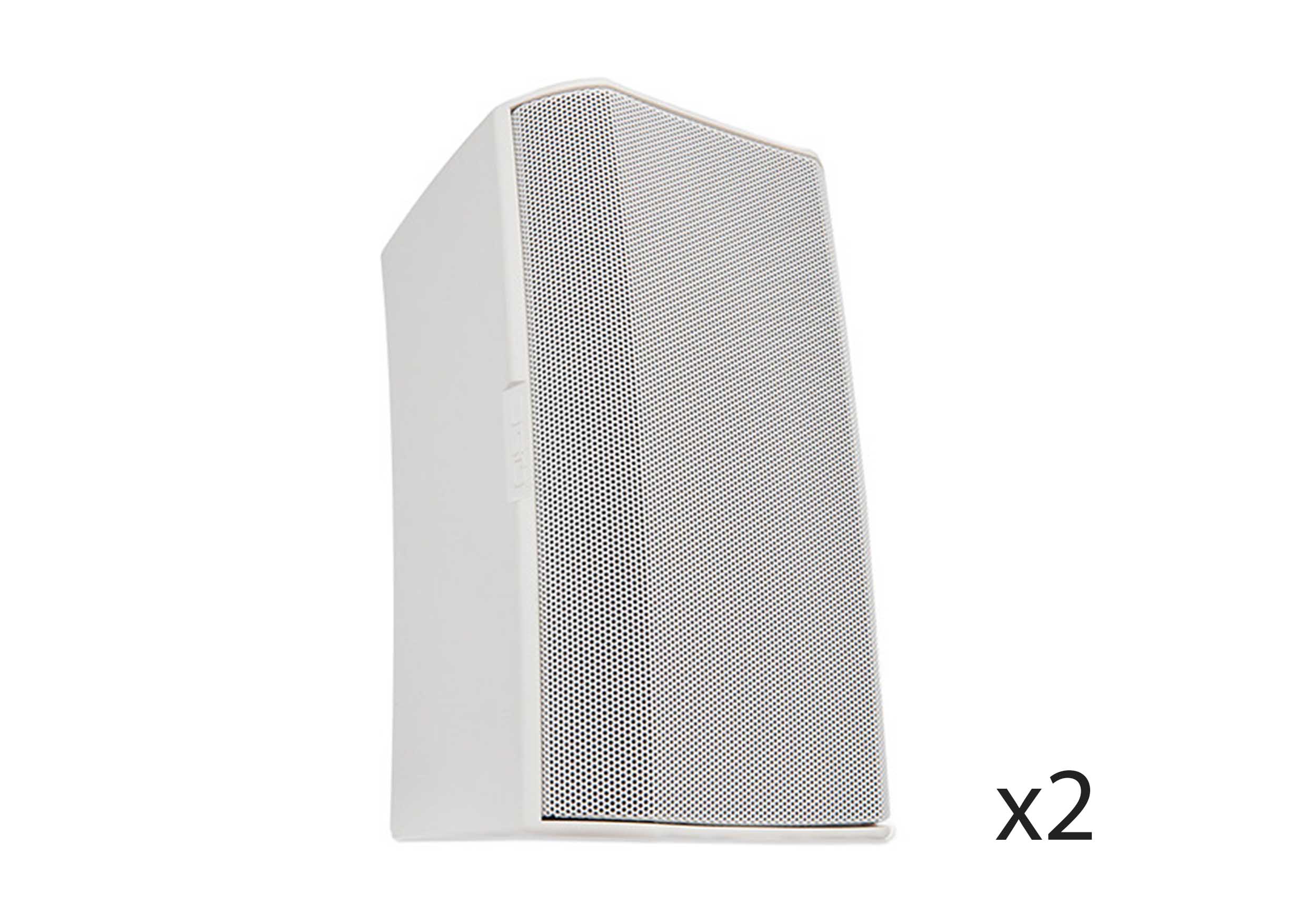

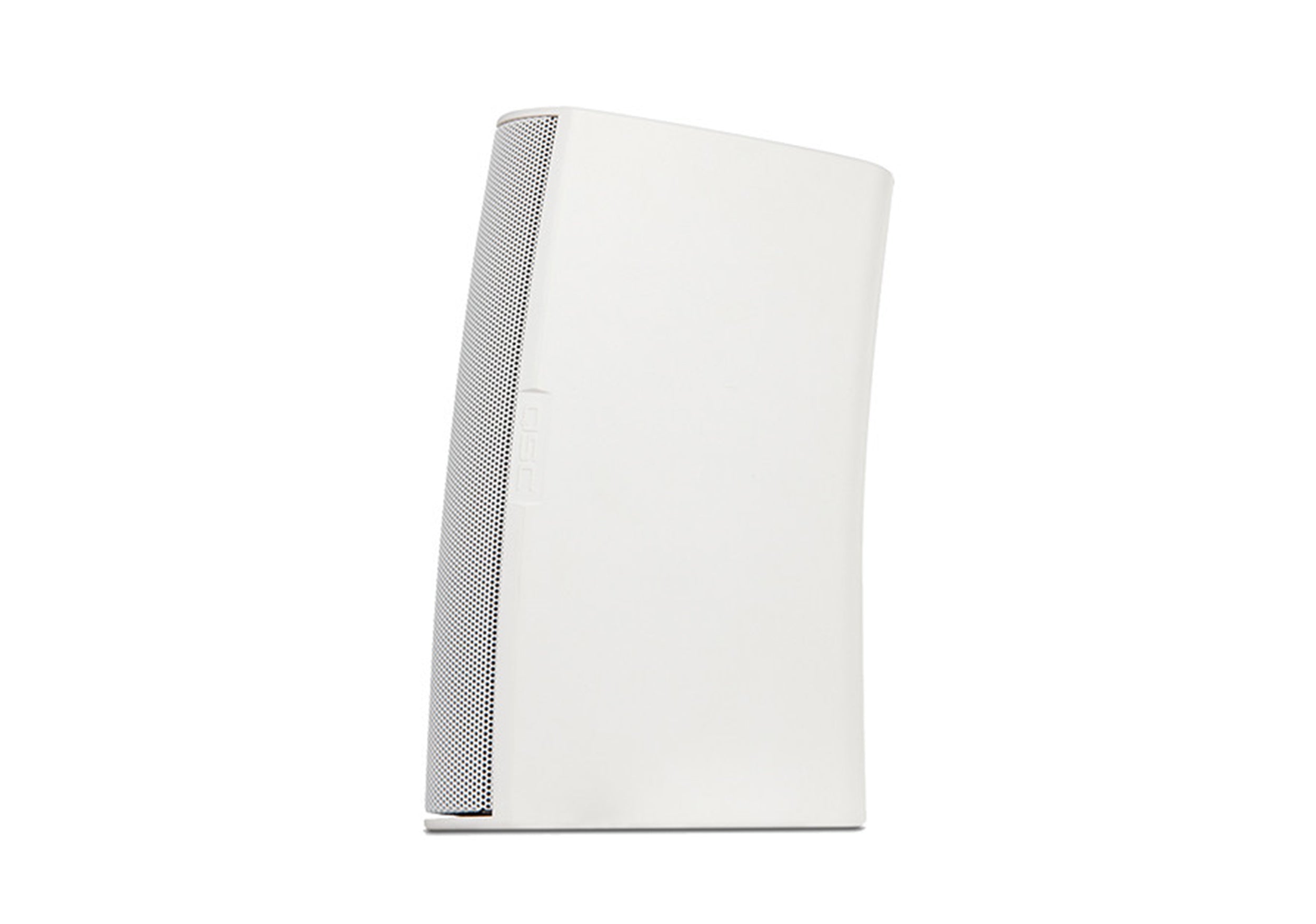

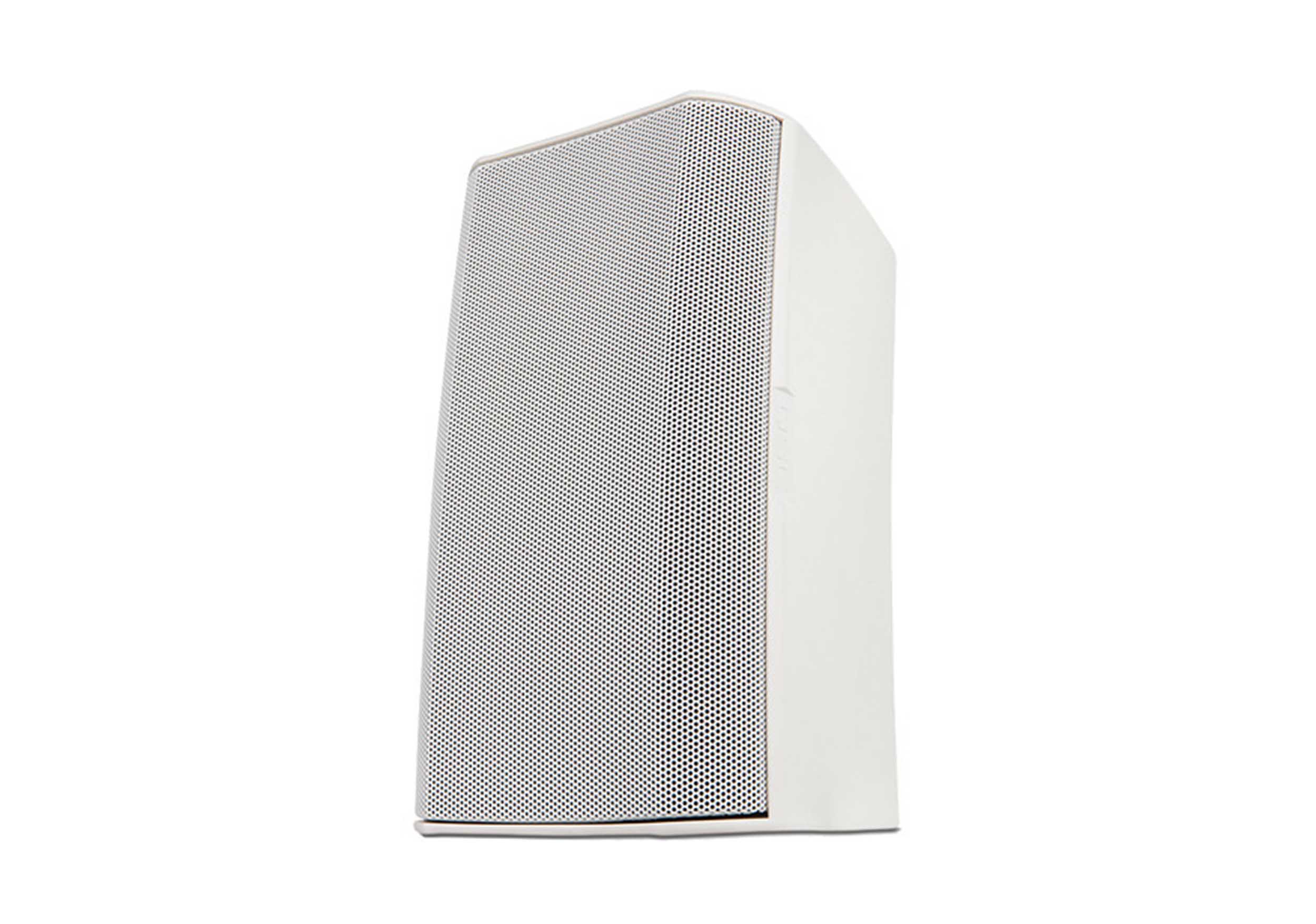

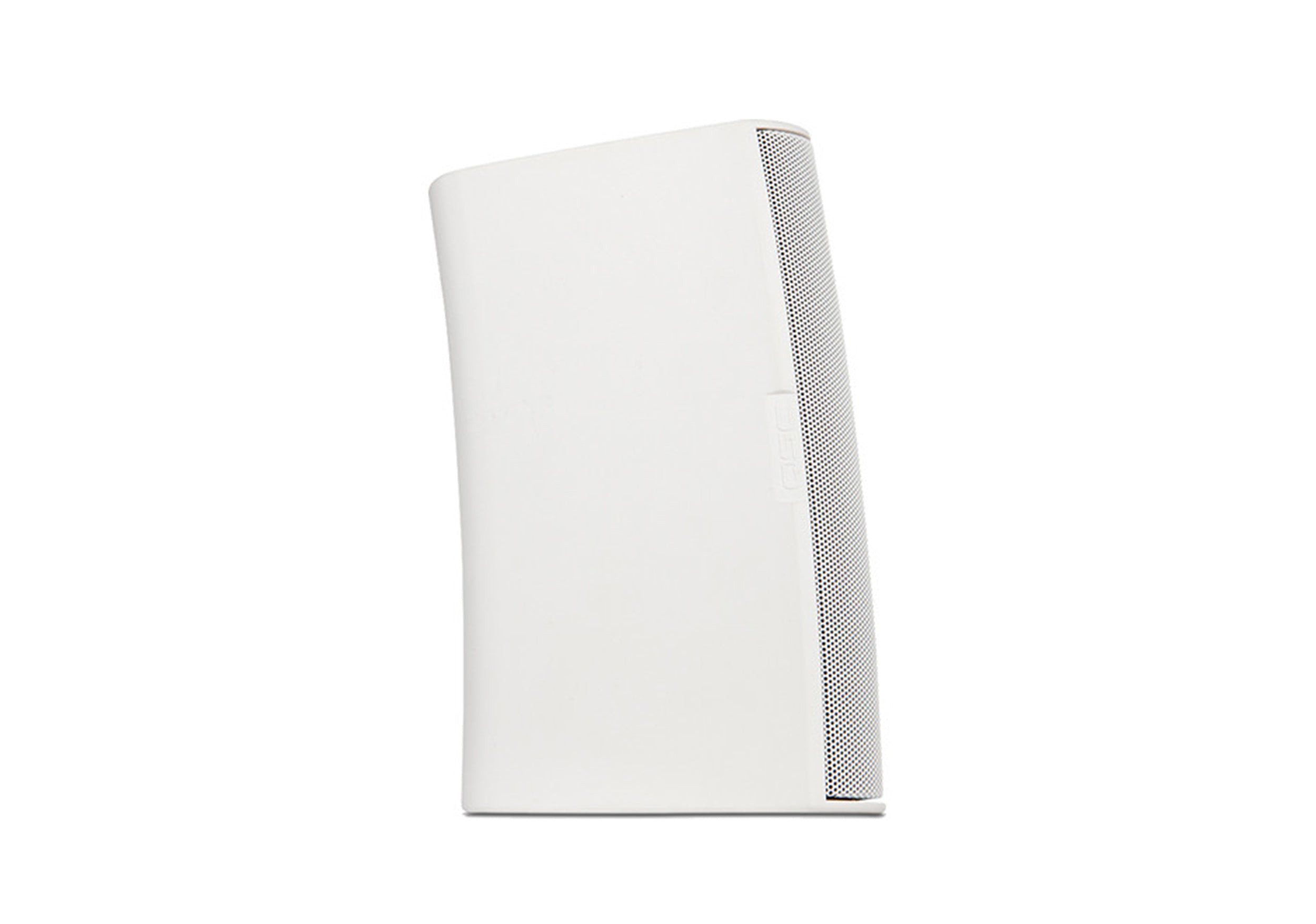

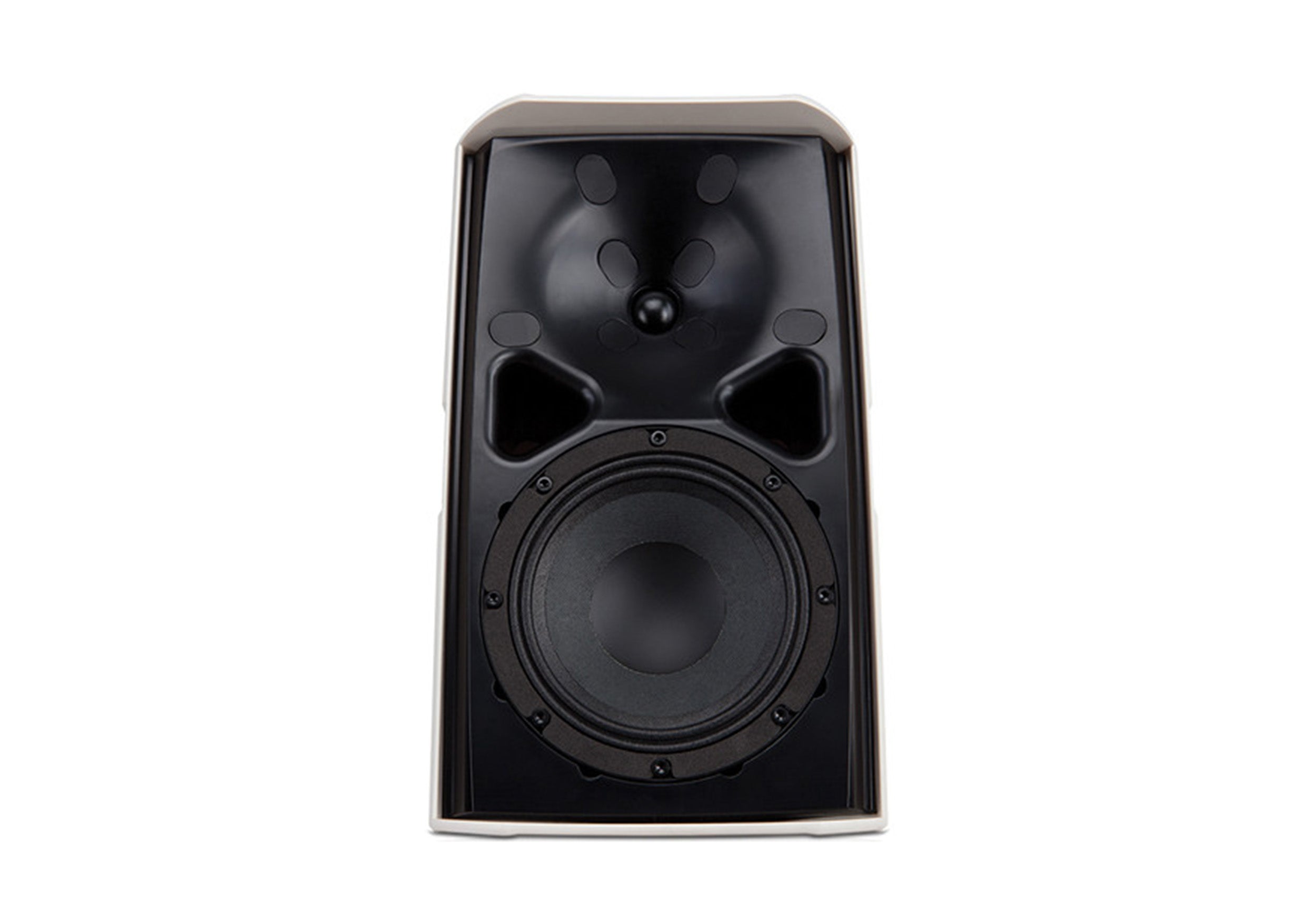

QSC AD-S6T-WH Acoustic Design Series 6.5" 2-Way 150W Surface-Mount - Pair

The QSC AD-S6T-WH Acoustic Design Series 6.5" 2-Way 150W Surface-Mount Loudspeaker - White is a pair of transformer-equipped 6.5" surface-mount loudspeakers supplied with award-winning X-Mount systems, making them suitable for 70/100V or 8-ohm operation in a variety of foreground and background music applications, whether installed in horizontal, vertical, wall, or ceiling deployments.

Outfitted with a 6.5" weather-treated woofer and a 1" silk dome tweeter on a DMT waveguide, the AD-S6T offers even 105° conical coverage and improved off-axis response while providing a frequency range of 60 Hz to 20 kHz (-10 dB). The speaker is capable of handling 150W RMS and producing a peak maximum SPL of 116 dB.

The AD-S6T utilizes a 4-pole Euroblock connector under a sealed input cover for easy wiring and protection from moisture. Featuring a rugged ABS enclosure and a powder coated aluminum grille, the AD-S6T boasts dust and splash resistance beyond IP54 ratings for worry-free operation indoors or outside.

Product Specification:

Active/Passive: Passive

Number of Included Speakers: 2

Speaker Configuration: 2-Way

Power Handling:

For 2 Hours / At Low-Z: 150 W RMS

Recommended Amplifier Power: 300 W

Constant Voltage / Transformer Taps:

70 V: 60 / 30 / 15 / 7.5 W or 8 Ohms Bypass

100 V: 60 / 30 / 15 W or 8 Ohms Bypass

Impedance: 8 Ohms (Transformer Bypassed)

Transformer Wattage: 60 W

Enclosure Type: Sealed

Shielded: No

Drivers:

HF Driver: 1x 1" / 2.54 cm Horn-Loaded Silk Dome Tweeter

HF Voice Coil: 1" / 2.54 cm

LF Driver: 1x 6.5" / 16.51 cm Paper Woofer

LF Voice Coil: 1.5" / 3.81 cm

Performance:

Frequency Range: 60 Hz to 20 kHz -10 dB

Maximum SPL:

110 dB (Continuous)

116 dB (Peak)

Sensitivity: 89 dB SPL

Coverage Angle: 105° (Conical)

Directivity:

5 (Directivity/Q Factor)

7 dB (Directivity Index)

Maximum Input Voltage: 35 V RMS

Connectivity:

Inputs/Outputs: 1x Block 4-Pole Speaker Input/Thru (Removable)

Operating Conditions: -4 to 122°F / -20 to 50°C

Mounting: 1x Bracket Point (Rear)

Construction Material: ABS, Aluminum Grille, Polymer

Color: White

Dimensions: 14.4 x 8.5 x 8.5" / 36.58 x 21.59 x 21.59 cm

Product Weight: 13.6 lbs. / 6.2 kg (Each Speaker)

Shipping Weight: 33 lbs.

Shipping Dimensions (LxWxH): 20 x 12 x 12 Inches
