Description

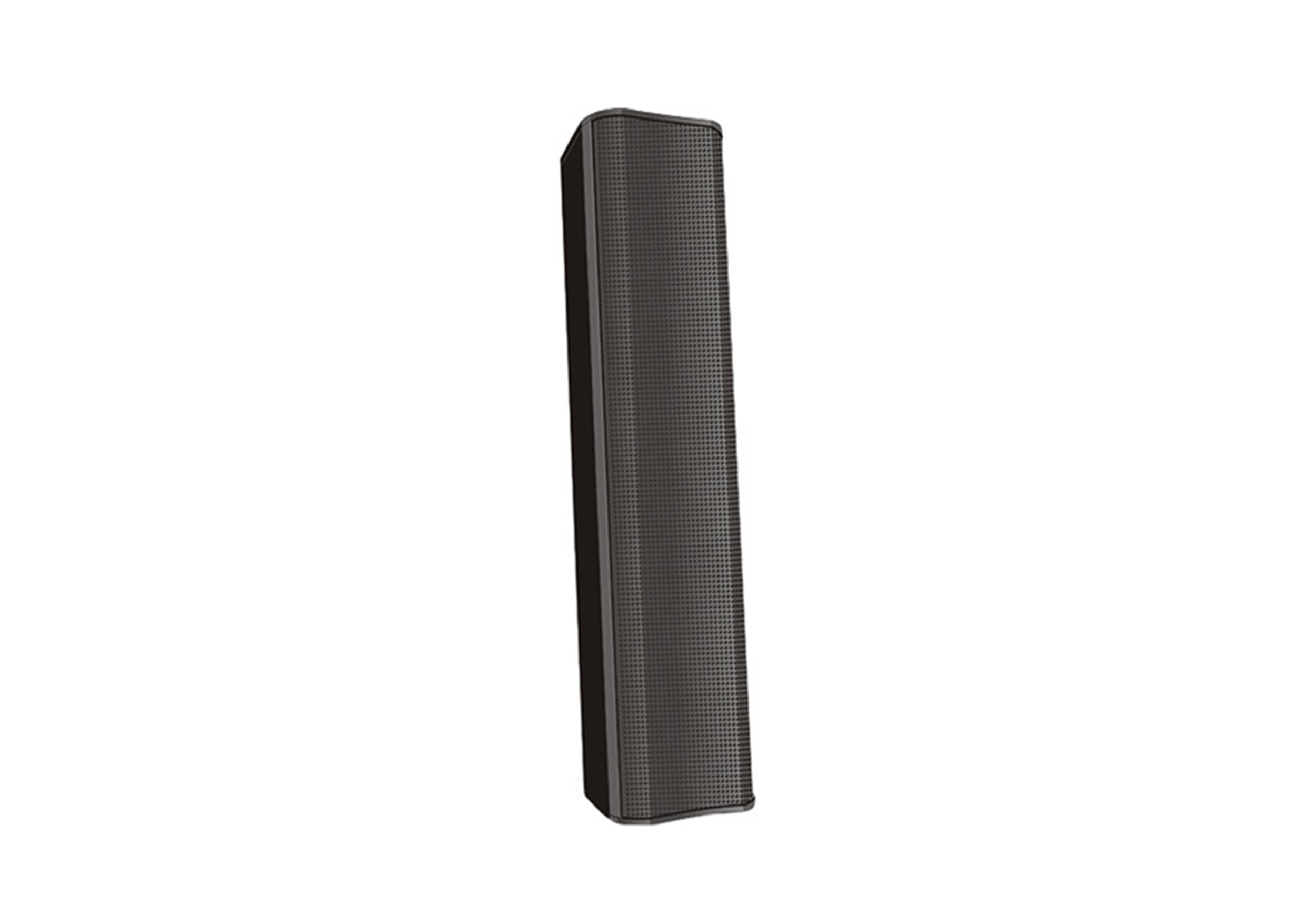

The QSC AD-S802T-BK Column Surface-Mount 8-Driver Loudspeaker - Black is capable of 70V/100V or 8-ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.
Item Includes:
1x QSC AD-S802T Column Surface-Mount 8-Driver Loudspeaker - 70V/100V or 8 Ohm Bypass Loads - Black - Each
1x Sealed input cover plate with gland nut
1x Quick Hang Pan/Tilt wall bracket
1x Shoulder eyebolt safety tether anchor
Product Specifications:
Transducer: (x8) 2.75 in (69.8 mm) weather treated paper cone woofer
Effective Frequency Range: 90 Hz - 17 kHz
Rated Noise Power / Voltage: 120 watts / 31 volts (rms)
Sensitivity [dB]: Rated @1W, 1m 2, 3, 4, 8: 87, EN54-24 @1W, 4m 9: TBD
Directivity Factor: TBD
Directivity Index [dB]: 12
Recommended Amplifier: 120 watts
Transformer Taps / Impedance:
Bypass: 8Ω
7.5W (70V); 15W (100V) Tap: 666Ω
15W (70V); 30W (100V) Tap: 333Ω
30W (70V); 60W (100V) Tap: 167Ω
60W (70V); N/A (100V) Tap: 83Ω
Input Connector Type: Euroblock connector with parallel output
Enclosure Material: Powder coated aluminum
Grille Material: Powder coated aluminum
Ingress Protection: IP-54
Operating Environment: Designed for indoor or outdoor use
Operating Temperature Range: -4 to 122° F (-20 to 50° C)
Net Weight: 13.7 lb (6.2 kg)
Product Dimensions (H x W x D): 23.4 x 5.2 x 5-inch (595 x 131 x 126 mm)
Shipping Weight: 19.4 lb (8.8 kg)
Shipping Dimensions (H x W x D): 12.3 x 9.9 x 32.4-inch (312 x 251 x 823 mm)
