Description

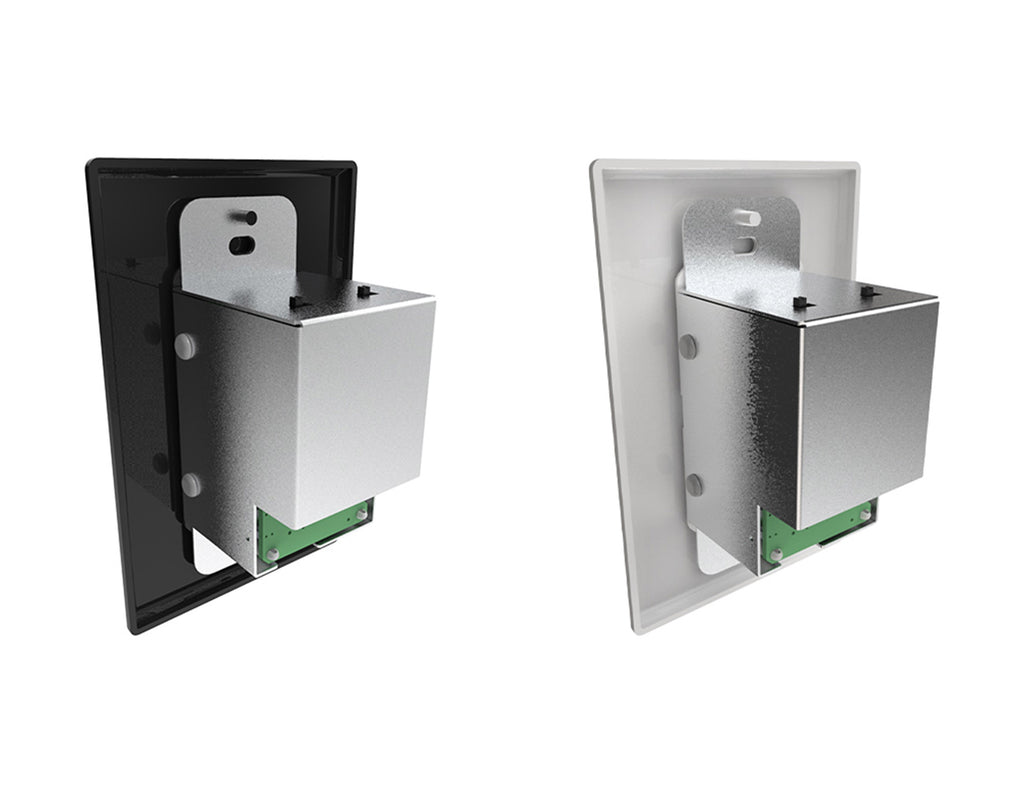

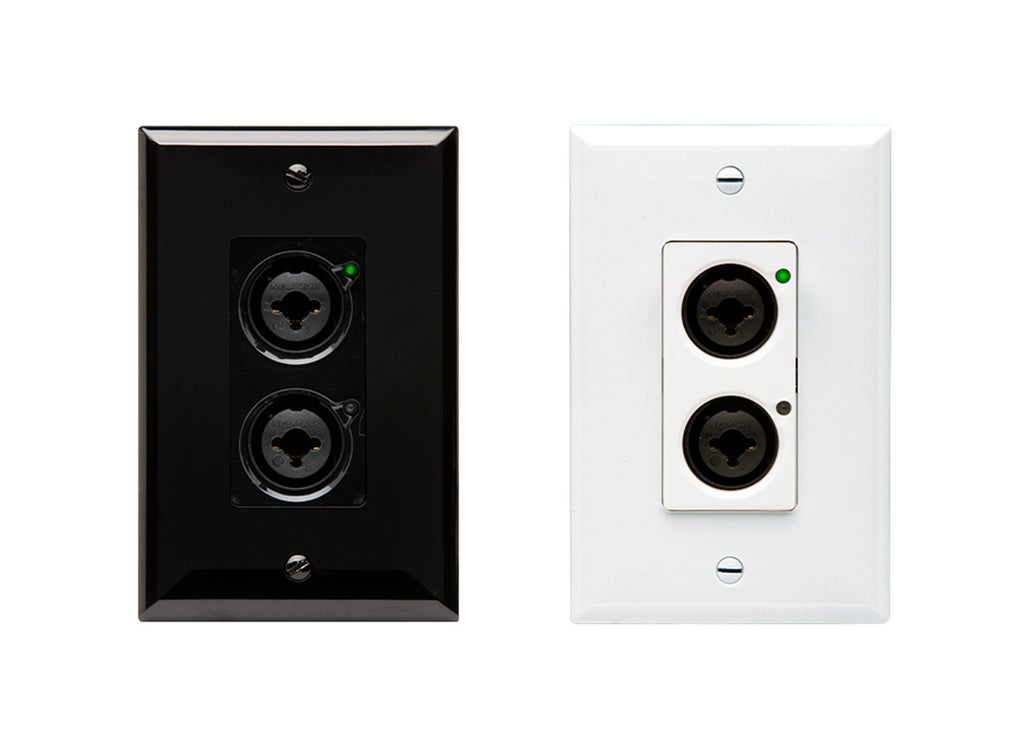

The QSC D2i Axon Dante /AES67 Network Audio Interface is a single-gang, Dante/AES67 network audio I/O wall plate for network AV systems, including Q-SYS. With two balanced mic/line inputs in a cost-effective form-factor, it provides easy integration of analog devices into a wide range of network audio applications. A Q-SYS Extension further simplifies integration, letting integrators quickly add the Axon D2i to Q-SYS installations without the need for any programming.
Product Specifications:
Input type: Combination XLR/TRS balanced mic/line connector
Frequency response: 20 to 20 kHz, ± 1 dB at all attenuation settings
Physical layer: Analog audio, RS-232 control, 24 V DC power
Connector: 8P8C
Connector: RJ-45
Transmission speed: 100 Mbps
Supported bit rates: 16, 24
PoE power: 802.3af Class 0
Decora wall plate (1-gang): 4.87 x 3.12 x 0.08”
Dimensions (H x W x D): 4.2 x 1.7 x 2.1 Inches
Weight: 0.33 lbs. (0.15 kg)
