Description

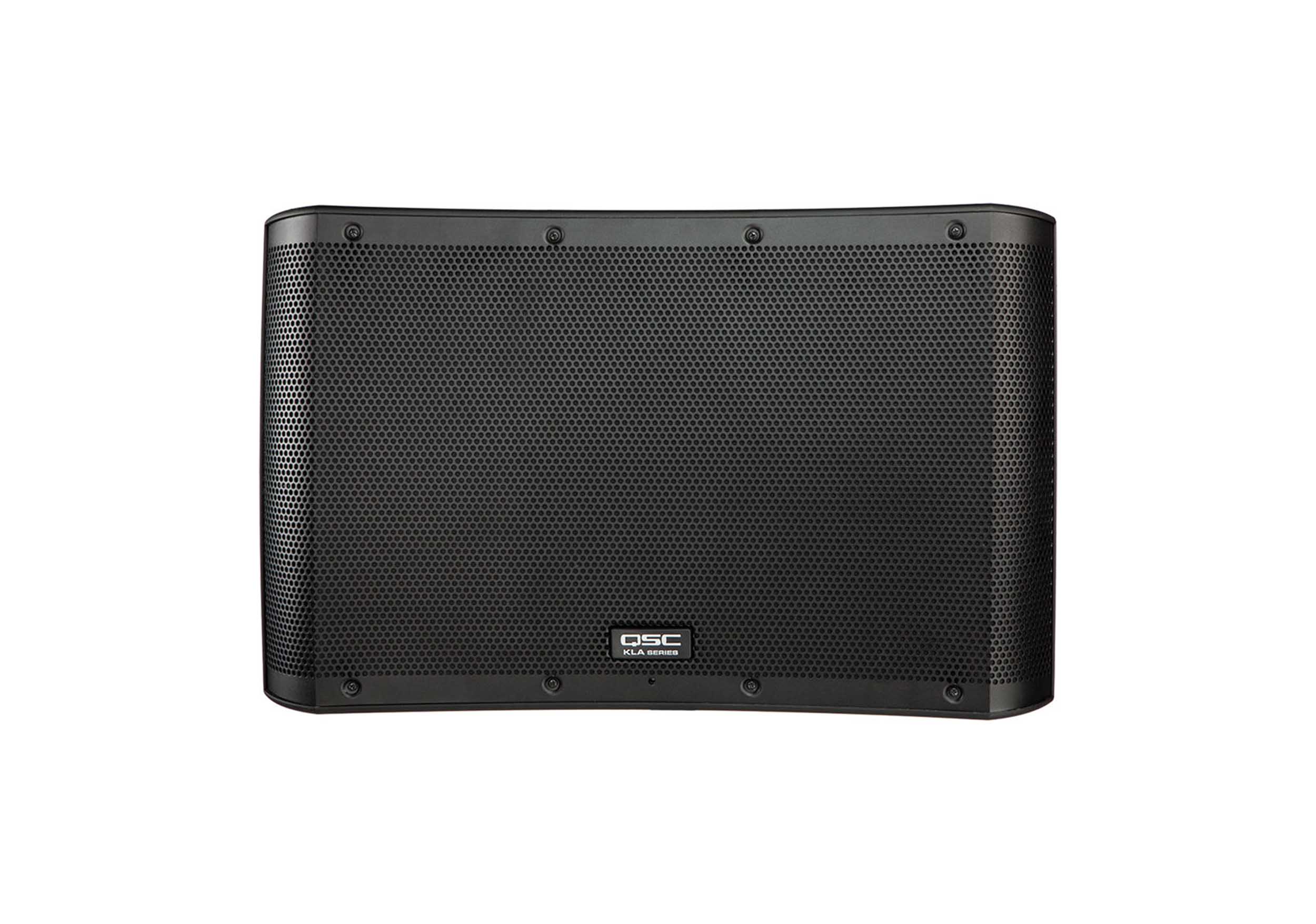

The QSC KLA12 array allows for greater coverage in medium to large sized venues. Combine 3 KLA12's per side with subs for loud clean powerful sound system. We can help you get all of the cables and frames you'll need to set these up. Chat or call anytime.
The QSC KLA12-BK speaker has QSC's DEEP DSP algorithm, which provides extended bass by actively managing low-frequency transients. GuardRail protection circuitry prevents the amplifier module from unnatural and destructive clipping. An auto-standby mode will auto-engage after 5 minutes of inactivity to save energy. XLR and PowerCon input and thru connectors provide connection versatility, while a Phoenix connector allows daisy-chaining.
The speaker is expressly designed for use in fixed arcuate line arrays, and has a 12:1 design factor with a 90 x 18° coverage pattern, allowing up to 5 units to be configured for 90 x 90° coverage. Most other systems require 6 units for the same coverage pattern. The KLA12's SOLO (Single-Operator Logistics) Rigging System allows you to easily assemble and disassemble the line array in a short amount of time without special tools or external hardware.
Ar-Q (Arcuate Equalization) processing enables you to quickly tune the array, making appropriate adjustments based on the number of boxes in your array. By simply using a dial, you can choose the total number of boxes for a balanced and accurate tonal curve. Proprietary Intrinsic Correction technology adjusts the time, frequency, and amplitude response for a flat bandpass target.

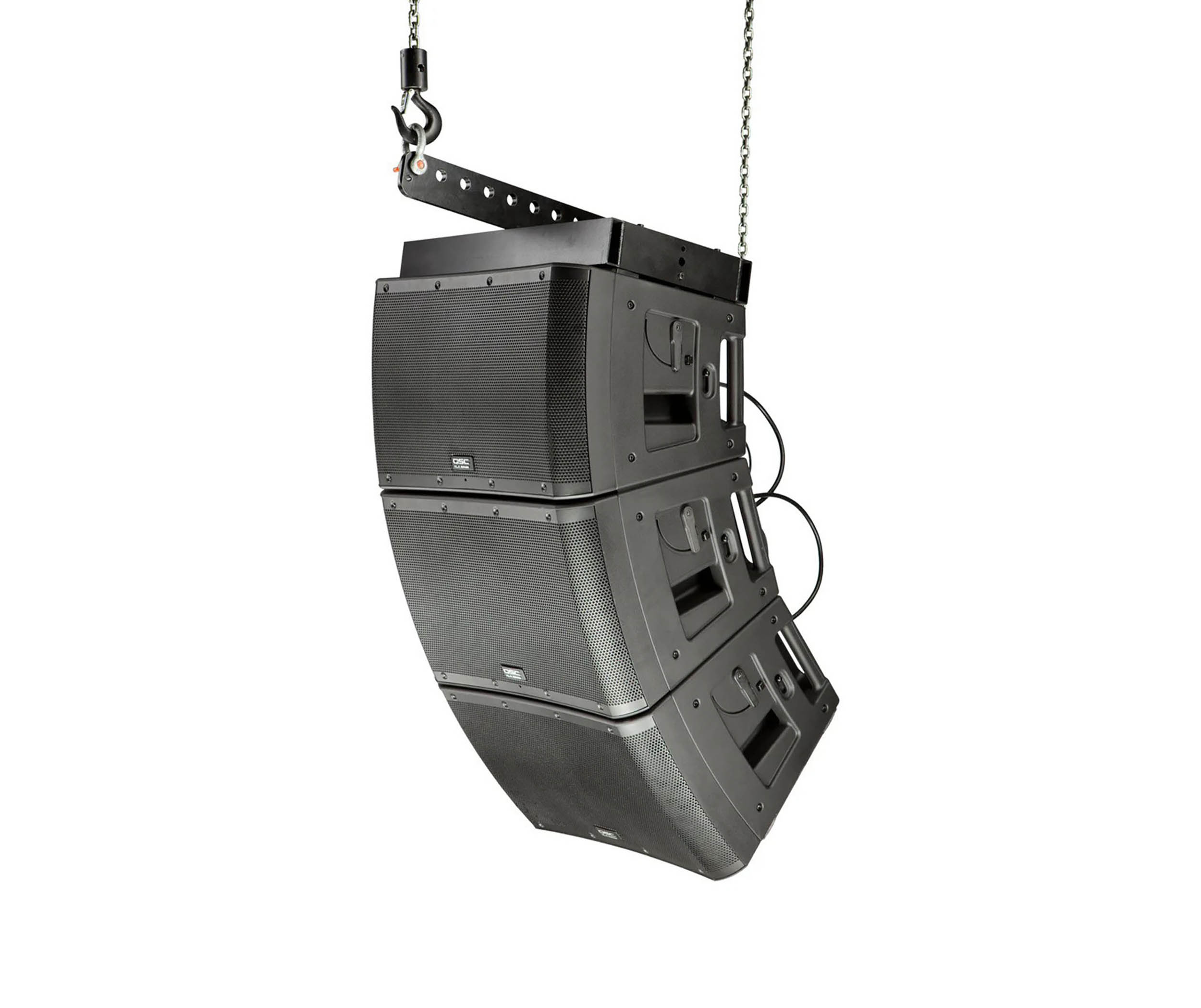

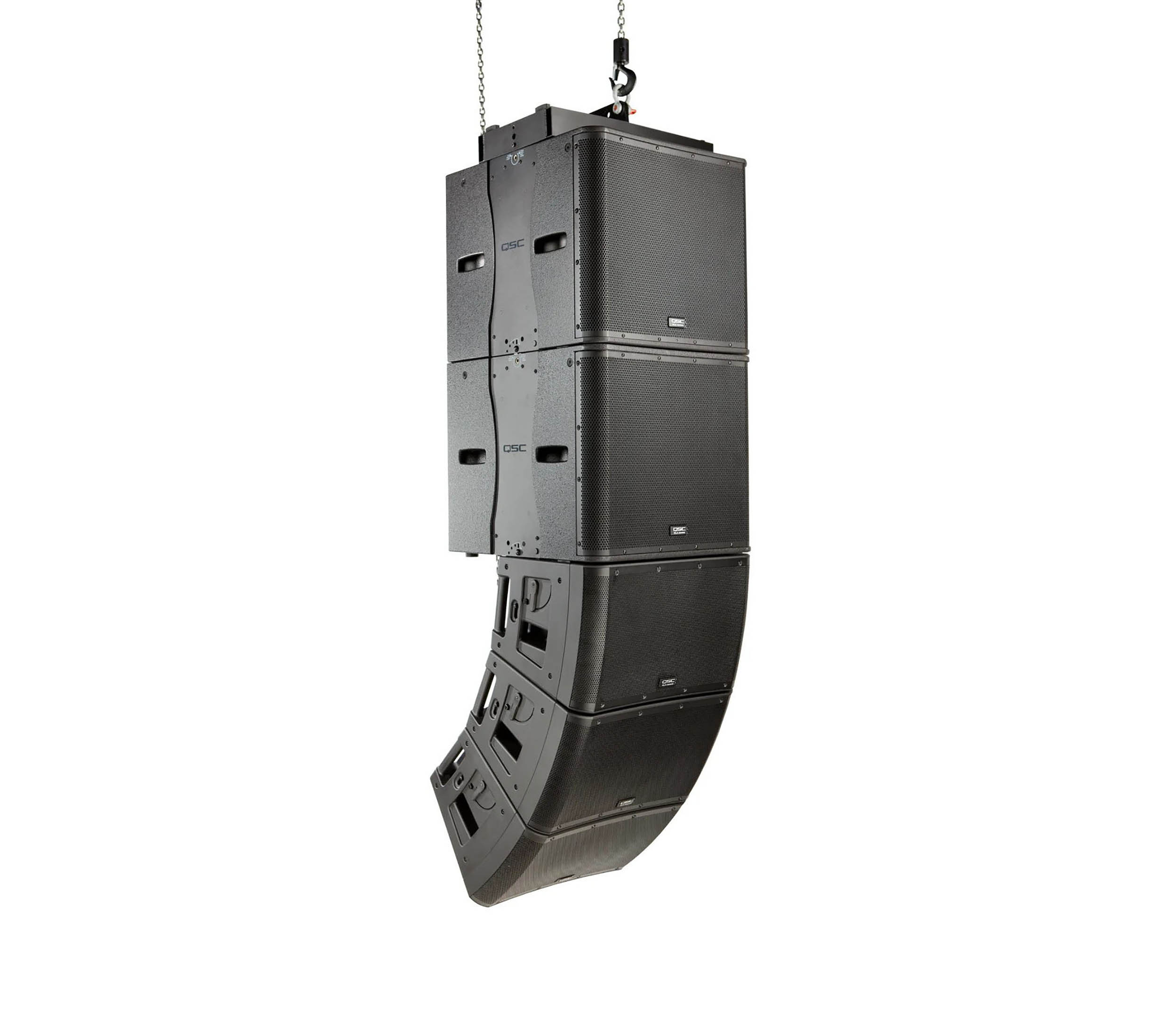

Up to 2 loudspeakers can be mounted on a stand or over a sub for a ground stack, thanks to a threaded Tilt-Direct 35mm pole socket. The socket also allows you to aim the speaker 9° downward for the best audience coverage. M10 fittings in the top of the enclosure allow up to 5 units to be flown in a suspended rig. An optional array frame is also available separately for additional mounting options.
ABS Enclosure

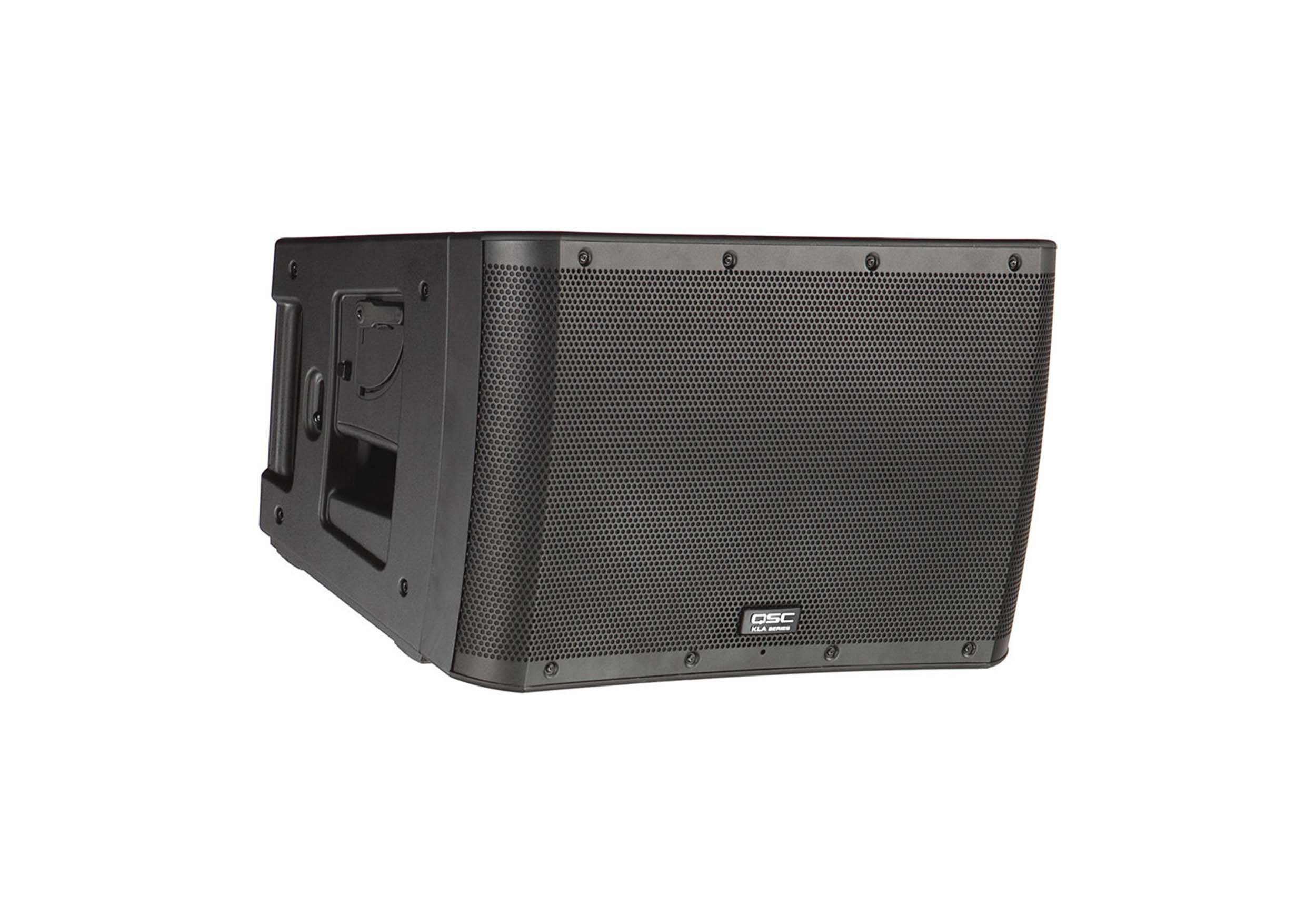

The rugged ABS plastic enclosure provides lasting durability in a lightweight package
High-Quality Drivers

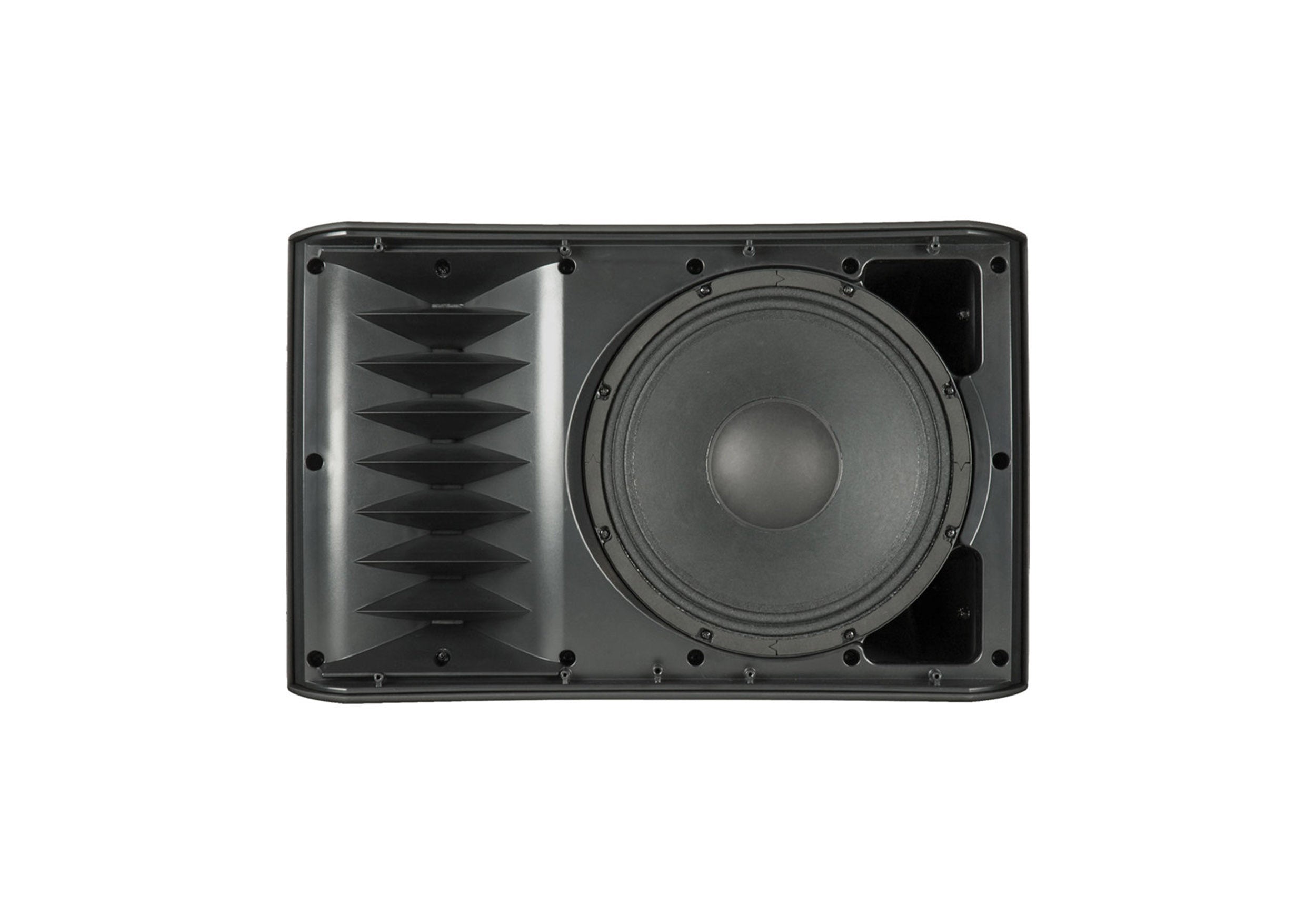

The 12" woofer and 1.75" compression tweeter provide crisp, detailed sound reproduction with a wide frequency response
Internal Power Module
The efficient 500W x 500W power amp module provides clear, strong audio. The efficient design allows up to 5 KLA models to be driven from a single 120VAC 15 amp electrical circuit
DEEP DSP
QSC's DEEP DSP algorithm provides extended bass by actively managing low-frequency transients
Protection
GuardRail protection circuitry prevents the amplifier module from unnatural and destructive clipping
Energy Saving
An auto-standby mode will auto-engage after 5 minutes of inactivity to save energy. When the audio signal resumes, the power module will awaken instantly
Connectivity

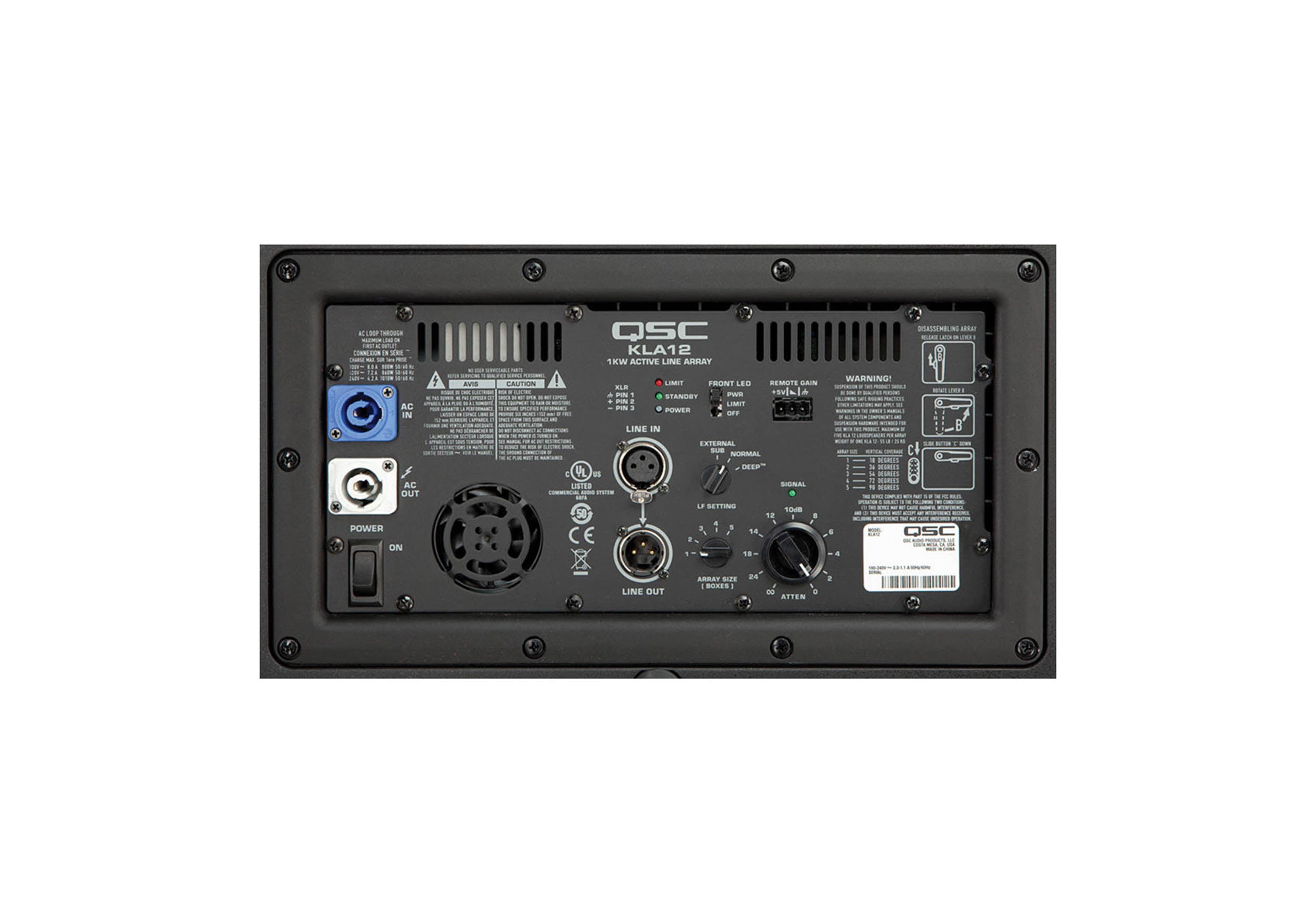

XLR and PowerCon input and thru connectors provide connection versatility, while a Phoenix connector allows daisy-chaining
Wide Coverage
The speaker is expressly designed for use in fixed arcuate line arrays, and has a 12:1 design factor with a 90 x 18° coverage pattern, allowing up to 5 units to be configured for 90 x 90° coverage. Most other systems require 6 units for the same coverage pattern
Easy Rigging

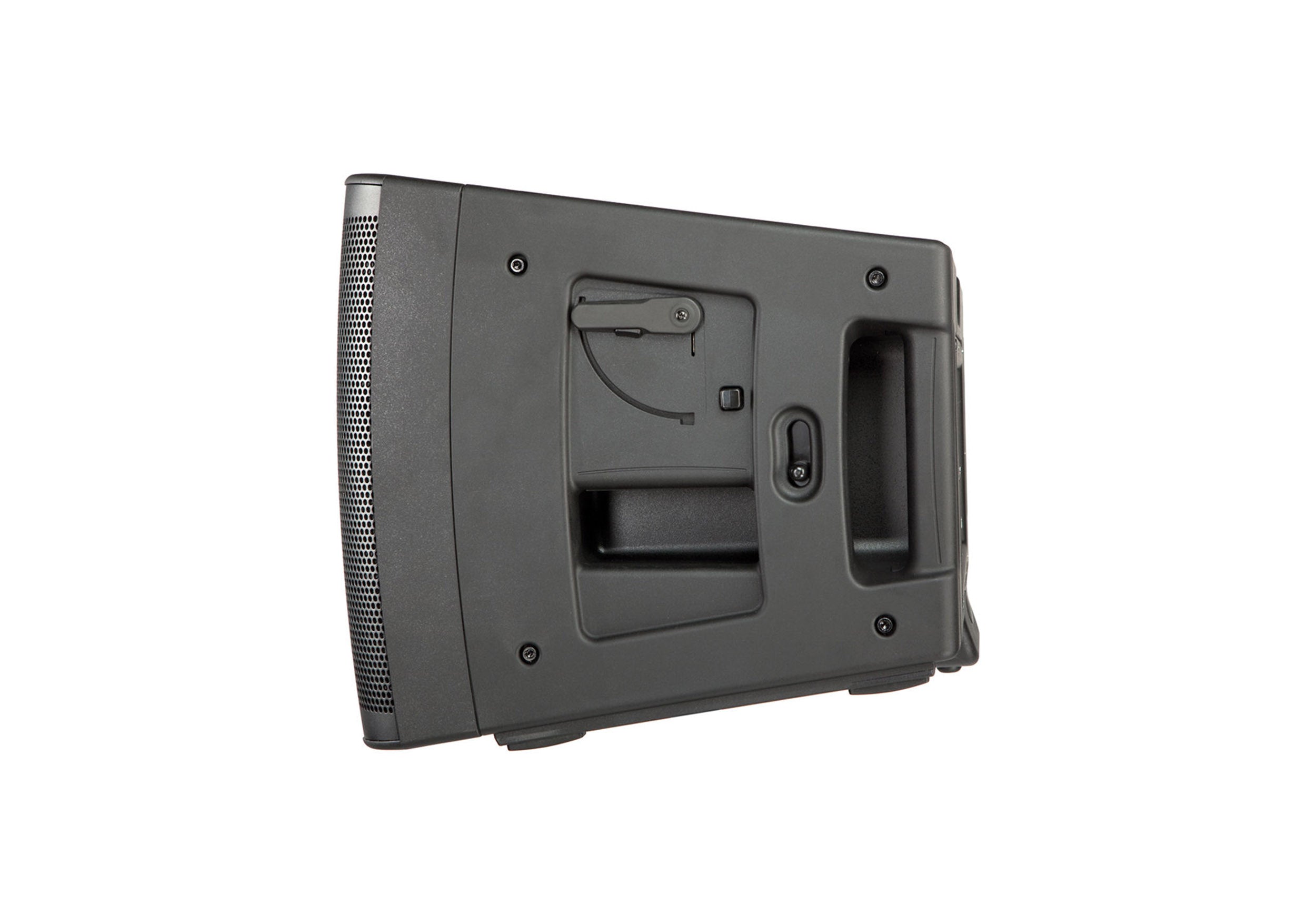

The SOLO (Single-Operator Logistics) Rigging System allows you to easily assemble and disassemble the line array in a short amount of time without special tools or external hardware
Ar-Q Processing
Ar-Q (Arcuate Equalization) processing enables you to quickly tune the array, making appropriate adjustments based on the number of boxes in your array. By simply using a dial, you can choose the total number of boxes for a balanced and accurate tonal curve. Proprietary Intrinsic Correction technology adjusts the time, frequency, and amplitude response for a flat bandpass target
Mounting Options
Up to 2 loudspeakers can be mounted on a stand or over a sub for a ground stack, thanks to a threaded Tilt-Direct 35mm pole socket. The socket also allows you to aim the speaker 9° downward for the best audience coverage. M10 fittings in the top of the enclosure allow up to 5 units to be flown in a suspended rig. An optional array frame is also available separately for additional mounting options
Product Specification:
Configuration: Active 2-Way
Total Power Capacity: 1000 W
Amplifier Power Rating LF: 500 W HF, 500 W
Amplifier Class: Class-D
HF Driver: 1 x 1.75" / 44 mm Compression Driver
LF Driver: 1 x 12" / 305 mm Woofer
Frequency Range: 44 Hz to 20 kHz -10 dB
Frequency Response: 49 Hz to 18 kHz -6 dB
Maximum SPL: 128 dB (Peak)
Coverage Angle: 90° H x 18° V
I/O Impedance: XLR Input 40 Kilohms, (Balanced) 20 Kilohms (Unbalanced)
Protections: Excursion, Overcurrent, Thermal
Audio I/O: 1 x XLR 3-Pin Line Input, 1 x XLR 3-Pin Line Output, 1 x Euroblock 3-Pin Remote Input
AC Input Power: 100 to 240 VAC, 50 / 60 Hz,
AC Power Connector: 1 x powerCON Input, 1 x powerCON Output
Current Consumption: 100 VAC:, 2.3 A (1/8 Power), 120 VAC, 2.01 A (1/8 Power), 230 VAC:, 1.13 A (1/8 Power)
Cooling: Fan (Variable Speed)
Construction Material: ABS, Metal Grille
Dimensions: 15 x 23.4 x 16.6" / 382 x 594 x 422 mm
Shipping Dimensions: 26 x 21 x 18"
Weight: 54 lb / 25 kg
Shipping Weight: 66.5 lb
