Description

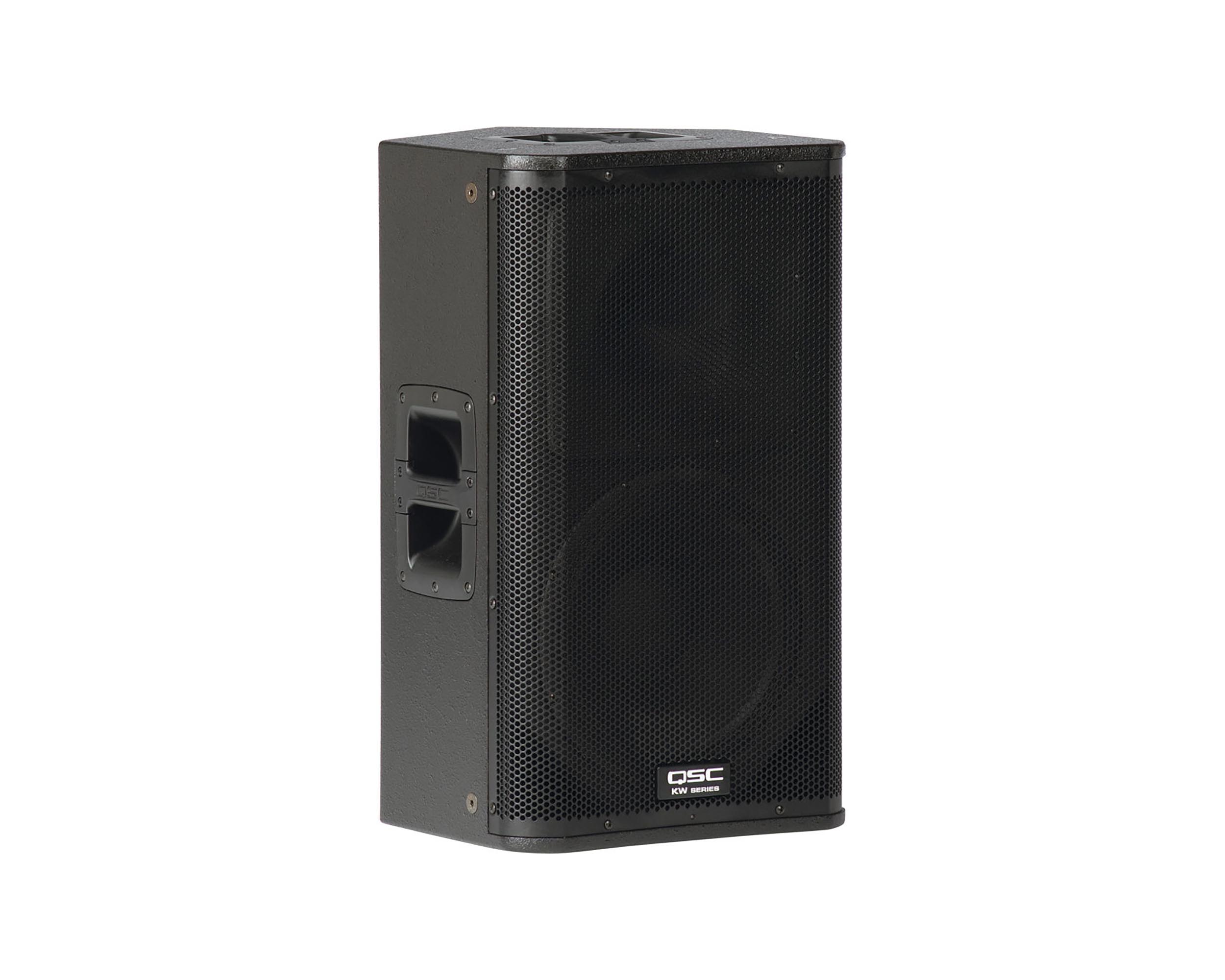

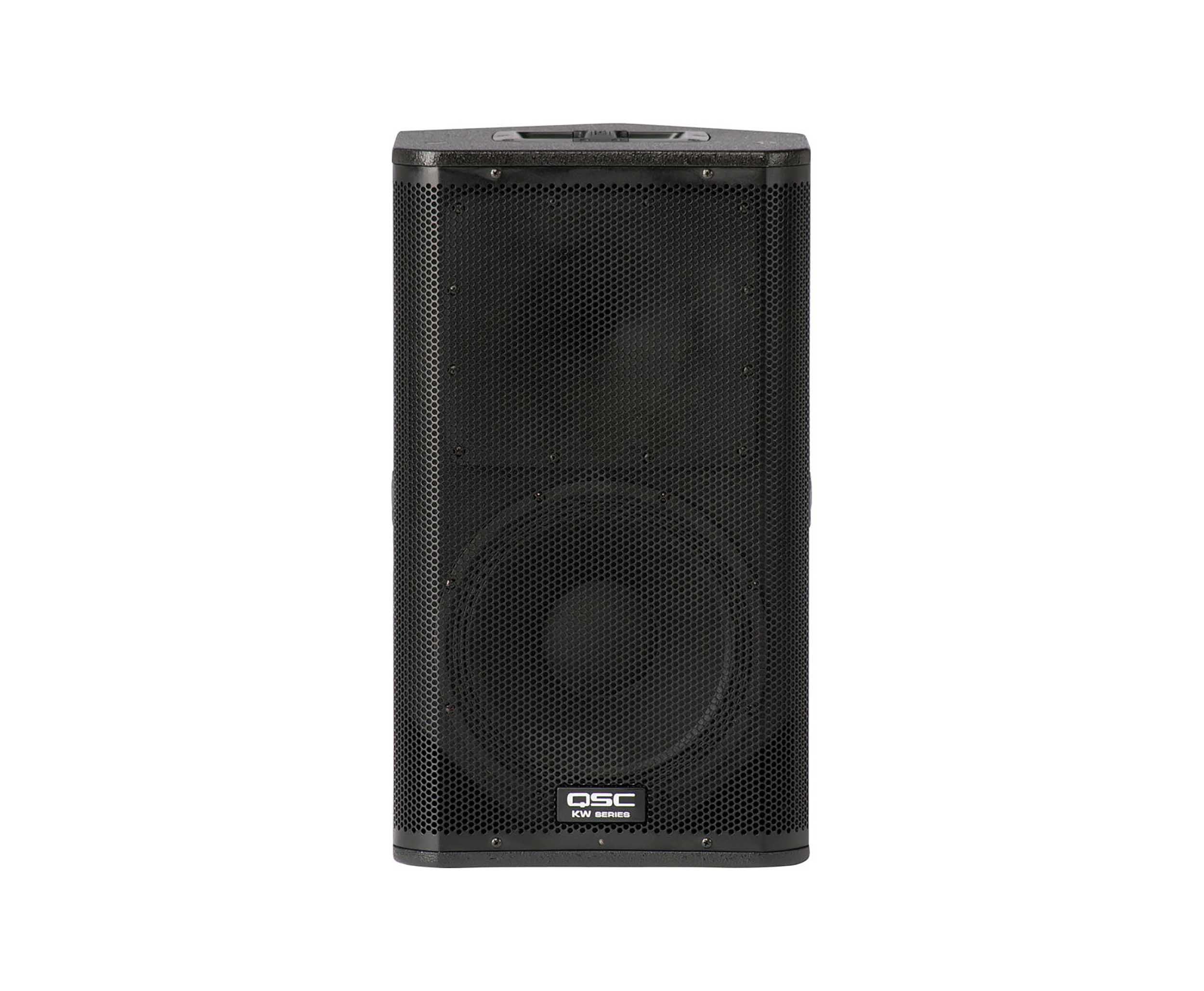

The KW122 from QSC is a professional-quality active 2-way PA loudspeaker that can also be used as a stage monitor speaker. Ideal for music and speech applications, the lightweight and rugged birch cabinet houses a 12" woofer and a 1.75" compression tweeter to deliver crisp, natural audio with a wide frequency response. A pair of efficient Class-D amplifiers provide a combined power of 1000W for strong audio with low distortion. Directivity Matched Transition technology provides matched low and high frequency coverage across your entire listening area to eliminate dead and hot zones.
The speaker offers excellent connectivity, with XLR/TRS combo inputs and line-level RCA inputs for accepting a variety of sound sources. Up to 3 audio sources can be mixed internally and sent to the outputs. Direct XLR outputs are provided for each channel, as well as a mix output for daisy-chaining. Extensive internal DSP includes Intrinsic Correction, DEEP, and Guard Rail technologies to provide terrific sonic clarity and component protection for reliable operation.
Onboard control options allow you to adjust EQ to perfectly match your surroundings and applications. You can also use the rear-panel Phoenix connector to connect an external potentiometer (not included) for remote gain control. The speaker has a standard 35mm pole socket with Tilt-Direct technology. This technology lets you simply turn a dial to give the speaker a 7.5° downward tilt to maintain maximum coverage from high mounting positions. The cabinet has integrated M10 suspension points for easy installation as well as ergonomic cast-aluminum handles for easy transport.
Product Specifications:
PA Speaker:
Configuration: Active 2-Way
Total Power Capacity:
1000 W RMS
2000 W Peak
Amplifier Class: Class-D
Drivers:
HF Driver: 1 x 1.75" / 44 mm Compression Driver
LF Driver: 1x 12" / 305 mm Woofer
Performance:
Frequency Response:
53 Hz to 18 kHz -6 dB
50 Hz to 20 kHz -10 dB
Maximum SPL: 131 dB (Peak)
Coverage Angle: 75° H x 75° V
Gain Range: 36 dB
I/O Impedance:
Mic Input:
38 Kilohms (Balanced)
19 Kilohms (Unbalanced, Unity Gain)
RCA Input:
10 Kilohms
Protections: Excursion, Overcurrent, Thermal
Connectivity:
Audio I/O:
2x Combo XLR-1/4" TRS Mic/Line Input
1x Stereo RCA Line Input
2x XLR 3-Pin Line Output
1x XLR 3-Pin Mix Output
1x Block Remote Input
Power:
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
AC Power I/O: 1x IEC (Locking)
Current Consumption:
100 VAC: 2.3 A
120 VAC: 2.01 A
230 VAC: 1.13 A
Physical:
Cooling: Fan (Variable Speed)
Construction Material: Metal Grille, Plywood
Dimensions: 26 x 15 x 15.4" / 660 x 381 x 391 mm
Weight: 49 lb / 22.2 kg
Shipping Weight: 64.8 lbs.
Shipping Dimensions (LxWxH): 28 x 21 x 20.5 Inches
