Description

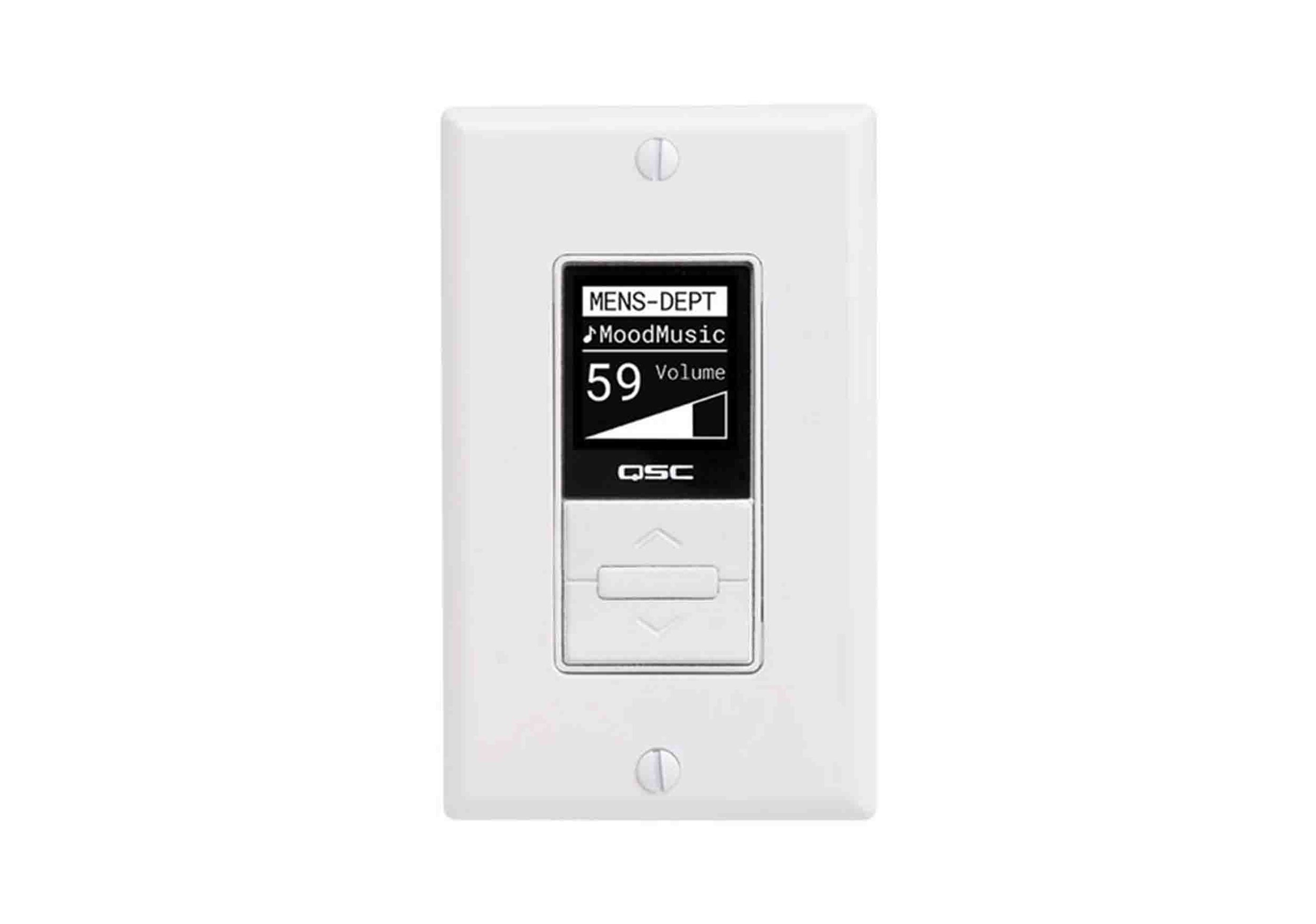

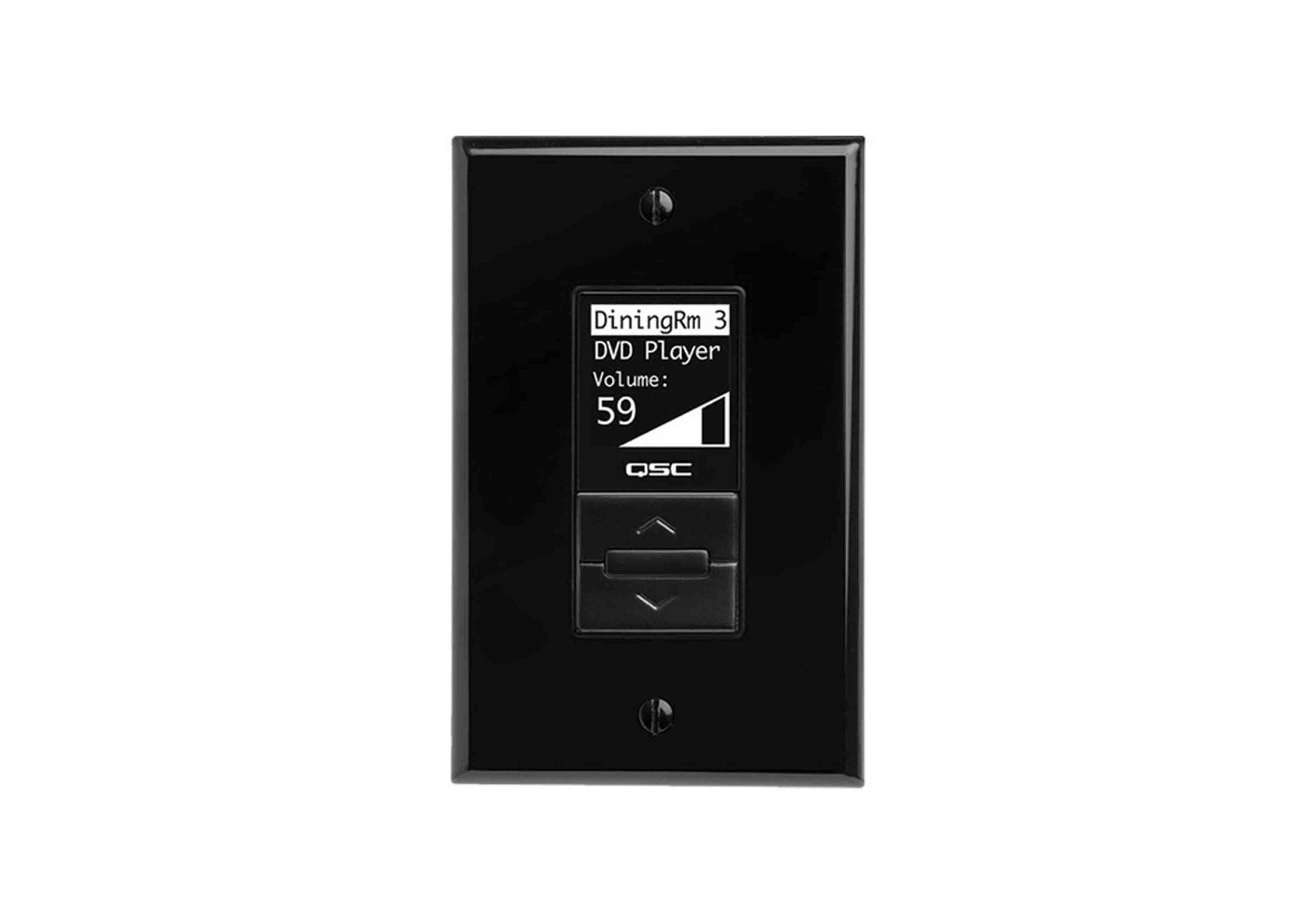

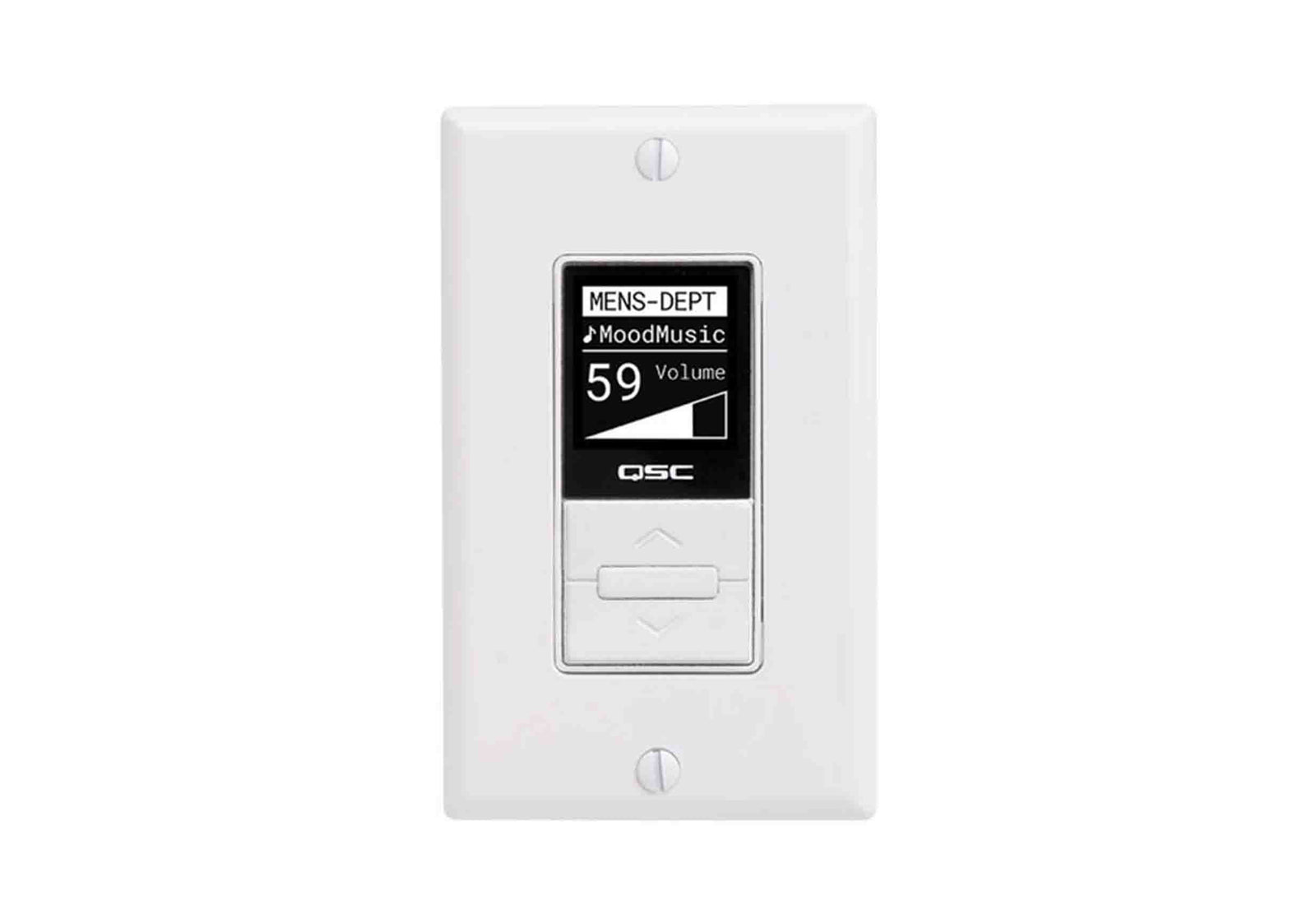

The QSC MP-MFC Decora-Style Wall Controller for MP-M Series Mixers is an elegant, Decora-style wall mount controller for use with MP-M Series music and paging mixers. Its intuitive system control allows designers to configure with as much or as little control over the system as needed.
Setup is simple with the use of the free MP Install app for Android/iOS, Mac, and Windows computers. Control source selection and volume for a zone as well as recalling scenes. The MP-MFC controller features three large buttons (increment, decrement, select) as well as a crisp 1.1 x 1" monochrome graphic display, which clearly labels selectable functions and options.
The MP-M Series mixer has two ports for MP-MFC connectivity, each of which can accommodate four daisy-chained MP-MFC controllers with a maximum total cable length of 820 ft per port. Up to eight MP-MFC controllers may be connected to a single MP-M Series mixer using standard Cat 5 (RJ45) cabling.
Product Specifications:
Controls: 3 x Buttons (Increment, Decrement, and Select)
Connectors: 2 x RJ45
Display: 128 x 128 Pixels
Viewing Area (L x W): 1.1 x 1"" / 27 x 26 mm
Maximum Connectable Devices:
Per MFC Port: Daisy-Chain up to 4 MP-MFC Controllers
Maximum Cable Length: 820.2' / 250 m
Total: Up to 8 Controllers per MP-M Series Mixer
Designer: Use MP Install to Customize the Available Control Options per MP-MFC Controller
Product Weight: 0.2 lbs. / 100 g
Product Dimensions: 4.5 x 2.8 x 1.4" / 114.3 x 69.9 x 35.6 mm
Shipping Weight: 0.555 lbs.
Shipping Dimensions (LxWxH): 7.9 x 6 x 2.8 Inches
