Description

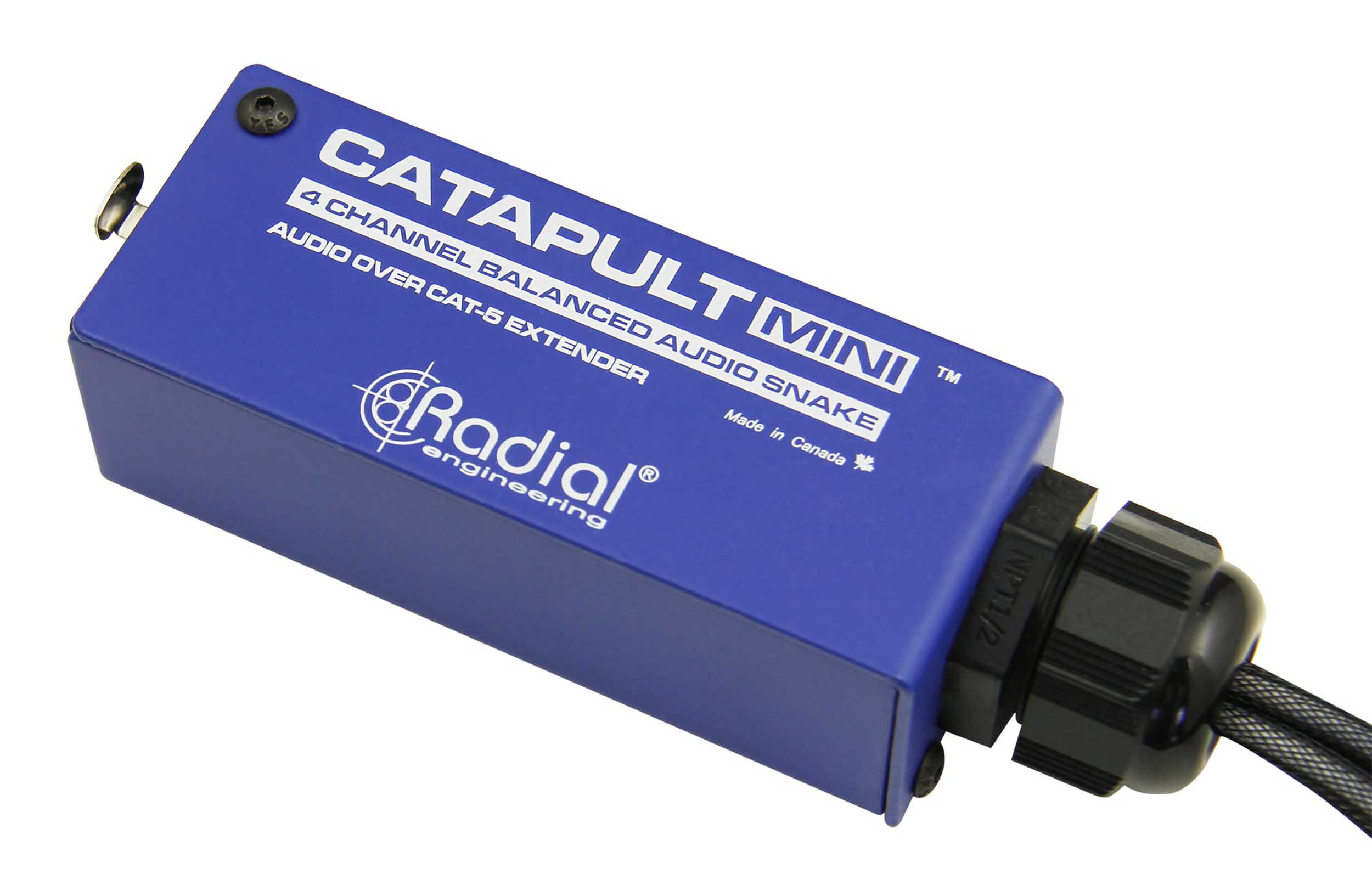

The Radial Engineering Catapult Mini is a compact passive audio snake that allows you to send four channels of analog audio over standard Cat 5 or Cat 6 Ethernet cable. The Catapult Mini System works like a typical four-channel analog audio snake; they allow you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. What makes the Catapult system unique is that it utilizes Cat 5 Ethernet cable, which is widely available, lightweight, and economical. Simply connect a shielded Cat 5 cable between any two Catapult modules and they will use the analog conductors in the cable to deliver four balanced audio lines to any destination.
Straight-wire passive operation

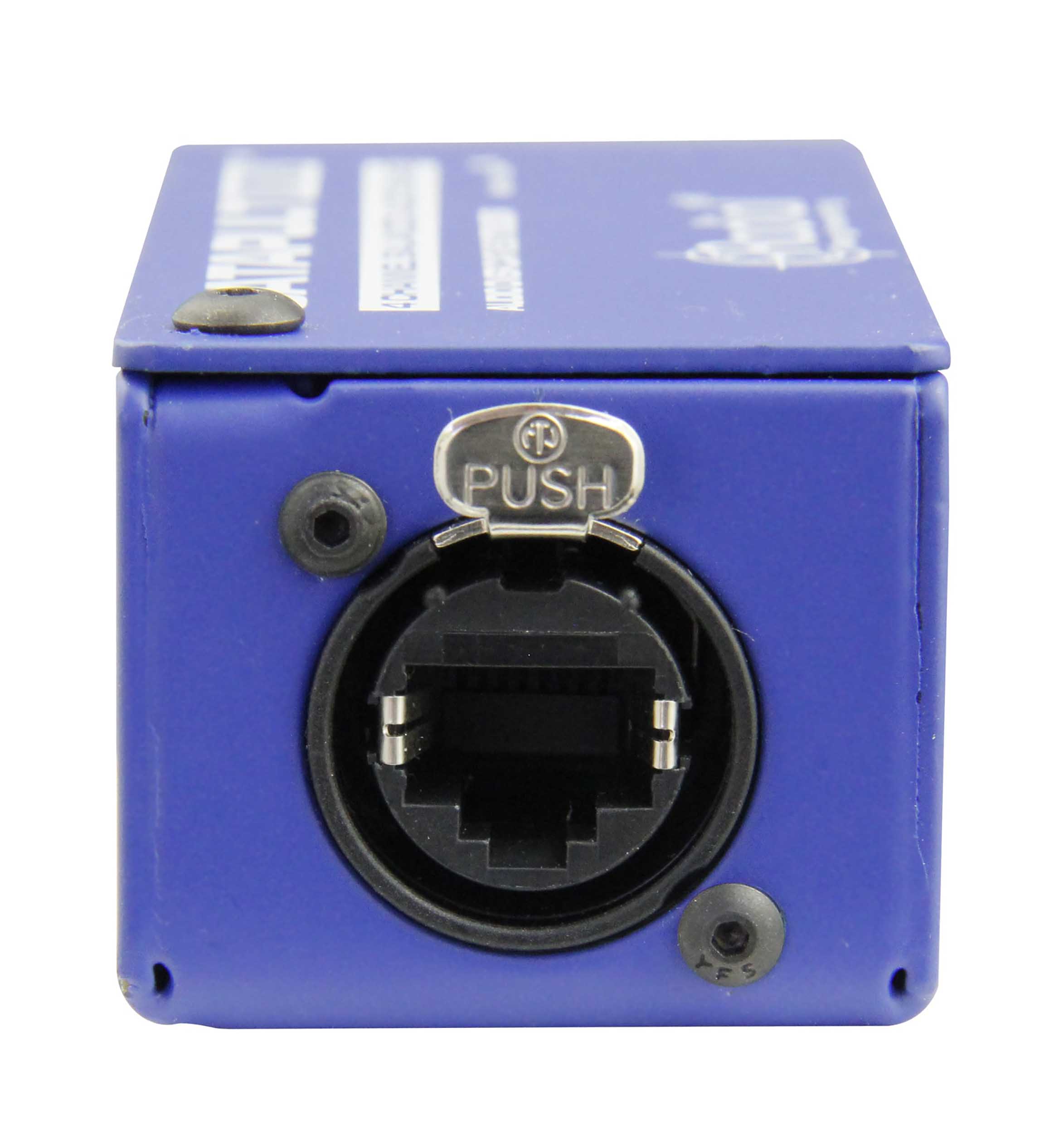

Catapult modules require no power to operate, and since they keep the signal in the analog realm, no digital conversion is necessary. Straight-wire connection from the XLRs to the RJ45 connector on a Cat 5 cable ensures that your audio passes through without coloration or distortion.
Utilize pre-existing cable installations
As many buildings are already pre-wired for Cat 5, you can take advantage of this to transmit audio between distant rooms without the need to install or supply new cabling. This eliminates the need for bulky and expensive multi-channel audio cable, and allows contractors to benefit from installed network cable and easily connect from one room to another.
Mix & Match

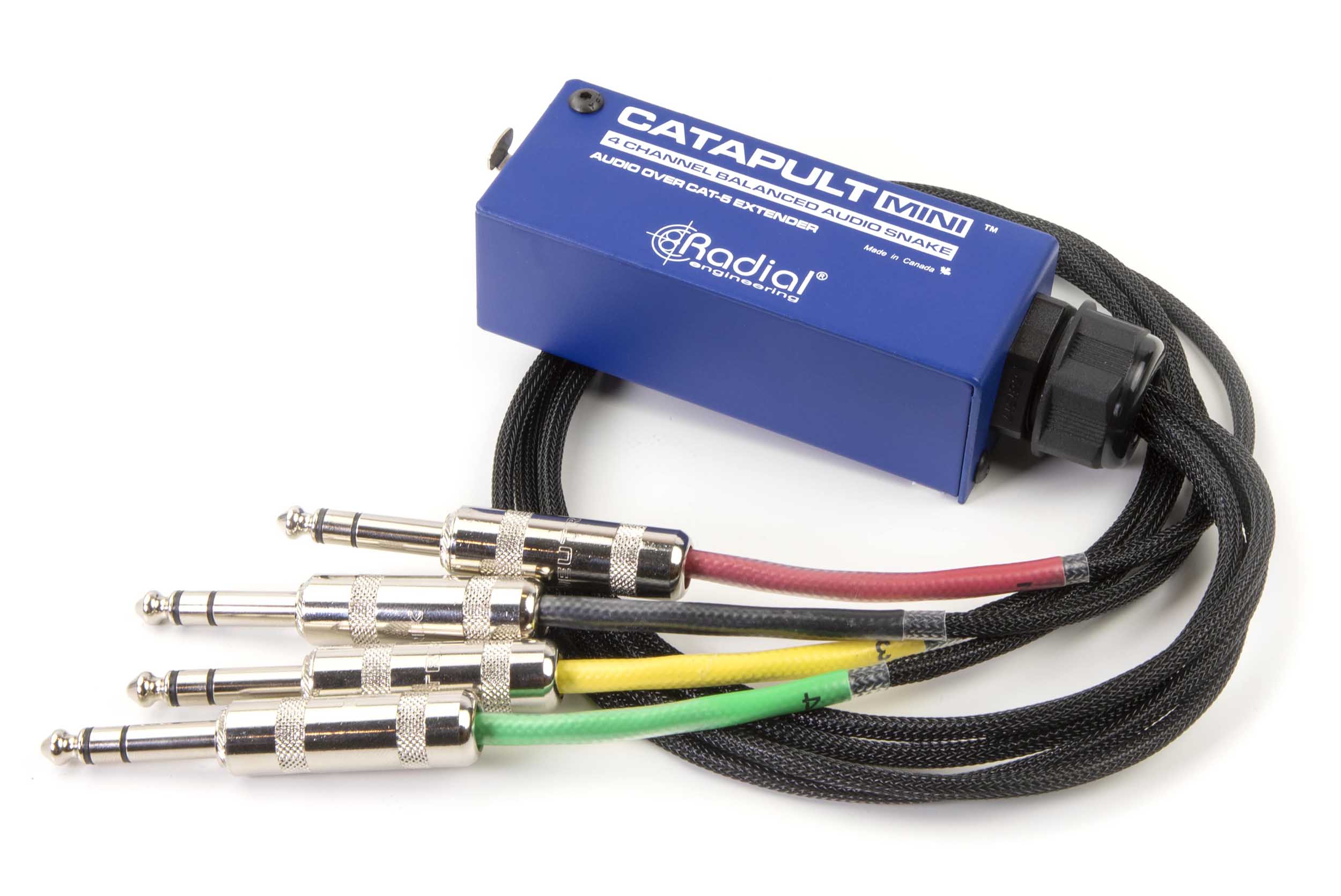

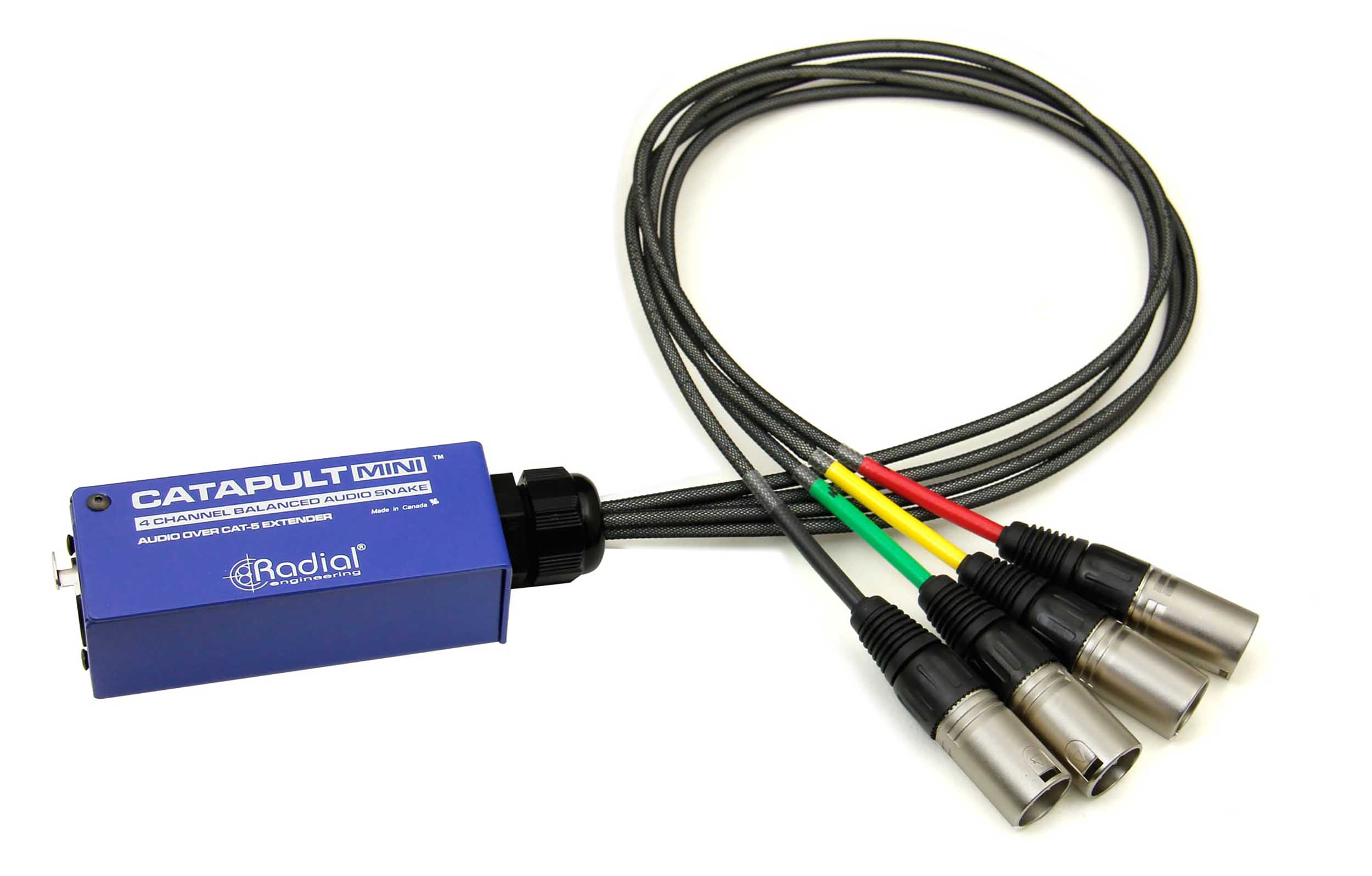

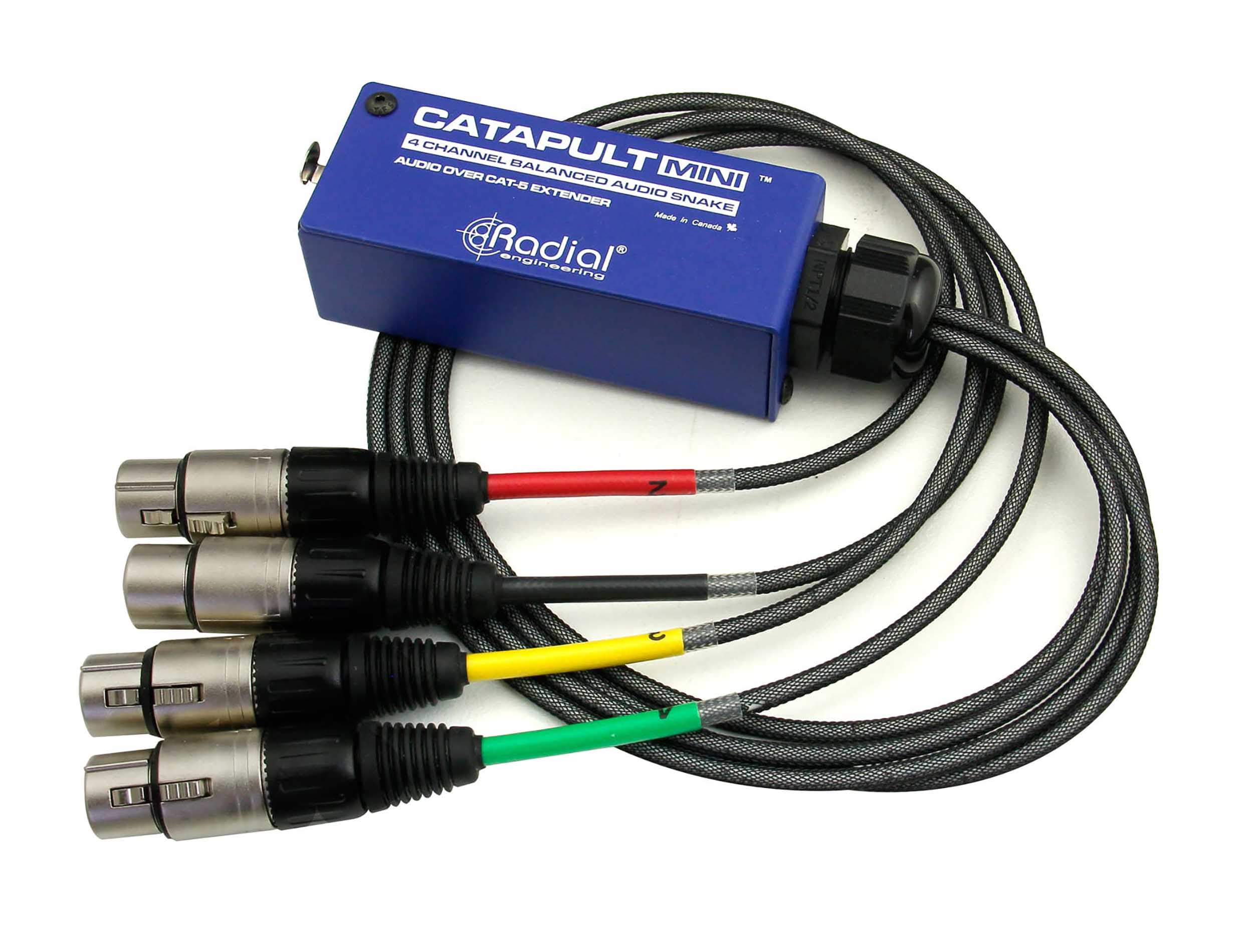

Three versions of the Catapult Mini are available: The Mini TX features female XLR connectors, the Mini RX has male XLRs, and the Mini TRS is equipped with ¼” TRS jacks for balanced connection to any pro audio device.
Product Specifications:
Audio Circuit Type: Passive splitter
Frequency Response:7Hz ~ 20KHz
Dynamic Range: 140dB
Total Harmonic Distortion: 0.0005% @ 1kHz
Common Mode Rejection Ratio: >103dB
Maximum Input: +35dBu
Features: Ground lift
Input Connectors: XLR, TRS, RJ45 (model dependant)
Output Connectors: XLR, TRS, RJ45 (model dependant)
Construction: 16-gauge steel chassis & outer shell
Size (L x W x D): 4.125" x 1.56" x 1.31" (105 x 40 x 33mm)
Weight: 0.85lb (0.4kg)
Shipping Size (L x W x D): 6.25" x 4.25" x 3" (159 x 108 x 76mm)
Shipping Weight: 1.1lb (0.5kg)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
