Description

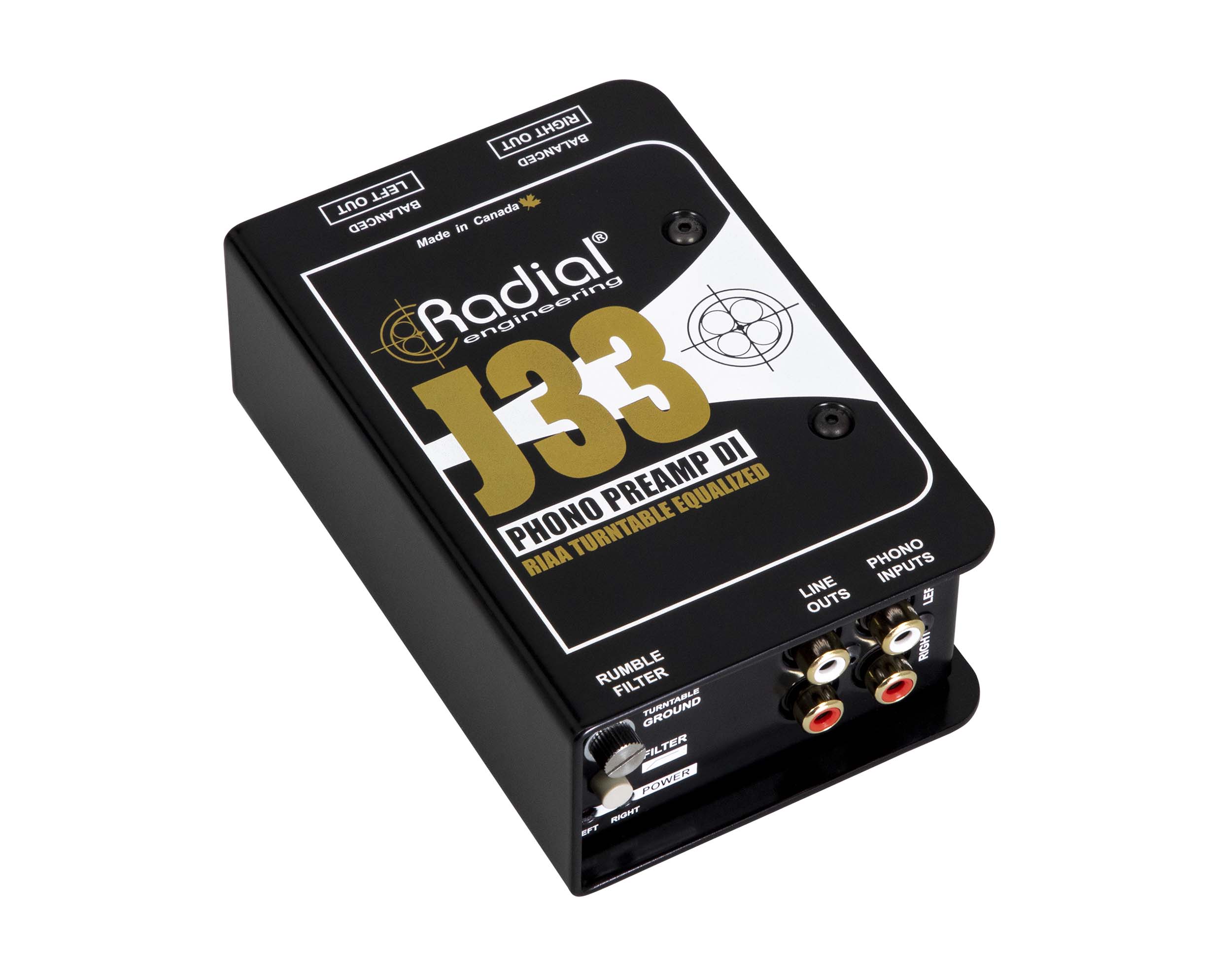

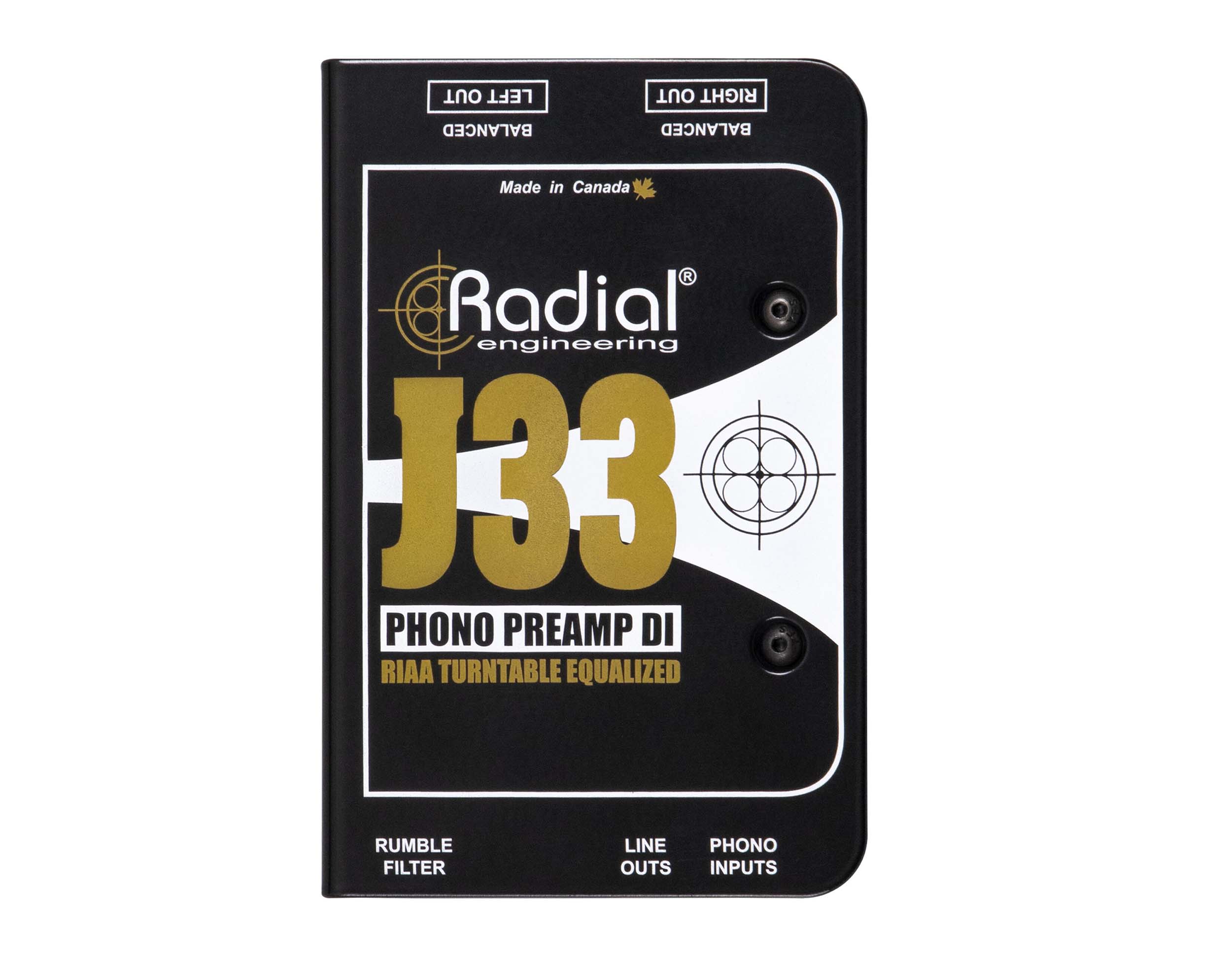

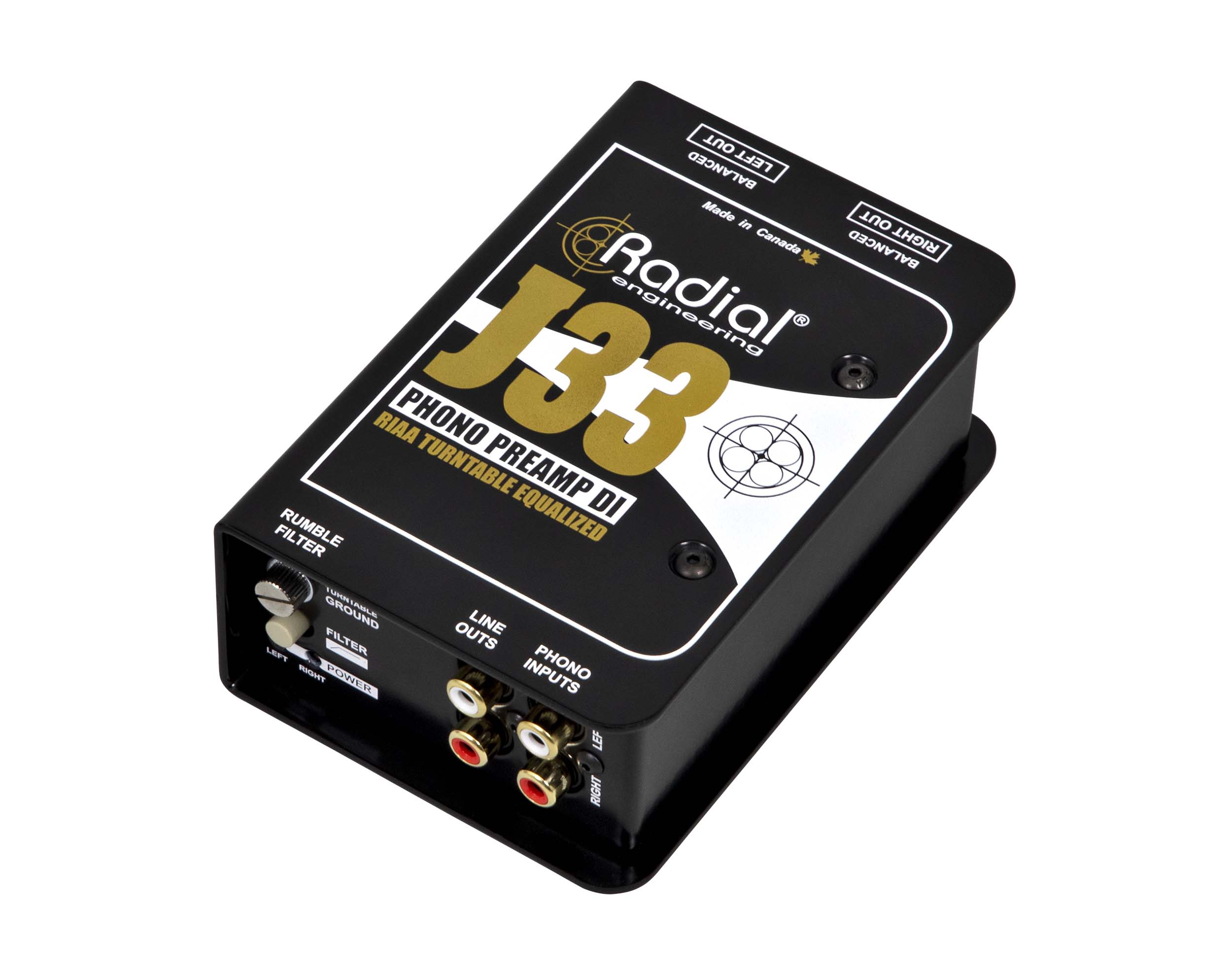

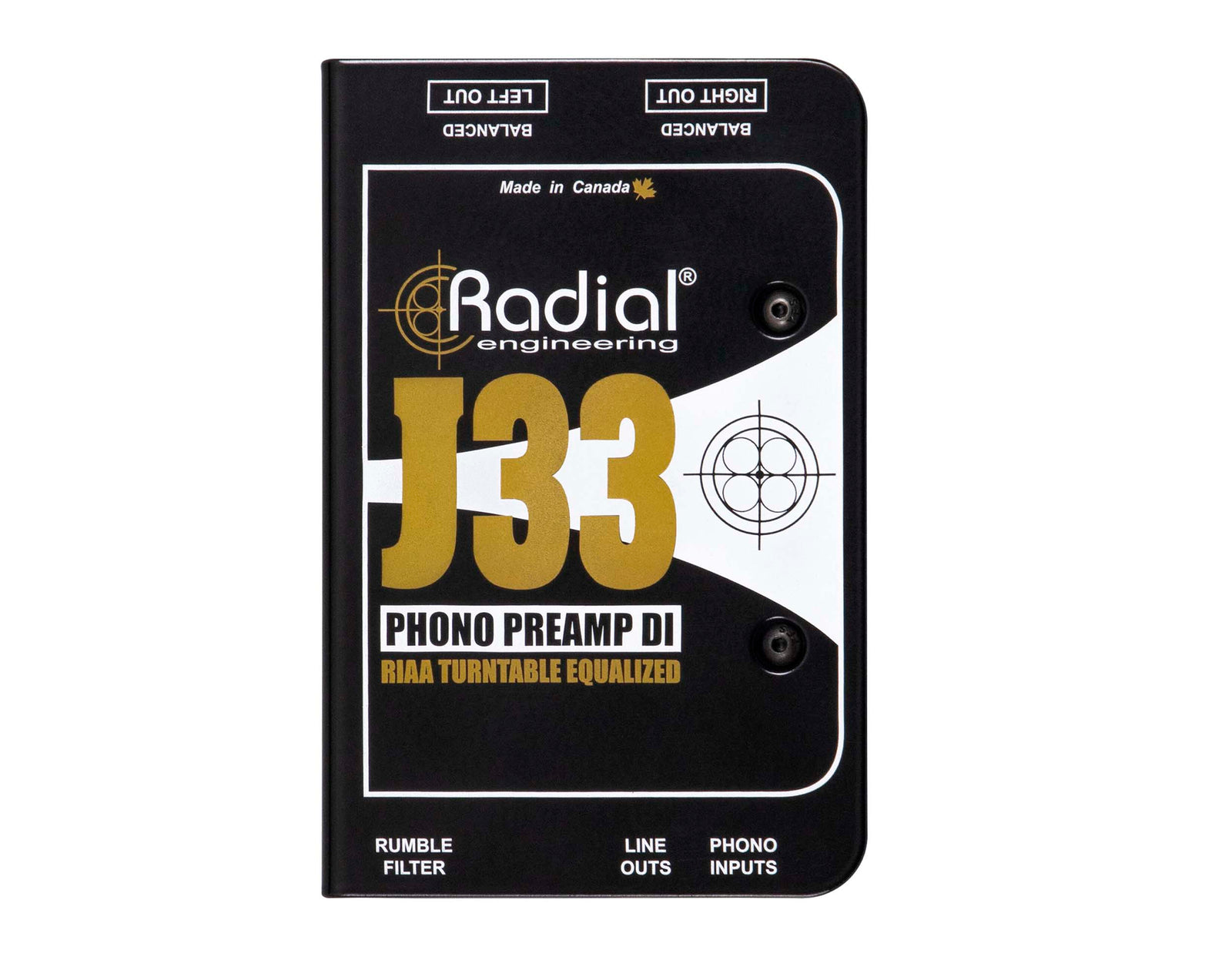

The Radial Engineering J33 combines a high-quality turntable (phono) preamp with a DI box, providing consumer line-level outputs in addition to balanced mic-level outputs that allow you to connect a record player to pro audio equipment such as mixing consoles and recording interfaces.
A DI box for your turntables
The J33 provides the ability to connect turntables to pro audio equipment such as a recording interfaces and mixers, allowing you to easily integrate your vinyl collection with studio gear for playback or recording. Balanced XLR mic-level outputs are available for connection to a mic preamplifier for archiving or sampling in the studio, and -10dB consumer line-level outputs are also provided to connect to home stereo equipment. The J33 can also be used in a live performance environment, offering an improved interface for DJs to connect to the PA system.

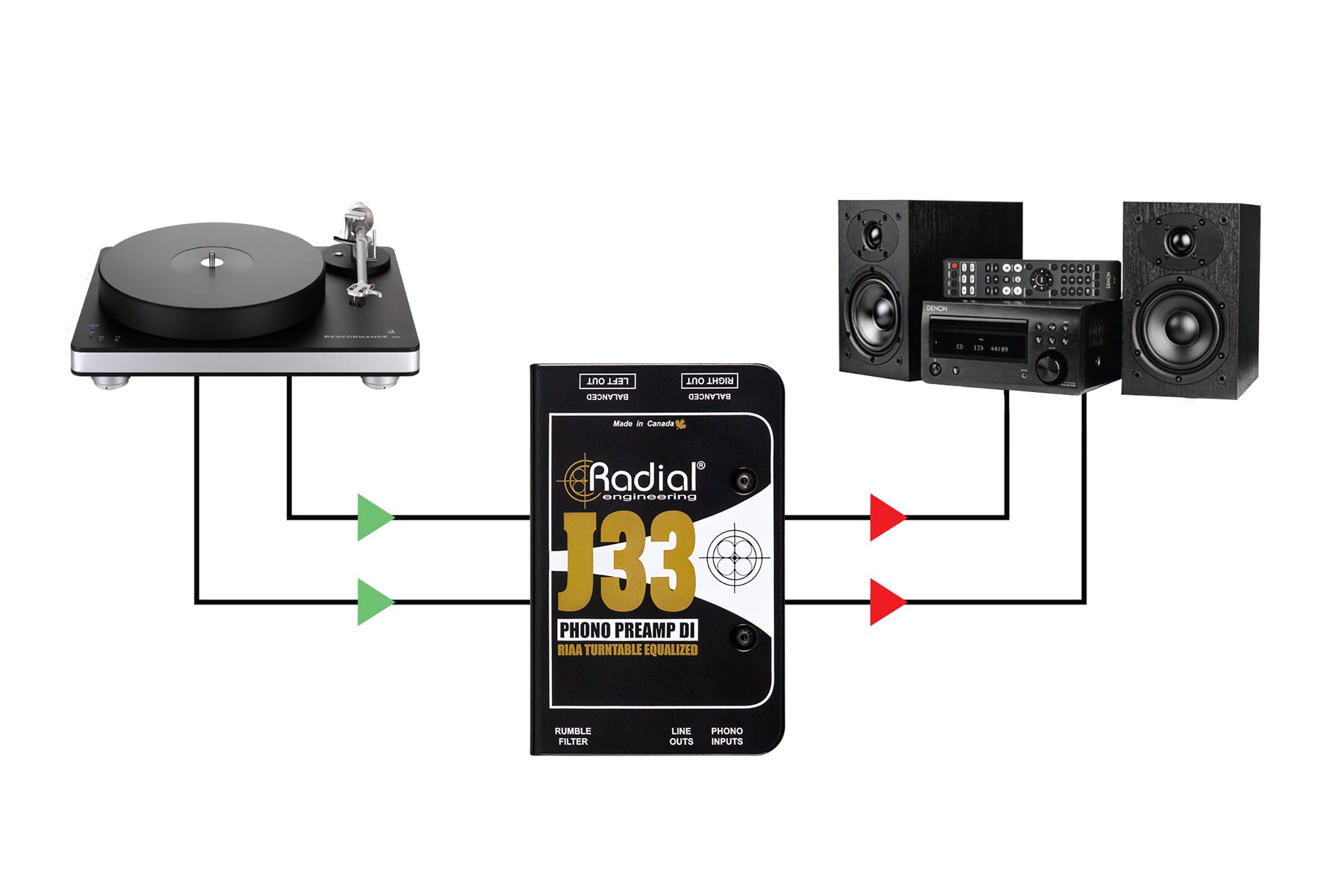

Turntable to J33 to hifi system
Most new stereo systems are not equipped with a phono preamp input. The Radial J33 is a high-performance phono preamp that delivers audiophile quality to your HiFi system by simply connecting the turntable to the RCA inputs and the receiver to the RCA outputs.

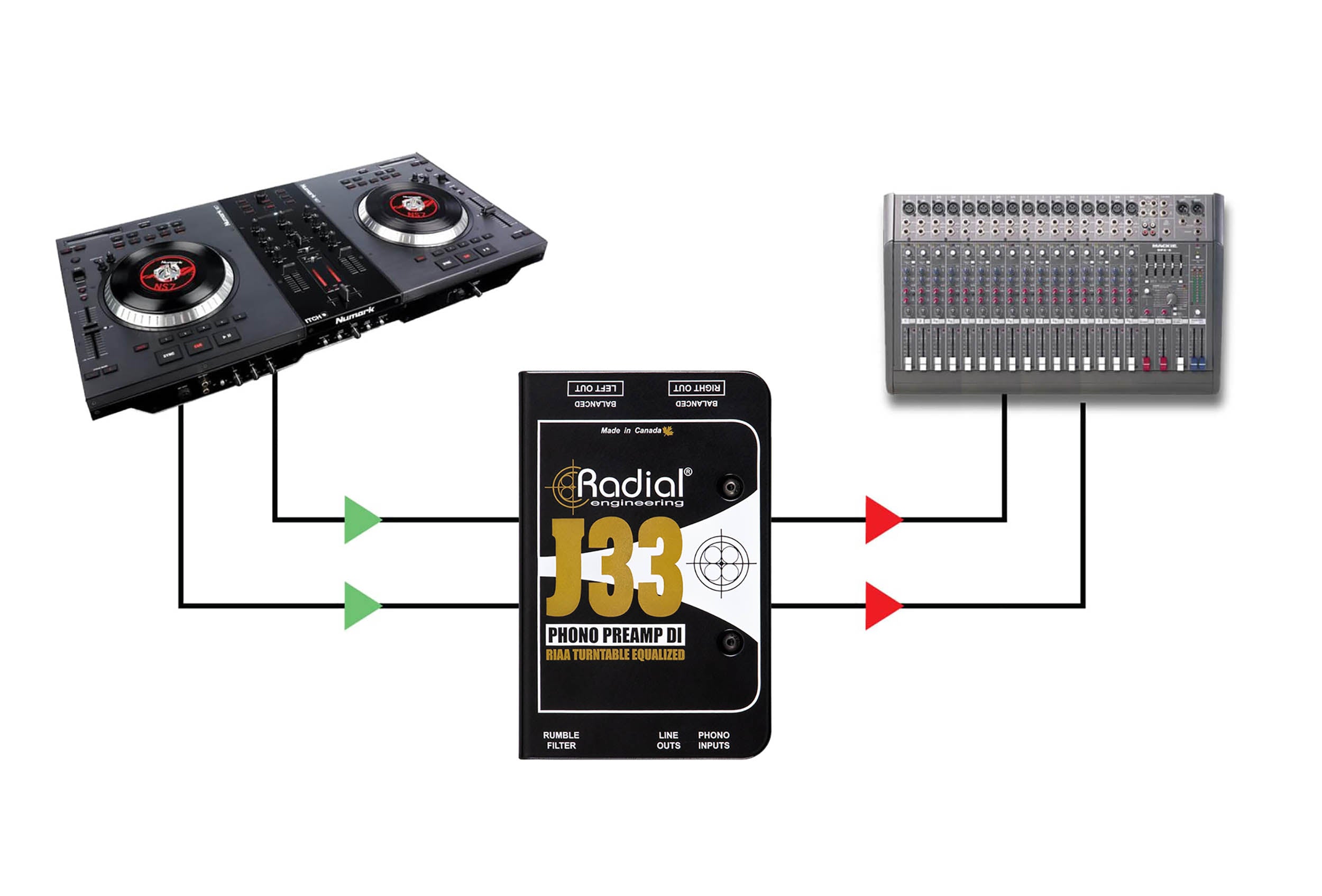

Turntable to J33 to mixing console and PA system
DJs rejoice! You can now connect your turntable directly to a mixing console using the J33. Take the balanced lo-Z outputs form the J33 and connect just like a microphone… only stereo. The DI box output from the J33 is perfectly suited for all PA systems.

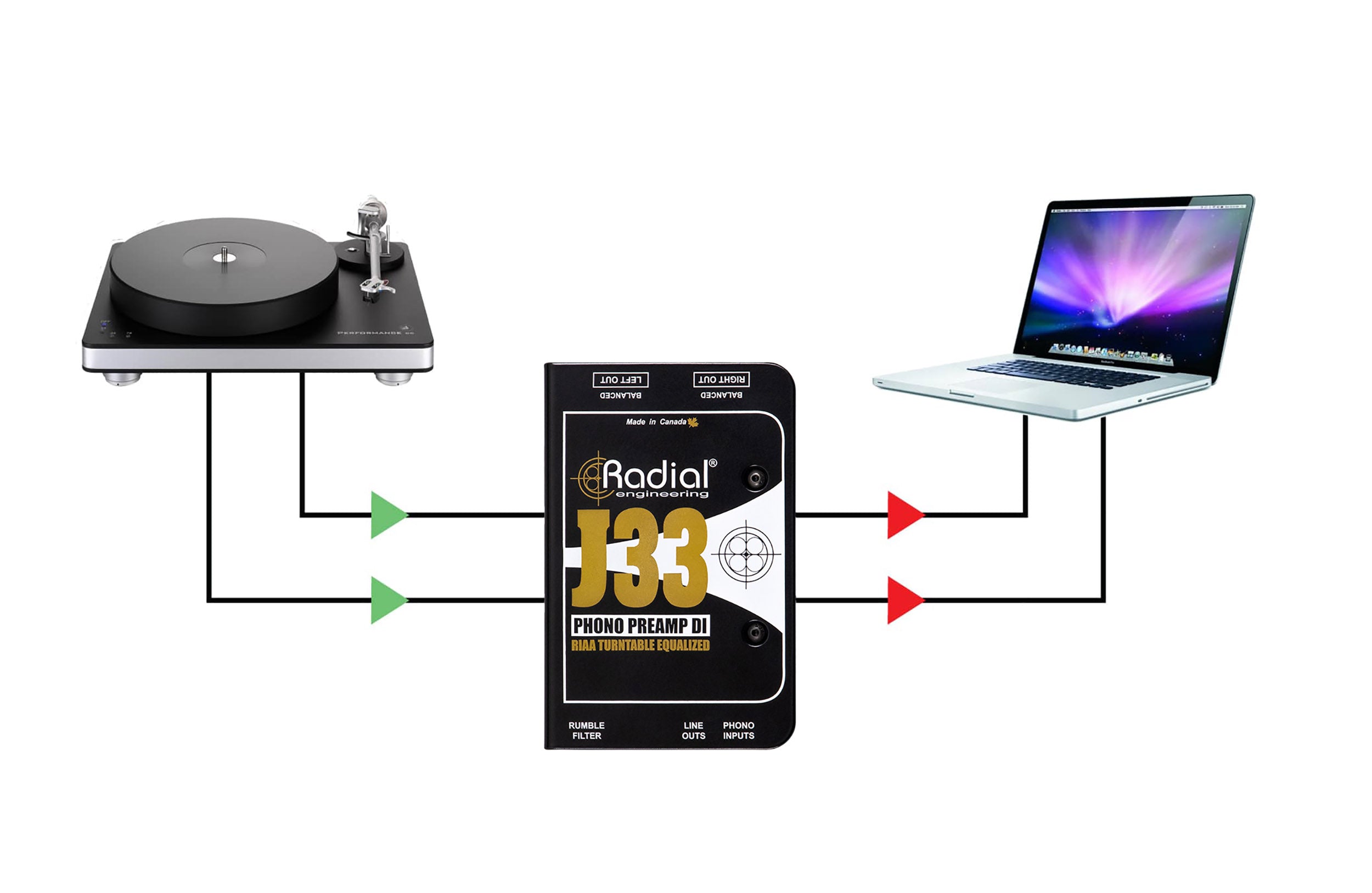

Turntable to J33 to computer
Plug your turntable into the J33 and then the outputs to an audio interface for digital recording. Add compression, gates and EQ to ‘remaster’ as needed.
Product Specifications:
Audio circuit type: Active circuit
Number of channels: Stereo
Frequency response: RIAA response curve for phonographic playback
Dynamic range: 91dB
Total harmonic distortion: 0.002% @ 1kHz (-33dBu input level)
Intermodulation Distortion: 0.025% @ -45dBu input
Input Impedance: 47k Ohms, unbalanced
Output Impedance: XLR out: 600 Ohms; RCA outs: 470 Ohms
Equivalent Input Noise: -82dBu @ 0dBu output
Maximum Input: -30dBu @ 1kHz
Voltage Gain: +37.8dB

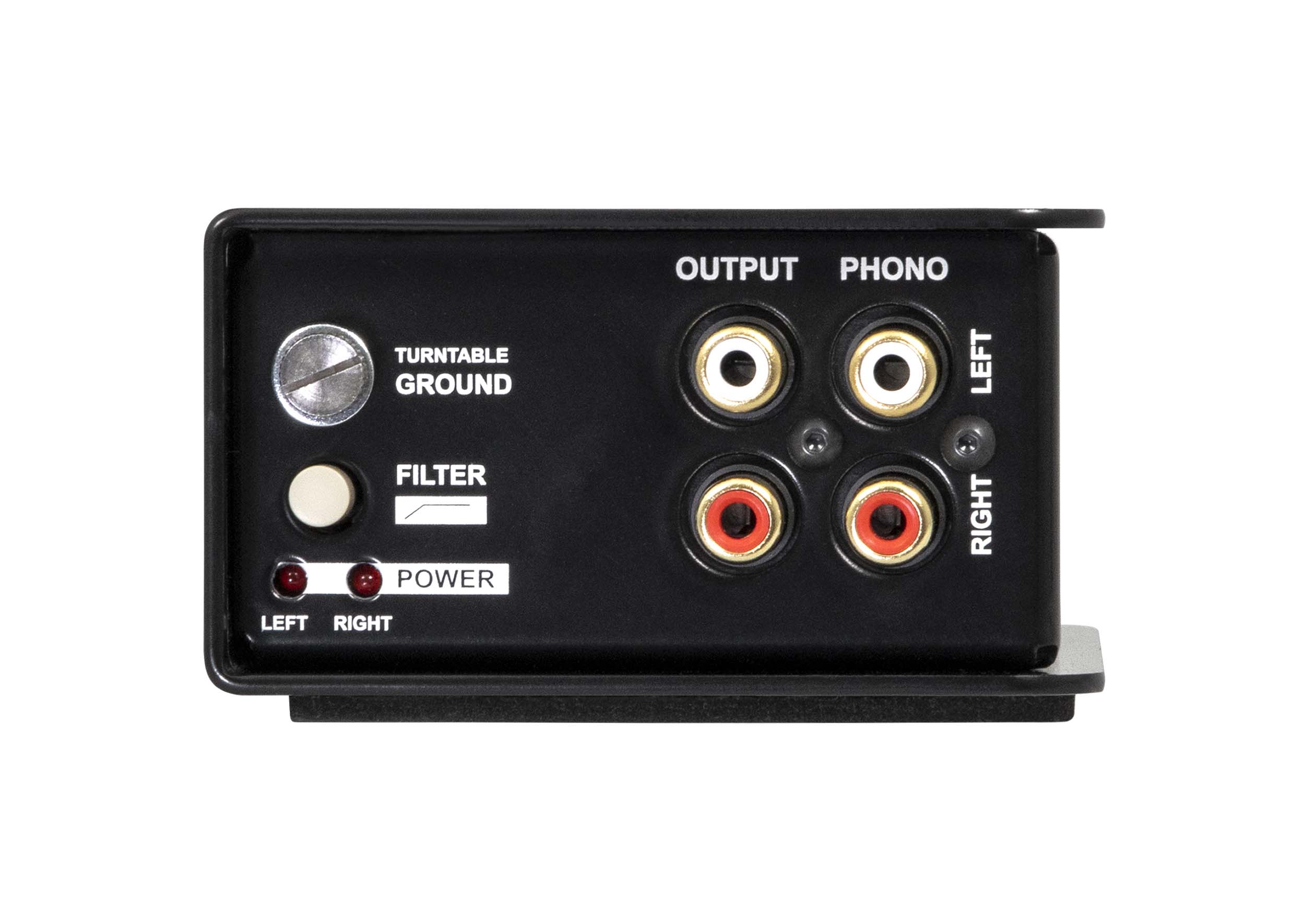

Input Connectors: RCA

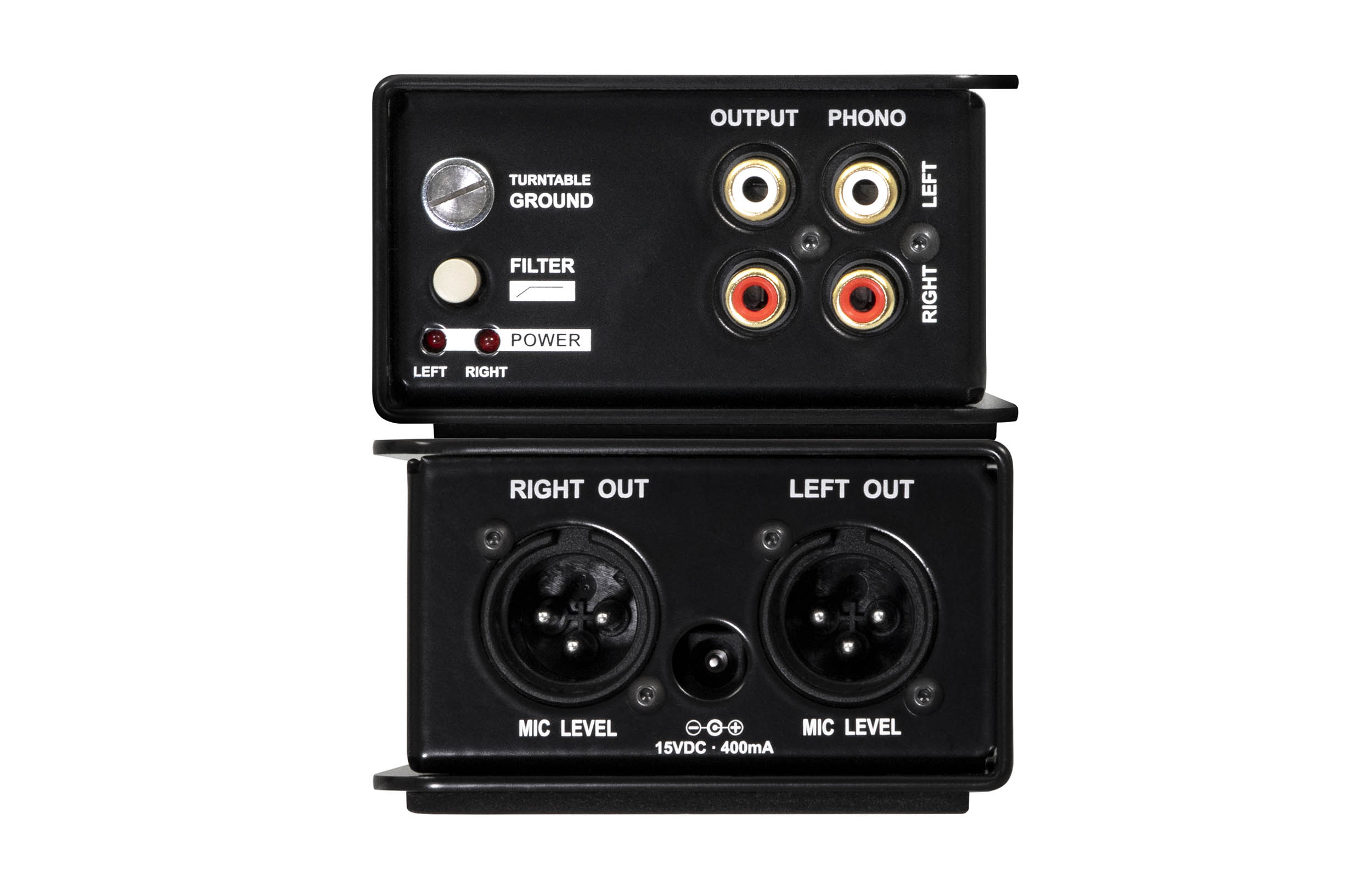

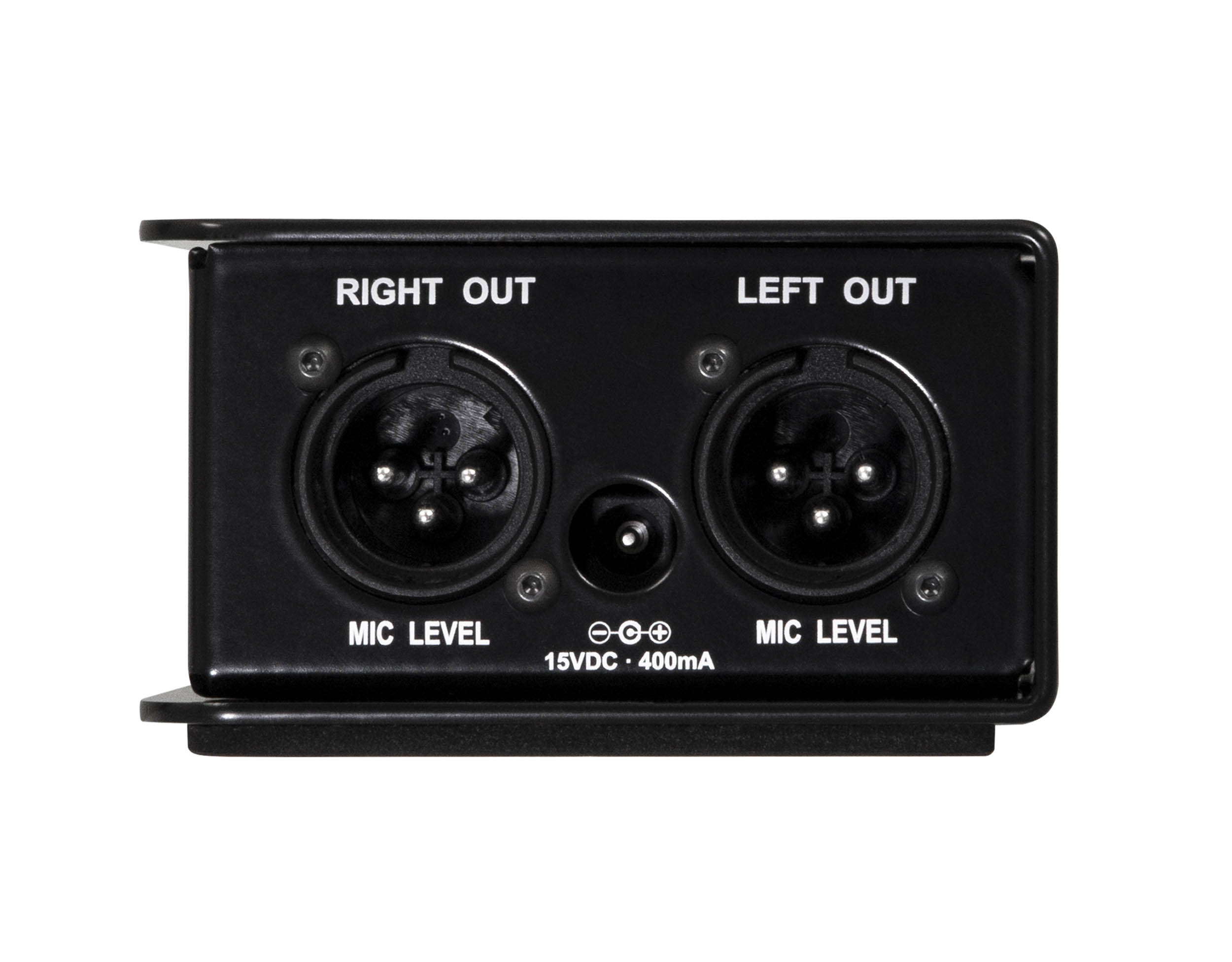

Output Connectors: RCA, XLR
Extras: Rumble Filter
Construction: 14-gauge steel chassis and outer shell
Size (L x W x D): 5" x 6.25" x 2" (127 x 159 x 51mm)
Weight: 2.80lbs (1.28 kg)
Power: +48V phantom or +15VDC/400mA external supply (included)
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
