Description

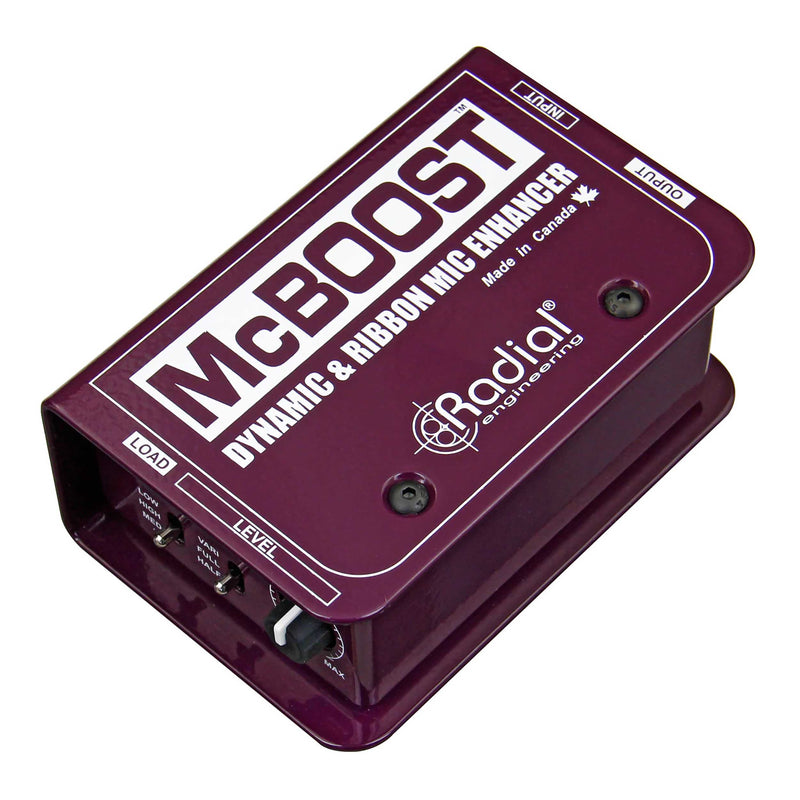

The Radial Engineering McBoost is a microphone signal booster designed to elevate the output of a dynamic or ribbon microphone for greater transparency and clarity, and provide enough clean gain to connect to any preamp. The Radial McBoost provides clean gain at the source for low-output dynamic and ribbon microphones, driving long cable runs with ease and allowing you to connect to any preamp as if it were a high-gain ribbon mic pre. Simply connect the McBoost in-line using standard XLR cables and activate 48V phantom to provide power, then select between three impedance settings to optimize the response from the microphone. The McBoost will elevate the output to produce added clarity, excitement and extra drive for long cables whether you are in a recording studio, on a live concert stage, or in a broadcast center.
Product Specifications:
Audio Circuit Type: Class-A Differential DC Coupled FET
Frequency Response: <7Hz to >30kHz
Dynamic Range: 116dB
Gain: +26dB Full Gain, +20dB Half Gain, +4dB to +25dB Variable Gain
Clip Level: +16dBu (output)
Total Harmonic Distortion: 0.006%
Intermodulation Distortion: 0.01%
Phase Deviation: <10°
Input Impedance: 600Ω / 2.7kΩ / 30kΩ
Output Impedance: 220Ω
Common Mode Rejection Ratio: >50dB
Equivalent Input Noise: -125dBu
Noise Floor: -100dBu / -110dBu
Input Connectors: XLR female output
Output Connectors: XLR male output
Construction: Cold Rolled Steel
Power: Phantom Power - 48V
Conditions: For use in dry locations only between 5°C and 40°C
