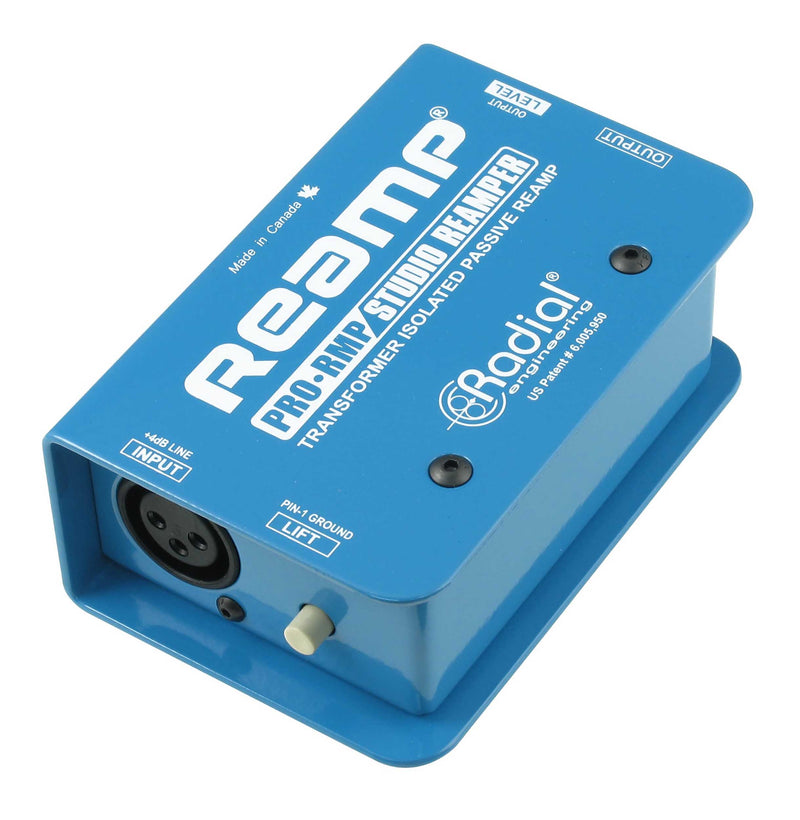

Radial Engineering ProRMP Passive Studio Reamper

The Radial Engineering ProRMP is a 100% passive Reamper. This means it does not require any external powering. The magic behind the ProRMP's great tone is a custom wound transformer that at once converts the balanced line level source to a hi-z output for your amp while also acting as an electrical isolator to eliminate troublesome ground loops that can often cause buzz and hum in the sound. Plug and play easy to use, the ProRMP connects from the recorder to your amp and effects units and does all the impedance matching for you. Just adjust the level to suit!

Product Specifications:

Audio Circuit Type: Passive, transformer isolated

Frequency Response: 20Hz ~ 20KHz (+0/-1dB)

Dynamic Range: >137dB

Gain: >-10dB

Total Harmonic Distortion: 0.003%

Phase Deviation: 0.3° @ 100Hz; 5° @ 20Hz

Input Impedance: 1600 Ohms

Output Impedance: 1850 Ohms

Common Mode Rejection Ratio: 100dB @ 60Hz (unbalanced source)

Equivalent Input Noise: >-98dBu Noise plus gain

Noise: -111dBu

Maximum Input: >+26dBu

Features: Input pad, 180° polarity reverse, Ground lift

Input Connectors: XLR

Output Connectors: 1/4"

Construction: 14-gauge steel chassis and outer shell

Size (L x W x D): 3.3" x 5.0" x 2" (84 x 127 x 48mm)

Weight: 1.55 lbs (720 g)

Power: Passive, no power required

Conditions: For use in dry locations only between 5°C and 40°C
