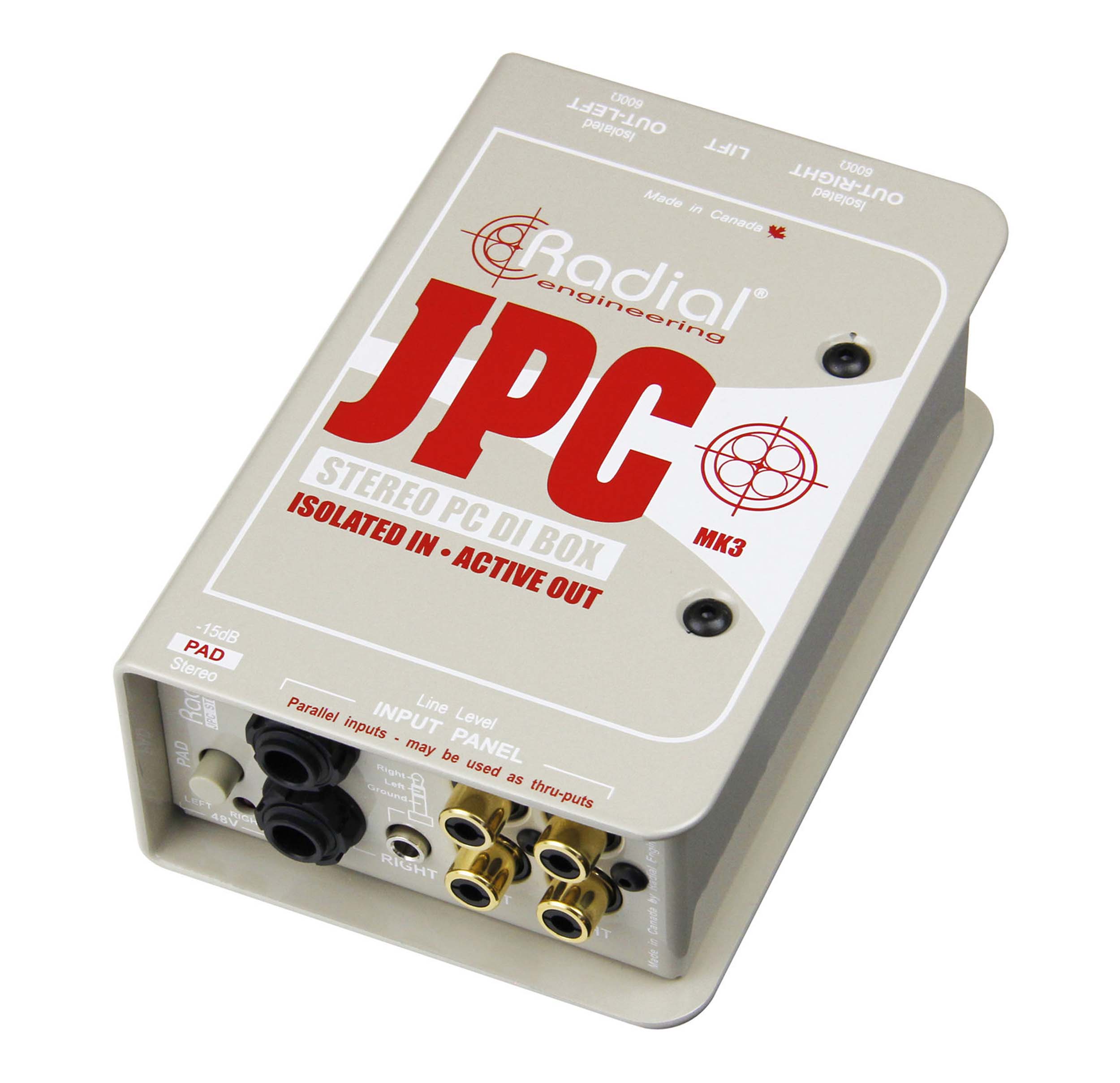

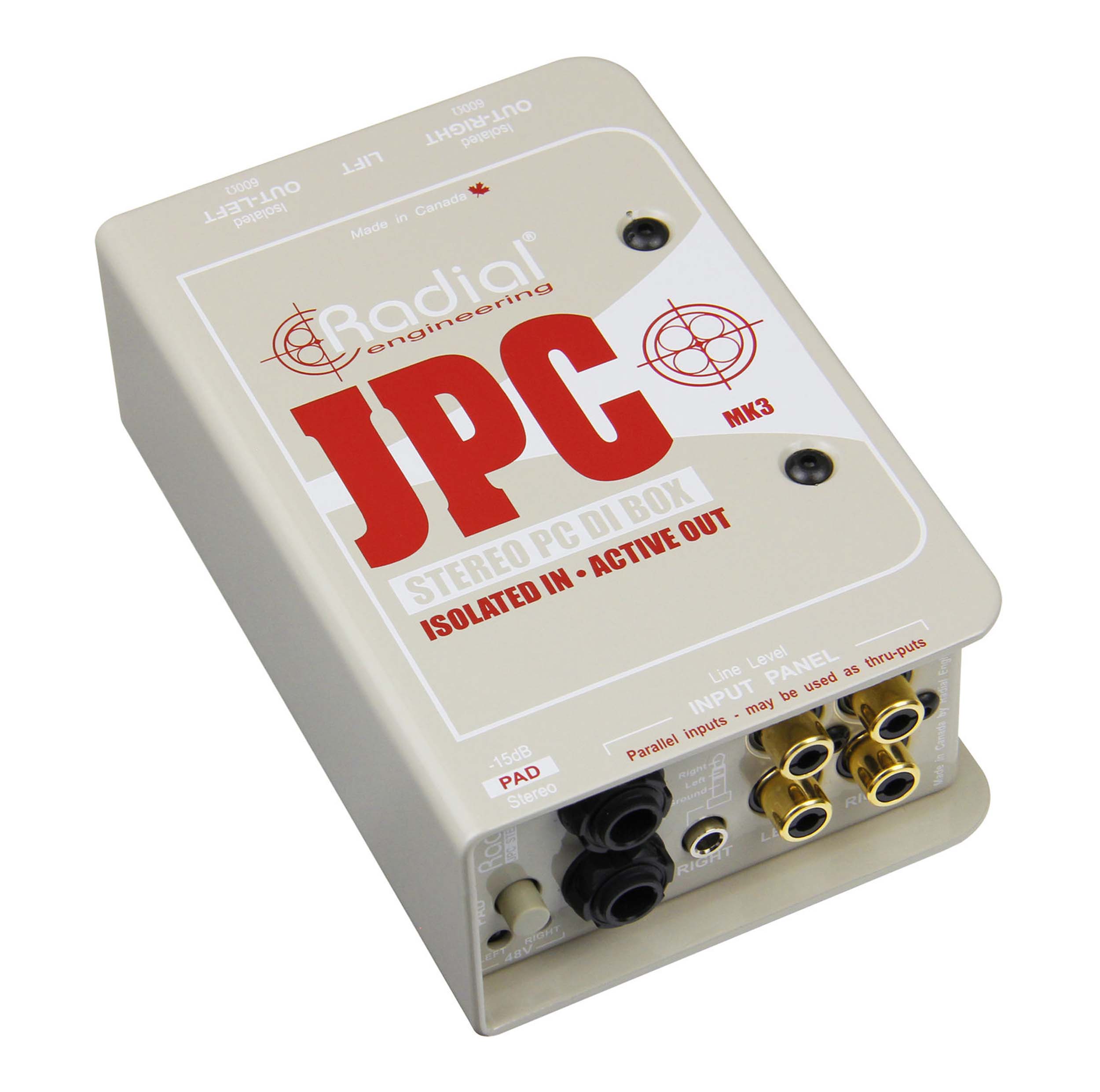

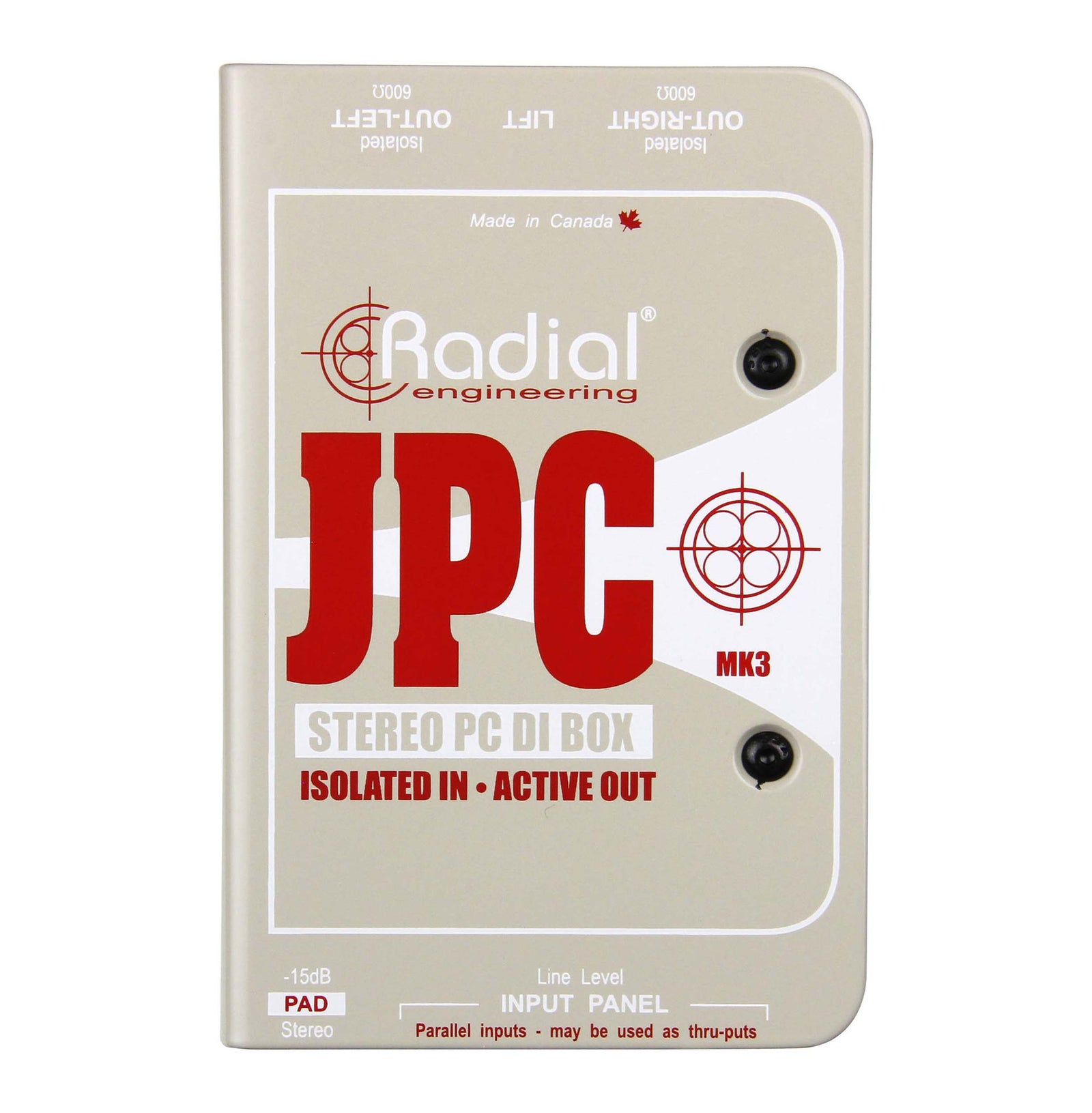

Radial Engineering RAD-JPC Stereo PC-AV Direct Box (Active RCA - XLR - 1/4in)

The JPC from Radial Engineering is a stereo direct box that has been specifically designed for connecting computer sound cards and other consumer electronic products to a professional sound system. It combines the advantages of transformer-isolated inputs with an active drive circuit.

Transformer-coupled inputs isolate the source from the destination. This eliminates 60-cycle hum and buzz. Because the active circuit does all of the impedance conversion and balancing, a dedicated 1:1 transformer can be used. This results in a hybrid design that is at once great sounding, compact, and affordable.

The book-cover, wrap-around sleeve design protects switches and connectors from damage while the 14-gauge steel I-beam construction eliminates stress that could torque the PC board and cause solder joint failure. A full-bottom, no-slip pad provides electrical insulation and mechanical isolation.

Product Specification:

Item Type: Standard DI

Number of Channels: 2-Channel

Active/Passive: Active

Circuitry: Solid-State

Pad: -15 dB

Ground Lift: Yes

Polarity Reverse: No

Low-Cut/High-Pass Filter: No

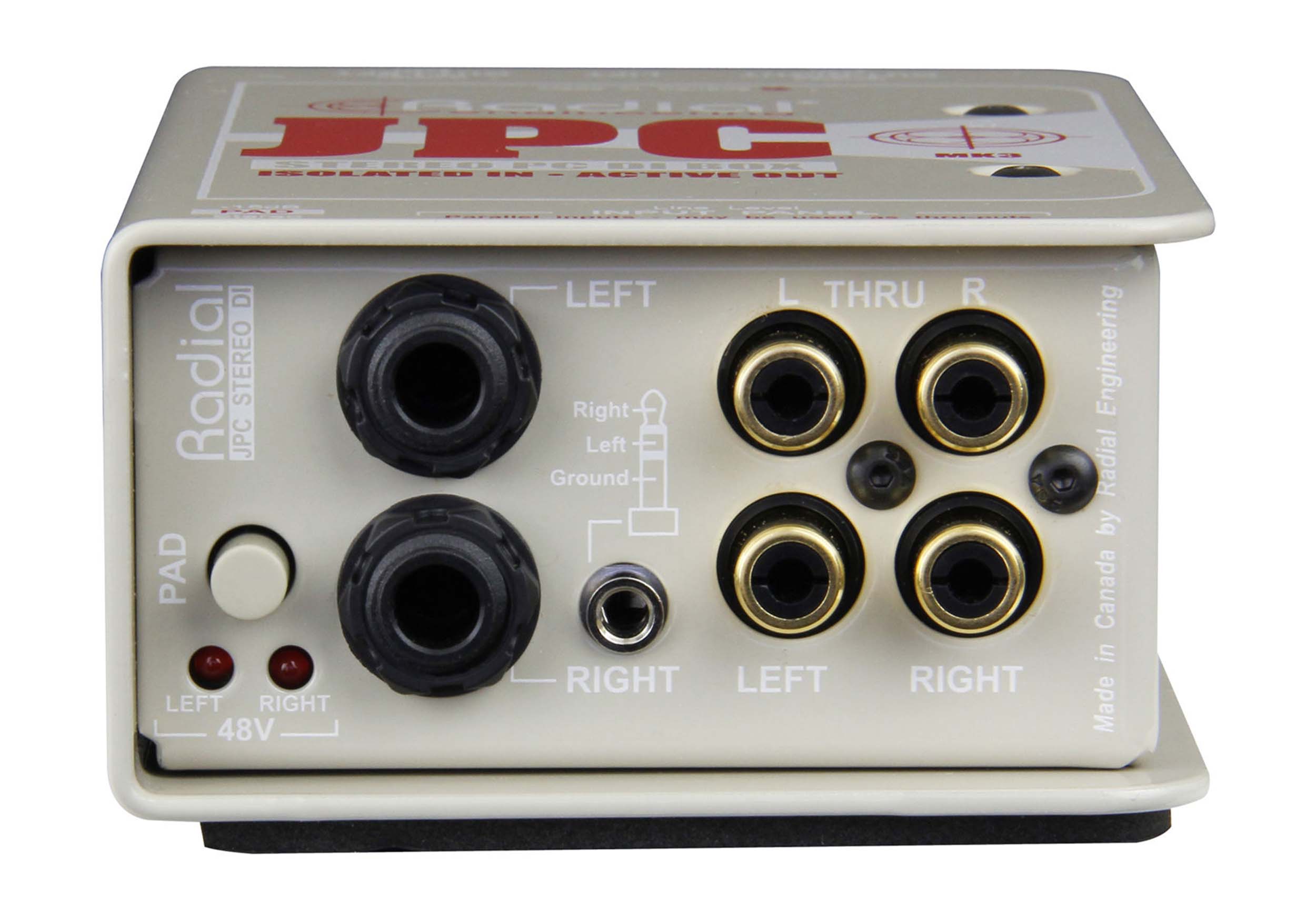

Audio I/O:

1x Stereo 2RCA Unbalanced Input

1x Stereo 2RCA Unbalanced Thru

2x 1/4"" TS Unbalanced Input

1x 1/8"" / 3.5 mm TRS Unbalanced Stereo Input

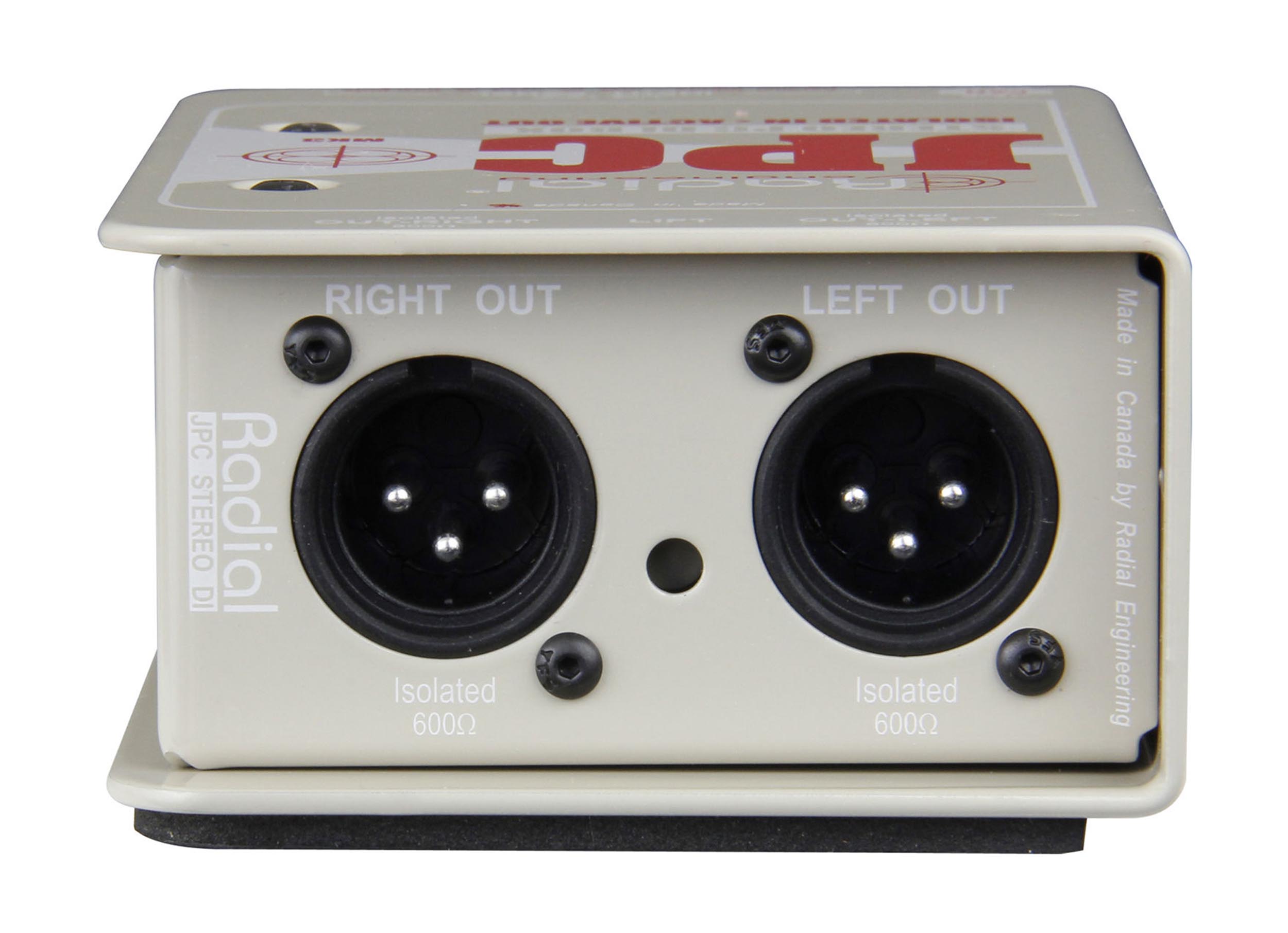

2x XLR 3-Pin Balanced Output

Frequency Response: 20 Hz to 20 kHz ±2 dB

Input Impedance: 10 Kilohms

Output Impedance: 600 Ohms

Total Harmonic Distortion/Noise: 0.01% (at -15 dBu Output)

Signal-to-Noise Ratio:

-97 dB

-97 dB

Operating Voltage: 48 V (Phantom Power)

Dimensions: 5 x 3.3 x 2" / 127 x 84 x 51 mm

Weight: 1.55 lb / 720 g

Shipping Weight: 1.78 lb

Shipping Dimensions (LxWxH): 6.35 x 4.35 x 2.95"
