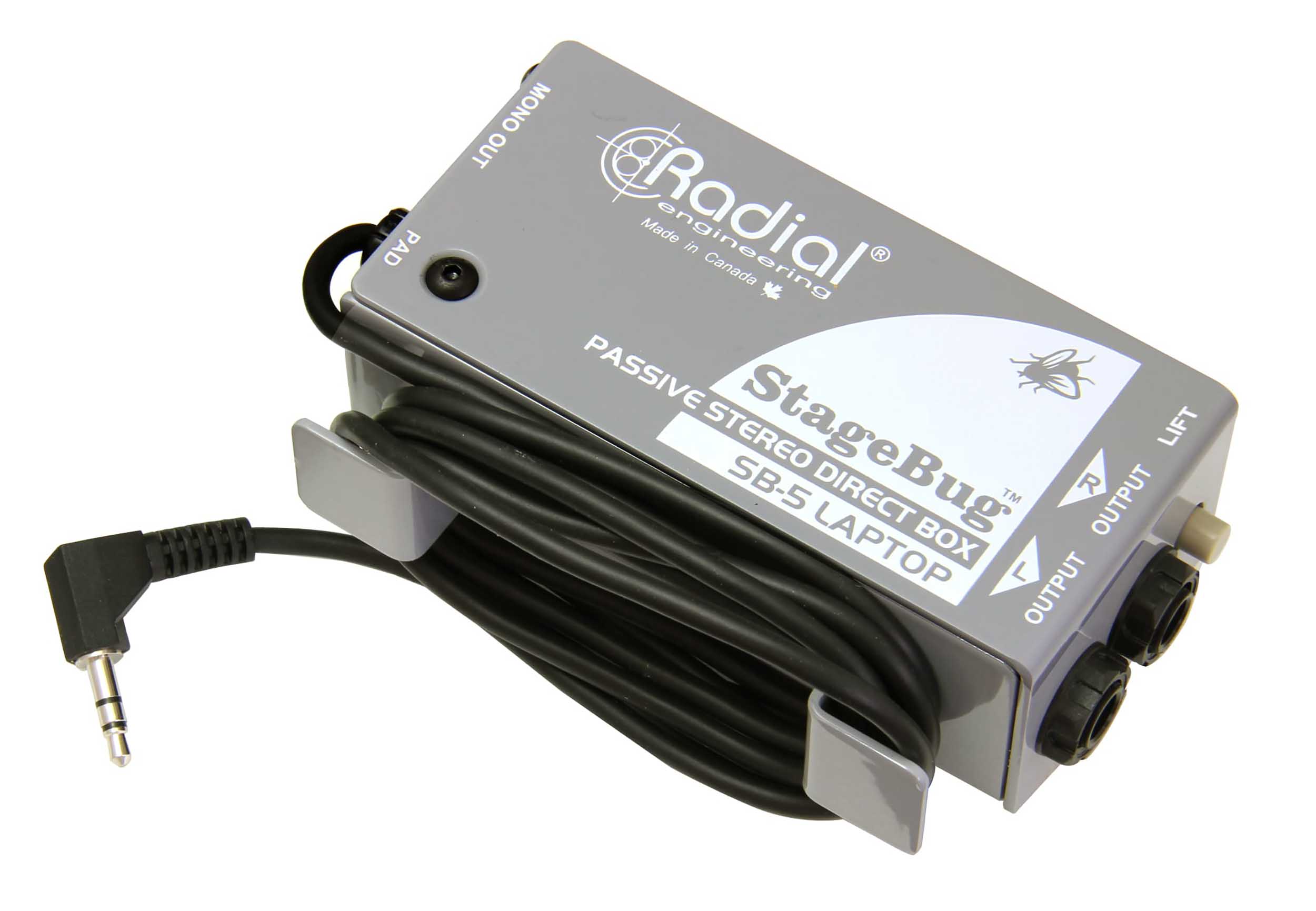

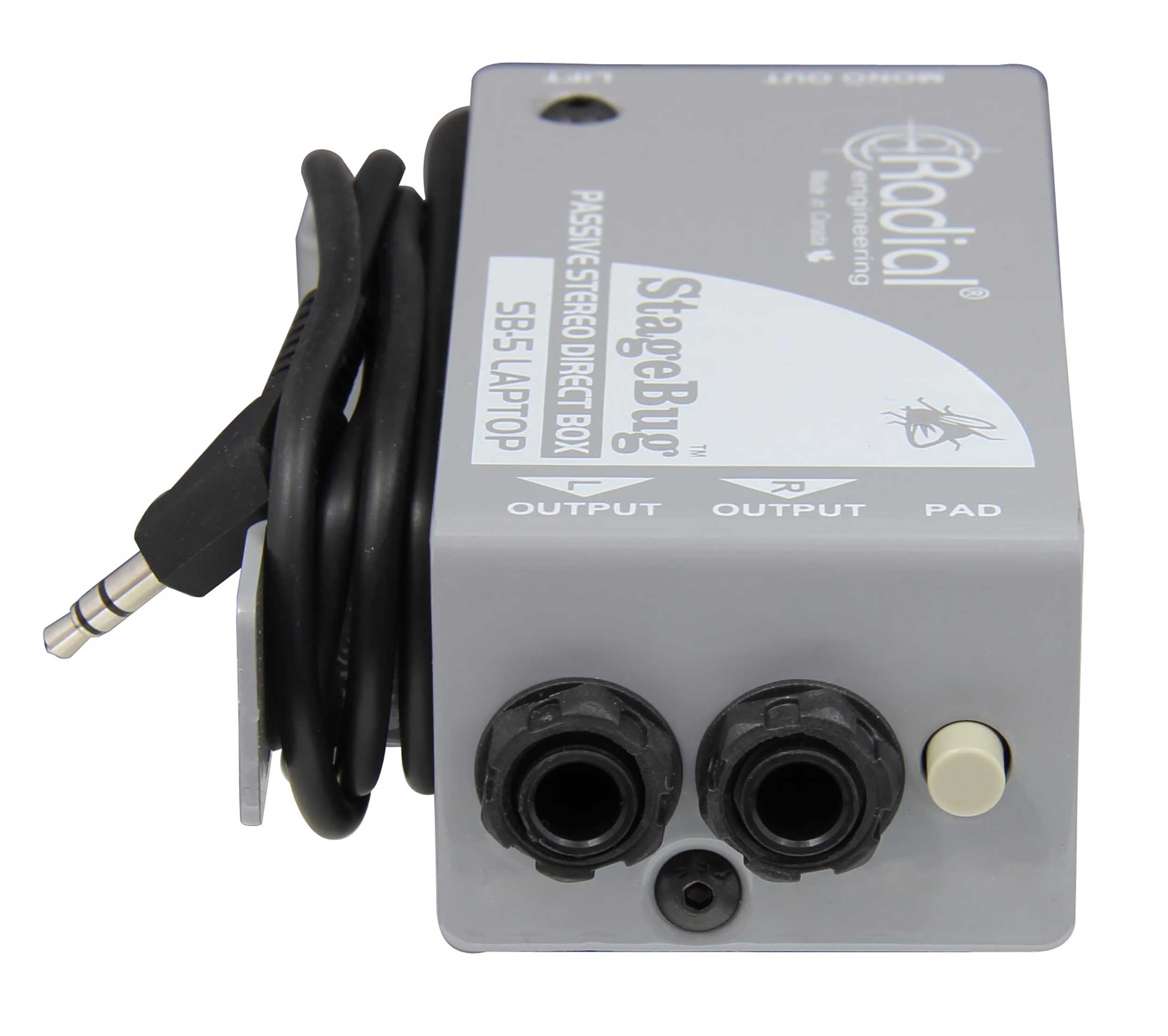

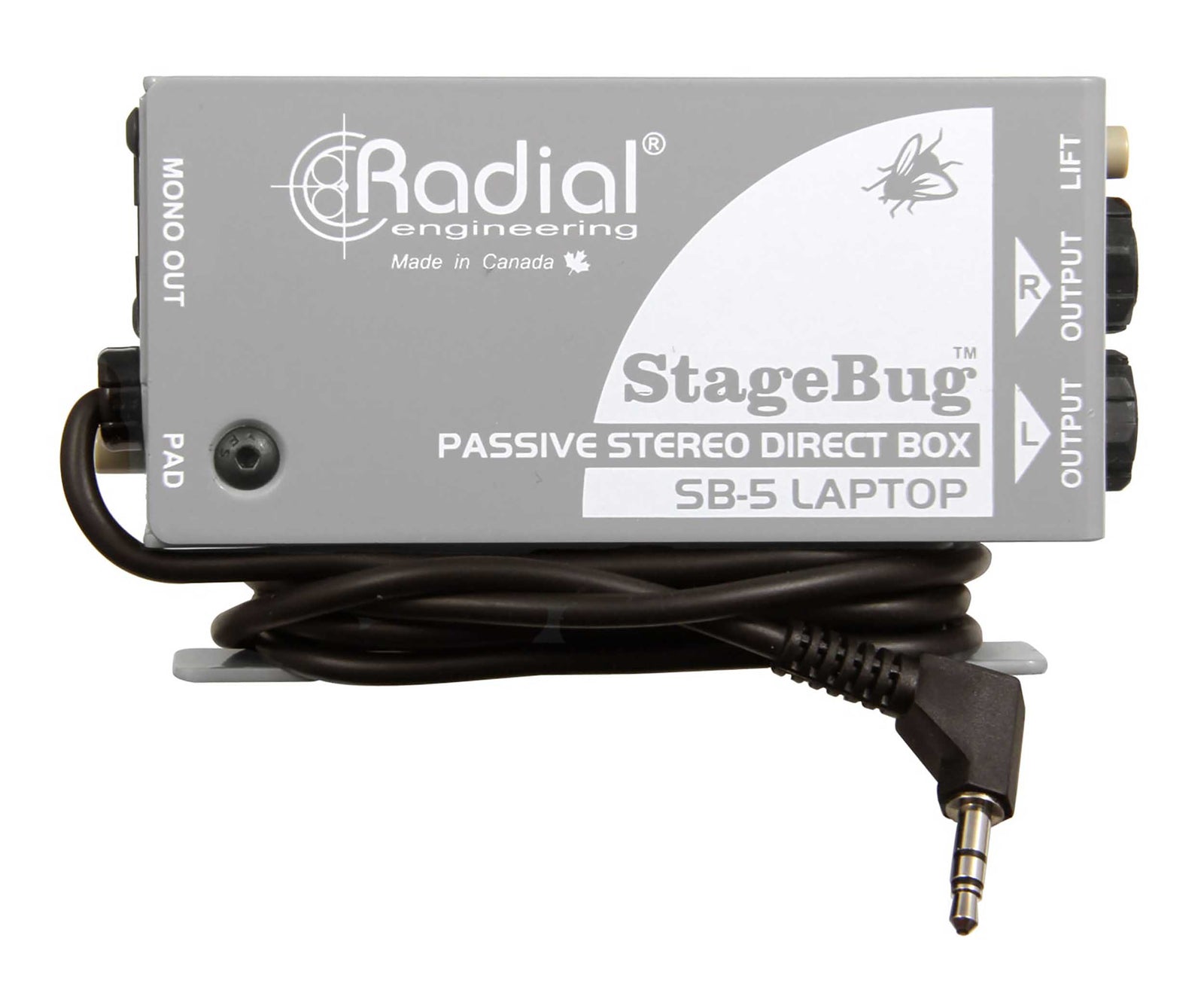

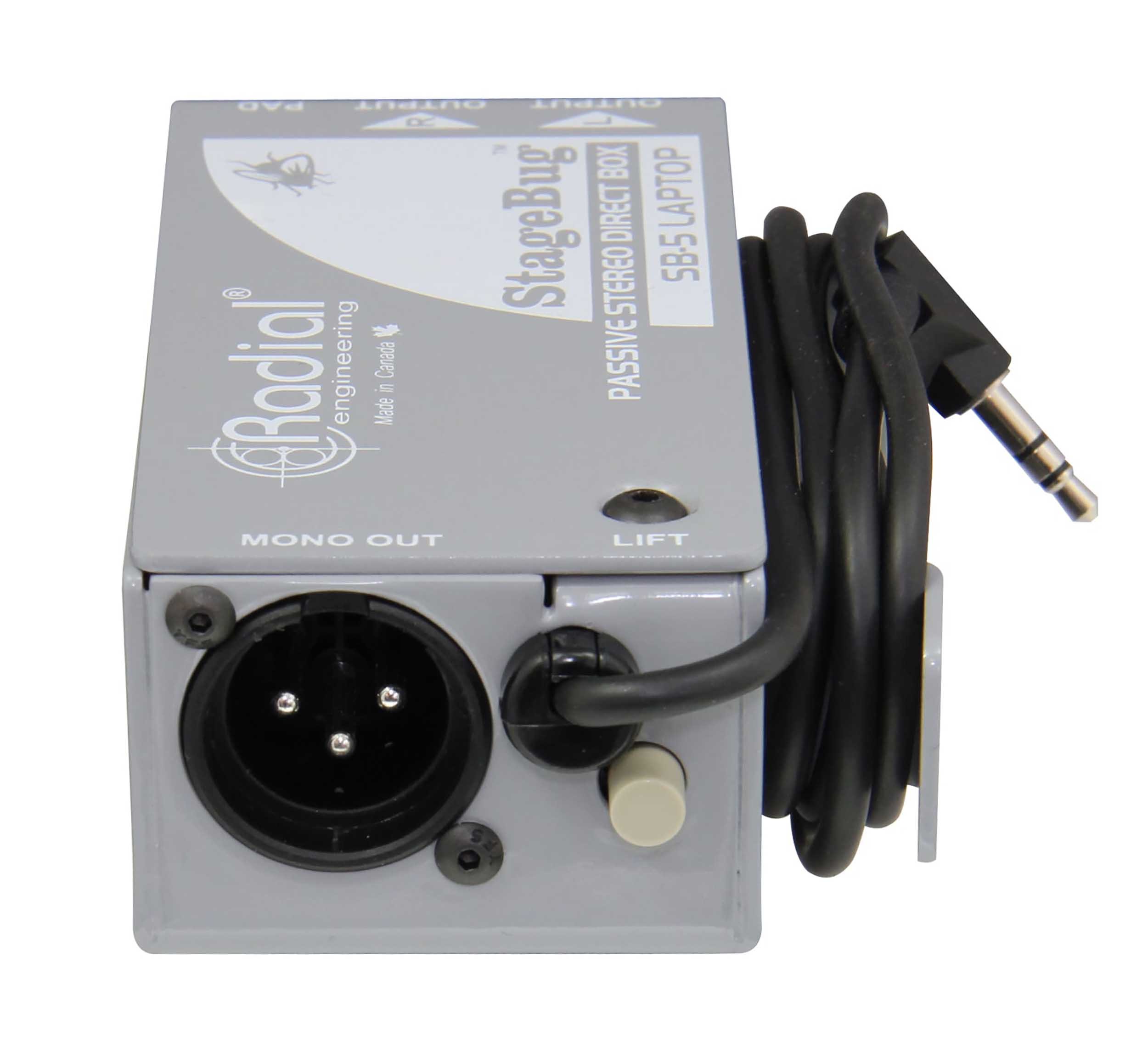

Radial Engineering StageBug SB-5 Compact Stereo Laptop Direct Box

The Radial Engineering StageBug SB-5 is a compact & portable stereo direct box designed to accommodate laptop computers, tablets, and other consumer audio products when amplifying the signal through a PA system.

The StageBug SB-5 provides an easy-to-use professional interface for connecting any mobile playback device to a mixer or PA system, with a built-in cable and 3.5mm stereo plug to connect directly to your laptop, smartphone, or tablet. Inside, a pair of custom wound transformers isolate the signals to prevent hum and buzz, and balance the audio to feed long cable runs without noise. Left and right 1/4" TRS outputs are provided for stereo operation, or a mono XLR output can be used to save channels on the PA system. The SB-5 works without any power required, and features additional ground lift and pad switches to eliminate ground loop noise and prevent distortion from high output audio sources.

Product Specifications:

Audio Circuit Type: Passive, transformer based

Number of Channels: Two channels

Frequency Response: 20Hz ~ 20KHz (± 1dB)

Dynamic Range: 100dB

Total Harmonic Distortion: 0.01% @ 1kHz

Phase Deviation: 2° @ 100Hz; 5° @ 50Hz

Input Impedance: 40k Ohms, unbalanced

Output Impedance: 2.8k Ohms, balanced

Maximum Input: +20dB

Features: Input pad, Mono Sum, Ground lift

Input Connectors: 3.5mm

Output Connectors: 1/4" TRS, XLR

Construction: 14-gauge steel chassis & outer shell

Size (L x W x D): 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm)

Weight: 0.55 lbs (250 grams)

Shipping Size (L x W x D): 8" x 5" x 3" (203mm x 127mm x 76mm)

Shipping Weight: 0.8 lbs (365 grams)

Power: Passive, no power required

Conditions: For use in dry locations only between 5°C and 40°C
