Description
The Twin-City is an active amp selector that lets you connect any two guitar amps and switch between them or drive them both simultaneously without noise, loss of gain, or any degradation to your natural guitar tone.
Active circuitry for noise-free switching
The Radial Twin-City uses a class-A input buffer to drive the amp outputs, which reduces susceptibility to noise and allows for completely silent switching on stage. To eliminate hum and buzz from ground loops, the Twin-City is equipped with an isolation transformer on output-B, along with a ground lift switch and 180⁰ polarity reverse switch that ensures both amplifiers play back in phase with each other. At the input, Drag Control load correction allows you to recreate the natural load on the pickups as if you were connected directly to a tube amplifier, allowing the natural tone of your instrument to shine through.

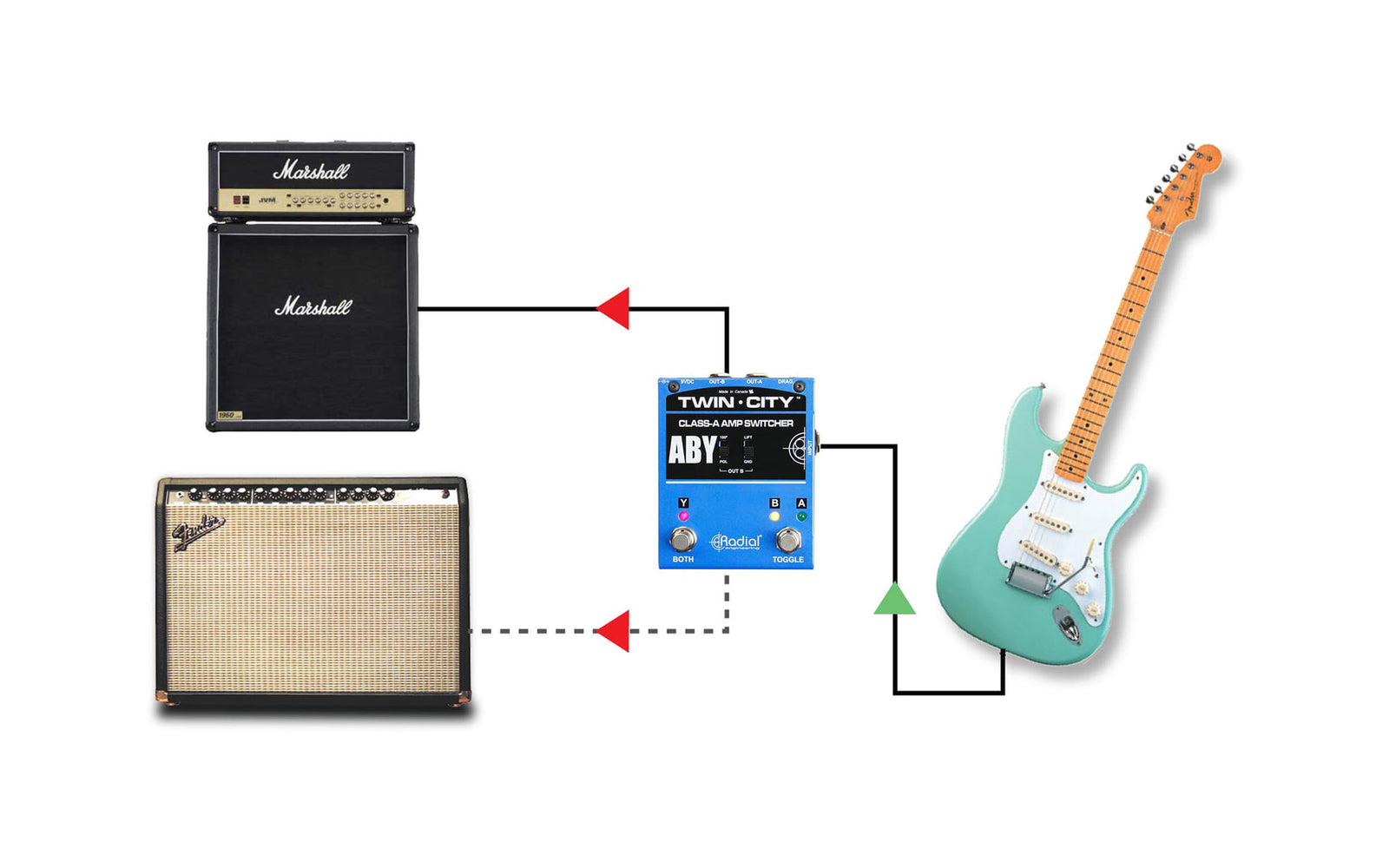

Using the Twin-City with Two Guitar Amps
Combining amps can often lead to horrendous buzz and hum. The Twin-City eliminates the problem with transformer isolation and a polarity reverse switch that sets both amps in phase.
Using the Twin-City as a Channel Switcher
Switching channels on vintage amps is now possible using the Twin-City. Connect the two outputs from the Twin-City to the two channels, make sure they are in phase by adjusting the 180° polarity reverse!

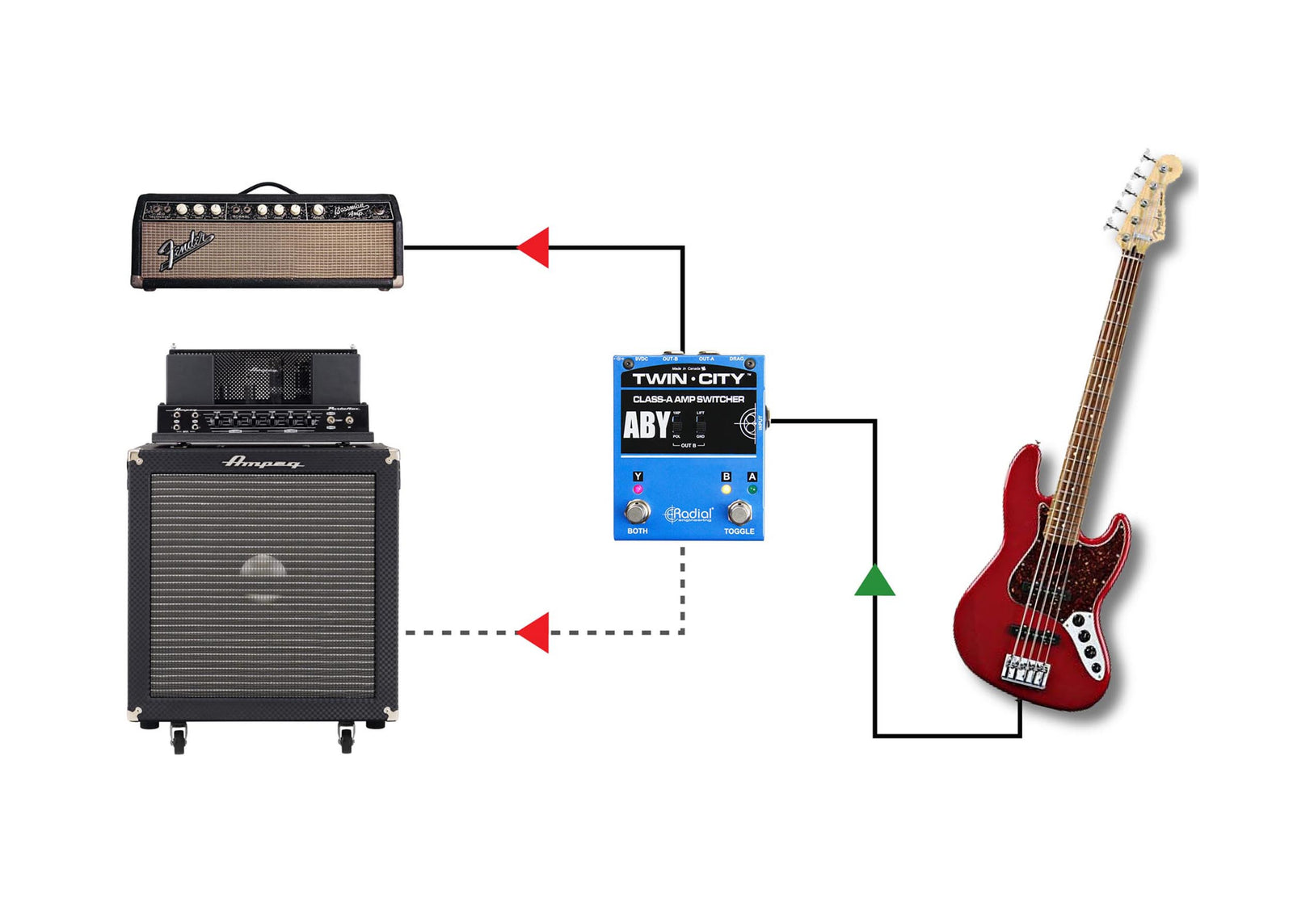

Using the Twin-City with Two Bass Amps
Why do guitarists have all the fun? The Twin-City works as well on bass as it does on guitar. Simply select between your two favorite amps to deliver the ultimate tone for each and every song.
Product Specifications:
Audio circuit type: Class-A discrete FET buffer circuit
Frequency response: Tailored for guitar
Clip Level: +9dBu (Input), +9dBu (Output)
Total harmonic distortion: <0.003% @ 1kHz
Intermodulation Distortion: 0.003%
Input Impedance: Varies with Drag Control, 22k to 1Meg Ohm
Output Impedance: 1000 Ohms
Noise Floor: -90dBu
180° polarity reverse, Drag Control
Construction: 14-gauge steel
Size (L x W x D): 3.5" x 4.4" x 2.17" (89mm x 112mm x 55mm)
Weight: 0.9lb (0.42kg)
Shipping Size (L x W x D): 6.25" x 4.5" x 2.5" (158.75mm x 114mm x 63.5mm)
Shipping Weight: 3.4lb (1.55kg)
Power: 50mA, 9VDC (center pin negative)
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
