Radial ProDI Passive DI for Guitar Bass & Keyboards
Save $30.01
Radial Engineering
SKU H-RADI-PRODI UPC 676101035847 MPN PRODI BIN E-01-08-02
Price:
$134.99 $165.00
Stock:
Only 1 unit left

Sign in to see your rewards

Sign in
Earn 67495 points (worth $6.75)
Teryn Cooper | Sales Engineer

ASK AN EXPERT

Our Certified Gear Technician is ready to help!

(213) 816 4102

Price Match Guaranteed if we lower the price within 30 days of your purchase, we’ll issue a store credit for the difference. Shop confidently knowing you’ll always get our best price. Free 2nd Day Air Delivery We offer Free 2nd Day Air on most items! Some exceptions apply, including oversized, truss, and stage products. Reward Points Earn 5% Back in HDJ Points on every purchase — use your points toward future gear purchases with us.

Call us for package deal pricing anytime 800-700-4542.

Description

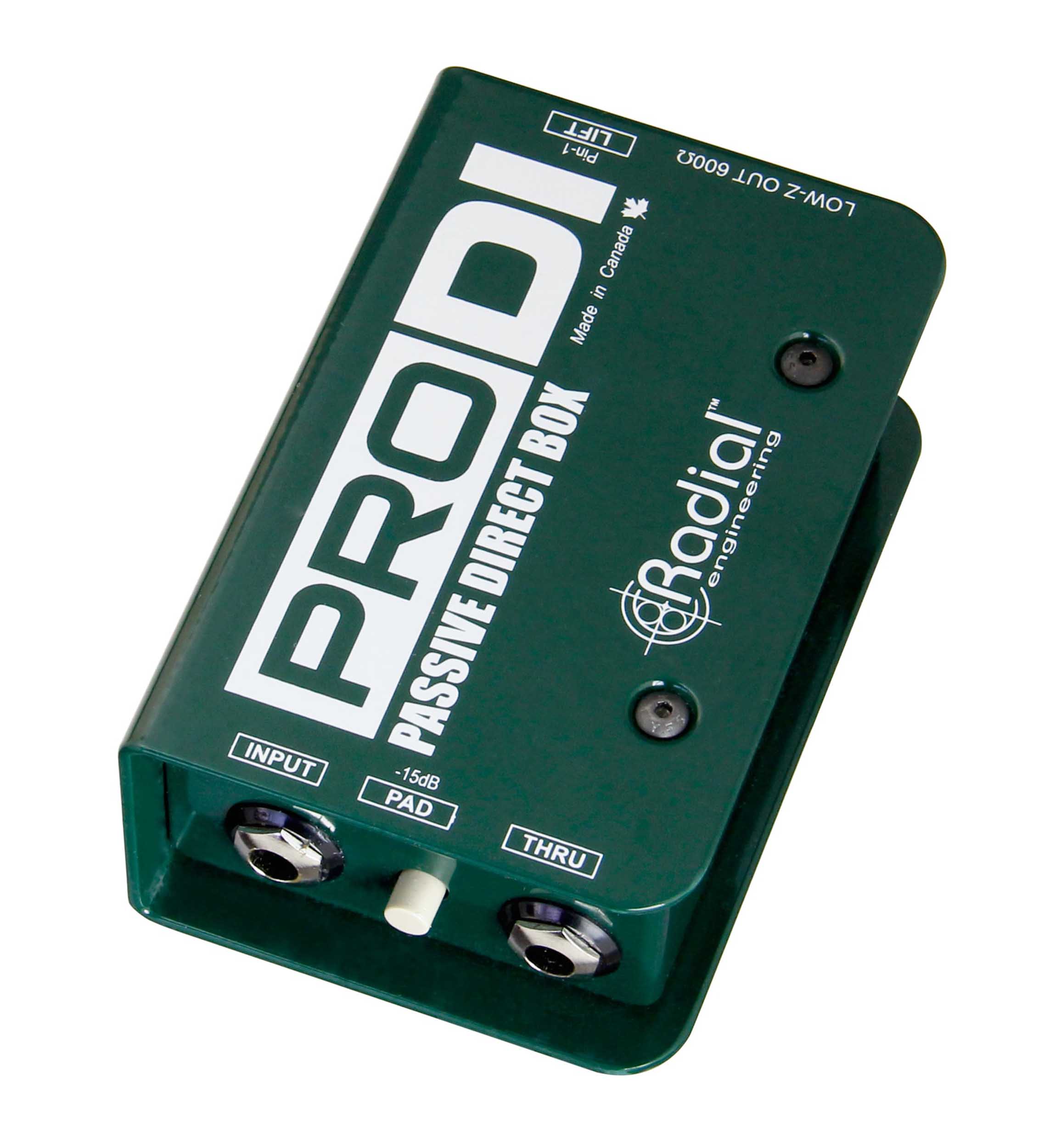

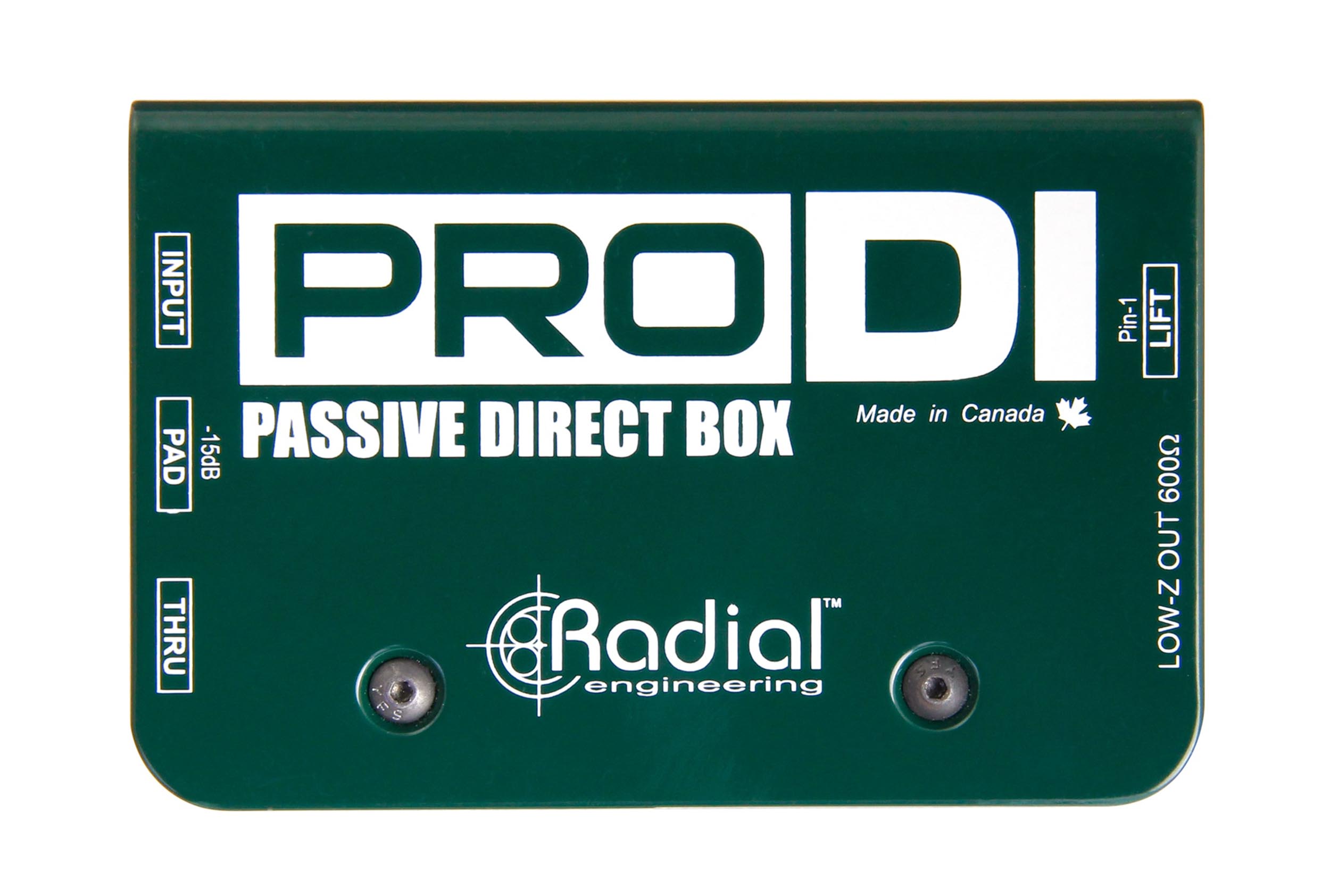

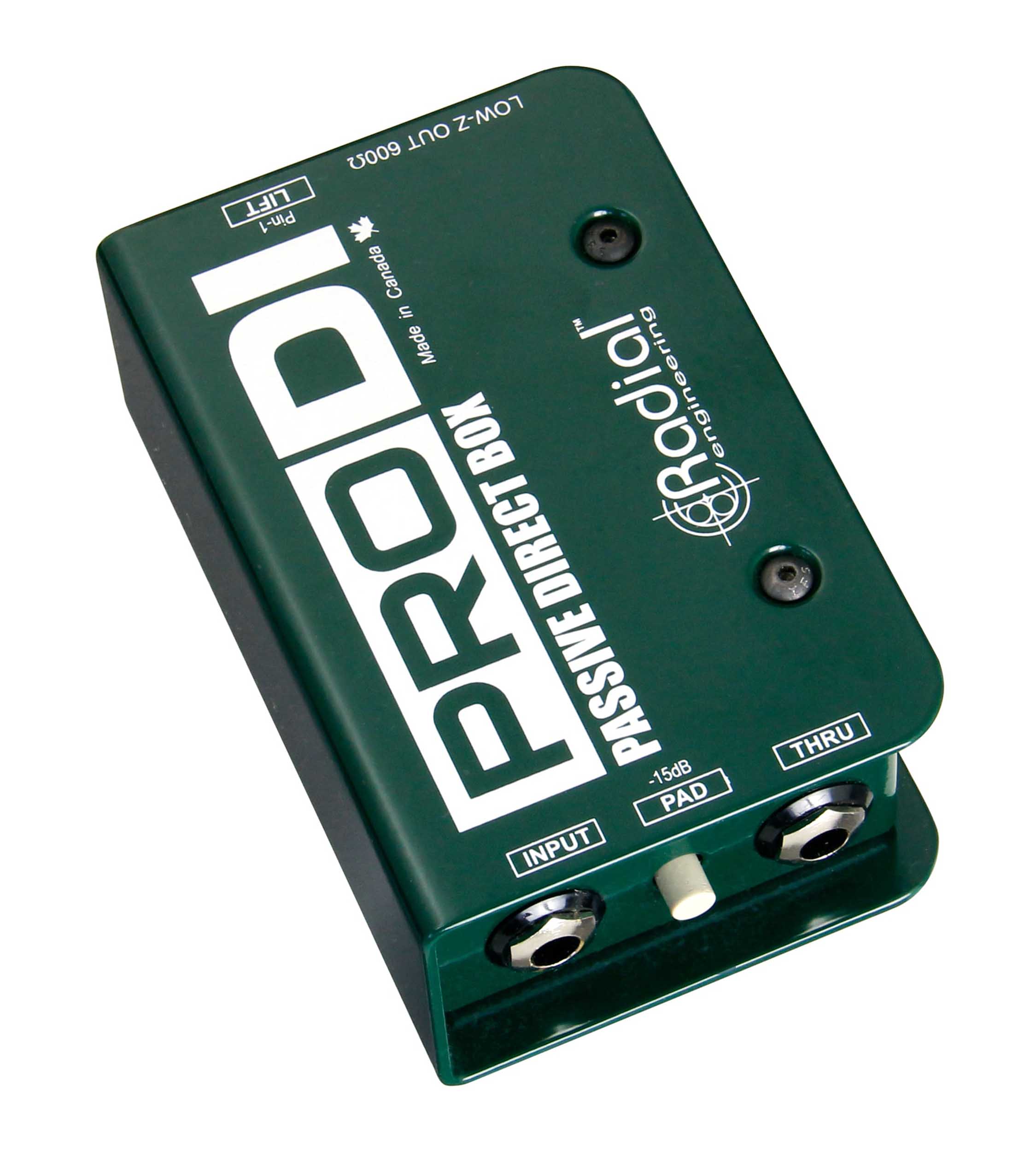

The Radial Pro DI is a high-quality, full-range passive mono direct box equipped with custom made audio transformers for exceptional signal handling without saturation and with extremely low phase distortion in the critical bass and mid regions. The result is exceptional clarity and definition at an attractive price point. You will find that with acoustic guitars and basses, the natural tone of the instrument will shine through with a smooth and musical rendering. For electrically powered devices such as keyboards, the ProDI will immediately eliminate troublesome ground loops while delivering solid dynamics with a full rich sound.


Product Specifications:

Audio Circuit Type: Passive, Transformer Based

Transformer: Eclipse ET-DB2, 12:1 Ratio

Number of Channels: Single Channel (Mono)

Frequency Response: 20Hz ~ 18.5khz (± 0.2db)

Dynamic Range: 128db

Total Harmonic Distortion: 0.01% From 20Hz~20khz @-10db

Phase Deviation: 1° @ 100Hz; 8° @ 20Hz

Input Impedance: 140k Ohms, Unbalanced

Output Impedance: 150 Ohms, Balanced

Maximum Input: +18dB @ 20Hz

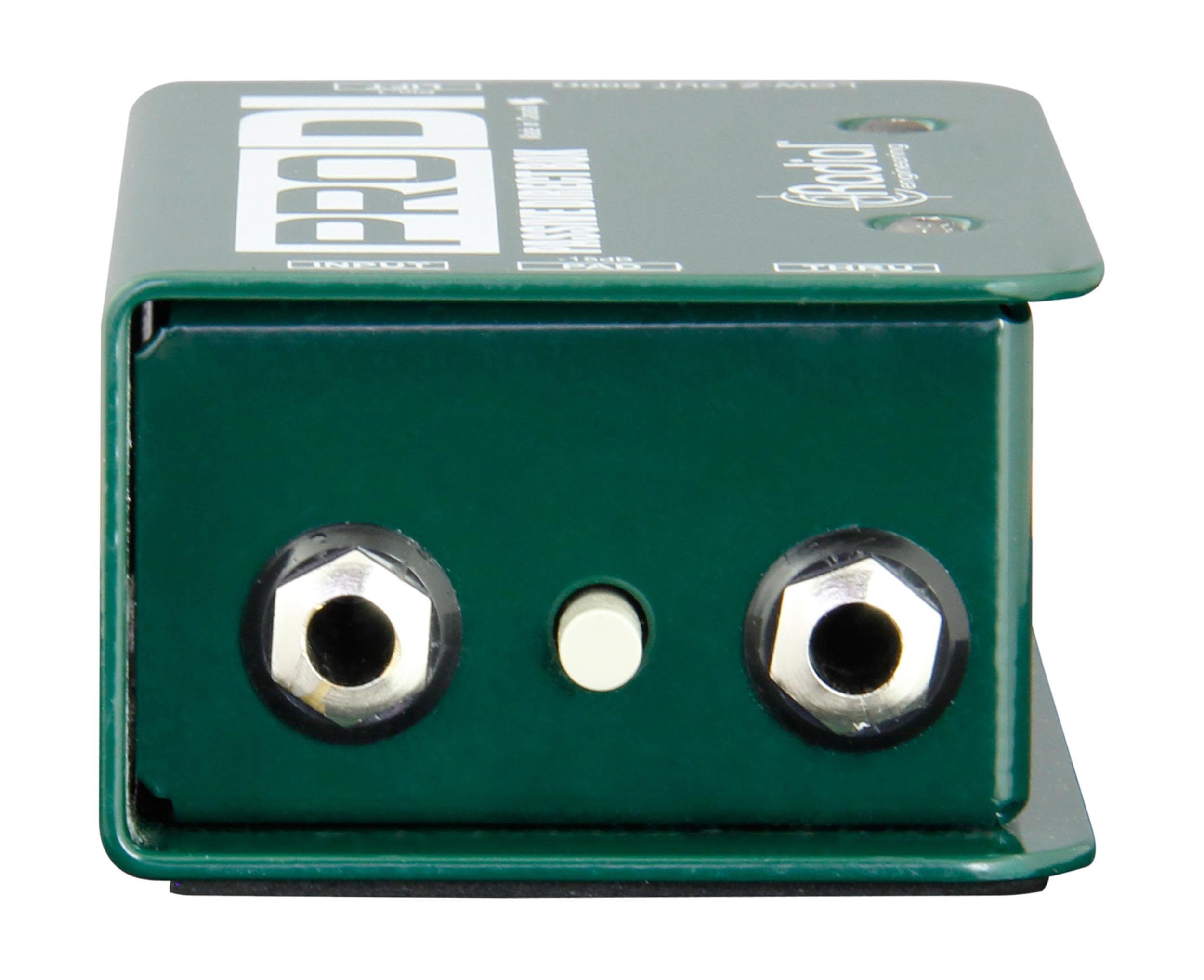

Input Connectors: 1/4" In & Thru

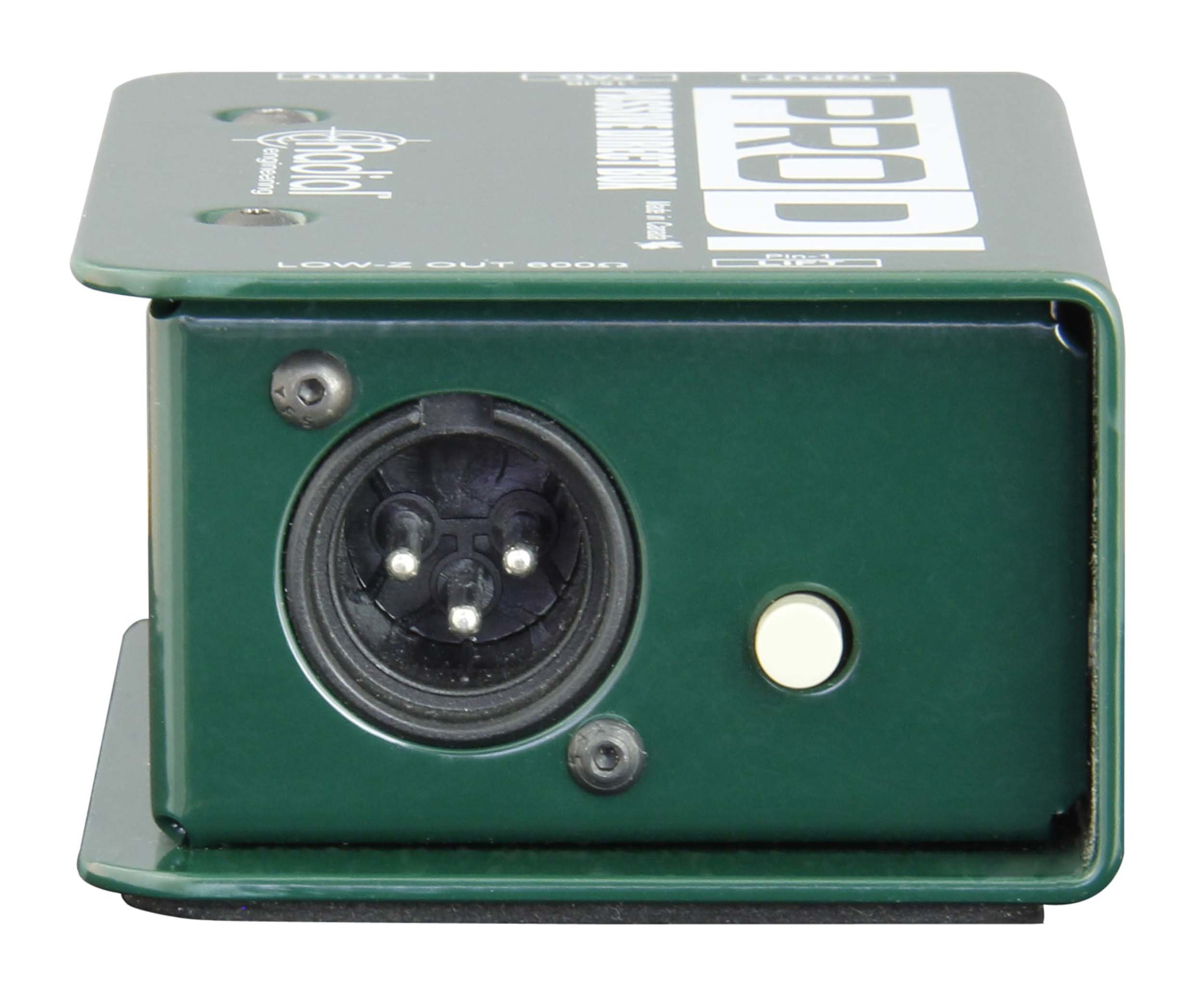

Output Connectors: XLR-M Out

Construction: 14-Gauge Steel Chassis & Outer Shell

Power: Passive, No Power Required

Conditions: For Use in Dry Locations Only Between 5°C And 40°C

Dimensions (L X W X D): 4.25” X 2.75” X 1.75" (108 X 70 X 44mm)

Weight: 1.2lb (0.54kg)

Shipping Dimensions (L X W X D): 6.5" X 4" X 3" (165 X 76 X 102mm)

Shipping Weight: 1.35lb (0.61kg)
