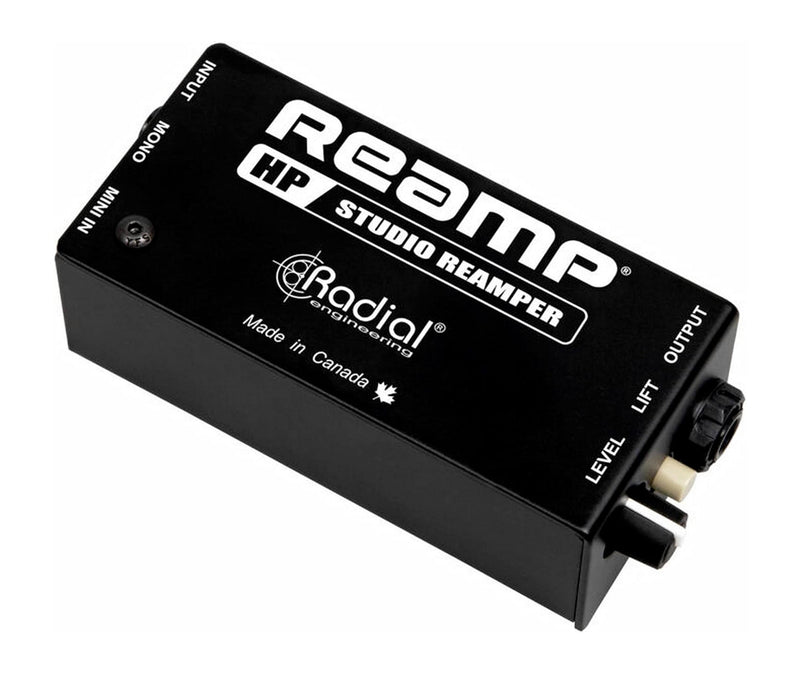

Radial Reamp HP Reamper for Computer Interface Headphone Outputs

The Reamp HP is designed to accept the signal from the headphone output jack on your interface, making it incredibly easy to connect on the fly without having to repatch cables or dig around behind your studio desk or equipment rack. Simply assign the track you want to Reamp to the right channel of your headphone output and you're ready to feed guitar, bass, or even vocal tracks through your amplifier to record and experiment with new tones and settings. You can even assign stereo tracks to the Reamp HP and sum them down using the dedicated mono switch on the device.

More Flexibility = More Creativity

The Reamp HP features both 1/4" and 3.5mm inputs, so you aren't limited to just Reamping tracks from your audio interface. Connect a smartphone or tablet to the Reamp HP and create new sounds by combining a sound creation app with your favorite pedals and amps. The Reamp HP is equipped with an isolation transformer and a ground lift switch to eliminate hum and buzz and help produce a clean recording, along with a level control for fine-tuning the output signal.

Product Specifications:

Audio circuit type: Passive, transformer isolated

Frequency response: 20Hz ~ 20KHz (+/- 0.5dB)

Dynamic range: >96dB

Total harmonic distortion: 0.0015% @1kHz

Input Impedance: 11.8kΩ

Output Impedance: 1.5kΩ

Equivalent Input Noise: -105dBu

Noise: -125dBu

Maximum Input: >+20dBu

Input Connectors: ¼" TRS unbalanced stereo, 3.5mm TRS unbalanced stereo

Output Connectors: ¼" TS

Construction: 16-gauge steel chassis and outer shell

Size (L x W x D): 4.6" x 1.50" x 1.89" (117mm x 48mm x 38mm)

Weight: 0.58 lbs (256g)

Power: Passive, no power required

Conditions: For use in dry locations only between 5°C and 40°C

Warranty: Radial 3-year, transferable
