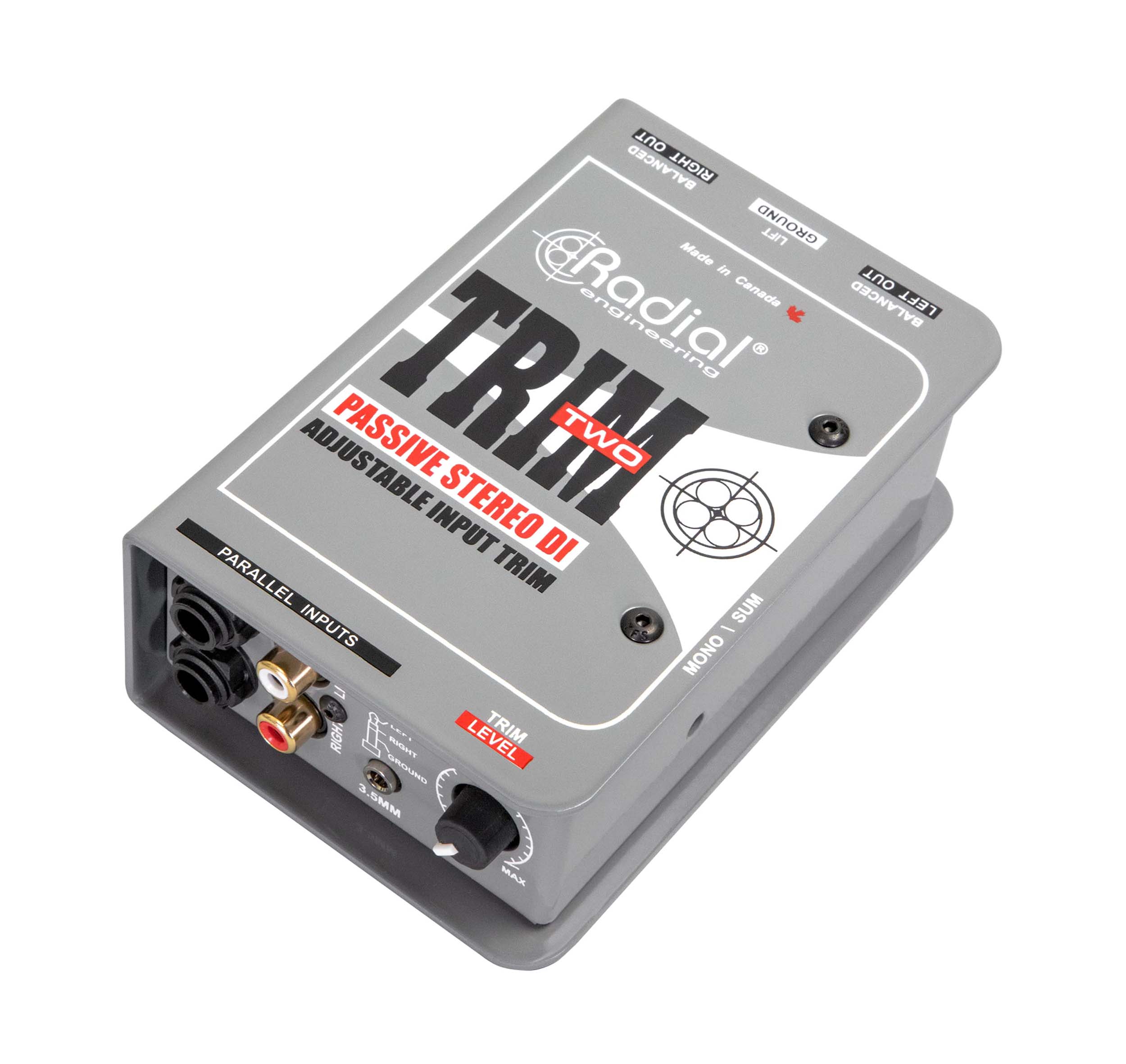

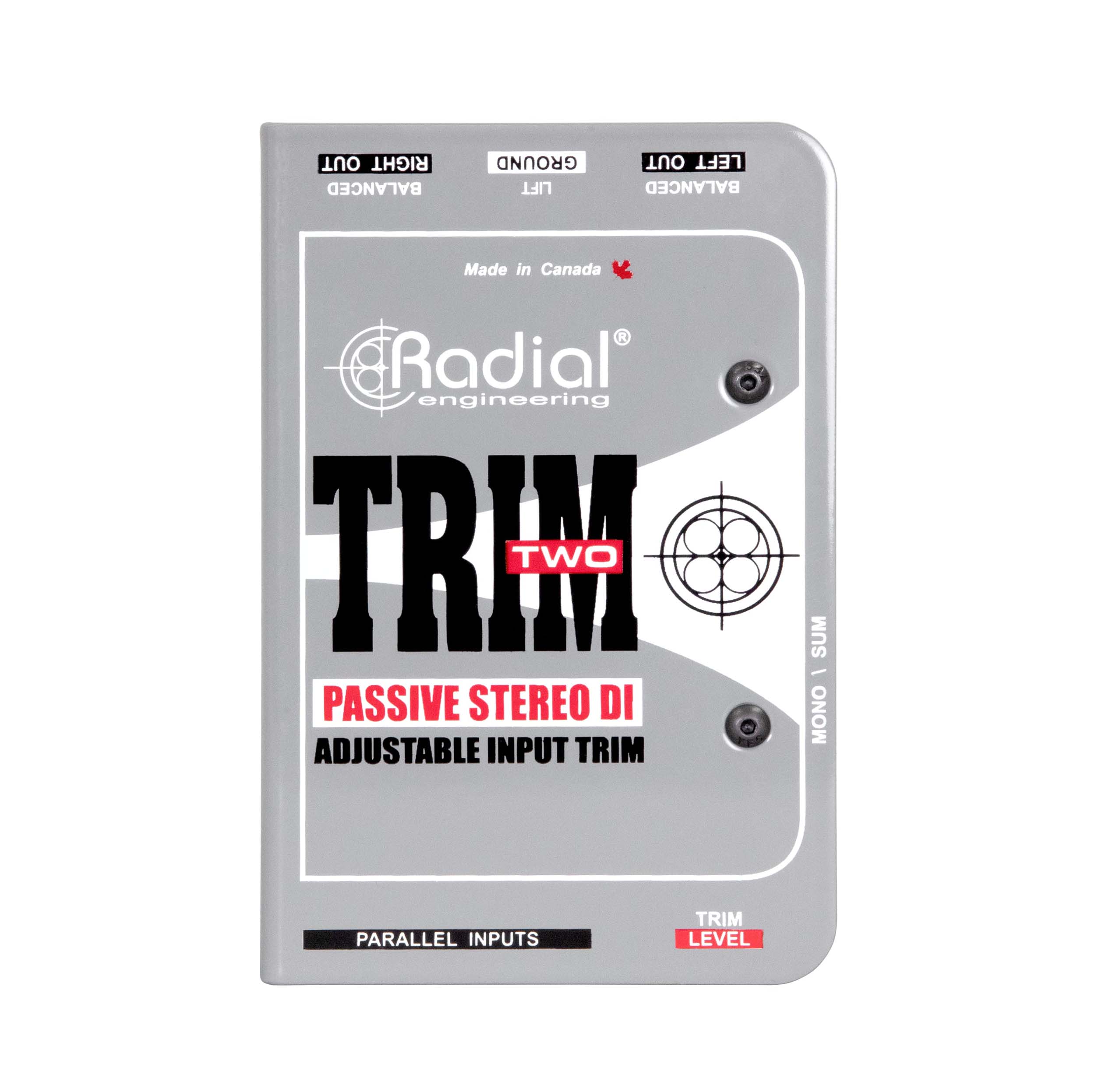

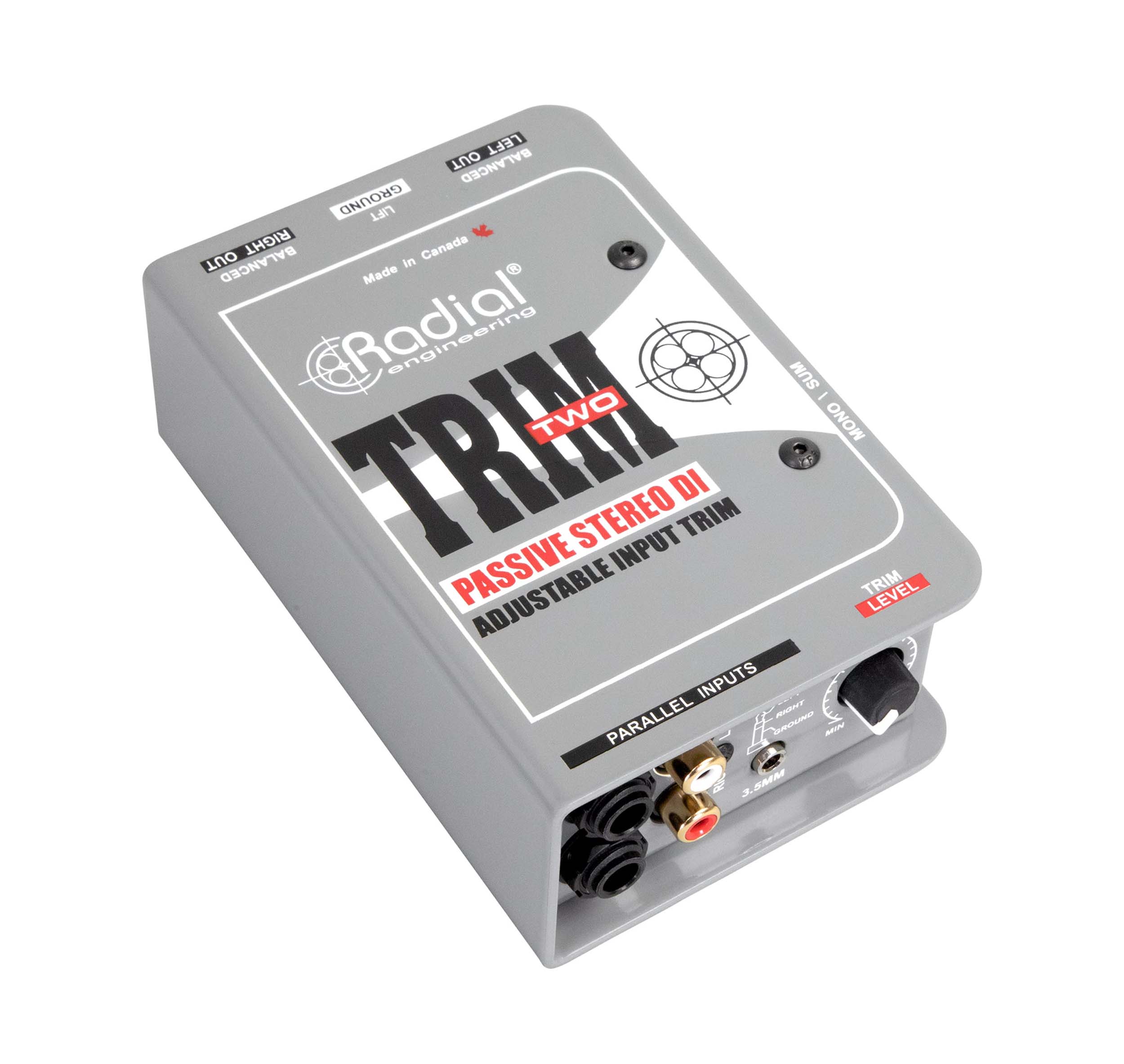

Radial Engineering Trim-Two 2-Channel Passive DI for w/ Level Control

The Radial Engineering Trim-Two allows you to connect any playback device and interface it with balanced pro audio equipment without signal loss or hum and buzz from ground loops. It features two transformers which isolate and balance the audio output from your source device, eliminating noise and allowing you to use long cable runs without signal degradation. A handy mono sum switch makes it easy to reduce the output channel count or send the same signal to two destinations at once, and an accessible level control gives you the ability to adjust levels in an instant. Multiple input connector types make it easy to hook up any consumer line level playback source, from laptops & smartphones to DJ equipment. The completely passive design means that you never have to worry about powering the Trim-Two, making it truly plug & play.

Product Specifications:

Audio Circuit Type: Passive, Transformer Based

Transformer: Custom

Number of Channels: Dual Channel (Stereo)

Frequency Response: 20Hz to 20khz

Dynamic Range: >100db

Total Harmonic Distortion: 0.00009

Phase Deviation: <10°

Input Impedance: 10K Ω, Unbalanced

Output Impedance: 2.8K Ω, Balanced

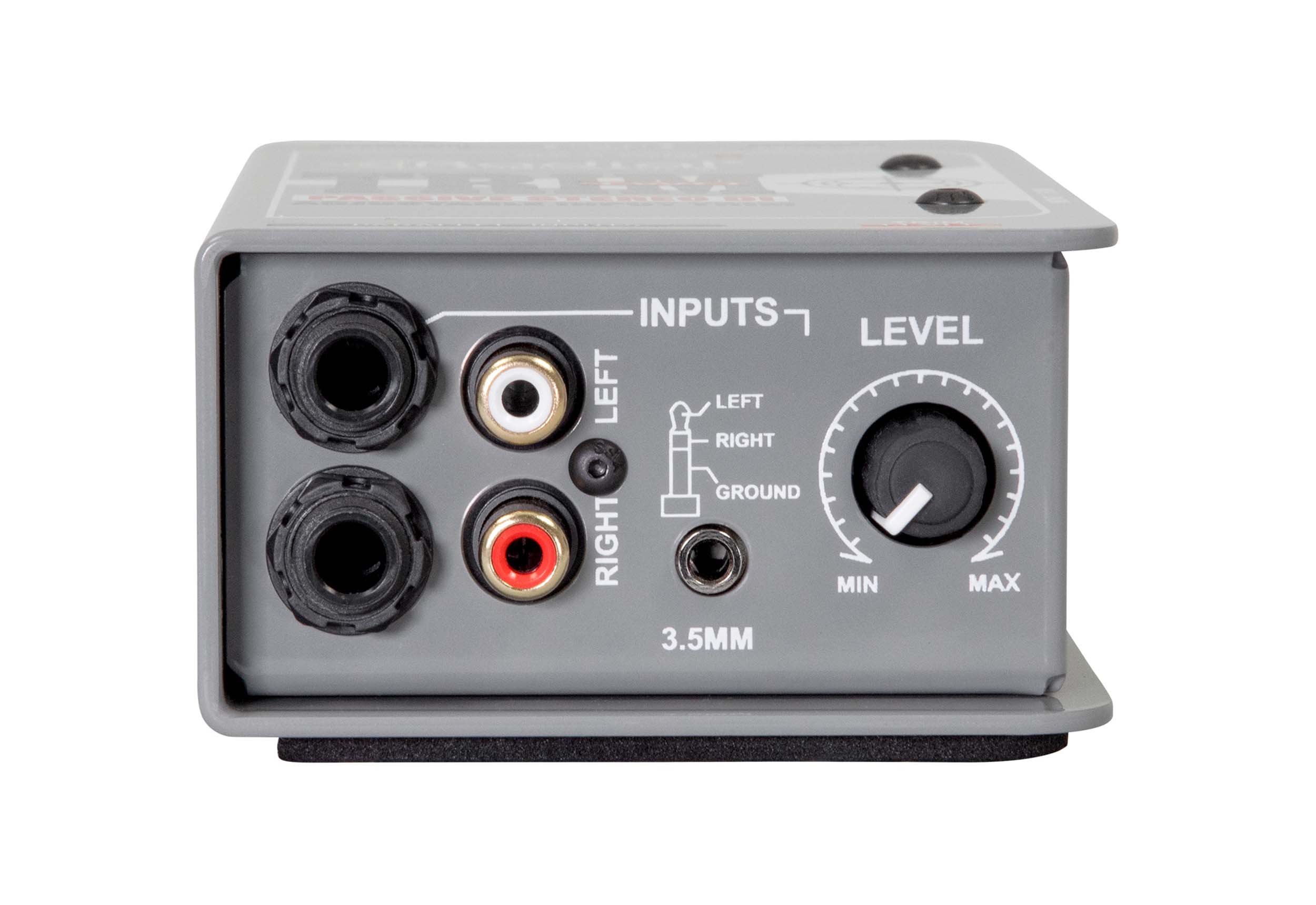

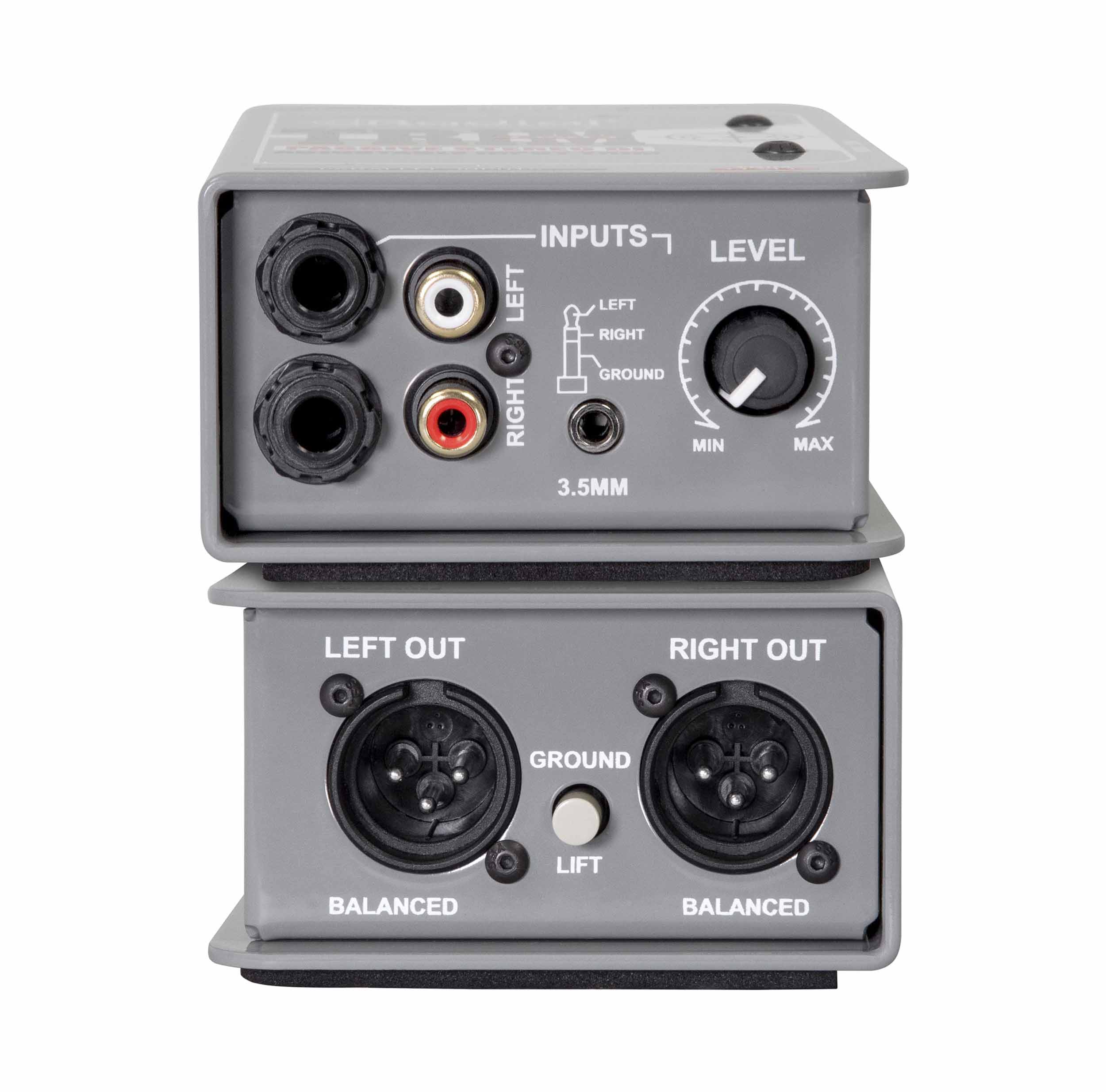

Input Connectors: 1/4" RCA and 3.5mm Input

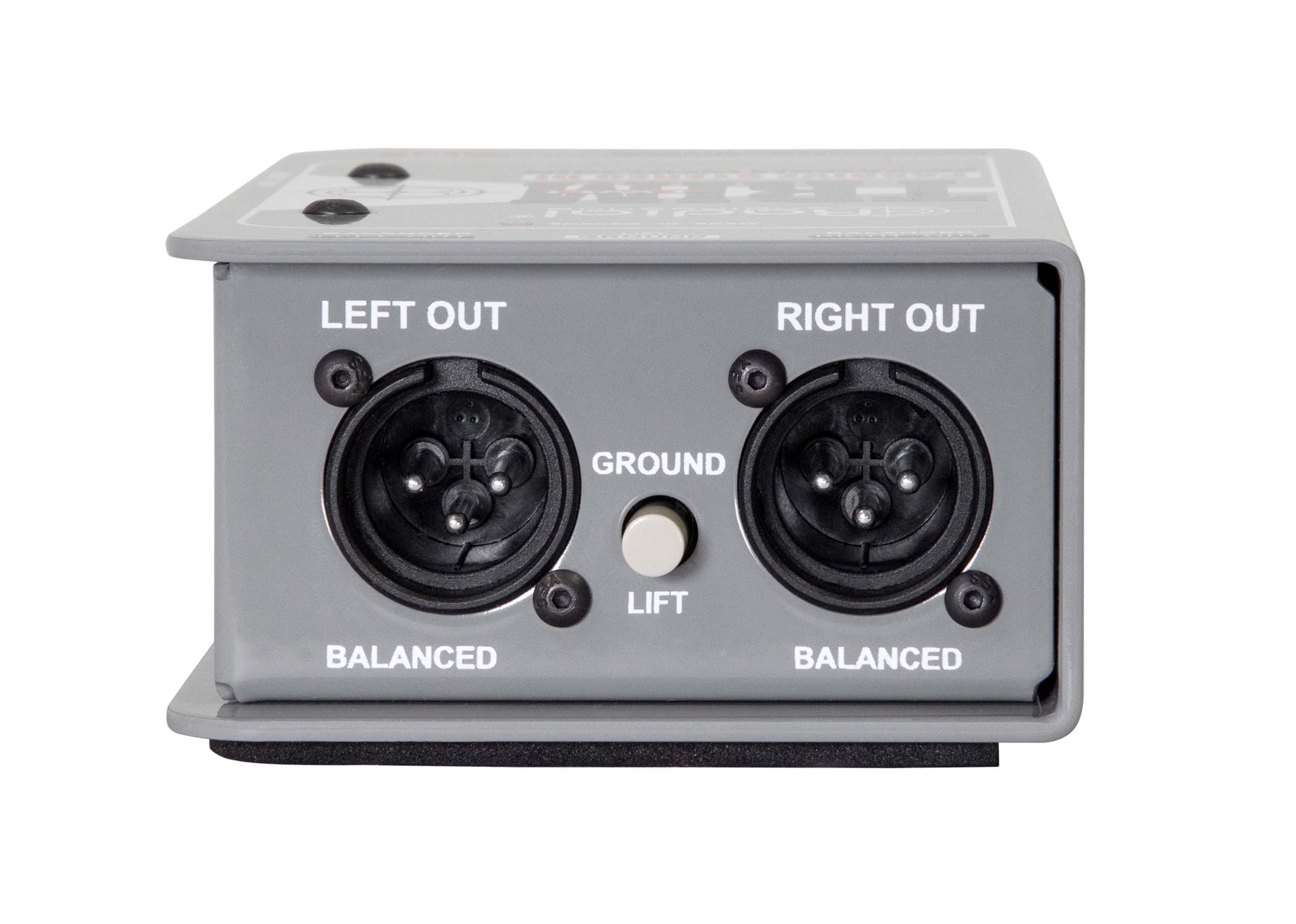

Output Connectors: XLR-M Output

Extras: Copper Foil Shield

Construction: 14-Gauge Steel Chassis & Outer Shell

Power: Passive, No Power Required

Conditions: For Use in Dry Locations Only Between 5°C And 40°C

Dimensions (L x W x D): 3.3" X 5.0" X 2" (84 X 127 X 48mm)

Weight: 1.55 Lbs (0.70 Kg)

Shipping Dimensions (L x W x D): 4" X 3" X 6.5" (102 X 76 X 165mm)

Shipping Weight: 1.92 Lbs (0.87 Kg)
