Description

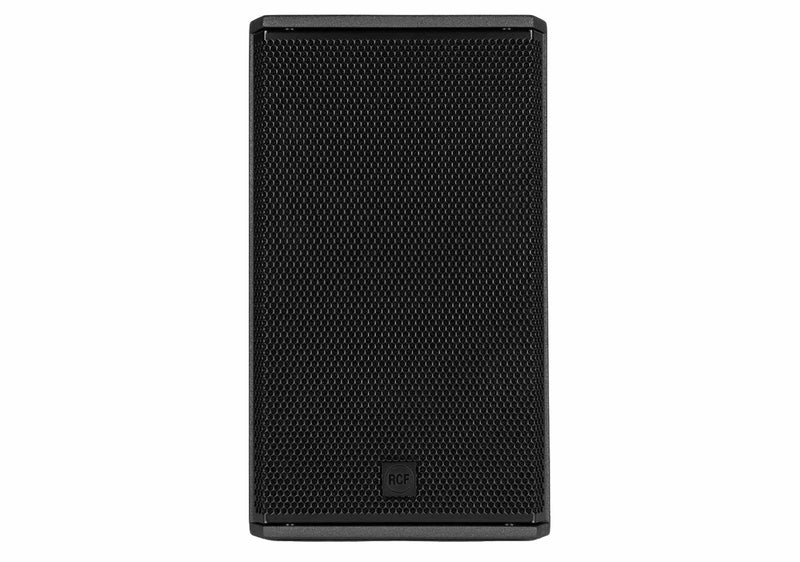

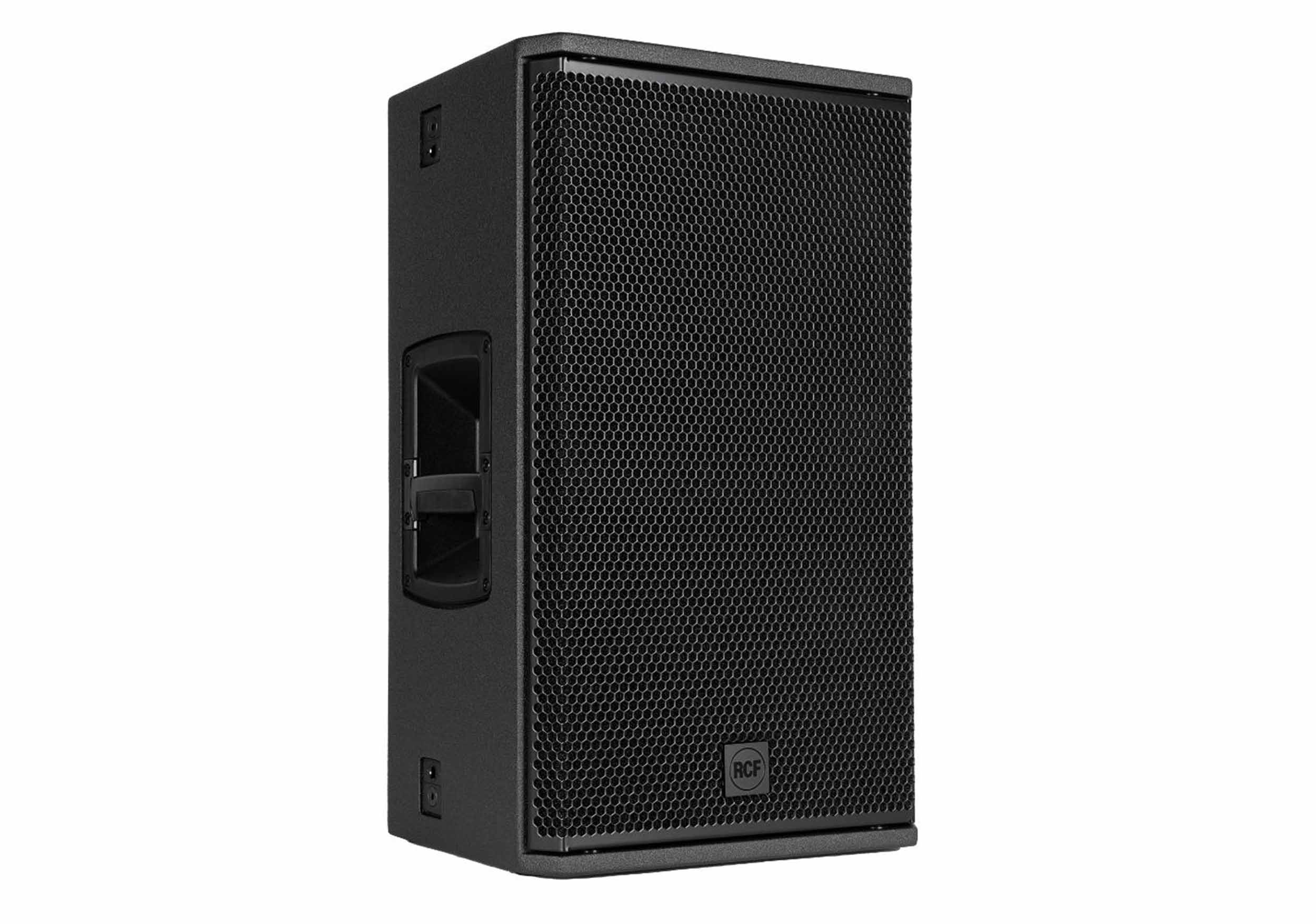

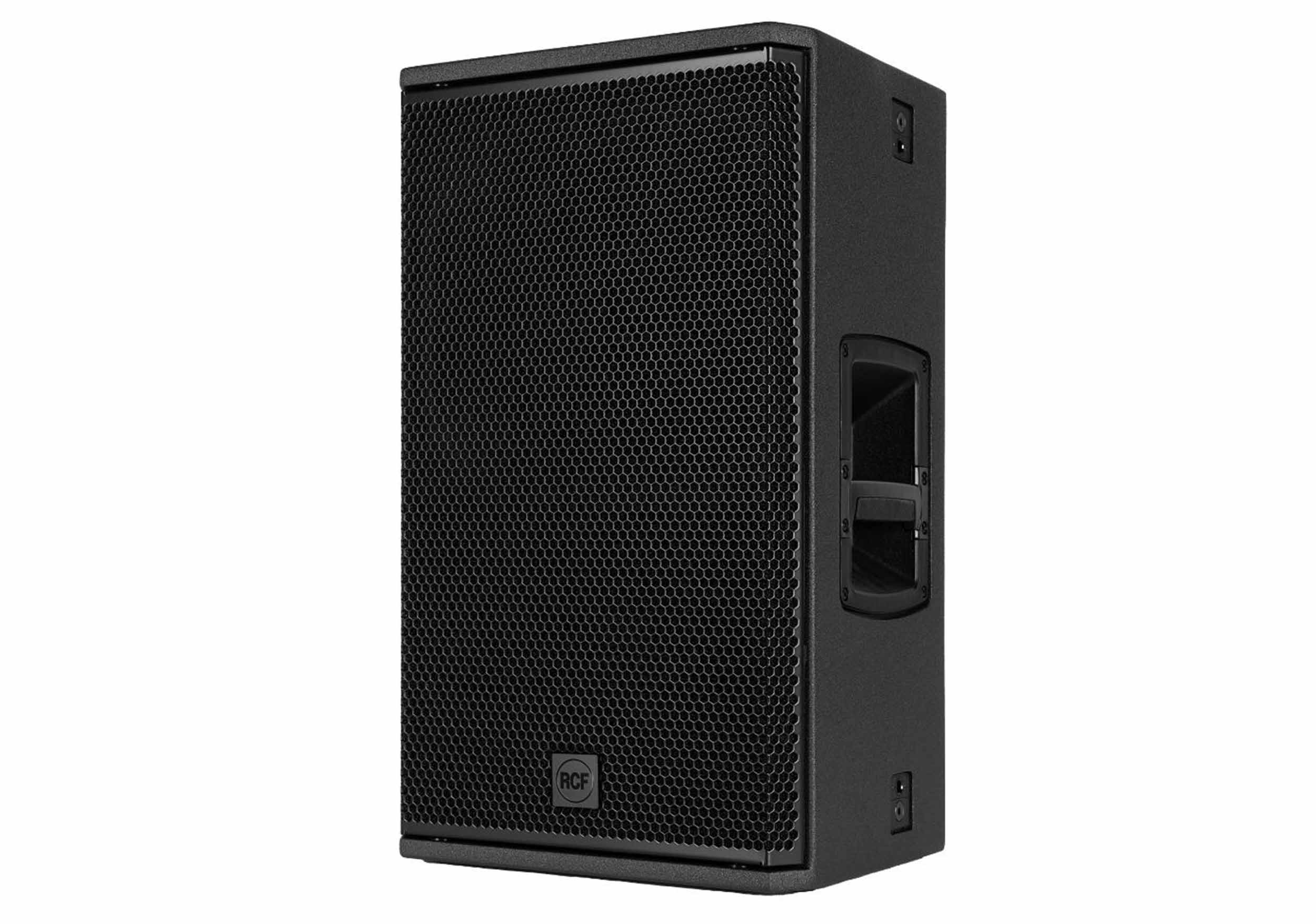

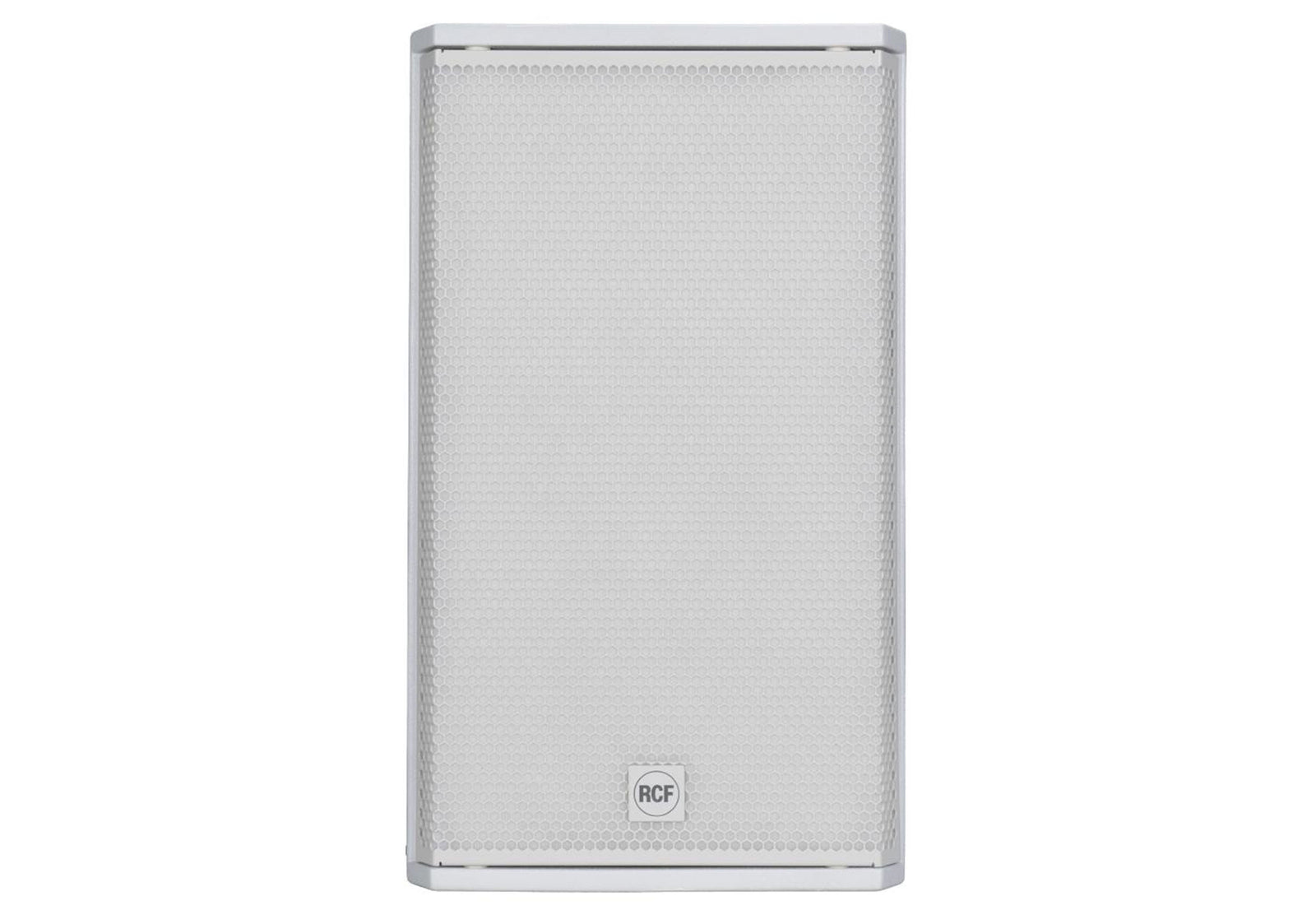

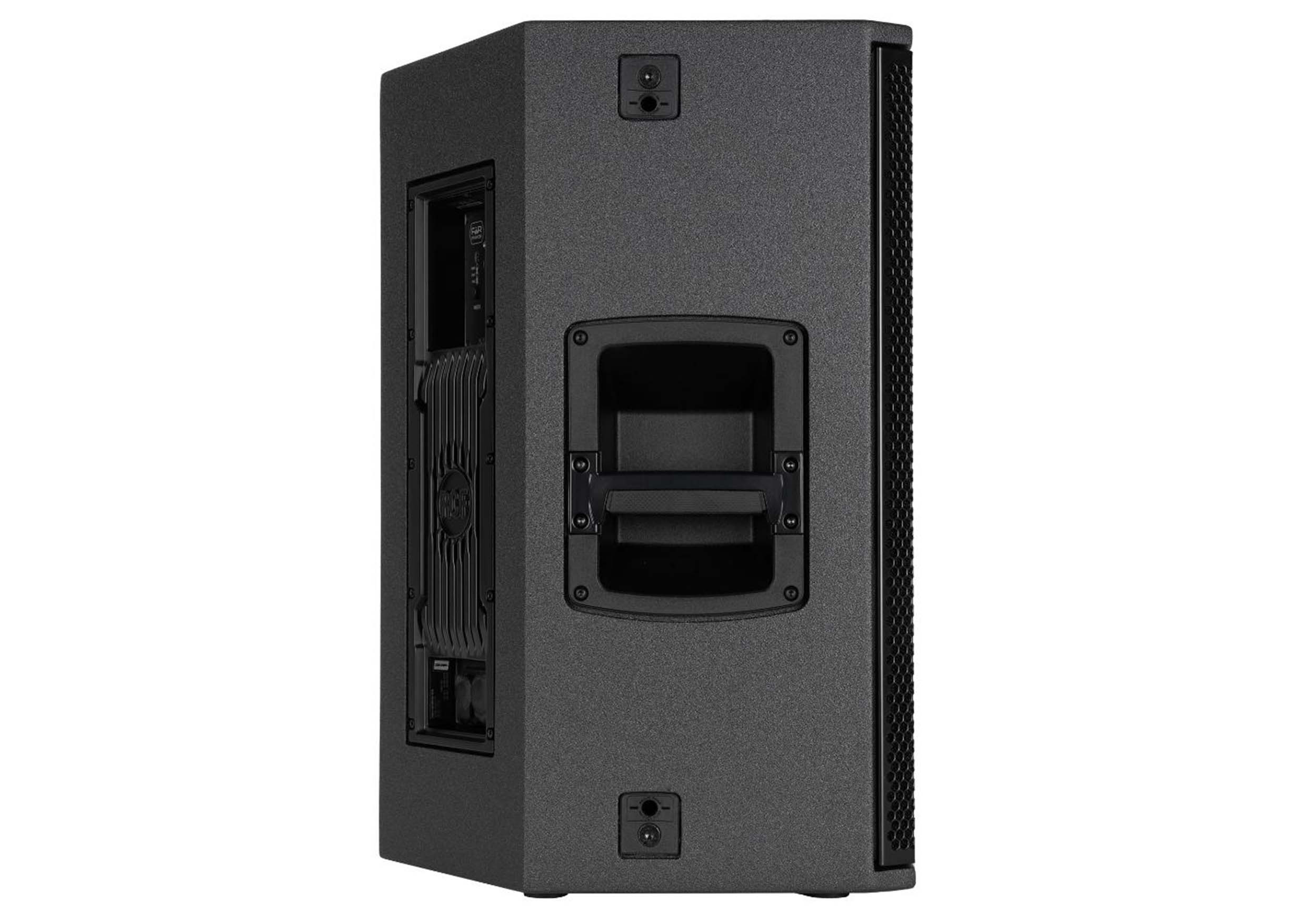

The RCF NX 932-A is a powerful and versatile professional active speaker, designed for sound providers, musicians, and DJs. Equipped with a 2,100W Class-D amplifier, it delivers up to 132 dB SPL with a linear frequency response from 45 Hz to 20 kHz. The advanced DSP processing ensures accurate, distortion-free sound reproduction, making it perfect for various applications, including FOH systems, stage monitoring, and fixed installations.
Potent Woofer:

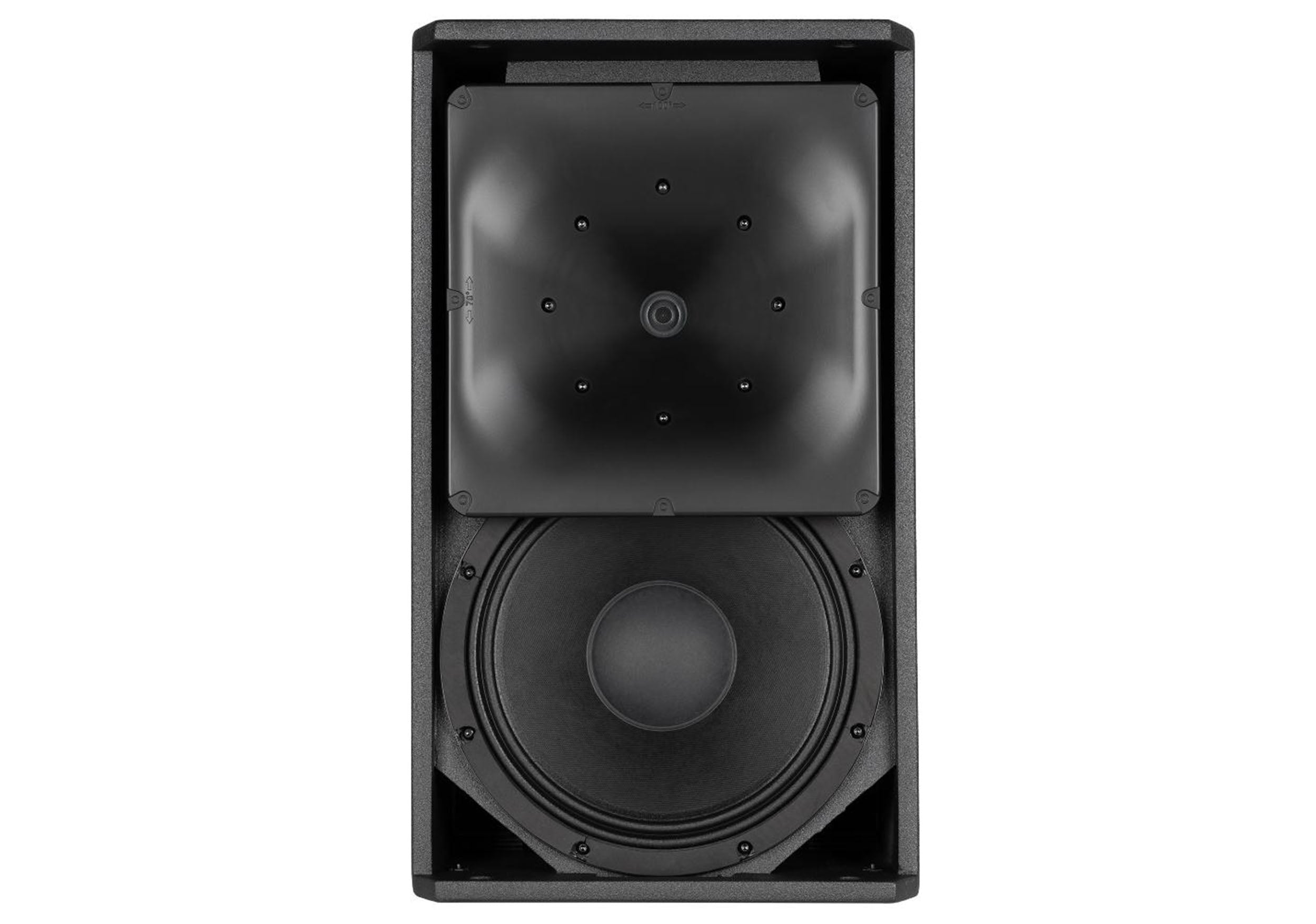

At the heart of the NX 932-A is a high-performance 12” woofer with a 2.5” voice coil, engineered for tight, punchy bass and accurate midrange frequencies. The Bass Motion Control (BMC) technology manages the woofer’s excursion to deliver deep, controlled low-end performance even at high SPLs.
Superior Compression Drivers:
The NX 932-A features an ND840 3” titanium/neodymium compression driver with a 1.4” exit. With an extended crossover point at 800 Hz, this driver enhances clarity and efficiency while reducing distortion. This results in a smooth, natural sound, even at high volumes.
Direct Drive Technology:
RCF’s Direct Drive technology enhances the voice coil’s performance, utilizing a high-temperature Kapton former for improved durability and efficiency. Combined with True Resistive Waveguide technology, the NX 932-A delivers consistent 100° x 70° dispersion, ensuring uniform coverage across the audience.
Product Specifications:
Frequency Response:45 Hz - 20,000 Hz
Max SPL @ 1m:132 dB
Horizontal Coverage Angle:100°
Vertical Coverage Angle:70°
Transducers
Compression Driver:1 x 1.4" neodymium, 3.0" voice coil
Woofer:1 x 12", 2.5" voice coil

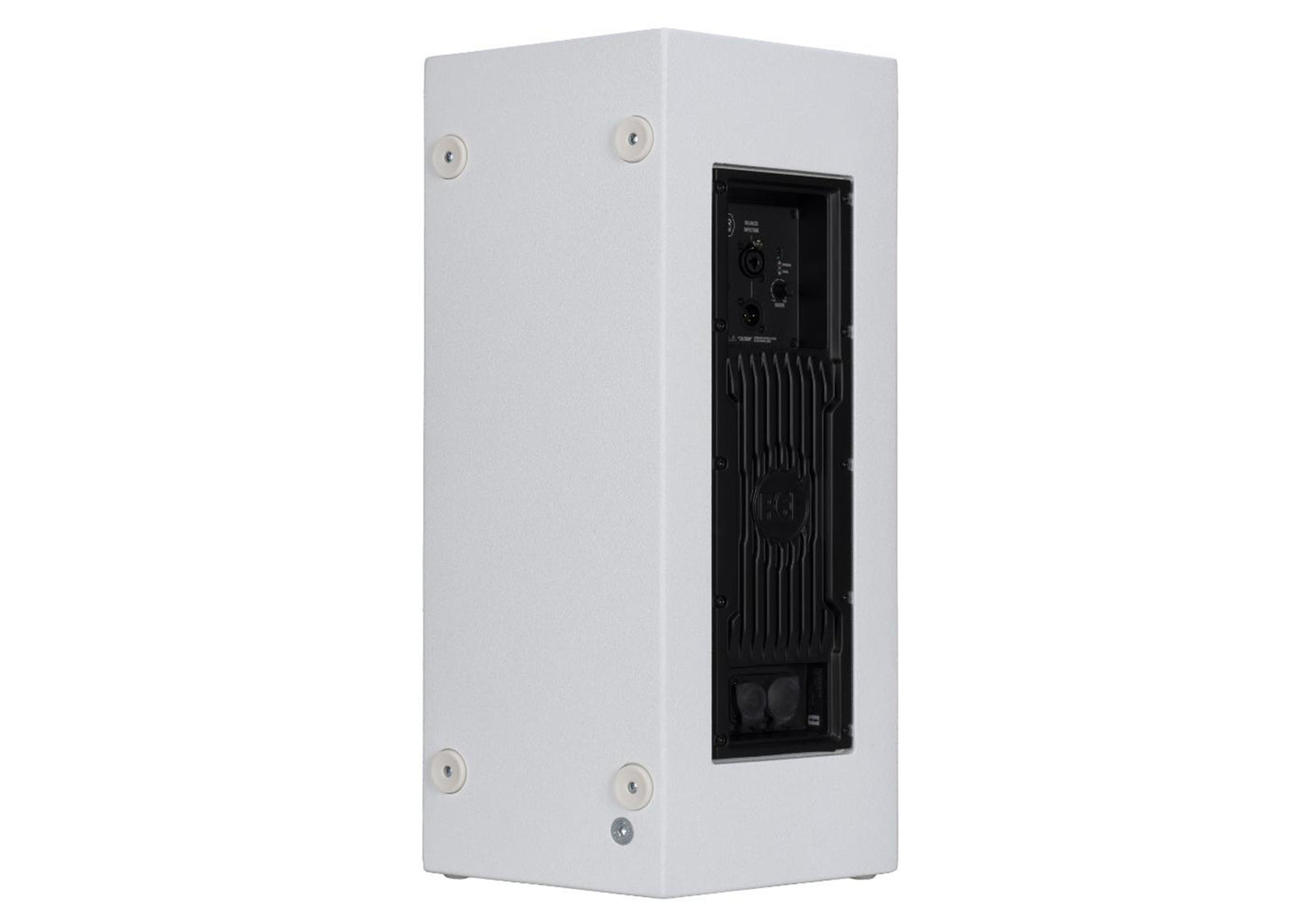

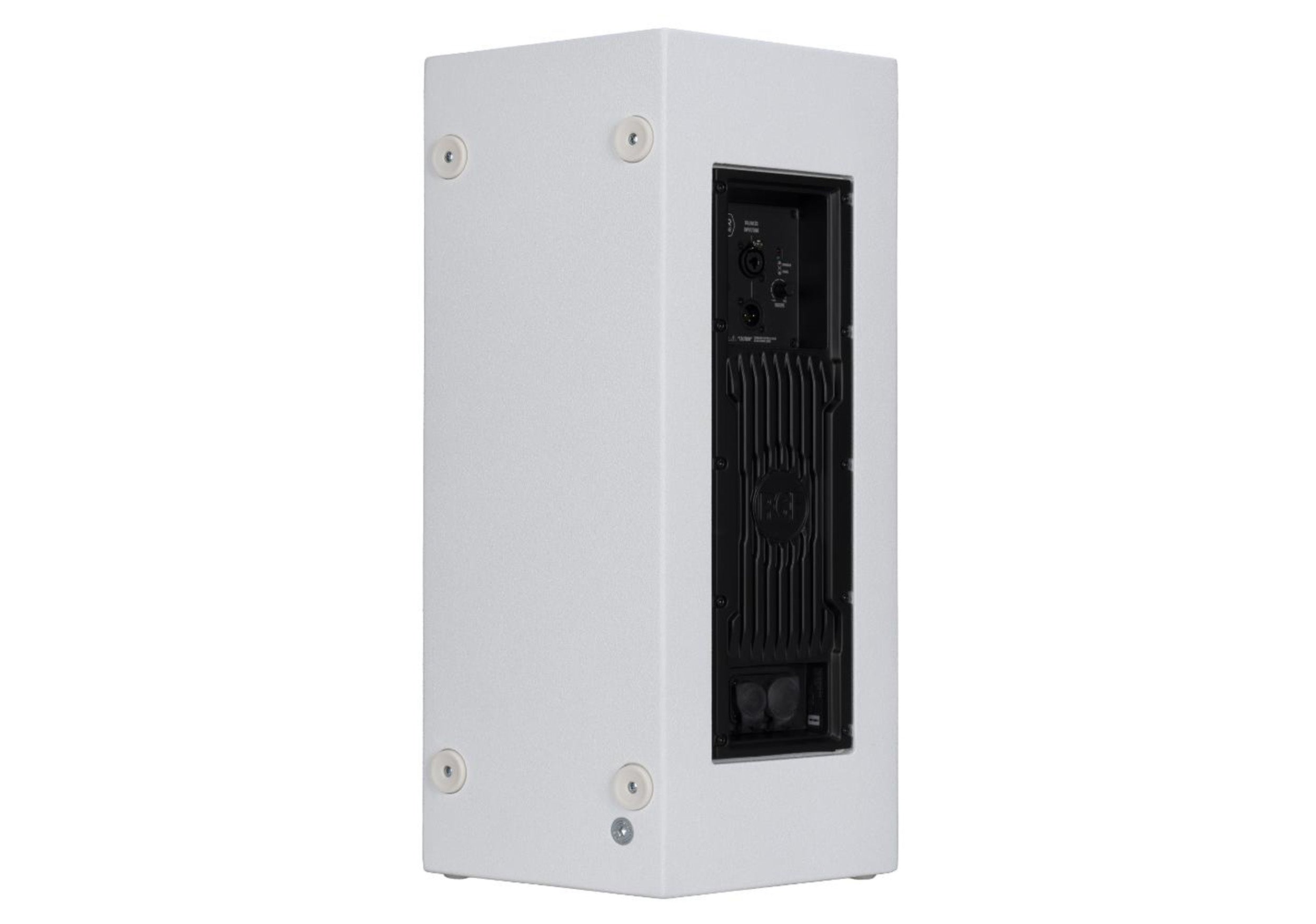

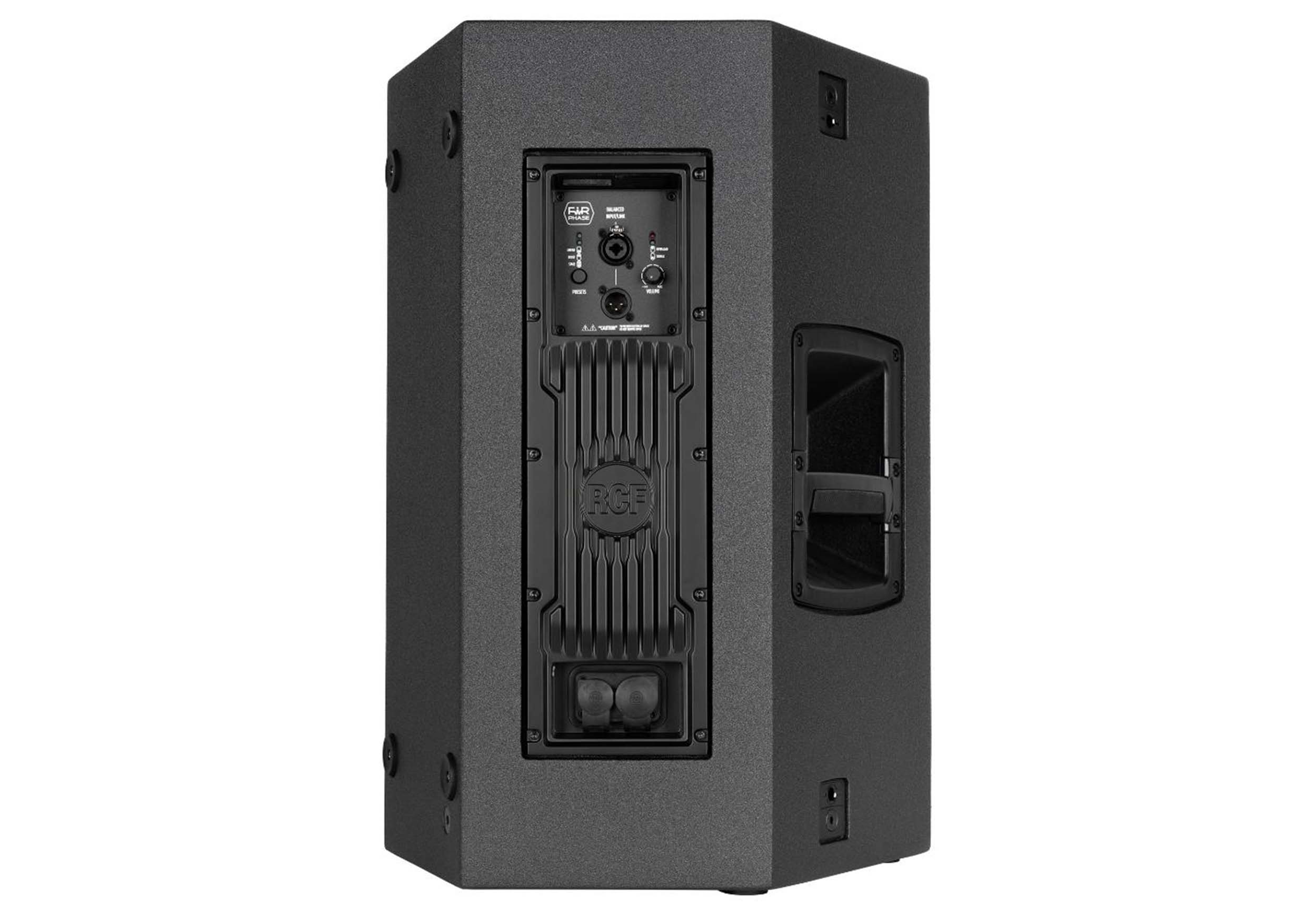

Input/Output Section
Input Signal:Balanced/Unbalanced
Input Connectors:Combo XLR/Jack
Output Connectors:XLR
Input Sensitivity:-2 dBu / +4 dBu
Processor Section
Crossover Frequency:700 Hz
Protections:Thermal, RMS
Limiter:Soft Limiter
Controls:Linear, Boost, Stage, Volume
Power Section
Total Power:2100W Peak
High Frequencies:700W Peak
Low Frequencies:1400W Peak
Cooling: Convection
Connections:Powercon TRUE1 TOP IN/OUT
Physical Specifications
Cabinet Material:Plywood
Hardware:Six M10 and four Quick Lock rigging points

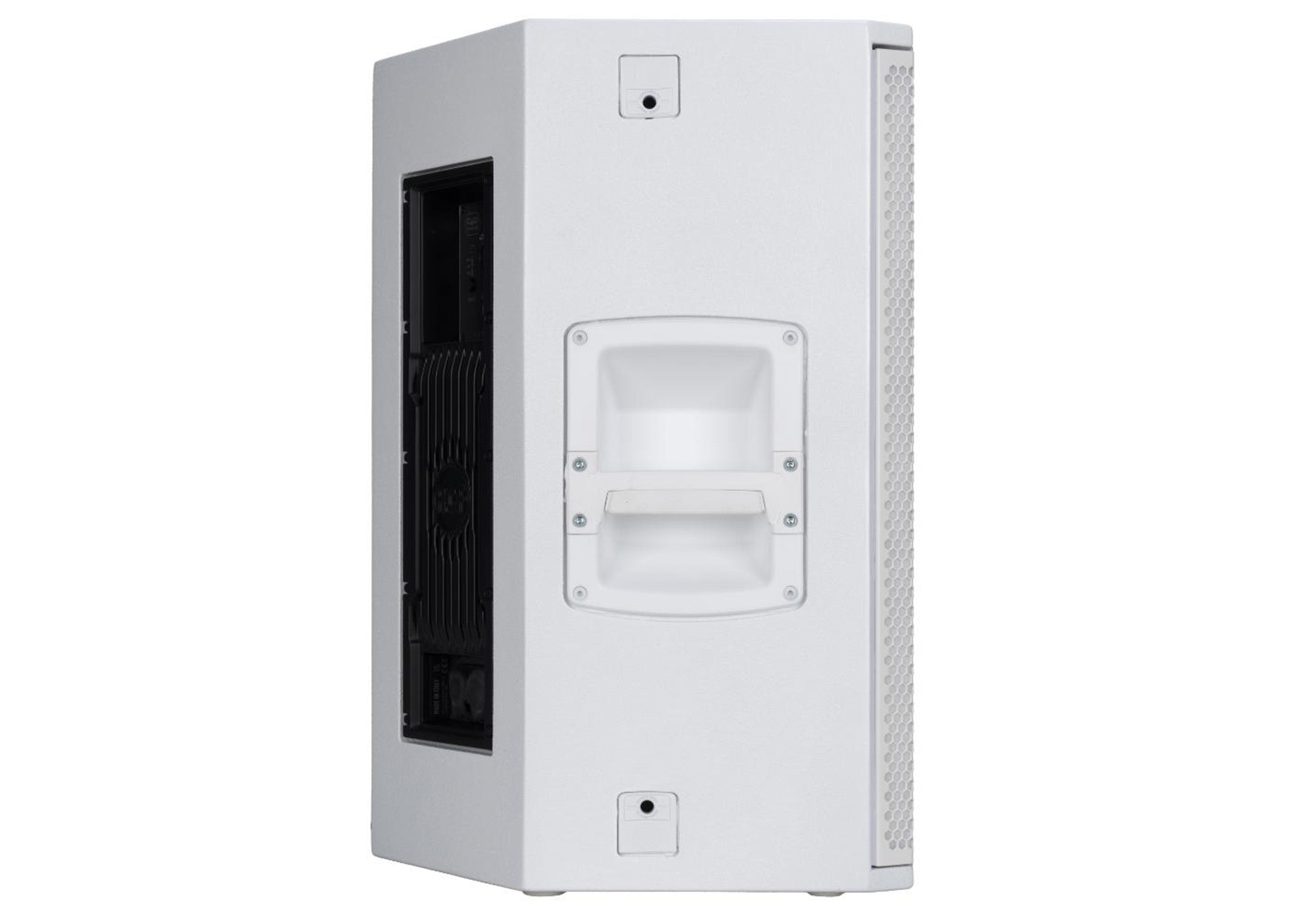

Handles:1 x Side

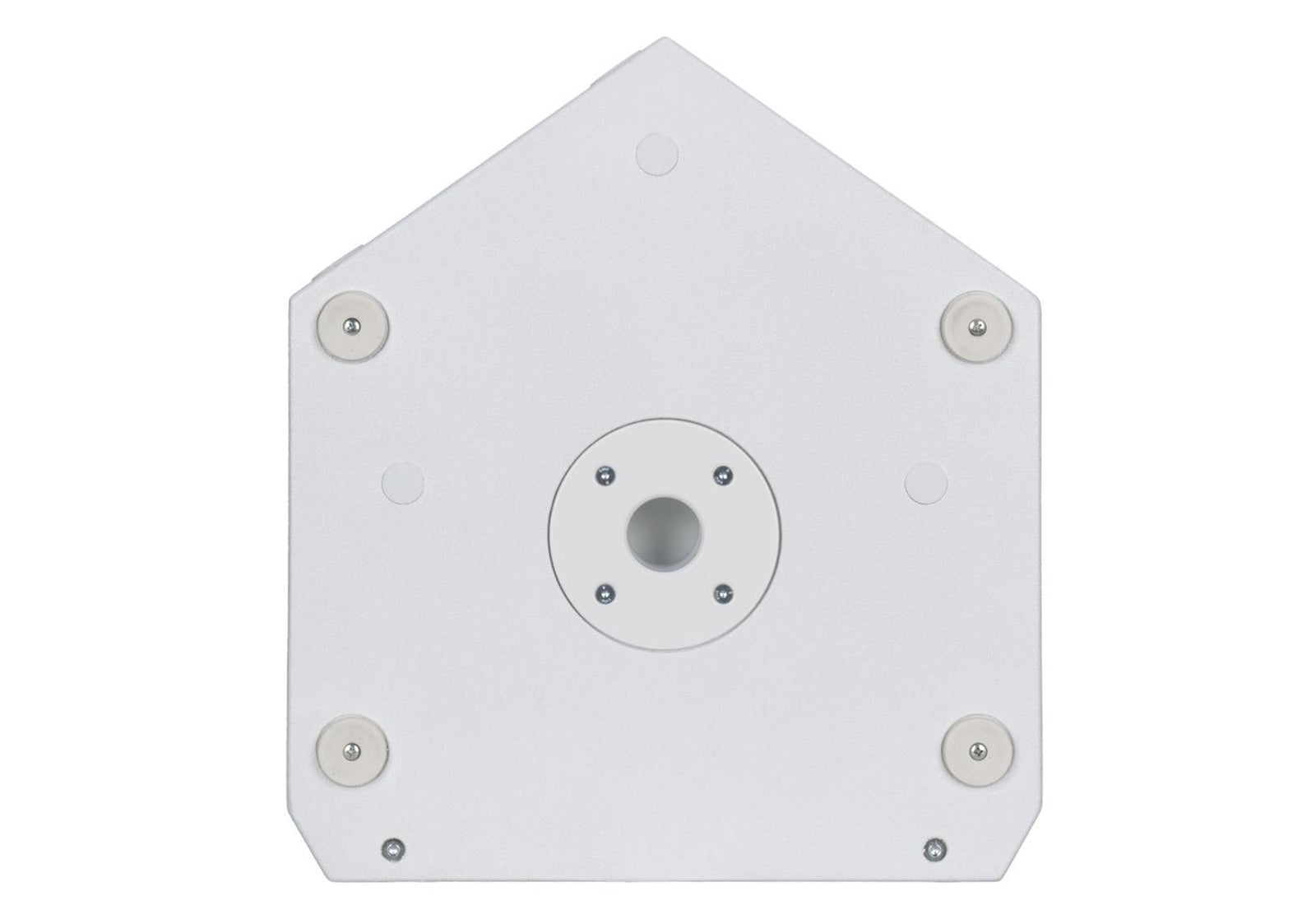

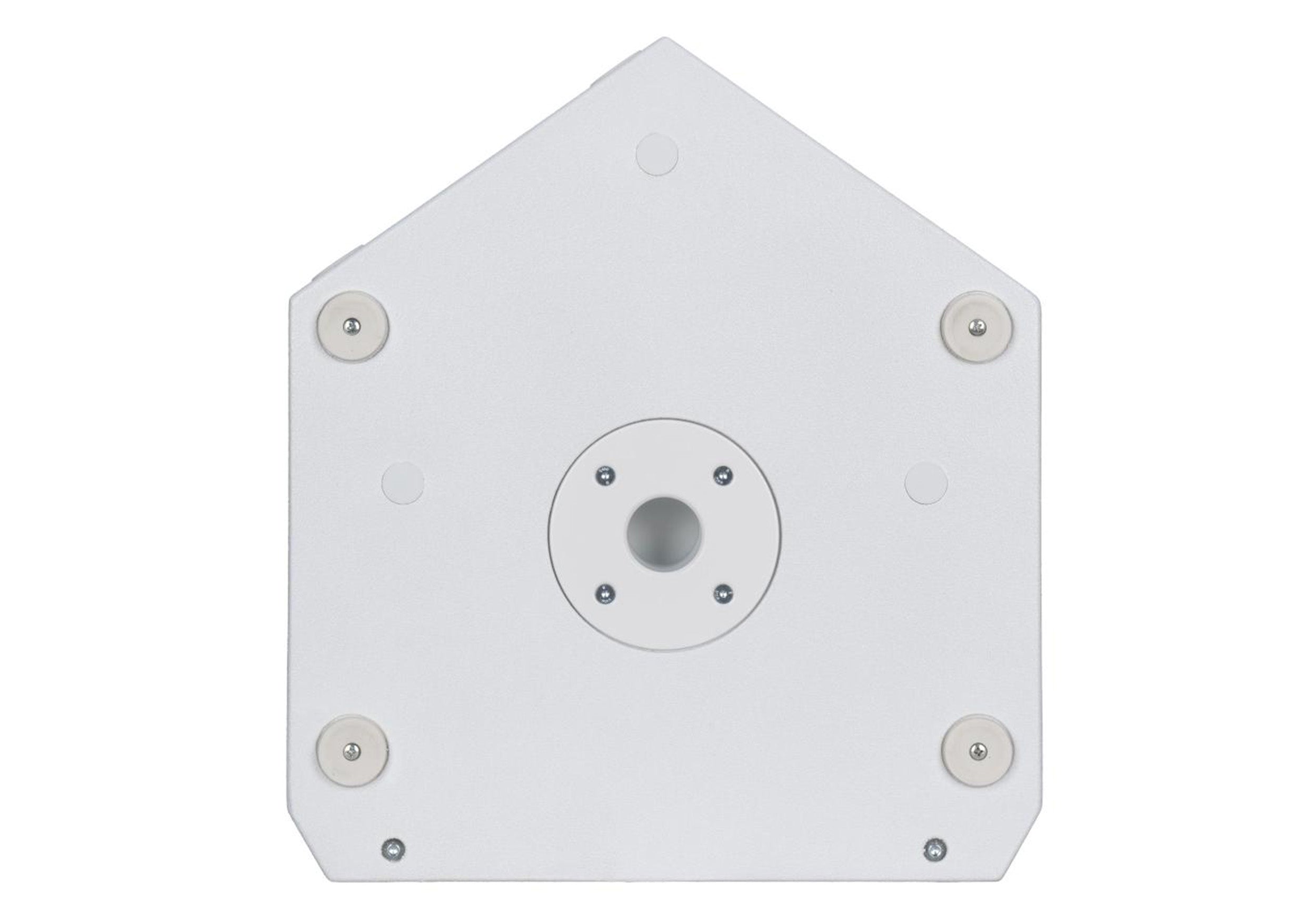

Pole Mount:35 mm insert

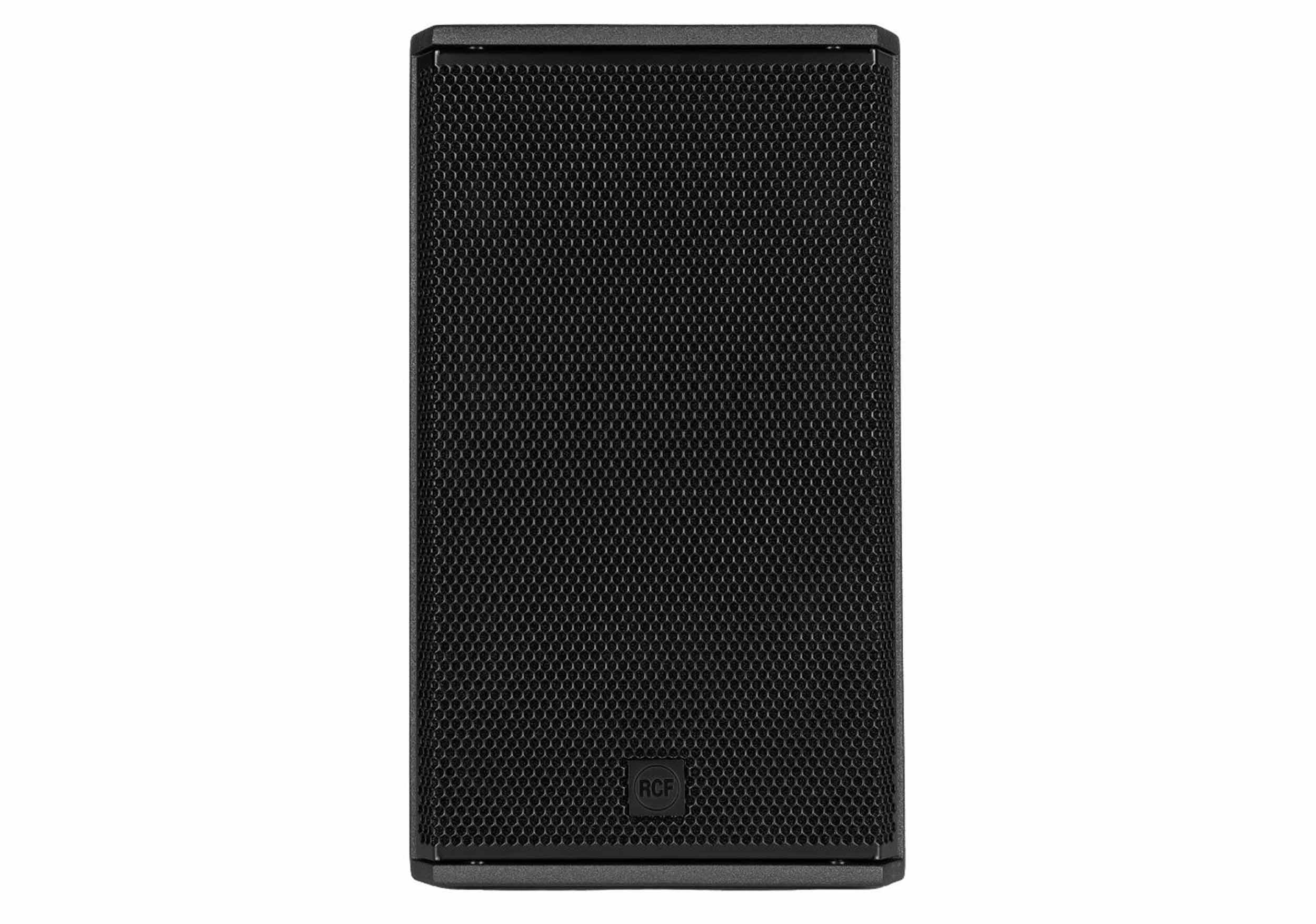

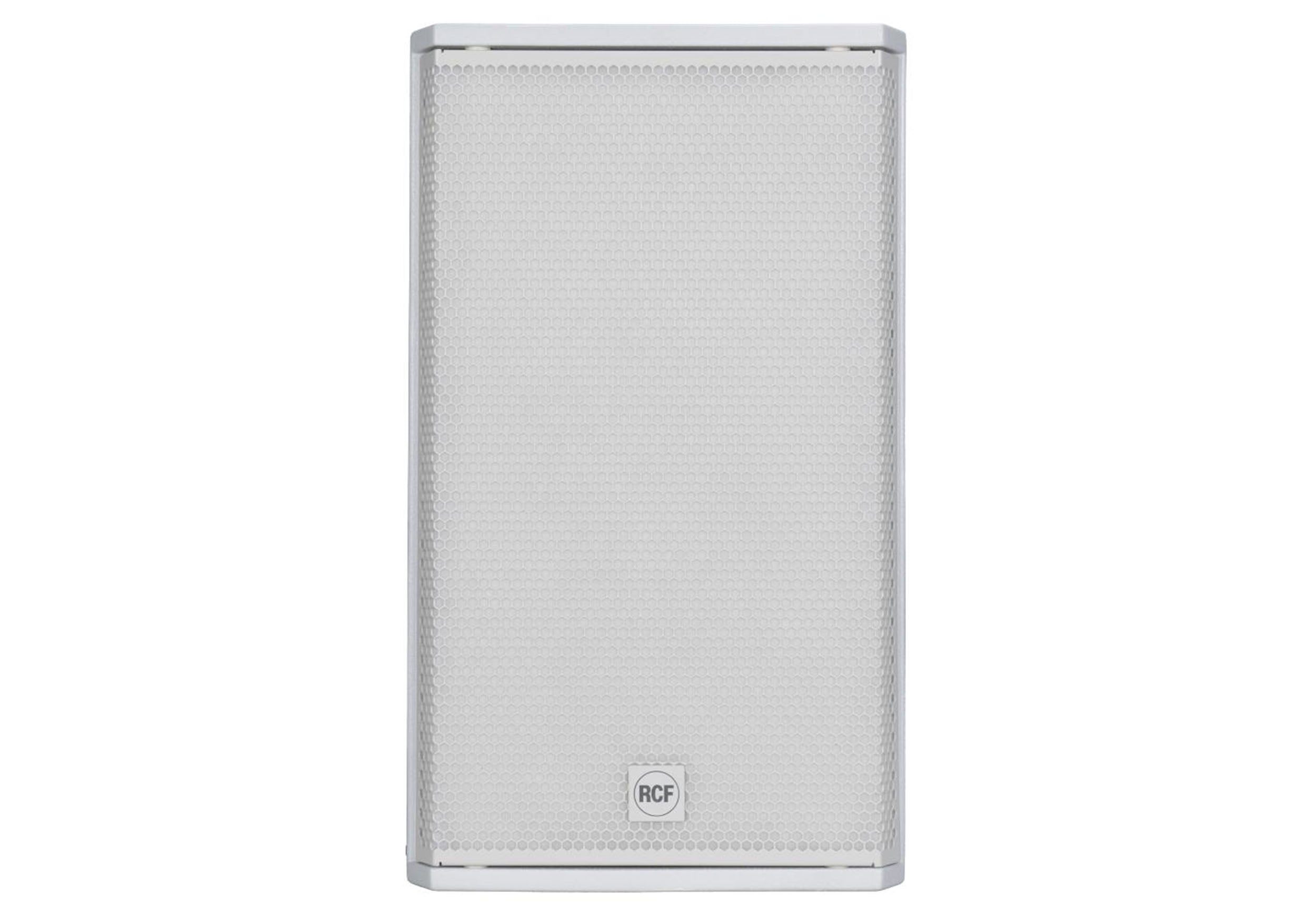

Grille:Steel

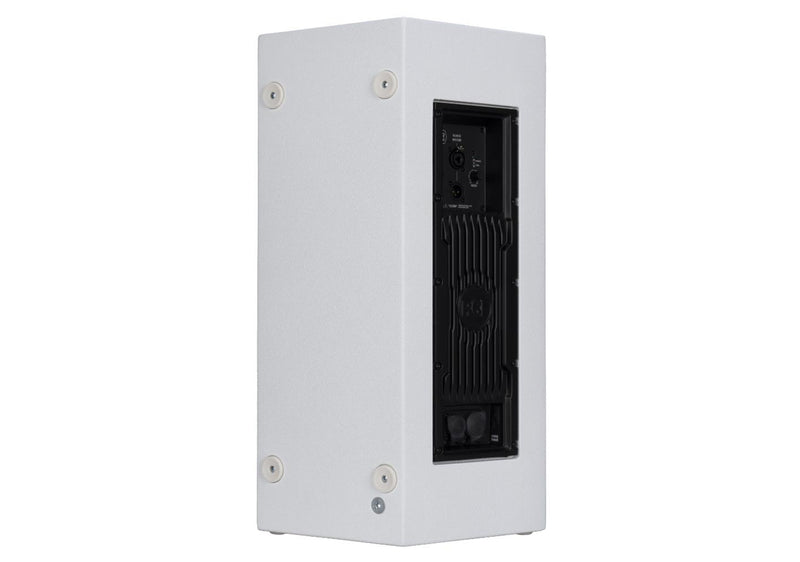

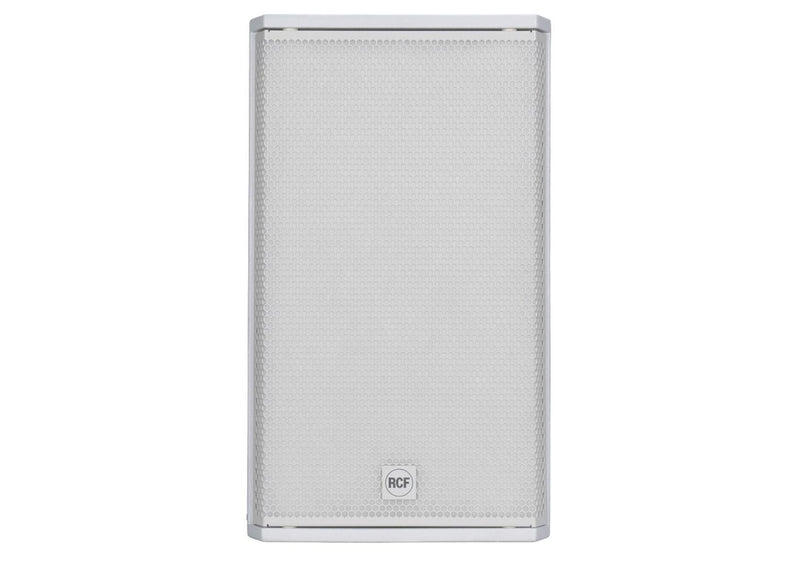

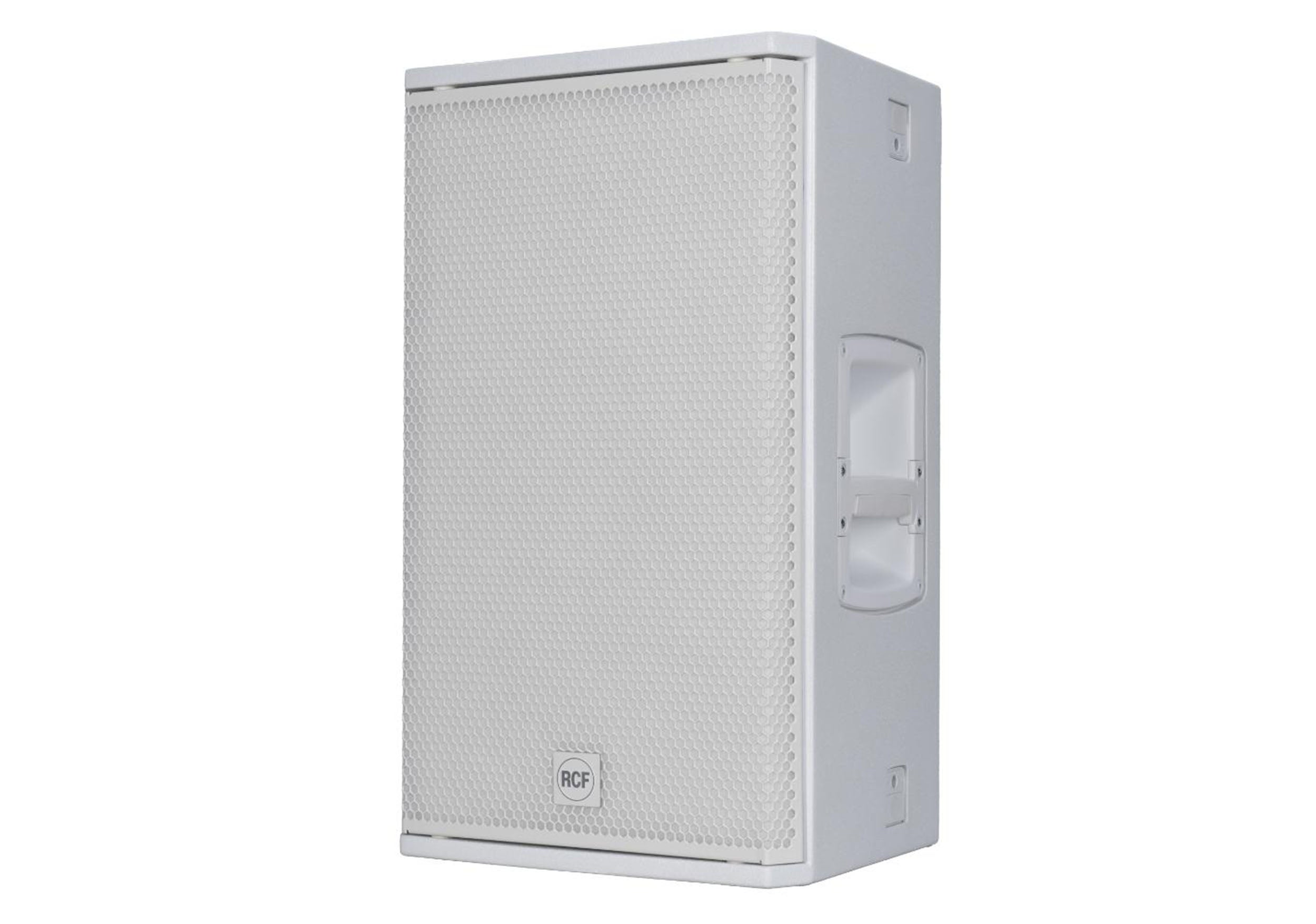

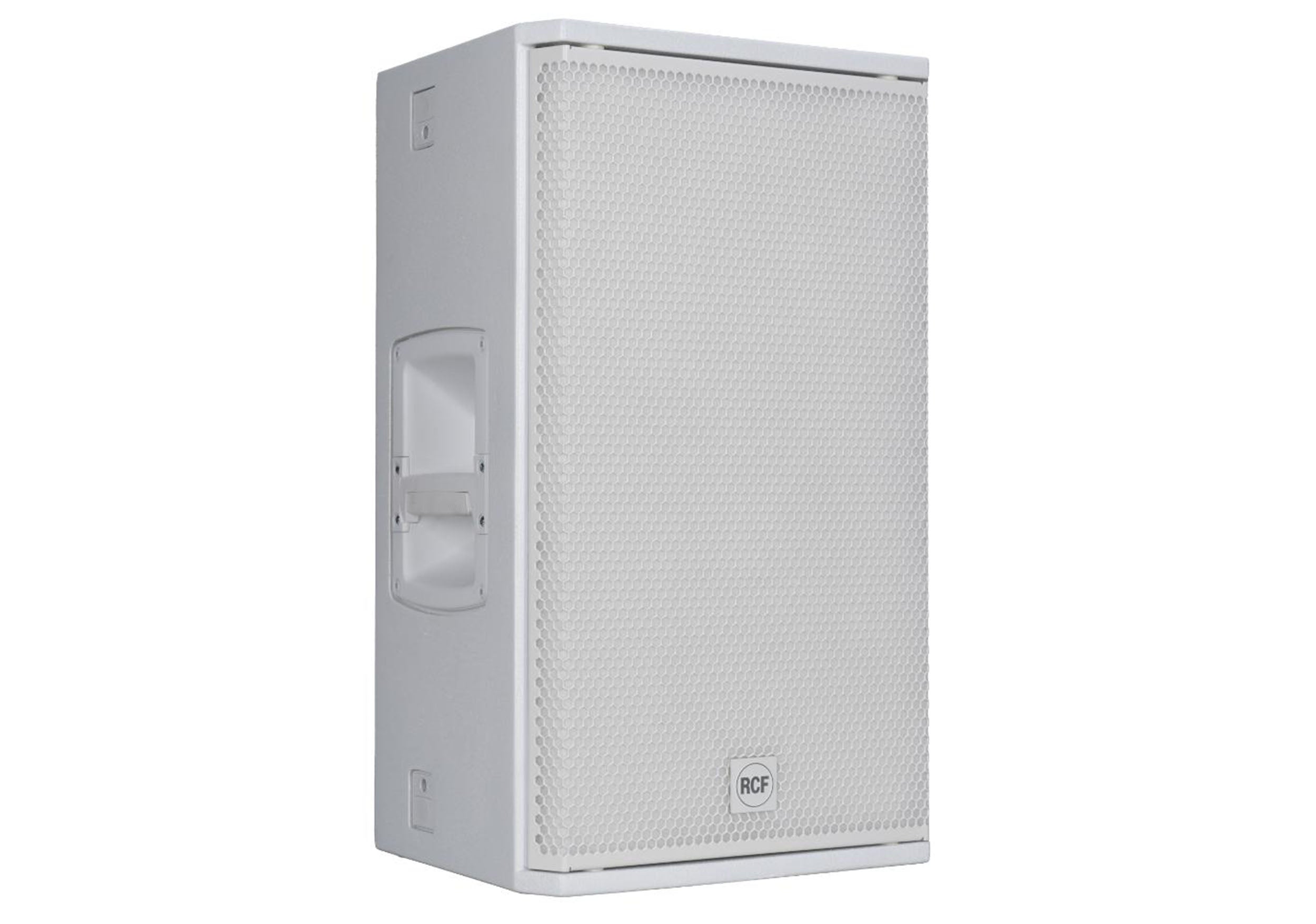

Color Options:Black / White
Size & Weight
Height:620 mm / 24.41 inches
Width:362 mm / 14.25 inches
Depth:405 mm / 15.94 inches
Weight:22.9 kg / 50.49 lbs
Shipping Information:
Dimensions:666 mm x 461 mm x 416 mm
Weight:26 kg / 57.32 lbs
