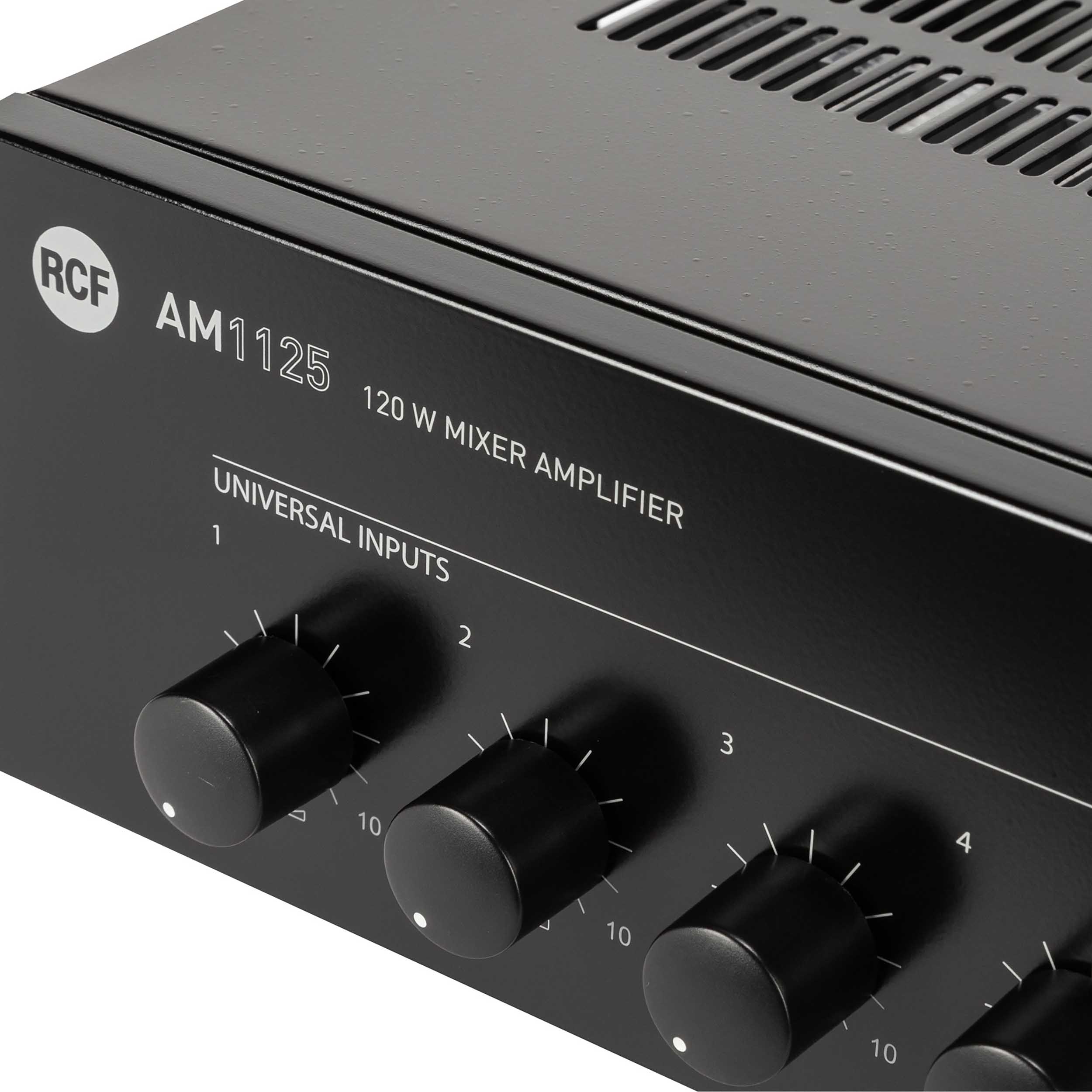

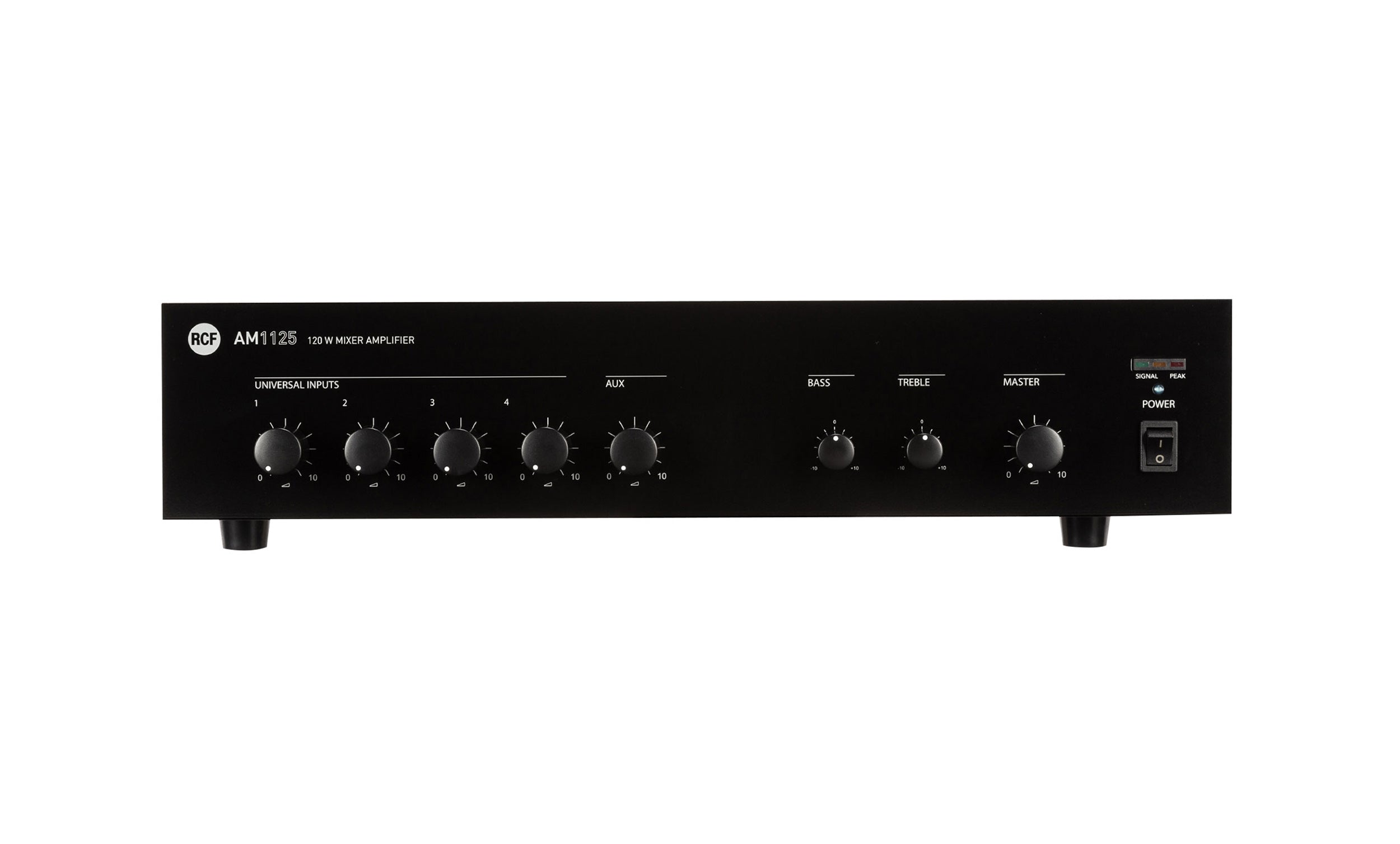

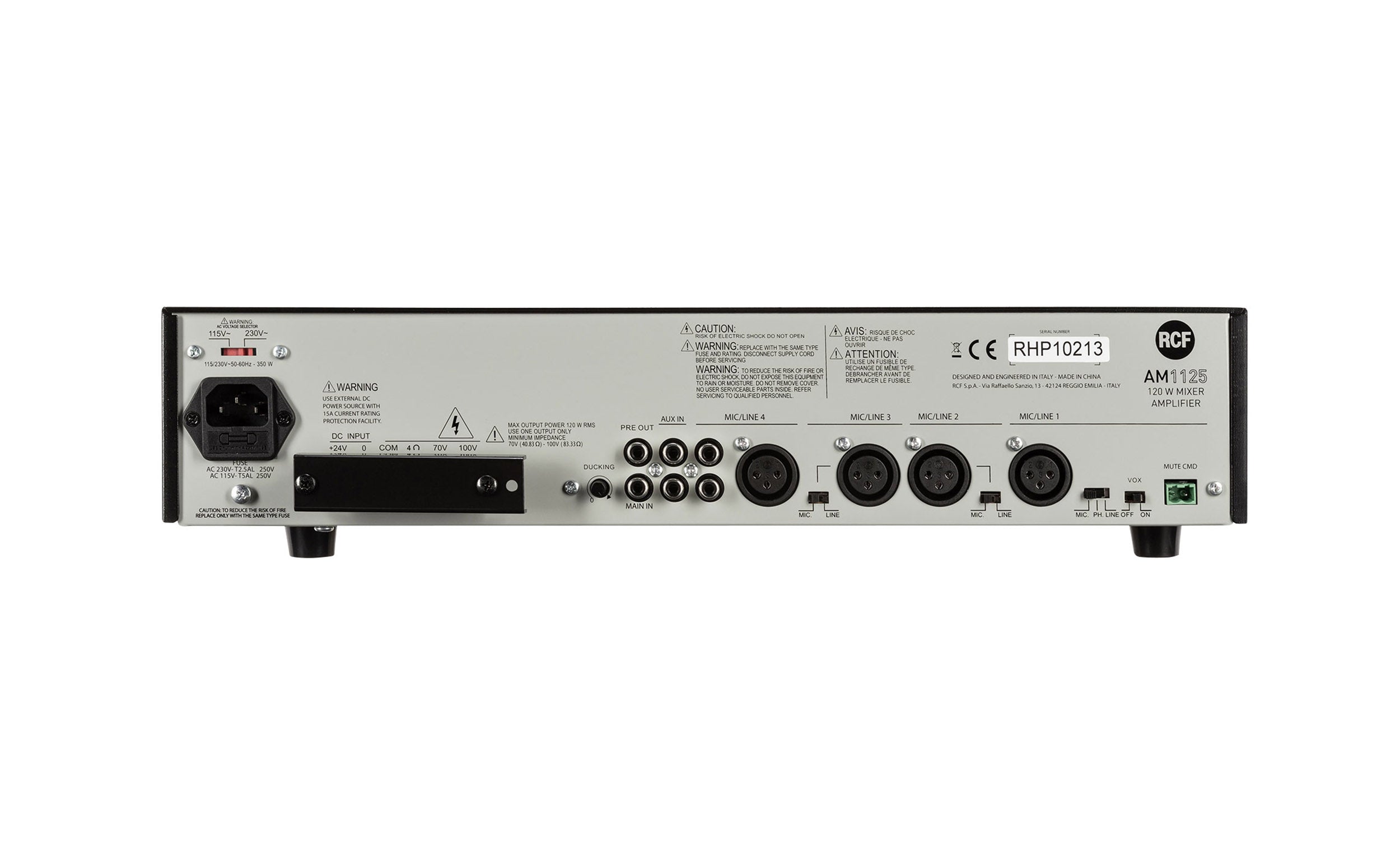

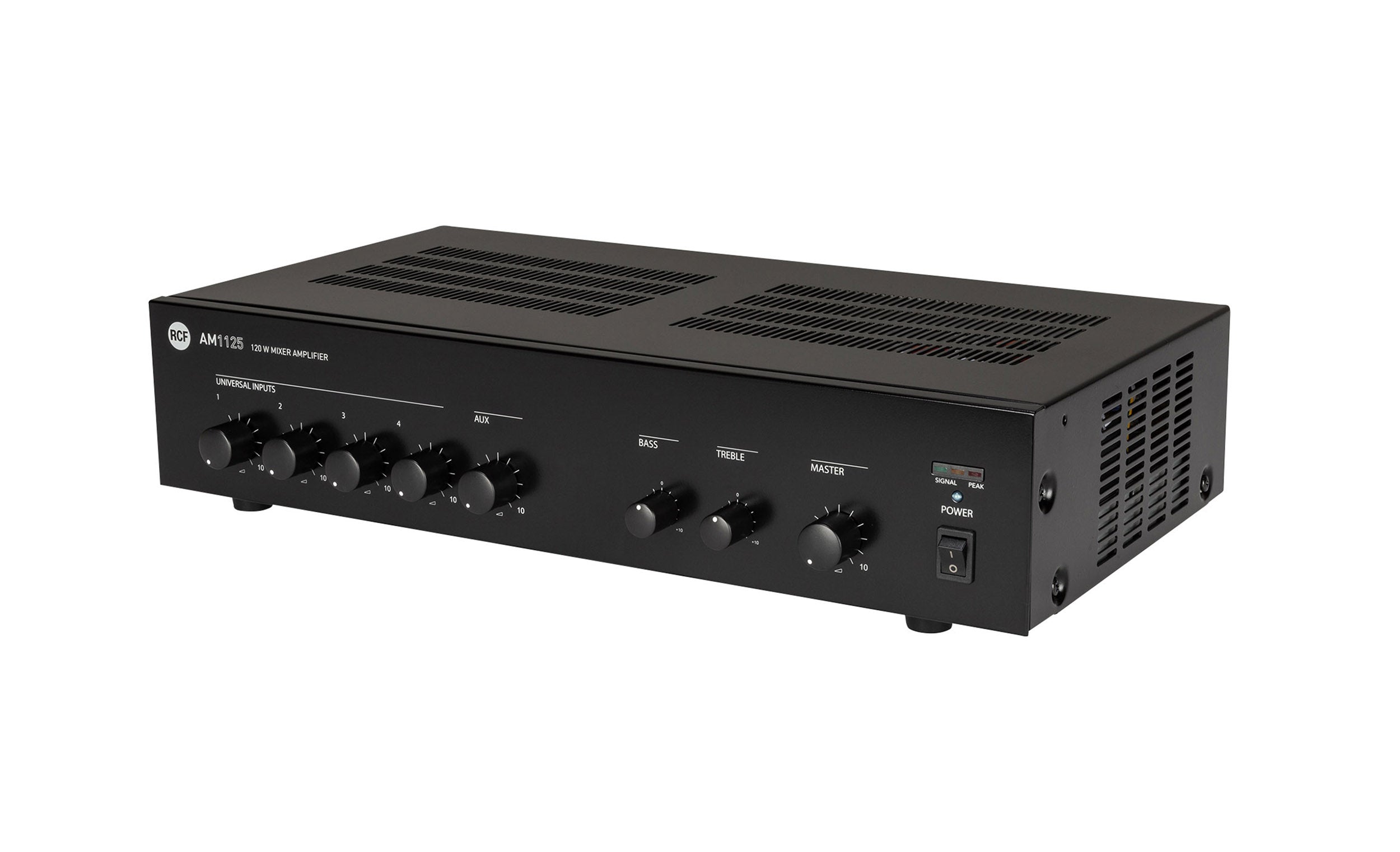

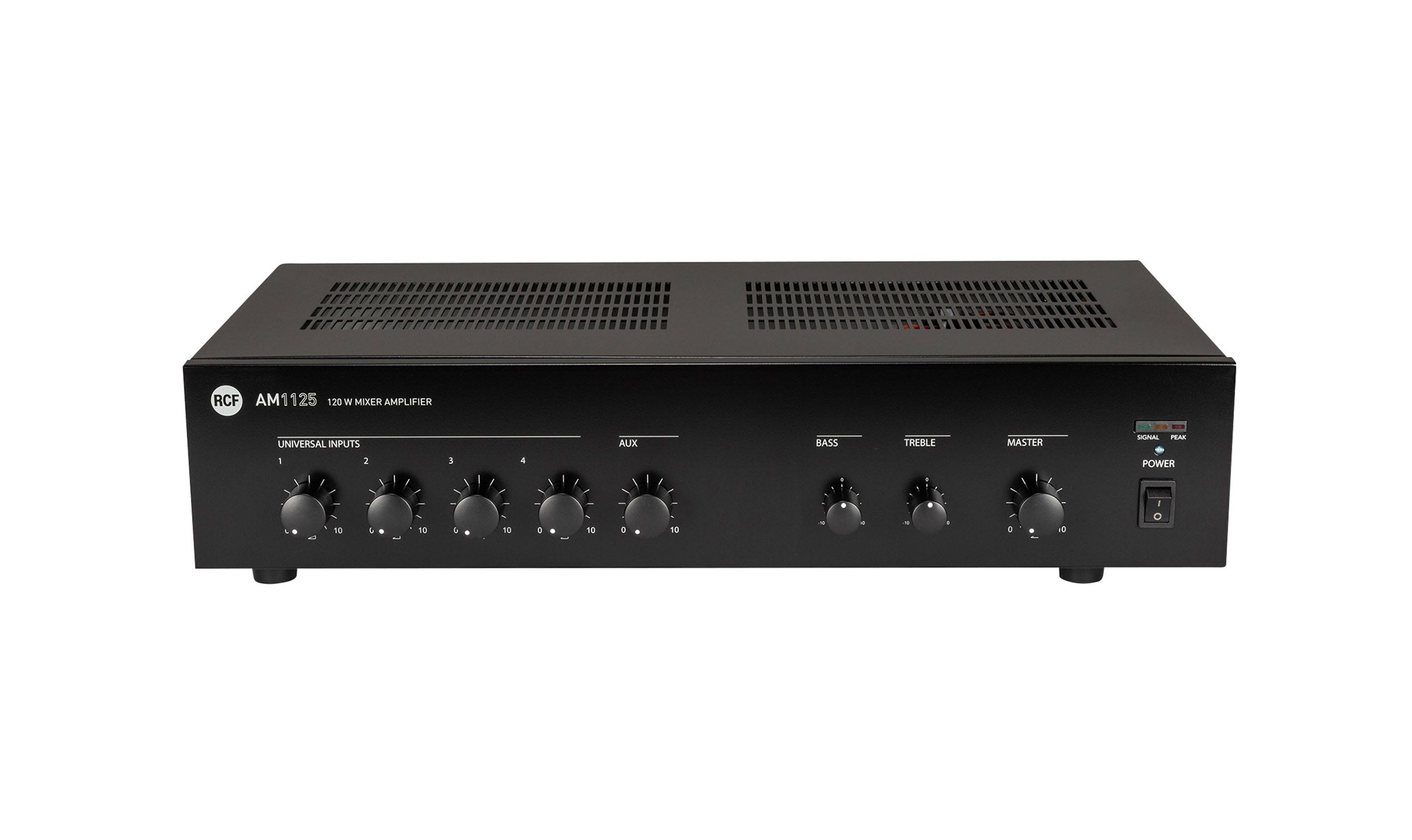

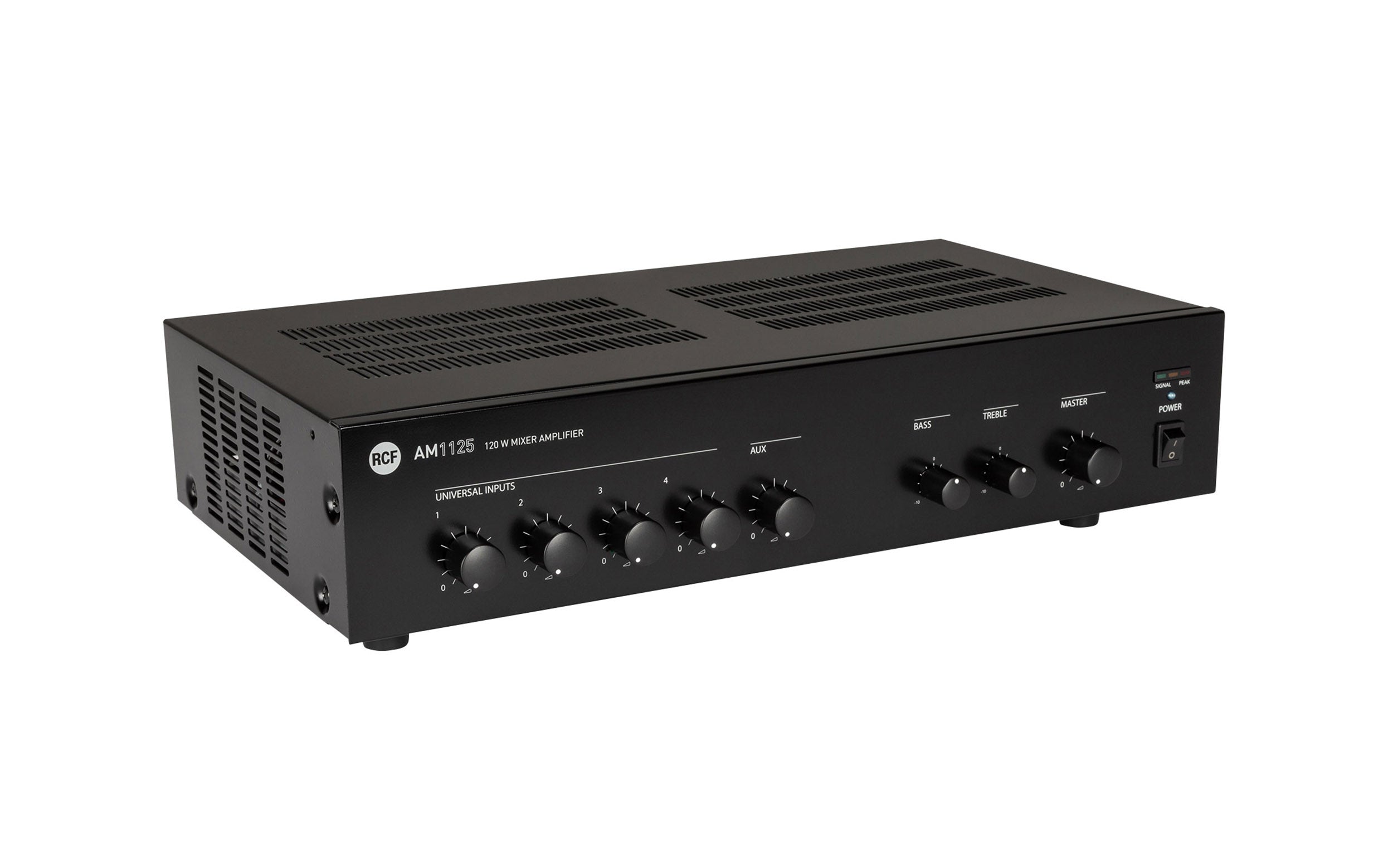

RCF AM1125 5-Channel Digital Mixer Amp & 4 Ω / 70 V / 100 V - 160 W

The RCF AM1125, 5-Channel Digital Mixer Amplifier, 4 Ω / 70 V / 100 V – 160 W, with 5 audio inputs. Audio input 1 has phantom power supply and get the priority over the other audio inputs through an external command or automatically thanks to the VOX circuit. Dual RCA connectors can be used to link stereo (unbalanced) sound sources (e.g., CD, MP3 players, tuners, etc.). The amplifier output is available both for low impedance loudspeakers (min. 4 Ohm) or 70/100 V constant voltage lines (for loudspeakers with 70/100 V line transformers). It can also be powered by batteries (24 V dc voltage), in order to ensure its proper operation even when the mains supply is unavailable.

Product Specifications:

Amplifier Section:

Output Power: 1 × 120 W @ 4 Ω

Output Power @ 100 V: 1 × 120 W @ 100 V

Frequency Response (−3 dB): 60 Hz – 15 kHz

SNR (A-weighted): > 85 dB

Crosstalk: < 85 dB

THD + N @ 1 kHz Nominal Power: < 1.5 %

Input Section:

Total Inputs: 5 (4 Mic/Line + 1 AUX)

Line Inputs: 1 × RCA

Mic + Line Inputs: 4 × RCA / XLR

Phantom Power: 18 V DC (Input 1)

VOX Priority: Yes

Paging Connectors: XLR

GPI (General Purpose Input): 1

Output Section:

Signal Outputs: 1 × RCA

Power Output Connectors: Euroblock

Processing & Control:

Tone Controls: Yes (Front Panel)

Configuration: Front Panel

Protections: Short Circuit / Thermal / DC / Fused

Cooling: Convection

Power Requirements:

Operating Voltage: 220–240 / 115 V AC 50/60 Hz

Voltage Selection: External

DC Power: 24 V (Backup Operation)

Power Consumption (Max): 350 W

Compliance:

Safety Standard: CE Compliant

Cabinet Material: Metal

Color: Black

Rack Mounting: 19″ / 2U

Product Height: 88 mm (3.46 in)

Product Width: 431 mm (16.97 in)

Product Depth: 385 mm (15.16 in)

Product Weight: 7.3 kg (16.09 lbs.)

Shipping Height: 165 mm (6.5 in)

Shipping Width: 500 mm (19.69 in)

Shipping Depth: 380 mm (14.96 in)

Shipping Weight: 8.5 kg (18.74 lbs.)
