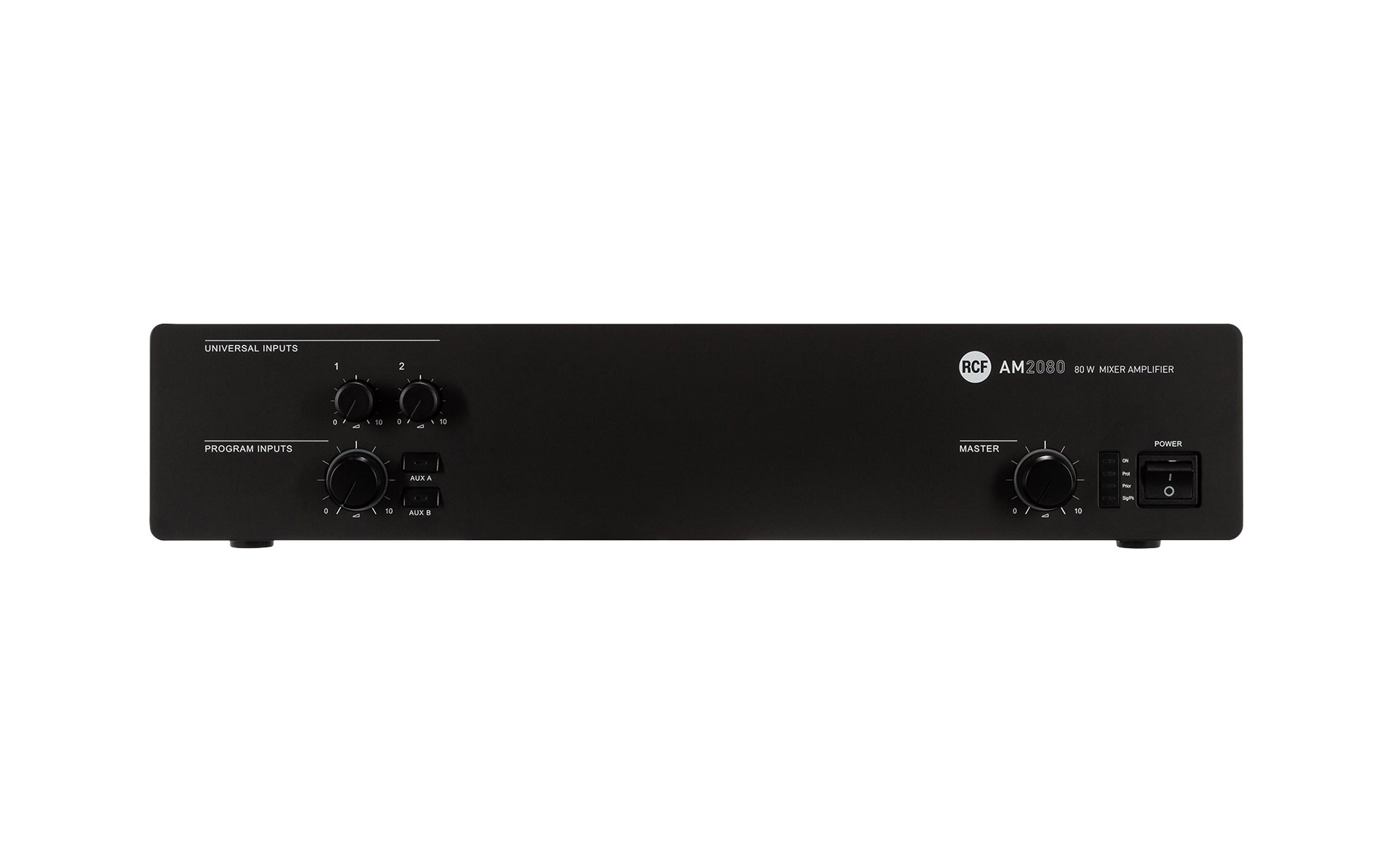

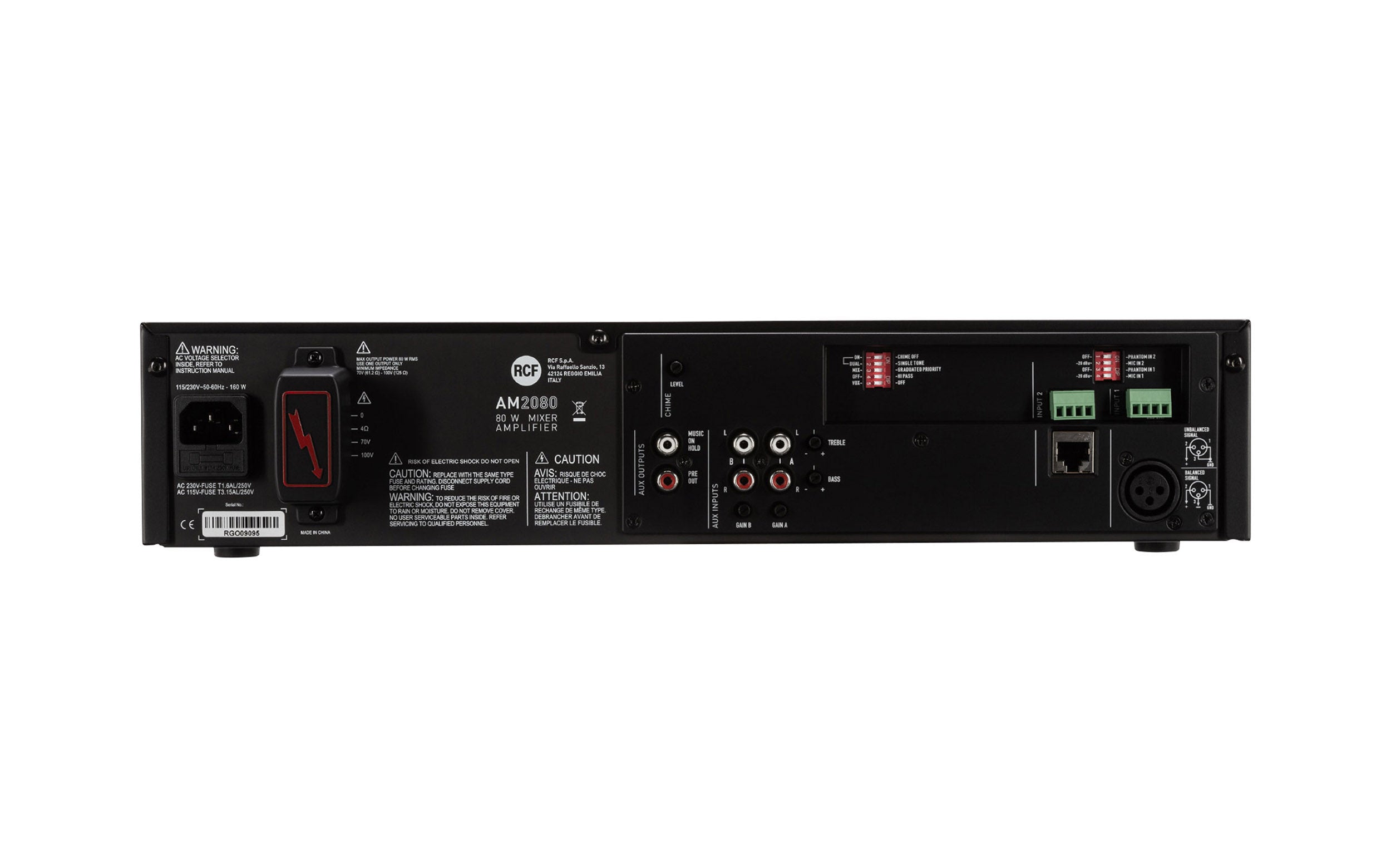

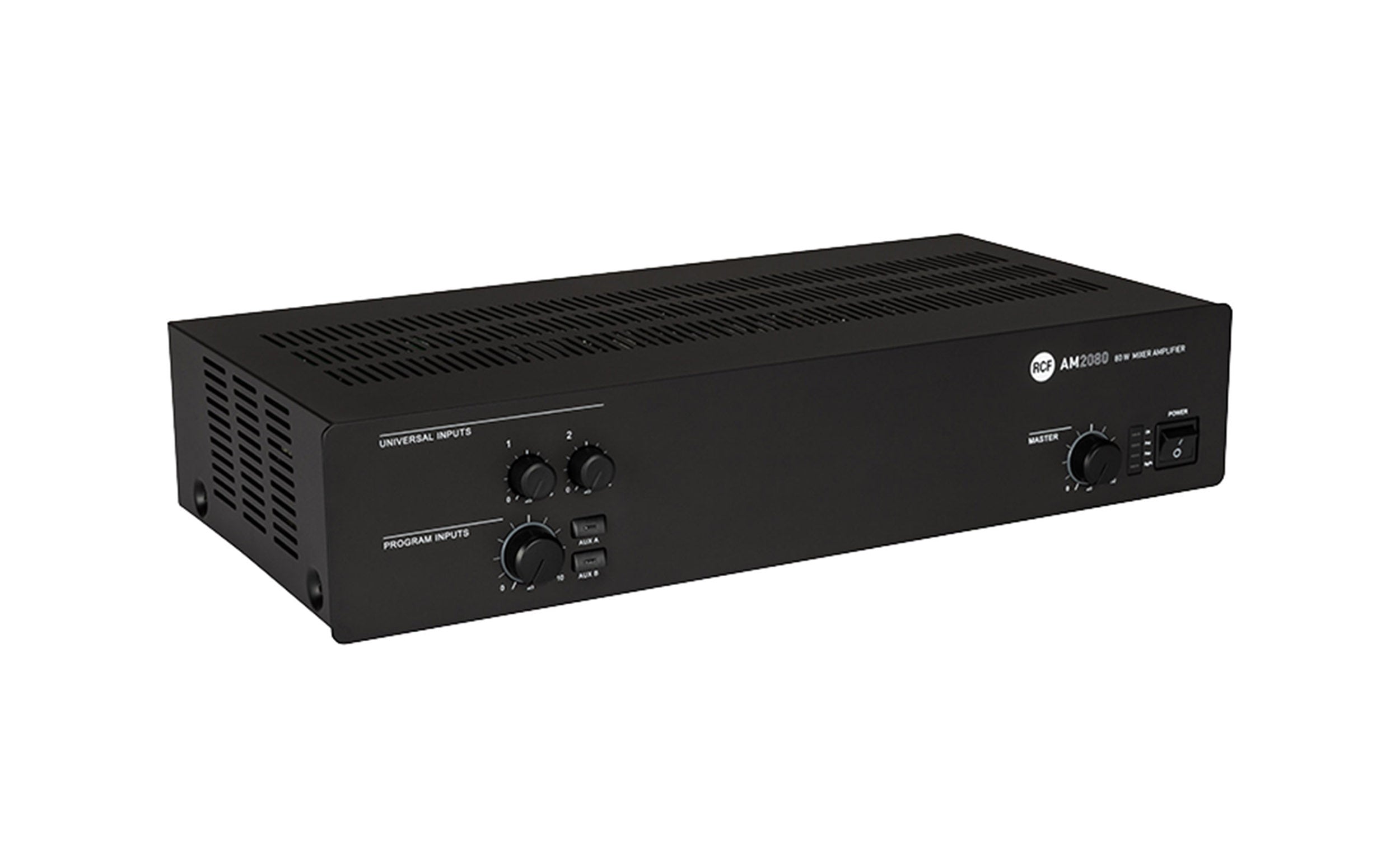

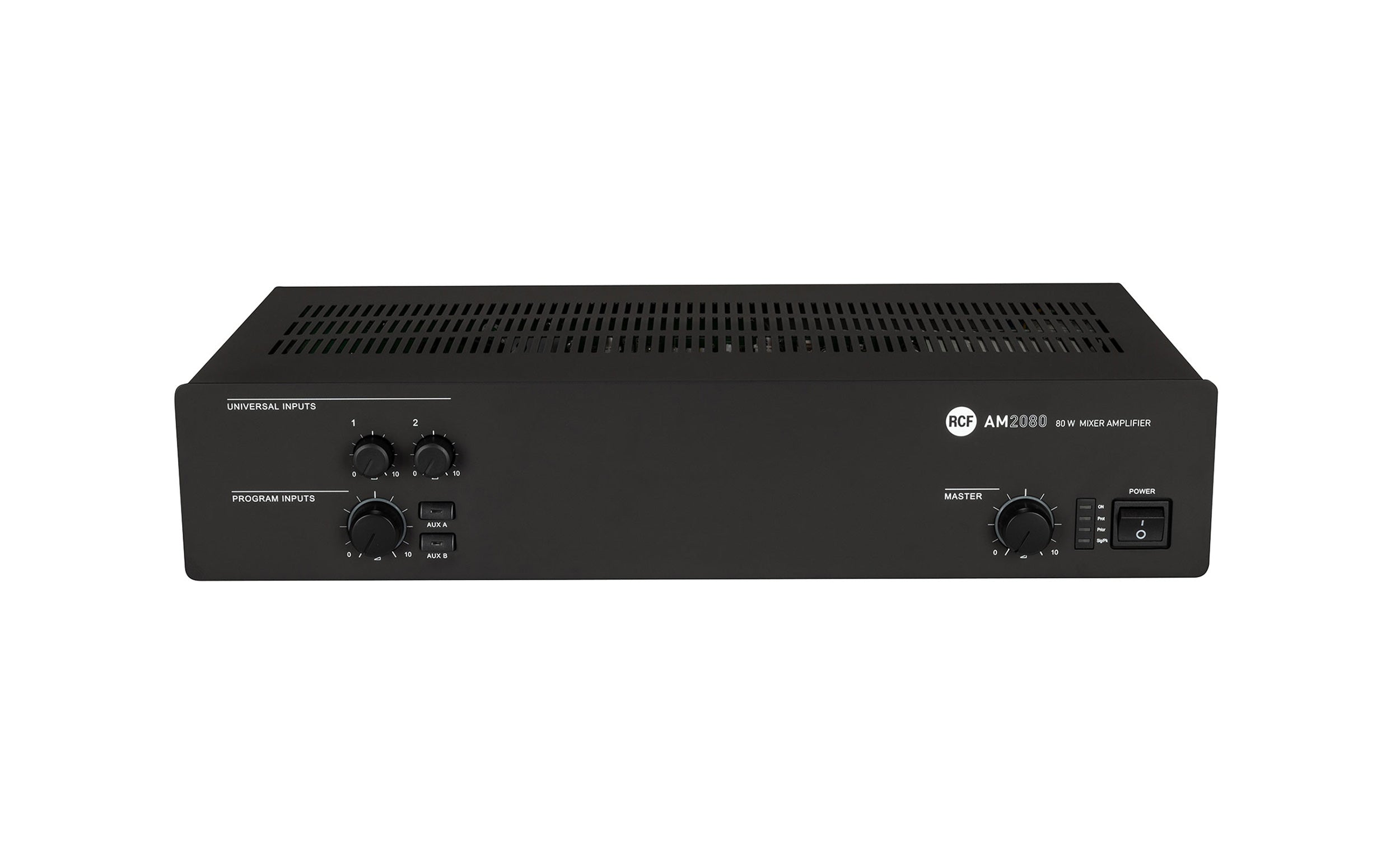

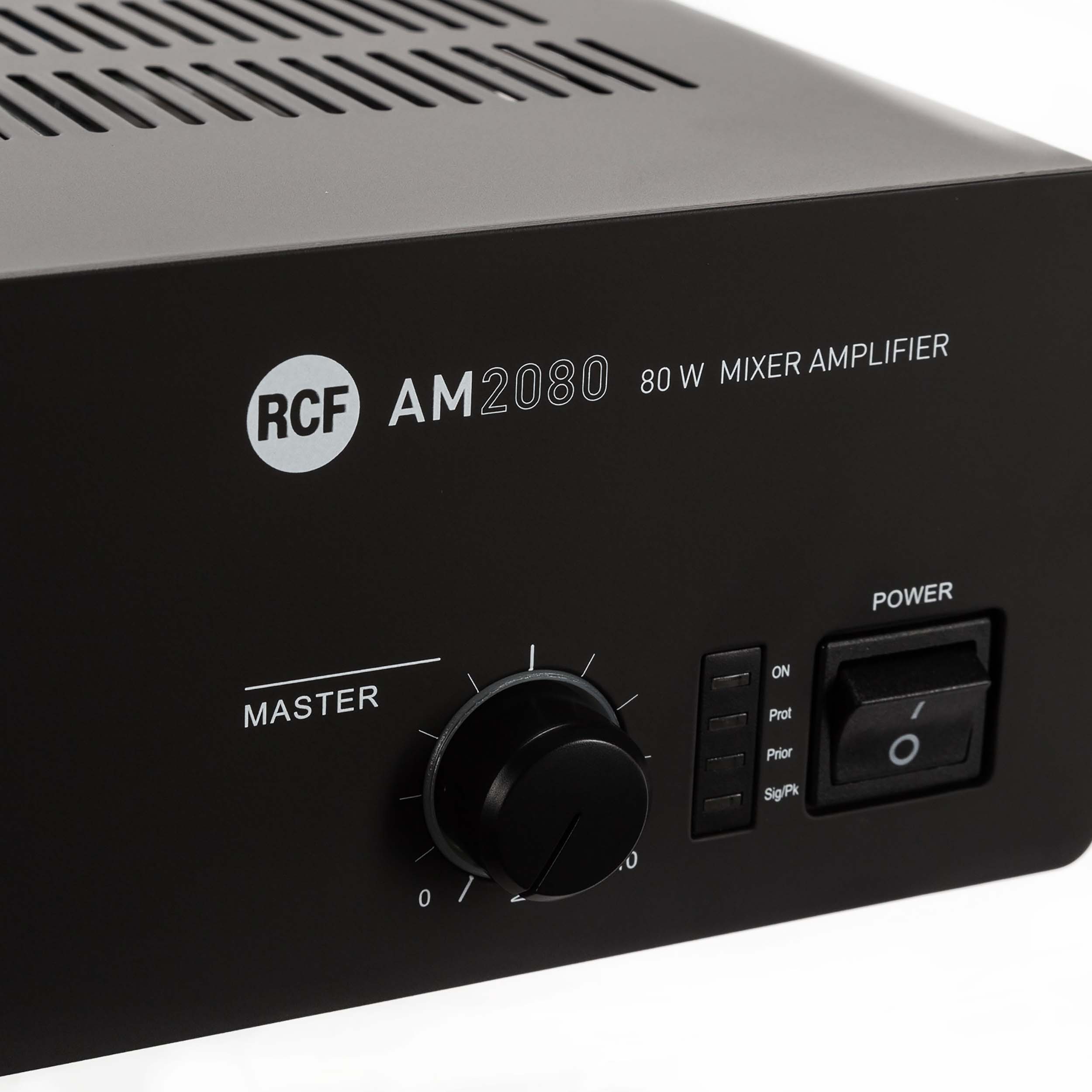

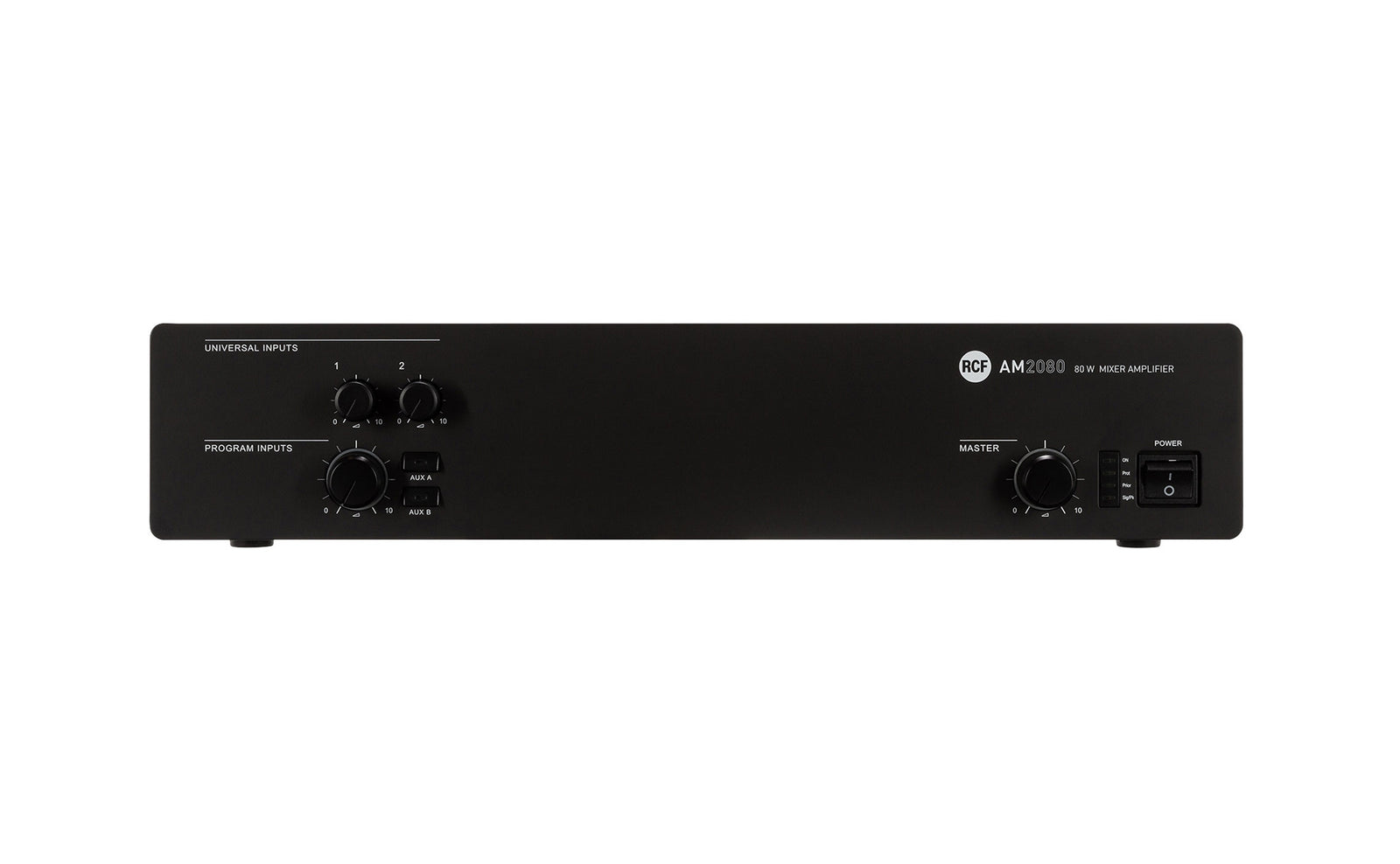

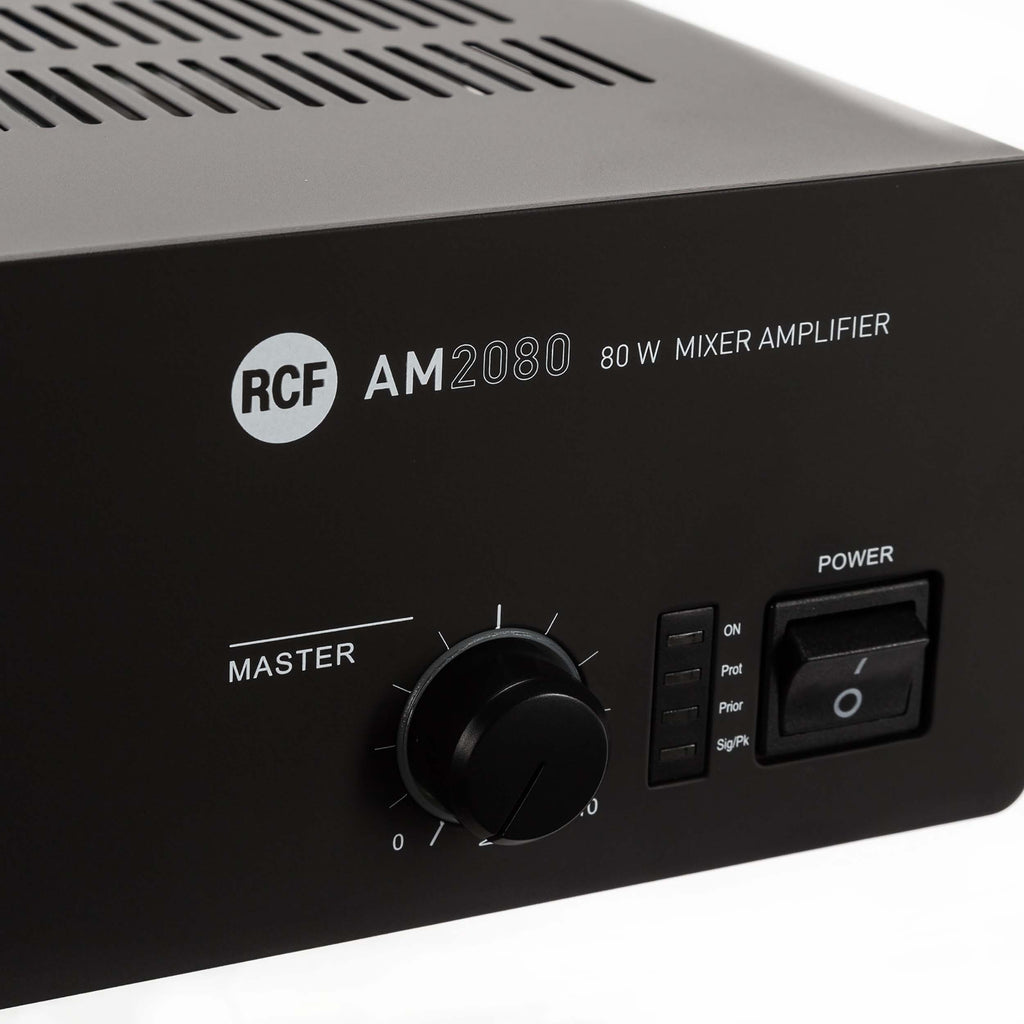

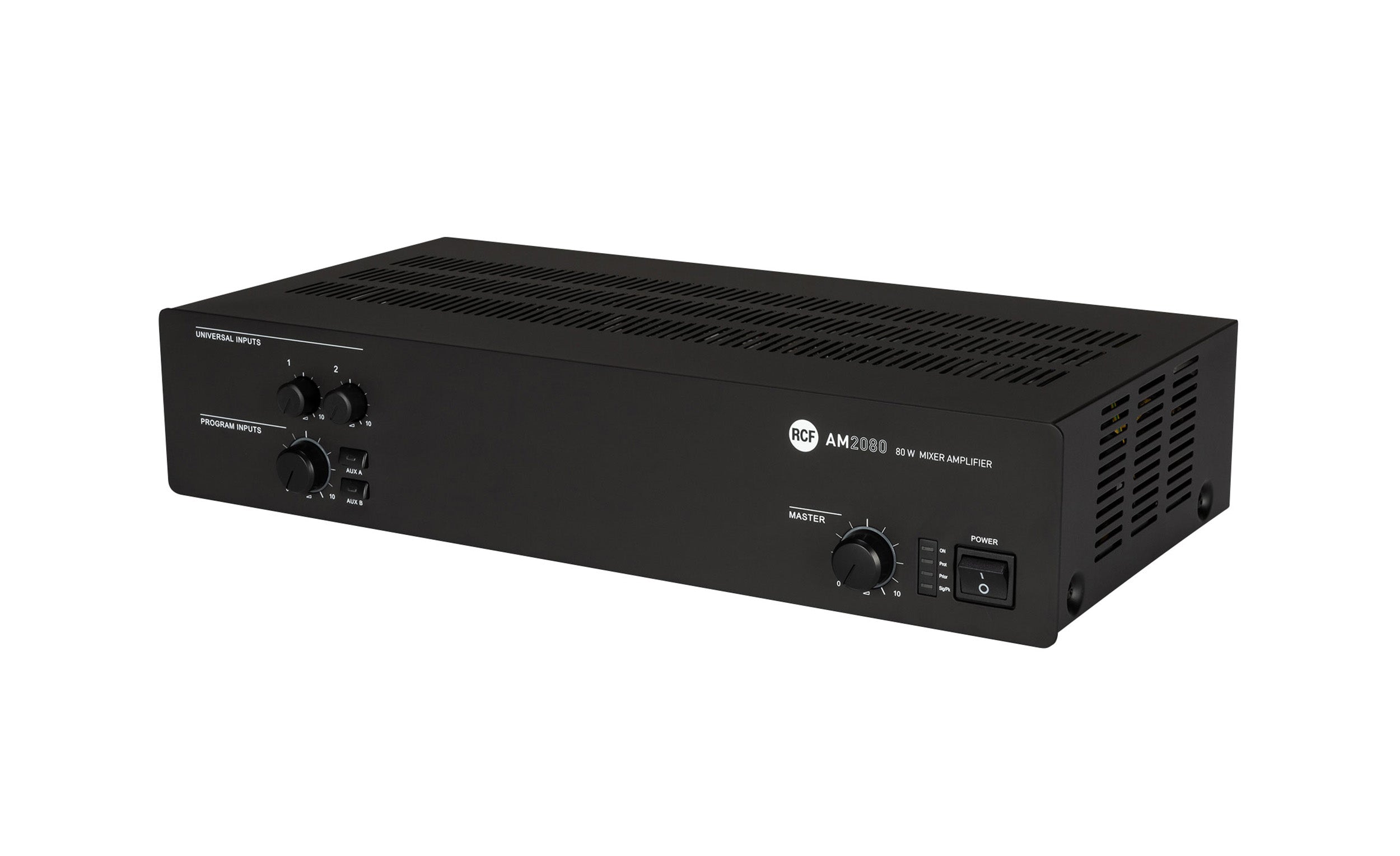

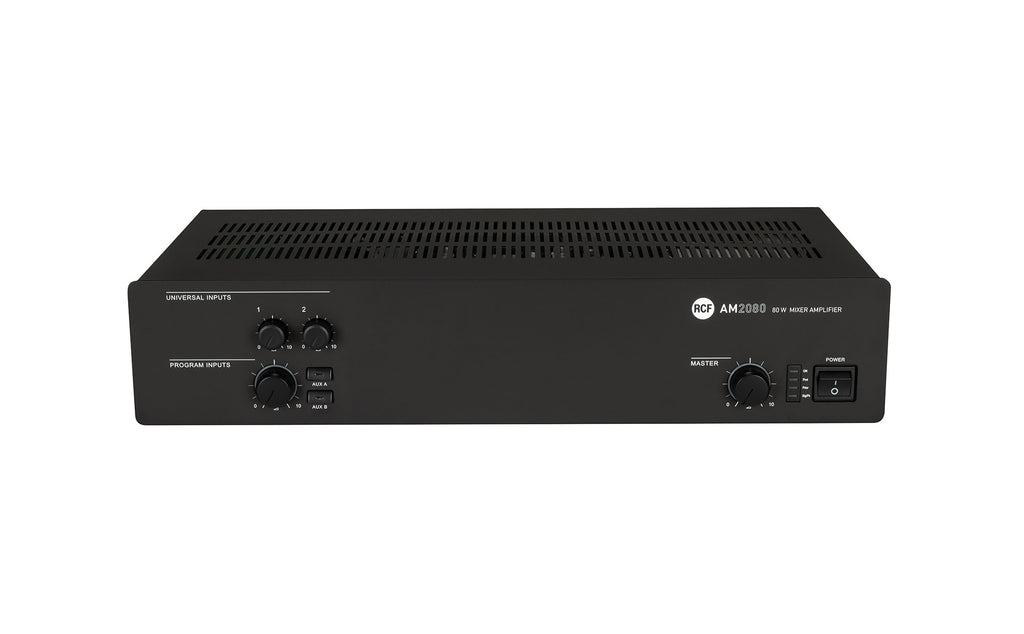

RCF AM2080 2-Input Digital Mixer Amplifier, 4 Ω / 70 V / 100 V - 80 W

The RCF AM2080 2-Input Digital Mixer Amplifier, 4 Ω / 70 V / 100 V - 80 W with 2 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g., CD players, tuners, etc.). The nominal power: is an 80 W amplifier. The amplifier output is available either for low impedance loudspeakers or 100 – 70 V constant voltage line.

Product Specifications:

Amplifier Section:

Output Power: 1 × 80 W @ 4 Ω

Frequency Response (−3 dB): 50 Hz – 16 kHz

THD + N @ 1 kHz (Nominal Power): < 0.3 %

Input Section:

Total Inputs: 5

Balanced Inputs: 5

Unbalanced Inputs: 1

Mono Inputs: 4

Stereo Inputs: 2

Line Inputs: 2 × RCA

Mic + Line Inputs: 2 × Euroblock / XLR

Phantom Power: 30 V DC

VOX Priority: Yes

Paging Inputs: 1 × RJ45

Paging Command: Contact

Output Section:

Signal Outputs: 2 × RCA

Power Output Connectors: Euroblock

Processing / Control:

Tone Controls: Yes

High-Pass Filter: 150 Hz

Configuration: DIP Switch, Front Panel

Priority: Yes

Music on Hold: Yes

Chime Tone: Yes

Protections:

Cooling: Convection

Short Circuit: Yes

Thermal: Yes

DC Protection: Yes

Fuses: Yes

Power Requirements:

Operating Voltage: 220–240 / 115 V AC 50/60 Hz

Voltage Selection: Internal

Power Consumption (Max): 160 W

Compliance:

Safety Standard: CE Compliant

Cabinet Material: Metal

Color: Black

Rack Mounting: 19″ / 2U

Product Height: 88 mm (3.46 in)

Product Width: 442 mm (17.4 in)

Product Depth: 230 mm (9.06 in)

Product Weight: 3.77 kg (8.31 lbs.)

Shipping Height: 200 mm (7.87 in)

Shipping Width: 330 mm (12.99 in)

Shipping Depth: 500 mm (19.69 in)

Shipping Weight: 5.38 kg (11.86 lbs.)
