Description
The RCF ART 815-A is a high-performance two-way active loudspeaker engineered for professional DJs, musicians, production companies, and installation applications that demand powerful output, exceptional clarity, and dependable reliability. Equipped with a 15" woofer, a 1.75" compression driver, and a powerful 1400 W Class-D bi-amplified system, it delivers an impressive maximum SPL of 130 dB while maintaining outstanding sonic accuracy and low distortion. Designed to perform equally well in portable and installed environments, the ART 815-A combines robust power with the versatility required for modern sound reinforcement applications.
At the heart of the system is RCF’s advanced True Resistive Waveguide technology, which works in conjunction with proprietary FiRPHASE processing to provide consistent 100° x 60° coverage, improved stereo imaging, and uniform sound distribution throughout the listening area. Bass Motion Control® (BMC) technology enhances low-frequency performance by precisely managing woofer excursion, allowing deeper bass response, improved linearity, and greater sound integrity without compromising stability. For applications requiring additional low-end impact, the integrated XBOOST Low-Frequency Enhancer can be activated directly from the rear panel, delivering fuller bass response while maintaining balanced and controlled sound reproduction.

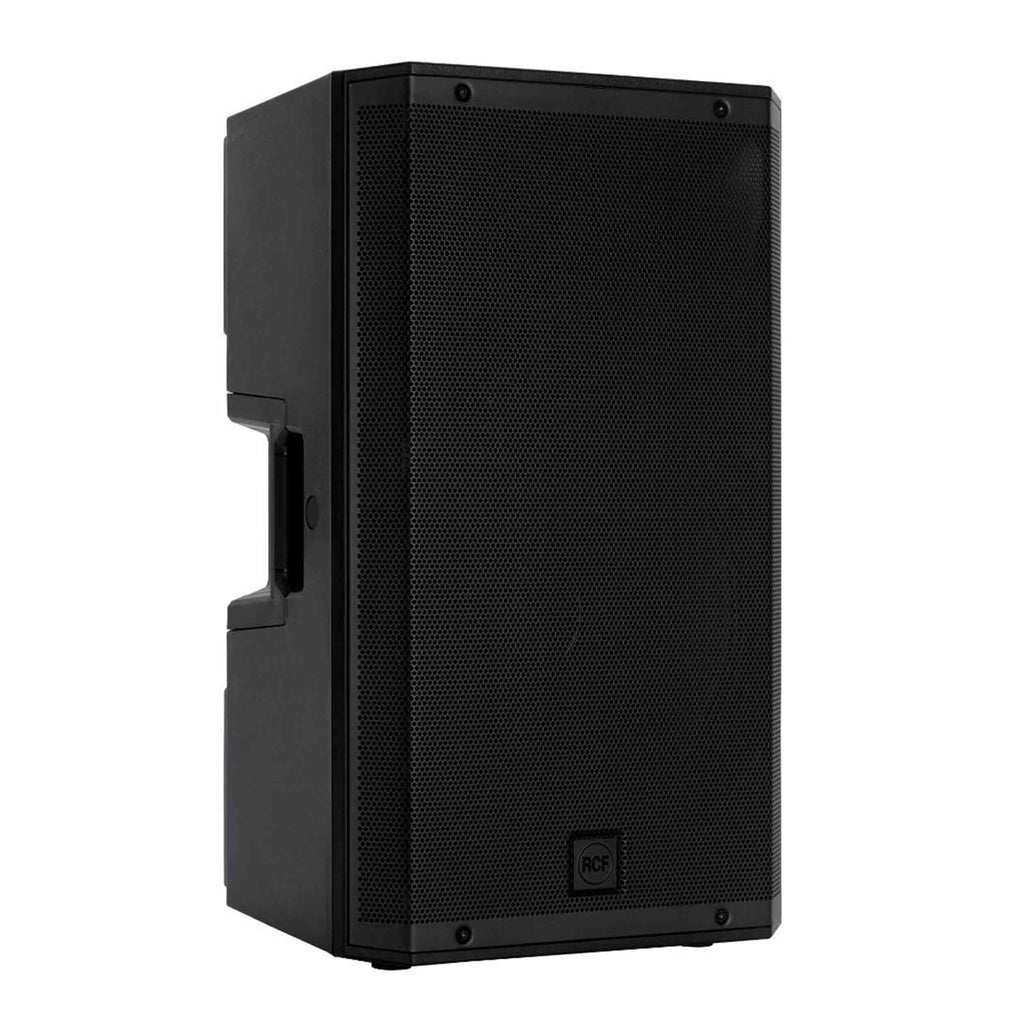

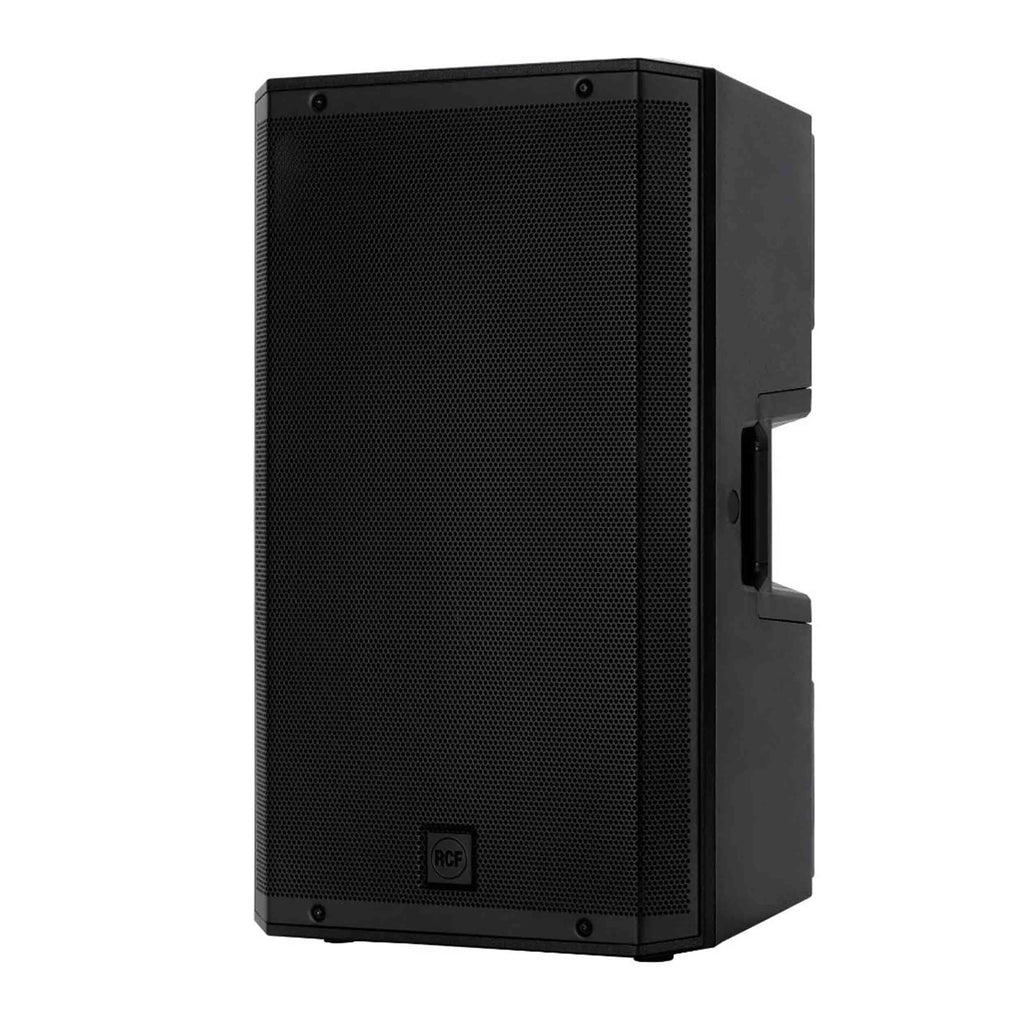

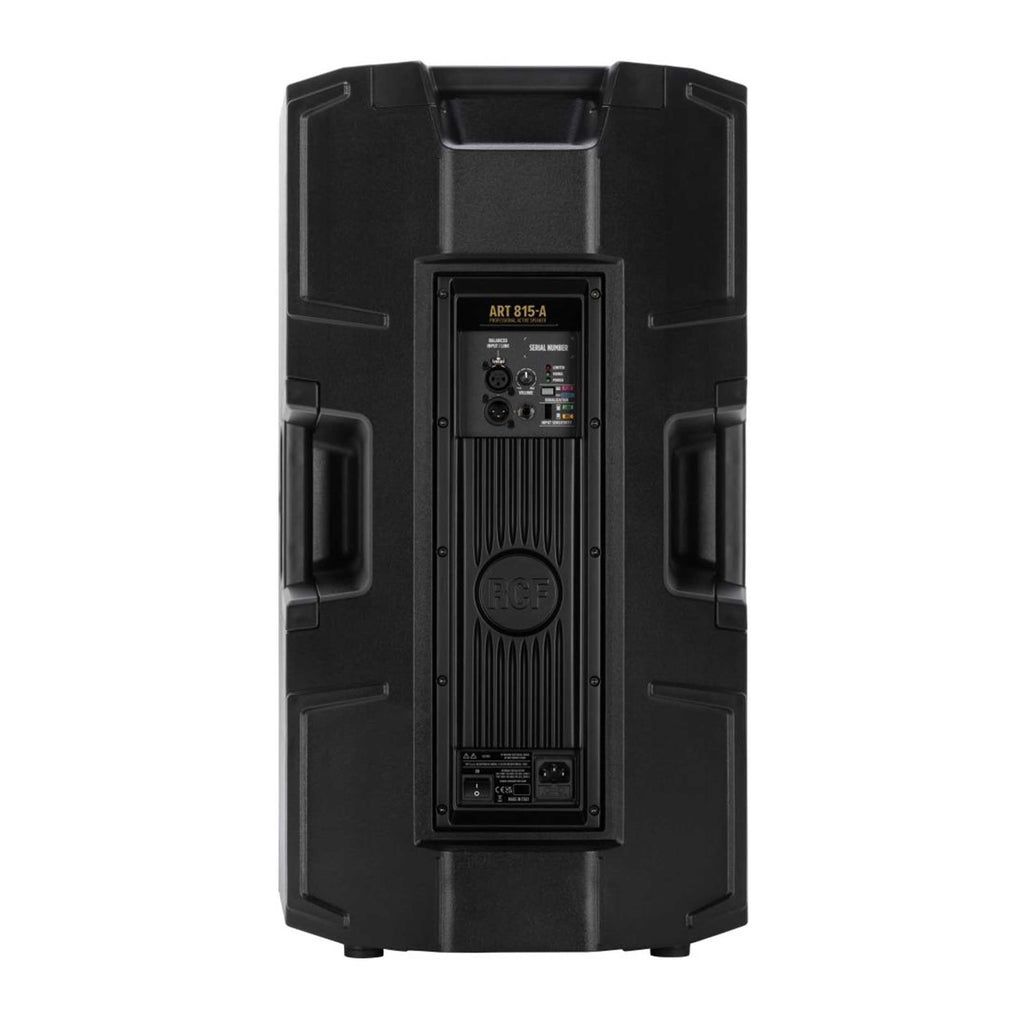

Built for demanding professional use, the ART 815-A features a lightweight polypropylene composite enclosure reinforced with RCF’s internal M-brace structure, significantly reducing cabinet resonance while increasing overall strength and durability. Ergonomic side and top handles make transportation easy, while multiple M10 rigging points support flown, wall-mounted, truss-mounted, pole-mounted, or stage-monitor configurations. The heavy-duty steel grille protects the transducers during transport and operation, while compatibility with RCF subwoofers and ACE-enabled crossover presets allows seamless system expansion for larger events. Combining advanced DSP processing, premium transducer technology, and rugged construction, the ART 815-A delivers powerful, transparent, and reliable performance for live sound, installed audio, and mobile production environments.
Product Specifications:
Frequency Response: 45 Hz – 20 kHz
Max SPL: 130 dB
Coverage: 100° x 60°

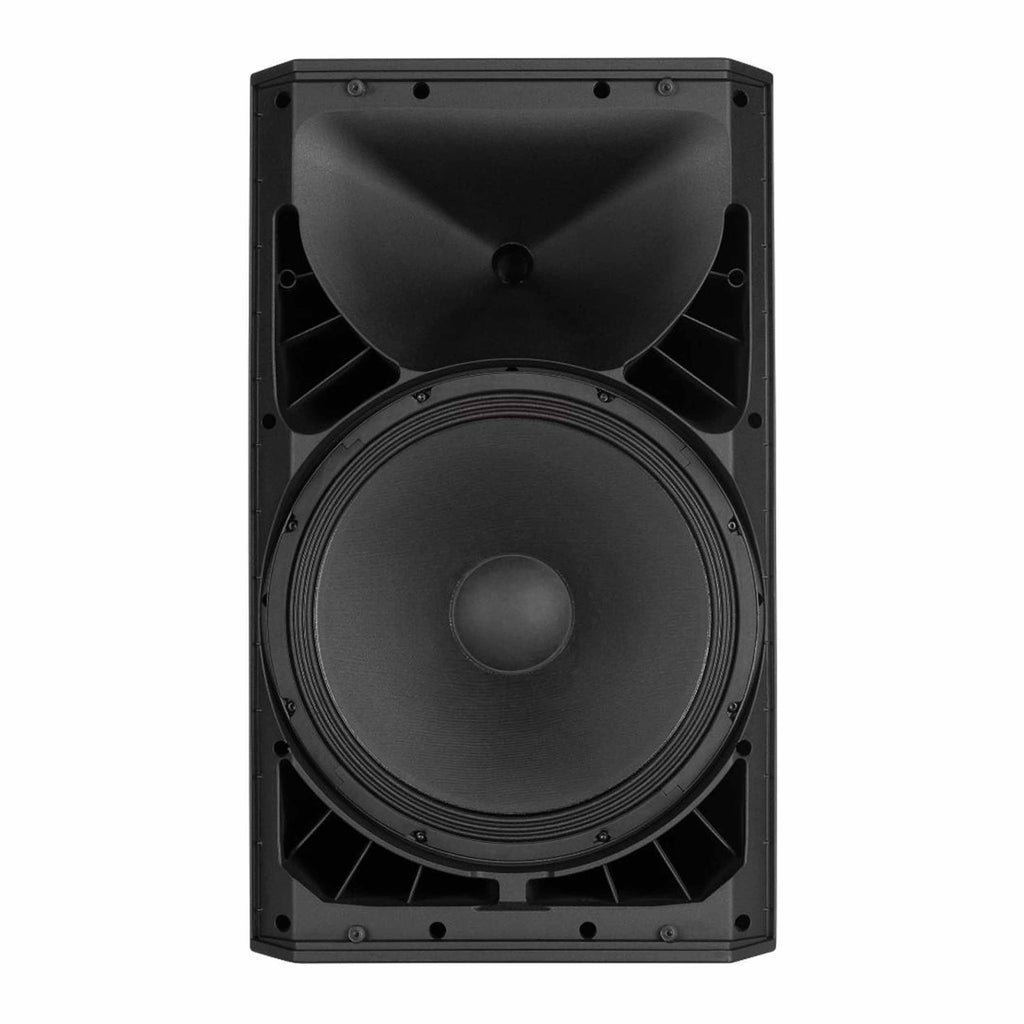

Compression Driver: 1" HF, 1.75" Voice Coil
Woofer: 15", 2.5" Voice Coil
Inputs: XLR, 1/4" Jack (Balanced/Unbalanced)
Output: XLR
Input Sensitivity: -2 dBu / +4 dBu
Mic Input Sensitivity: -32 dBu
Crossover Frequency: 1600 Hz
Protection: Thermal, RMS
Limiter: Soft Limiter

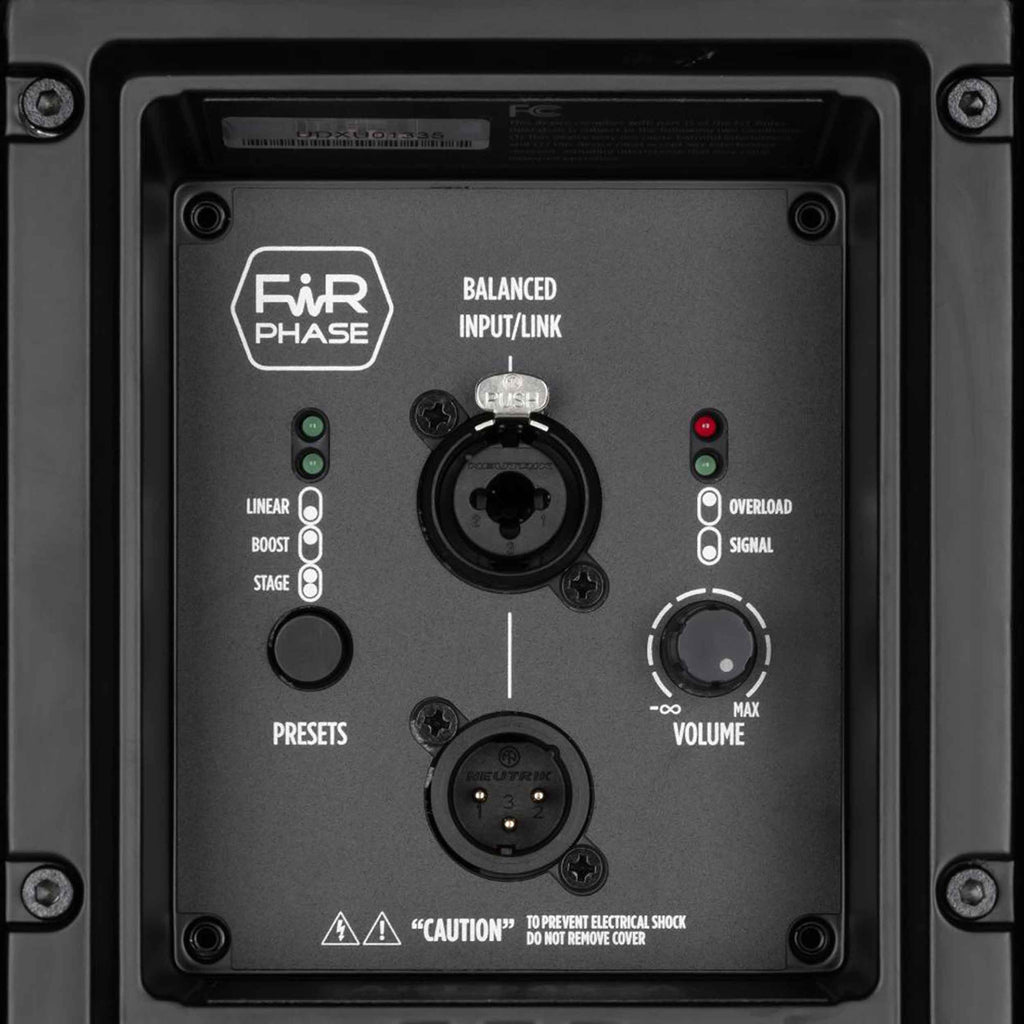

Controls: Volume, Boost, Mic/Line
Amplifier Power: 1400 W Peak
HF Power: 400 W Peak
LF Power: 1000 W Peak
Cooling: Convection
DSP Technology: FiRPHASE, XBOOST
Cabinet Material: PP Composite

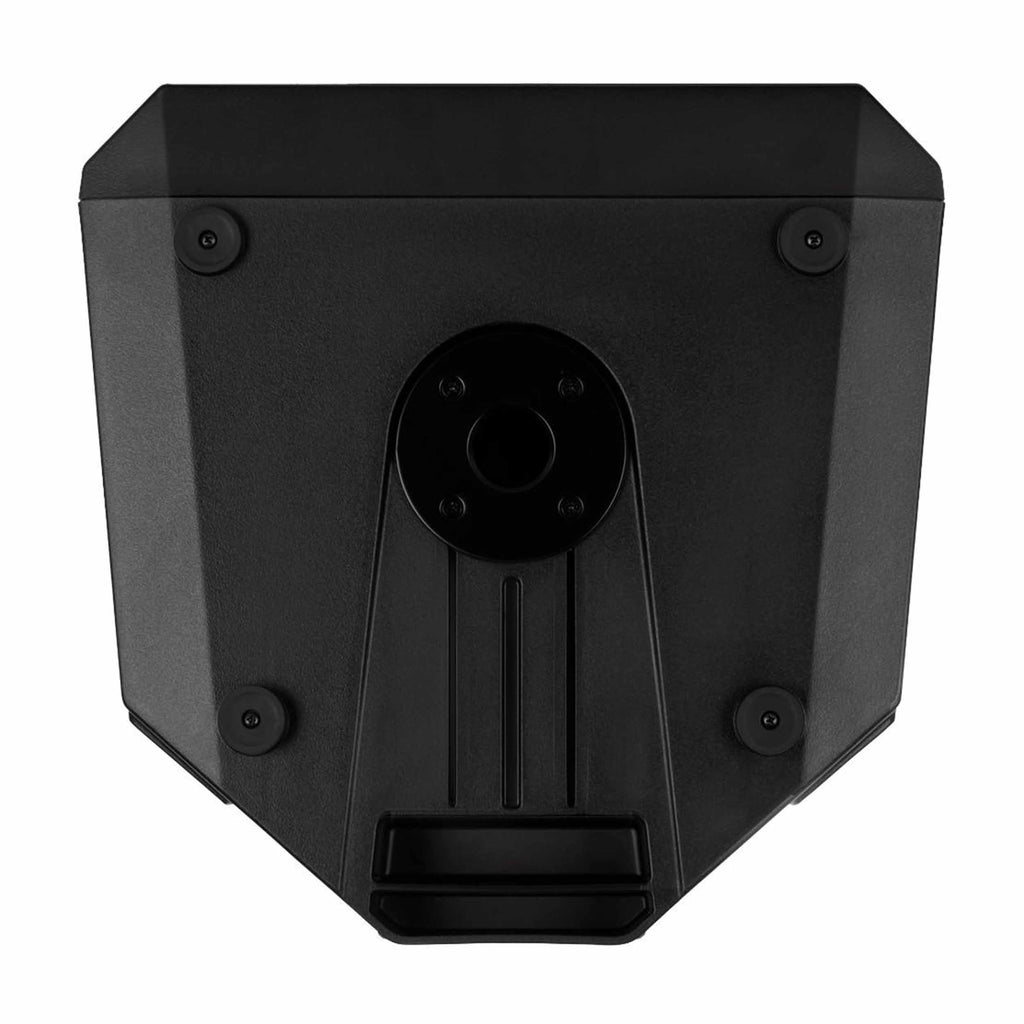

Rigging Points: 3 x M10

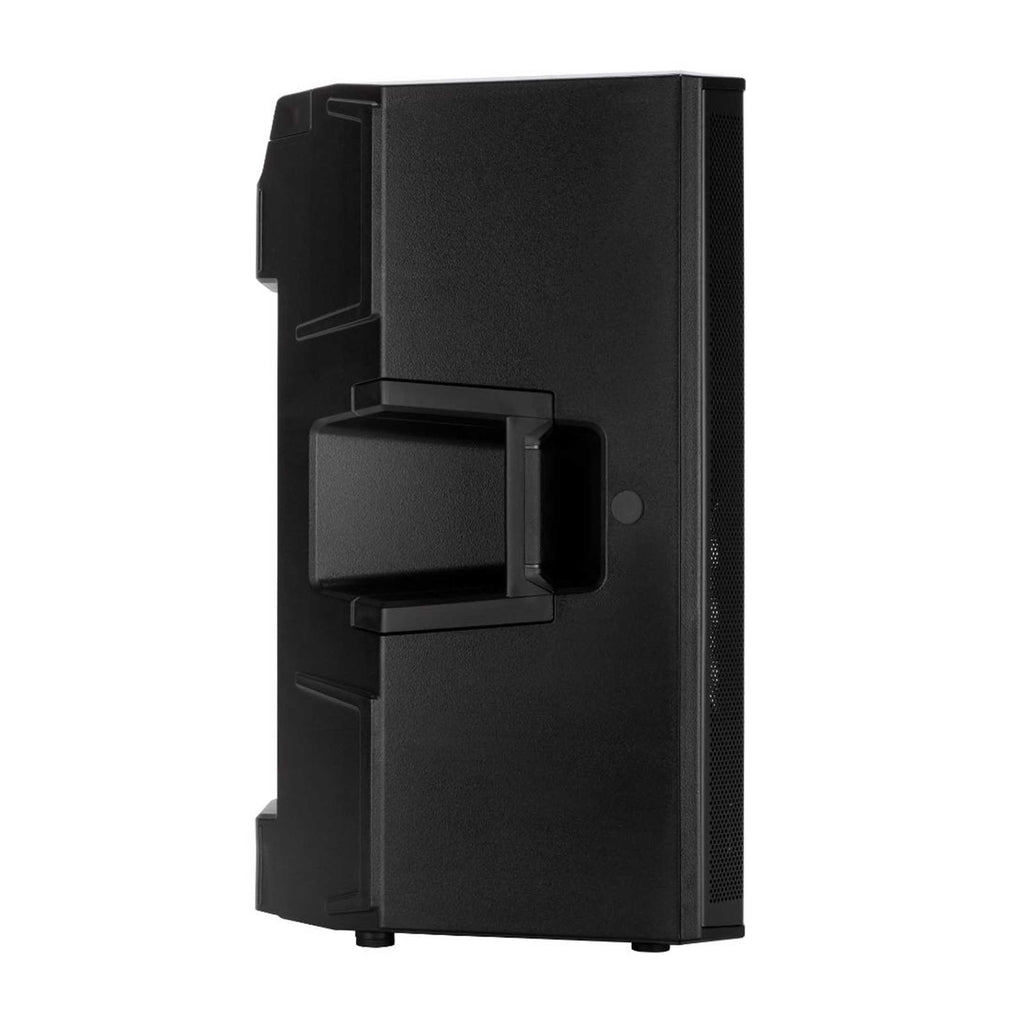

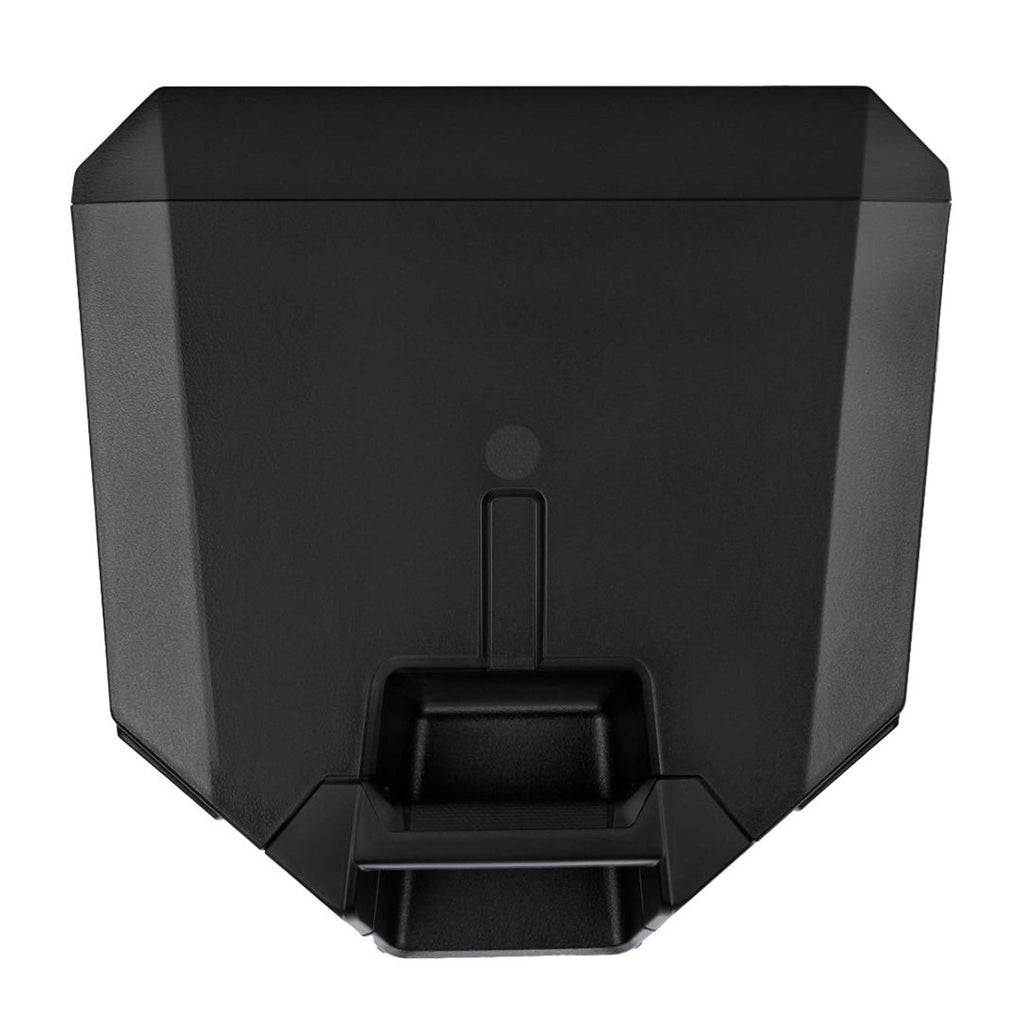

Handles: 1 Top, 2 Side
Pole Mount: 35 mm

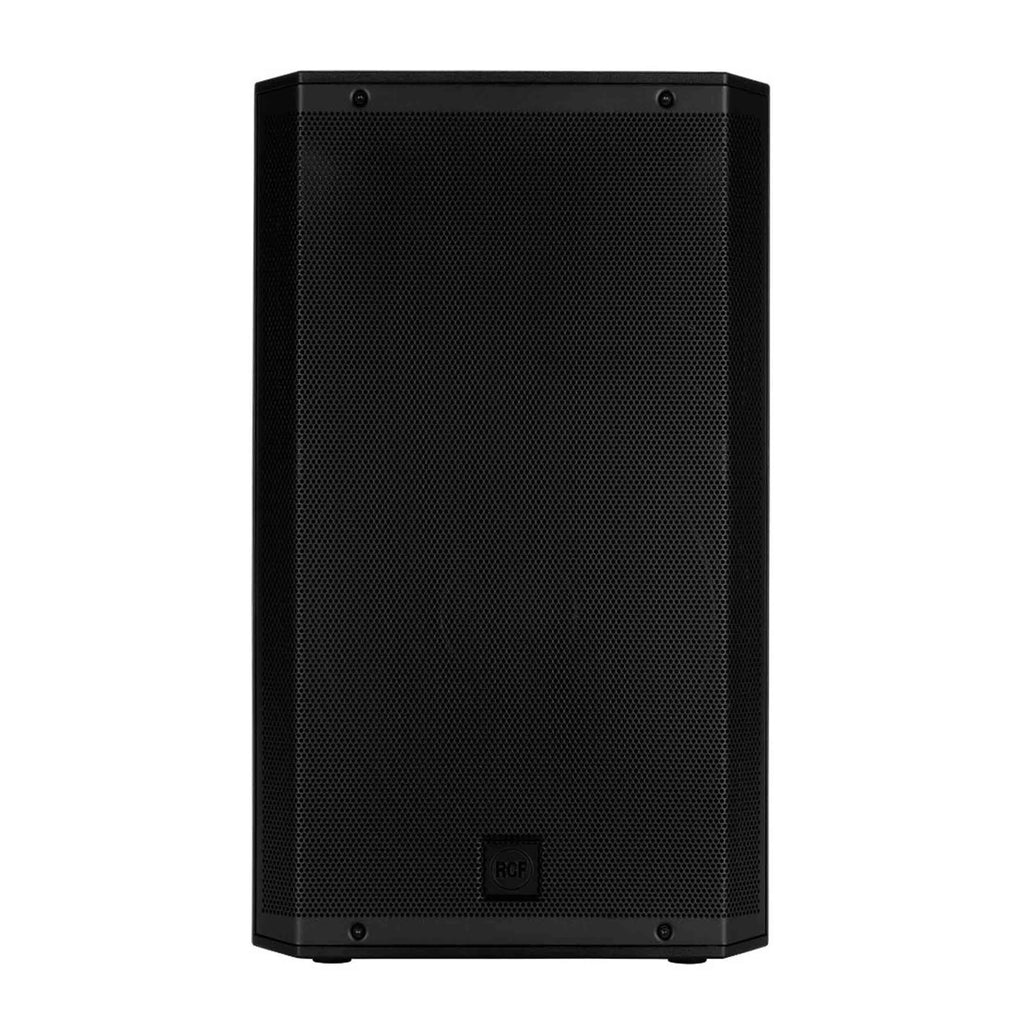

Grille: Steel
Color: Black
Weight: 22.4 kg (49.38 lbs)
Height: 709.9 mm (27.95 in)
Width: 414.9 mm (16.33 in)
Depth: 410.2 mm (16.15 in)
Shipping Weight: 58.42 lbs.
Shipping Dimensions (L x W x H): 18.5 x 18.7 x 29.92 in
