Description

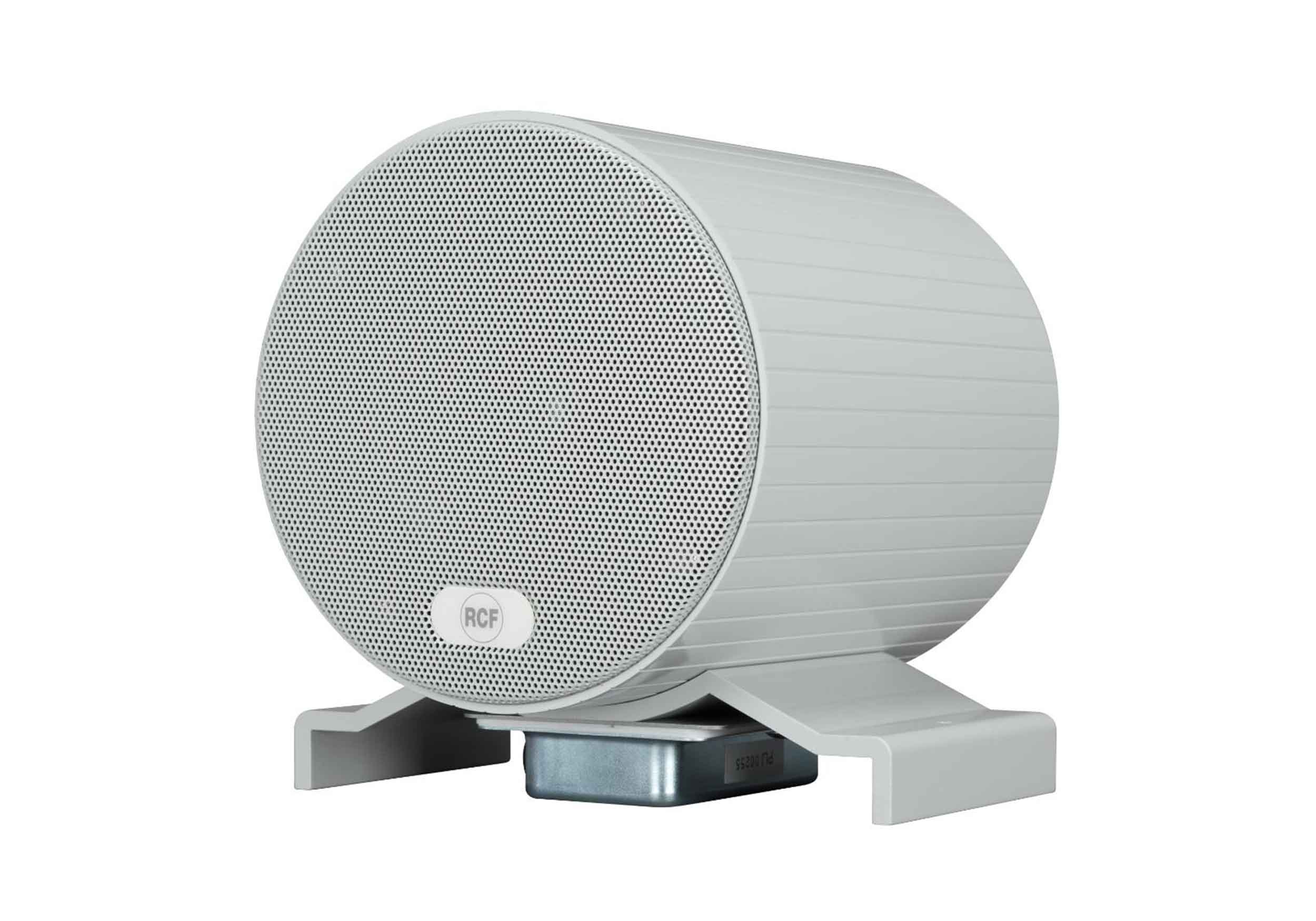

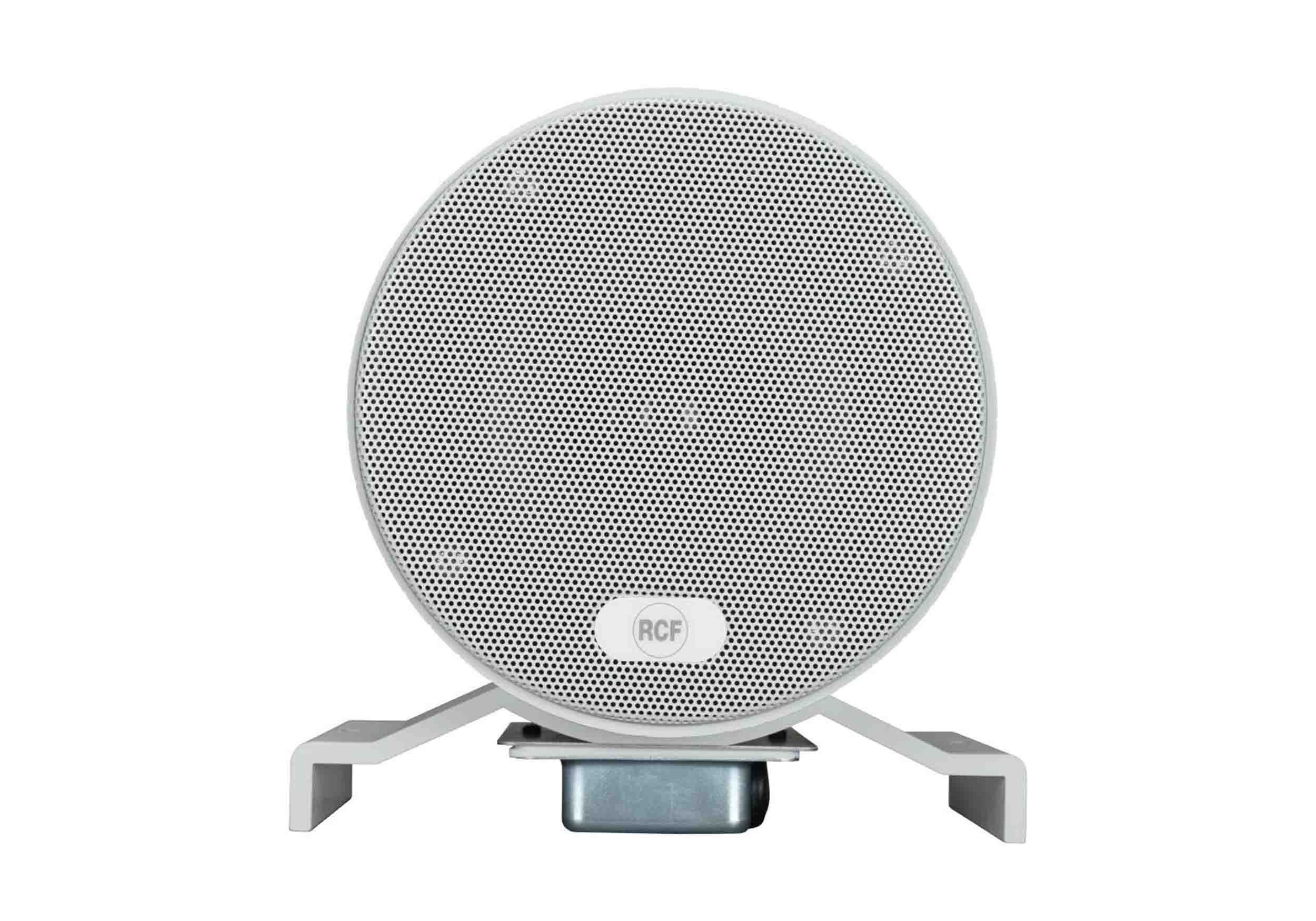

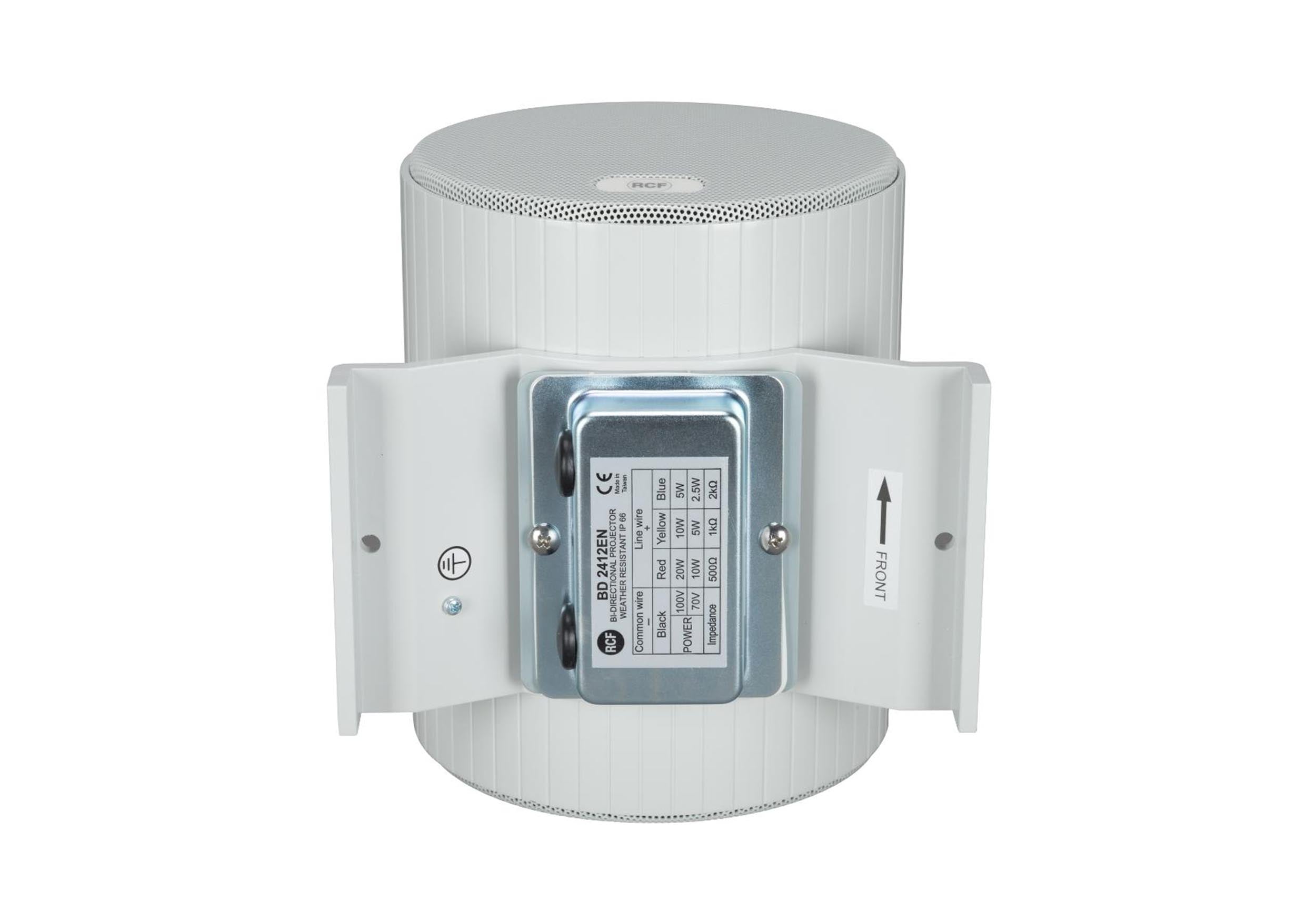

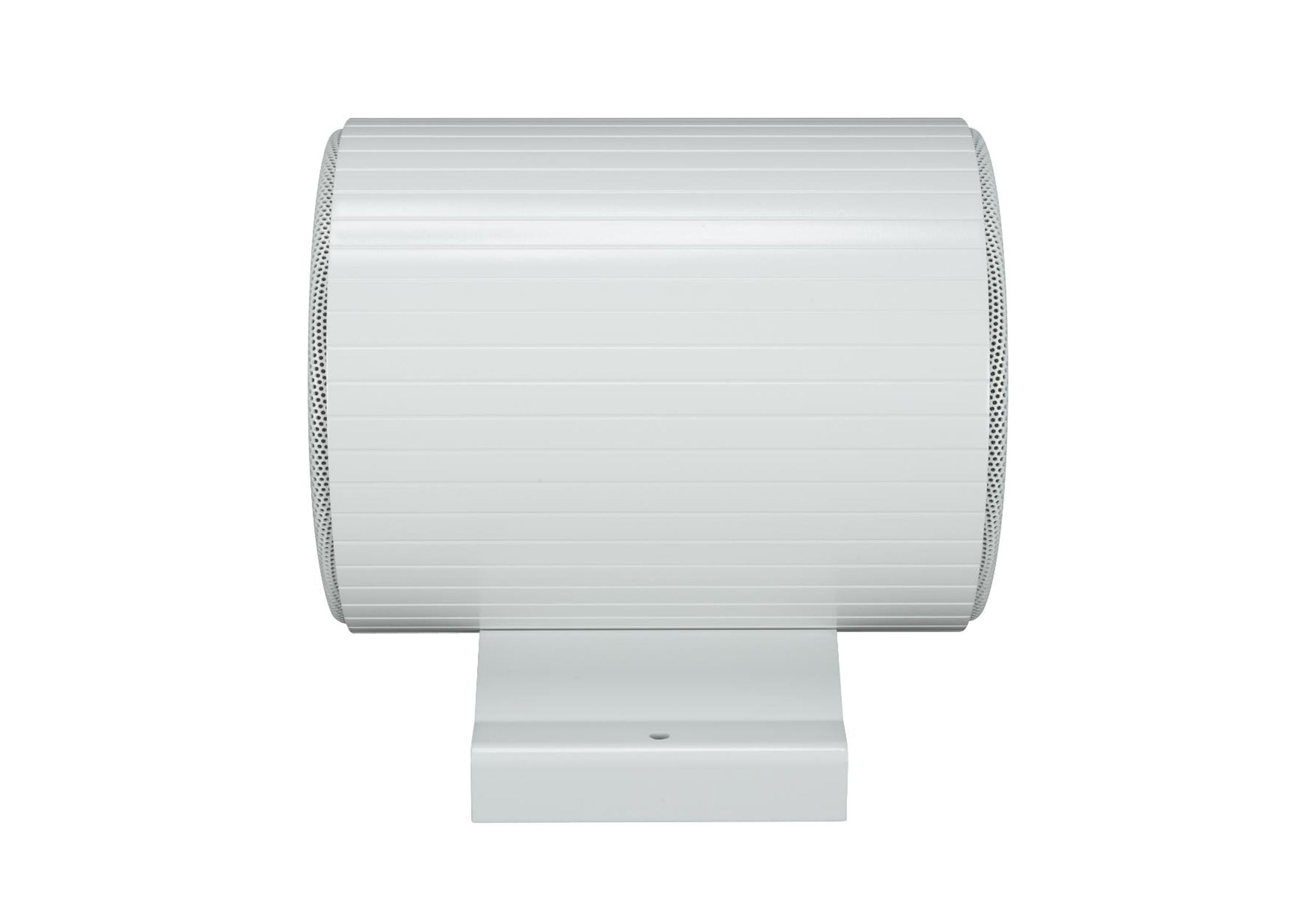

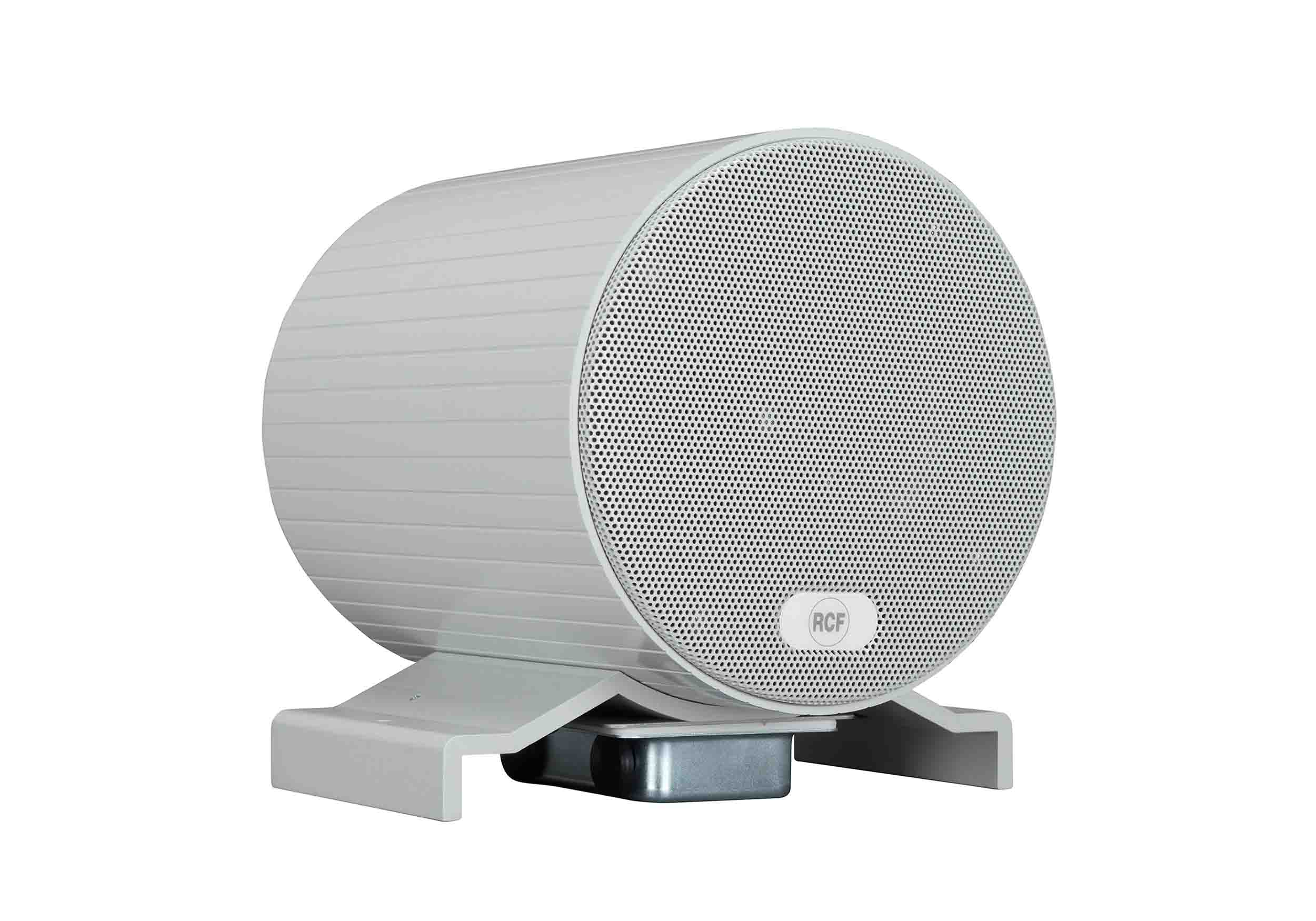

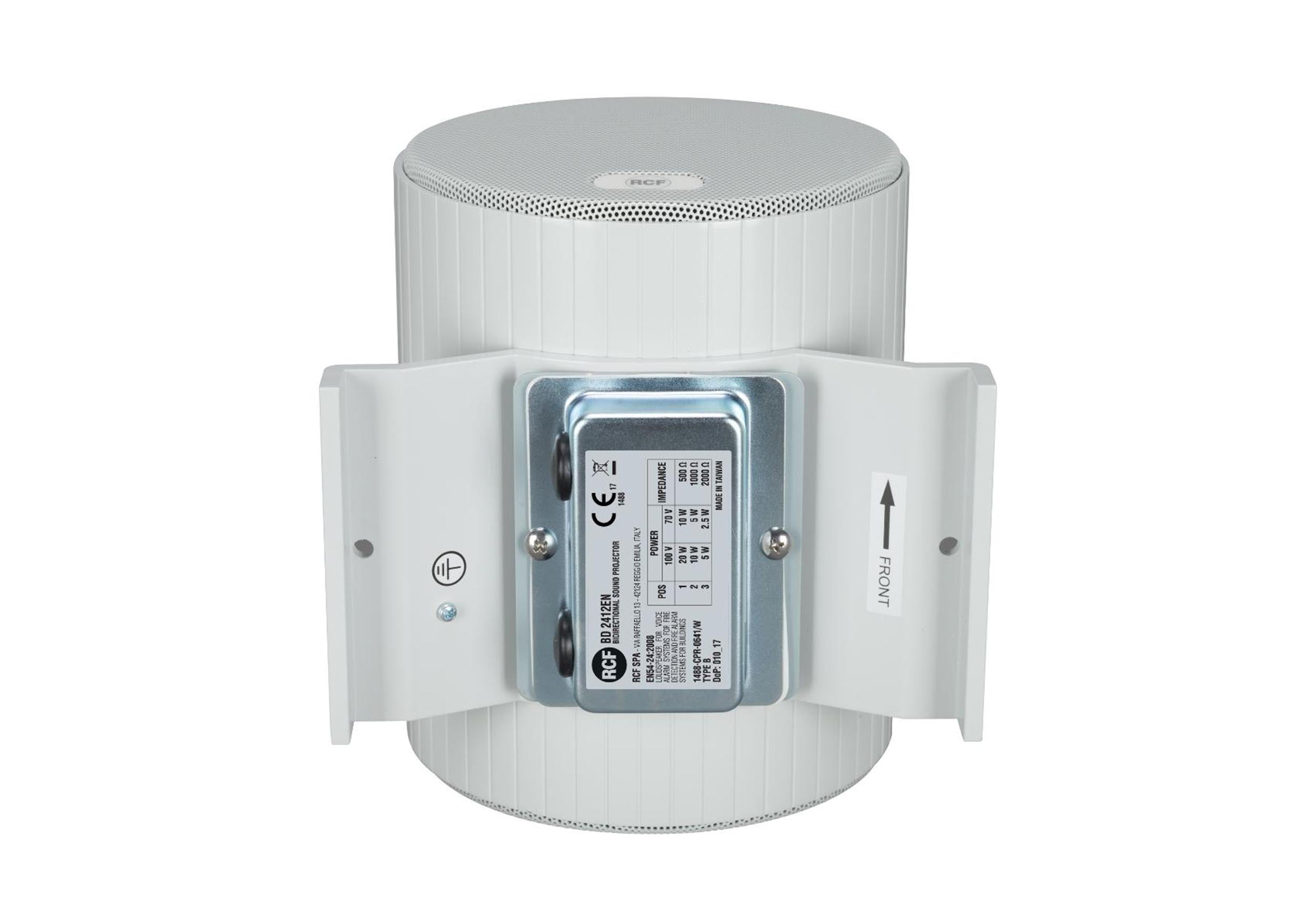

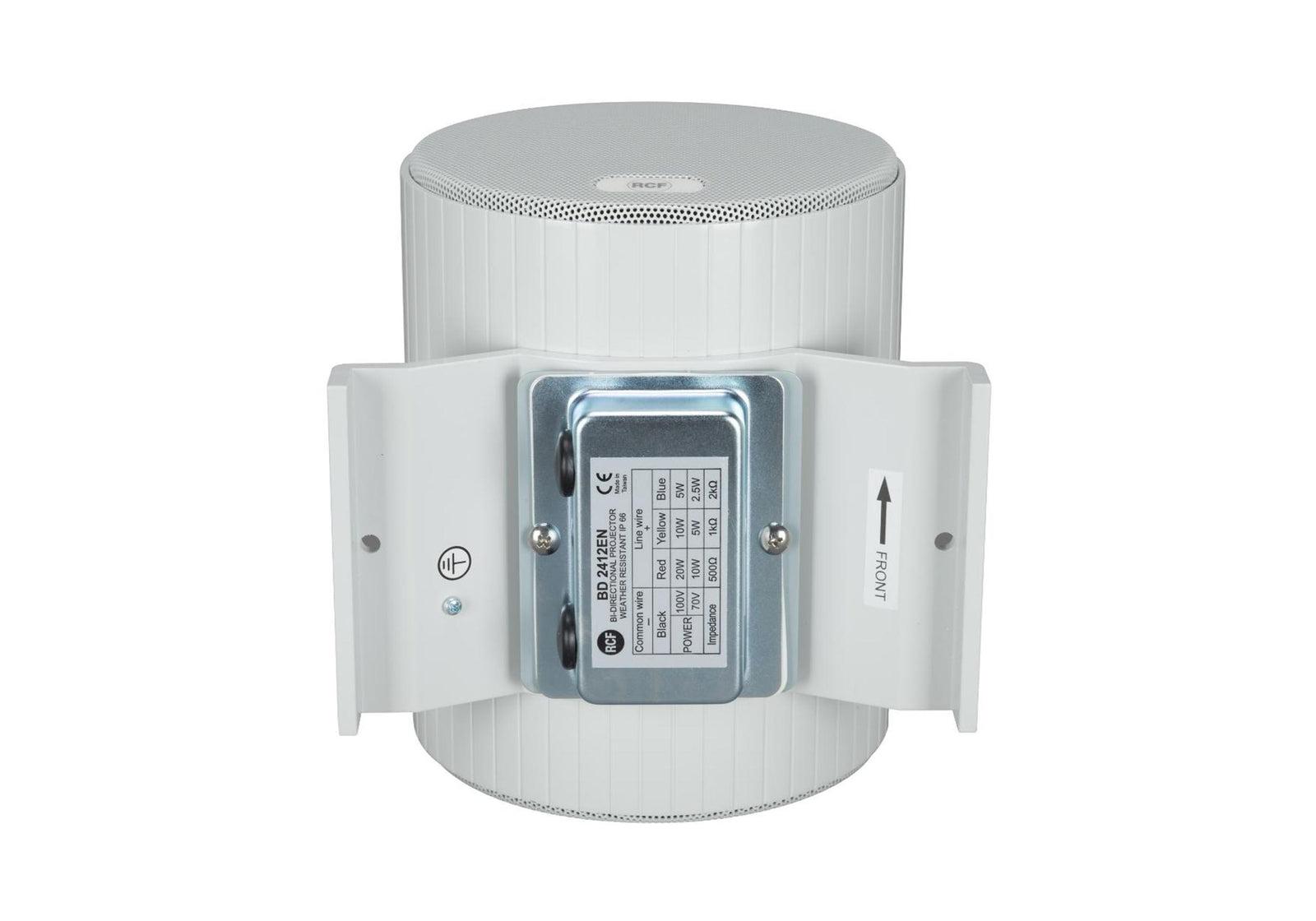

The RCF BD 2412EN is a bidirectional sound projector featuring an elegant aesthetic and easy installation, suitable for the sonorization of commercial and industrial environments where a good sound quality and high intelligibility and efficiency are required. It features a aluminium cylindrical body, grille and bracket. Ground screw available (if needed). Thanks to its IP66 protection grade, it can be installed both indoor and outdoor.
The system features two 5" full-range transducers and offers selectable power settings at 20 W, 10 W, and 5 W for 100 V installations. With a sensitivity of 88 dB, it delivers clear and reliable audio performance. Built with an aluminum body, grille, and bracket, and finished in grey RAL 7035, it provides both durability and a clean, modern appearance. The unit includes in/out ceramic terminal blocks and thermal fuse protection for enhanced safety, while its IP66 protection rating ensures dependable operation in demanding indoor or outdoor environments.
Product Specifications:
Acoustical:
Frequency Response (-10dB): 130 Hz - 20000 Hz
Max SPL @ 1m: 101 dB
Max SPL @ 4m: 89 dB
Coverage angle: 130°
System Sensitivity: 88 dB
System Sensitivity 1W @ 4m: 76 dB
Power Section:
Power Handling: 20 W
Peak Power Handling: 80 W PEAK
Protections: Thermal fuse
Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000
Transducers:
Full range: 2 x 5.0''
Input/Output Section:
Input connectors: Ceramic screw terminals
Output connectors: Ceramic screw terminals
Constant Voltage Transformer: 100 V
Power selection 1: 20 W - 500 ohm
Power selection 2: 10 W - 1000 ohm
Power selection 3: 5 W - 2000 ohm
Standard Compliance:
IP protection grade: IP 66
Safety agency: CE compliant
EN54-24 certified: Yes
CPR number: 1488-CPR-0641/W
Physical Specifications:
Cabinet/Case Material: Aluminum
Hardware: Aluminium bracket
Grille: Aluminium
Color: Grey - RAL 7035
Product Depth: 184 mm / 7.24 inches
Product Diameter: 146 mm / 5.75 inches
Product Weight: 3.25 kg / 7.17 lbs
Shipping Height: 185 mm / 7.28 inches
Shipping Width: 240 mm / 9.45 inches
Shipping Depth: 185 mm / 7.28 inches
Shipping Weight: 9 lbs
