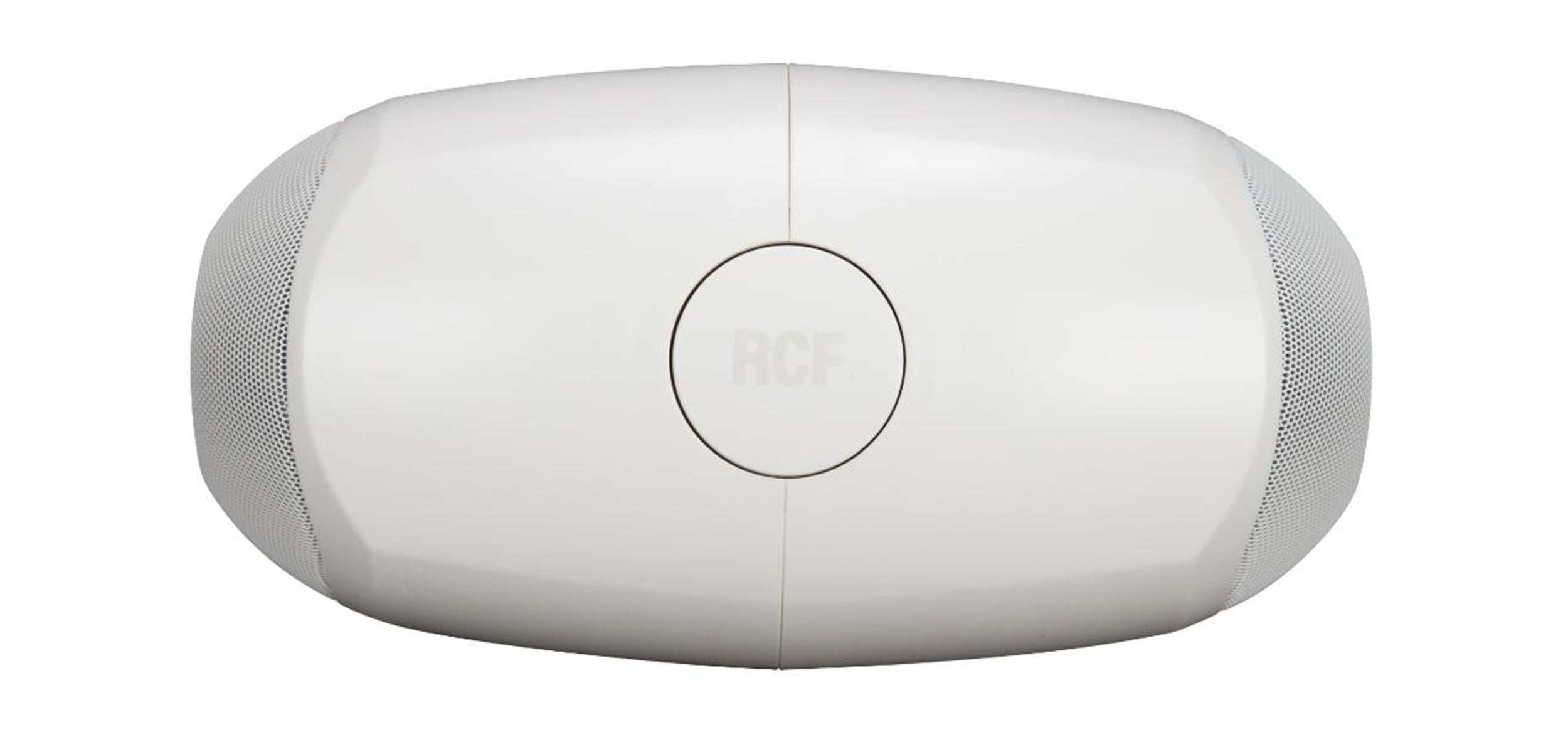

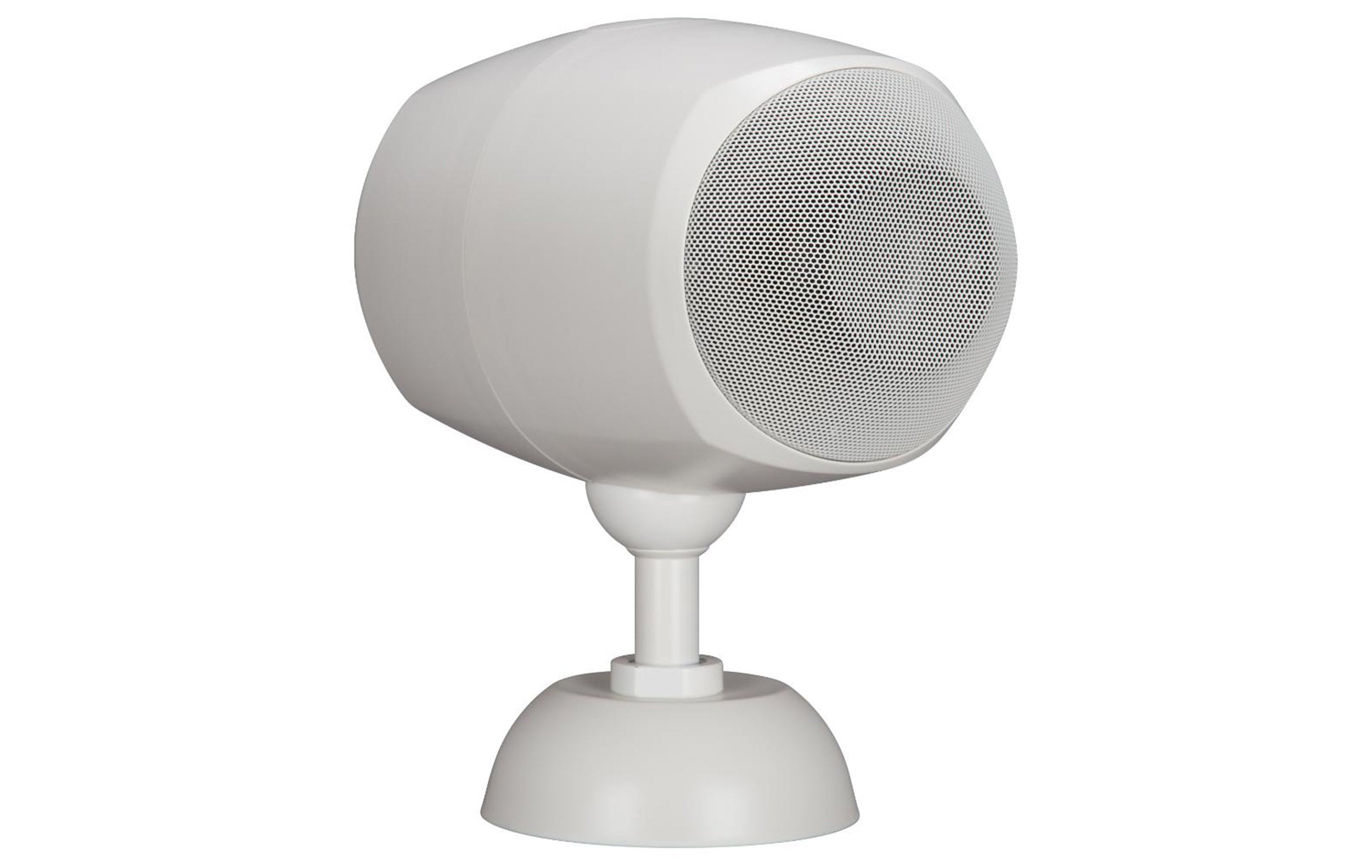

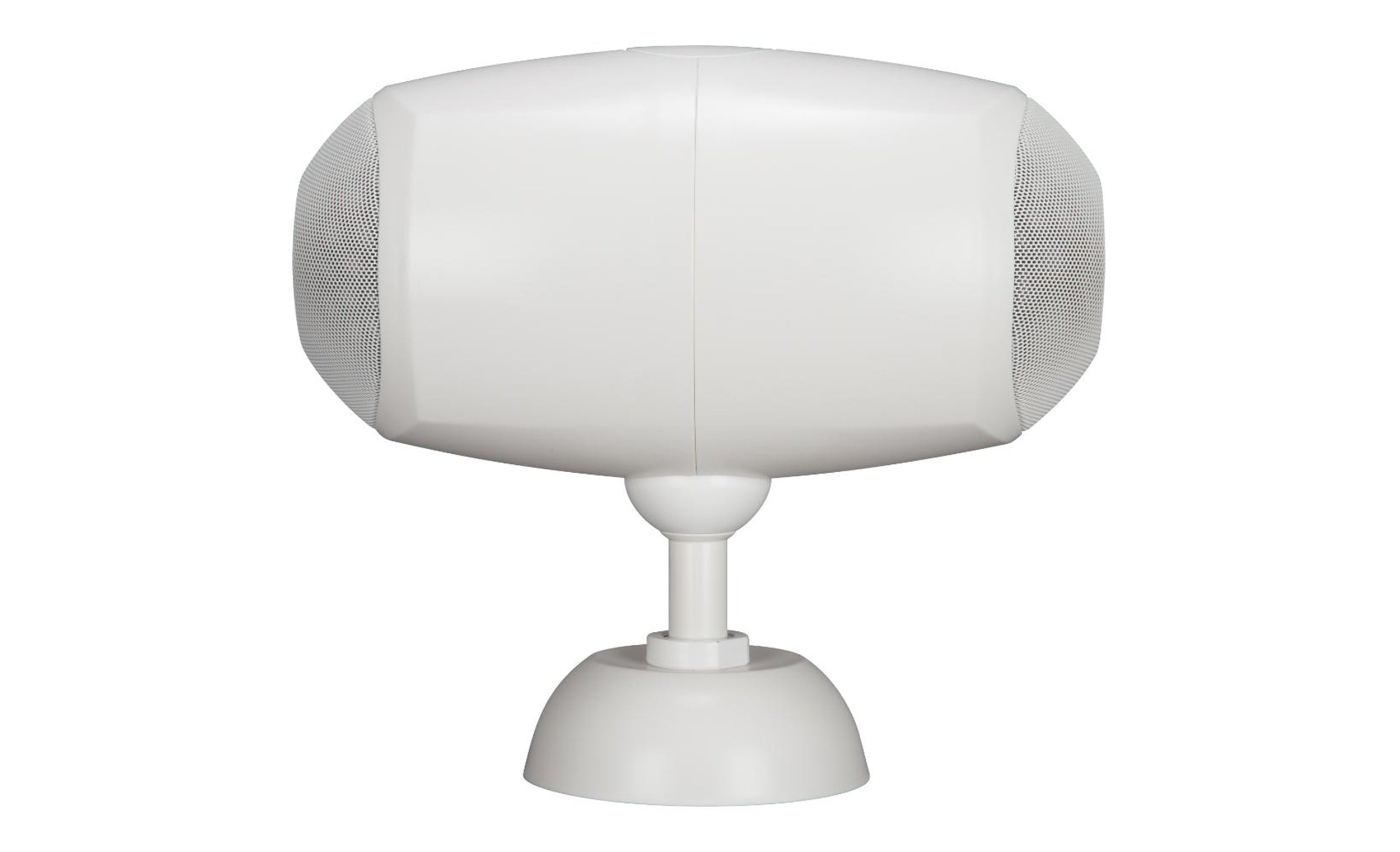

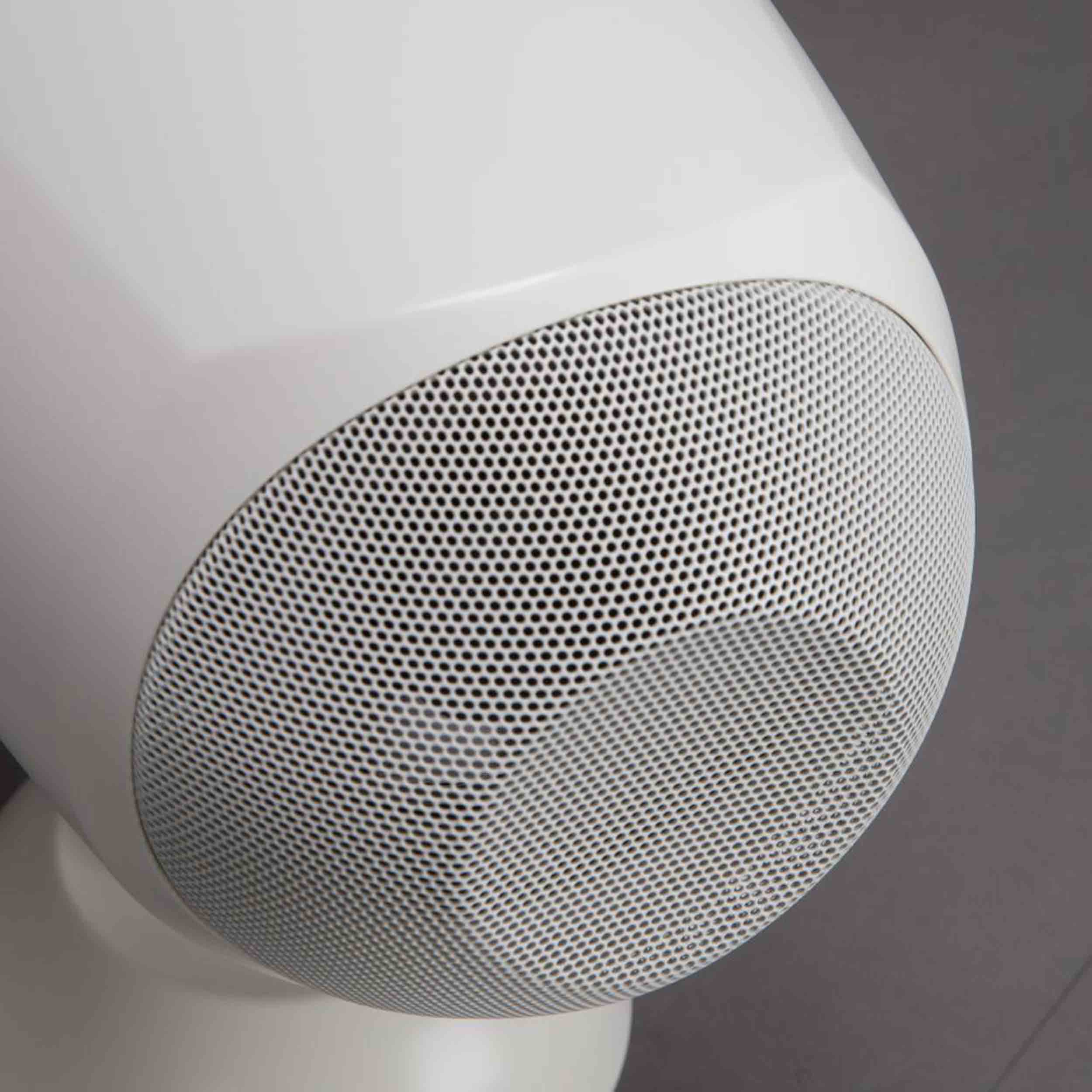

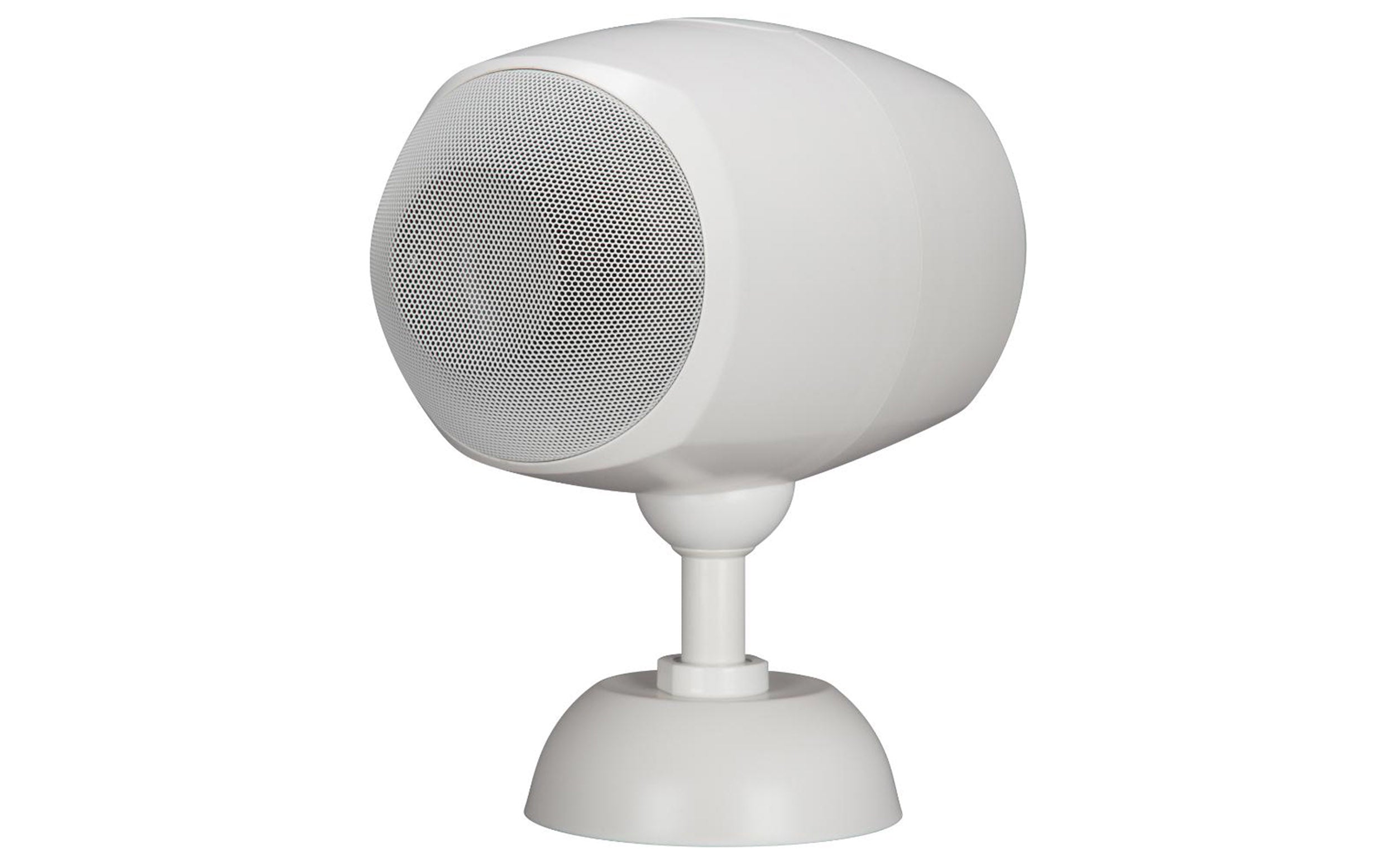

RCF BD-5EN Dual 5-Inch Bi-Directional Sound Projector - White

The RCF BD 5EN is a weatherproof bidirectional sound projector specifically engineered for installations where clear and intelligible alarm messages, as well as high-quality audio reproduction, are required. Its robust design ensures that it can deliver consistent performance across a variety of challenging environments, making it ideal for commercial, industrial, and public spaces. The bidirectional design allows for optimized sound coverage, providing uniform audio distribution for critical notifications and announcements.

Thanks to its IP65 protection rating, the BD 5EN is suitable for both indoor and outdoor use. It is fully resistant to dust and water ingress, ensuring reliable operation in exposed areas or harsh conditions. This weatherproof feature makes it a practical choice for locations such as open-air facilities, parking areas, industrial sites, and transportation hubs, where environmental factors could otherwise compromise the performance of conventional audio equipment.

In addition to its technical capabilities, the BD 5EN is designed with aesthetics in mind. Its modern and sleek design allows it to integrate seamlessly into architectural and interior designs without disrupting the visual appeal of the space. Whether installed as part of a safety system or for general sound reinforcement, the BD 5EN combines functional excellence with an elegant appearance, making it a reliable and visually unobtrusive solution for high-quality audio applications.

Product Specifications:

Cabinet / Case Material: ABS

Hardware: Wall mount metal plate

Grille: Steel

Color: White – RAL 9016

Frequency Response (-10 dB): 150 Hz – 18,000 Hz

Max SPL @ 1 m: 99 dB

Max SPL @ 4 m: 87 dB

Coverage Angle: 210°

System Sensitivity: 86 dB

System Sensitivity (1 W @ 4 m): 74 dB

Power Section:

Amplification: Full Range

Power Handling: 20 W

Peak Power Handling: 80 W PEAK

Protections: Thermal fuse

Recommended Amplifiers: DMA 504, DMA 162, DMA 162P, DXT 3000, DXT 4000, DXT 7000

Transducers:

Fullrange Drivers: 2 × 5.0''

Input / Output Section:

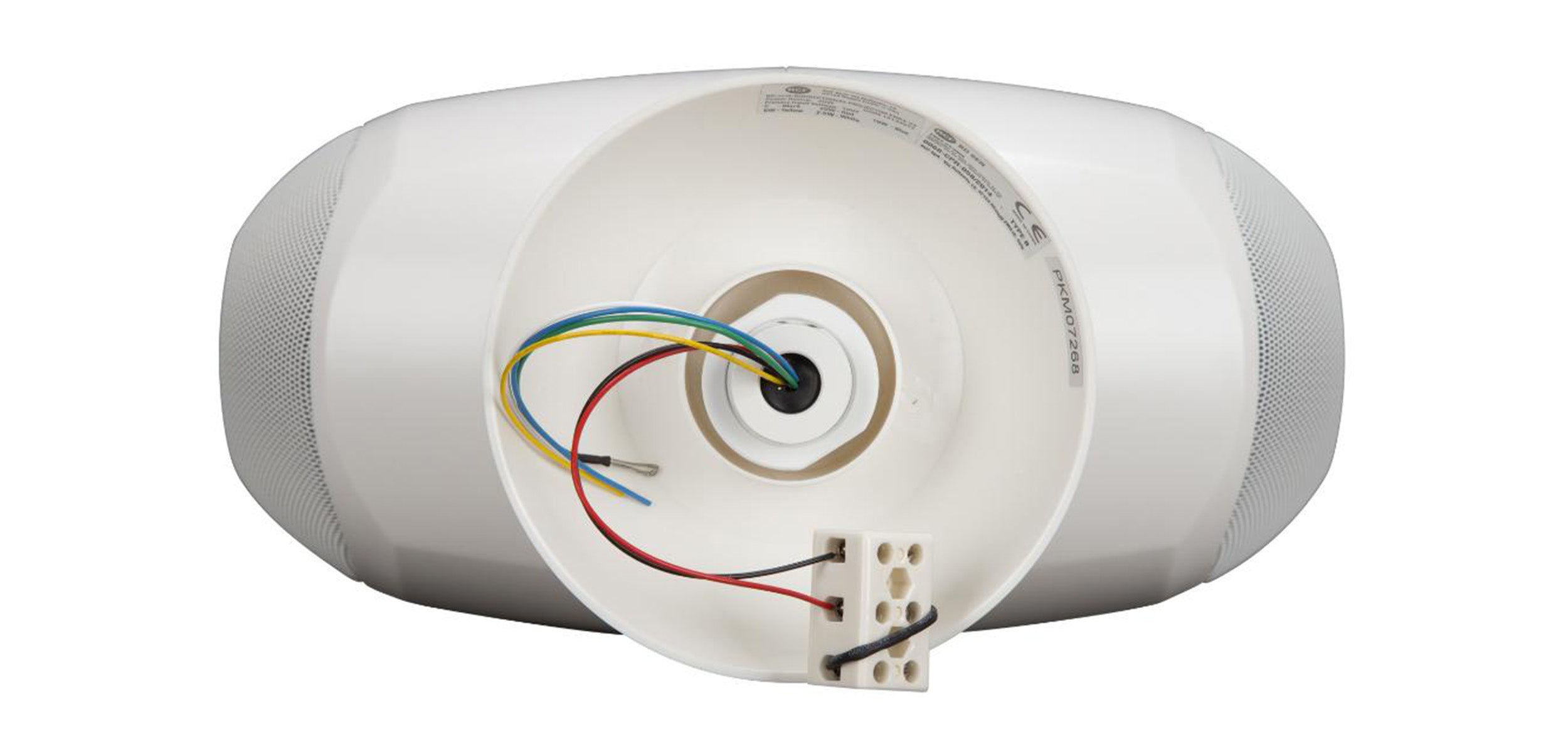

Input Connectors: Ceramic screw terminals

Output Connectors: Ceramic screw terminals

Constant Voltage Transformer: 100 V

Power Selection 1: 20 W – 500 ohm

Power Selection 2: 10 W – 1000 ohm

Power Selection 3: 5 W – 2000 ohm

Power Selection 4: 2.5 W – 4000 ohm

Standard Compliance:

IP Protection Grade: IP 65

Safety Agency: CE compliant

EN54-24 Certified: Yes

CPR Number: 0068-CPR-058/2014

Product Weight: 7.91 lbs.

Product Dimensions (L × W × H): 13.07 in × 6.93 in × 7.2 in

Shipping Weight: 10.21 lbs.

Shipping Dimensions (L × W × H): 15.75 in × 14.96 in × 9.06 in
