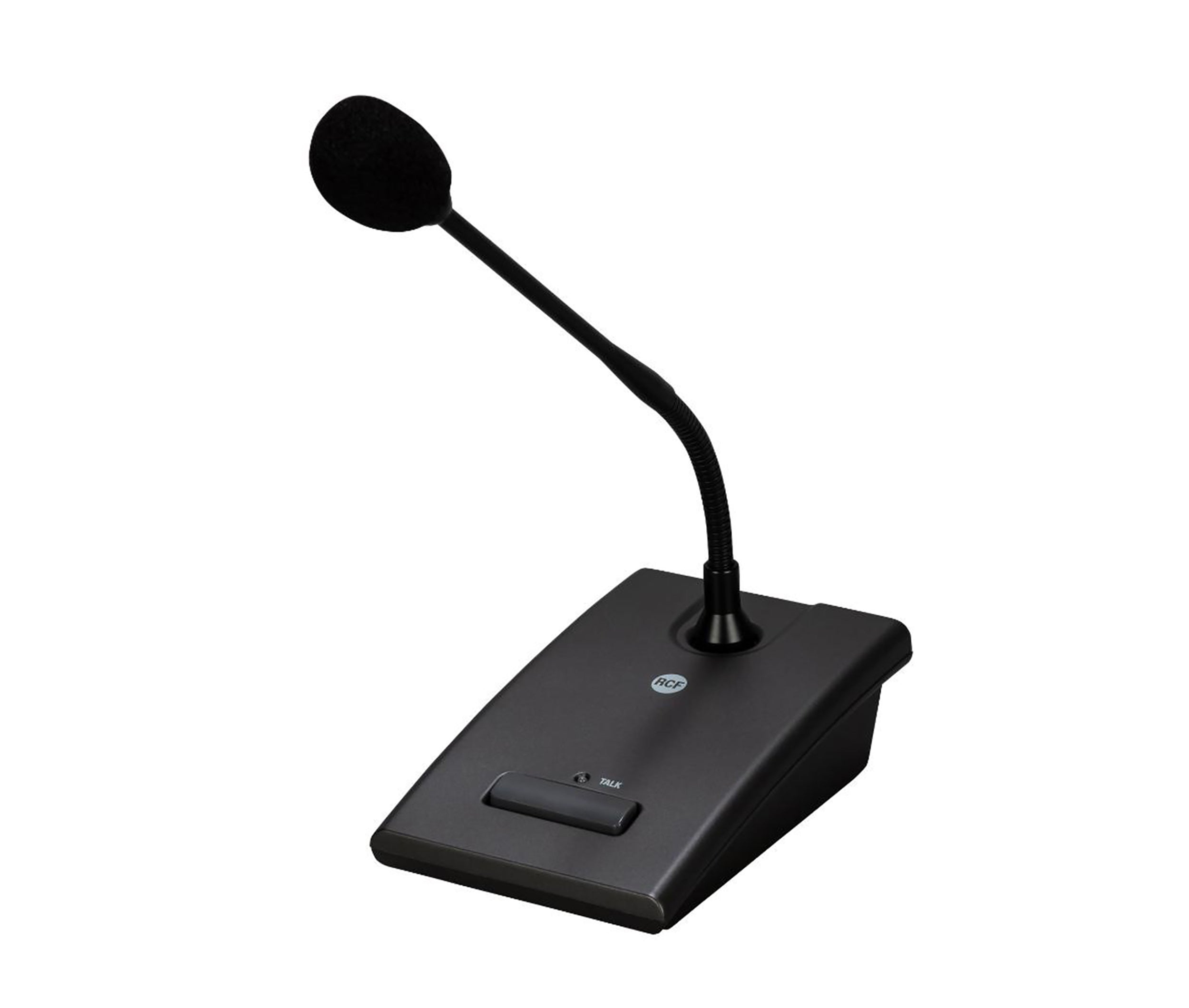

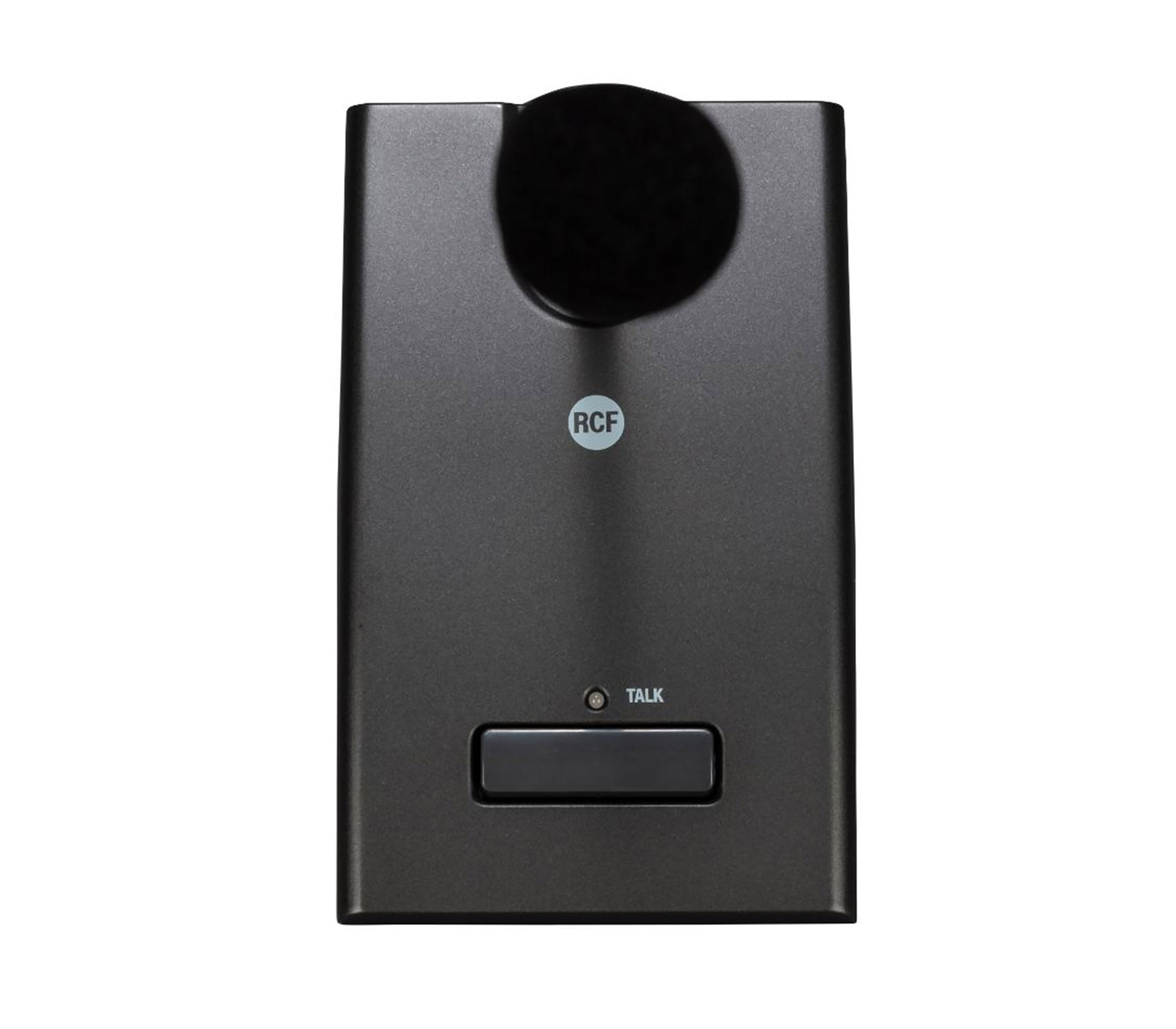

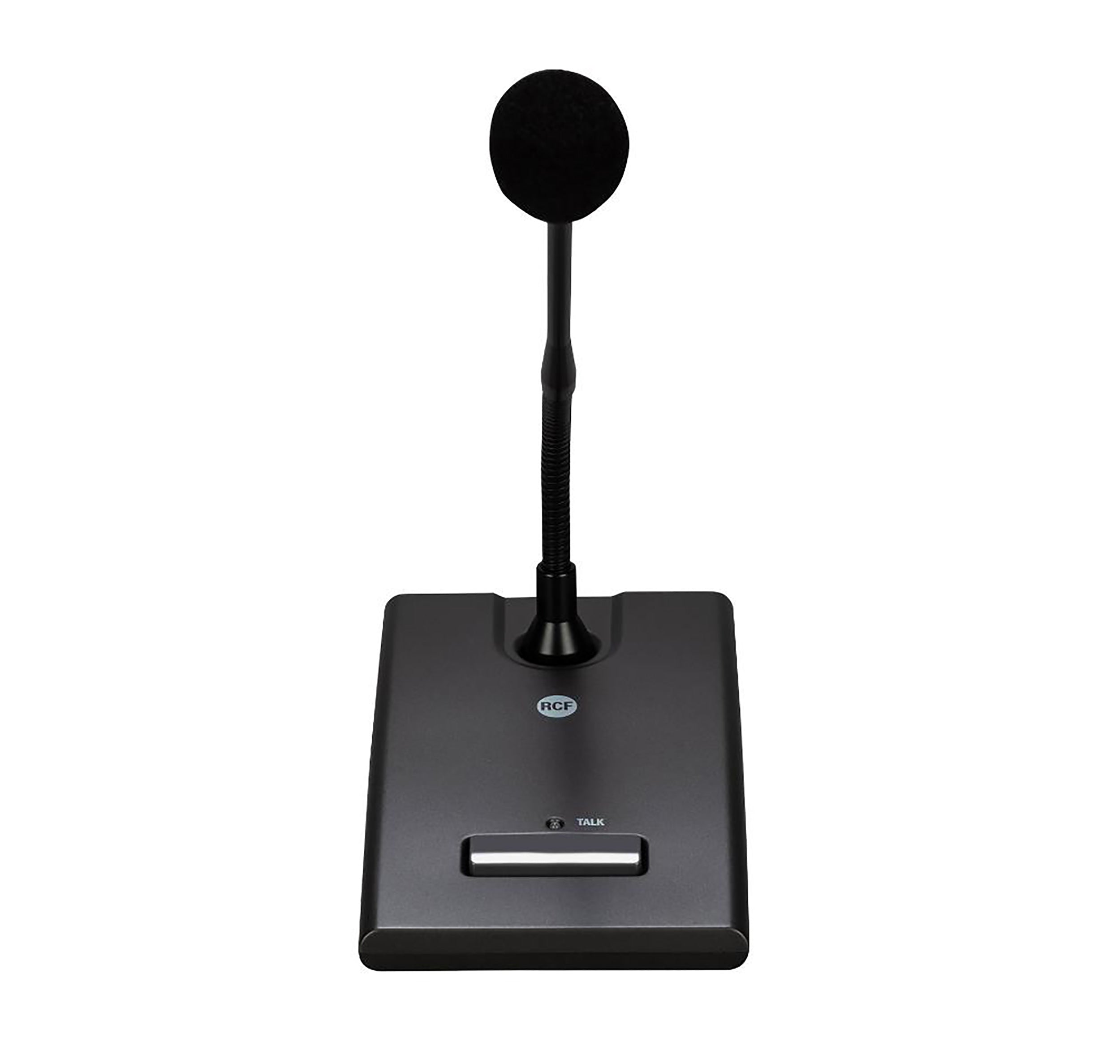

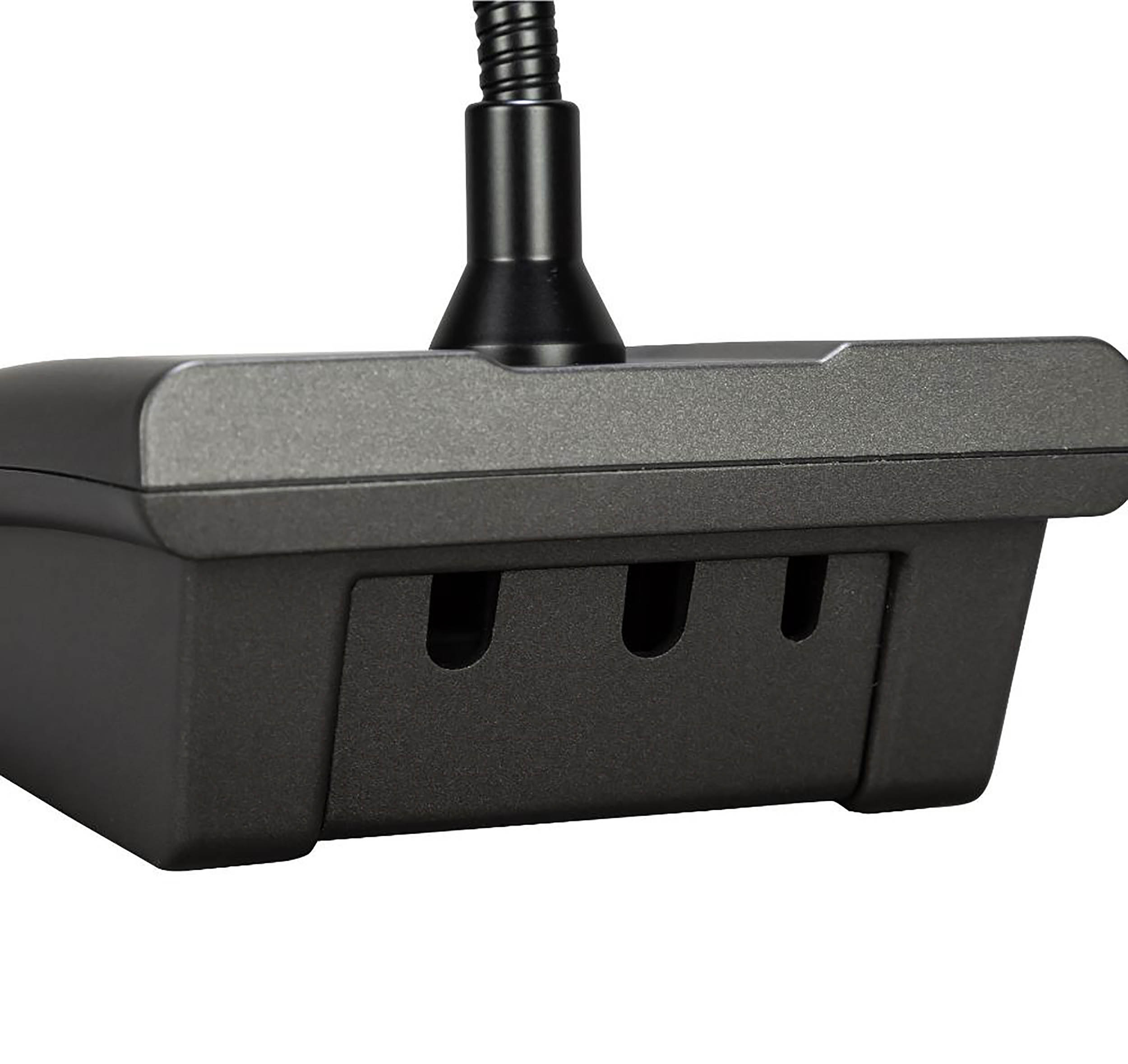

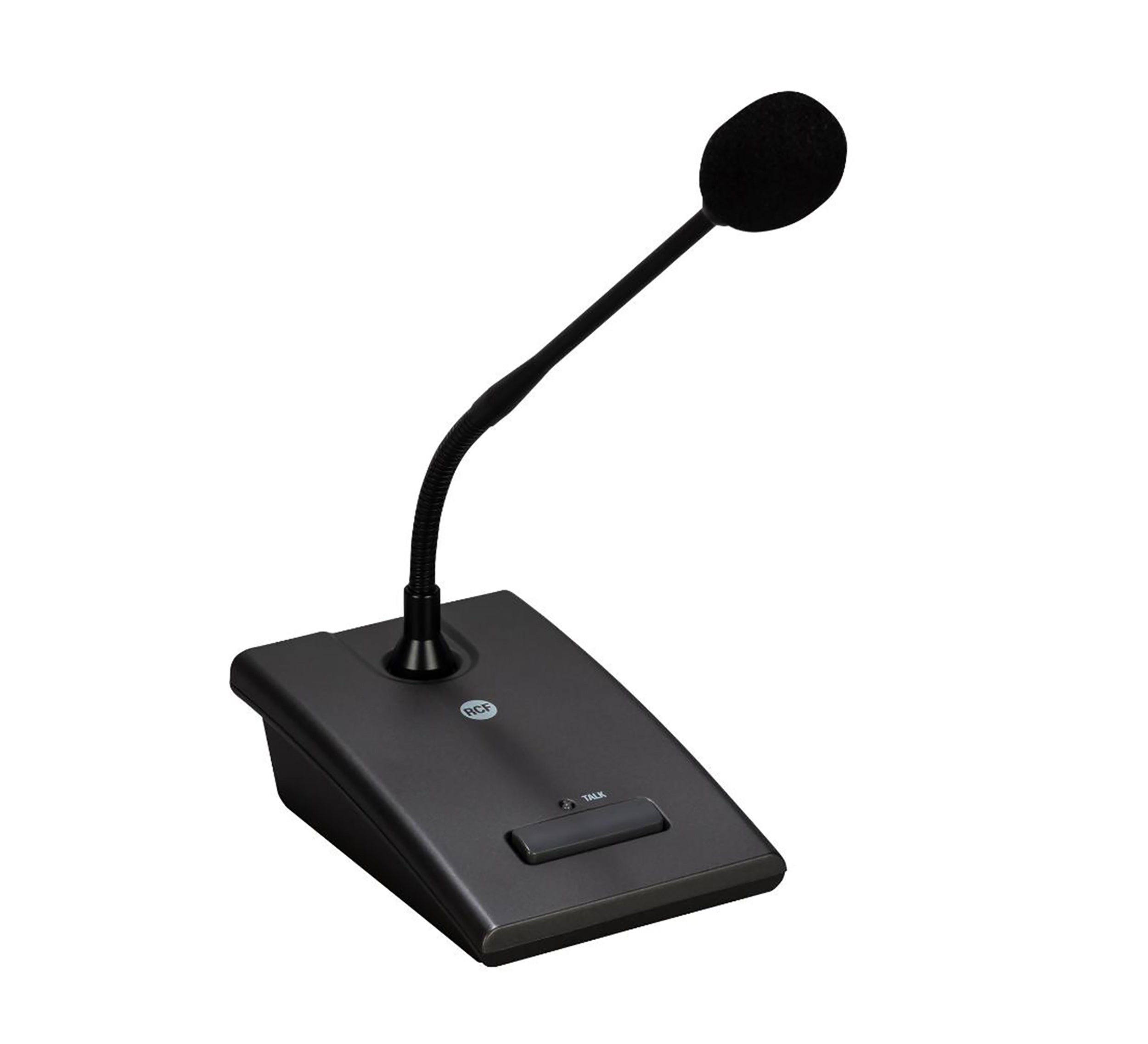

RCF BM 3022 Gooseneck Paging Microphone

The RCF BM 3022 Gooseneck Paging Microphone with hi-quality unidirectional electret capsule Direct connection to power amplifiers input through CAT5 cable Adjustable line output with RJ45 connector Switchable automatic gain control (AGC) Up to 30 BM 3022 paging microphones can be linked in a ‘daisy-chain’ Selectable mixing, interlocking or priority mode among devices When activating a microphone, the announcement can be preceded by a chime.

Product Specifications:

Type: Desktop paging microphone with electret capsule

Directivity: Cardioid

Sensitivity: -65 dB

Frequency Response (-3dB): 200 Hz – 7 kHz

Output impedance: 130 ohms

Minimum load impedance: 470 ohms

Signal / Noise ratio @1 kHz: 82 dB

Total harmonic distortion @1 kHz: 0.65 %

Console:

Console Type: Paging

Working with: DXT 3000

General call: Yes

Preamplified: Yes

LED indicators: Yes

Power requirement:

Operating voltage: 24 V

Power consumption: 2.80 mA

Connections:

Connectors: RJ45

Functionalities

Priority: Yes

VOX facility: Yes

Chime tone generator: Yes

Smart PTT: Yes

Automatic gain control: Yes

Accessories:

Cable included: Yes

Cable length: 5 m

Standard compliance:

Safety agency: CE compliant

Physical specifications:

Cabinet/Case Material: Plastic

Color: Grey

Product Height: 48 mm / 1.89 in

Product Width: 100 mm / 3.94 in

Product Depth: 159 mm / 6.26 in

Product Weight: 0.74 kg / 1.63 lbs

Shipping Height: 144 mm / 5.67 in

Shipping Width: 329 mm / 12.95 in

Shipping Depth: 129 mm / 5.08 in

Shipping Weight: 1.18 kg / 2.60 lbs
