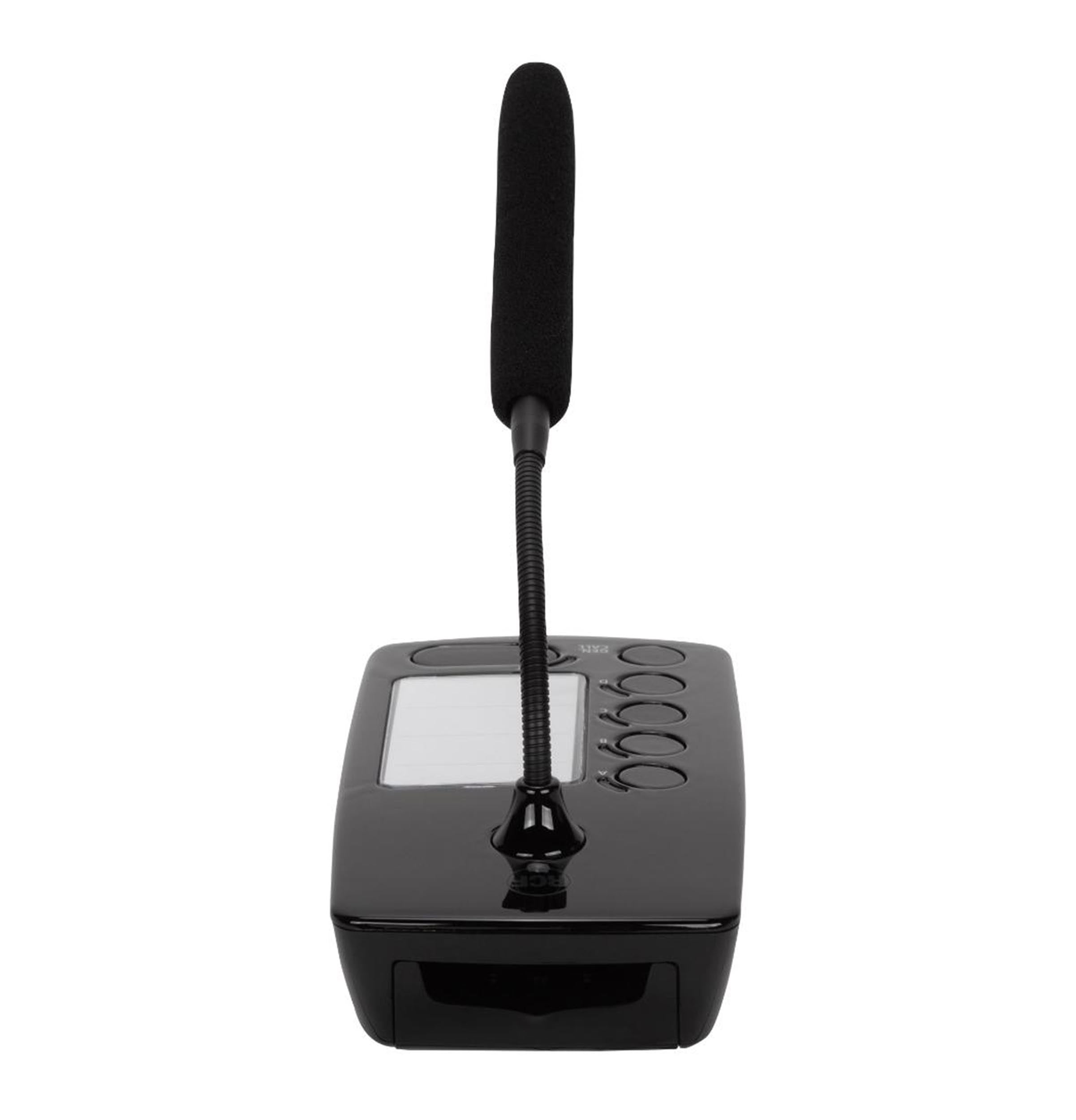

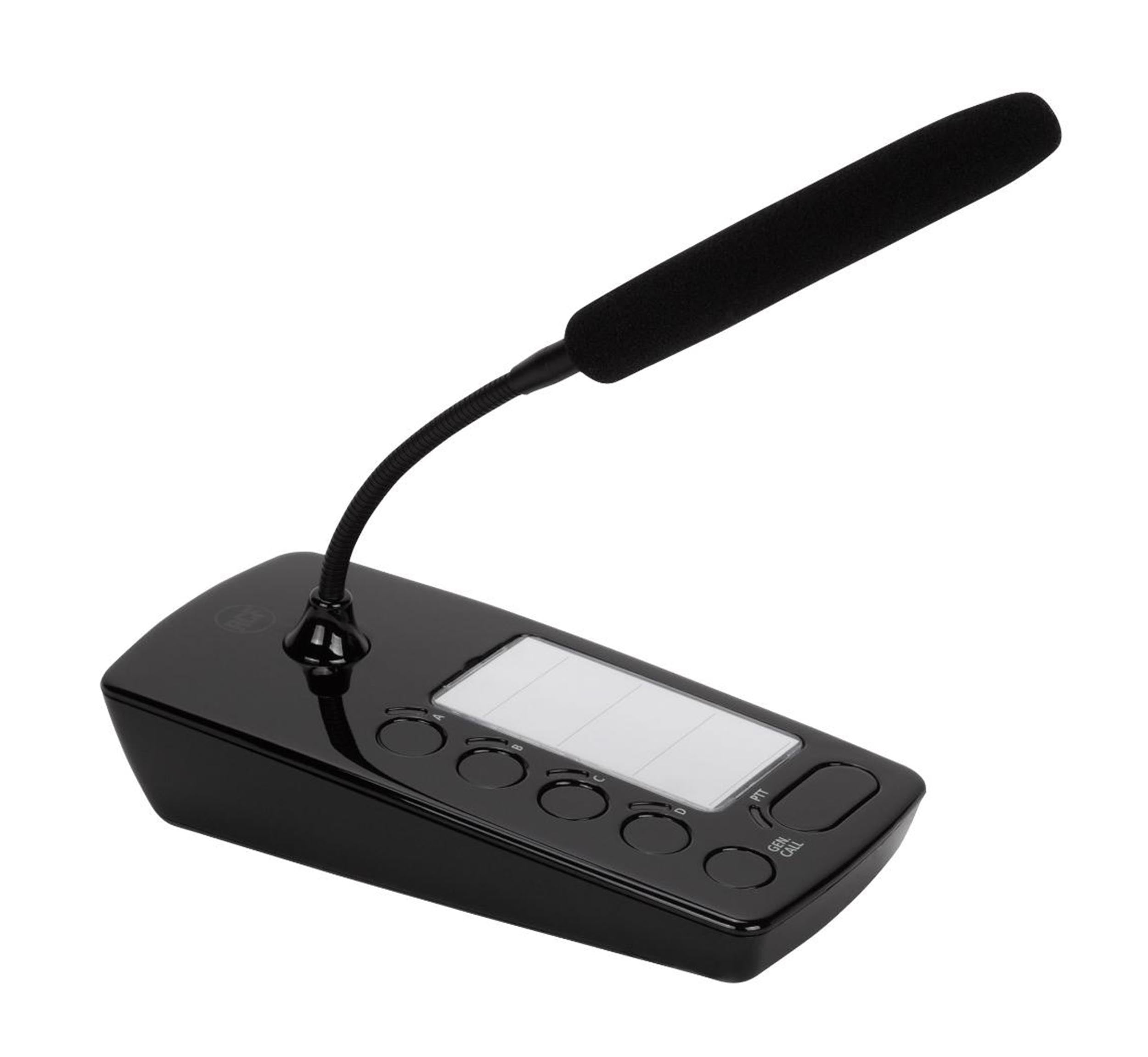

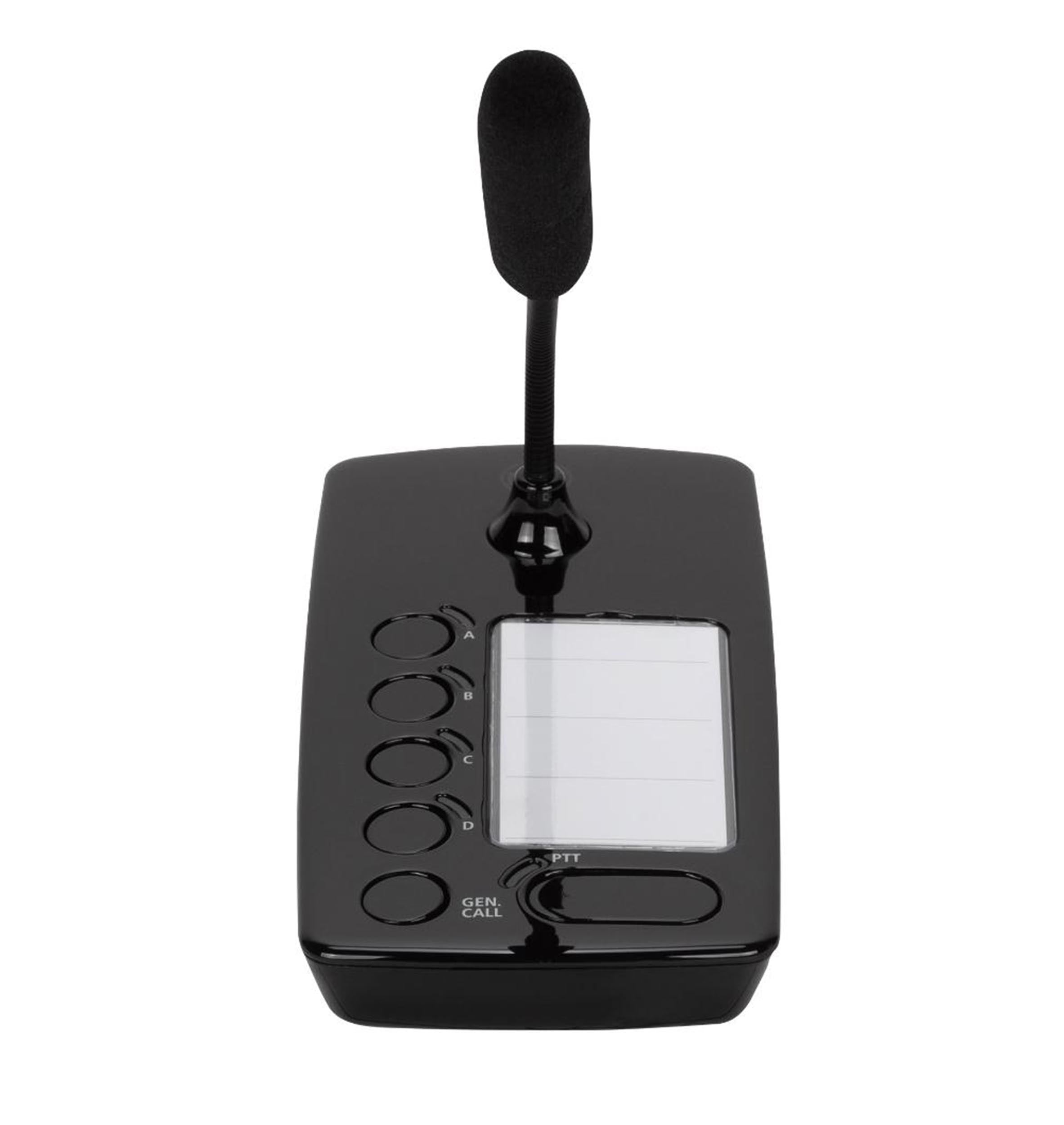

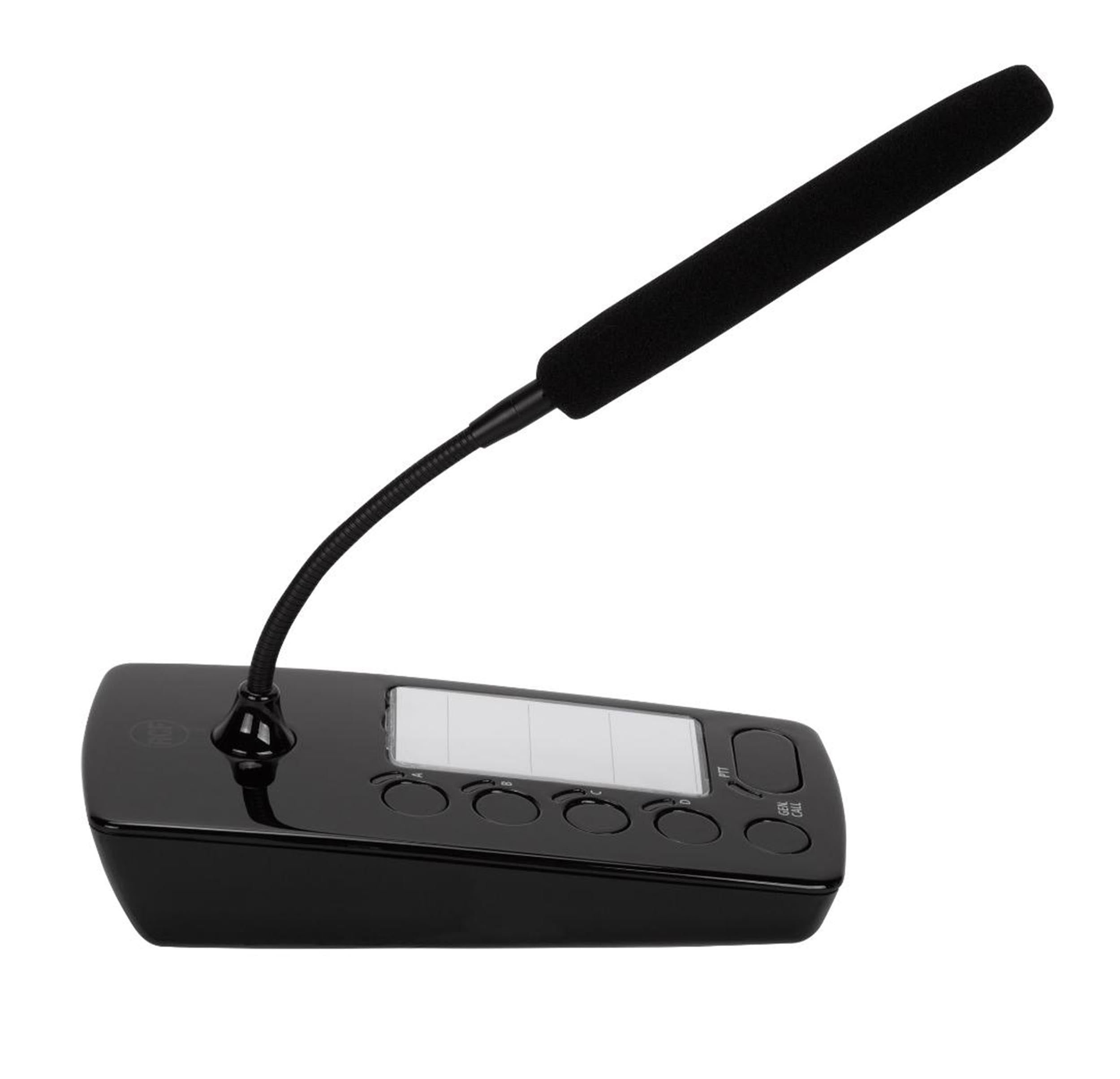

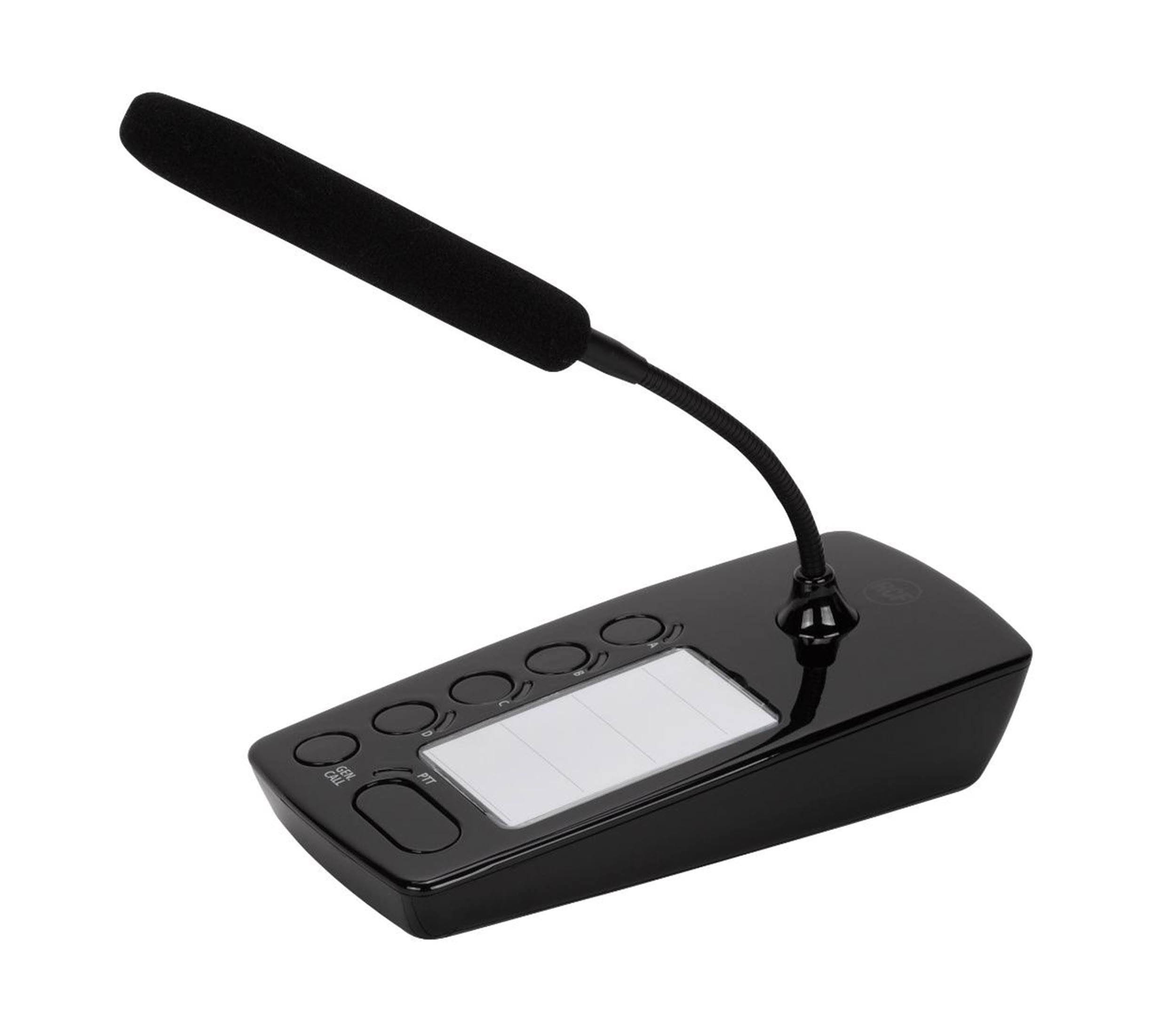

RCF BM 404 Desktop Paging Microphone with 230mm Gooseneck - Black

The RCF BM 404 is a compact 4-zone desktop paging console designed for Business Music systems. Built with a durable shock-resistant polymeric body, it features a 230 mm electret hypercardioid microphone, complete with windscreen and high speech intelligibility.

The console provides selective and general paging, illuminated zone-selection buttons, and PTT control. A chime tone is available through an easy on/off switch. Multiple consoles up to four can be connected in an interlocked daisy-chain to a single DMA amplifier using the included CAT5 cable. The BM 404 is ready for immediate use and requires no special setup.

 Product Specification

Type: Electret

Directivity: Hypercardioid

Sensitivity: -55 dB

Frequency Response (-3 dB): 50 Hz – 20 kHz

Output Impedance: 250 ohm

Console Type: Paging

Working With: DMA 82, DMA 162

General Call: Yes

Selective Call: Yes

Number of Zones: 4

Reamplified: Yes

LED Indicators: Yes

Operating Voltage: 24 V

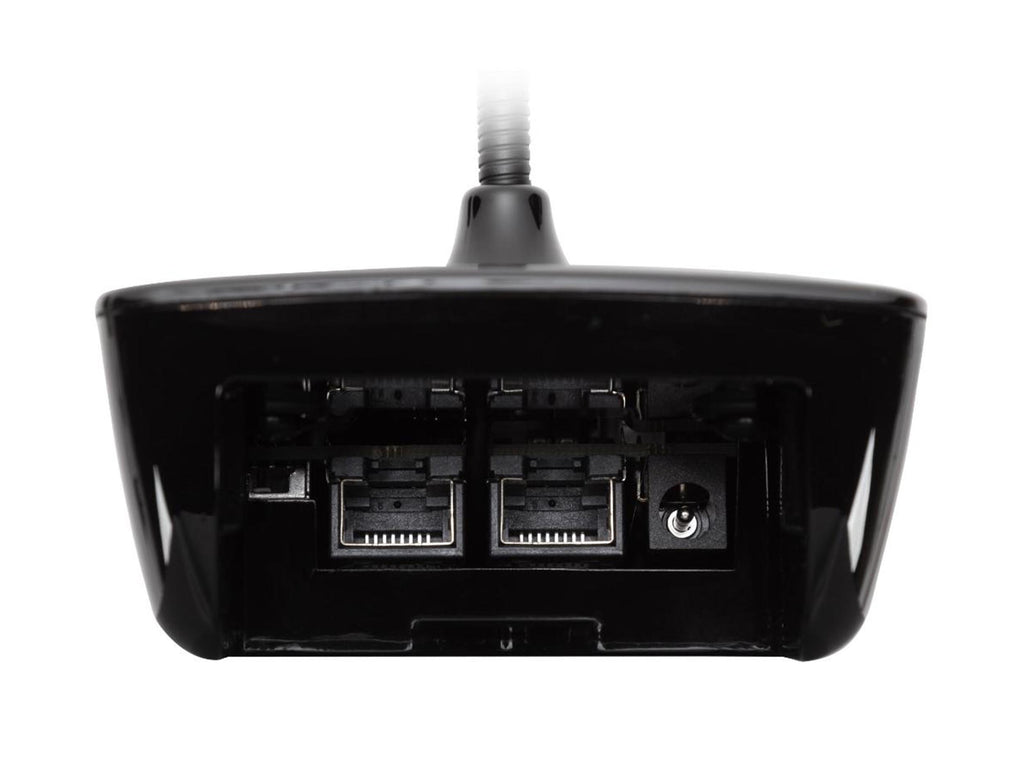

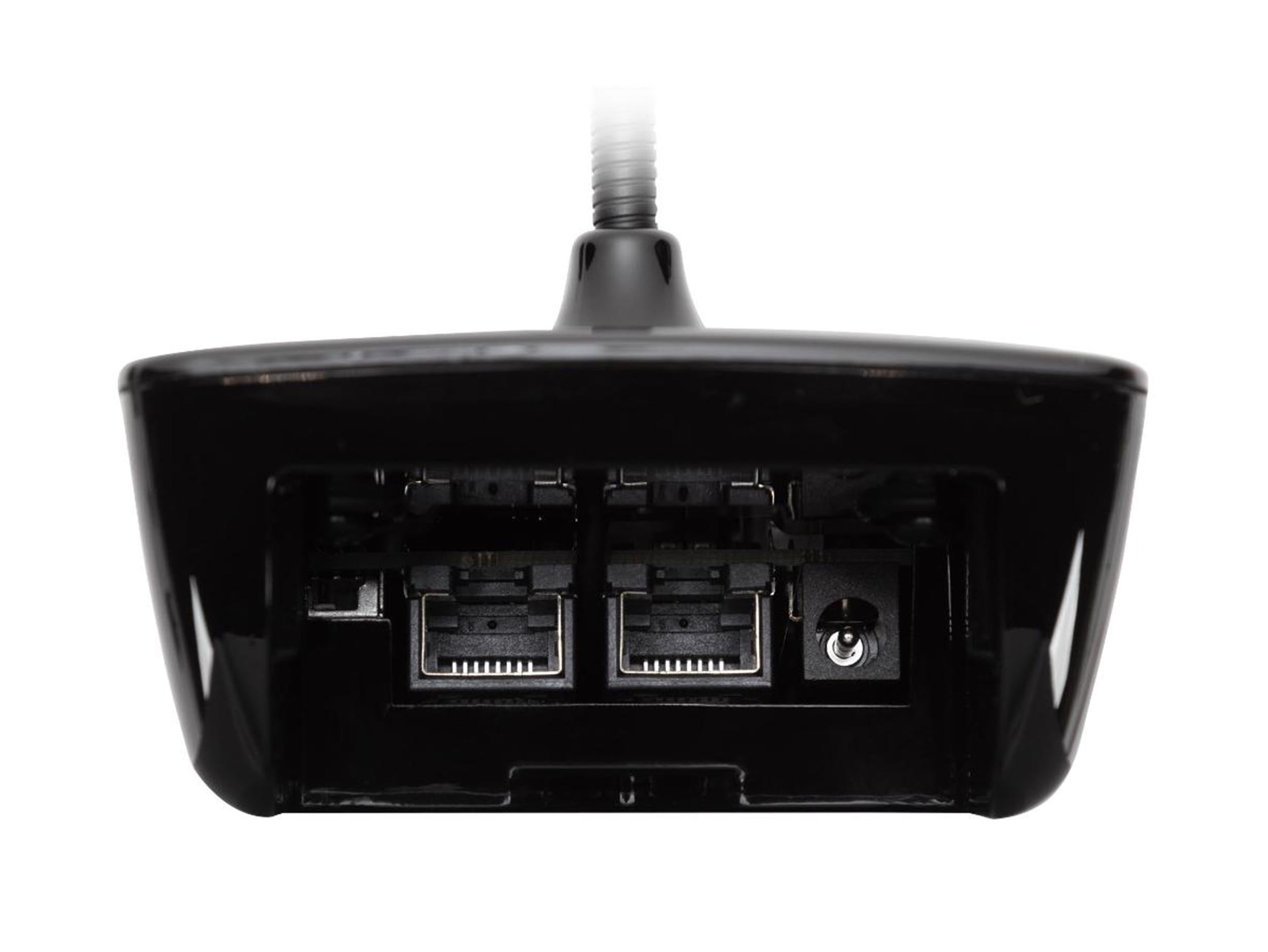

Connections:

Connectors: RJ45

Cable Type: FTP CAT5

Daisy-Chain: Yes

Max Units in Chain: 4

Interlock: Yes

Functionalities:

Priority: Yes

Chime Tone Generator: Yes

Automatic Gain Control: Yes

Accessories:

Cable Included: Yes

Cable Length: 5 m

Safety Agency: CE Compliant

Physical:

Cabinet Material: Plastic

Color: Black (RAL 9005)

Size / Weight:

Height: 40 mm / 1.57 in

Width: 181 mm / 7.13 in

Depth: 89 mm / 3.50 in

Weight: 0.45 kg / 0.99 lb.

Shipping Information:

Shipping Height: 130 mm / 5.12 in

Shipping Width: 330 mm / 12.99 in

Shipping Depth: 150 mm / 5.91 in

Shipping Weight: 1.1 kg / 2.43 lb.
