Description

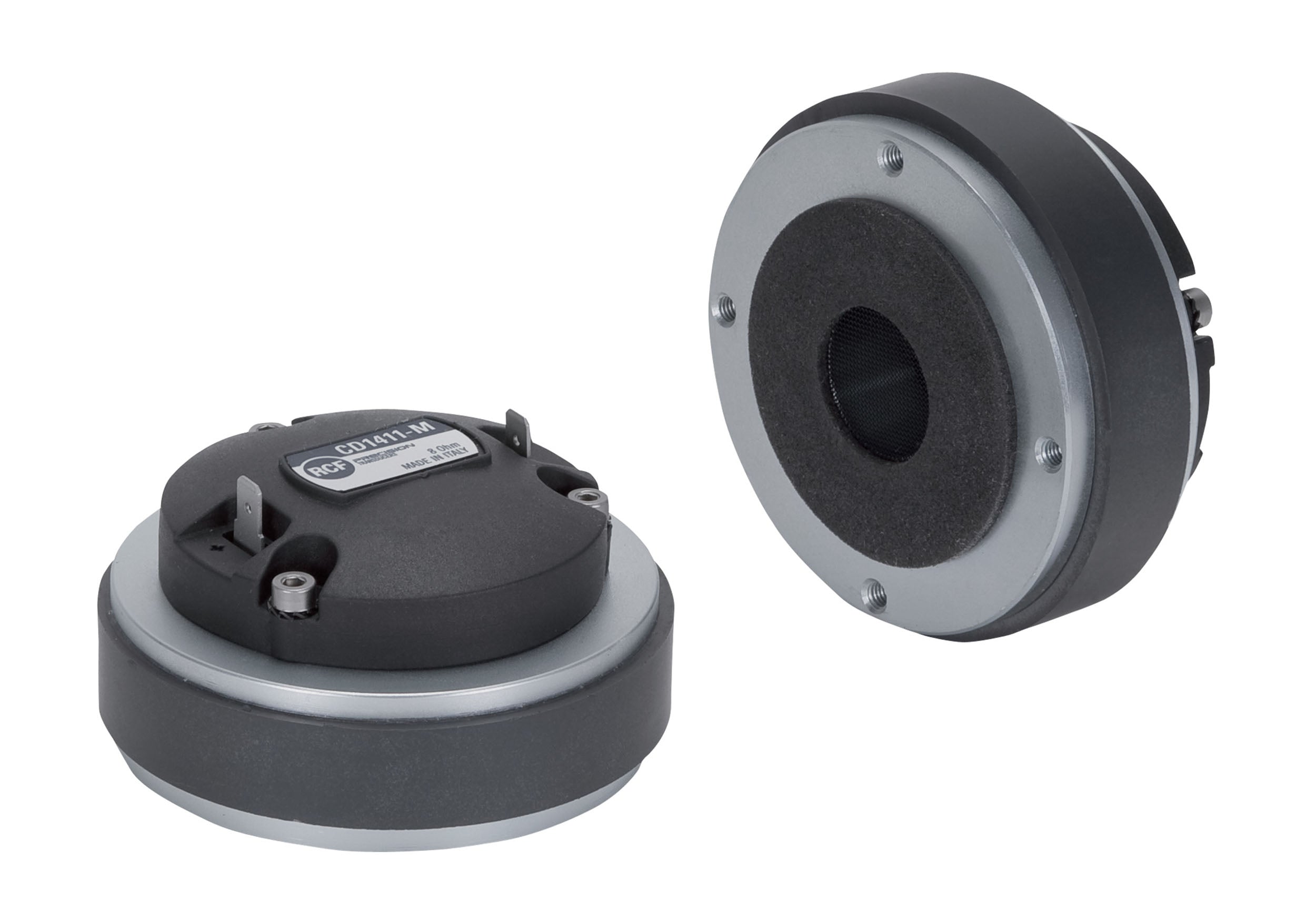

The RCF CD1411-M is a compact, high-performance 1.5-inch diaphragm compression driver with a 1.0-inch exit throat. It features a precision-formed Mylar diaphragm and radial suspension for accurate and smooth sound reproduction. Designed for professional audio applications, this driver incorporates a ceramic magnet assembly and a 10-slot radial phase plug for optimized performance in array configurations.
Product Specifications:
Exit Throat Diameter: 1.0 inch / 25 mm
Impedance: 8Ω
Power Handling: 25W RMS / 50W Program
Sensitivity: 108 dB
Frequency Range: 1500 - 20000 Hz
Diaphragm & Suspension Material: Mylar
Voice Coil & Magnetics:
Voice Coil Diameter: 1.5 inch / 38 mm
Winding Material: Edgewound Aluminum
Former Design: Straight - Kapton
Layers: Single, Outside Wound
Flux Density: 1.6 T
Magnet Type: Ceramic
Mounting & Dimensions:
Overall Diameter: 91 mm / 3.58 inches
Overall, Height: 51 mm / 2.01 inches
Mounting: 4 x 6 mm threaded holes at 90°
Weight: 0.95 kg / 2.09 lbs
Package Dimensions: 4.37 x 4.45 x 2.56 inches
Package Weight: 1.09 kg / 2.4 lbs
