Description

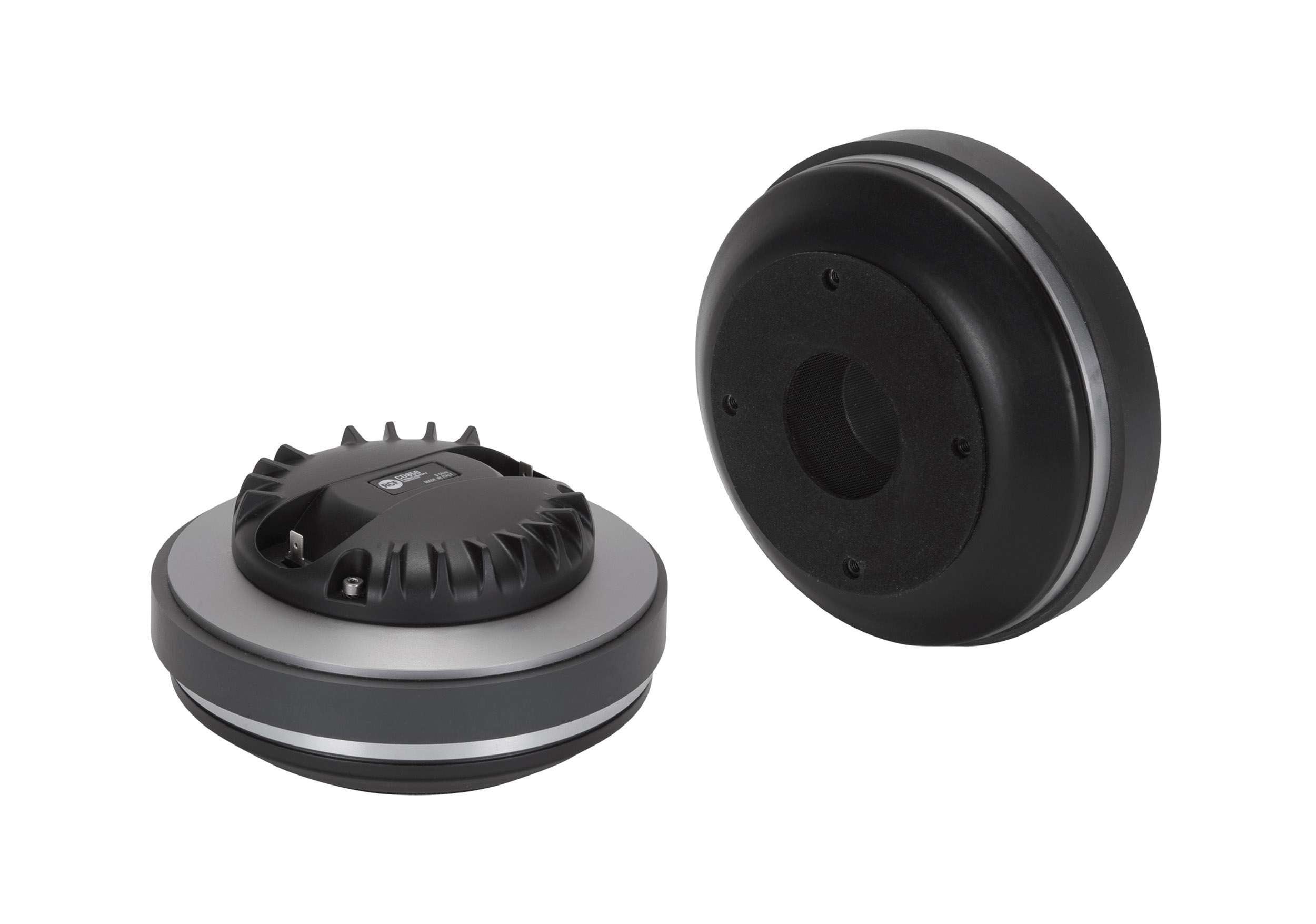

The RCF CD850 2.0 is a high-performance 3-inch diaphragm compression driver with a 2-inch exit throat, designed for professional audio applications requiring exceptional clarity and power handling. Featuring a pure titanium diaphragm, 3-slot phase plug, and copper inductance ring, it delivers extended high-frequency response with minimal distortion. The ceramic magnet assembly and vented, damped suspension system ensures optimal performance, while the high-temperature Kapton voice coil former provides durability and reliability in demanding environments.
Product Specifications:
Exit Throat Diameter:2.0 in / 51 mm
Impedance:8Ω
Program Power Handling:220W
Continuous Power Handling:110W
Sensitivity:109 dB
Frequency Range:500Hz – 20kHz
Diaphragm & Voice Coil
Diaphragm Material:Pure Titanium
Suspension Material:Polyester
Suspension Design:Flat
Minimum Impedance:8.5Ω
Voice Coil Diameter:3.0 in / 76 mm
Voice Coil Winding Material:Edgewound Aluminum
Voice Coil Former:Straight Kapton
Layers:Single (outside)
Flux Density:1.9T
Phase Plug & Magnetics
Phase Plug Design:3-slot
Phase Plug Material: PP Composite
Magnet Type:Ceramic
Voice Coil Demodulation Ring:Copper
Mounting & Dimensions
Overall Diameter:180 mm / 7.09 in
Overall, Height:88 mm / 3.46 in
Mounting:4 × 6 mm threaded holes at 90°
Compliance & Safety
Certifications:CE compliant
Weight & Packaging
Weight:5.72 kg / 12.61 lbs
Shipping Dimensions (H × W × D):114 × 203 × 205 mm (4.49 × 7.99 × 8.07 in)
Shipping Weight:5.97 kg / 13.16 lbs
