Description

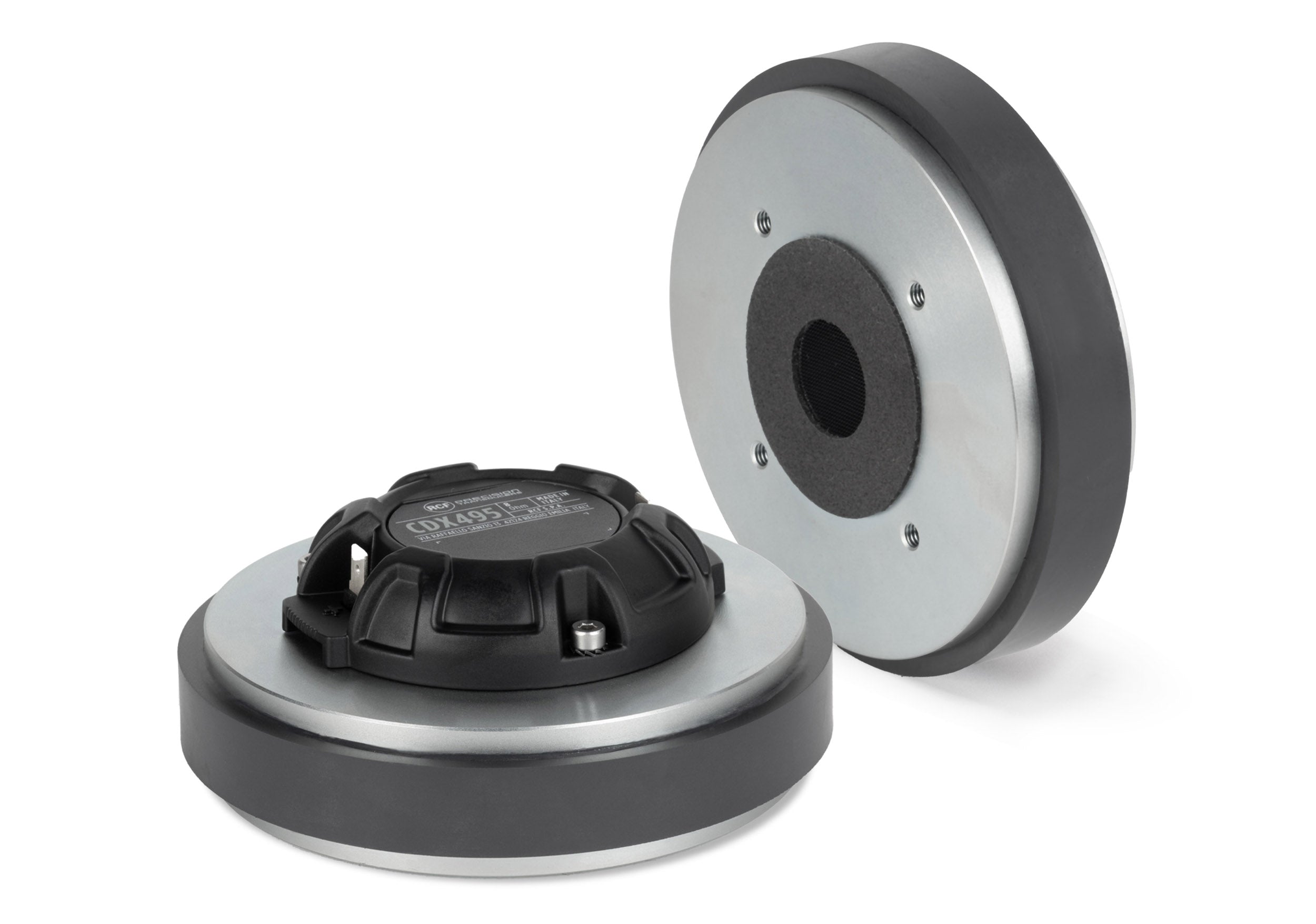

The RCF CDX495 is a high-performance 1.75-inch compression driver designed for professional audio applications requiring superior sound quality and long-term reliability. Featuring a PKX polymer dome with a Kapton former, it delivers 140W continuous program power at 8Ω, ensuring excellent clarity and durability. A 3-slot optimized phase plug, ceramic magnet, and copper inductance ring enhance efficiency and extend high-frequency response, making it ideal for 2-way speaker designs. With a wide frequency range of 1200Hz - 20kHz and 109dB sensitivity, the CDX495 provides outstanding performance for demanding audio environments.
Product Specifications:
Exit Throat Diameter: 1.0 inch (25 mm)
Impedance: 8Ω (Min. 6.5Ω)
Program Power: 140W
Power Handling: 70W
Sensitivity: 109 dB
Frequency Range: 1200Hz – 20kHz
Diaphragm & Suspension Material: PKX Polymer
Suspension Design: Flat
Voice Coil Diameter: 1.75 inch (44 mm)
Winding Material: Edgewound Aluminum
Former Design: Straight Kapton
Number of Layers: 1 (Outside Wound)
Flux Density: 1.8 T
Phase Plug: 3-slot PP Composite
Magnet Type: Ceramic
Mounting Information:
Overall Diameter: 5.28 inches (134 mm)
Overall, Height: 2.2 inches (56 mm)
Mounting: 4 x 6mm threaded holes at 90°
Size & Weight:
Weight: 5.42 lbs (2.46 kg)
Shipping Information:
Package Dimensions (H x W x D): 2.68 x 6.02 x 6.1 inches
Package Weight: 5.8 lbs (2.63 kg)
