RCF CMR-S-60T-W 6.5" Two Way Ceiling Sub w/ Transformer White - 320W

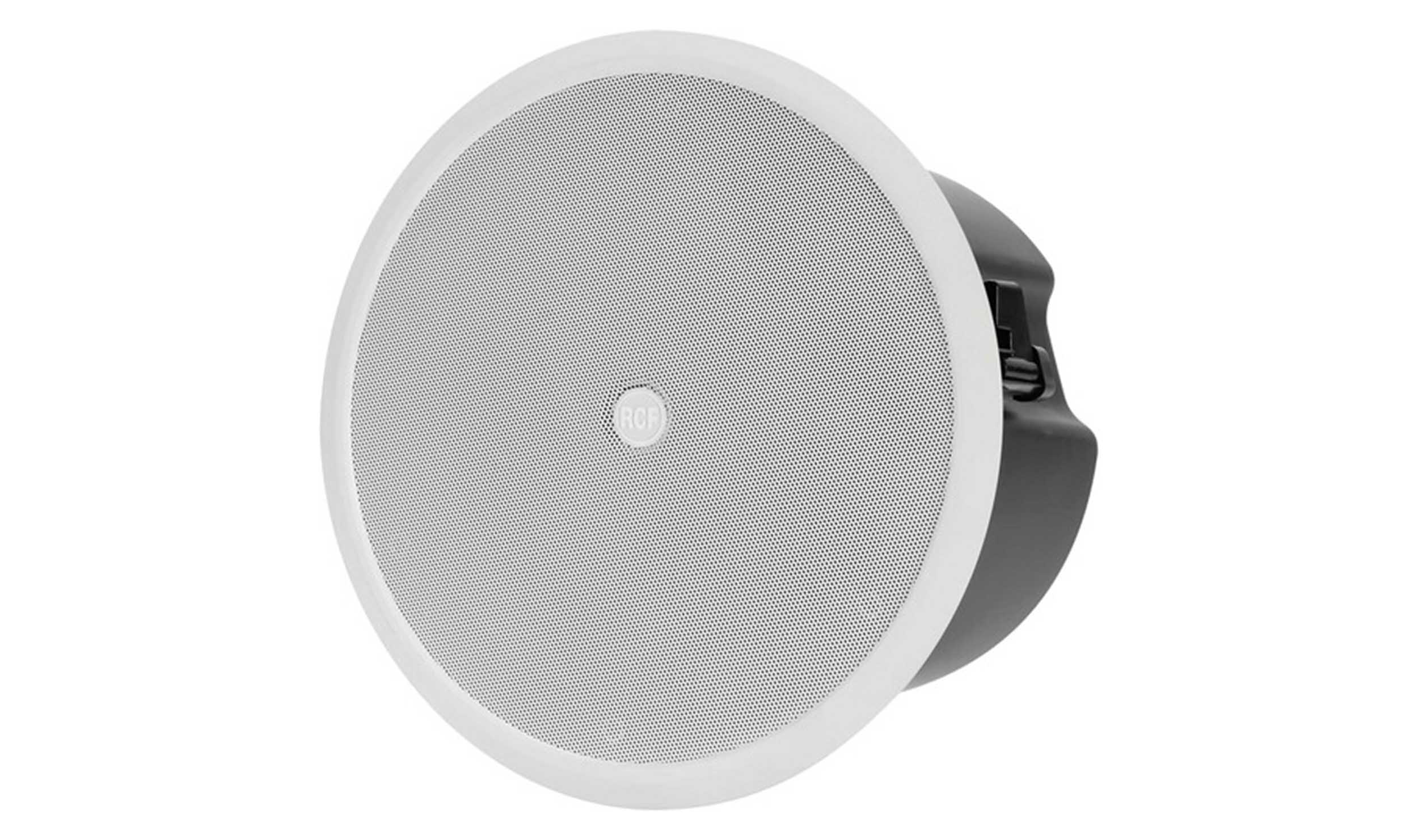

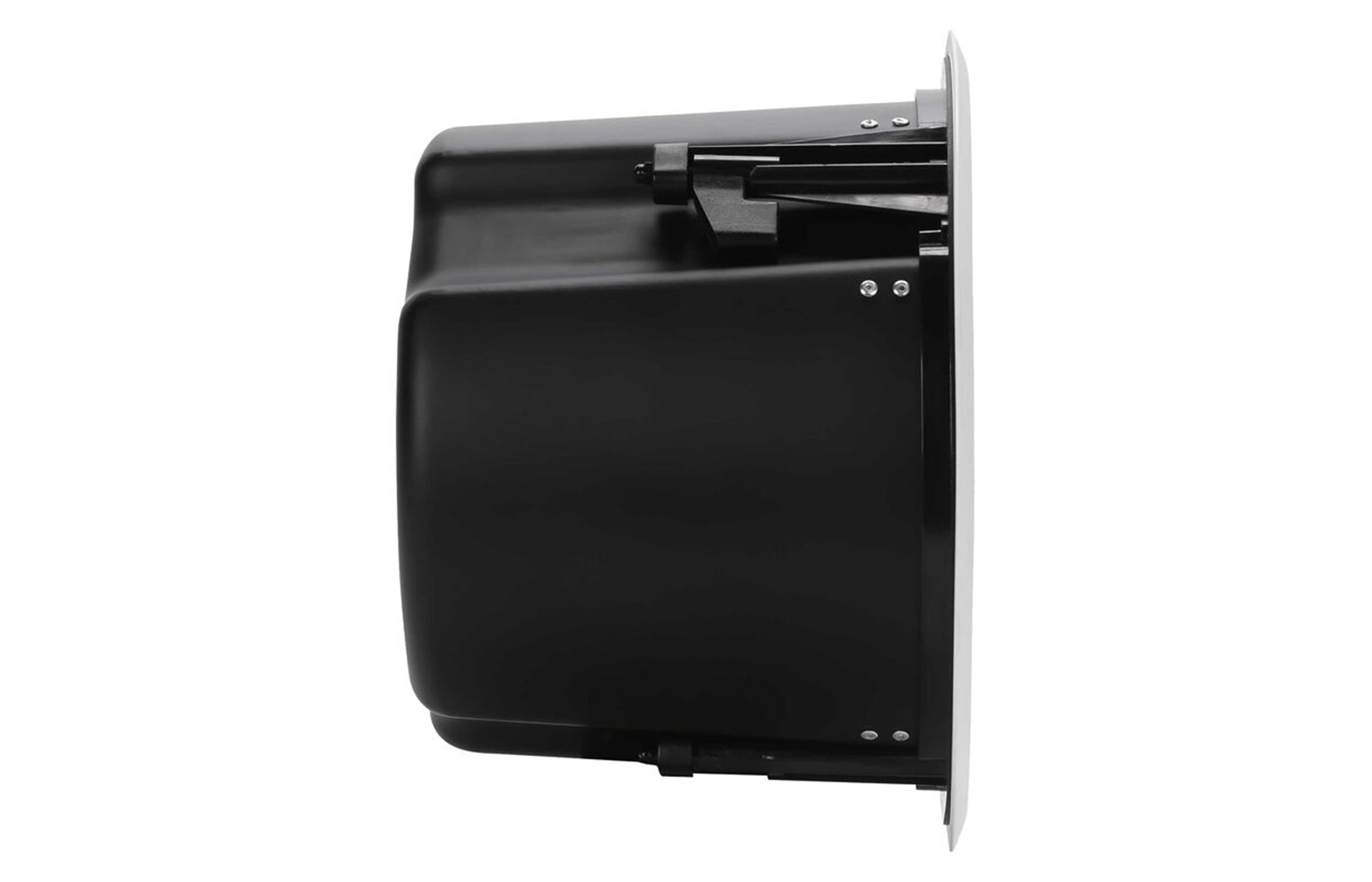

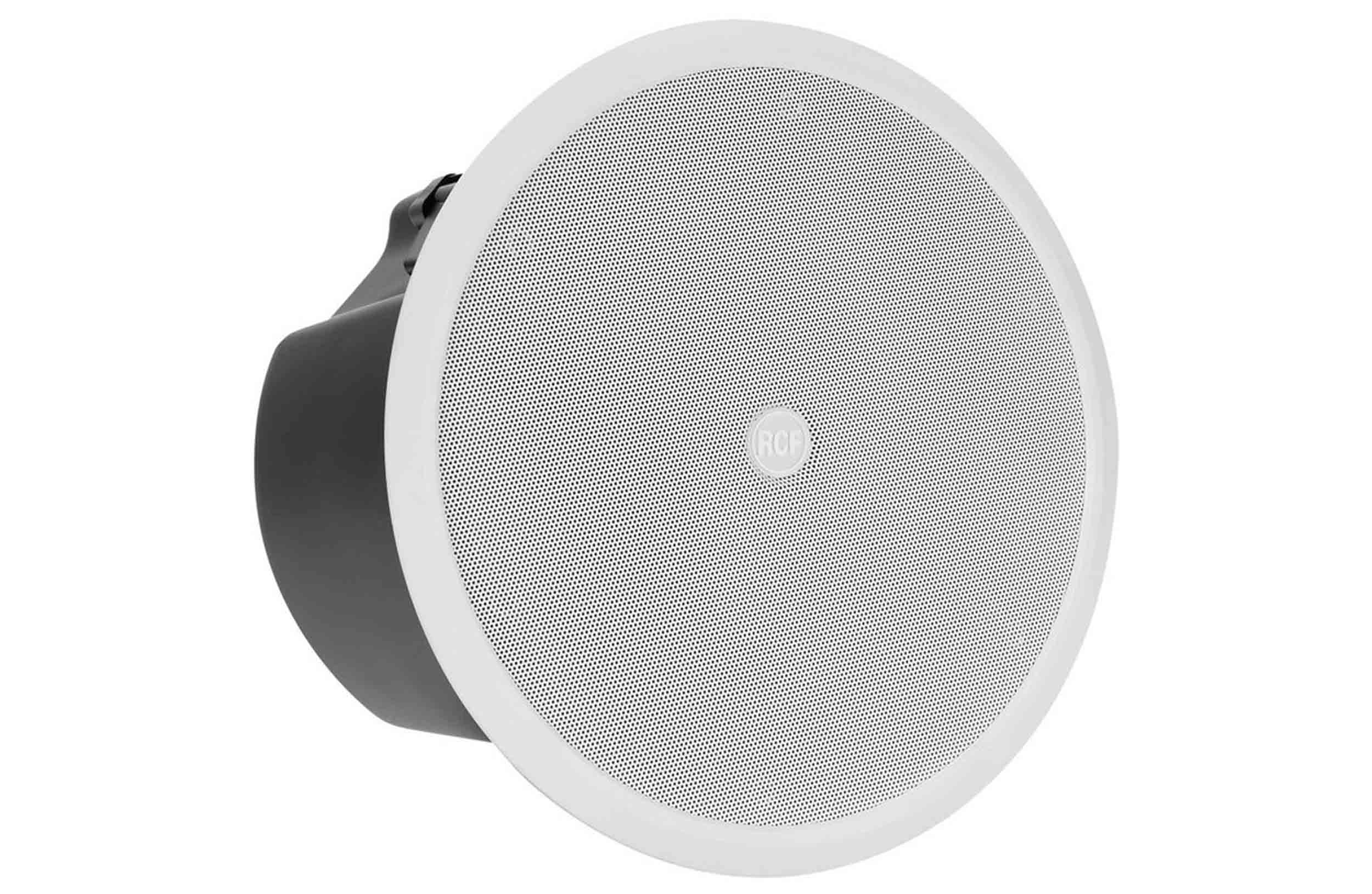

The RCF CMR-S-60T-W is an elegant and discreet ceiling subwoofer designed to complement a wide range of architectural environments. Its refined aesthetic allows it to blend seamlessly into modern interiors, making it an excellent choice for commercial, hospitality, retail, and corporate spaces where subtle appearance and high-quality audio performance are essential.

Equipped with a 6.5-inch high-power woofer featuring a 1.5-inch voice coil, the CMR-S 60T delivers accurate and faithful low-frequency reproduction. With 80W RMS and 320W peak power handling, it offers an extended 45–250 Hz frequency range and achieves an impressive 109 dB max SPL, ensuring impactful bass response even in compact installations. The 180° omnidirectional coverage angle guarantees uniform low-frequency distribution across the space.

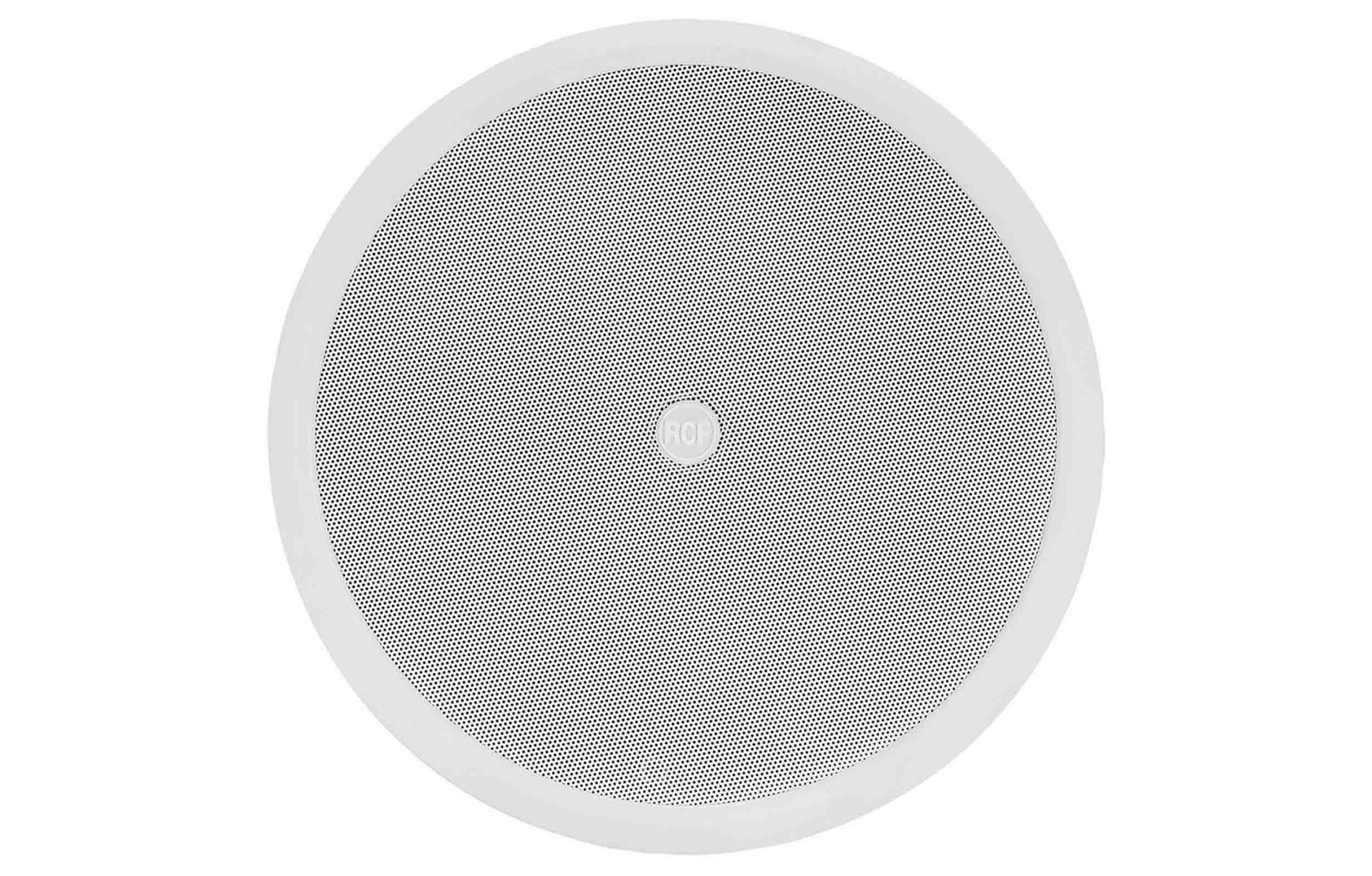

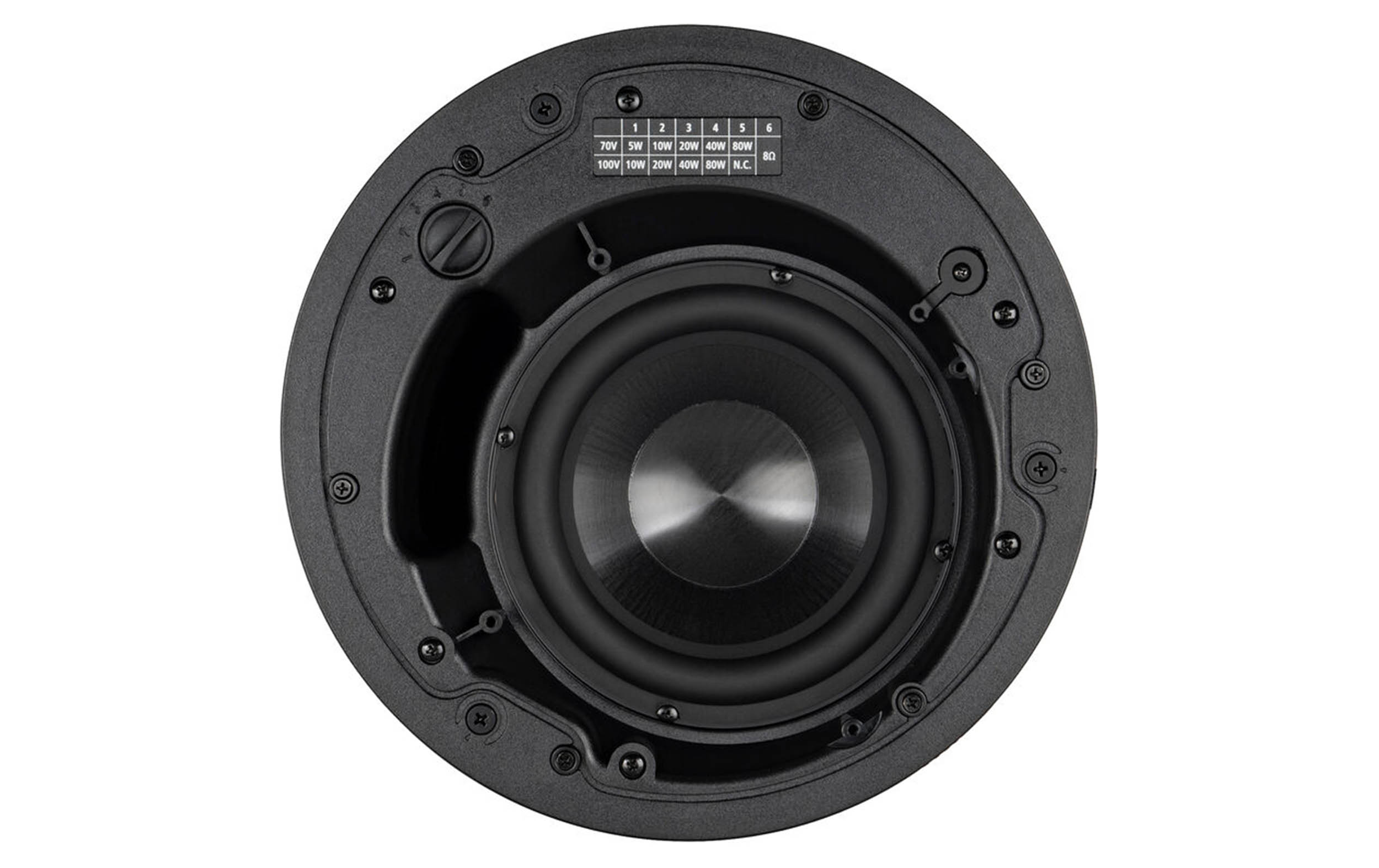

Installation is straightforward thanks to the 4-pole Euroblock connector for audio input and parallel output. The magnetic steel grille allows quick access to the front-mounted power selector, enabling easy adjustment of the five available power levels for 70V/100V systems. With a self-extinguishing plastic enclosure and a durable metal backcan, the CMR-S 60T provides both safety and long-term reliability without compromising performance.

Product Specifications:

Construction Material: ABS, Steel

Certifications: CE

Environmental Resistance: No

Color: White

Active/Passive: Passive

Number of Included Speakers: 1

Speaker Configuration: Subwoofer

Power Handling: 80 W RMS

160 W Program

320 W Peak"

Constant Voltage / Transformer Taps: 70 V / 100 V

80 / 40 / 20 / 10 / 5 W or 8 Ohms Bypass"

Impedance: 8 Ohms

LF Driver: 1x 6.5" / 16.5 cm Woofer

Frequency Range: 45 Hz to 250 Hz -10 dB

Color: White

Speaker:

Active/Passive: Passive

Number of Included Speakers: 1

Speaker Configuration: Subwoofer

Power Handling: 80 W RMS

160 W Program

320 W Peak"

Constant Voltage / Transformer Taps: 70 V / 100 V

80 / 40 / 20 / 10 / 5 W or 8 Ohms Bypass"

Impedance: 8 Ohms

Enclosure Type: Bass-Reflex

Drivers:

LF Driver: 1x 6.5" / 16.5 cm Woofer

LF Voice Coil: 1.5" / 3.8 cm

Performance:

Frequency Range: 45 Hz to 250 Hz -10 dB

Maximum SPL: 109 dB

Sensitivity: 89 dB

Coverage Angle: 180° Conical

Protections: Excursion, RMS, Thermal

Connectivity:

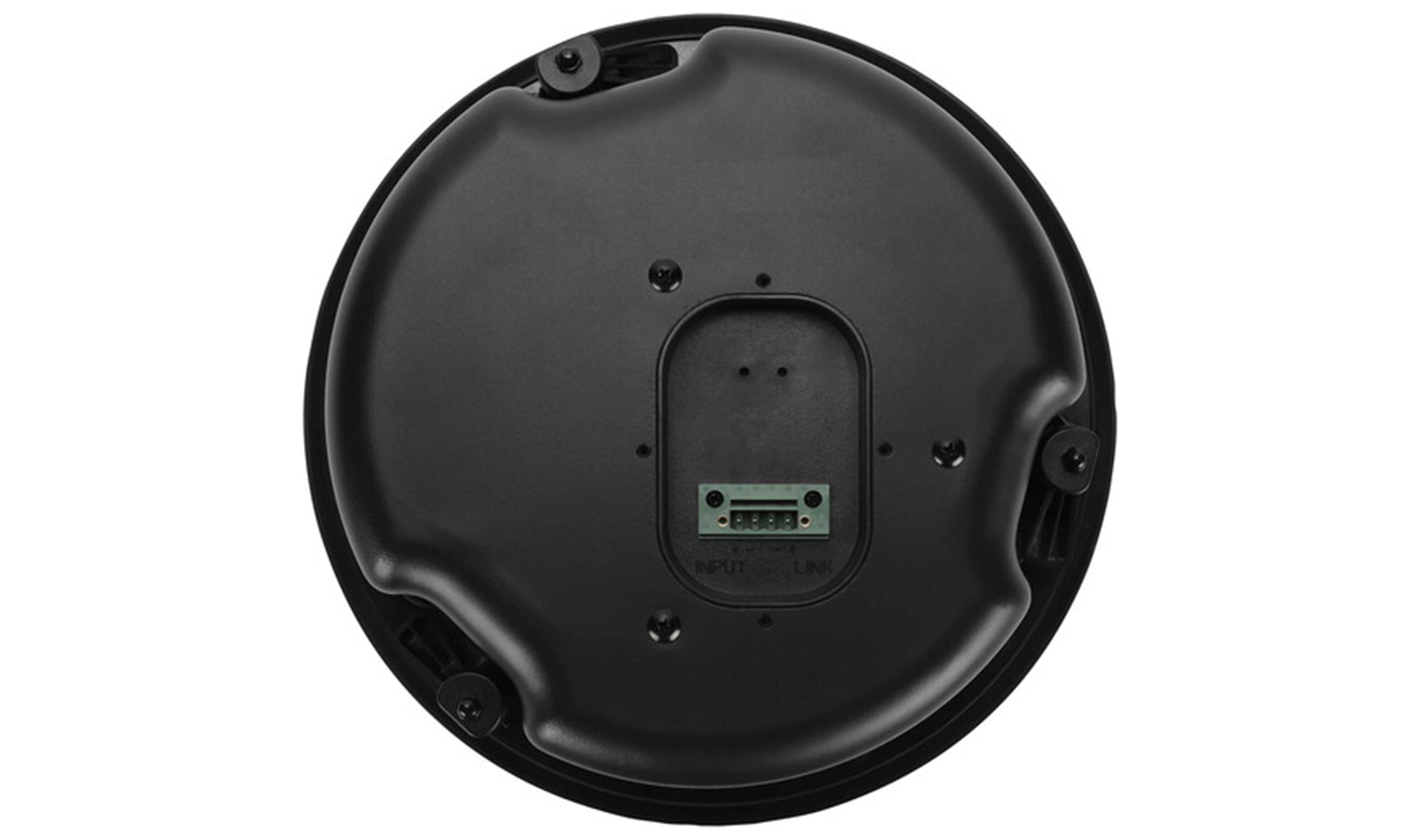

Inputs/Outputs: 1x Screw Terminal 4-Pin Speaker Input/Thru

Product Weight: 9.9 lbs.

Product Dimensions (L × W × H): 11.8" × 11.8" × 7.6"
