Description
The RCF CS 6520EN is a compact and elegant two-way column speaker designed to deliver highly intelligible voice reproduction, making it ideal for installation in places of worship, transit stations, subways, and various other public environments. Its sleek design allows it to blend seamlessly into different architectural settings while maintaining excellent acoustic performance.

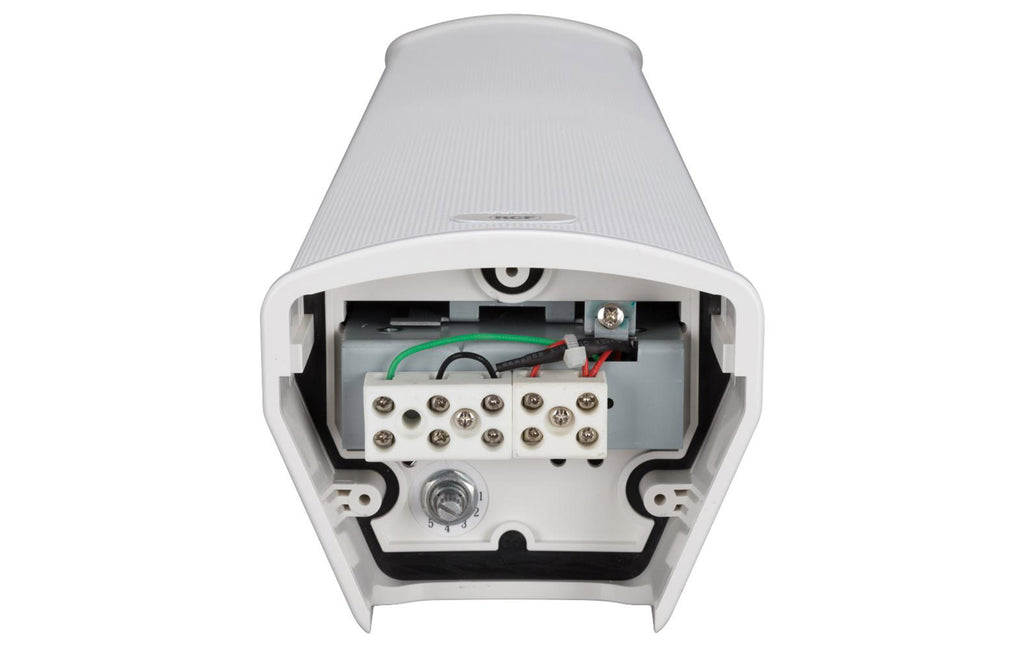

The speaker features terminal connection blocks made of ceramic material for both input and output flameproof cables, ensuring safe and reliable operation. A built-in thermal fuse protects the speaker line in case of excessive heat, helping maintain system integrity and long-term reliability. A ground screw is also included for added safety if needed.
Thanks to its IP66 protection grade, the CS 6520EN can be installed in both indoor and outdoor environments, offering resistance to dust, water, and other environmental factors. Its robust construction and high protection rating make it a dependable choice for professional installed sound systems where durability and clarity are essential.
Product Specifications:
Cabinet / Case Material: Aluminum
Grille: Aluminum
Color: White – RAL 9003
Frequency Response (-10 dB): 140 Hz – 20,000 Hz
Max SPL @ 1 m: 105 dB
Max SPL @ 4 m: 93 dB
Horizontal Coverage Angle: 185°
Vertical Coverage Angle: 47°
System Sensitivity: 93 dB
System Sensitivity (1 W @ 4 m): 81 dB
Power Section
Amplification: Full Range
Power Handling: 20 W
Peak Power Handling: 80 W PEAK
Protections: Thermal fuse
Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000
Transducers
Dome Tweeter: 1 × 0.75"
Full range Drivers: 4 × 3.0"
Input / Output Section
Input Connectors: Ceramic screw terminals
Output Connectors: Ceramic screw terminals
Constant Voltage Transformer: 70 / 100 V
Power Selection 1: 20 W – 500 ohms
Power Selection 2: 10 W – 1000 ohm
Power Selection 3: 5 W – 2000 ohm
Power Selection 4: 2.5 W – 4000 ohms
Power Selection 5: 1.25 W – 8000 ohms
Standard Compliance
IP Protection Grade: IP 66
Safety Agency: CE compliant
EN54-24 Certified: Yes
CPR Number: 1488-CPR-0490/W
Product Weight: 9.26 lbs.
Product Dimensions (L × W × H): 3.78 in × 4.49 in × 24.41 in
Shipping Weight: 11.24 lbs.
Shipping Dimensions (L × W × H): 8.27 in × 27.17 in × 6.69 in
