Description
The RCF CS 6940EN is a compact and elegant two-way column speaker designed to deliver excellent speech intelligibility in a wide range of installation environments. Its slim profile and refined design allow it to blend seamlessly into architectural spaces while ensuring clear and natural voice reproduction. This makes it ideal for applications where clarity and coverage are essential.

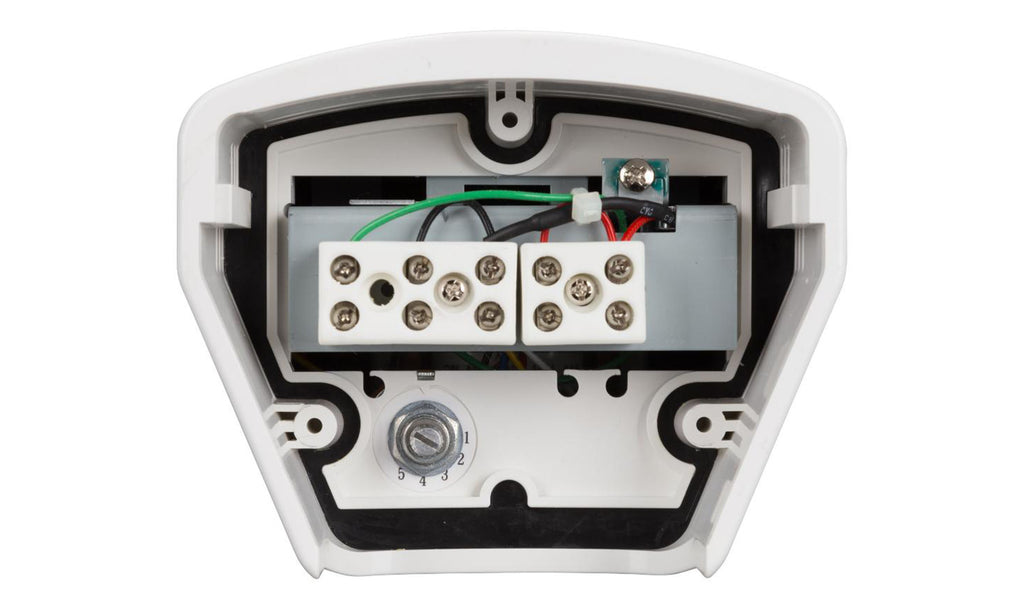

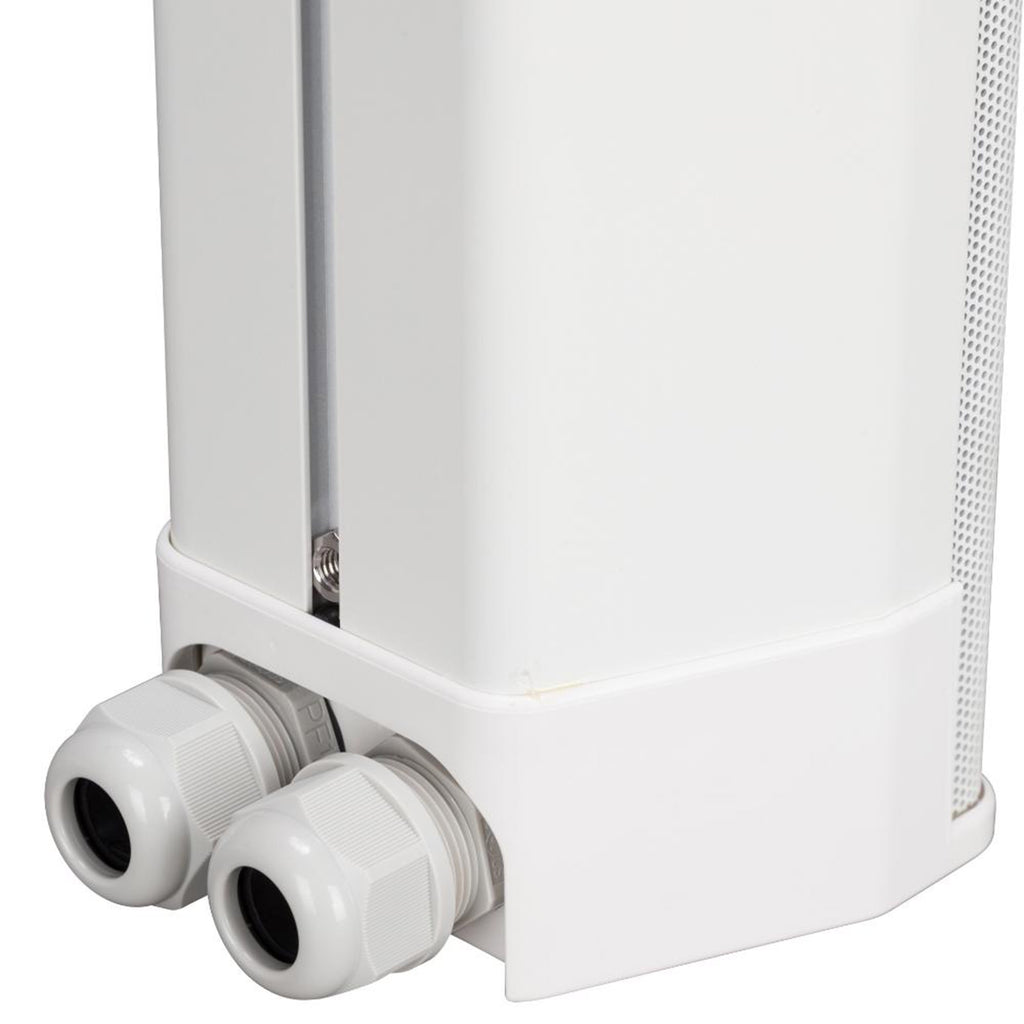

Engineered for demanding environments, the speaker features ceramic terminal blocks for both input and output flameproof cable connections, ensuring reliable performance even under extreme conditions. A built-in thermal fuse offers additional protection, safeguarding the speaker line in the event of excessive heat and maintaining system integrity. A ground screw is also available when grounding is required for safety or installation standards.
With an IP66 protection rating, the CS 6940EN is built to withstand harsh weather conditions and dusty or humid environments, allowing installation both indoors and outdoors. Its robust construction and dependable performance make it suitable for places of worship, transportation hubs, public buildings, and other locations requiring professional voice reinforcement with long-term durability.
Product Specifications:
Cabinet / Case Material: Aluminum
Grille: Aluminum
Color: White – RAL 9003
Frequency Response (-10 dB): 140 Hz – 20,000 Hz
Max SPL @ 1 m: 109 dB
Max SPL @ 4 m: 97 dB
Horizontal Coverage Angle: 194°
Vertical Coverage Angle: 30°
System Sensitivity: 95 dB
System Sensitivity (1 W @ 4 m): 83 dB
Power Section:
Amplification: Full Range
Power Handling: 40 W
Peak Power Handling: 160 W PEAK
Protections: Thermal fuse
Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000
Transducers:
Dome Tweeter: 1 × 0.75"
Full range Drivers: 8 × 3.0"
Input / Output Section:
Input Connectors: Ceramic screw terminals
Output Connectors: Ceramic screw terminals
Constant Voltage Transformer: 70 / 100 V
Power Selection 1: 40 W – 250 ohms
Power Selection 2: 20 W – 500 ohms
Power Selection 3: 10 W – 1000 ohm
Power Selection 4: 5 W – 2000 ohm
Power Selection 5: 2.5 W – 4000 ohms
Standard Compliance:
IP Protection Grade: IP66
Safety Agency: CE compliant
EN54-24 Certified: Yes
CPR Number: 1488-CPR-0490/W
Product Weight: 15.43 lbs.
Product Dimensions (L × W × H): 3.78 in × 4.49 in × 39.17 in
Shipping Weight: 18.52 lbs.
Shipping Dimensions (L × W × H): 6.69 in × 42.91 in × 7.87 in
