Description

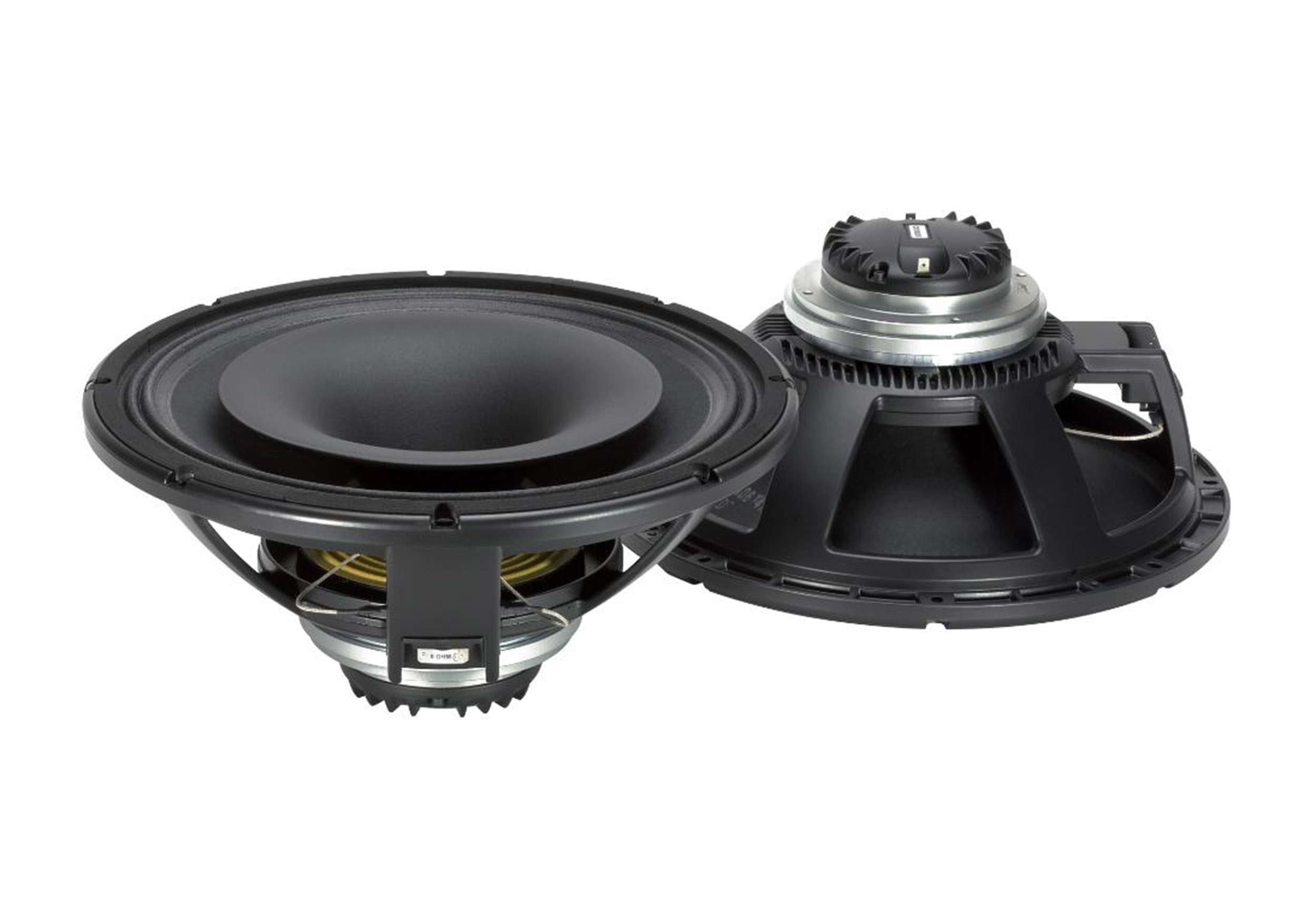

The RCF CX15N351 is a high-performance 15-inch neodymium coaxial driver, designed for exceptional linearity, high power handling, and minimal distortion. Featuring a 3.5-inch copper voice coil for the mid-bass and a 2.5-inch pure titanium diaphragm compression driver, it delivers powerful, clear, and dynamic sound. Its dual-force air ventilation and demodulation ring ensure low power compression and fast transient response. The structural polyurethane horn provides a coherent wavefront and controlled dispersion, making it ideal for high-quality professional audio applications.
Product Specifications:
Mid-Bass Driver:
Nominal Diameter:15 inch / 381 mm
Impedance:8 ohms
Program Power:900W
Power Handling:450W
Sensitivity:101 dB
Frequency Range:40 Hz - 3 kHz
Voice Coil Diameter:3.5 inch / 89 mm
Voice Coil Winding Material:Copper
Voice Coil Design:Inside/Outside
Magnet Type:Neodymium
Cone Design:Curved
Surround Material:Polycotton (M-roll)
Demodulation Ring:Aluminum
Dual-Force Air Ventilation:Yes
Compression Driver:
Throat Diameter:1.4 inch / 36 mm
Impedance:8 ohms
Program Power:180W
Power Handling:90W
Sensitivity:110 dB
Frequency Range:700 Hz - 20 kHz
Diaphragm & Suspension Material:Pure Titanium
Voice Coil Diameter:2.5 inch / 63 mm
Voice Coil Material:Edgewound Aluminum
Phase Plug Design:3-slot Aluminum
Magnet Type:Neodymium
Horn Specifications:
Throat Diameter:1.4 inch / 36 mm
Coverage Angle:60° H x 60° V
Cut-off Frequency:800 Hz
Material:Structural Polyurethane
Thiele-Small Parameters:
Resonance Frequency (Fs):55 Hz
DC Resistance (Re):5.6 ohm
Mechanical Q Factor (Qms):6.00
Electrical Q Factor (Qes):0.27
Total Q Factor (Qts):0.26
Bl Factor:23.5 T x m
Moving Mass (Mms):80 g
Equivalent Air Volume (Vas):110 liters
Effective Piston Area (Sd):0.090 m²
Max Linear Excursion (Xmax):6 mm
Voice Coil Inductance (Le1k):1.65 mH
Half-Space Efficiency:6.53%
Mounting Information:
Overall Diameter:393 mm / 15.47 inches
Bolt Circle Diameter:371-376 mm / 14.61-14.8 inches
Bolt Hole Diameter:7 mm / 0.28 inch
Front & Rear Mount Baffle Cutout:354 mm / 13.94 inches
Volume Occupied by Driver:3.8 liters / 0.15 ft³
Compliance & Safety:
Standard Compliance:CE Compliant
Physical Specifications:
Height:254 mm / 10 inches
Weight:7 kg / 15.43 lbs
Shipping Information:
Package Dimensions (H x W x D):240 x 440 x 440 mm / 9.45 x 17.32 x 17.32 inches
Package Weight:8.5 kg / 18.74 lbs
