RCF DP 1420EN 5-Inch Unidirectional Aluminium Sound Projector - 20 W

The RCF DP 1420EN is a high-performance unidirectional sound projector designed for professional installations where clarity, efficiency, and reliable sound coverage are essential. Engineered to deliver excellent speech intelligibility and balanced audio output, it is ideally suited for commercial and industrial environments such as shopping centers, warehouses, transit hubs, and public buildings. Its precise acoustic design ensures consistent performance, making it a dependable choice for both music reproduction and voice announcements.

Crafted with a durable aluminum cylindrical body, grille, and mounting bracket, the DP 1420EN offers long-lasting structural integrity and a clean, modern appearance. The included ground screw enhances installation flexibility where grounding is required, adding to the unit’s reliability in safety-critical applications. Its sturdy build ensures stable performance even in demanding environments where conventional speakers may fail.

With a rugged IP66 protection rating, the DP 1420EN is fully resistant to dust and powerful water jets, making it suitable for both indoor and outdoor installations. This ensures dependable operation in harsh weather conditions, industrial zones, or dusty environments. Whether used for paging, emergency notifications, or background audio, the DP 1420EN provides consistent, high-quality sound reproduction and seamless integration into a wide range of professional audio systems.

Product Specifications:

Cabinet Material: Aluminum

Hardware: Aluminum bracket

Grille: Aluminum

Color: Grey (RAL 7035)

Frequency Response (-10 dB): 160 Hz – 20,000 Hz

Maximum SPL @ 1m: 105 dB

Maximum SPL @ 4m: 93 dB

Coverage Angle: 155°

System Sensitivity: 92 dB

System Sensitivity (1 W @ 4m): 80 dB

Power Section:

Power Handling: 20 W

Peak Power Handling: 80 W (PEAK)

Protections: Thermal fuse

Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000

Transducers:

Full-Range Driver: 1 × 5.0"

Input / Output Section:

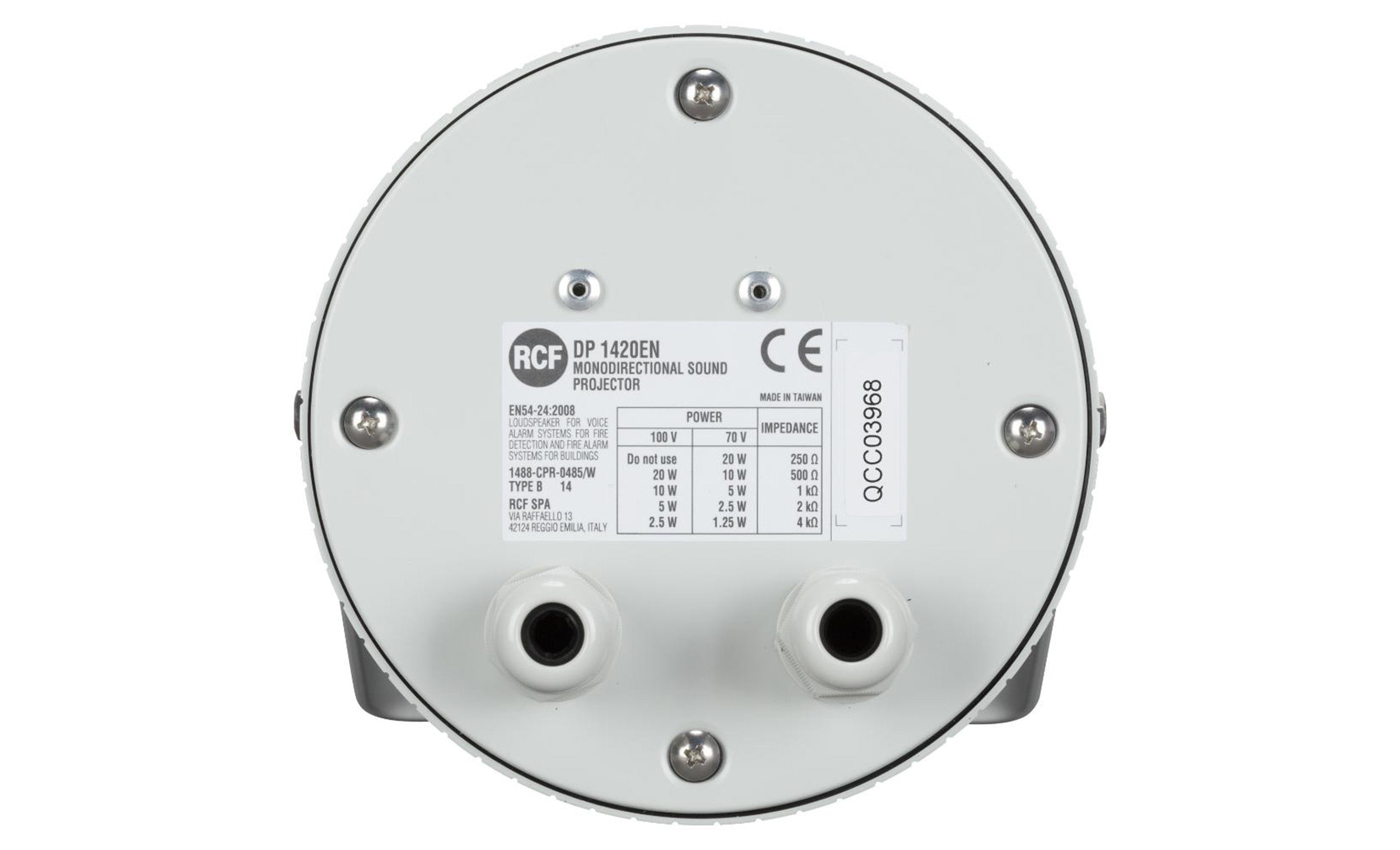

Input Connectors: Ceramic screw terminals

Output Connectors: Ceramic screw terminals

Constant Voltage Transformer: 70 / 100 V

Power Taps:

20 W – 500 Ω

10 W – 1000 Ω

5 W – 2000 Ω

2.5 W – 4000 Ω

1.25 W – 8000 Ω

Standard Compliance:

IP Protection Grade: IP66

Safety Certification: CE compliant

EN54-24 Certified: Yes

CPR Number: 1488-CPR-0485/W

Size & Weight:

Product Weight: 6.02 lbs.

Product Dimensions (L × W × H): 7.87 × 5.75 × 5.75 in

Shipping Information:

Shipping Weight: 7.02 lbs.

Shipping Dimensions (L × W × H): 10.24 in x 6.3 in × 6.3 in
