Description

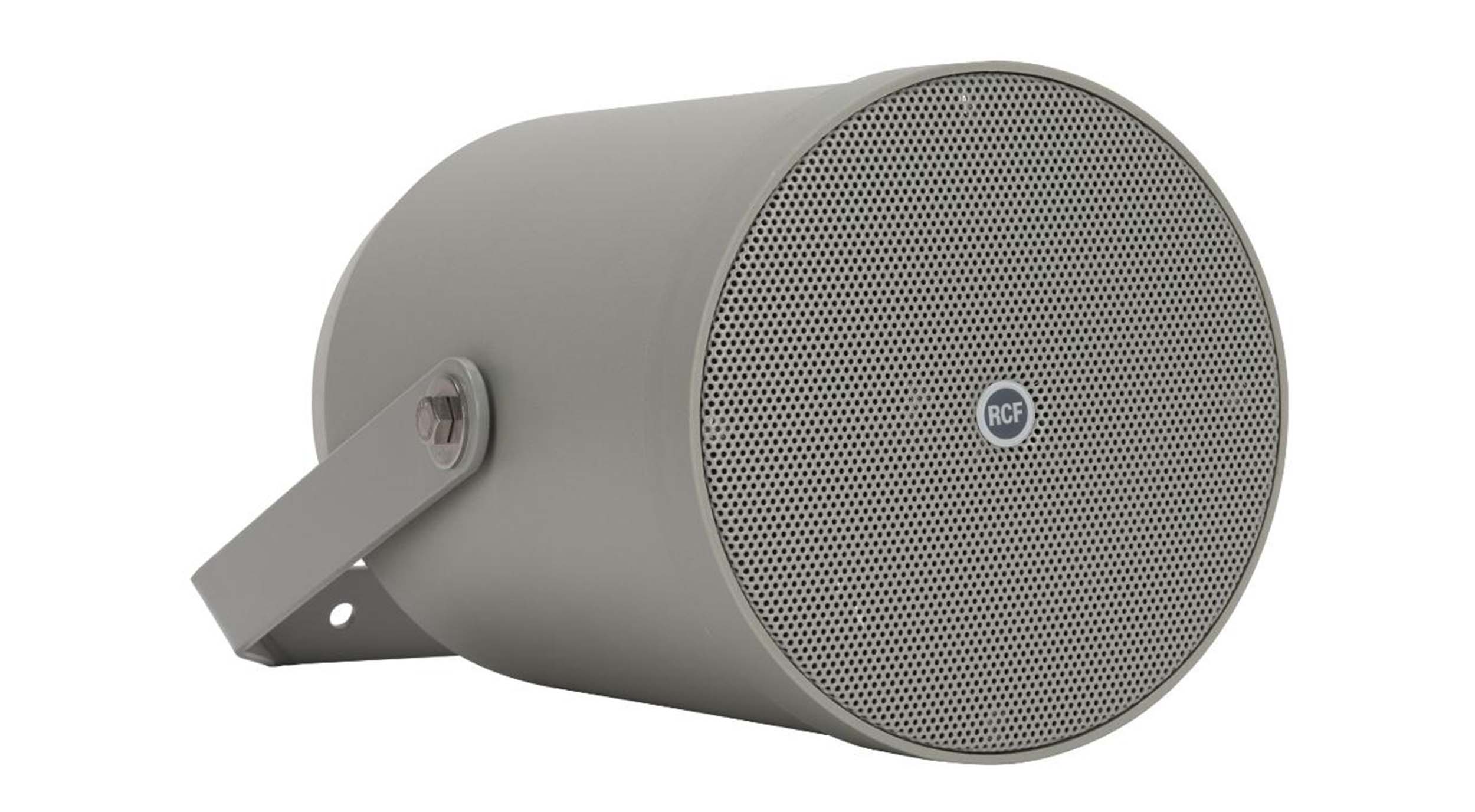

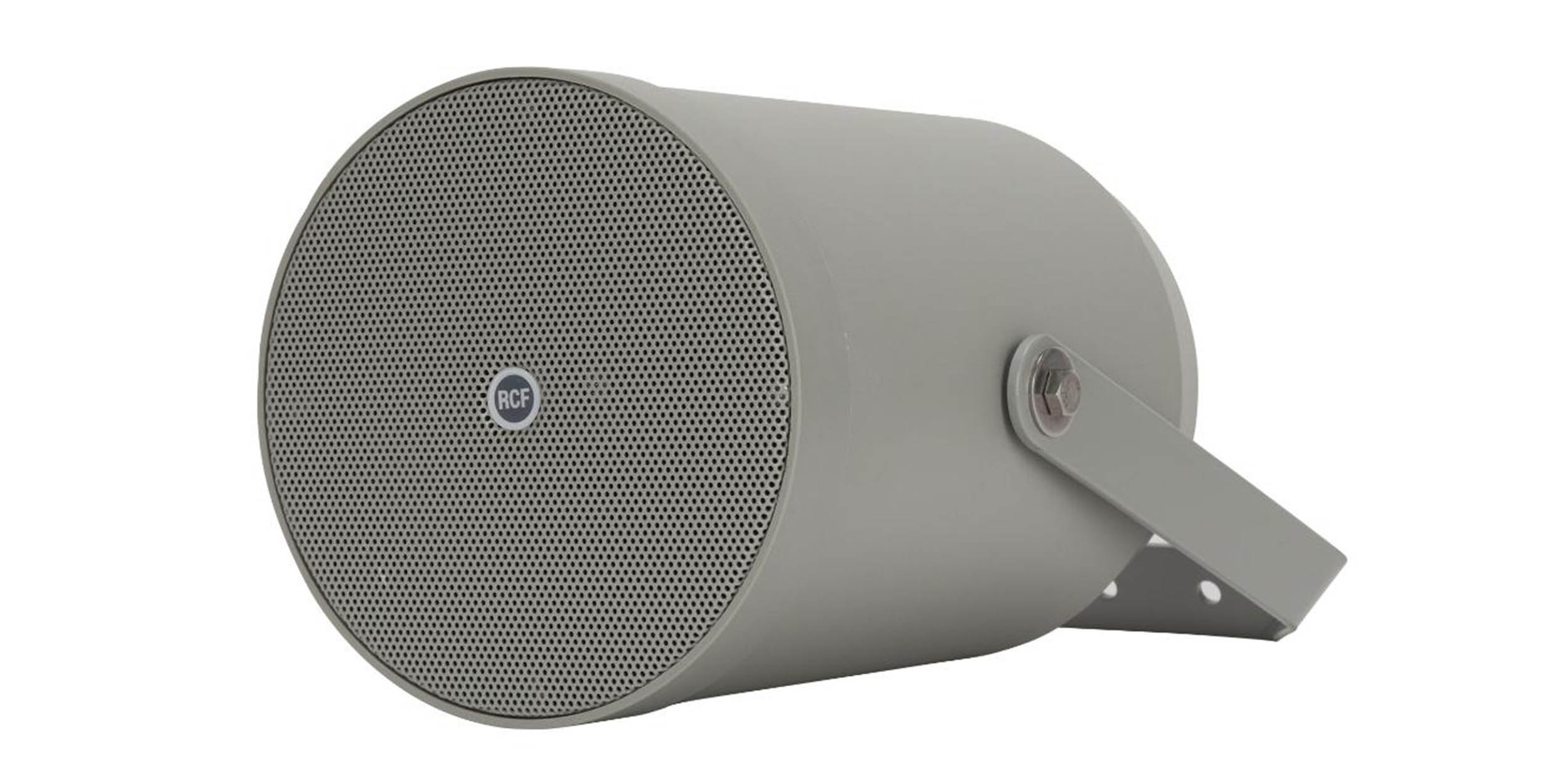

The RCF DP 4EN is a unidirectional sound projector designed to deliver clear and intelligible audio in commercial and industrial environments. Its elegant design and easy-to-adjust orientation make it ideal for applications where both aesthetics and performance are important, ensuring high-quality sound reproduction for announcements, alarms, or background music.

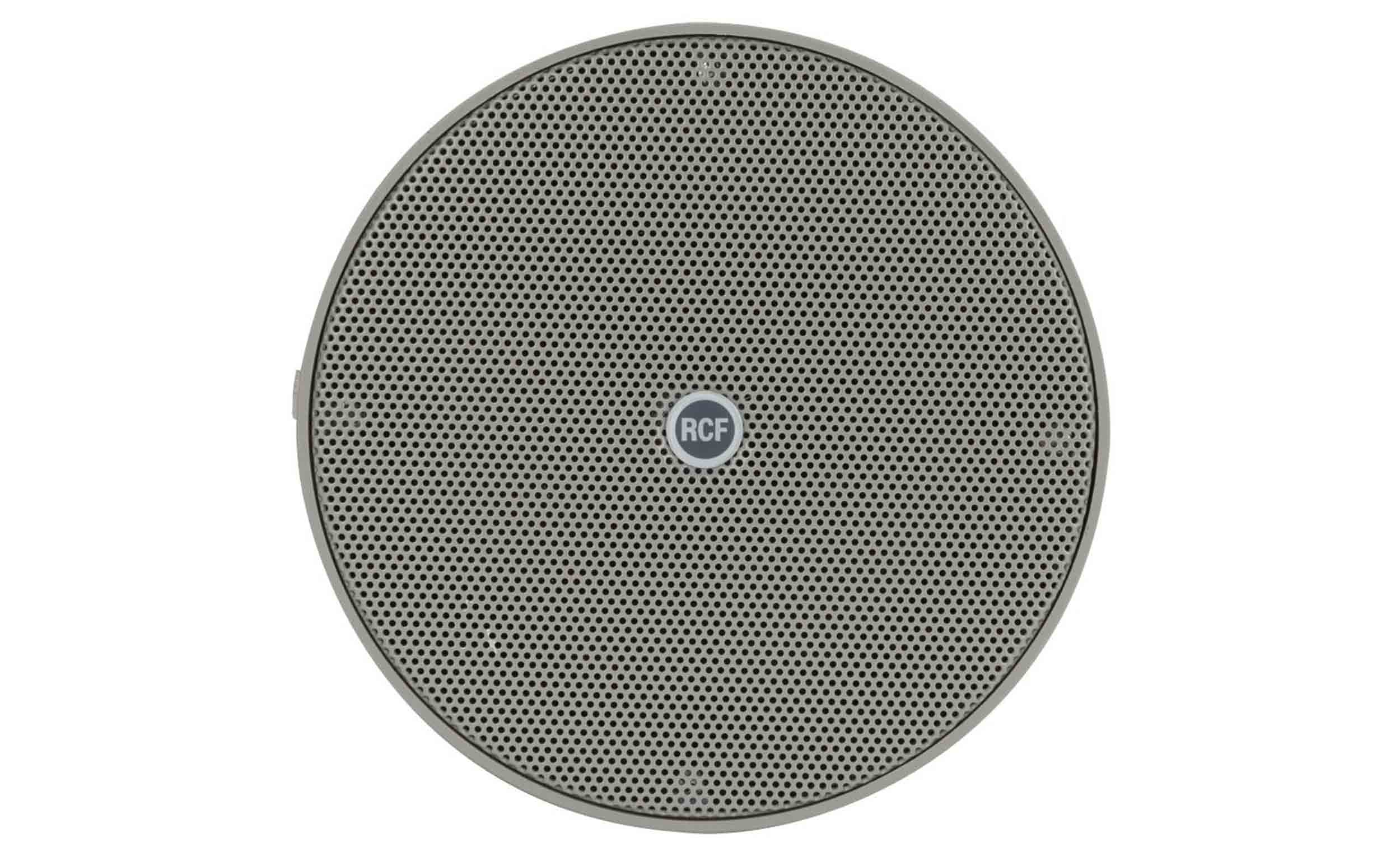

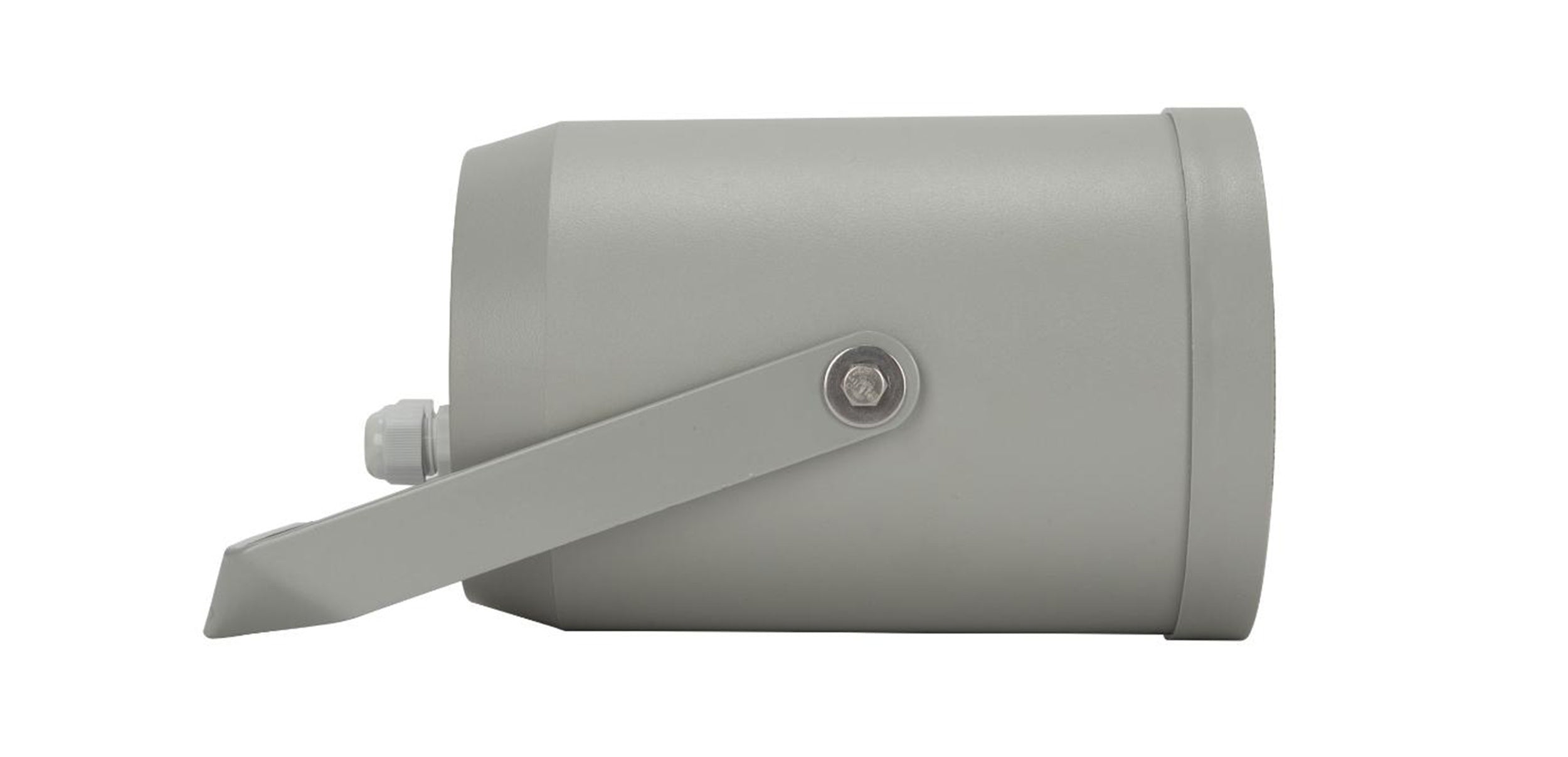

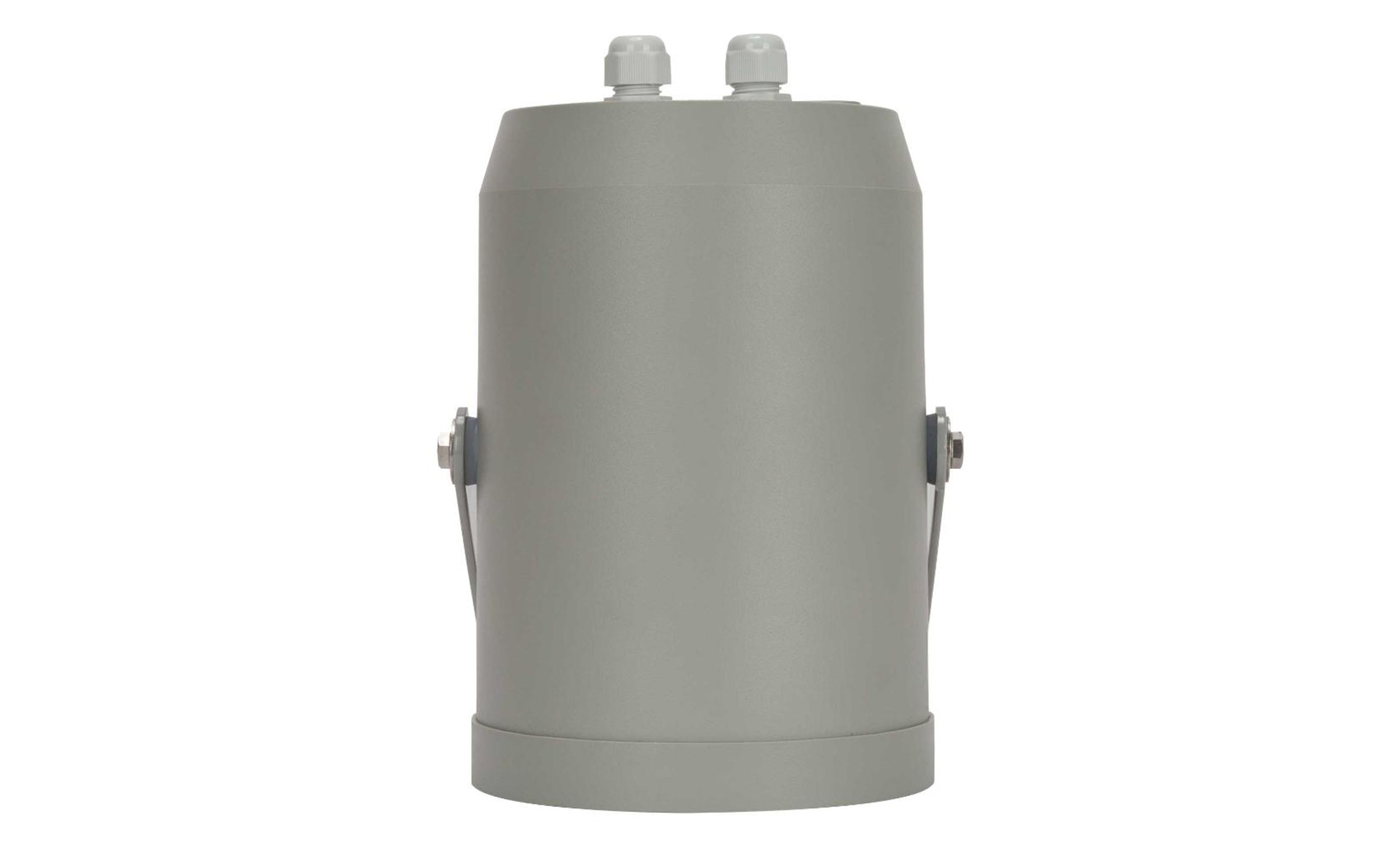

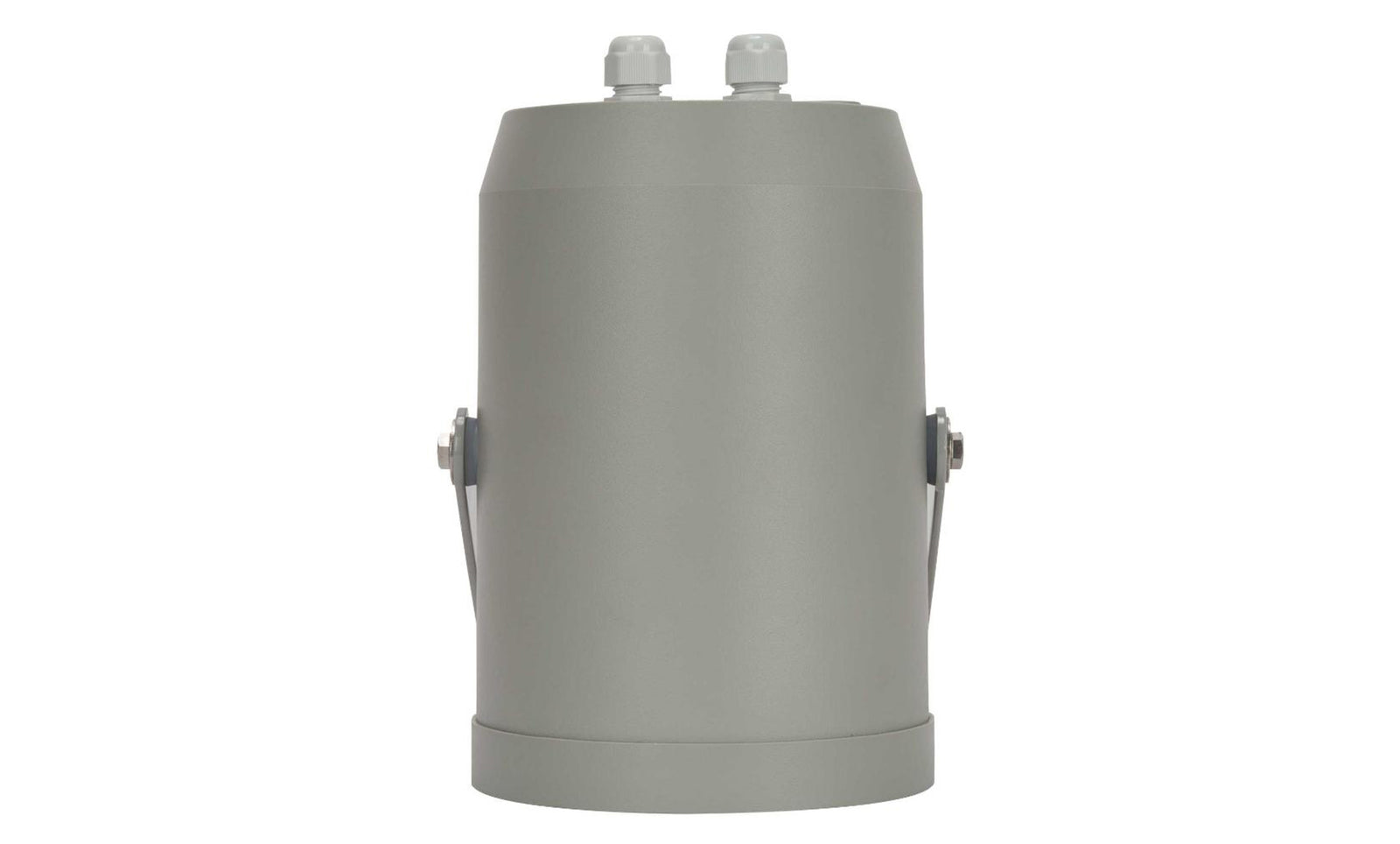

The projector features a durable cylindrical plastic body combined with an aluminum grille, providing robust protection while maintaining a sleek appearance. The included U-bracket support allows for flexible mounting and precise aiming of the sound, making installation quick and convenient in various settings.
With an IP55 protection rating, the DP 4EN is suitable for both indoor and outdoor installations, offering reliable performance even in challenging environmental conditions. Its combination of high intelligibility, efficiency, and weather resistance makes it a versatile solution for commercial, industrial, and public address systems.
Product Specifications:
Cabinet/Case Material: ABS
Grille: Aluminum
Color: Grey – RAL 7035
Frequency Response (-10 dB): 180 Hz – 16,000 Hz
Maximum SPL @ 1m: 101 dB
Maximum SPL @ 4m: 89 dB
Coverage Angle: 180°
System Sensitivity: 91 dB
System Sensitivity 1W @ 4m: 79 dB
Power Section:
Power Handling: 10 W
Peak Power Handling: 40 W PEAK
Protections: Thermal fuse
Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000
Transducers:
Full-range: 1 × 4.0"
Input / Output Section:

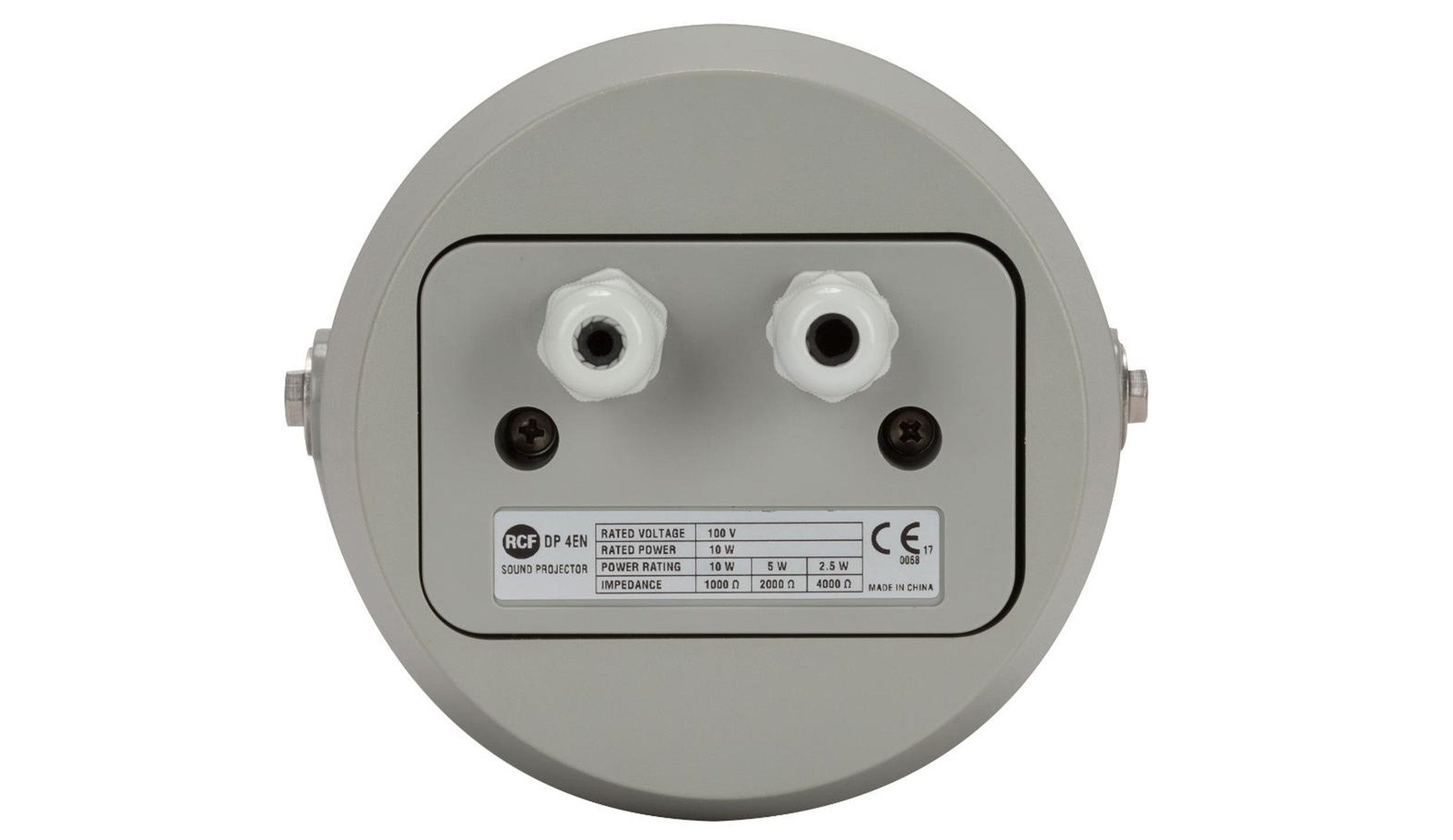

Input Connectors: Ceramic screw terminals
Output Connectors: Ceramic screw terminals
Constant Voltage Transformer: 100 V
Power Selection 1: 10 W – 1000 Ω
Power Selection 2: 5 W – 2000 Ω
Power Selection 3: 2.5 W – 4000 Ω
Standard Compliance:
IP Protection Grade: IP55
Safety Agency: CE compliant
EN54-24 Certified: Yes
CPR Number: 0068-CPR-085/2017
Product Weight: 3.75 lbs.
Product Dimensions (L × W × H): 5.39 in × 7.87 in × 5.39 in
Shipping Weight: 4.63 lbs.
Shipping Dimensions (L × W × H): 6.3 in × 7.48 in × 11.42 in
