Description

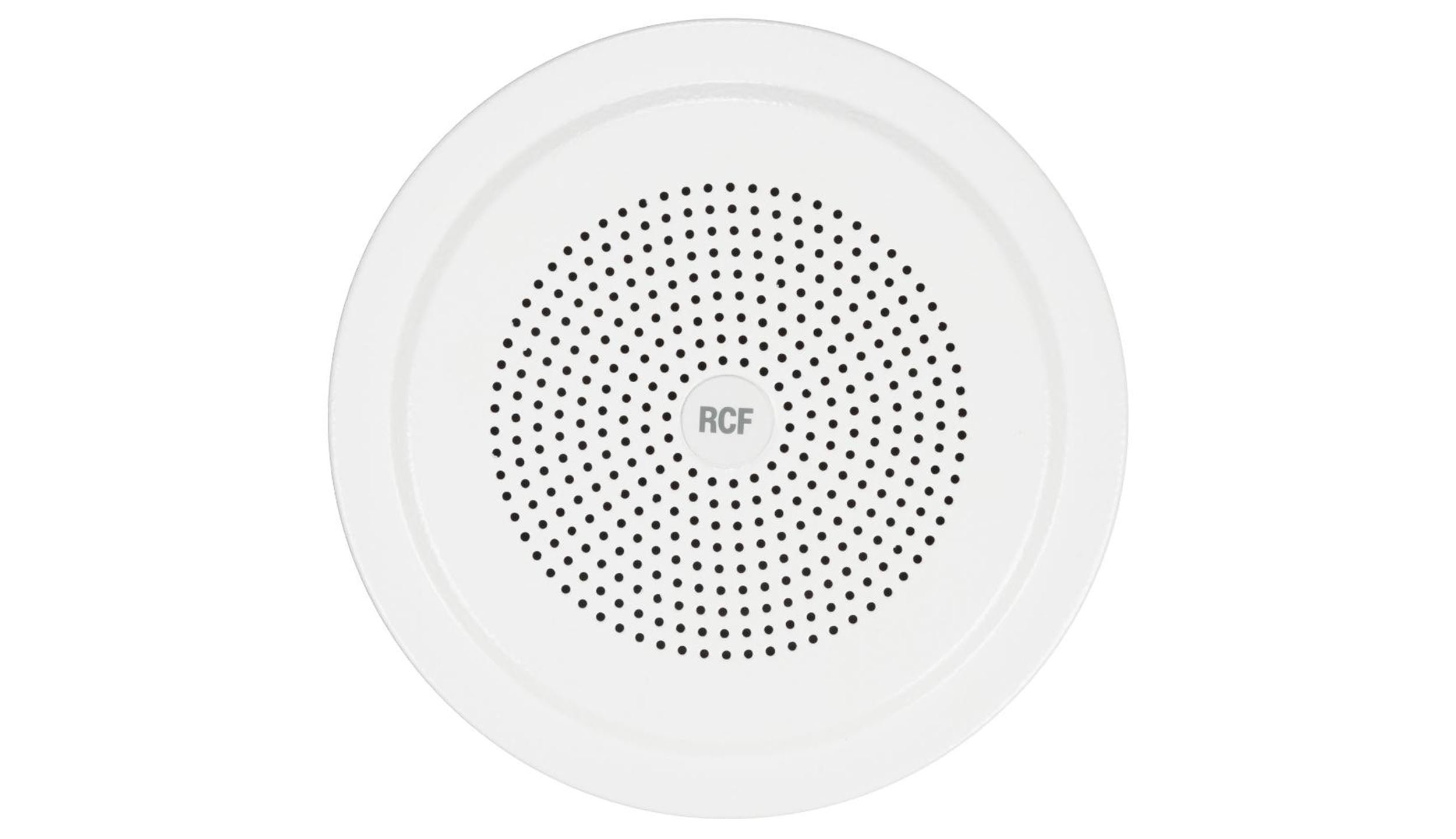

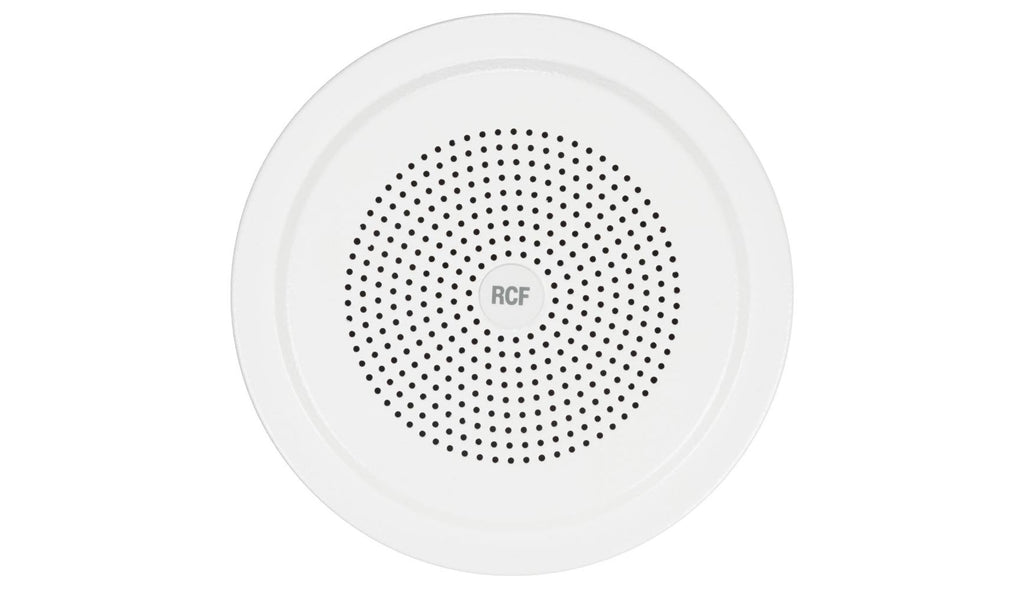

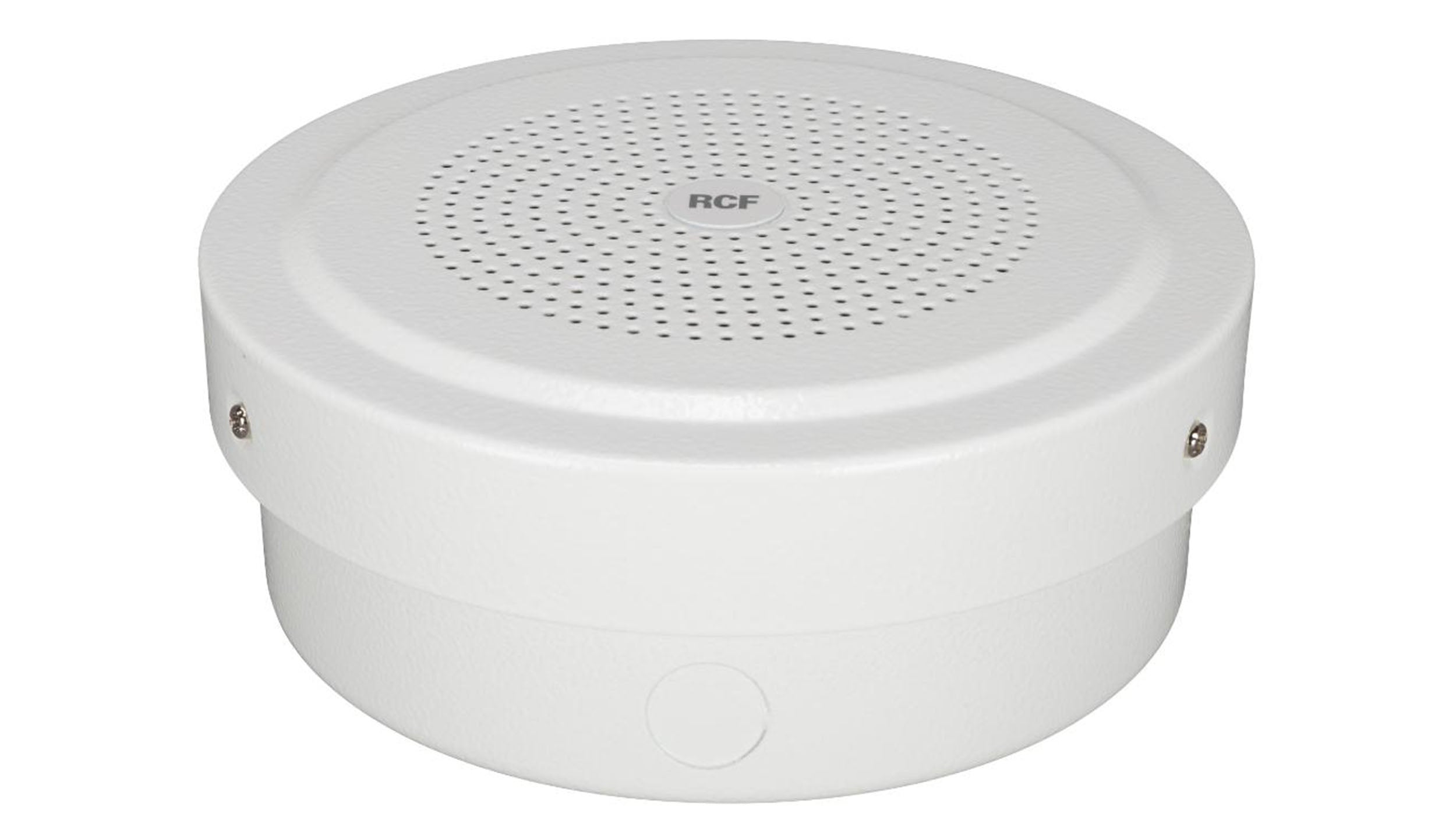

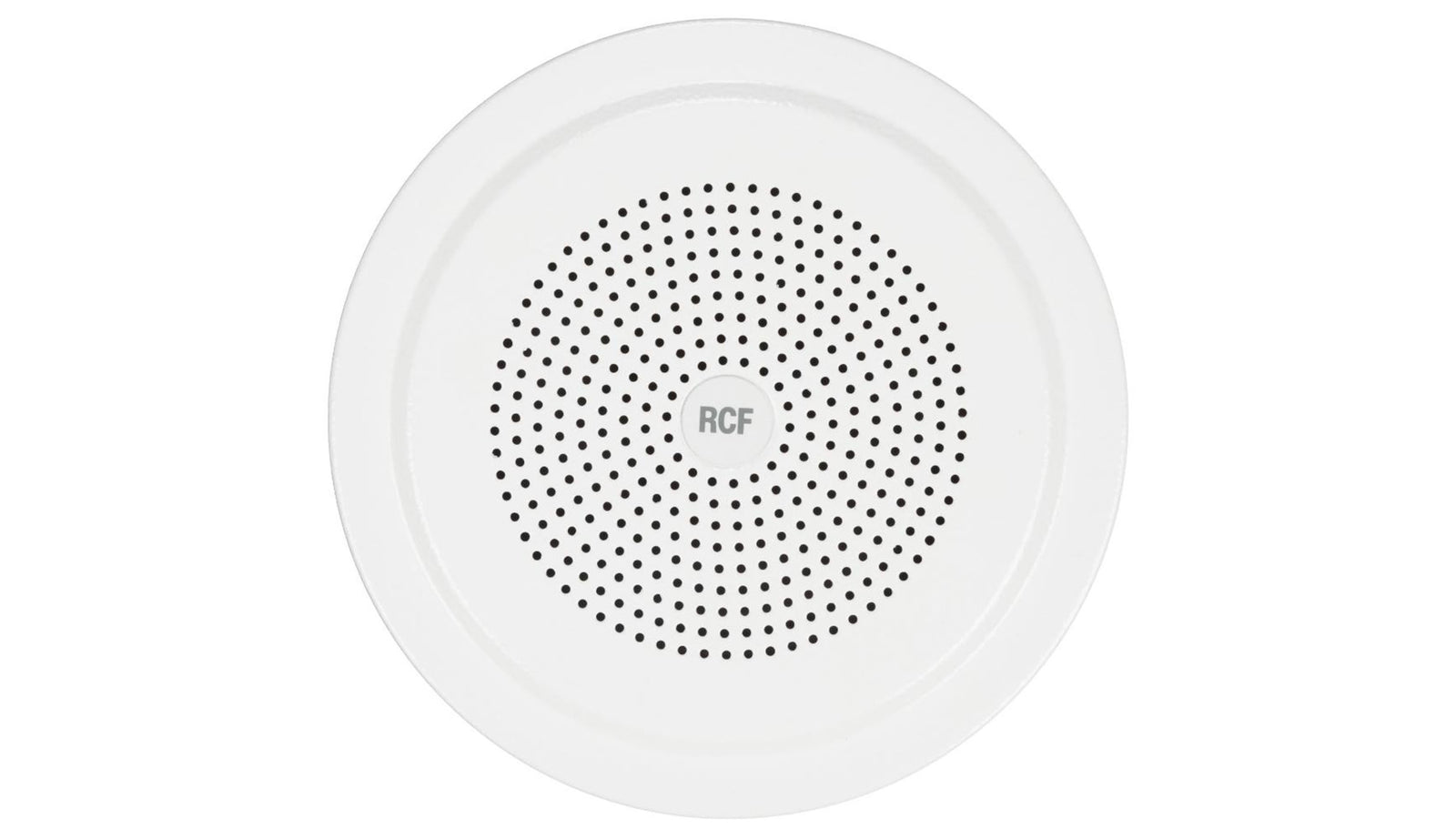

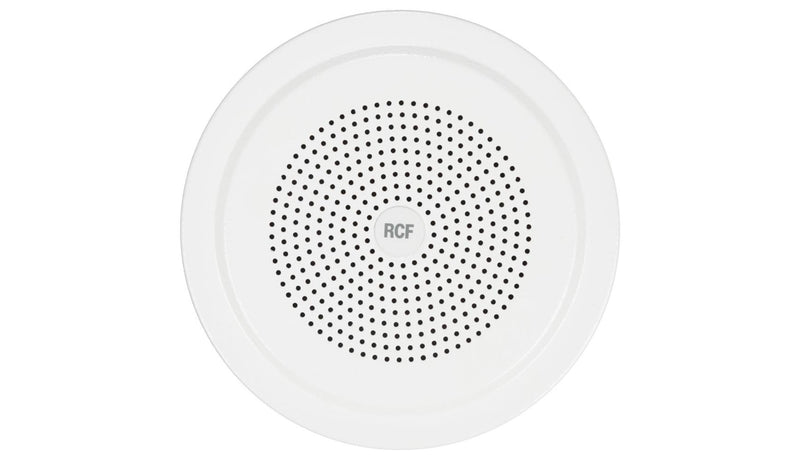

The RCF DU 60EN is a high-performance, passive 2-way loudspeaker designed for wall and ceiling installations where clear and intelligible sound reproduction is essential. Ideal for public address systems, emergency broadcasts, and alarm messaging, it ensures that important communications are heard loud and clear. Built for safety-critical applications, the speaker features ceramic terminal blocks for input and output flameproof cables and a thermal fuse, providing reliable operation even under demanding conditions.
Equipped with a 5-inch full-range transducer, the DU 60EN delivers a frequency response of 100 Hz – 20,000 Hz and a maximum SPL of 100 dB at 1 meter, providing natural, intelligible sound across medium to large spaces. Its 180° coverage angle ensures broad and even sound distribution, while selectable power options (6 W, 3 W, 1.5 W, and 0.75 W at 100V) allow for flexible system integration and easy adaptation to a variety of installation scenarios.
Designed for durability and versatility, the DU 60EN is IP55-rated for both indoor and outdoor use, offering protection against dust, water, and environmental factors. The speaker’s metal body and steel grille provide robust protection while maintaining a sleek appearance in white RAL 9016, blending seamlessly with most interiors. EN54-24 certification ensures compliance with fire alarm and public address safety standards, making the DU 60EN a trusted solution for commercial, industrial, and emergency communication installations.
Product Specifications:

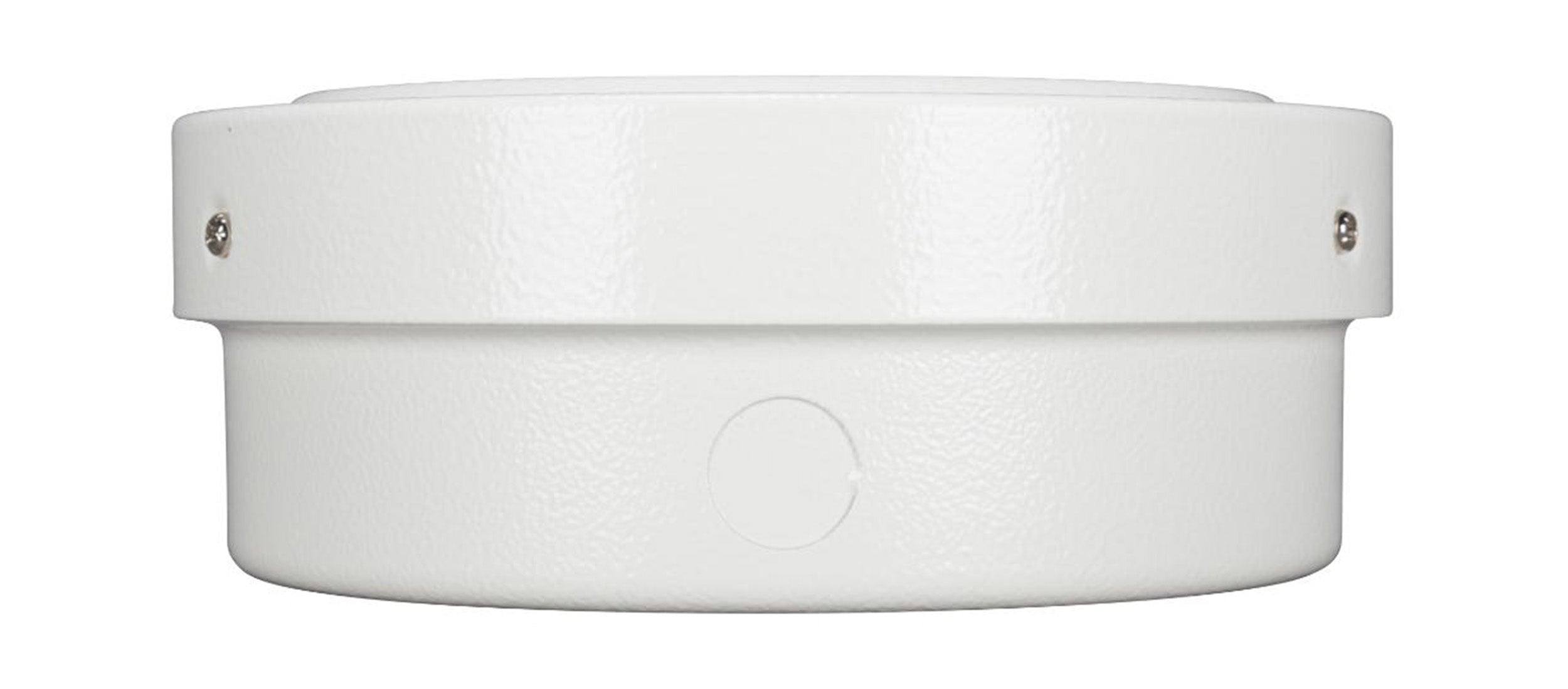

Cabinet Material: Metal
Grille: Steel
Color: White (RAL 9016)
Frequency Response (-10 dB): 100 Hz – 20,000 Hz
Max SPL @ 1 m: 100 dB
Max SPL @ 4 m: 88 dB
Coverage Angle: 180°
System Sensitivity: 94 dB
Sensitivity (1 W @ 4 m): 82 dB
Power Section:
Rated Power Handling: 6 W
Peak Power Handling: 24 W
Protections: Thermal fuse
Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000
Transducers:
Full-Range Driver: 1 × 5"
Input/Output Section:

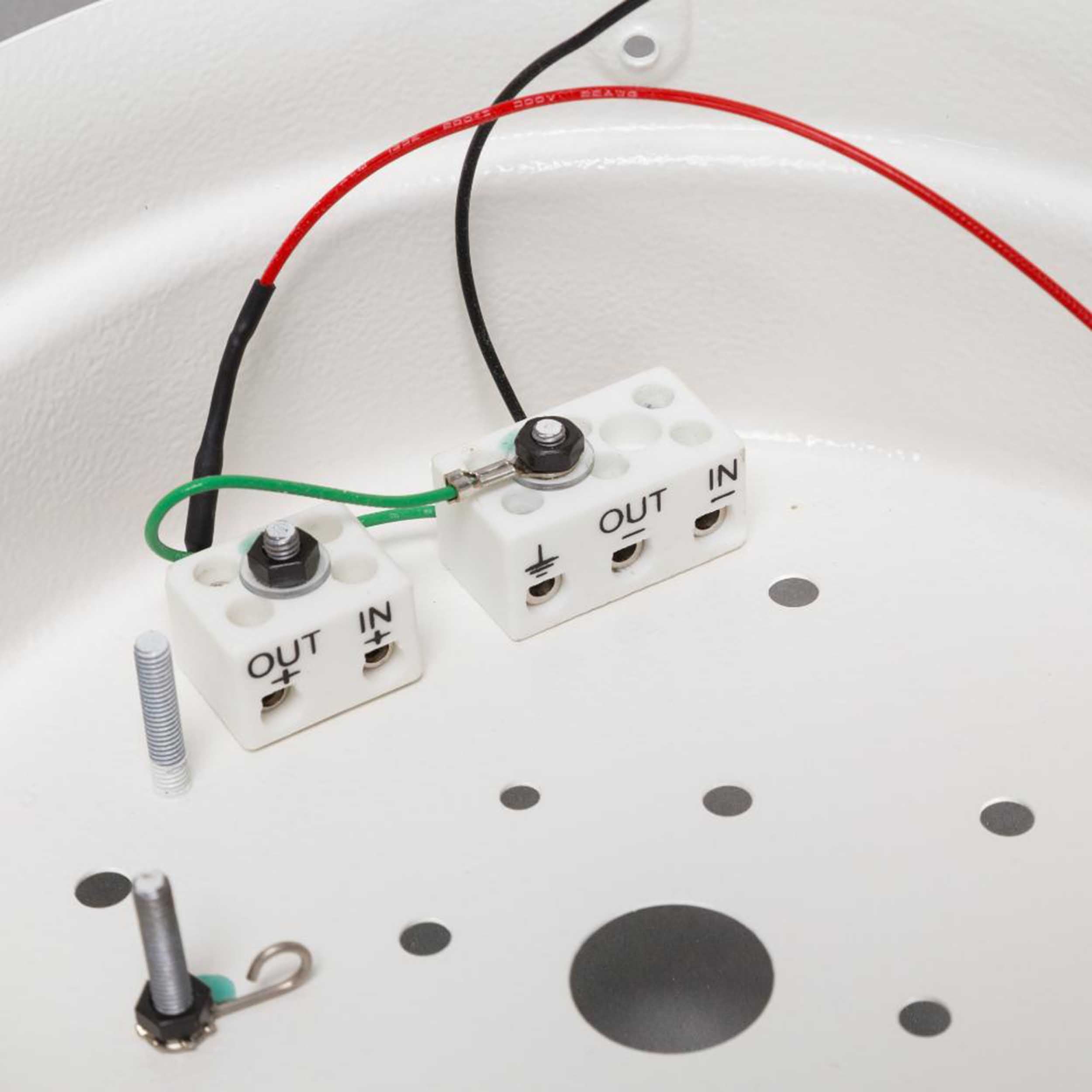

Input Connectors: Ceramic screw terminals
Output Connectors: Ceramic screw terminals
Constant Voltage: 100 V
Power Taps:
6 W – 1,667 Ω
3 W – 3,333 Ω
1.5 W – 6,667 Ω
0.75 W – 13,333 Ω
Standards & Certifications:
Compliance: CE compliant
EN54-24 Certified: Yes
CPR Number: 1488-CPR-0488/W
Product Dimensions (L × W × H): 2.95 in × 7.68 in × 2.95 in
Product Weight: 3.55 lbs.
Shipping Dimensions (L × W × H): 9.06 in × 9.06 in × 4.72 in
Shipping Weight: 4.06 lbs.
