Description

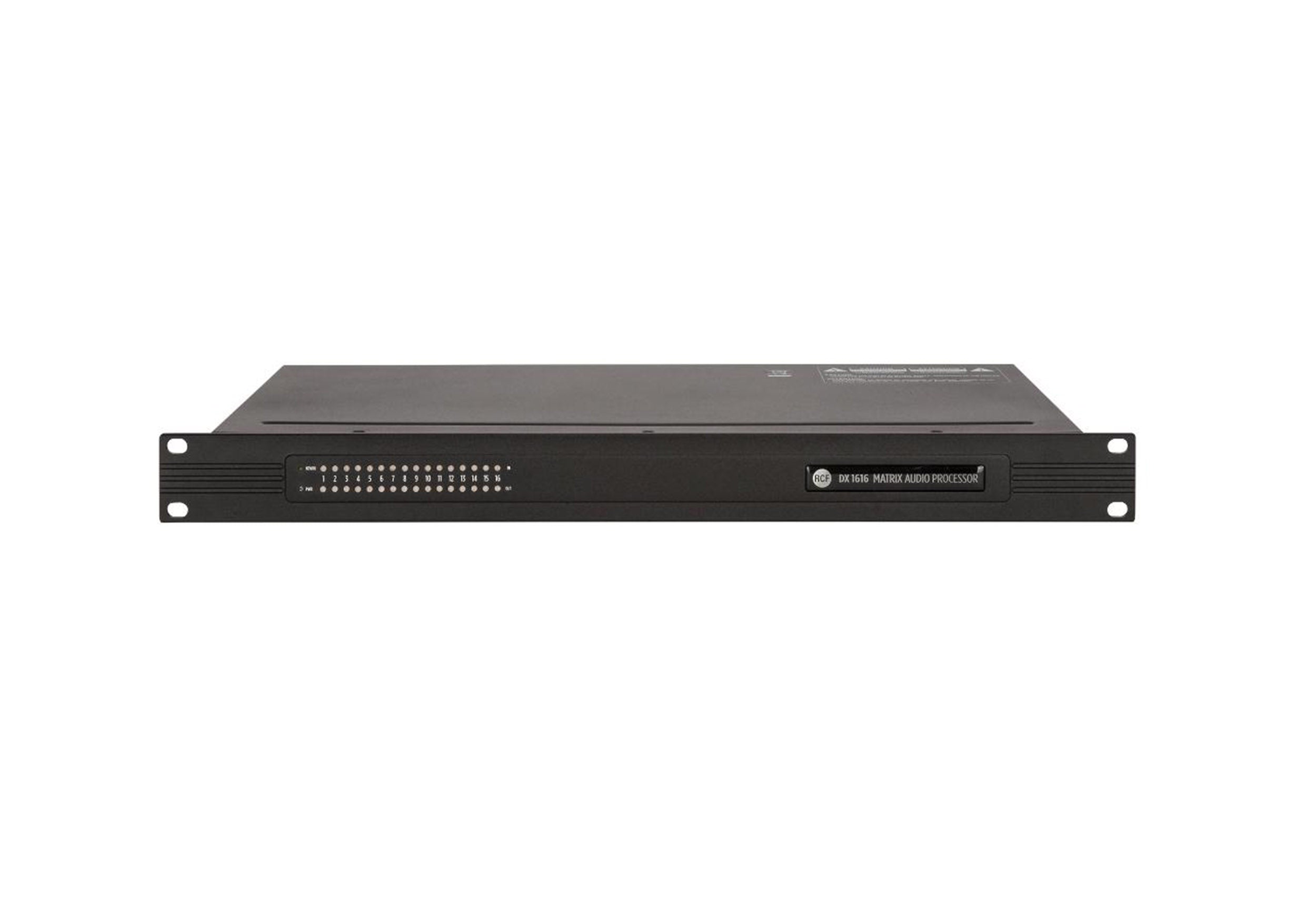

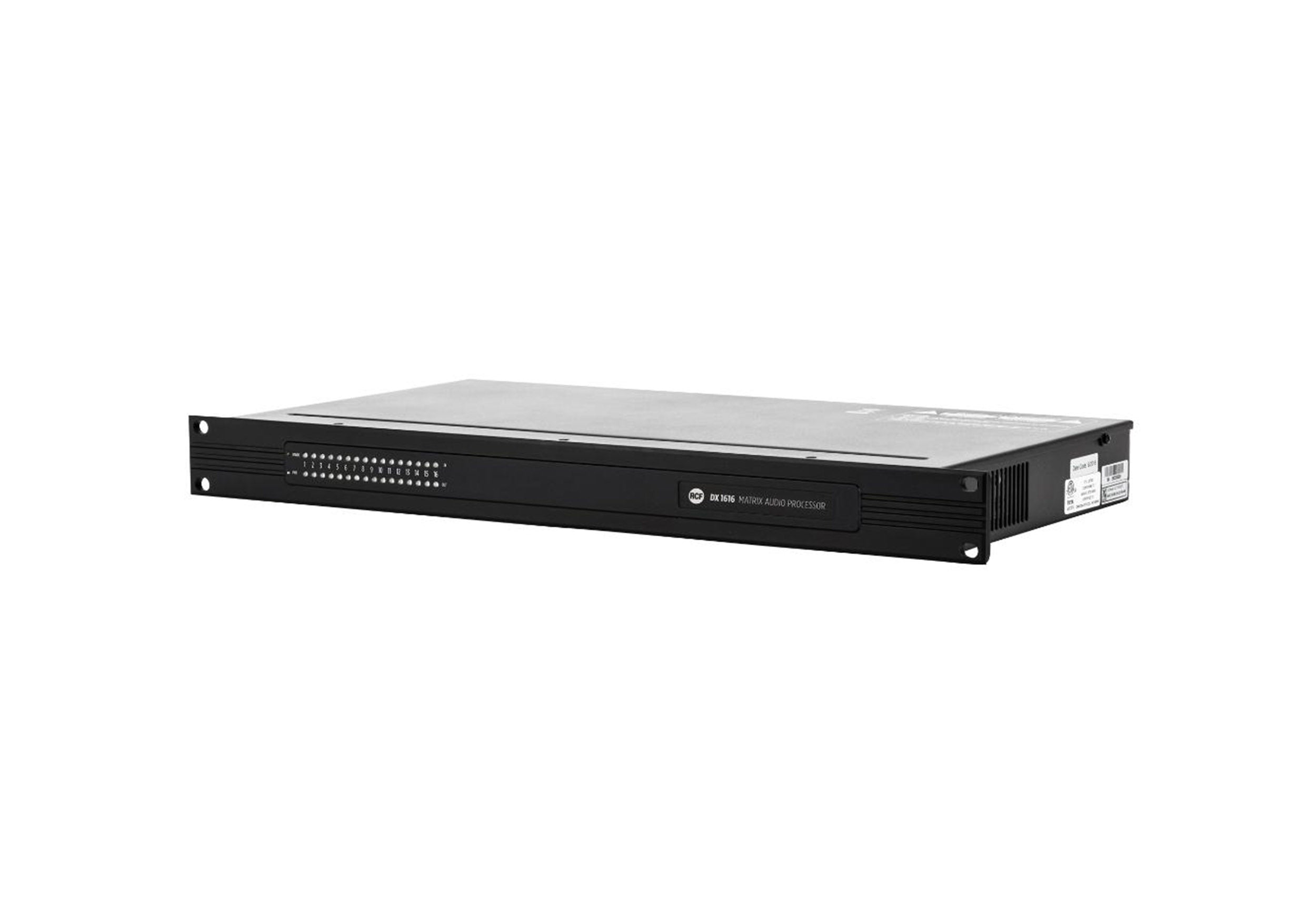

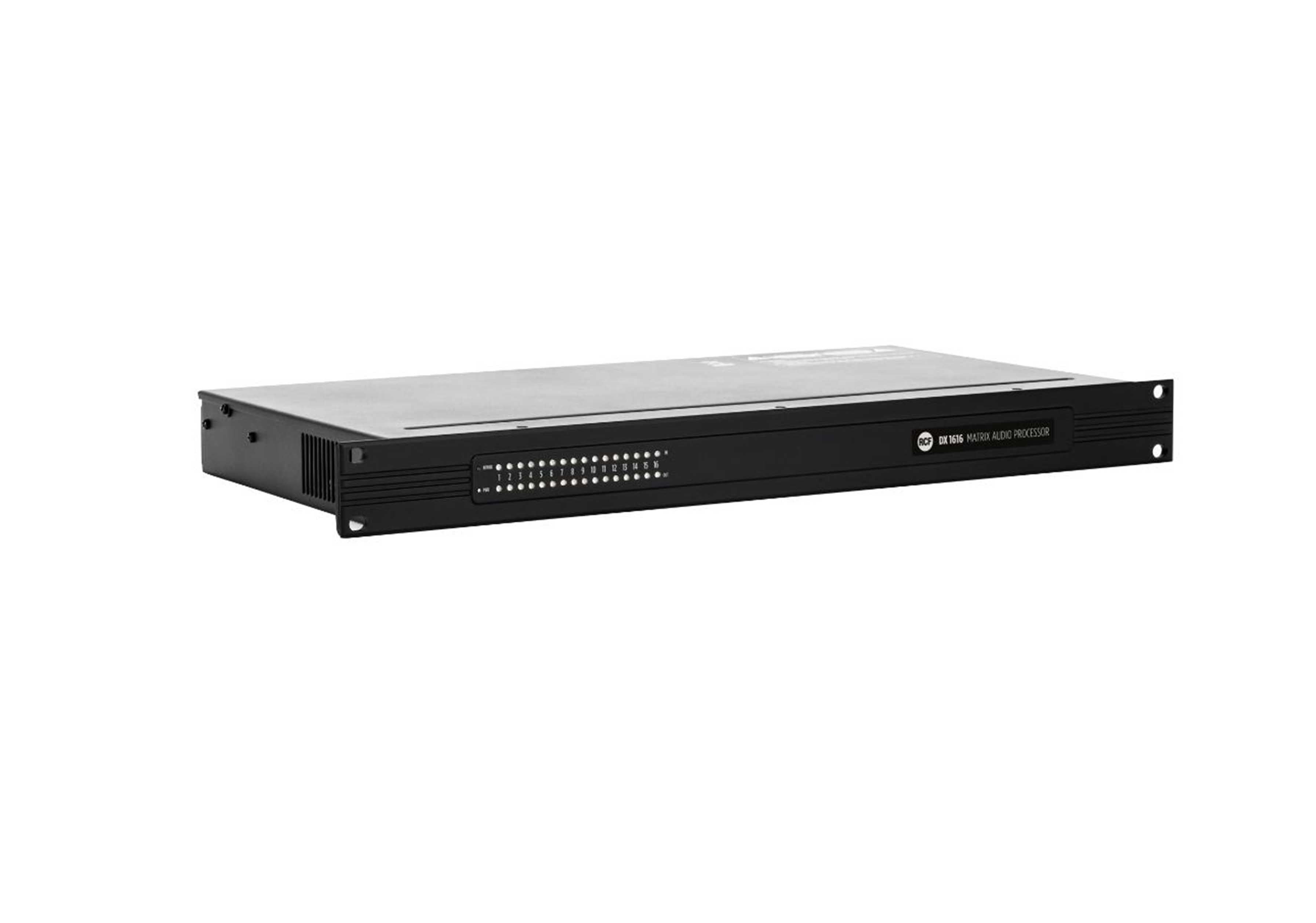

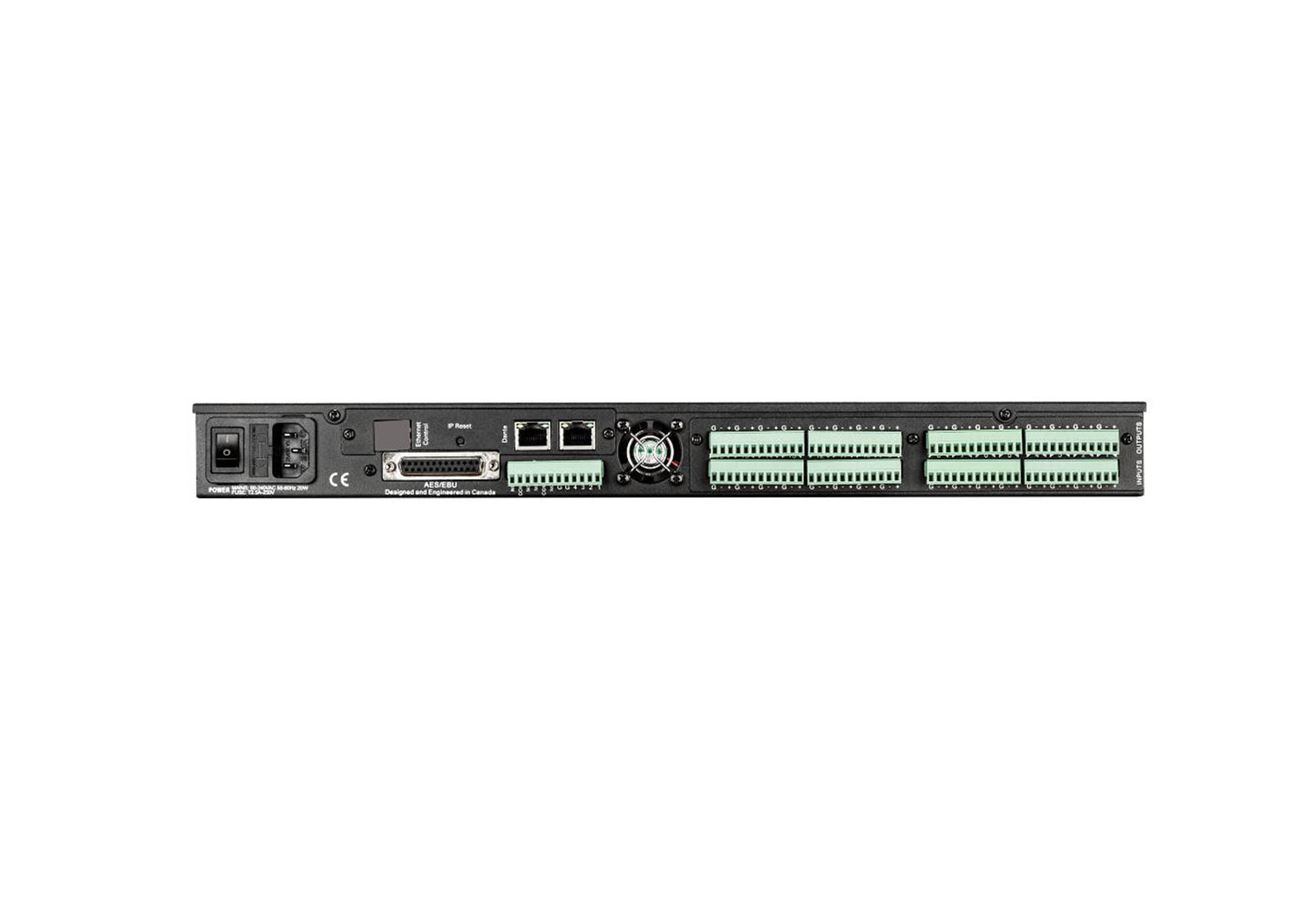

The RCF DX 1616 is a professional 16-in / 16-out DSP matrix audio processor designed for advanced audio routing in installations, events, and networked sound environments. Powered by a 40-bit floating-point DSP engine and 48 kHz sampling, it ensures precise, high-quality signal processing across all inputs and outputs. Equipped with Dante networking, 16 mic/line inputs, and 8 AES/EBU I/O, the DX 1616 integrates easily into modern digital audio systems. Its intuitive PC/Mac software offers full control of routing, EQ, delay, compression, and group assignments, making it ideal for festivals, venues, corporate systems, and multi-zone installations.
Product Specifications:
Audio Performance:
Frequency Response (-3 dB): 20 Hz – 22 kHz
Crosstalk: < –100 dB
THD+N @ 1 kHz: <0.001%
Dynamic Range: >110 dB
CMRR (50 Hz – 10 kHz): >100 dB
Digital Audio:
DSP Resolution: 40-bit
Sampling Rate: 48 kHz
A/D – D/A Converters: 24-bit
Propagation Delay: 3 ms
Input Section:
Total Inputs: 17
Balanced Inputs: 17
Mic/Line Inputs: 16
Connectors: Euroblock
Phantom Power: 21–44 V DC
Digital Inputs: 1
Digital Connector: RJ45
Digital Type: Dante
Processing:
DSP: Yes
EQ Filters: Yes
Delay: Yes
Tone Controls: Yes
High-Pass Filter Range: 20 – 20,000 Hz
Crossover Range: 20 – 20,000 Hz
Physical:
Material: Metal
Color: Black
Rack Size: 19", 1U
Height: 44 mm / 1.73 in
Width: 483 mm / 19.02 in
Depth: 229 mm / 9.02 in
Weight: 3.31 kg / 8 lbs.
Shipping Details:
Shipping Height: 15 in
Shipping Width: 4 in
Shipping Depth: 24 in
Shipping Weight: 11 lbs.
