Description
Package Includes:

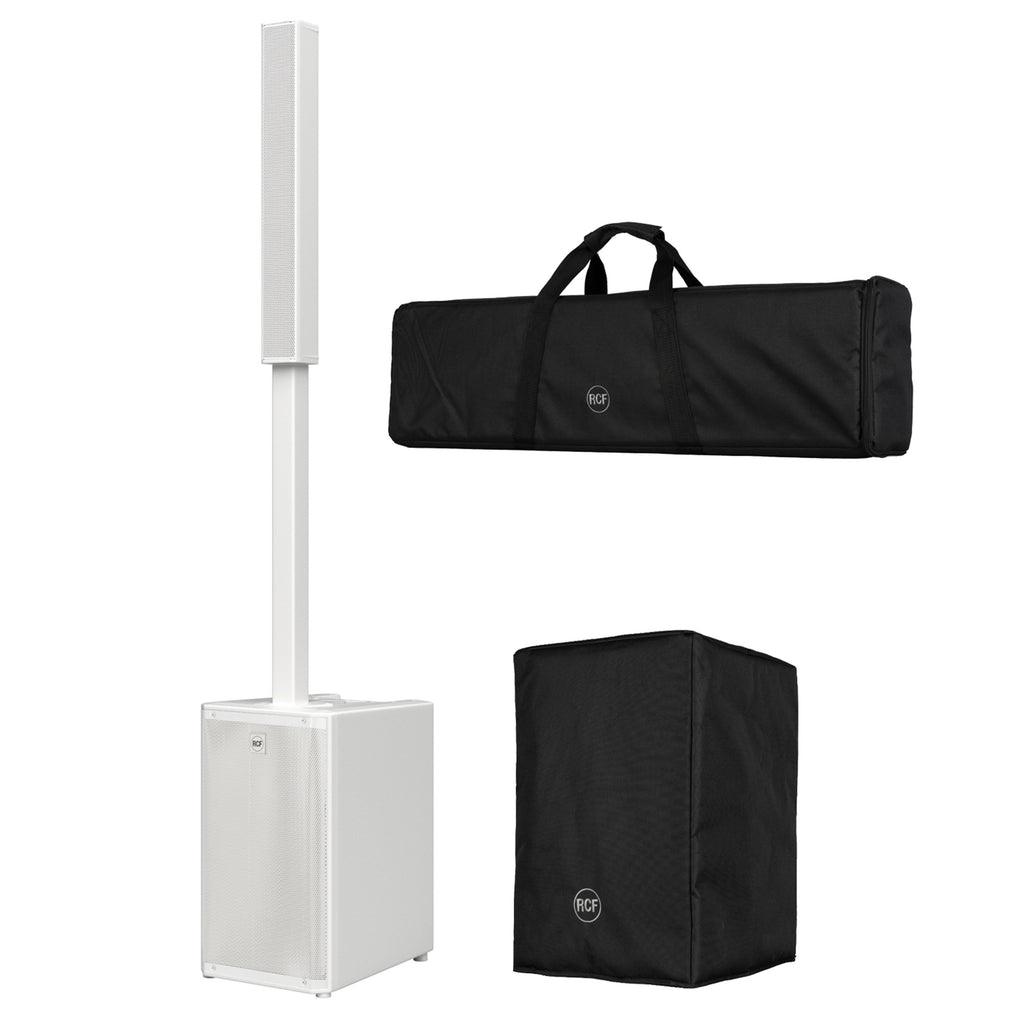

- 1 RCF EVOX J9W Active 3 Way White Column Array with 12 Inches Woofer - 2100 Watt
- 2 RCF CVR60752 Protection Cover for EVOX J9, EVOX JMIX9 and EVOX J11 Subwoofer - Black
The RCF PA system package includes EVOX J9W active three-way column system and matching RCF CVR60752 protective cover, delivering 2100W of power, 130 dB Max SPL performance, wide 120° × 40° coverage, deep 12” bass response, and reliable protection for transport and storage.
1 RCF EVOX J9W Active 3 Way White Column Array with 12 Inches Woofer - 2100 Watt
The RCF EVOX J9W is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplifier, EVOX J9W delivers an impressive 130 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.
EVOX J9W is an active, three-way portable column system designed for maximum clarity and power in a compact format. With a streamlined aesthetic, the premium composite design delivers unparalleled acoustic fidelity, raw power, and ease of deployment. EVOX J9W is the perfect fusion of Italian engineering and sophisticated design, ready to elevate any setting.
Powered by a 2100W onboard Class-D amplifier, EVOX J9W delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output; Club for extended lows and crisp highs; and Voice for optimized intelligibility.
Highly energy-efficient, the J9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.
The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. EVOX J9W amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.
Neodymium compression driver (1.75” voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° X 40° coverage.
The forward radiation of the array of 6x3” neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.
12” RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.
Product Specifications:
Frequency Response: 40 Hz – 20,000 Hz
Max SPL @ 1 m: 130 dB
Horizontal Coverage Angle: 120°
Vertical Coverage Angle: 40°
Color: White
Compression Driver: 1 × 0.75” neo diaphragm, 1.75” voice coil
Full-Range Drivers: 6 × 3.0” neo, 1.0” voice coil
Woofer: 1 × 12”, 2.5” voice coil
Input Signal: Balanced / Unbalanced
Input Connectors: Combo XLR / Jack
Output Connectors: XLR
Input Sensitivity: -2 dBu / +4 dBu
Processor Section
Crossover Frequencies: 200 Hz / 1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Presets (Linear/Live, Club, Voice)
Total Power: 2100 W Peak
High Frequencies: 700 W Peak
Low Frequencies: 1400 W Peak
Cooling: Convection
Power Connections: VDE
Standard Compliance: CE Compliant
Cabinet Material: PP Composite
Handles: 1 × Top Handle
Pole Mount: Quick-fit socket with aluminum stand mount
Grille: Steel
Product Dimensions (H × W × D): 81.89 × 13.78 × 18.21 inches
Product Weight: 28.3 kg / 62.39 lb.
Shipping Dimensions (H × W × D): 6.77 × 19.29 × 18.11 inches
Shipping Weight: 32 kg / 70.55 lb.
2 RCF CVR60752 Protection Cover for EVOX J9, EVOX JMIX9 and EVOX J11 Subwoofer - Black
The RCF CVR60752 EVOX DJ speakers safe with this durable protection cover. Designed for EVOX J9, JMIX9, and J11 models, it shields your equipment from dust, scratches, and minor impacts. Lightweight and easy to handle, it ensures your gear stays in top condition whether at home, in storage, or on the road.
Product Specifications:
Material: Durable fabric
Color: Black
Product Dimensions (H×W×D): 23.23 × 16.14 × 19.29 inches
Product Weight: 1.2 kg / 2.65 lbs.
Shipping Dimensions (H×W×D): 3.15 × 23.62 × 15.75 inches
Shipping Weight: 2.6 kg / 5.73 lbs.
