RCF EVOX-JMIX-9 Cover Portable Active Three-Way Column Music System

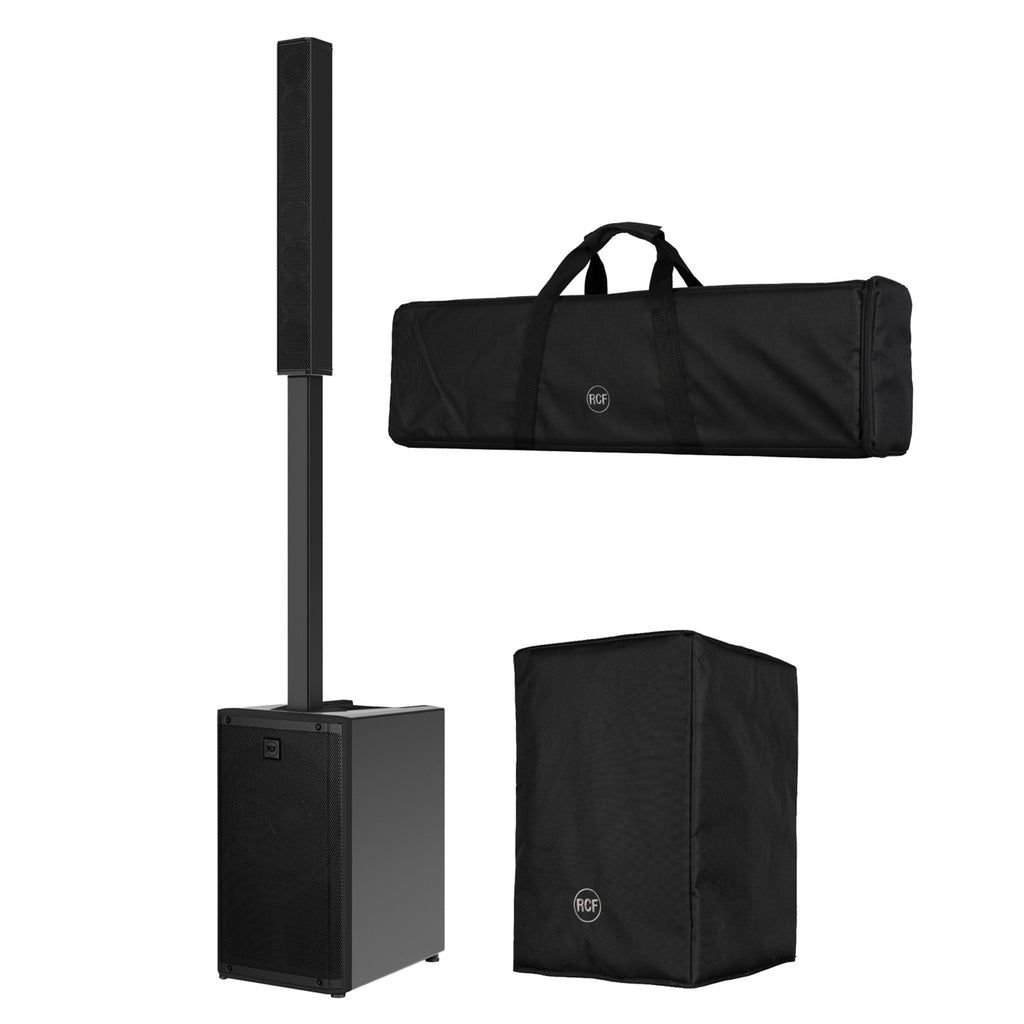

Package Includes:

• 1 RCF EVOX-JMIX-9 Portable Active Three-Way Column Music System - Black Finish
• 2 RCF CVR60751 Protection Cover with Wheels for EVOX J9, EVOX JMIX9 and EVOX J11 Subwoofer - Black

The RCF portable PA package includes the EVOX JMIX9 with integrated 8-channel digital mixer and the matching RCF CVR60751 for secure transport and storage. Delivering 2100W of Class-D power and up to 130 dB Max SPL, the system combines a 12” woofer, six 3” drivers, and a 1.75” compression driver with 120° × 40° coverage for clear, powerful sound. With built-in DSP, Bluetooth streaming, wireless app control, and a durable wheeled cover for protection on the road, this all-in-one solution is ideal for DJs, bands, presenters, and live events.

1 RCF EVOX-JMIX-9 Portable Active Three-Way Column Music System - Black Finish

The EVOX JMIX9 is a three-way active portable system with an integrated 8-channel stereo digital mixer, designed to deliver professional performance in any venue or event. Combining the clarity and power of the RCF J9 with advanced digital mixing, flexible routing, and wireless management, the system offers a complete all-in-one solution for performers, DJs, bands, and presenters. Available in sleek black, the JMIX9 features a 1.75” neodymium compression driver with a 120° × 40° True Resistive Waveguide, six 3” midrange drivers, and a high-power 12” bass-reflex woofer, producing articulate mids, deep lows, and uniform coverage. Powered by a 2100W Class-D amplifier, the system delivers up to 130 dB Max SPL with three EQ presets-Live/Linear, Club, and Voice-for precise tonal control.

Integrated 8-Channel Digital Mixer

The JMIX9 includes a built-in 8-channel stereo digital mixer with a 2.4” color touch display and physical encoders for intuitive control. Inputs 1–4 feature MIC/LINE combo connectors with individual phantom power, digital gain control, and stereo linking for keyboards or instruments, while inputs 5–8 support stereo line inputs or Bluetooth® streaming. Each channel provides high-pass filtering, compression, 3-band EQ, and stereo reverb, offering complete tonal shaping and professional polish. The dedicated AUX bus and main outputs include 8-band EQ and flexible routing options, while the assignable MULTI pushbutton allows quick access to essential functions like mute, FX, and ducking.

Wireless Control and Flexible Setup

With the JMixRemote app for iOS and Android, the JMIX9 can be fully controlled wirelessly via Bluetooth Low Energy (BLE), allowing adjustments to volume, EQ, and effects from anywhere in the room. The system also features variable-height configuration with a lightweight aluminum-alloy pole connecting the column array to the subwoofer. Height can be adjusted from zero-offset to full or half-length poles for optimal stage presence, while included transport bags, optional pole extensions, and protective covers ensure safe, convenient mobility.

Advanced DSP and Sound Engineering

EVOX JMIX9 leverages RCF’s proprietary FiRPHASE processing and Bass Motion Control® (BMC) technology for studio-quality sound. FiRPHASE ensures precise phase alignment across the listening area for consistent coverage and natural transient response, while BMC protects the woofer from over-excursion without sacrificing low-frequency performance. The system’s DSP platform provides real-time processing with RCF algorithms for tuning, limiting, and dynamic control, delivering clear, detailed sound with low latency and uncompromised reliability-perfect for any professional audio application.

Product Specifications:

Cabinet / Case Material: PP Composite

Handles: 1 Top

Pole Mount / Cap: Quick-fit socket

Grille: Steel

Color: Black

Frequency Response: 40 Hz – 20,000 Hz

Max SPL @ 1 m: 130 dB

Horizontal Coverage Angle: 120°

Vertical Coverage Angle: 40°

Transducers

Compression Driver: 1 × 0.75" neo, 1.75" v.c

Full Range: 6 × 3.0" neo, 1.0" v.c

Woofer: 1 × 12", 2.5" v.c

Input/Output Section

Input Signal: Balanced / Unbalanced

Input Connectors: Combo XLR / Jack

Output Connectors: XLR

Input Sensitivity: -2 dBu / +4 dBu

Processor Section

Crossover Frequencies: 200 Hz / 1800 Hz

Protections: Thermal, RMS

Limiter: Soft Limiter

Controls: Digital mixer controlled by touch screen and encoders

Power Section

Total Power: 2100 W Peak

High Frequencies: 700 W Peak

Low Frequencies: 1400 W Peak

Cooling: Convection

Electronic Specifications

Frequency Response: 20 Hz – 20 kHz

THD+N (20 dB gain, 0 dBu out): 0.003% A-Weighted

Processing

Processing Channels: 8

Signal Processing: 32 Bit

A/D – D/A Conversion: 24 Bit @ 48.0 kHz

Dynamic Range: 114 dB

Inputs

Mic: 4

Remote Controlled Storable Gain: Yes

Gain Range: 0 dB – 36 dB

Input Noise Level: -114 dBu A-Weighted

Mic Input Impedance: 3 kΩ

Low Cut: 20 Hz – 400 Hz

Phantom Power: +48V

Mono Line: 4, Gain 0–36 dB, Input Impedance 10 kΩ

Stereo Line: 2, Gain 0 dB, Input Impedance 24 kΩ

Outputs

Main MIX: 1

FX Send: 1

AUX Send: 1

AUX Output: 1

Phones: 1

Main Out Impedance: 150 Ω

Main Out Level: 20 dBu

Aux Out Impedance: 150 Ω

Aux Out Level: 20 dBu

Phones Out Impedance: 100 Ω

Phones Out Level: 20 dBm

D/A Dynamic Range: 118 dB

Compressors

RCF Compressors: On MIC / LINE CH1 to CH4 Inputs

EQ

Input Channels EQ: 1 Semi Parametric / 2 Shelving

Description: 3-Band EQ (High & Low shelving, MID peak on input), 8-Band EQ (6 Full Parametric, 1 High

Shelving, HPF 12 dB/Oct on amplifier and MAIN output)

Auxiliary Sends

AUX: 1 PRE/POST

FX: 1 POST

Internal Effects

Send Effects: 1

Mastering Processors: 1

Main OUT Type: MIX OUT, STEREO / MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT

Electrical Specifications

Power Supply: Internal

Standard Compliance / Safety Agency: CE Compliant

Product Weight and Dimensions

Weight: 63.49 lbs / 28.8 kg

Dimensions (L × W × H): 18.11 × 13.78 × 81.89 in

Shipping Weight: 71.65 lbs / 32.5 kg

Shipping Dimensions (L × W × H): 22.87 × 17.76 × 26.61 in

2 RCF CVR60751 Protection Cover with Wheels for EVOX J9, EVOX JMIX9 and EVOX J11 Subwoofer - Black

The RCF CVR60751 is a durable protection cover with integrated wheels, designed to safeguard and transport EVOX J9, EVOX JMIX9, and EVOX J11 systems. Built for professional use, this cover protects your loudspeaker system from dust, scratches, and minor impacts while allowing easy mobility thanks to its integrated wheels. Finished in black and fully CE compliant, the CVR60751 is an essential accessory for touring, rental, and mobile sound applications.

Product Specifications:

Product Type: Protection Cover with Wheels

Compatible Products: EVOX J9, EVOX JMIX9, EVOX J11

Wheel Diameter: 4 cm

Physical

Color: Black

Compliance:

Safety Standard: CE compliant

Height: 25.59 in (650 mm)

Width: 16.93 in (430 mm)

Depth: 20.87 in (530 mm)

Weight: 15.21 lbs (6.9 kg)

Shipping Height: 12.2 in (310 mm)

Shipping Width: 16.14 in (410 mm)

Shipping Depth: 24.41 in (620 mm)

Shipping Weight: 16.98 lbs (7.7 kg)
