EVOX JMIX9W Portable 3‑Way Column PA System with 8‑Channel Digital Mixer – White

SKU H-RCF-EVOXJMIX9W UPC 8024530024475 MPN EVOX-JMIX-9-W

Price:
Sale price$1,999.00
Stock:
In stock (5 units), ready to be shipped

Sign in to see your rewards

Sign in
Earn 999500 points (worth $99.95)
Teryn Cooper | Sales Engineer

ASK AN EXPERT

Our Certified Gear Technician is ready to help!

(213) 816 4102

30-Day Price Protection Guarantee If we lower our price within 30 days of your order, we'll refund the difference. Shop now with confidence. Free 2nd Day Air Delivery We offer Free 2nd Day Air on most items! Some exceptions apply, including oversized, truss, and stage products. Reward Points Earn 5% Back in HDJ Points on every purchase. Use your points toward future gear purchases with us. Points expire 90 days after they're earned.

Hollywood DJ Expert Picks

Bundle Total: $1,999.00
RCF PMK60770 Pole Extension Kit for J9, EVOX JMIX9, and EVOX J11 - White
CVR60751 Protection Cover with Wheels for EVOX J9/JMIX9/J11 Subwoofer
RCF CVR60752 Cover for EVOX J9 & EVOX JMIX9 & EVOX J11 Sub Protection
CVR60767 Protective Cover for EVOX J9/JMIX9/J11 Subwoofer

Call us for package deal pricing anytime 800-700-4542.

Description

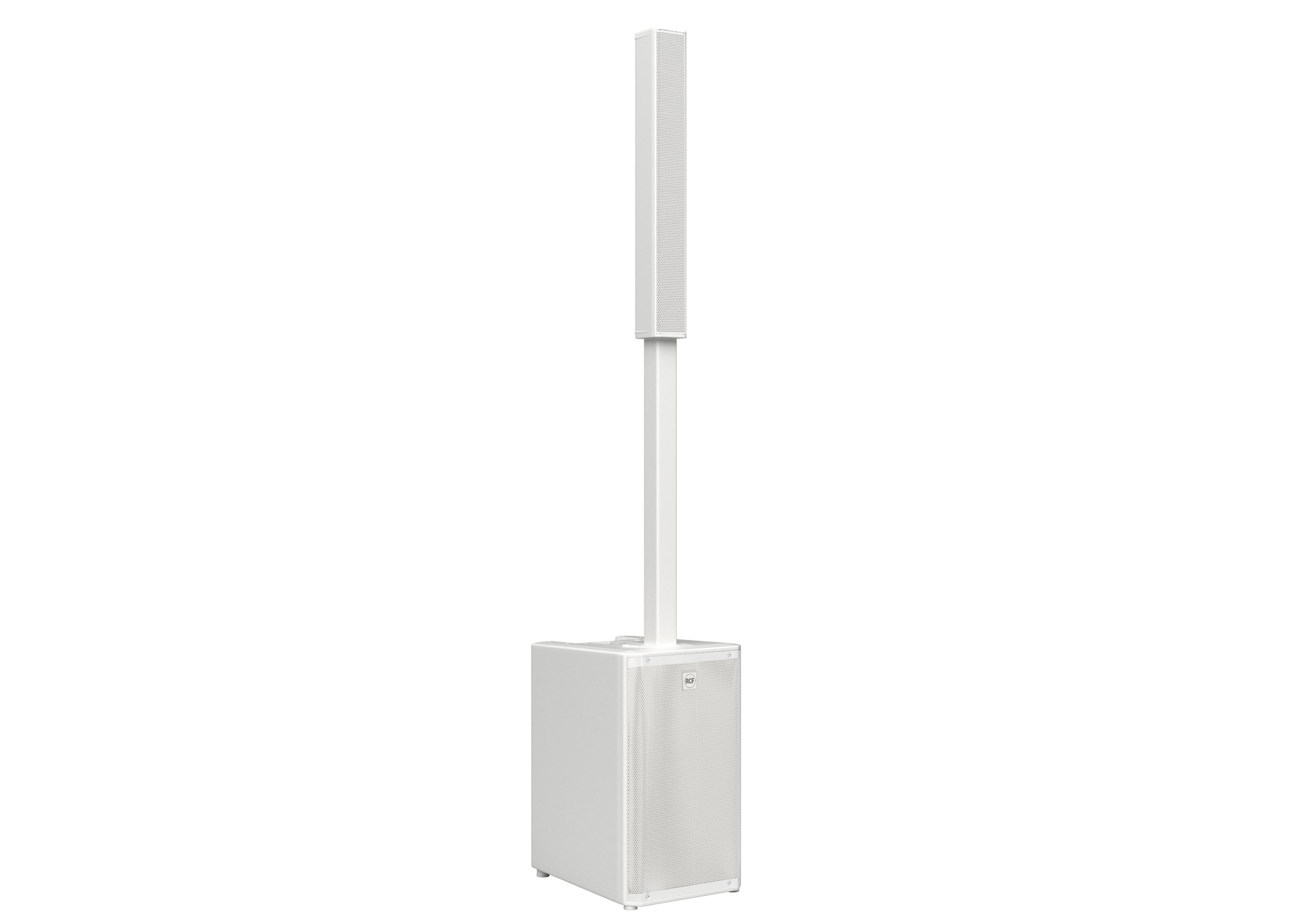

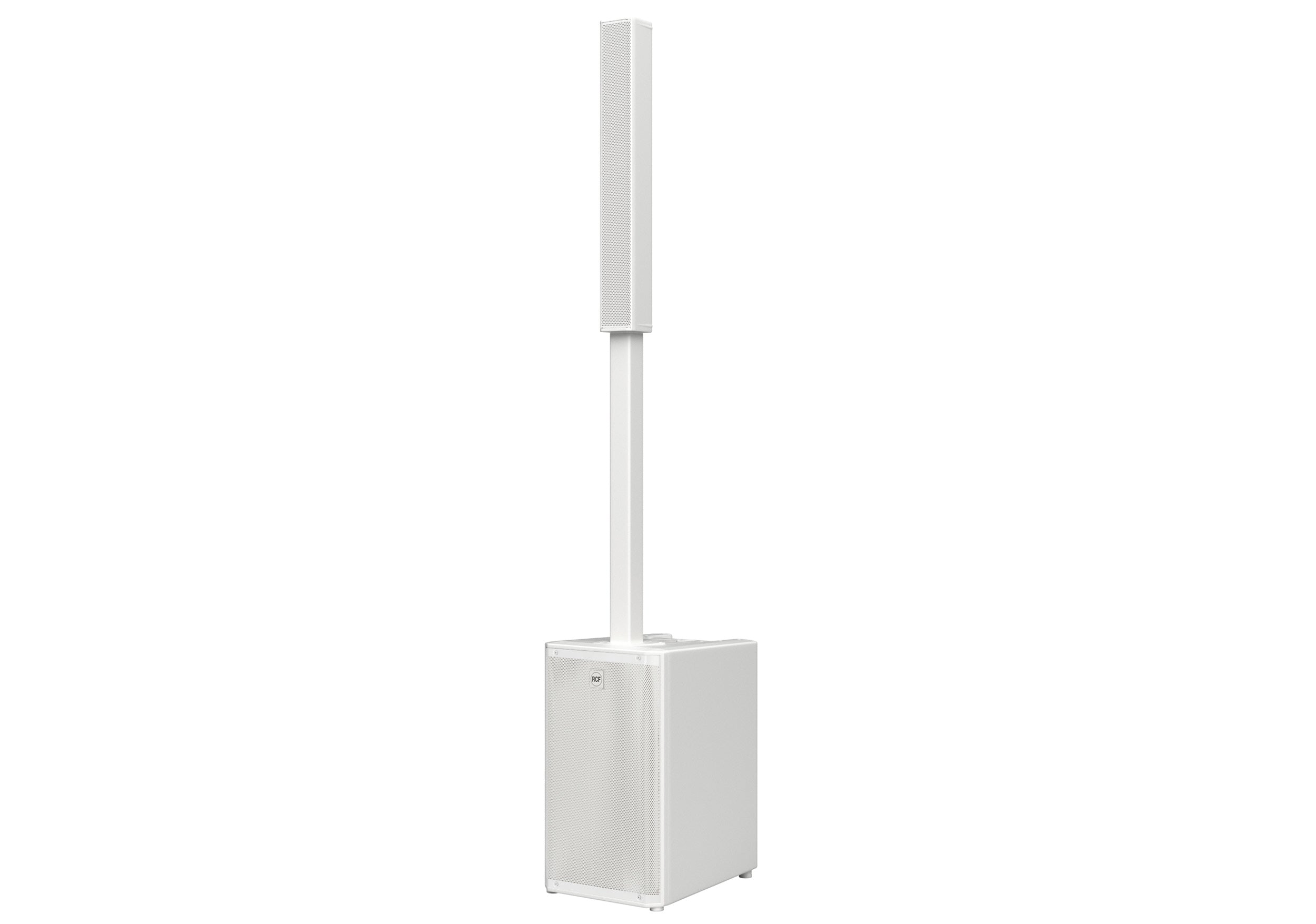

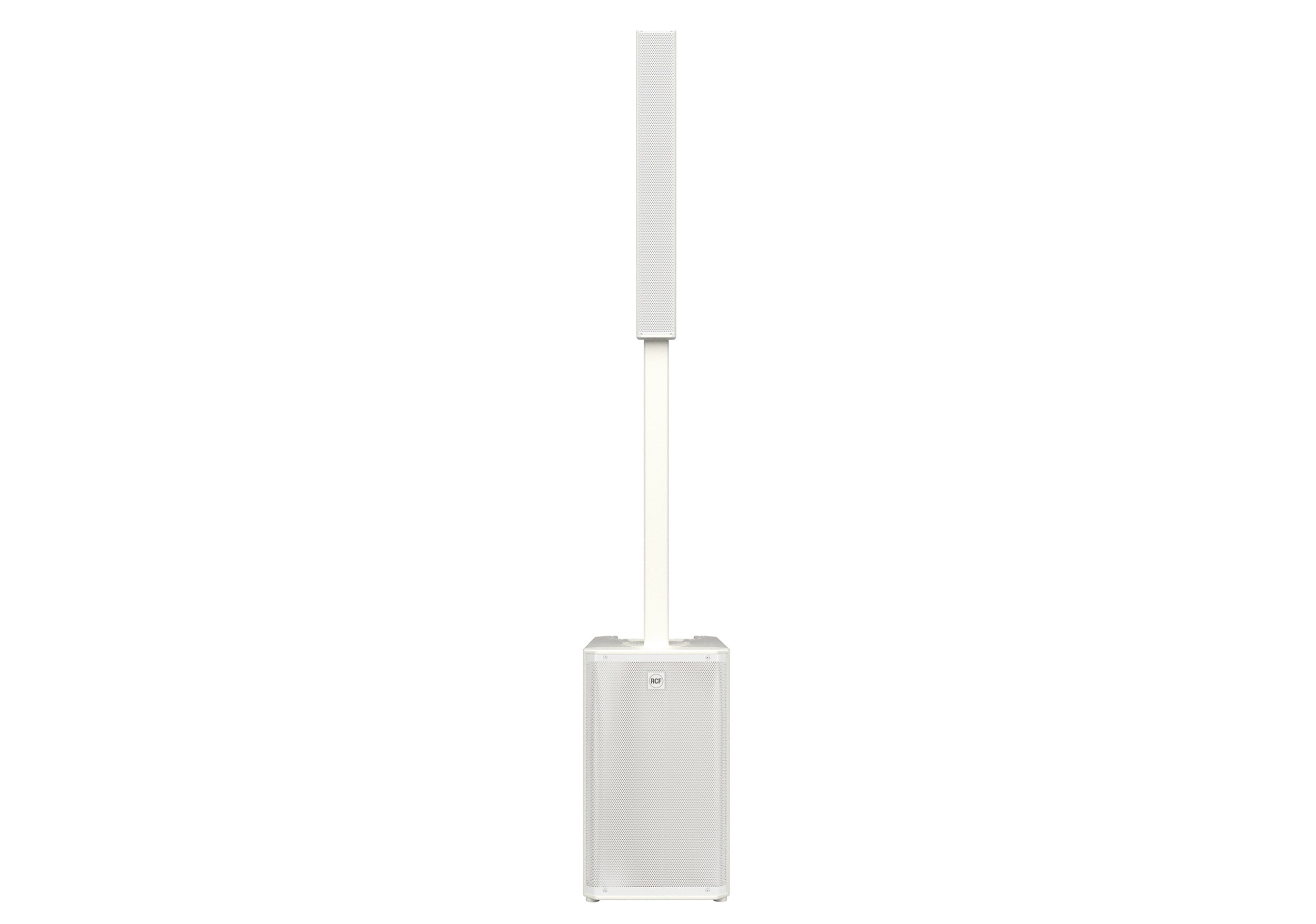

The RCF EVOX JMIX9 W (EVOX JMIX9W) is a portable three-way column PA system with a built-in 8-channel stereo digital mixer, made for DJs, bands, presenters and performers who want one self-contained rig. A 2100 W peak Class-D amplifier drives a 12-inch woofer, six 3-inch drivers and a 1.75-inch compression driver to 130 dB max SPL. This listing is the white finish (RAL 9003) of the EVOX JMIX9.

The mixer has four mic/line combo inputs, each with individual phantom power, a 2.4-inch color touch display with encoders, Bluetooth streaming, and wireless control from the JMixRemote app for iOS and Android over Bluetooth Low Energy. The system includes a lightweight aluminum-alloy pole and a padded carrying bag for the top speaker.

EVOX JMIX9 W specifications

Type Active three-way portable column system with 8-channel digital mixer
Frequency response 40 Hz to 20,000 Hz
Max SPL @ 1 m 130 dB
Coverage (H x V) 120 x 40 degrees, True Resistive Waveguide
Compression driver 1 x 0.75 in neodymium, 1.75 in voice coil
Full-range drivers 6 x 3.0 in neodymium, 1.0 in voice coil
Woofer 1 x 12 in, 2.5 in voice coil
Crossover frequencies 200 Hz / 1800 Hz
Total power 2100 W peak (700 W high frequencies, 1400 W low frequencies)
Mixer 8 channels, 2.4 in color touch display and encoders, Bluetooth streaming
Mic/line inputs 4 combo XLR/jack inputs, individual +48 V phantom power, gain 0 dB to 36 dB
Line inputs 4 mono line (gain 0 dB to 36 dB), 2 stereo line
Channel processing High-pass filter and 3-band EQ on each channel, compressor on channels 1 to 4, stereo reverb send
Output processing 8-band EQ on main output and AUX bus
Outputs Main mix, FX send, AUX send, AUX output, headphones (XLR output for stereo pairing)
Converters 24-bit at 48 kHz A/D and D/A, 32-bit signal processing
Remote control JMixRemote app (iOS and Android) over Bluetooth Low Energy
Presets Live/Linear, Club, Voice
Protection and limiting Thermal and RMS protection, soft limiter
Cooling Convection
Cabinet PP composite
Handle 1 on top
Pole mount Quick-fit socket
Grille Steel
Color White (RAL 9003)
Dimensions (H x W x D) 81.89 x 13.78 x 18.11 in (2080 x 350 x 460 mm)
Weight 58.64 lb (26.6 kg)
Shipping weight 71.65 lb (32.5 kg)
Shipping dimensions (H x W x D) 26.61 x 17.76 x 22.87 in (676 x 451 x 581 mm)

Can I use the JMIX9 W without a separate mixer?

Yes. The 8-channel digital mixer is built into the system, so microphones, instruments and playback sources plug straight into the system. Inputs 1 to 4 are mic/line combo jacks with phantom power, and inputs 5 to 8 take stereo line sources or Bluetooth streaming.

How do I control it from my phone?

Install the JMixRemote app on an iOS or Android device and connect over Bluetooth Low Energy. You can adjust levels, EQ and effects from anywhere in the room, and the mixer also has its own touch display and encoders.

Can I change the height of the column?

Yes. The included aluminum-alloy pole connects the column to the subwoofer, and RCF configures the height from zero offset (column on the bass enclosure) up to a full-length plus half-length pole combination. Pole extension kits are sold separately, such as the white pole extension kit.

Is it good for DJs and live bands?

Yes. RCF designed it for performers, DJs, bands and presenters. The Club preset extends the lows and brightens the highs, the Live/Linear preset is flat, and the Voice preset is tuned for intelligibility.

JMIX9 W or J9 W?

Both share the same speaker: 2100 W peak, a 12-inch woofer, six 3-inch drivers and 130 dB max SPL. The JMIX9 W adds the 8-channel digital mixer with Bluetooth streaming and JMixRemote app control, and weighs 58.64 lb (26.6 kg). The EVOX J9 W has no mixer, is controlled with a volume knob and the same three presets, and weighs 57.32 lb (26 kg). The black version is the EVOX JMIX9.
