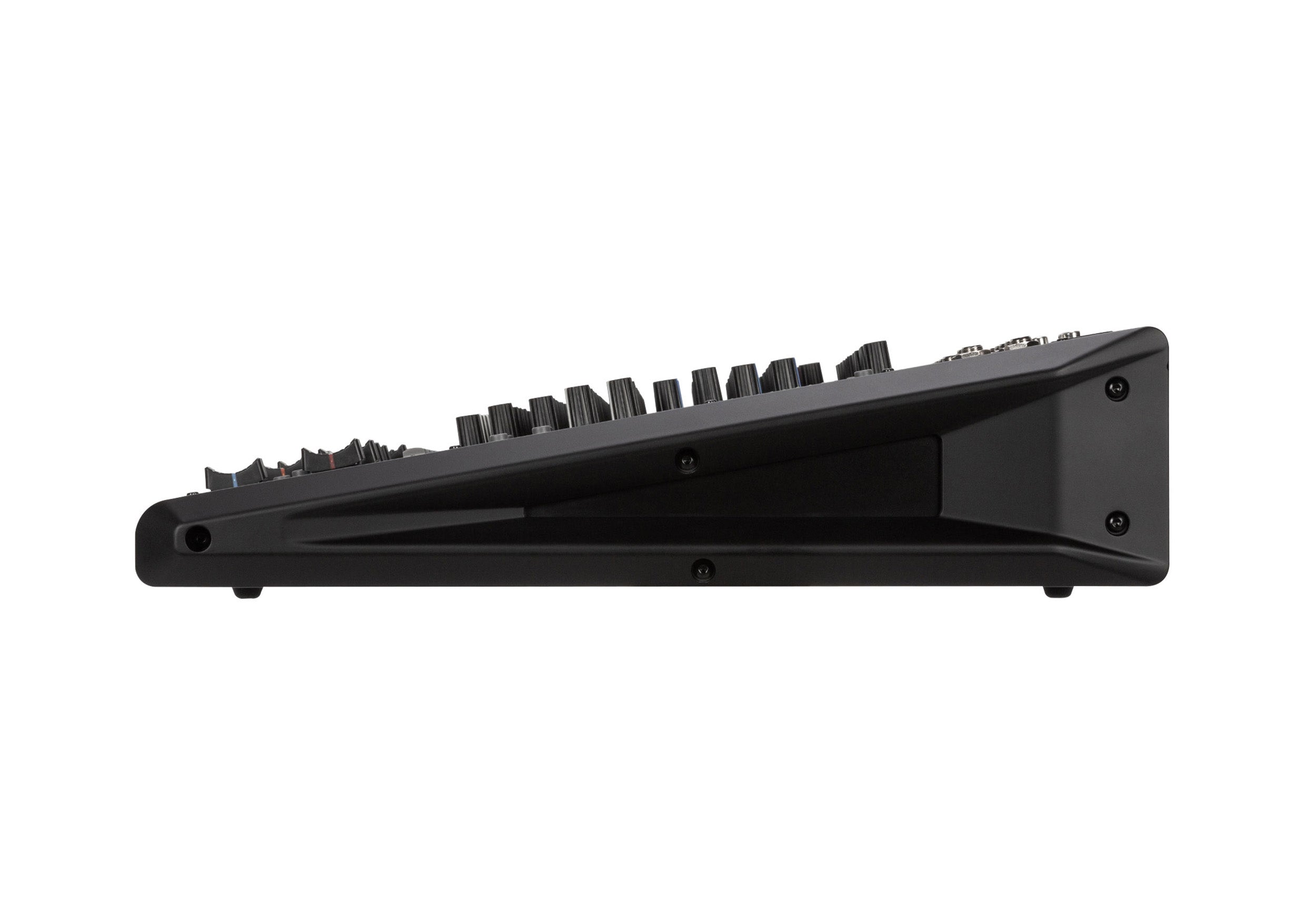

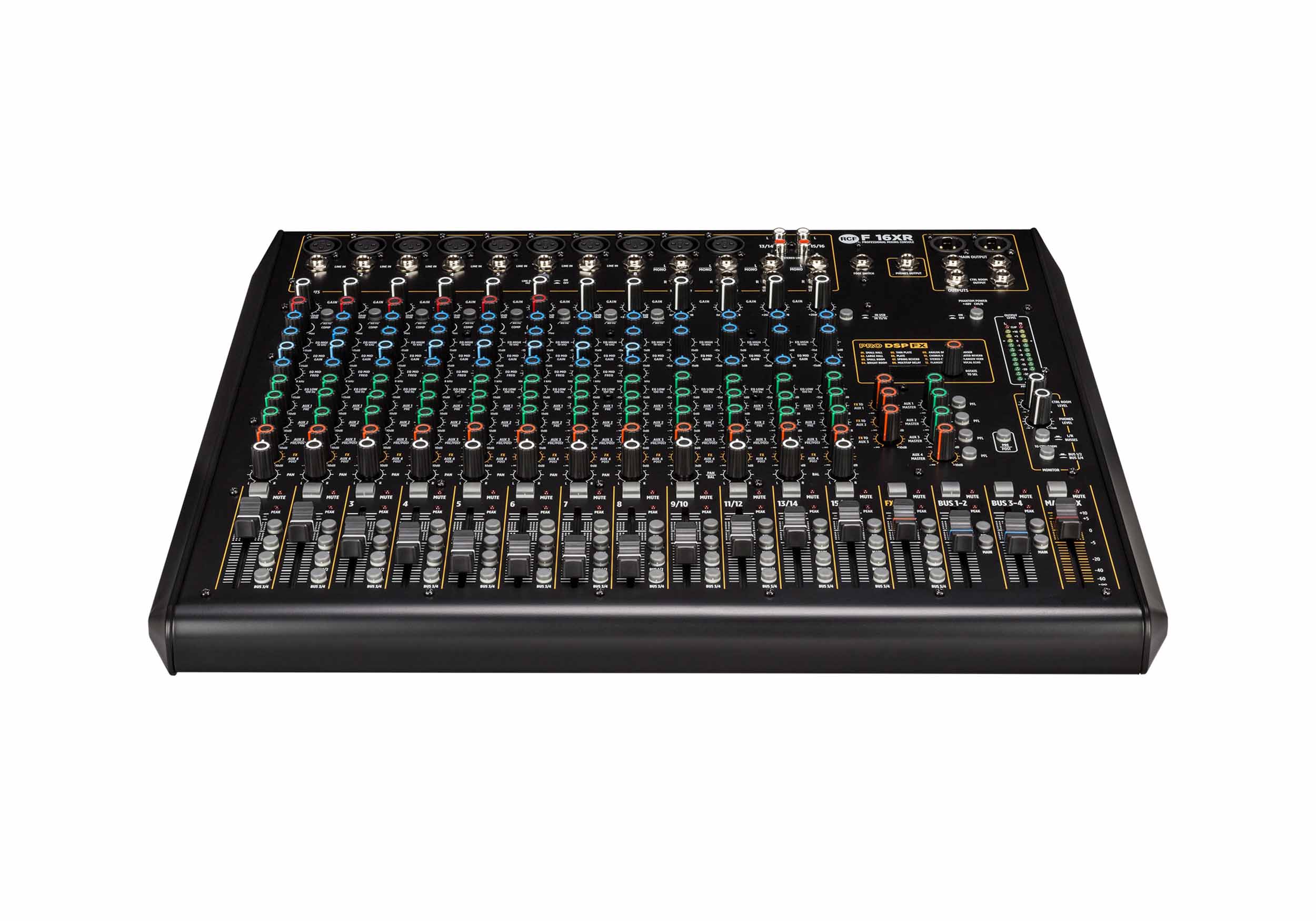

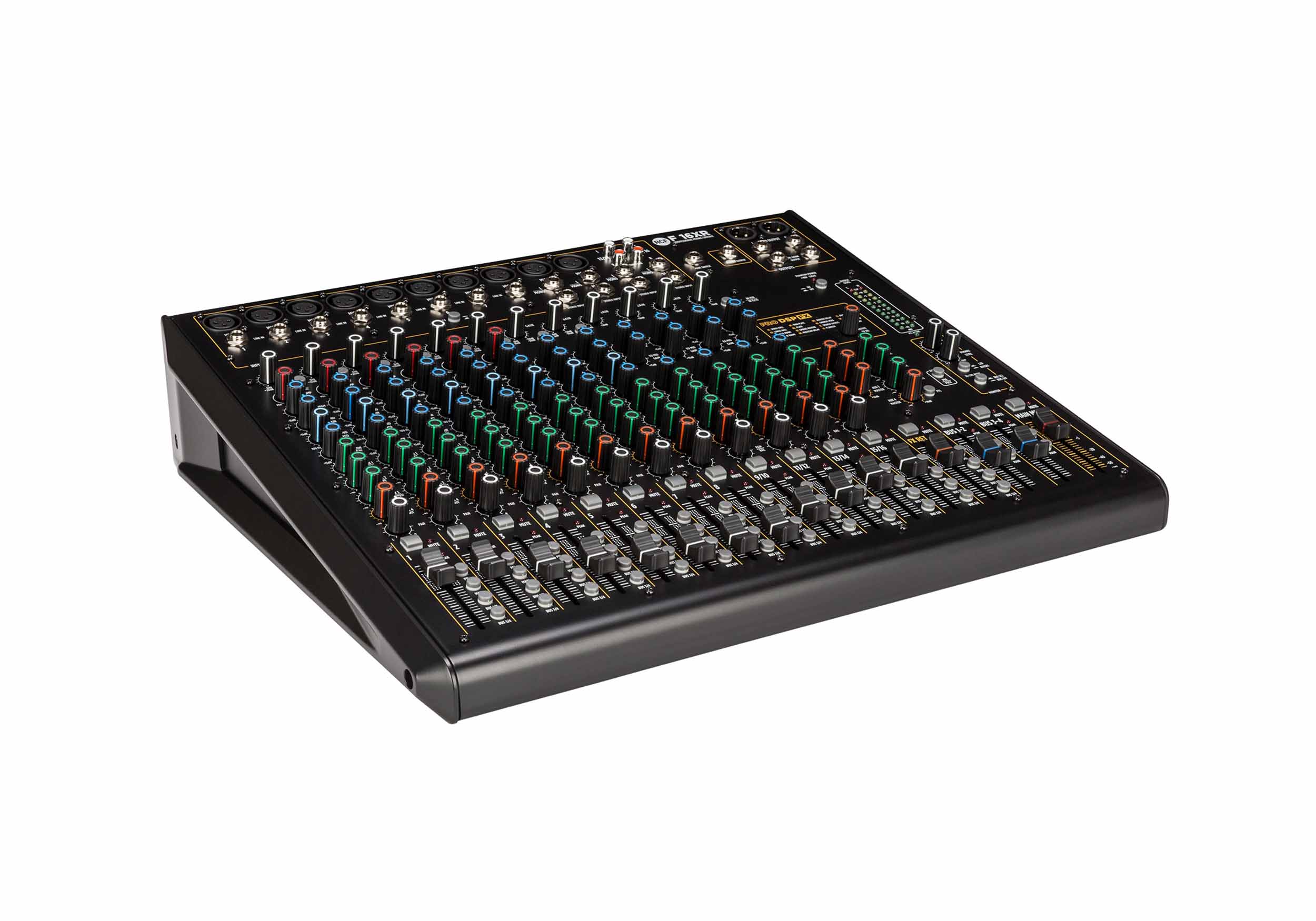

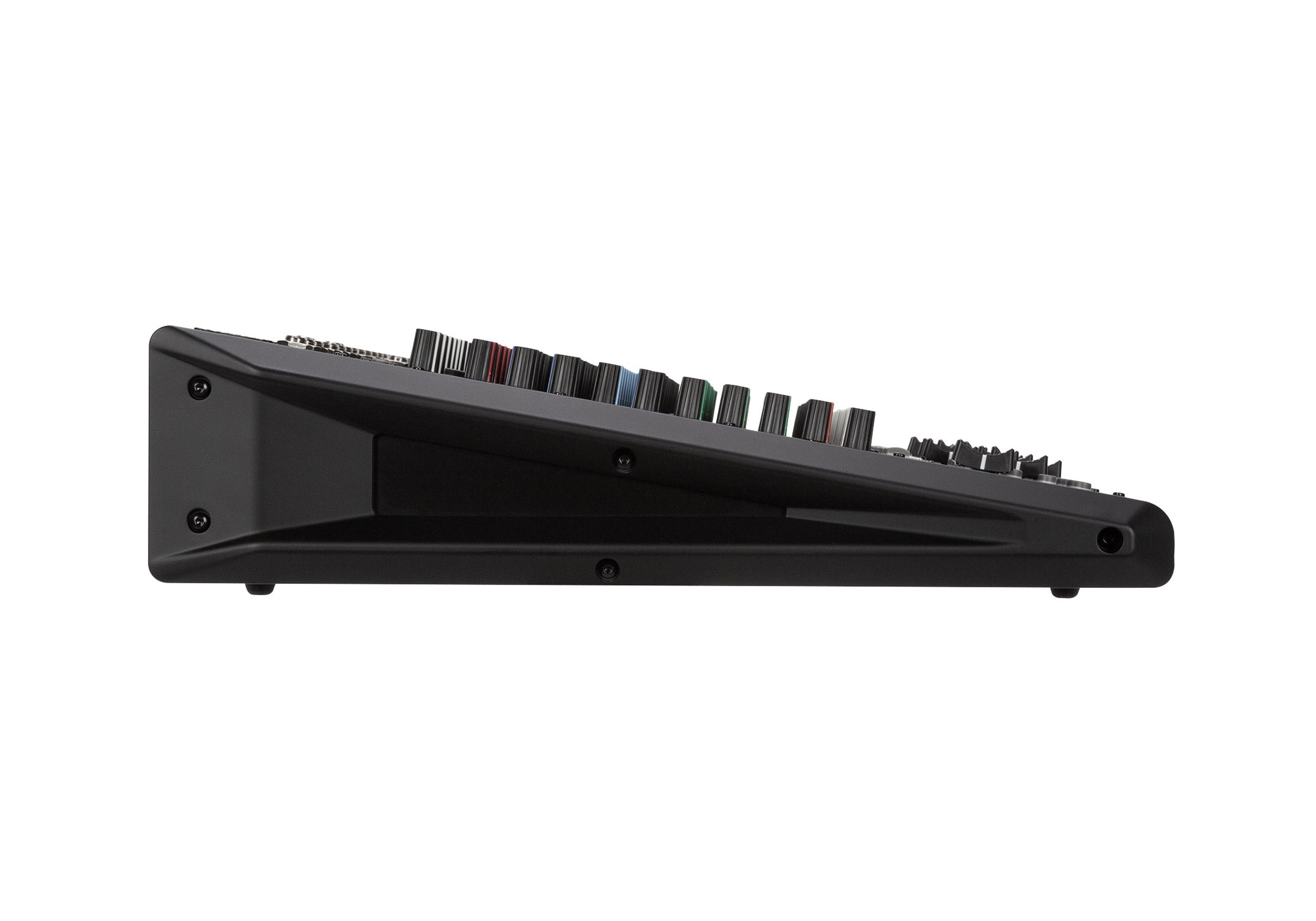

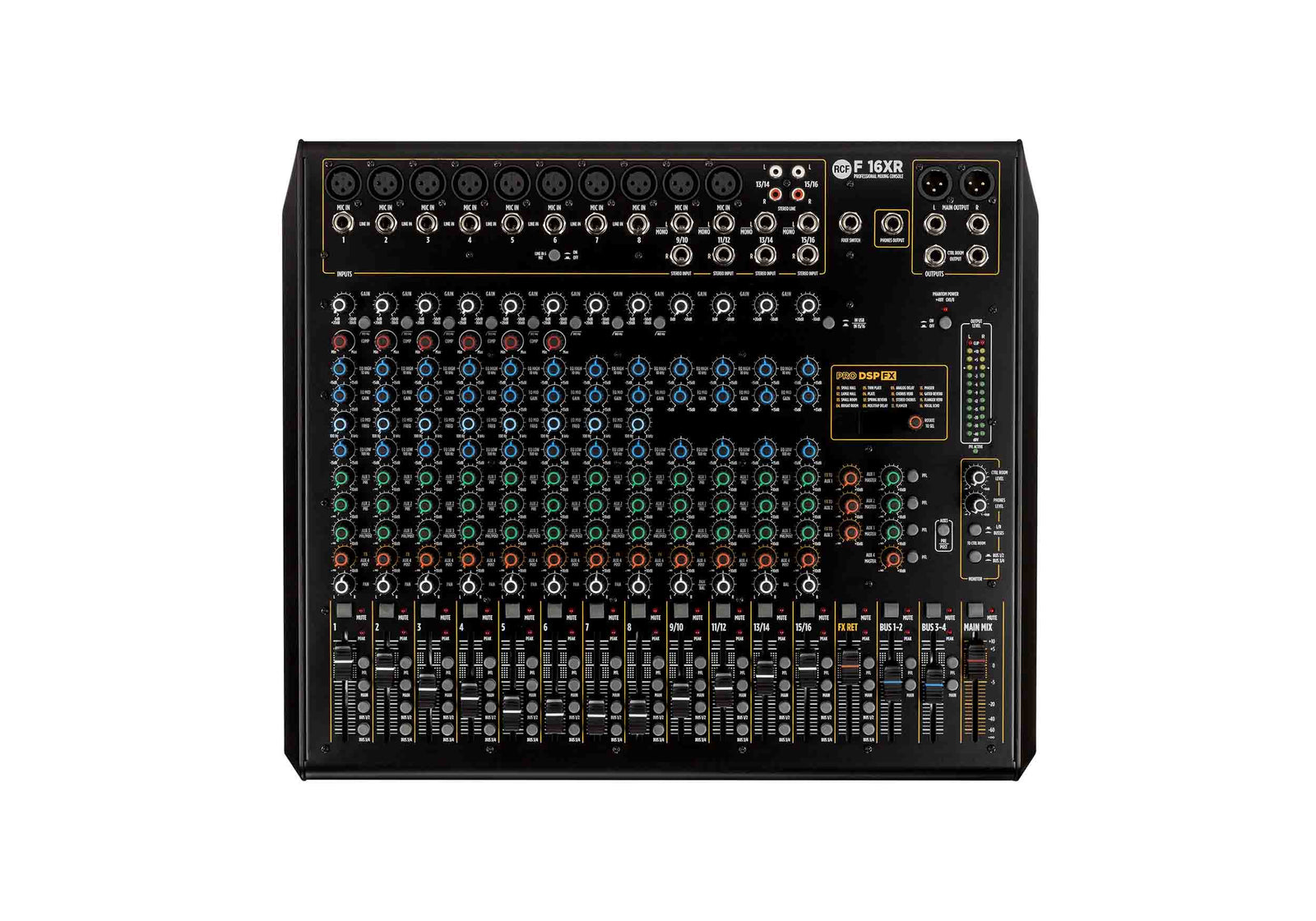

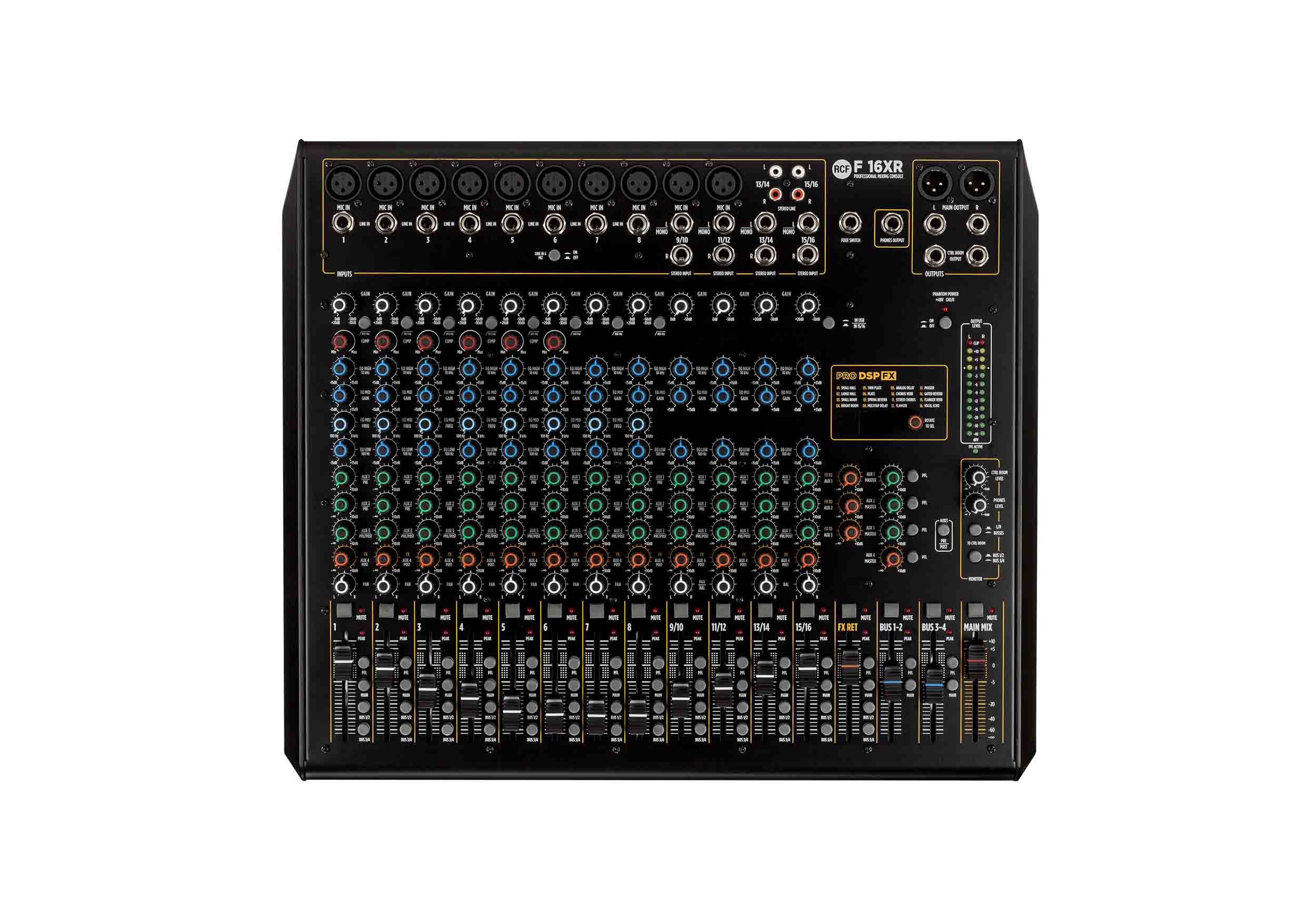

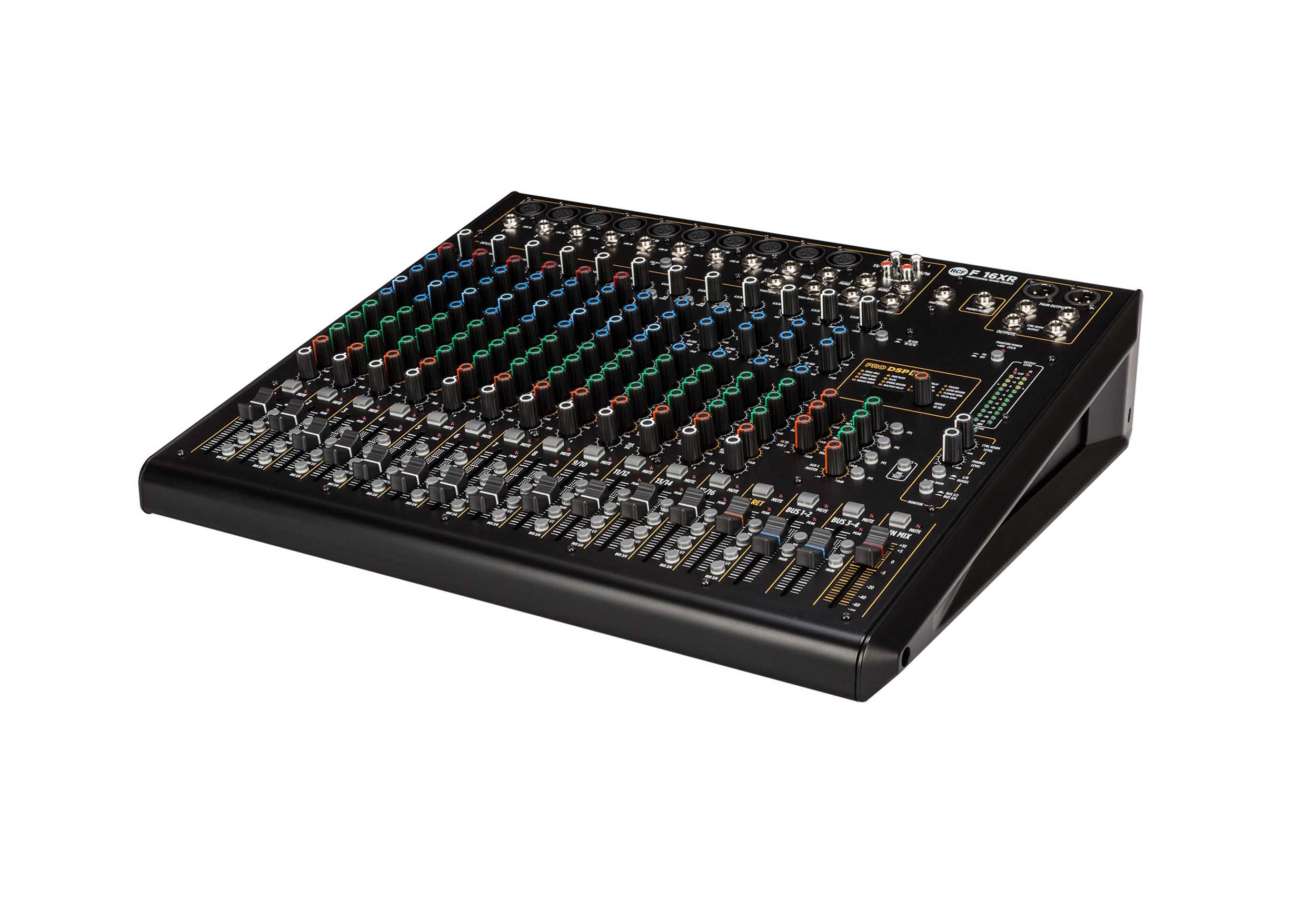

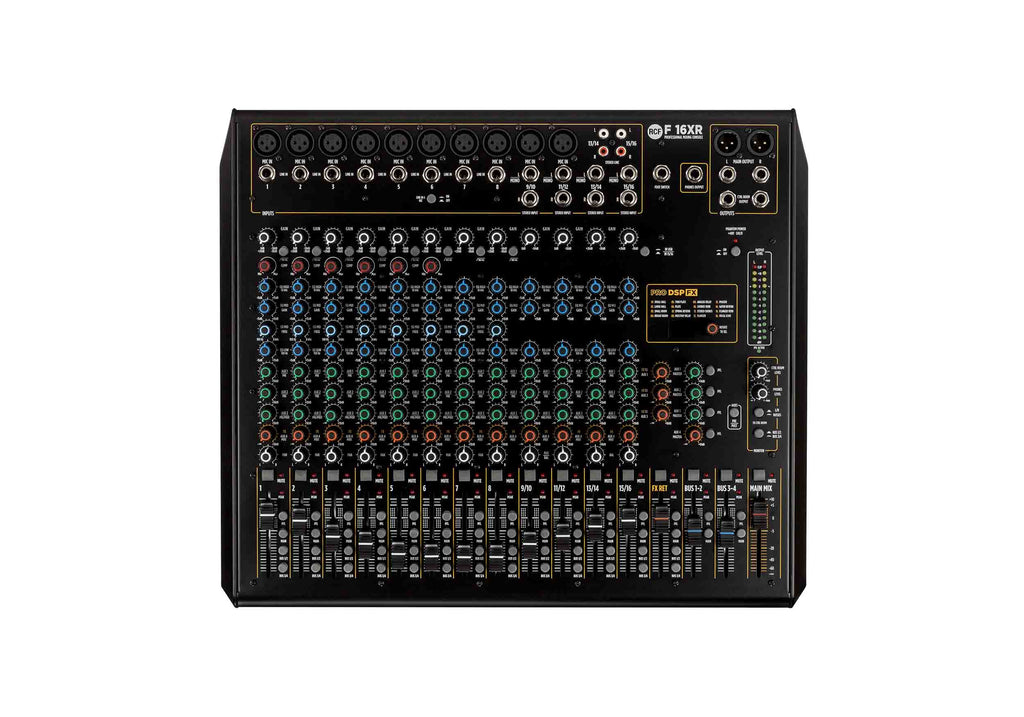

RCF F-16XR 16-Channel Mixing Console with Multi-FX and USB Recording

The RCF F-16XR 16-Channel Mixing Console with Multi-FX and USB Recording is next generation F Series mixers build on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

Product Specifications:

Electronic:

Frequency Response: 20 Hz – 20 kHz

THD+N (20 dB gain, 0 dBu out): < 0.02% A-Weighted

Dynamic Range: > 85 dB

Inputs:

Total Channels: 16

Mic Inputs: 10

Gain Range: 0 dB to –50 dB

Input Noise Level: –124 dBu A-Weighted

Impedance: 14 kΩ

Low Cut: 80 Hz

Phantom Power: +48V

Mono Line Inputs: 8

HI-Z Line Inputs: 1

HI-Z Line Inputs Impedance (Mohm): 1 Mohm

Stereo Line: 4

Gain Selection: 20 dB to –30 dB

Impedance: 21 kΩ

Stereo Line Input Impedance (kOhm): 14 kΩ

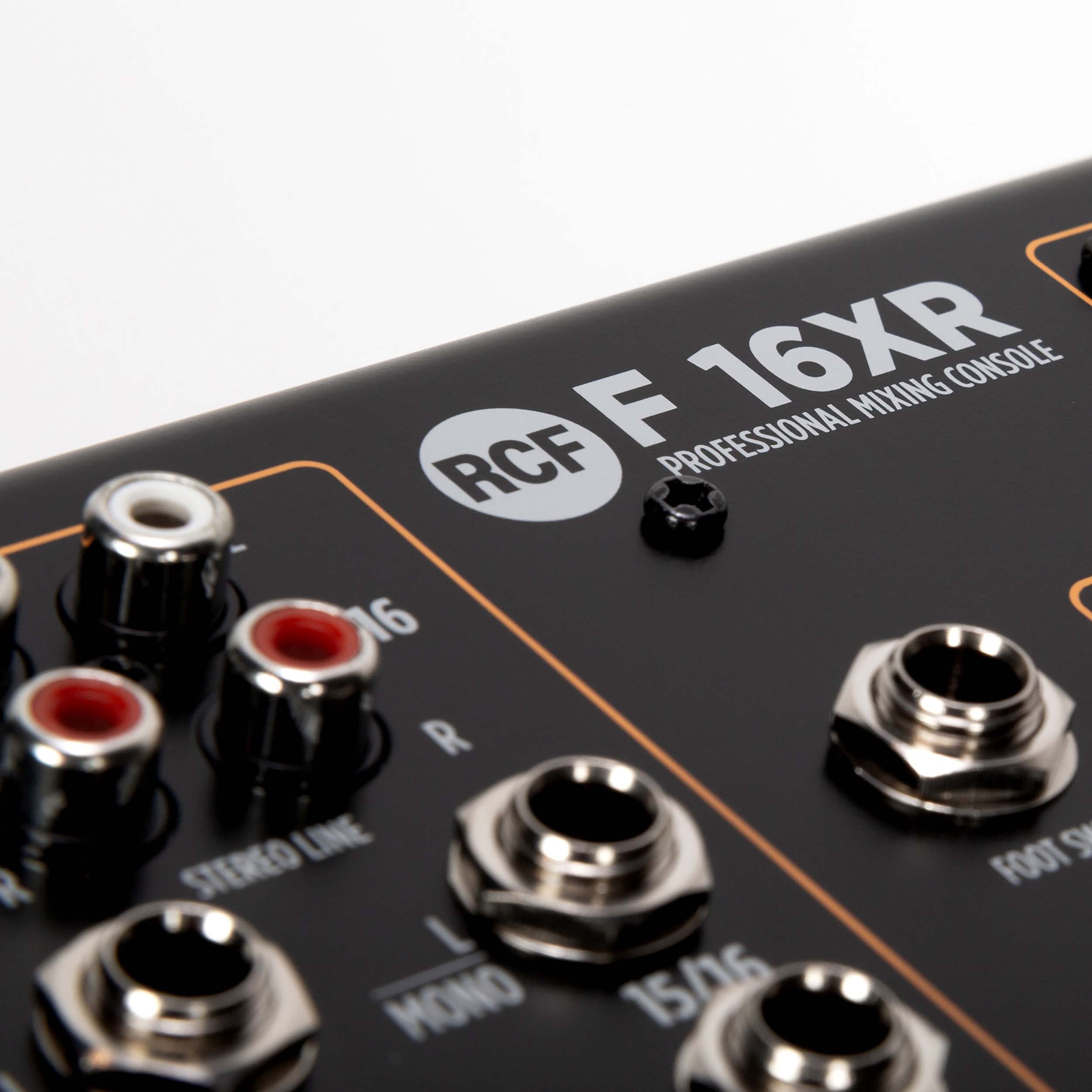

Input Connectors: XLR, Jack, RCA

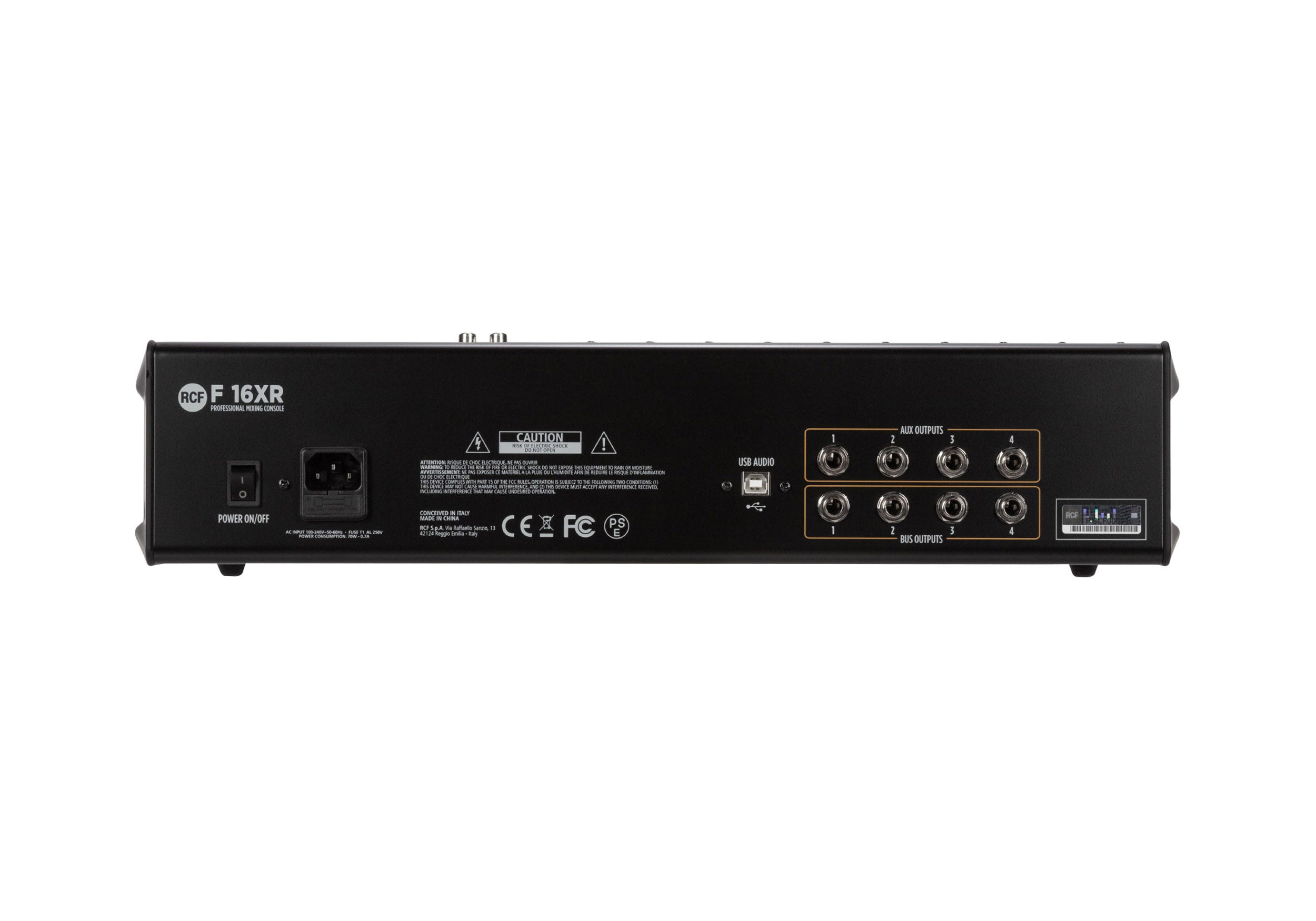

Outputs:

Main Mix: 1

Control Room: Yes

FX Send: 1

Aux Output: 3

AUX Output: 4

Group Out: 4

Phones Output: 1

Output Connectors: XLR, Jack

Output Specifications:

Main Out Level: 28 dBu

Aux Out Level: 28 dBu

Group Out Level: 28 dBu

Phones Output Impedance: 150 Ω

Phones Out Level: 10 dBm

Compressors: 2 × Single-control RCF compressors on channels 1 & 2

EQ Section:

Type: 1 Semi Parametric / 2 Shelving

High: ±15 dB @ 10 kHz (shelving)

Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz - Bell

Low: ±15 dB @ 100 Hz (shelving)

Auxiliary Sends / FX:

AUX: 2 PRE / 1 PRE/POST

FX Post: 1

Send Effects: 1

USB Audio Interface: Yes

Connection Type: USB Type-B

Playback Tracks: 2

Recording Tracks: 2

Supported Sample Rates: 44.1 / 48.0 kHz

Other Features:

Footswitch input: Yes

Electrical Specifications:

Power Supply: Internal

Voltage Requirements: 100 – 240 V

Power Consumption (Max): 30 W

Standard Compliance:

Safety Agency: CE Compliant

Physical Specifications:

Cabinet / Case Material: Metal

Color: Black

Height: 107 mm / 4.21 inches

Width: 479 mm / 18.86 inches

Depth: 406 mm / 15.98 inches

Product Weight: 6.4 kg / 14.11 lbs.

Shipping Height: 150 mm / 5.91 inches

Shipping Width: 453 mm / 17.83 inches

Shipping Depth: 523 mm / 20.59 inches

Shipping Weight: 7.4 kg / 16.31 lbs.
