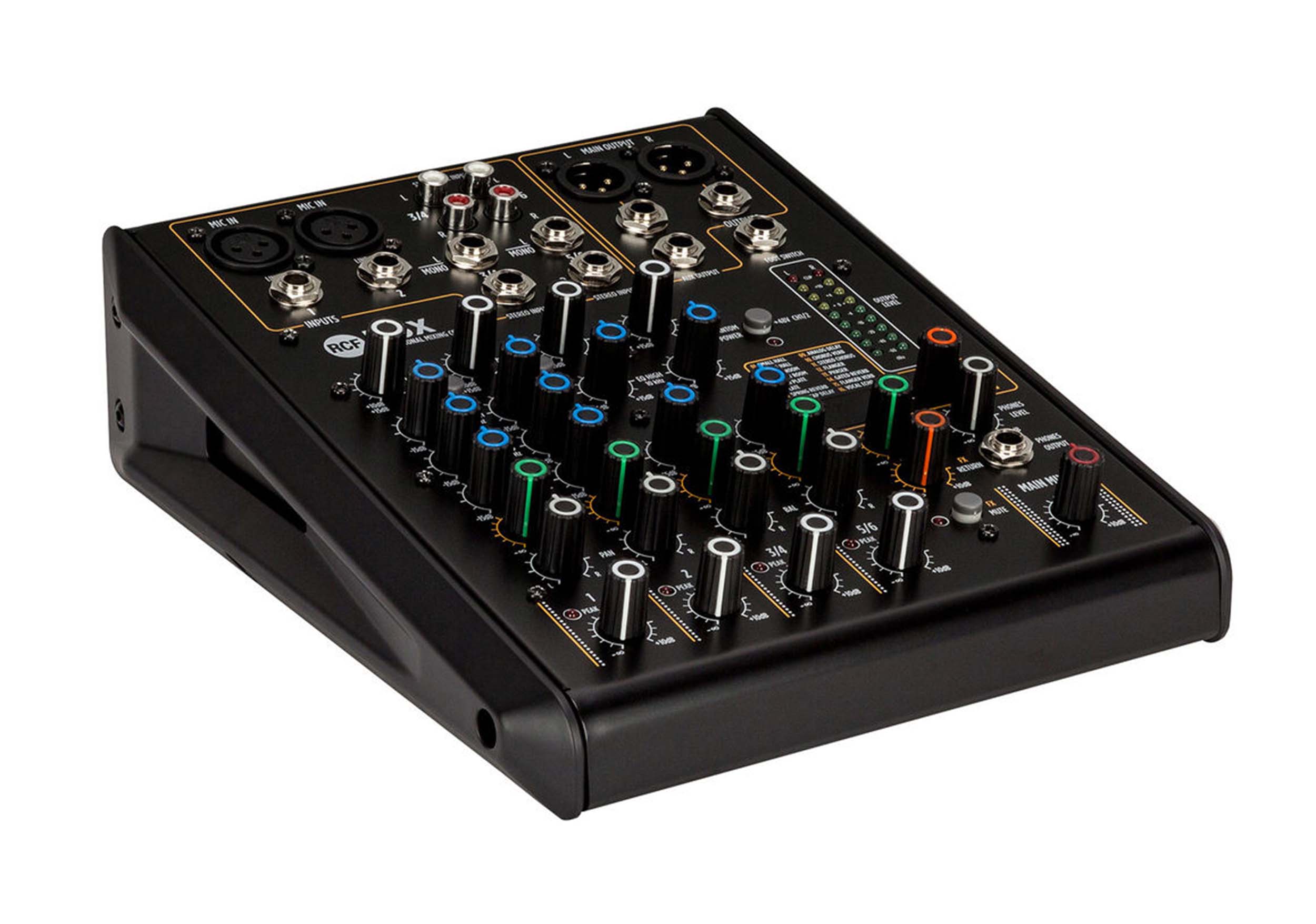

RCF F6-X, 6-Channel Mixer with Multi-FX

audio mixerThe RCF F6-X is a compact and durable 6-channel mixer designed for live sound applications, home studios, and portable setups. It features two mono mic/line inputs and two stereo line inputs, with high-quality preamps delivering clear and dynamic sound. The built-in 24-bit digital effects processor offers 16 studio-grade effects, including reverb, delay, flanger, and echo. Mono channels include a 3-band EQ for precise sound shaping, while stereo channels feature a 2-band EQ. The mixer provides +48V phantom power for condenser microphones and includes multiple output options, including balanced XLR and 1/4” main outputs, as well as a dedicated headphone output for monitoring. Built with a sturdy metal chassis, the F-6X is reliable for both stage and studio use.

Product Specifications:

Inputs:

Microphone Inputs: 2 x XLR

Mono Line Inputs: 2 x 1/4"

Stereo Line Inputs: 4 x 1/4" (2 stereo pairs)

RCA Inputs: 4 x RCA (2 stereo pairs)

Footswitch Input: 1 x 1/4"

Gain Range: 0 to -50 dB

Input Impedance:

Mic: 14 kΩ

Mono Line: 21 kΩ

Stereo Line: 15 kΩ

Low Cut Filter: 80 Hz

Outputs:

Main Outputs: 2 x XLR, 2 x 1/4"

Auxiliary Output: 1 x 1/4"

Headphone Output: 1 x 1/4"

Output Level: 28 dBu

Headphone Impedance: 150 Ω

Equalization:

Mono Channels:

High: ±15 dB @ 10 kHz (shelving)

Mid: ±15 dB @ 1250 Hz (bell)

Low: ±15 dB @ 100 Hz (shelving)

Stereo Channels: 2-band EQ

General:

Frequency Response: 20 Hz – 20 kHz

THD+N: < 0.02% (20 dB gain, 0 dBu out, A-weighted)

Phantom Power: +48V

Power Supply: 12V DC, 2000 mA (external adapter: 100-240V AC, 50/60Hz)

Power Consumption: 12W

Material: Metal chassis

Dimensions (D x H x W): 255 x 79 x 210 mm (10 x 3.1 x 8.3")

Weight: 1.8 kg (4 lbs)

Shipping Weight: 2.75 kg (6.065 lbs)

Box Dimensions (L x W x H): 16.1 x 10.5 x 5.1"
