Description

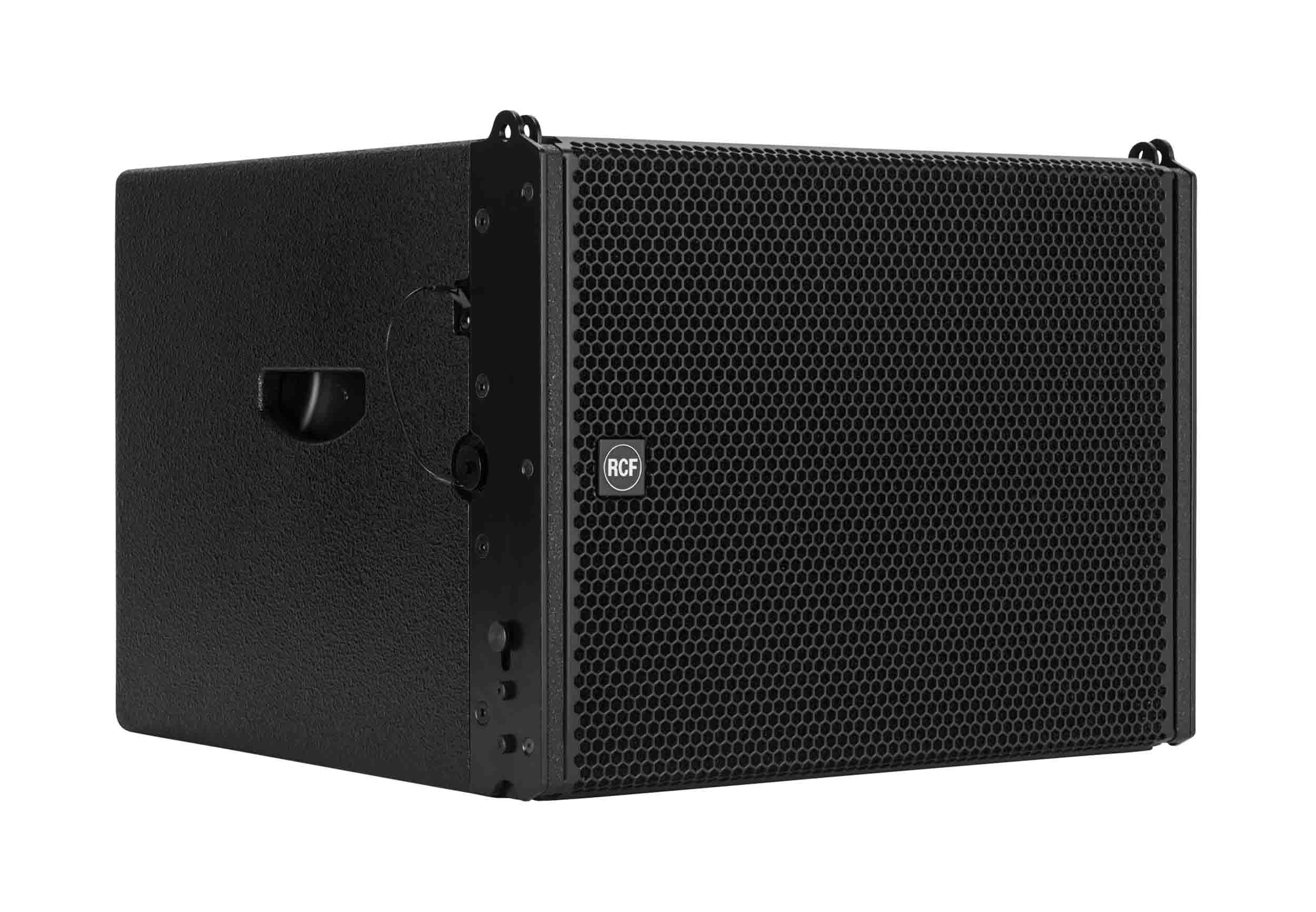

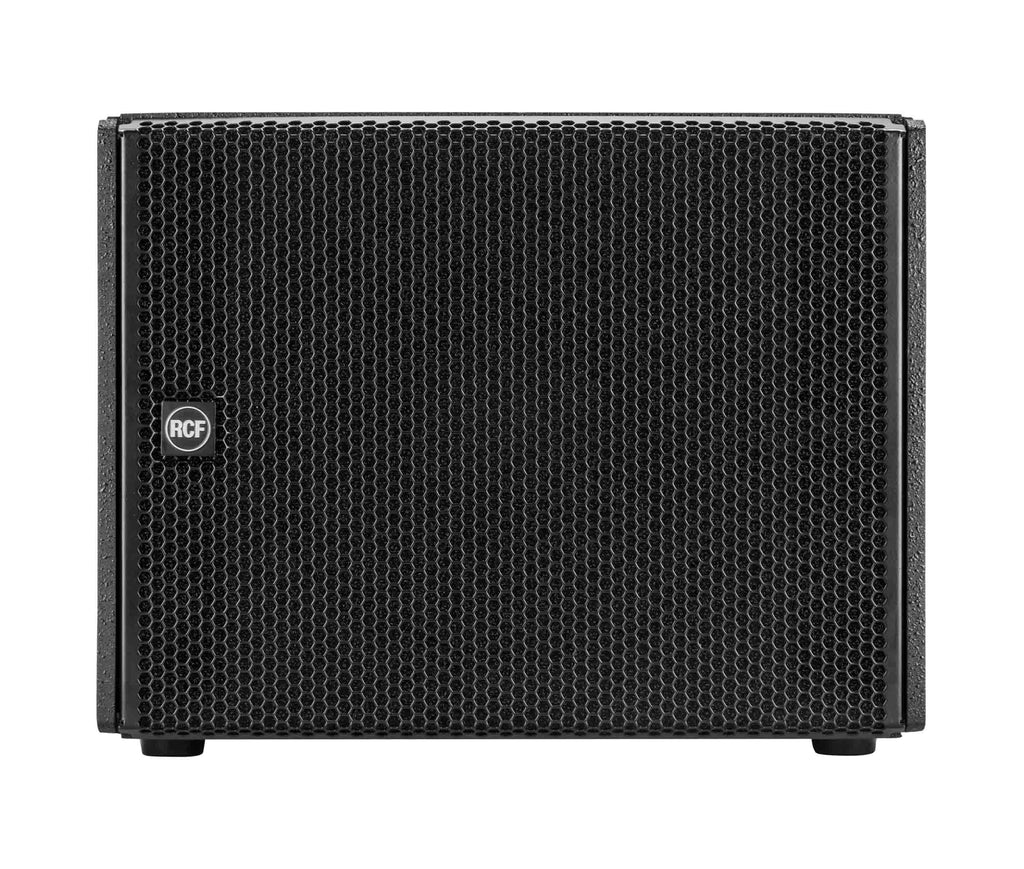

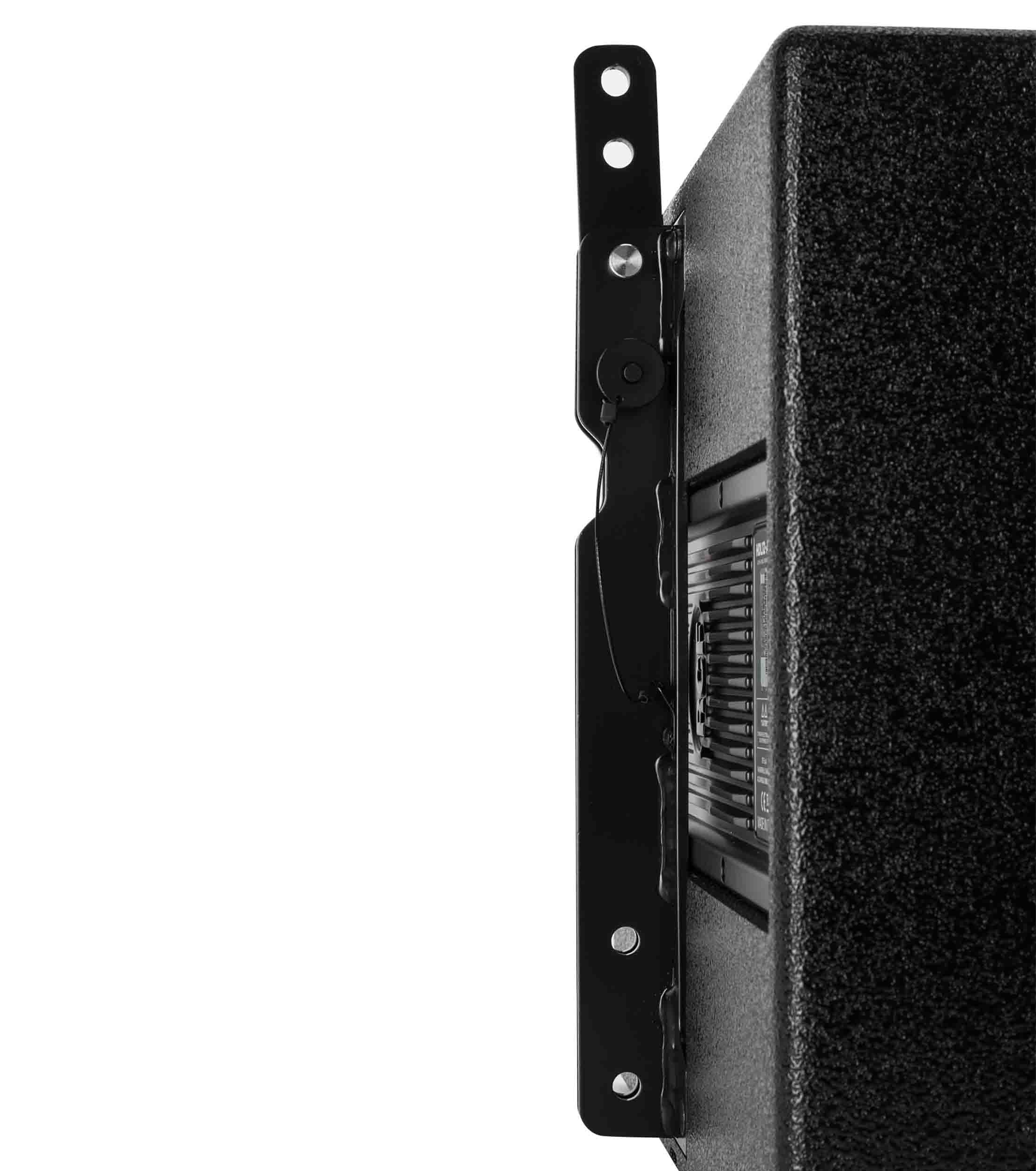

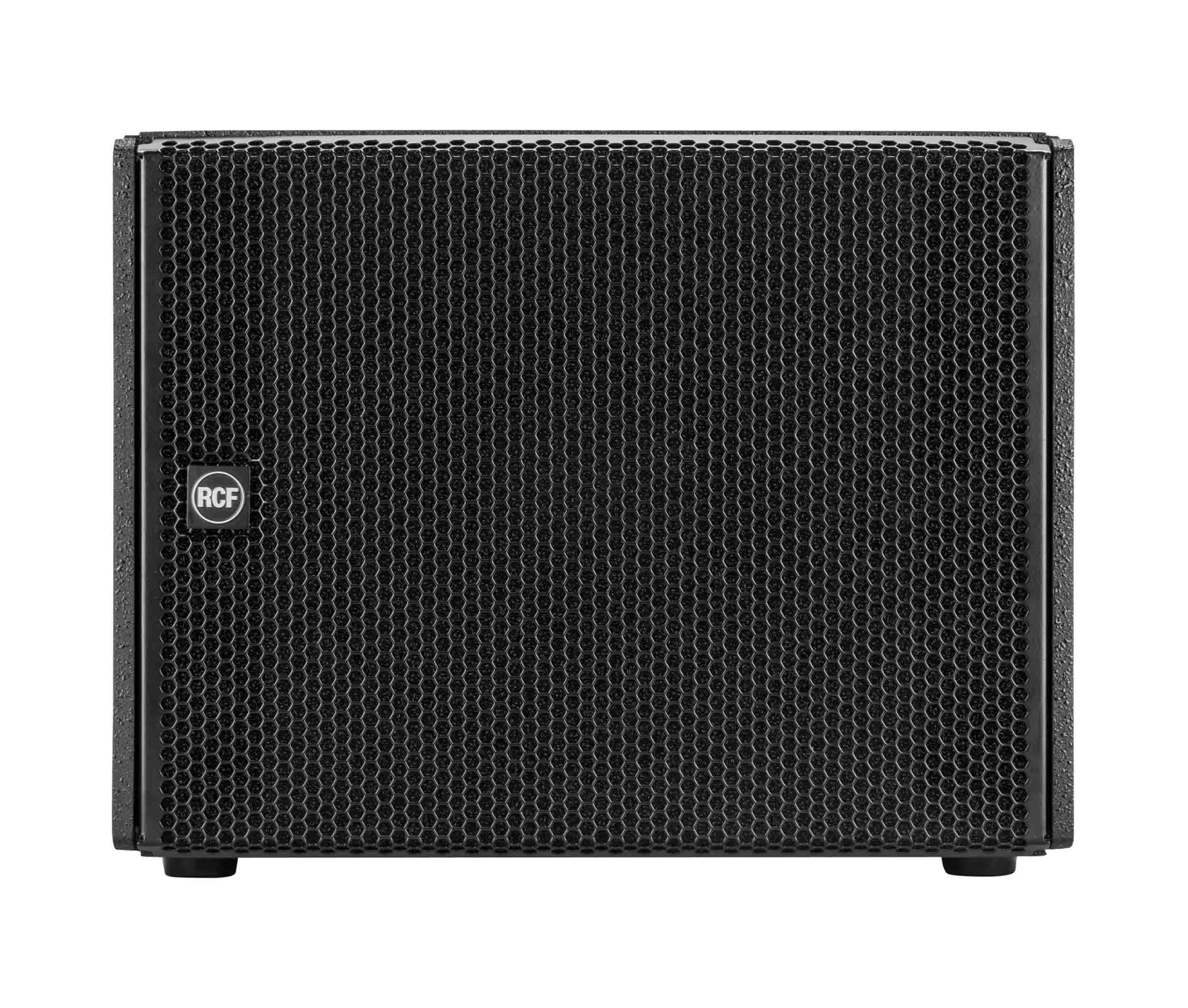

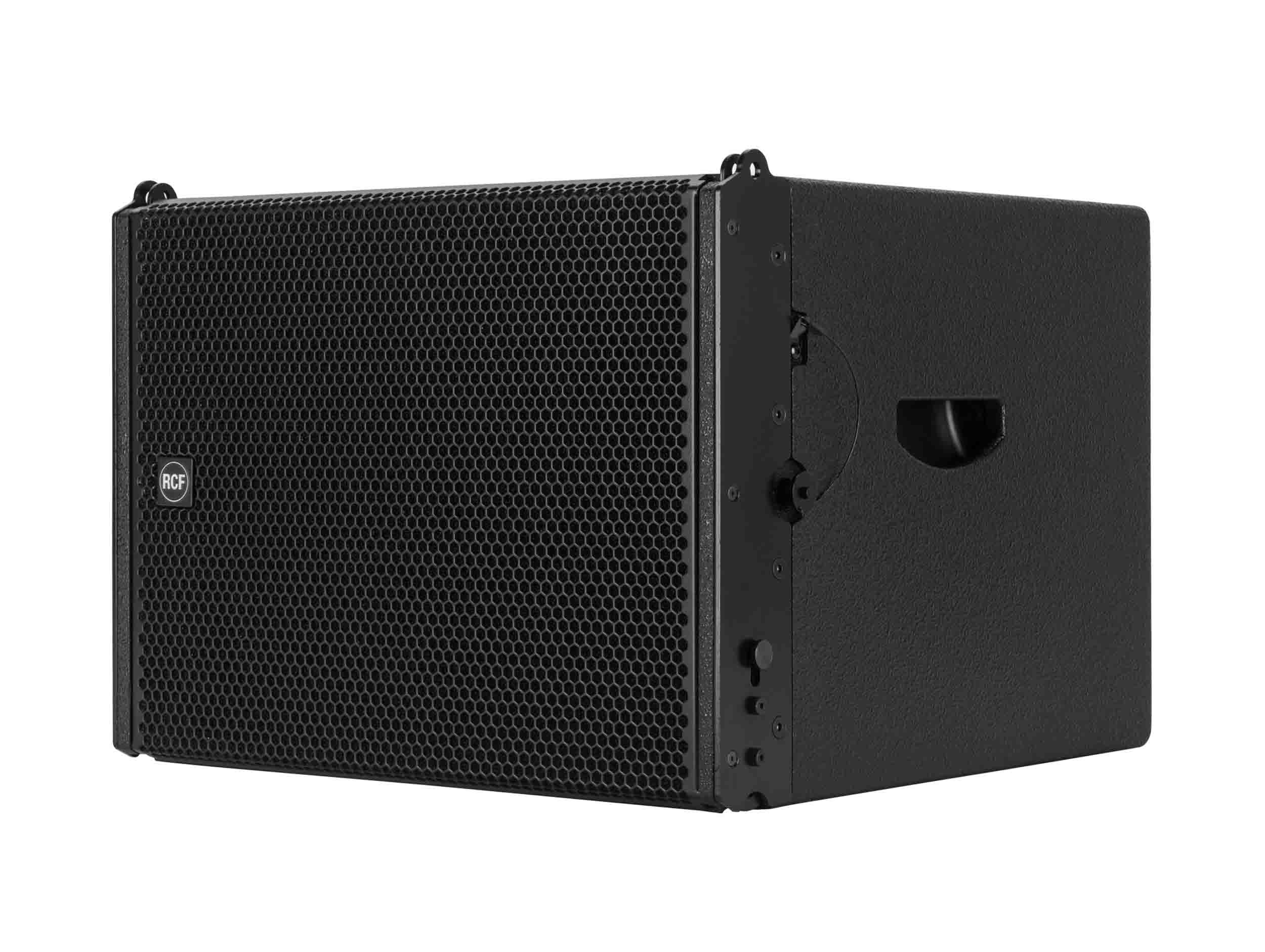

The RCF HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12” woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.
Product Specifications
Enclosure Type: Subwoofer
Total Power Capacity:
700 W RMS
1400 W Peak
MF Driver: No

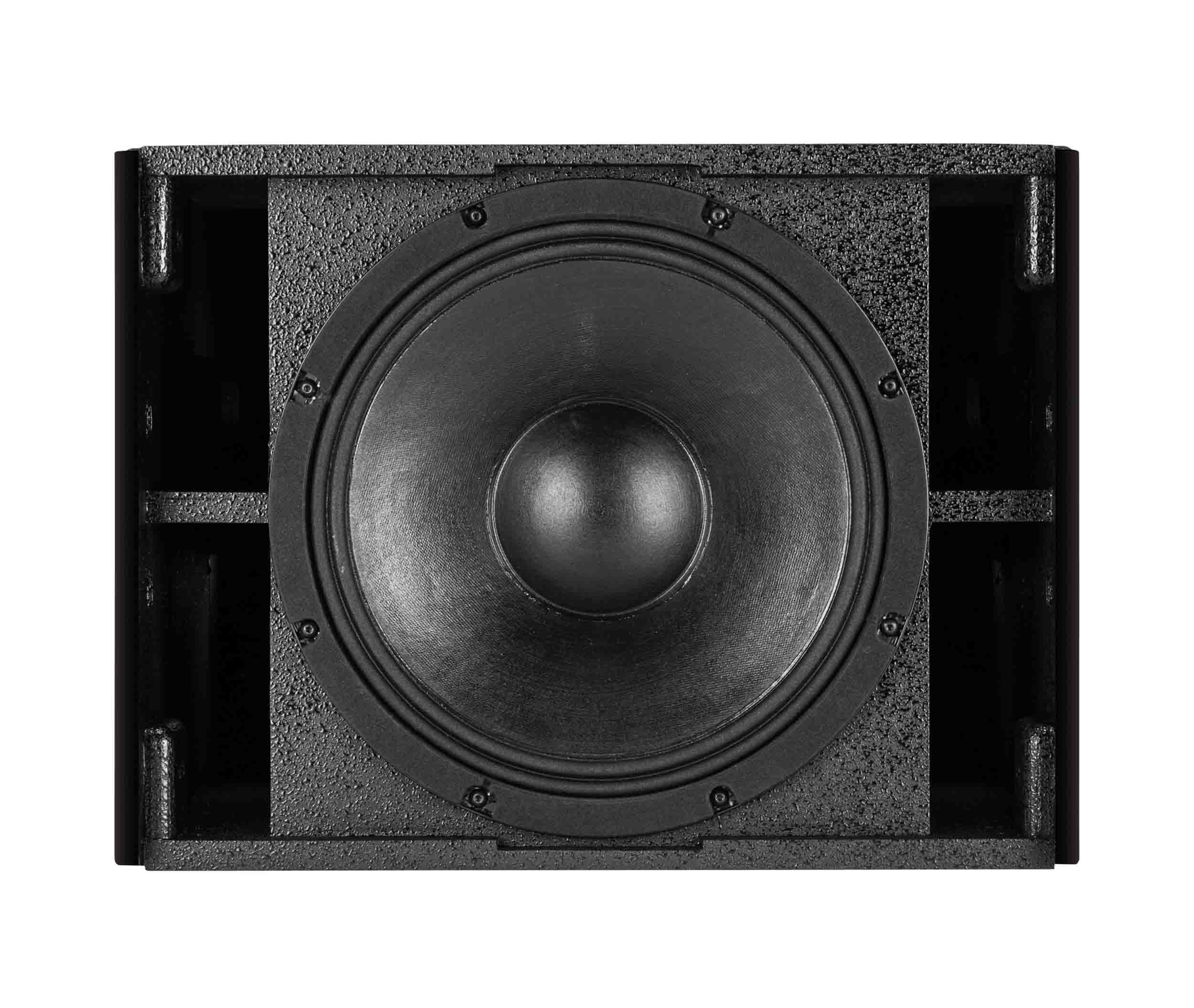

LF Driver: 1x 12" / 304.8 mm
LF Voice Coil: 3" / 76.2 mm
Frequency Response: 40 Hz to 120 Hz
Maximum SPL: 131 dB
Input Sensitivity: -2 dBu
Protections: RMS, Thermal

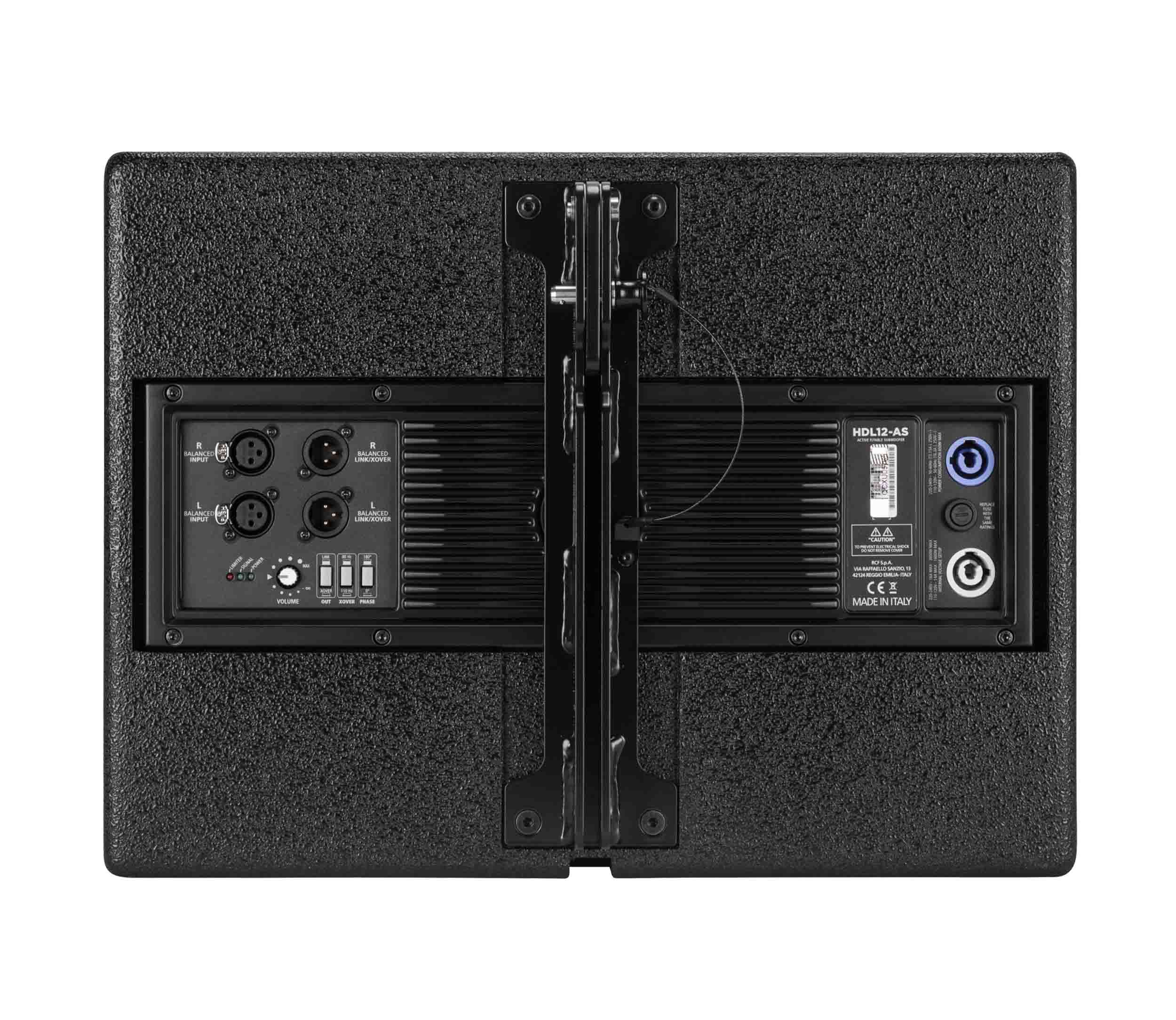

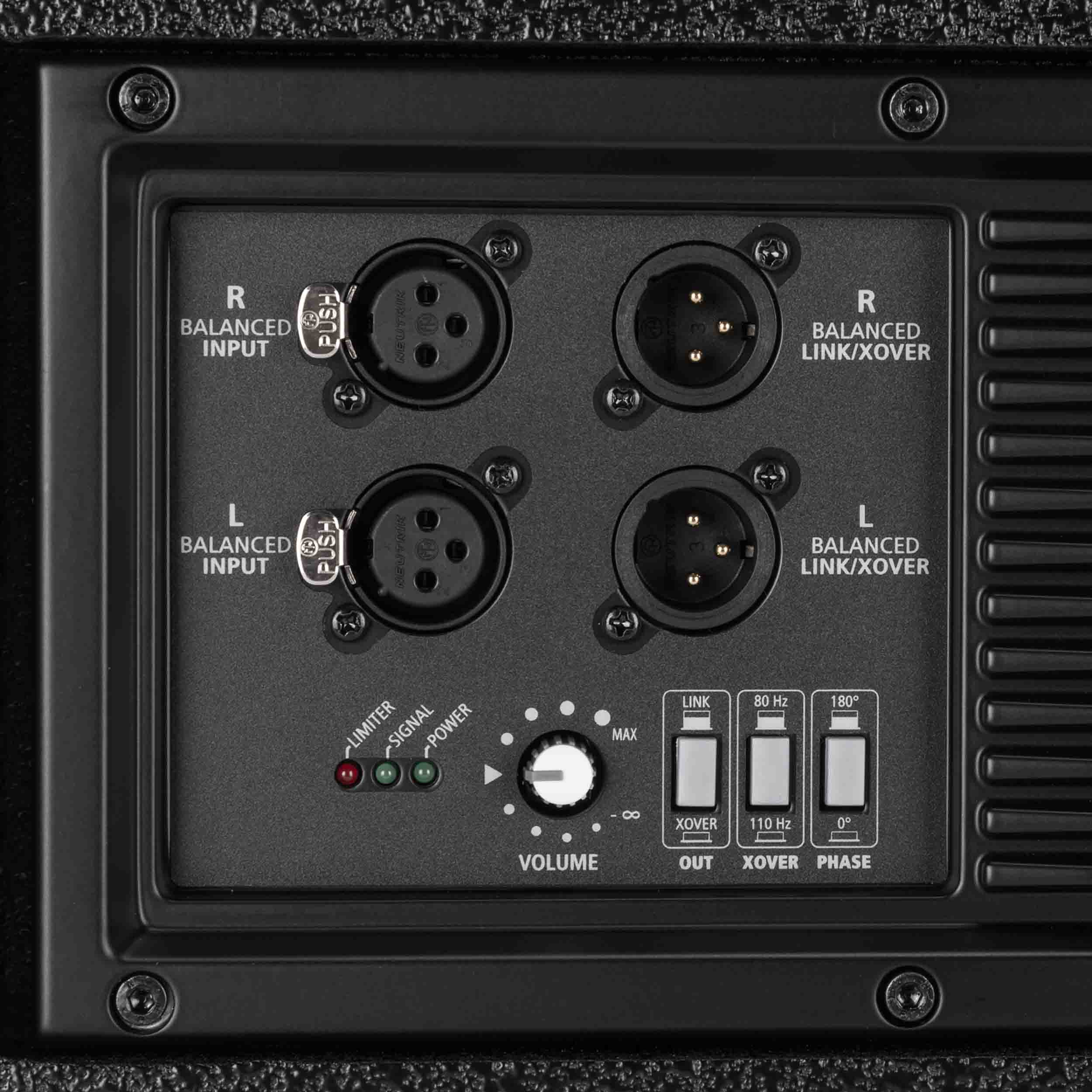

Audio I/O:
2x XLR 3-Pin Female Balanced/Unbalanced Input
2x XLR 3-Pin Male Balanced Link Output
Network I/O: No
USB I/O: No
Wireless Connectivity: No
Crossover
Low-Pass: 80 to 110 Hz
High-Pass: 40 Hz
EQ: Yes
Parametric EQ: No
Semi-Parametric EQ: No
Filters:No
Dynamic Processing: Soft Limiter
Alignment Delay: No
Phase Adjustment: Yes

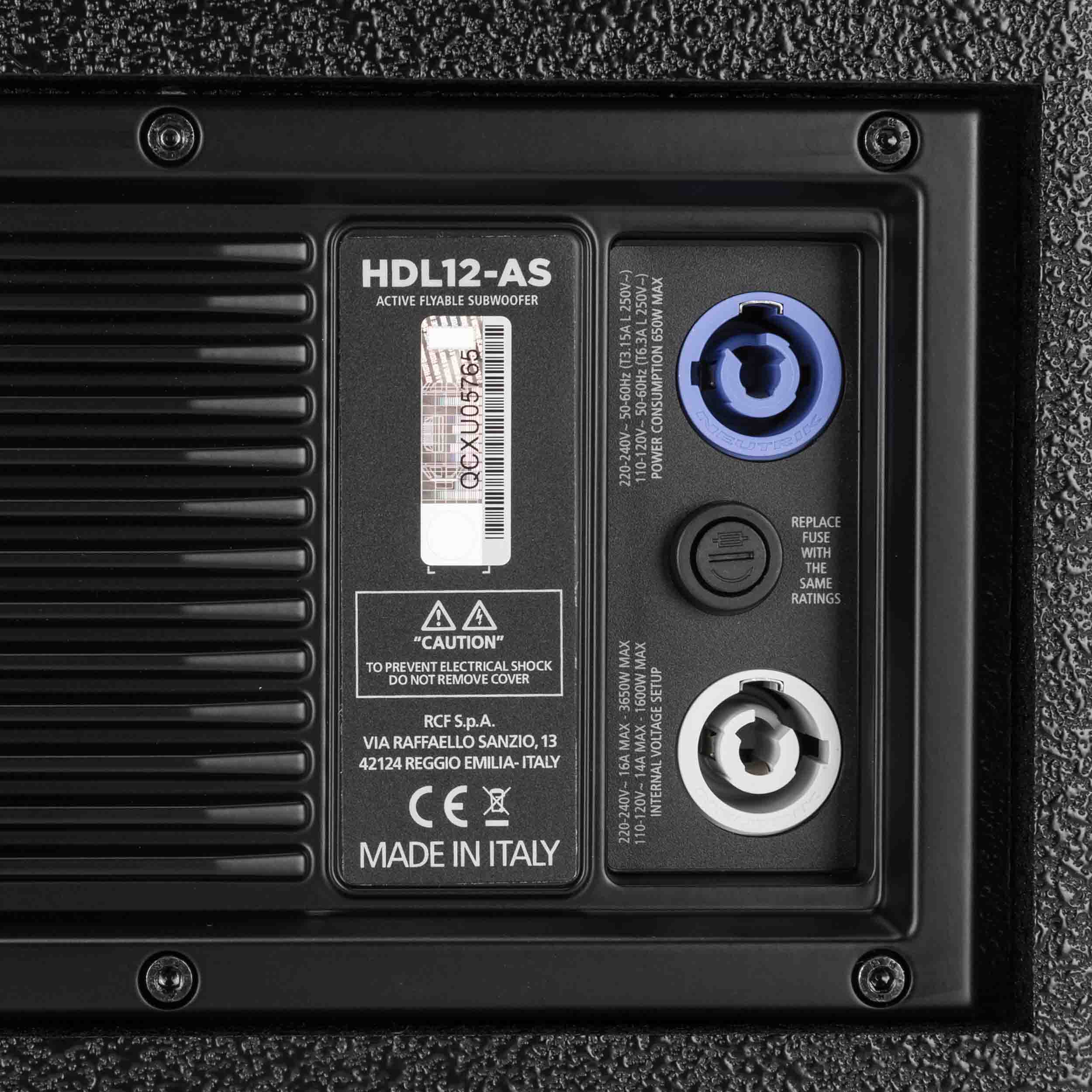

AC Input Power: 115 to 230 VAC, 50 / 60 Hz (3.15 A 250 V)
AC Power I/O:
1x powerCON Input (Locking)
1x powerCON Output (Locking)
Handles: 2x Side
Cooling: Convection
Environmental Protection: No
Construction Material: Plywood
Dimensions: to 14.918.5 x 20" / to 469.9 x 508 mm
Weight: 55.1 lb / 25 kg
