Description
This package includes two RCF HDL10-A-W 1400W Dual 8-Inch Active Line Array Modules in white and one ProX XS-SP252521W Line Array Speaker Case. The HDL10-A-W speakers deliver powerful, high-performance sound with excellent clarity and coverage while maintaining a clean white finish ideal for installed and live sound applications. The included ProX flight case provides secure storage and reliable protection during transport, making this package a practical solution for professionals who need both premium audio performance and dependable equipment protection.

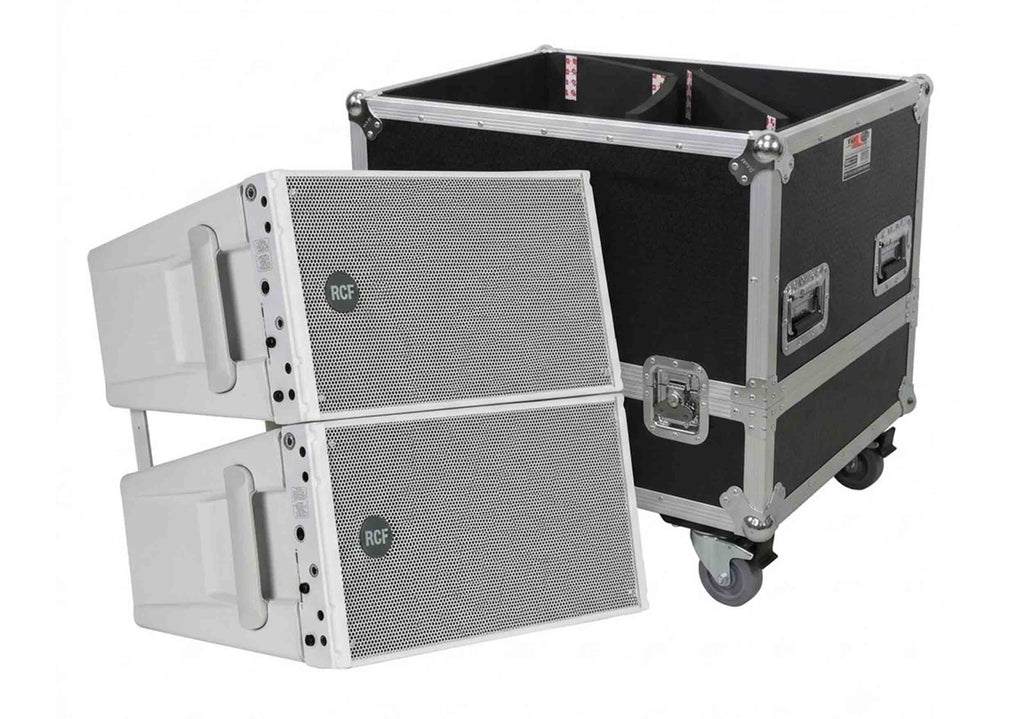

This Package Includes
- 2 x RCF HDL10-A-W, 1400W Dual 8-Inch Active Line Array Module - White
- 1 x ProX XS-SP252521W Line Array Speakers Case for HDL 28A & HDL10A
2 x RCF HDL10-A-W, 1400W Dual 8-Inch Active Line Array Module - White
The RCF HDL10-A-W 1400-Watt Dual 8-Inch Active Line Array Module is designed for use in live sound reinforcement and installed situations. The system is powered from a 1400W peak power two-way digital amplifier (400W for the HF and 1000W for the LF), and sound is processed from a powerful DSP. The system features two 8" transducers with a 2" voice coil for a solid bass reproduction, and a large-format 2" compression driver to deliver vocal clarity and high definition. The custom-designed waveguide allows a coverage of 100 x 15°, whilst also delivering linear high-frequency response.
The ND 640 compression driver's 2.5" voice coil allows a crossover point of 800 Hz, which allows a wide vocal range to be produced by this driver. The DSP also includes presets for indoor/outdoor usage and highly curved arrays. The back-panel controls allow a number of simple optimizations to be carried out: two possible HF settings, four possible cluster configurations, an EQ setting for high-curved configurations, and an Indoor Correction EQ. A volume knob allows to set the overall volume of the speaker, according to its application. This unit provides Power, Signal, and Status LEDs for monitoring the system.
The HDL10-A-W features configurable mechanic; angles between cabinets are selectable with 2° resolution and allow the system engineer to create J-shaped or spiral arrays. HDL10-A-W cabinets are molded on a polypropylene composite material designed to dampen-down vibrations, even at maximum volume settings. The module is equipped with two aluminum side handles with a rubber handgrip for portability. The system is equipped with a heavy-duty fly bar. The steel construction mechanics make it possible to fly up to 16 modules in daisy chain manner.
Product Specifications:
Configuration: Active 2-Way
Enclosure Type: Sealed Line Array
Amplifier Class: Class-D
HF Driver: 1 x 2" / 50.8 mm Compression Driver
HF Voice Coil: 2.5" / 63.5 mm
MF Driver: None
LF Driver: 2 x 8" / 203.2 mm Carbon Fiber Woofer
LF Voice Coil: 2" / 50.8 mm
Magnet: Ferrite
Frequency Response: 65 Hz to 20 kHz
Maximum SPL: 133 dB
Coverage Angle: 100° H x 15° V
Input Sensitivity: +4 dBu to -2 dBu
Protections: RMS, Thermal
Handles: 2 x Side
Cooling: Convection
Construction Material: Composite
Weight: 51 lbs
Dimensions: to 11.522.4 x 17" / to 569 x 431.8 mm
Package Weight: 56 lbs
Box Dimensions (L x W x H): 25.5 x 19.7 x 14.6"
1 x ProX XS-SP252521W Line Array Speakers Case for HDL 28A & HDL10A
The ProX XS-SP252521W Universal ATA Line Array Speakers Flight Case For (2) HDL 28A HDL10A - 25x25x21” is designed to protect your speakers. It features a 3/8" laminated plywood with a hard shell and internal impact-resistant padding, ensuring the best protection for your speakers during transit or storage. This universal case fits many brands of speakers, with interior dimensions of 25" x 25" x 21". Equipped with four steel 4" casters (2-locking), this heavy-duty case will effortlessly get your gear where it needs to be. It is ideal for AV production companies, touring bands, entertainment groups, mobile DJs, and more. ProX Cases are expertly crafted to safeguard your valuable investment.
The Build
All ProX cases are manufactured using CNC technology to ensure consistent build quality and strict specifications. Since 1984, ProX has been renowned for its high-quality standards in case production.
Everyday Protection
Our cases are constructed with our signature Honeycomb Digital™ Surface protective laminated 3/8" plywood. The sleek look incorporates a hexagonal grid pattern on the shell of each surface, offering protection against minor scratches and scuffs.
Environment Safety
We strive to make a cleaner world by minimizing damage to the environment, so we switched the production of our high-density rubber foam inserts. Our rubber and foam padding contains 70% recycled materials of that recycled content, most comes from recycled plastic bottles you throw out every day, and the remaining is from recycled post-industrial material.
Fits:
BASSBOSS: BB15
DAS: EVENT-26A
Electro-Voice: ELX200-18SP
JBL: SRX906LA
Meyer Sound: MJF-210
QSC: LA108
RCF: HDL 10-A / HDL10-A, SUB 15-AX, SUB 705-AS II, SUB 905-AS II, TTL 31-A II, SUB905AS / SUB705AS
Subwoofers.
Yorkville: PSA26
Note: This is just a case. Any gear shown in product images is not included.
Product Specifications:
Interior Dimensions: 25.00"H × 25.00"W × 21.50"L
Exterior Dimensions (with casters): 34.00"H × 26.50"W × 22.50"L
Weight: 70.00 lbs.
Shipping Weight: 75.00 lbs.
Shipping Dimensions: 30.00"H × 28.00"W × 24.00"L
