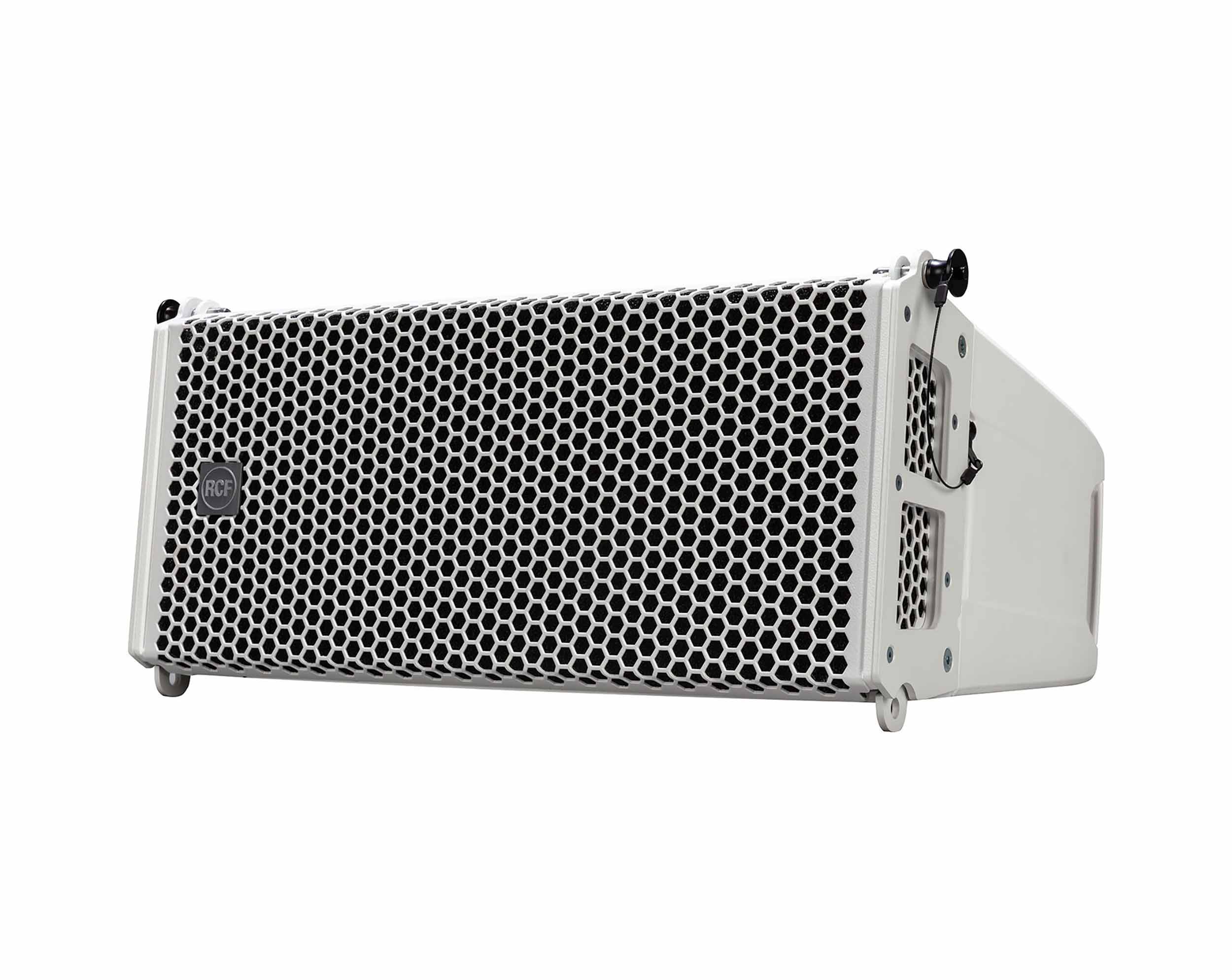

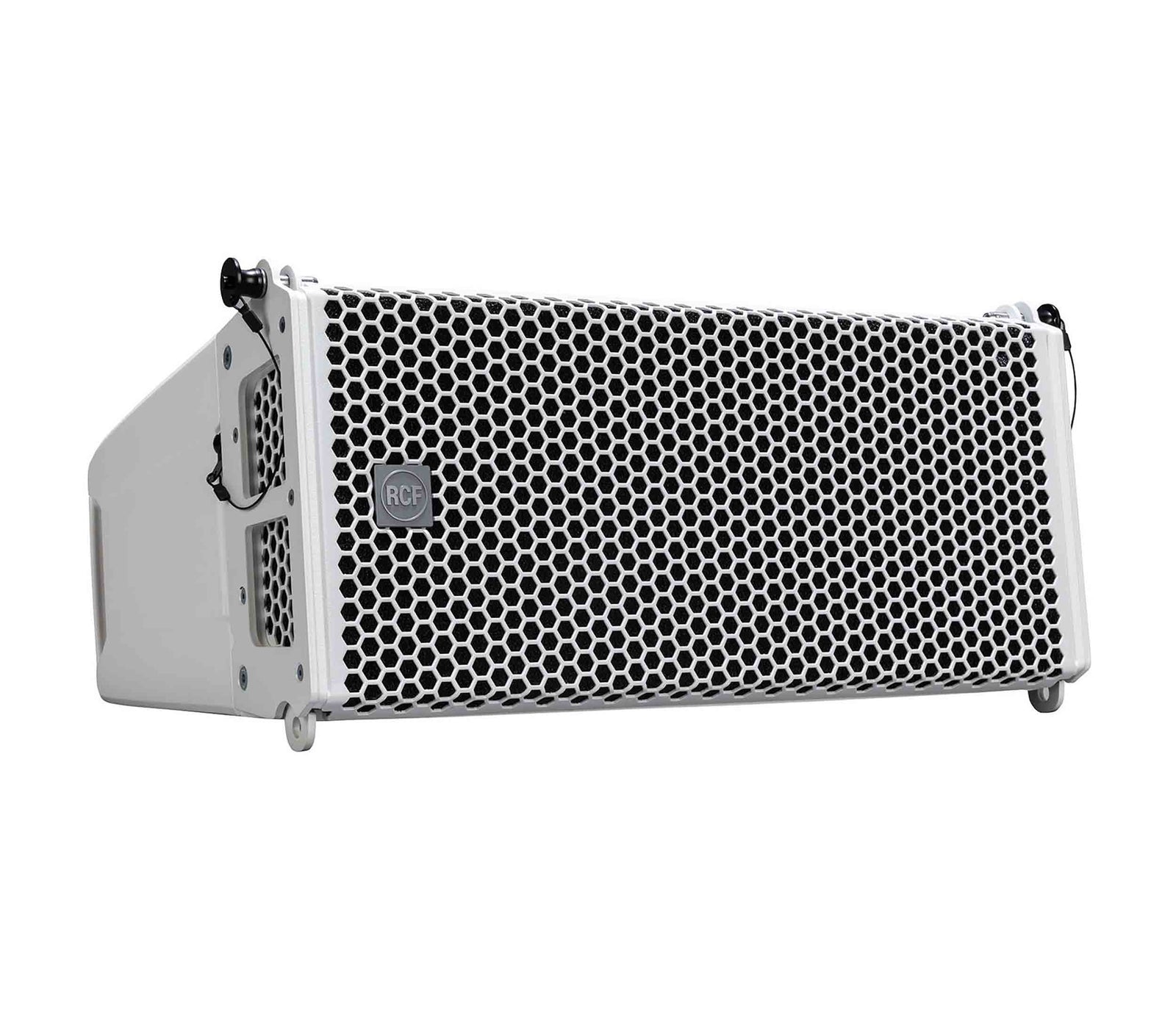

RCF HDL26-A W, 2000-Watt Active Line Array Speaker - White

The RCF HDL26-A W, 2000-Watt Active Line Array Speaker - White is an active speaker module that can be used alone or as part of a long-throw concert line-array sound system for touring sound reinforcement for small to medium venues, concert halls, and outdoor events. The speaker provides ultra-linear amplitude response, exceptional vocal clarity, and controlled deep bass—while also being easy to stack and fly. It is well suited to withstand the rigors of live sound reinforcement or rentals applications in performance venues, clubs, corporate spaces, houses of worship, mobile DJ setups, and more.

The RCF HDL26-A W is equipped with a 2000W peak, Class-D digital amplifier, which drives 1400W into the dual 6" woofers and 600W into the 1.5" compression driver. The crossover is set at 750 Hz. The speaker delivers a frequency response of 55 Hz to 20 kHz with a peak SPL output of 133 dB, and 100°H x 10°V coverage. The integrated DSP offers low-latency loudspeaker processing, while phase and amplitude are corrected using proprietary FiRPHASE technology conceived for delivering a natural and transparent sound, with a balanced stereo image.

First-Class Transducers

The RCF HDL 26-A features state-of-the-art RCF transducers with neodymium magnets

RCF’s experienced engineering teams have specially developed and matched each component—starting from the power supply through the input board, to the amplifiers and transducers, right up to the complete HDL 26-A System

High Frequencies

3" diaphragm titanium compression driver

1.4" exit throat

750 Hz crossover point

Low Frequencies

Two 6” Woofers with 2” voice coil and neodymium magnets

Low frequencies handling down to 55 Hz

Cone finished in water-resistant fiber

Surrounding polycotton M-roll

Hyper-vented magnetic structure

4-Path Waveguide

The custom designed 4 PATH waveguide allows a precise coverage of 100 x 10 degrees, while also delivering an excellent, linear high-frequency response

The unique shape of the four ducts forming the guide creates an ideal isophase load from 750 Hz up to the highest audible frequencies

RDNet Connections for Networked Control

RDNet is a robust management network and control platform for small, medium, and large arena-sized sound systems as well as complex and extended installations. Based on a proprietary network protocol, the software provides intuitive control and monitoring of every connected device/object in the RCF audio system.

Array and Zones Grouping with multiple-type EQ, Bass Shaper, and FiRPHASE EQ

Auto scan and complete monitoring

Shape Designer Array Calculator with subwoofer configuration helper

Adjust hi-pass, EQ, gain, and delay on individual components

Complete real-time monitoring

Automatic cluster size shaping and air compensation

DSP

The low-latency, 32-bit DSP section deploys a remarkable amount of processing power for live performances with straight-forward control and monitoring of single parts of the module, including rigging angles and transducer performance via RDNet

Thermal and RMS protections preserves the speaker's performance and helps to ensure reliability

The Acoustic Beauty of Symmetry

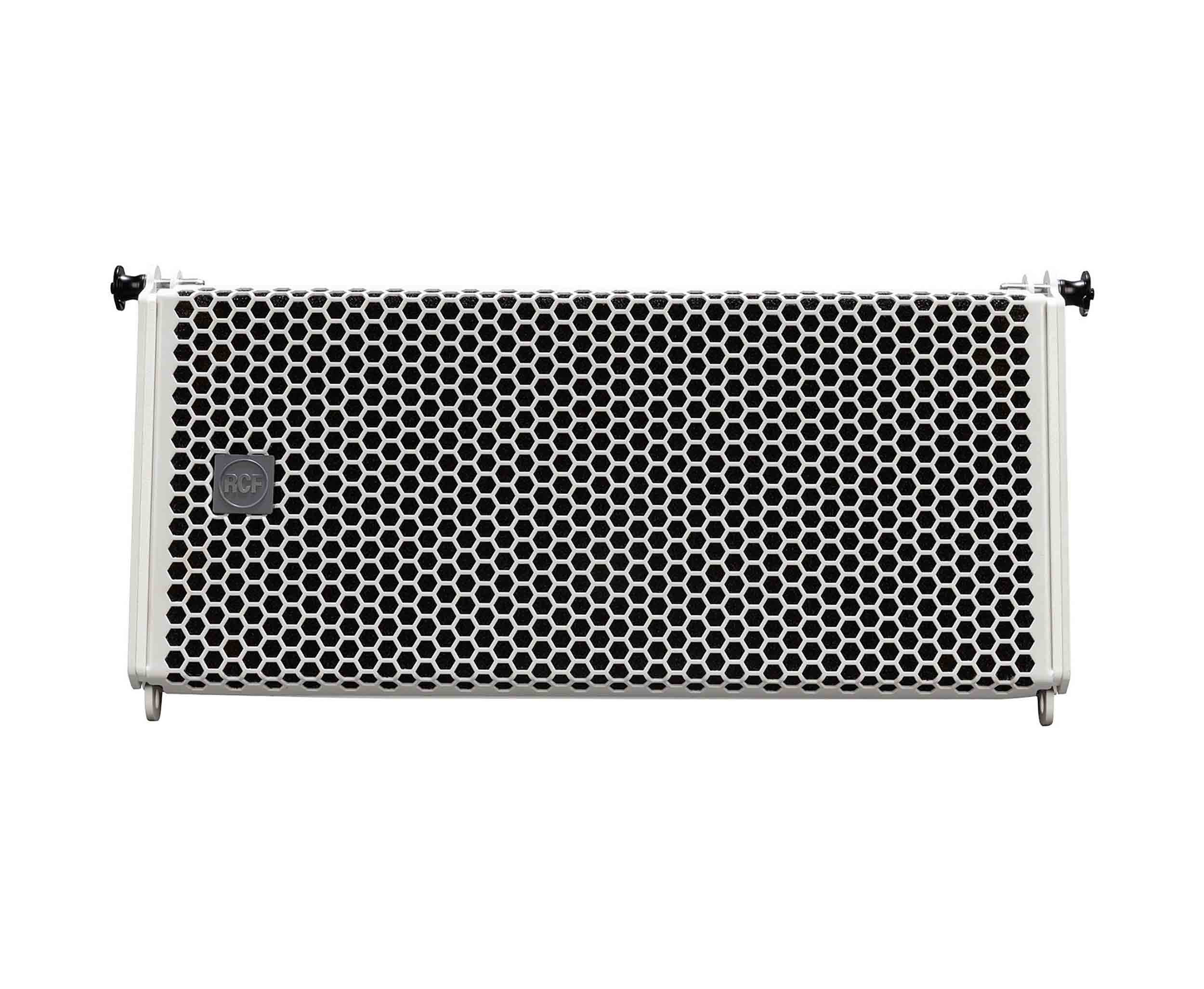

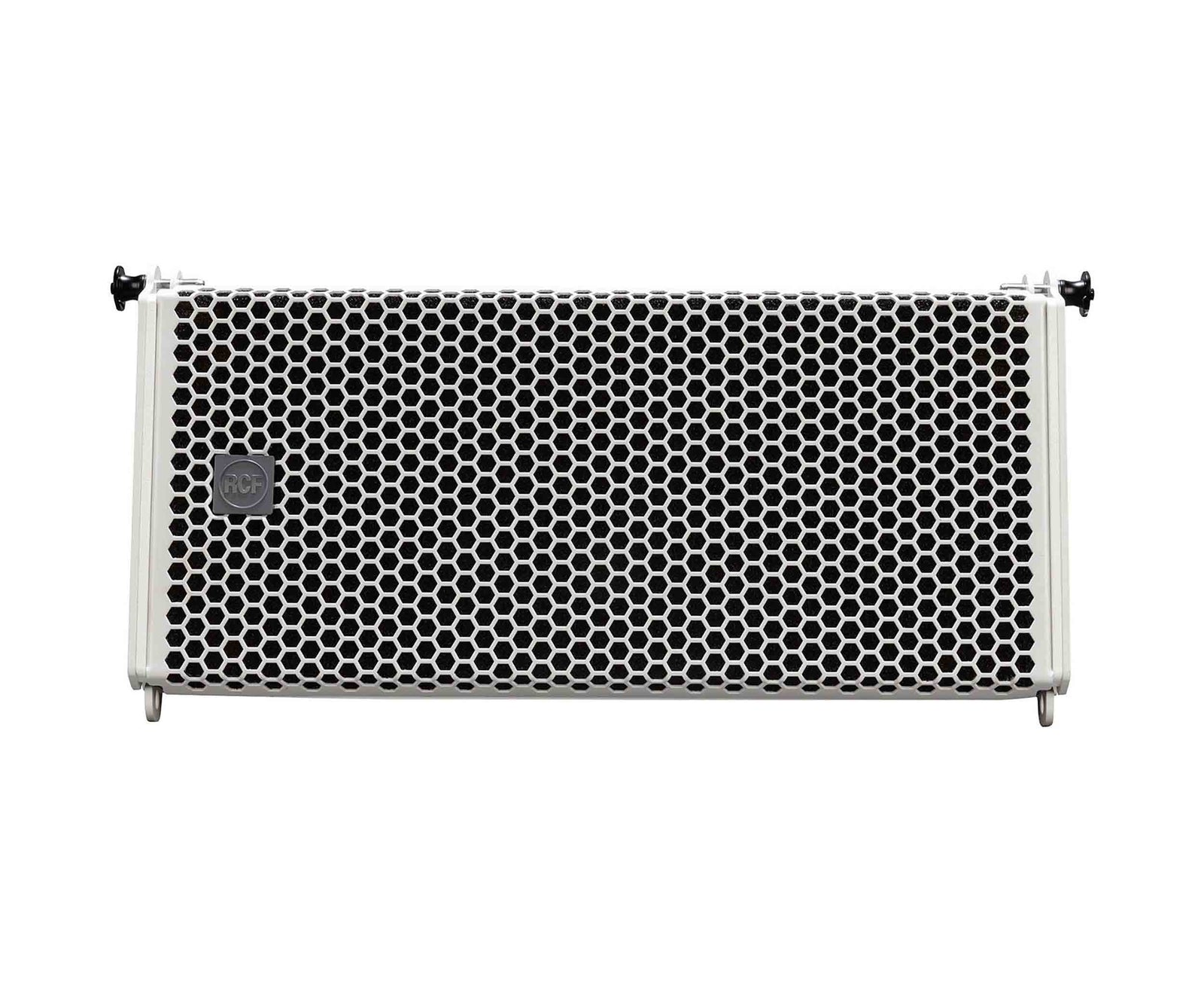

The symmetrical design of the cabinet produces identical left and right coverage of 100 x 10°

The component positioning and special DSP crossover filtering of the HDL 26-A take care of the constant directivity without spots of break up or attenuation

The front baffle provides coplanar woofers, controlled low-frequency dispersion, and the high-frequency waveguide

Easy to Stack or Fly

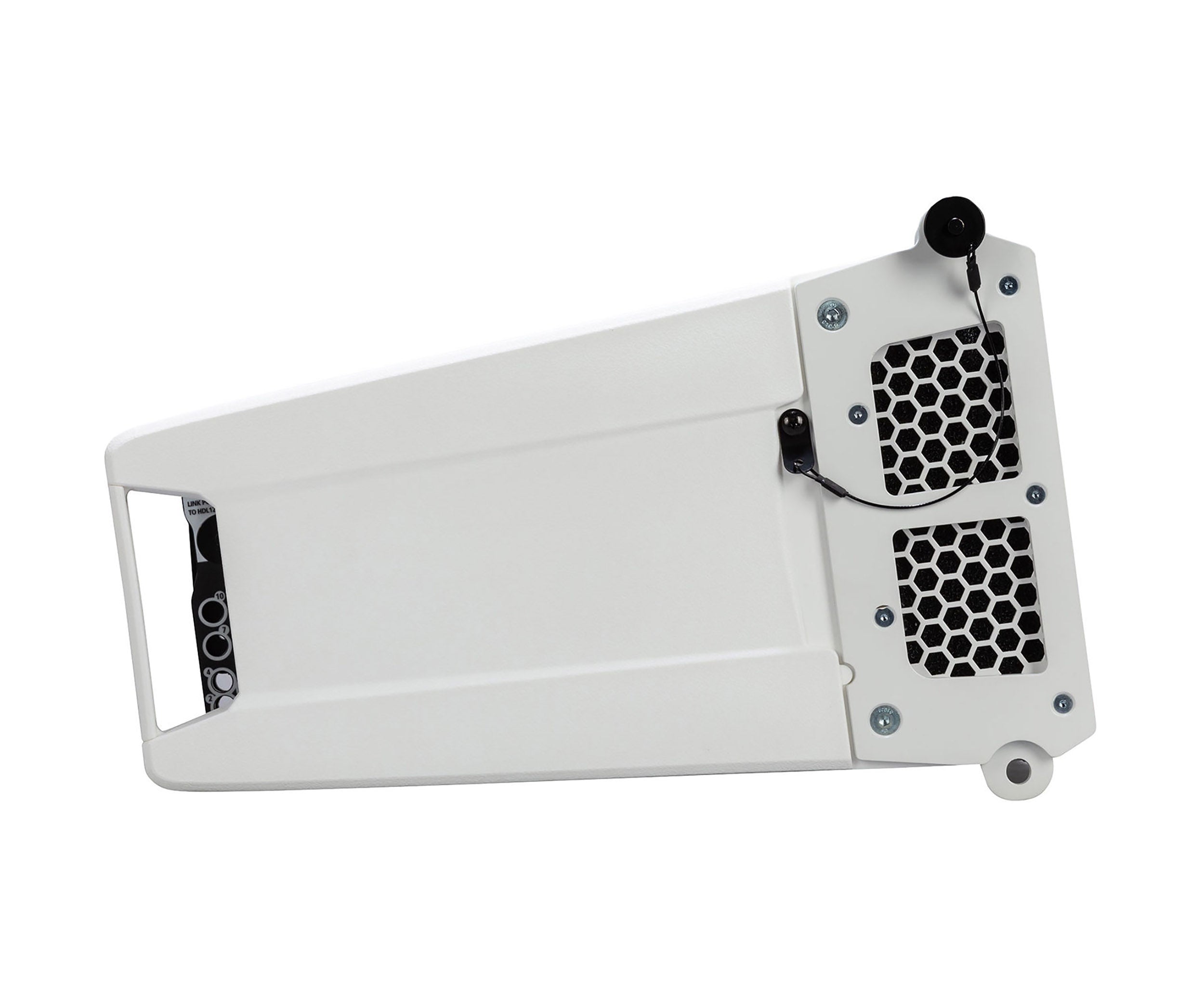

The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays starting at a 1° angle

The hardware is designed for easy and fast set up. Up to 16 HDL 26-A modules can be fastened on a single flybar

The heavy-duty front grille is powder coated and a special transparent-to-sound foam backing inside helps to further protect the transducers from dust

For weatherproof capabilities, a rain cover is available

Product Specifications:

Total Power Capacity:

2000 W Peak

1000 W RMS

Amplifier Power Rating:

HF:

600 W Peak

300 W RMS

LF:

1400 W Peak

700 W RMS

Amplifier Class: Class-D

Drivers:

HF Driver: 1 x 1.5" / 38.1 mm Titanium Compression Driver

HF Voice Coil: 3" / 76.2 mm

LF Driver: 2x 6" / 152.4 mm Woofer

LF Voice Coil: 2" / 50.8 mm

Magnet:

HF:

Neodymium

LF:

Neodymium

Frequency Response: 55 Hz to 20 kHz -3 dB

Maximum SPL: 133 dB (Peak)

Coverage Angle: 100° H x 10° V

Input Sensitivity:

Line Input:

+4 dBu to -2 dBu

Protections: Output Limiter, RMS, Thermal

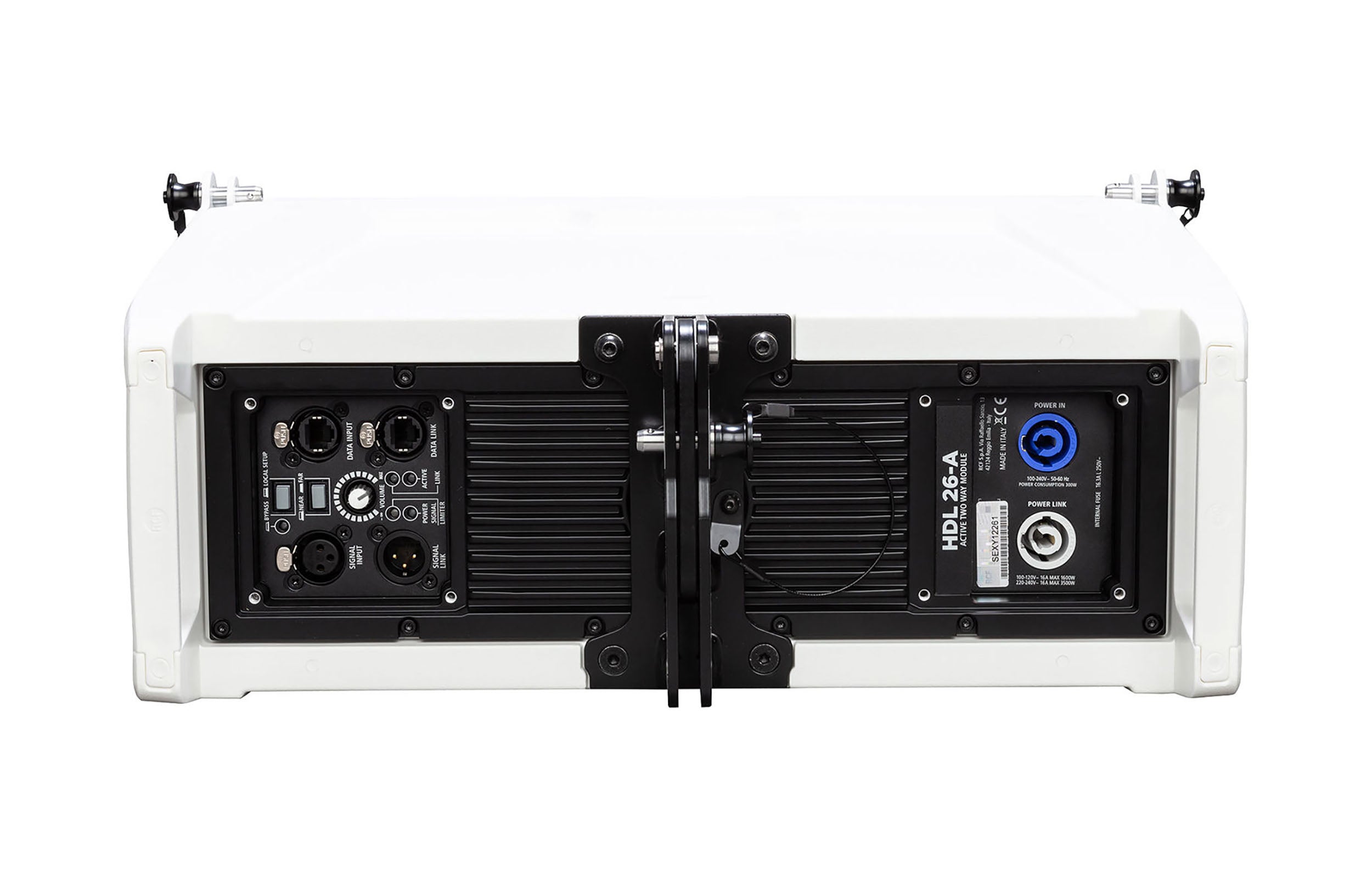

Audio I/O:

1x XLR 3-Pin Balanced/Unbalanced Line Input

1x XLR 3-Pin Balanced Line Thru

Network I/O:

1x EtherCON (RDNet) Input

1x Ethercon (RDNet) Output

Crossover: 750 Hz

Dynamic Processing: Soft Limiter

Alignment Delay: Yes

Phase Adjustment: Yes

Digital Signal Processing:

32-Bit DSP: Delay, FIR Filter, Venue Settings (Adjustable via Optional Software)

Maximum Sampling Rate: 48 kHz / 32-Bit

AC Input Power :

Factory Selectable:

100 to 240 VAC, 50 / 60 Hz (T 6.3 A L 250 V)

AC Power I/O:

1x powerCON Input

1x powerCON Output

Power Consumption: 300 W

Mounting: Integrated Rigging

Handles: 2x Rear

Cooling: Convection

Construction Material: Composite, Metal Grille, Polypropylene, Steel

Weight: 29.8 lb. / 13.5 kg

Dimensions: 8.4 to 9.3 x 18.5 x 14.8" / 214 x 470 x 377 mm
