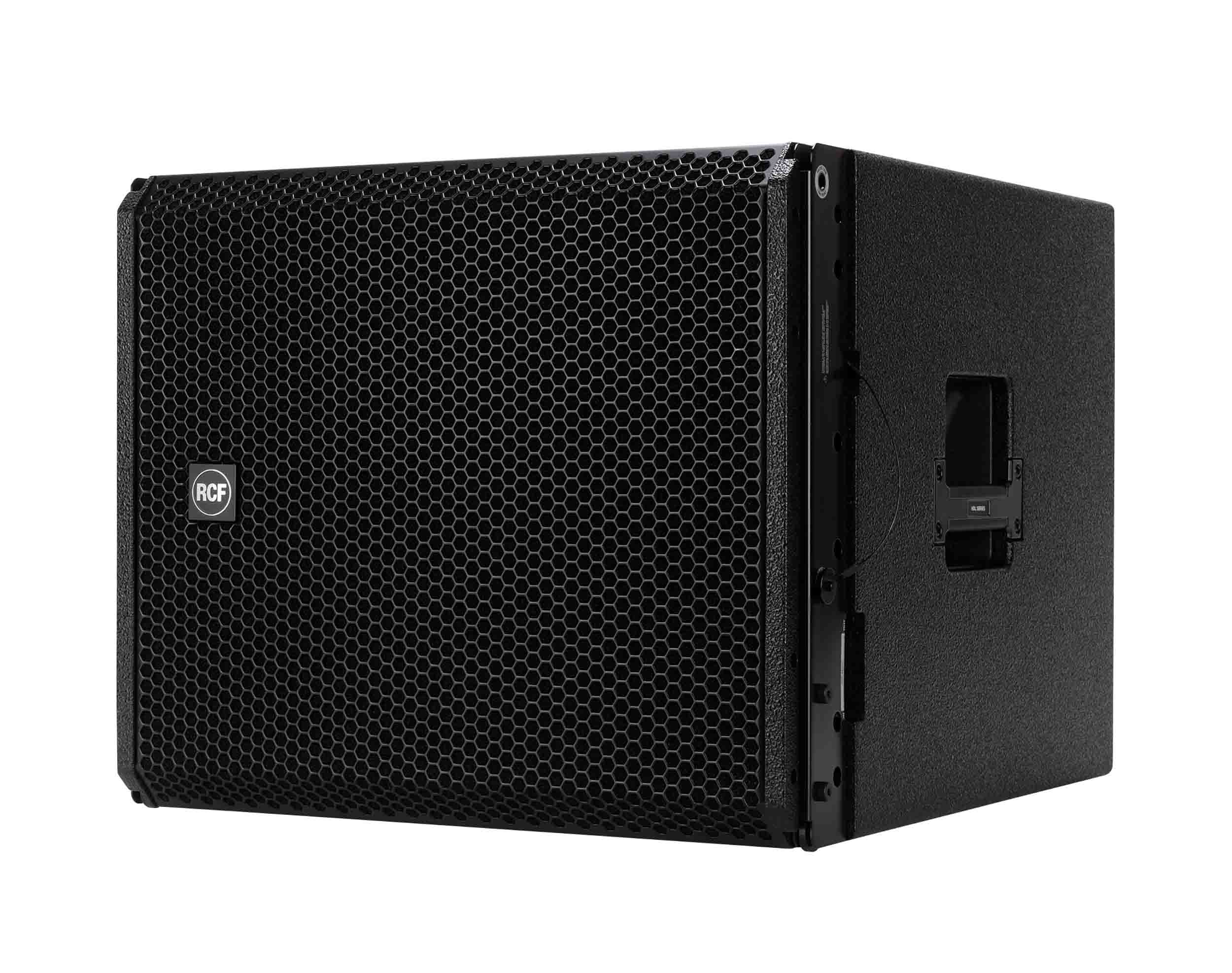

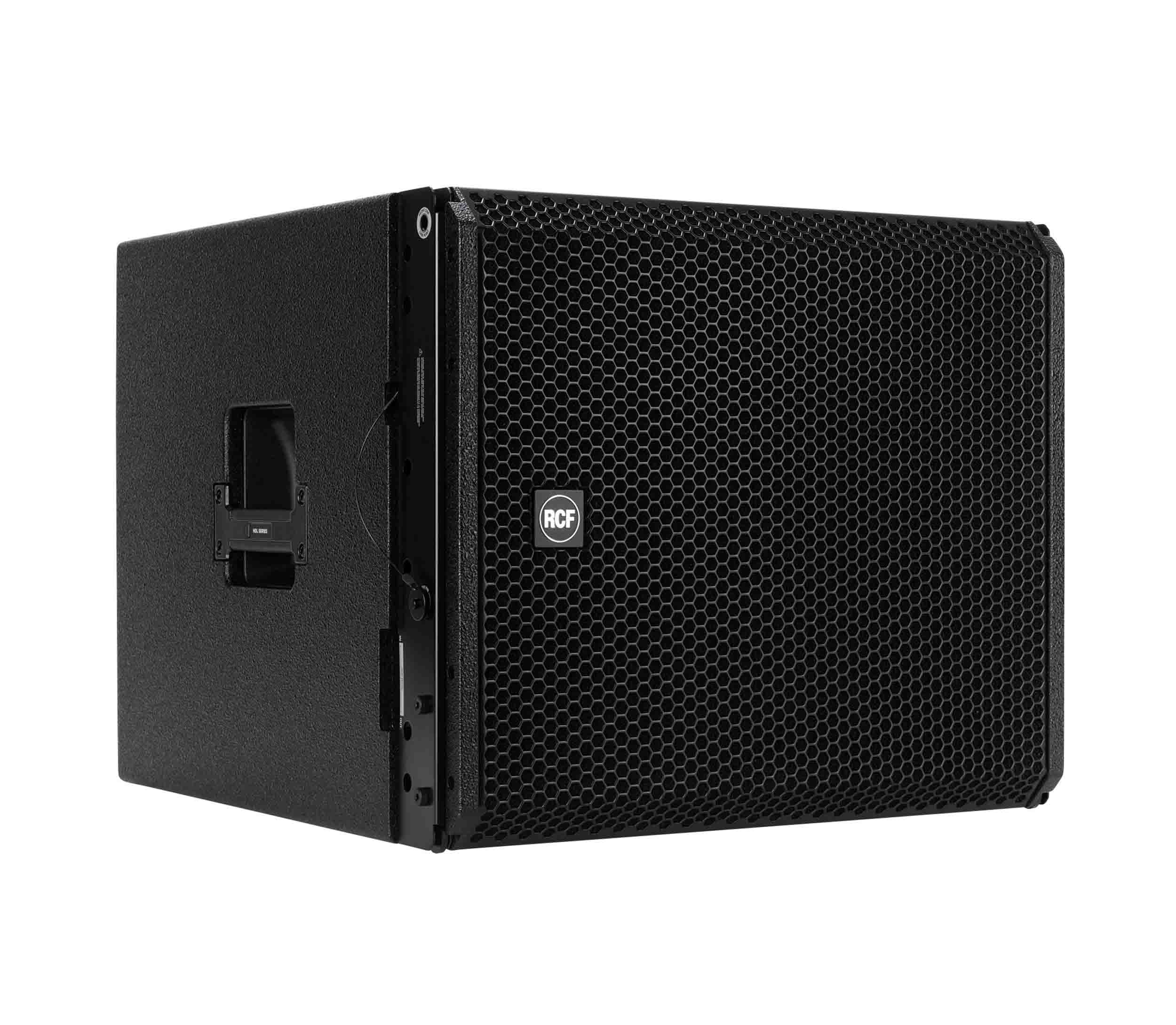

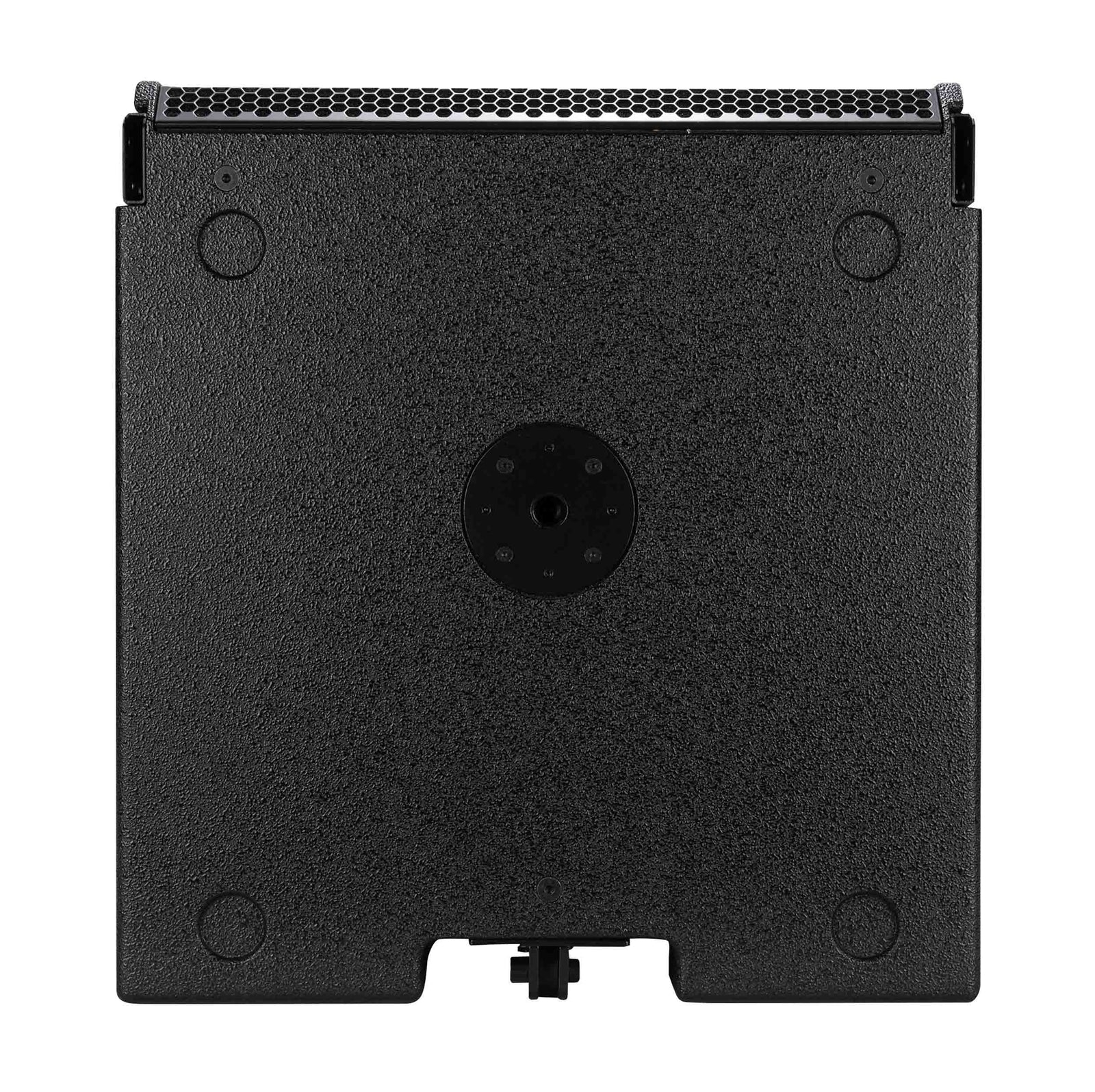

RCF HDL36-AS, 3200W Active Flyable Subwoofer Module Black - 15 Inch

The RCF HDL 36-AS is the ideal flyable bass complement for the HDL 28-A array system. It features one 4.0” voice coil, 15” neodymium woofer to handle 135 dB SPL Max from 40 Hz to 140 Hz with the maximum linearity and low distortion. The built-in 3200 watts class-D amplifier delivers excellent playback clarity and up to 135 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 36-AS is part of the professional HDL System.

RCF RDNet

Networked control and much more RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

Legendary woofers

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, self-powered design, RDNet remote control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.

Powerful class D amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

Cabinet and mechanics

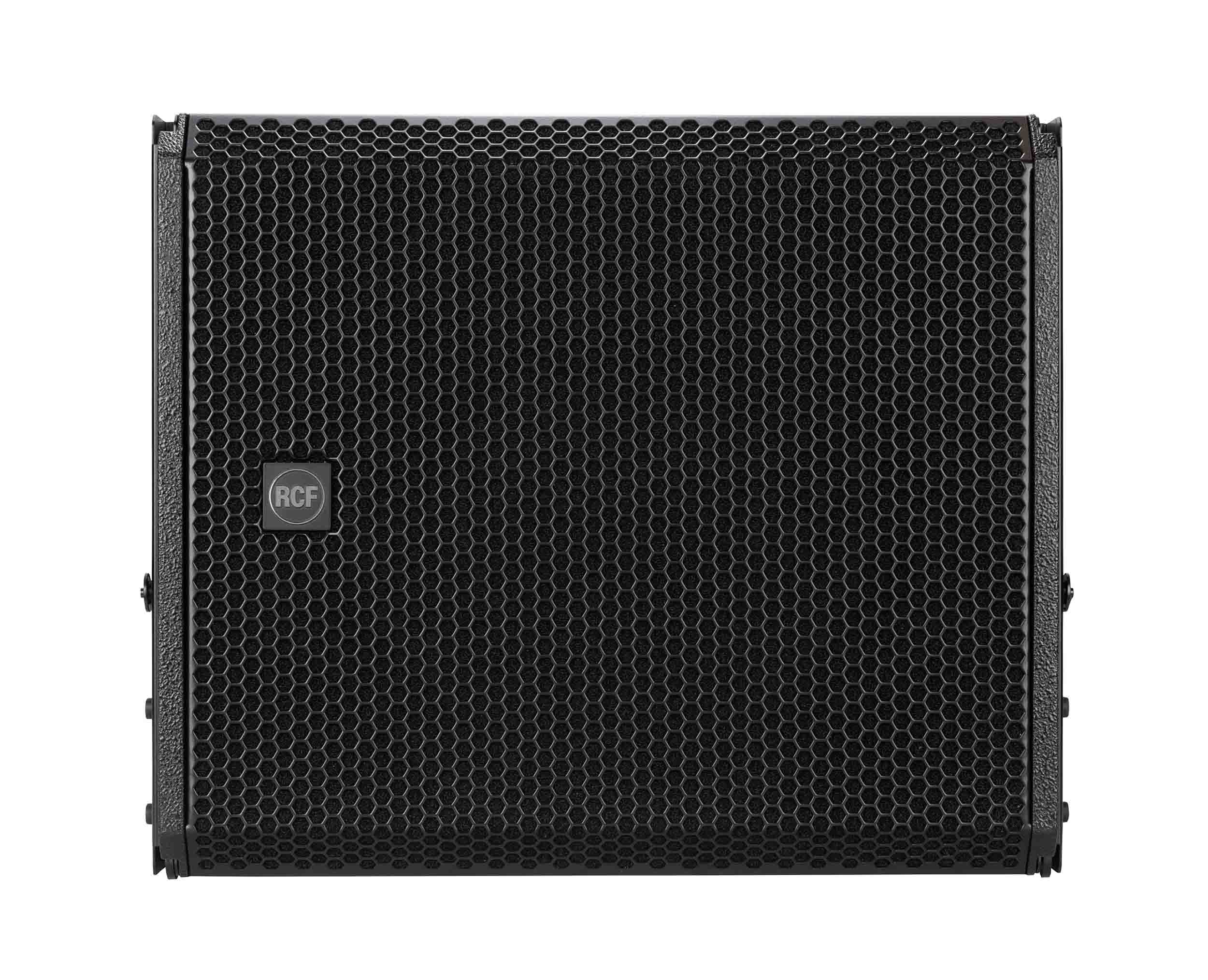

The hardware is designed for an easy and fast setup, completely compatible with the HDL 28-A rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.

Product Specifications:

Frequency Response: 40 Hz ÷ 140 Hz

Max SPL @ 1m: 135 dB

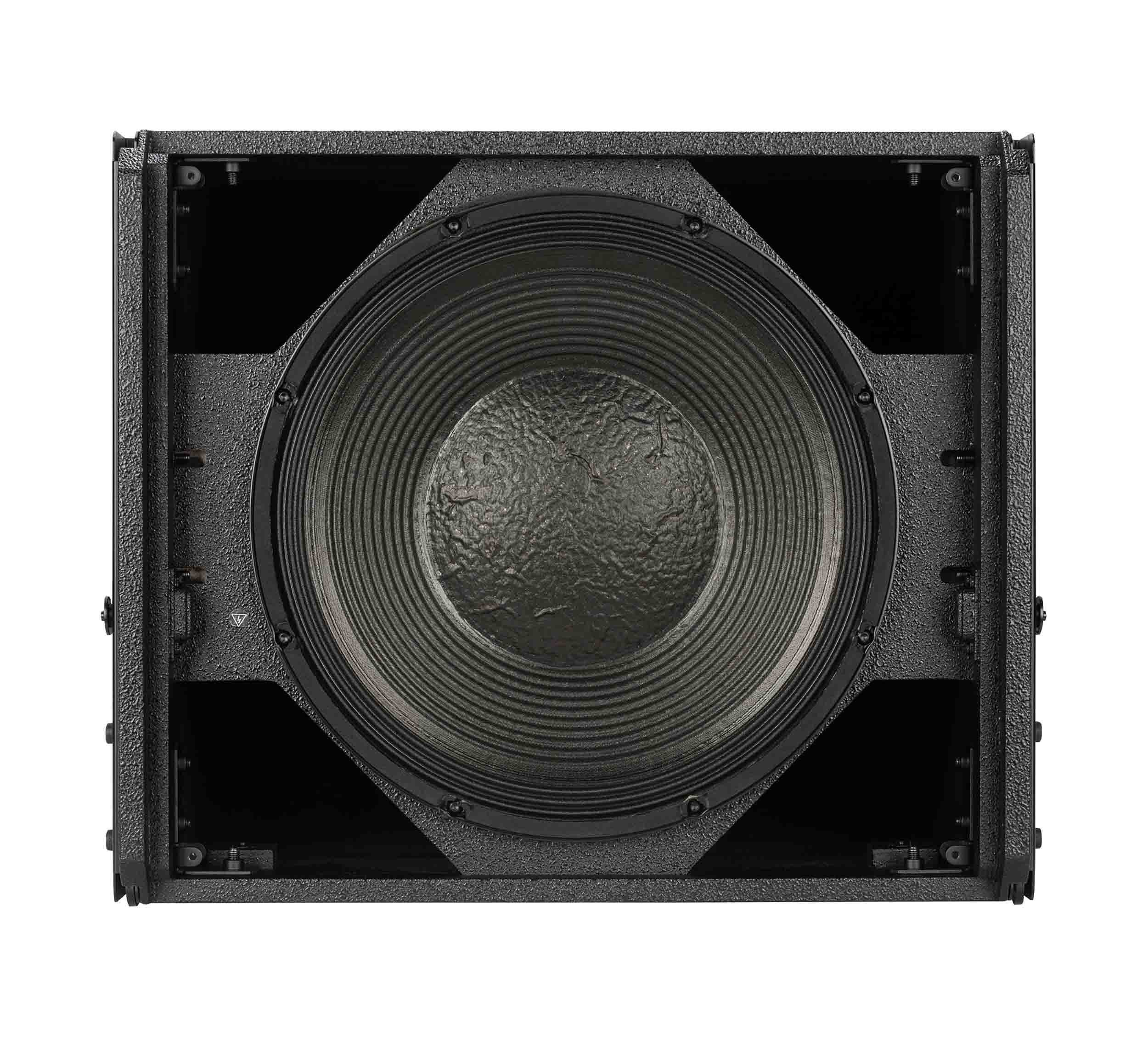

Woofer: 1 x 15'' neo, 4.0'' v.c

Input Signal: bal/unbal

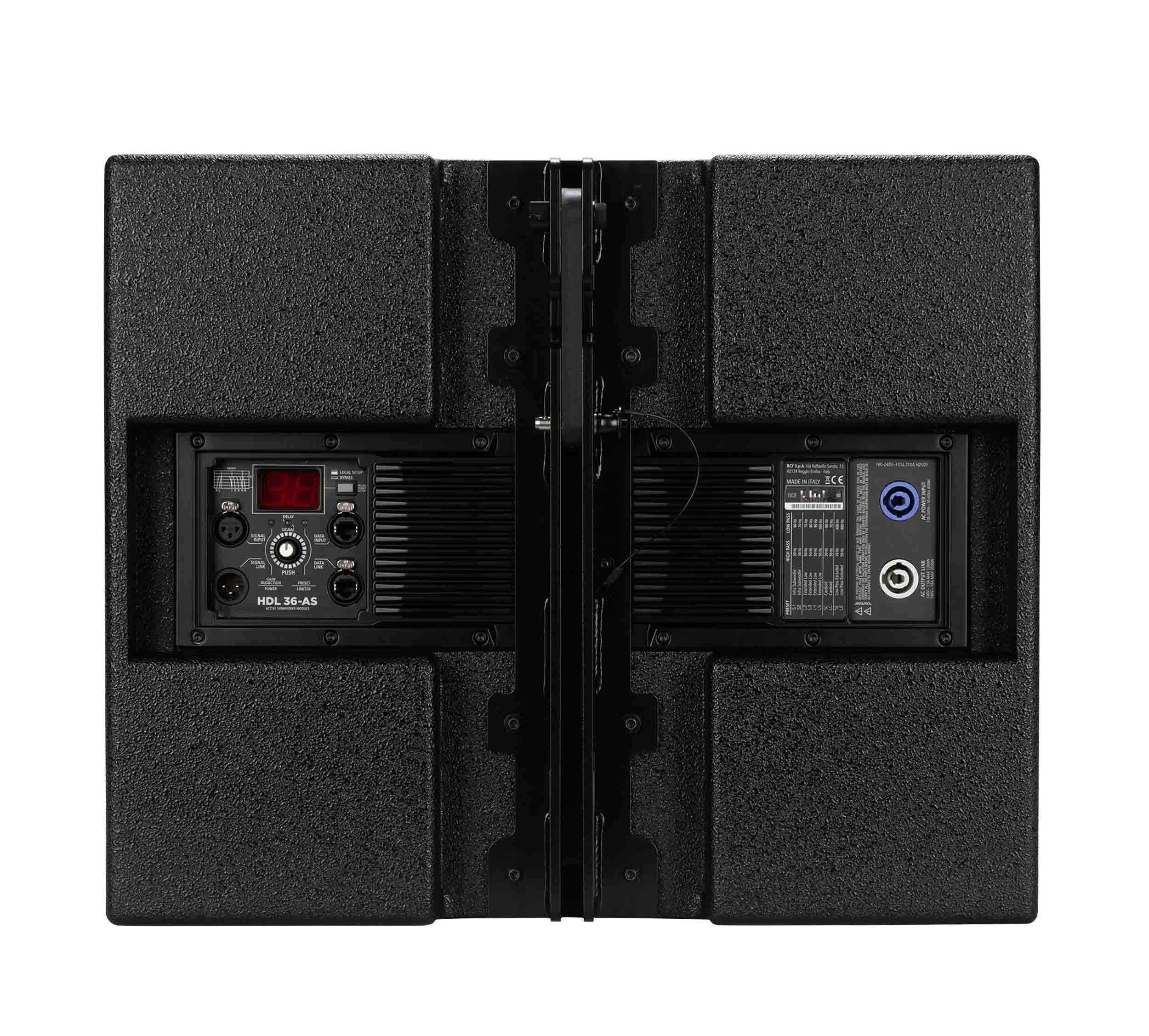

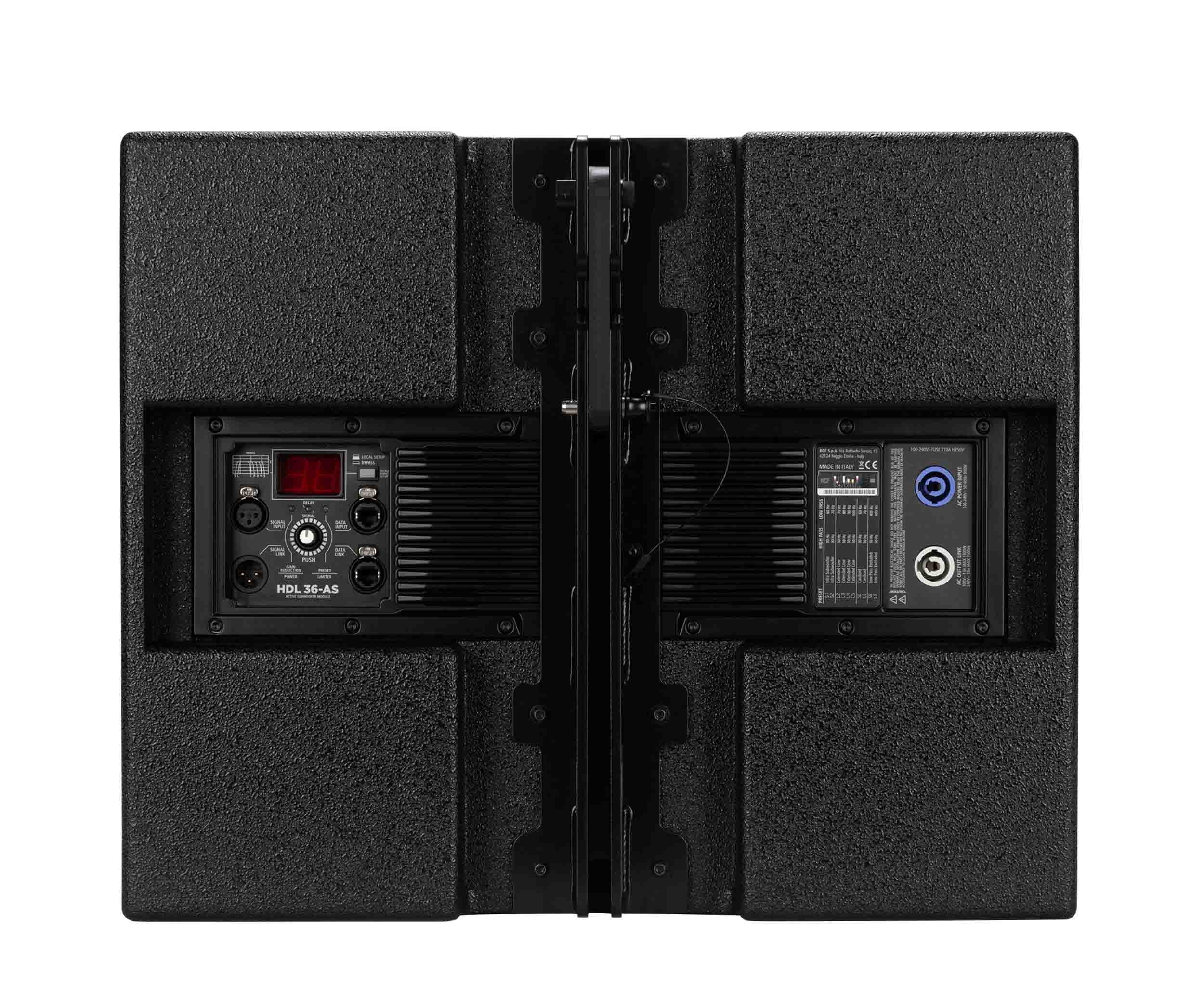

Input Connectors: XLR, RDNet Ethercon

Output Connectors: XLR, RDNet Ethercon

Input Sensitivity: +4 dBu

Protections: Thermal, RMS

Limiter: Soft Limiter

Controls: Volume, Preset selection, RDnet on board

RDNet: Yes

Total Power: 3200 W Peak, 1600 W RMS

Low frequencies: 3200 W Peak, 1600 W RMS

Cooling: Convection

Connections: Powercon IN/OUT

Safety Agency: CE compliant

Physical Specifications

Hardware: Array fittings

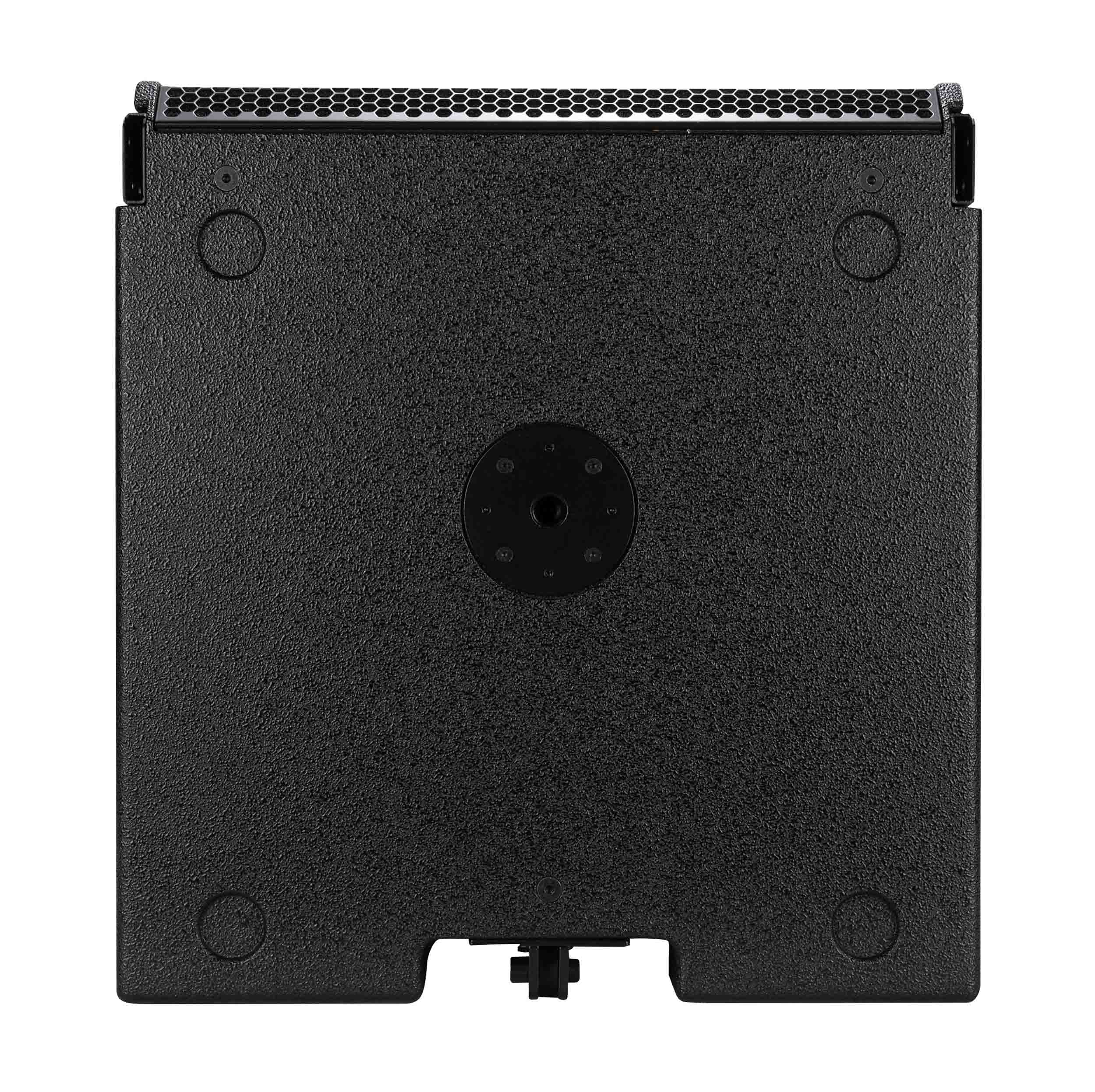

1 X M20

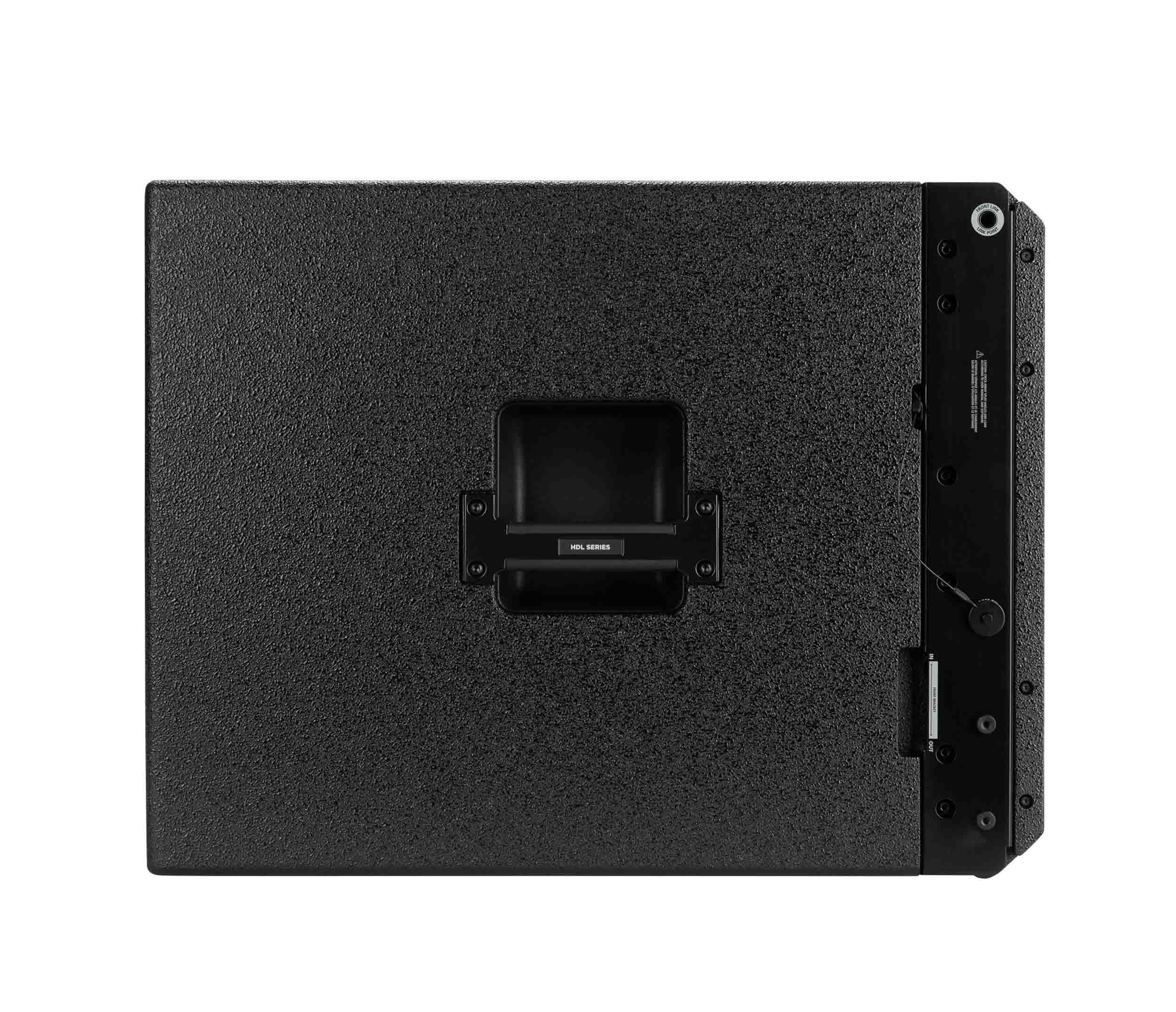

Handles: 2 Side

Color: Black, White - RAL 9003

Size

Height: 467 mm / 18.39 inches

Width: 555 mm / 21.85 inches

Depth: 593 mm / 23.35 inches

Weight: 37 kg / 81.57 lbs

Shipping Information

Package Height: 500 mm / 19.69 inches

Package Width: 570 mm / 22.44 inches

Package Depth: 610 mm / 24.02 inches

Package Weight: 40 kg / 88.18 lbs
