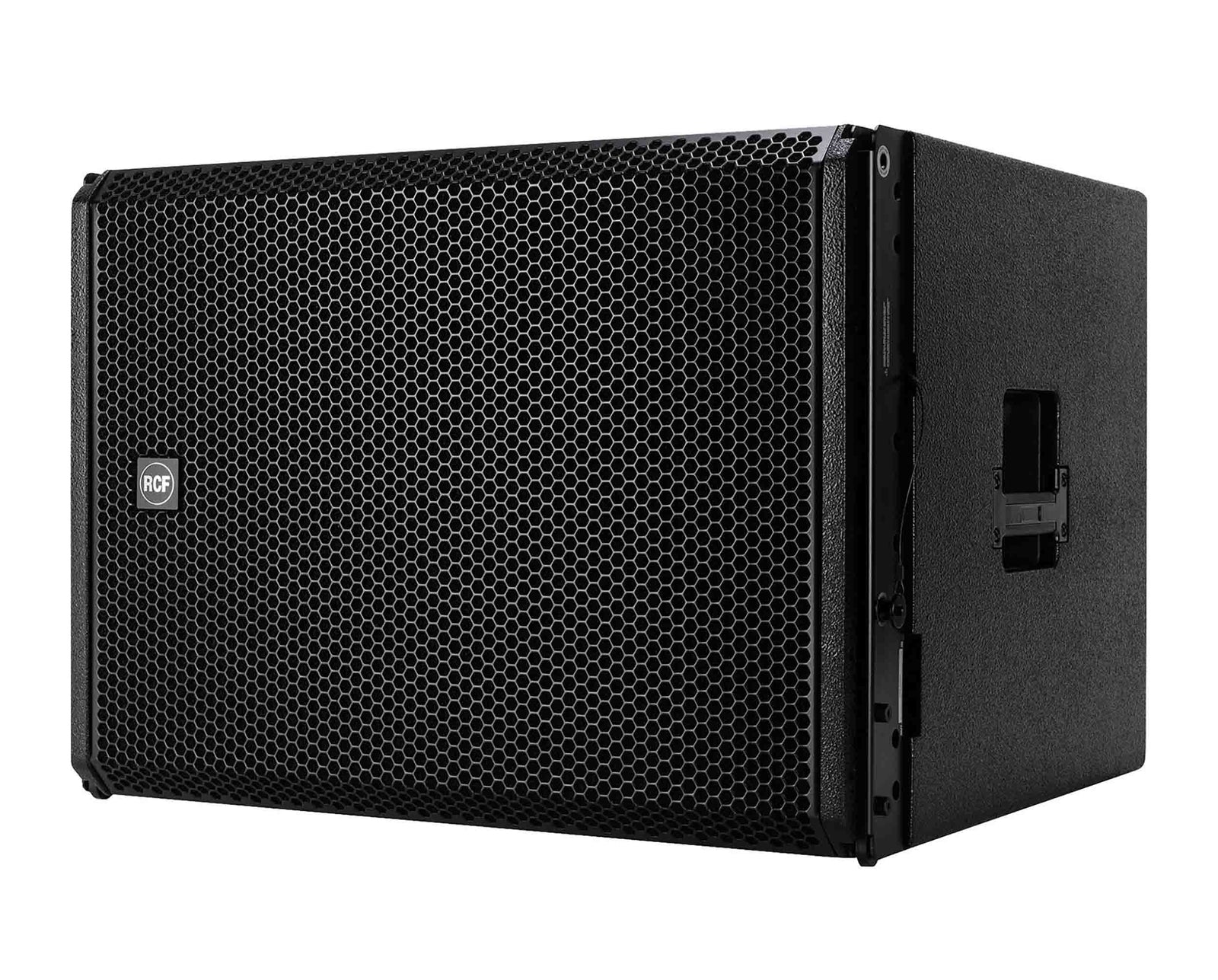

RCF HDL38-AS, 3200W Active Flyable Subwoofer Module - Black

Save 23%
SKU: H-RCF-HDL38AS   |  UPC: 8024530016777

Price:
Sale price$6,999.00 Regular price$9,098.70
×

*Signature required for all deliveries/shipments for your security
Free 2 Day Shipping or heavily discounted fast shipping available on most items! Oversized items excluded

Description

The RCF HDL 38-AS active flyable subwoofer module provides 3200W peak (1600W RMS) of fast Class-D amplification, an impressive 136 dB max SPL, and the highly capable RDNet network control and monitoring system, rendering it a powerful solution for concert venues, theater houses, clubs, and other live stage applications.

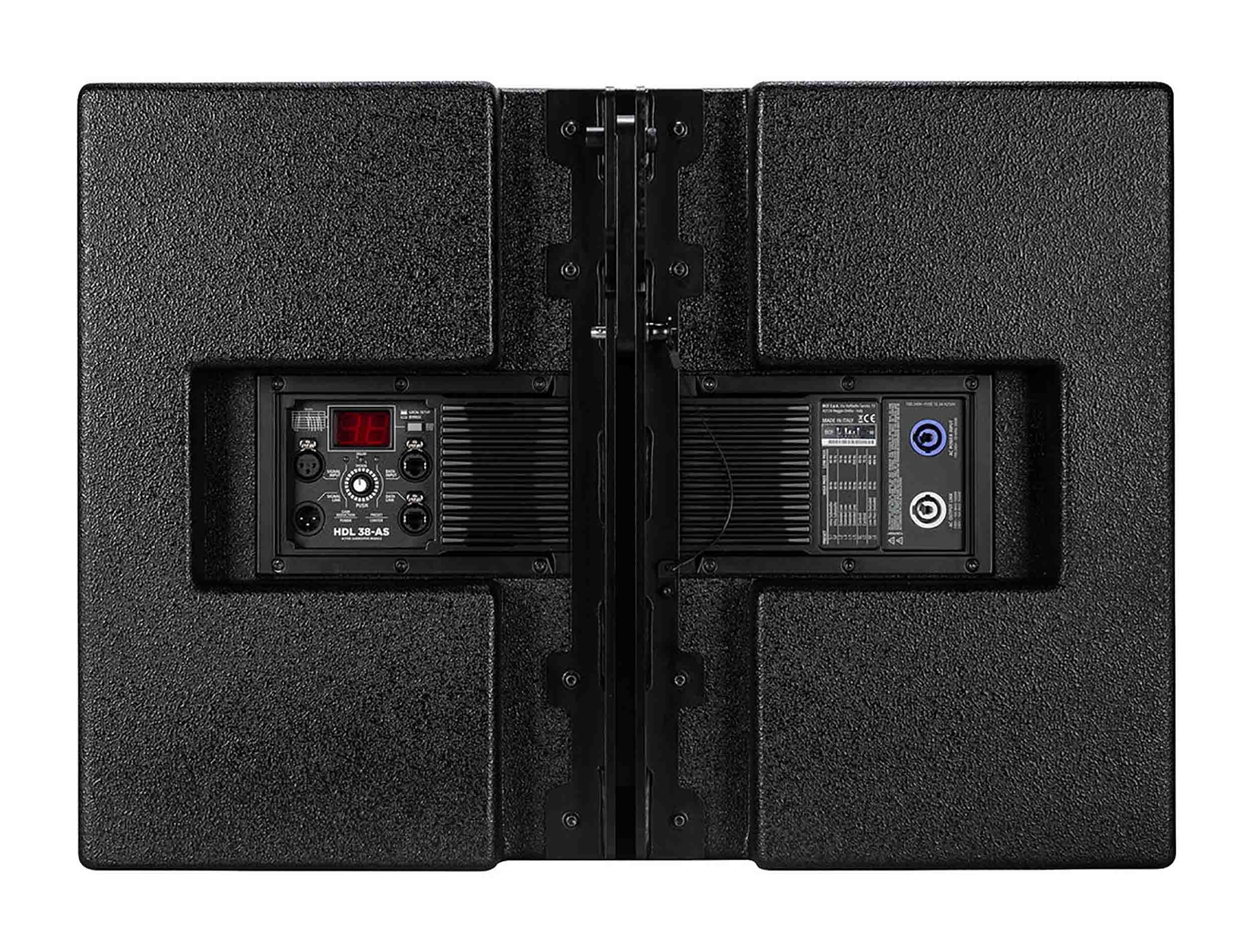

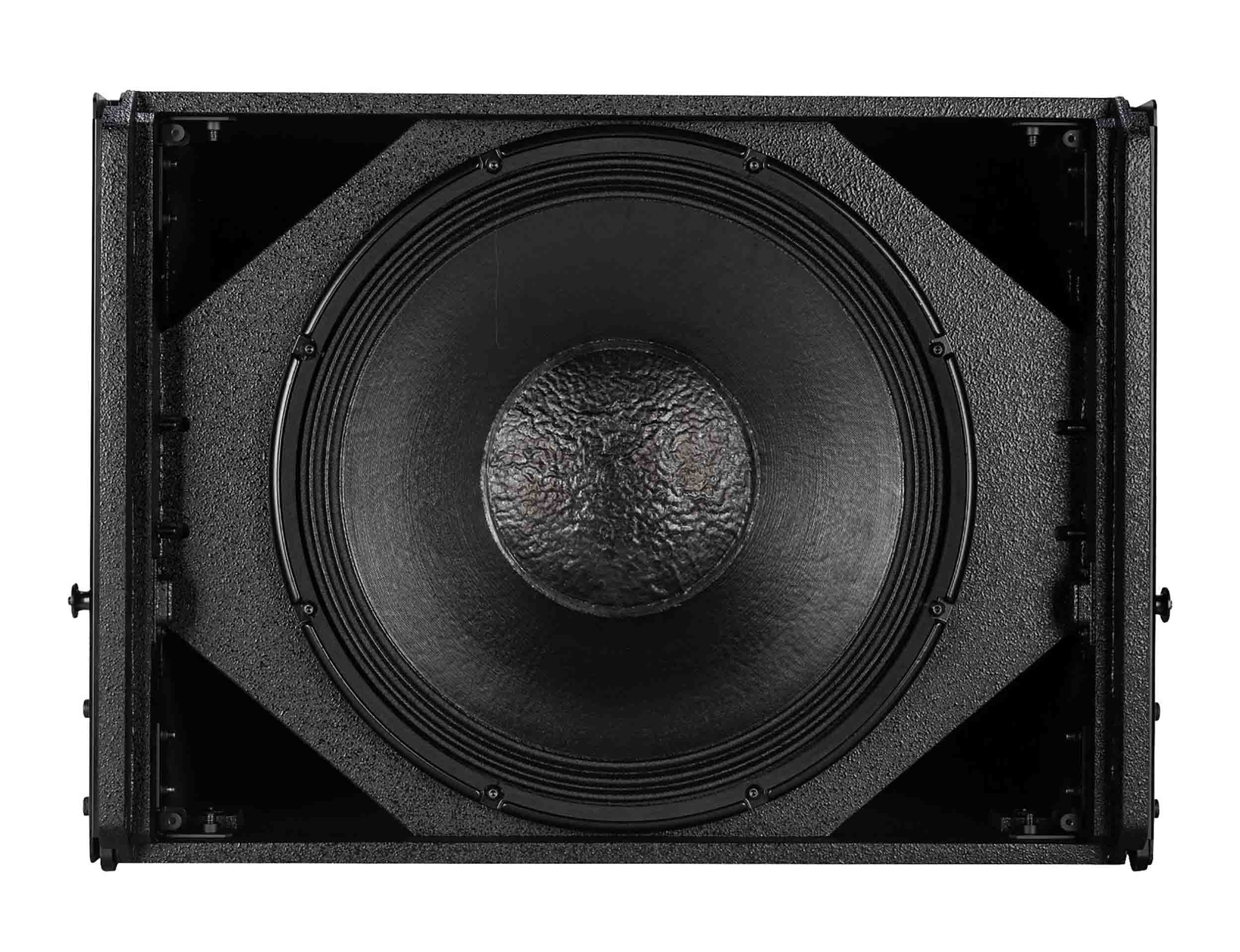

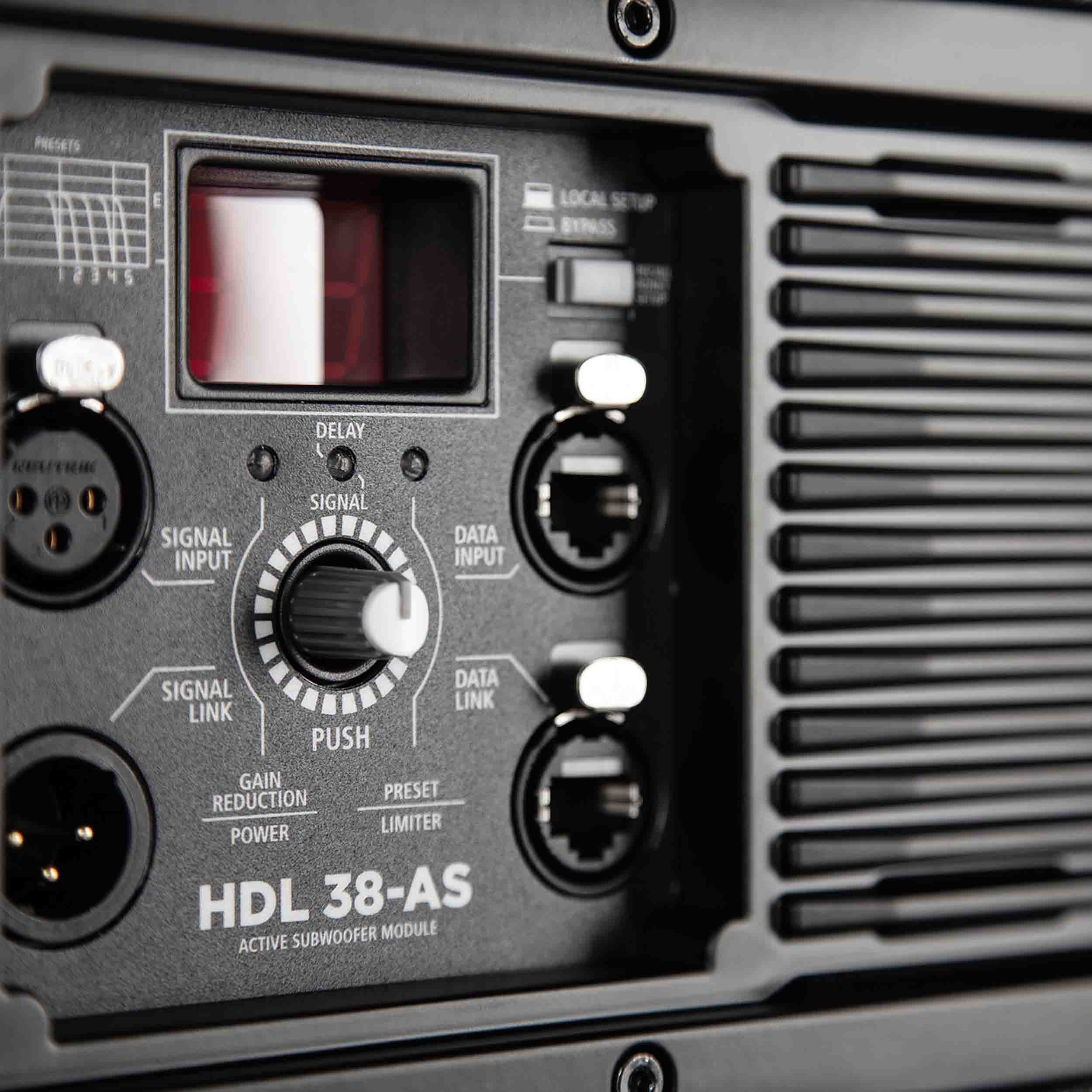

The Baltic birch plywood cabinet, which is compatible with the HDL 30-A rigging, houses an 18" neodymium woofer outfitted with a 4" voice coil, allowing the HDL 38-AS to produce a frequency response of 30 to 140 Hz for deep bass. Onboard DSP-controllable via the subwoofer's local panel or through RDNet software on a Windows-equipped device-enables effective manipulation of level, delay, EQ, and more. Connectivity includes XLR in and thru, etherCON RDNet in and out, and powerCON input and output.

RCF RDNet

RDNet is a robust management network and control platform for small, medium, and large arena-sized sound systems as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well), and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers; you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

Legendary Woofers

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very-low frequencies, competitively small dimensions, self-powered design, RDNet remote control, cardioid configuration options, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.

Powerful Class-D Amplifier

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver ultrafast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminum structure which not only stabilizes the amplifier during transportation, but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

Cabinet and Mechanics

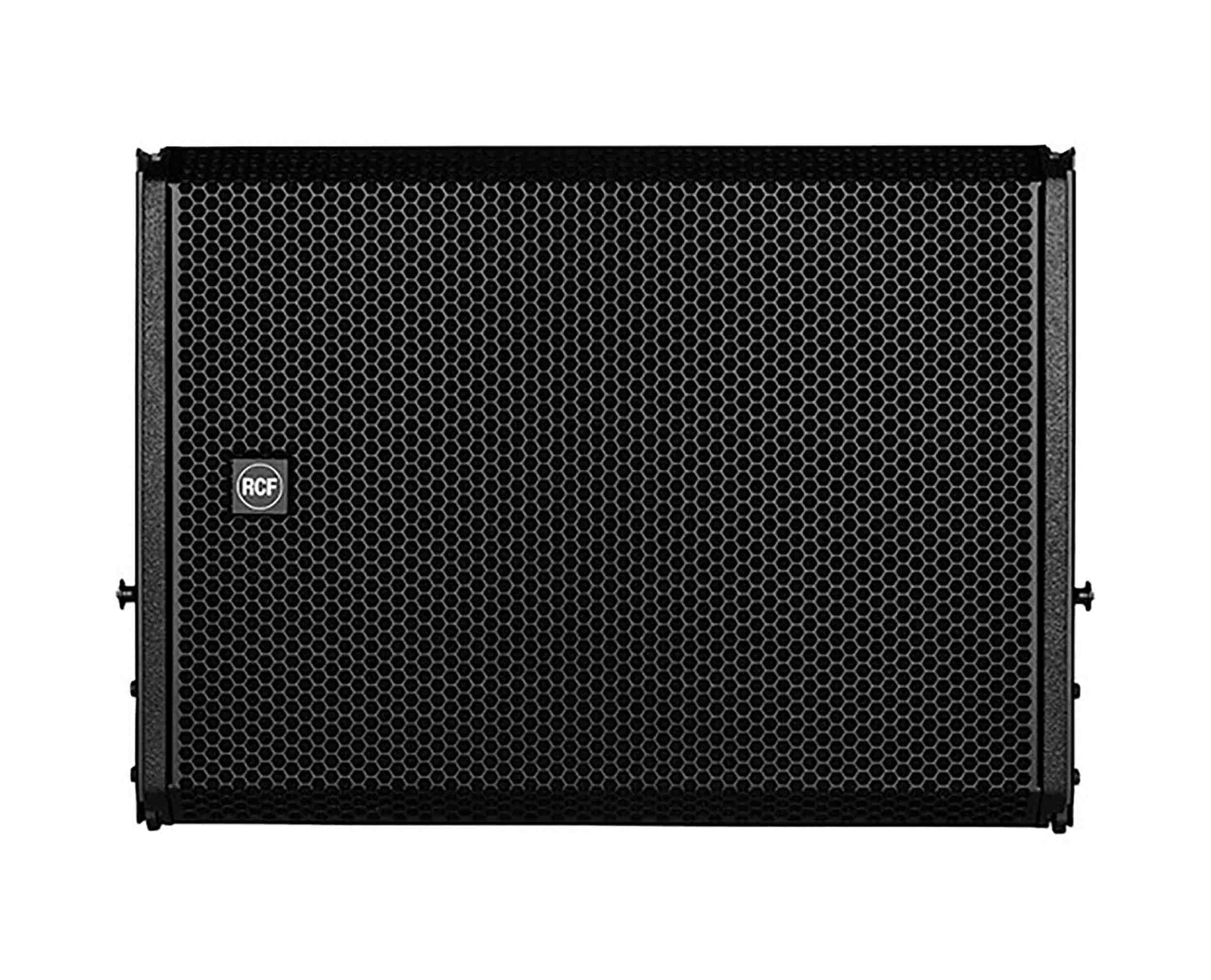

The hardware is designed for an easy and fast setup, completely compatible with the HDL 30-A rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.

Advanced FiR Filtering

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity, and perfect stereo images to the listener. The special FiRPHASE filters allow the speaker to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

Product Specifications:

Enclosure Type: Line Array Subwoofer

Total Power Capacity: 3200 W Peak

1600 W RMS

Amplifier Power Rating: 3200 W Peak

1600 W RMS

Amplifier Class: Class-D

MF Driver: No

LF Driver: 1x 18" / 45.7 cm Woofer

LF Voice Coil: 4" / 10.2 cm

Magnet: Neodymium

Frequency Response: 30 Hz to 140 Hz

Maximum SPL: 136 dB

Input Sensitivity: +4 dBu

Protections: Output Limiter, Thermal

Audio I/O: 1x XLR 3-Pin Female Balanced/Unbalanced Line Input (Lockable)

1x XLR 3-Pin Male Balanced/Unbalanced Line Thru

Network I/O: 1x etherCON (RDNet) Input

1x etherCON (RDNet) Output

USB I/O: No

Wireless Connectivity: No

EQ: Yes

Parametric EQ: Yes

Semi-Parametric EQ: No

Alignment Delay: Yes

Phase Adjustment: Yes

Digital Signal Processing: Delay, FIR Filter, User Settings

AC Input Power : 115 VAC, 60 Hz

230 VAC, 50 Hz

AC Power I/O: 1x powerCON Input (Locking)

1x powerCON Output (Locking)

Mounting: 1 x Bracket Point (Each Side)

1 x Bracket Point (Rear)

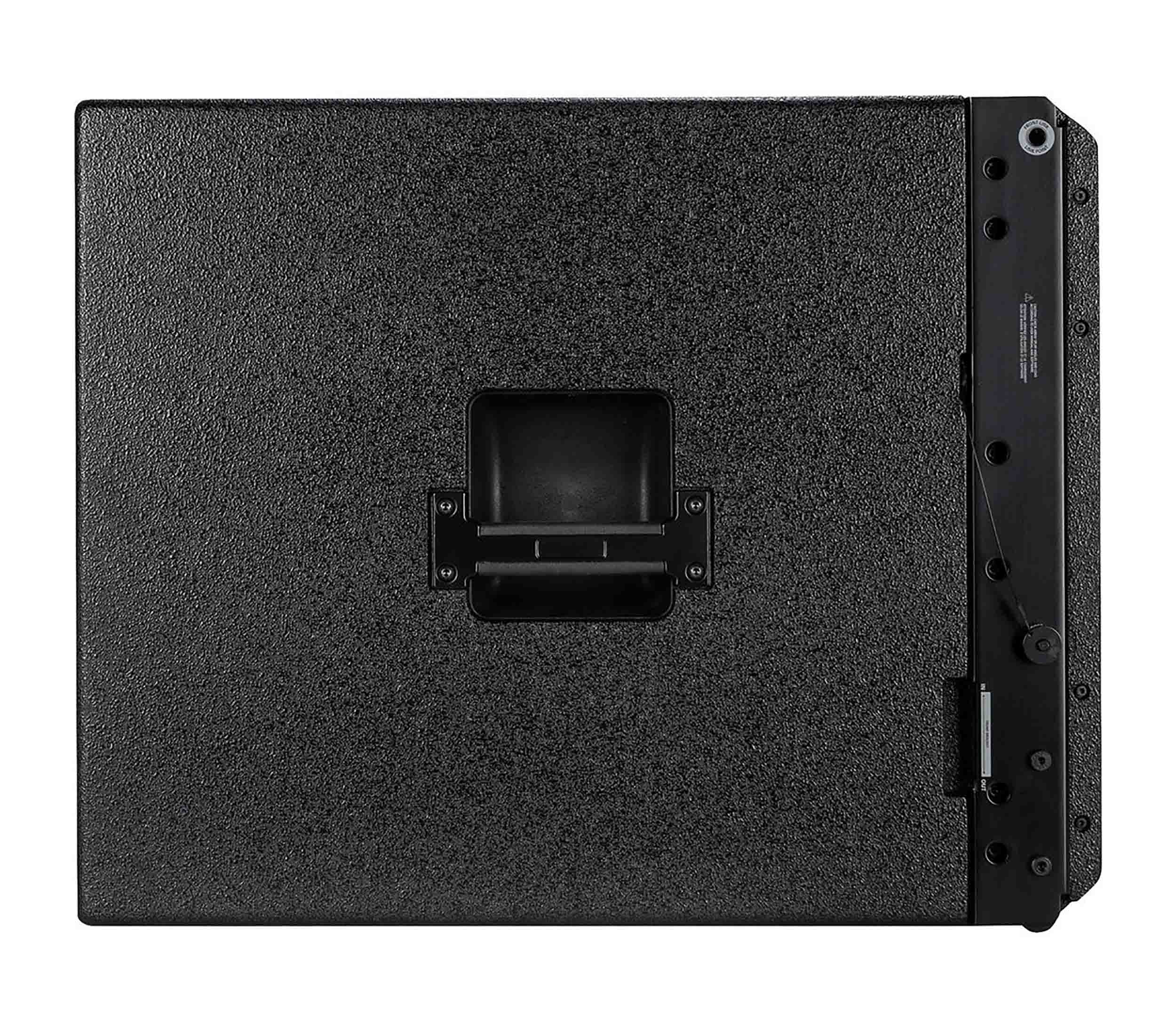

Handles: 1x Each Side

Cooling: Convection

Environmental Protection: No

Construction Material: Metal Grille, Plywood

Certifications: CE

Dimensions: 19.8 x 27.6 x 24.5" / 50.3 x 70.1 x 62.2 cm

Weight: 107.4 lb / 48.7 kg
