Description

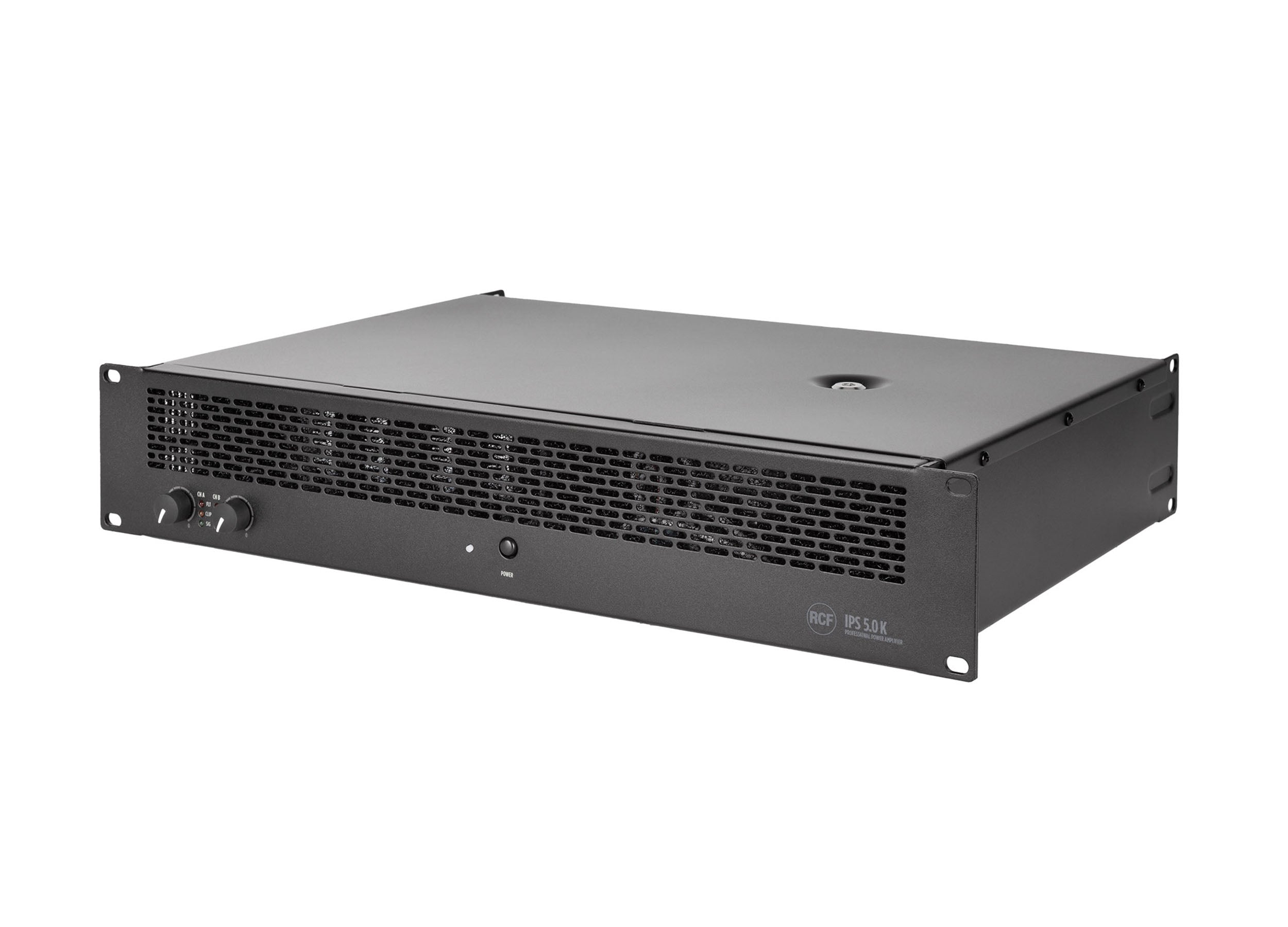

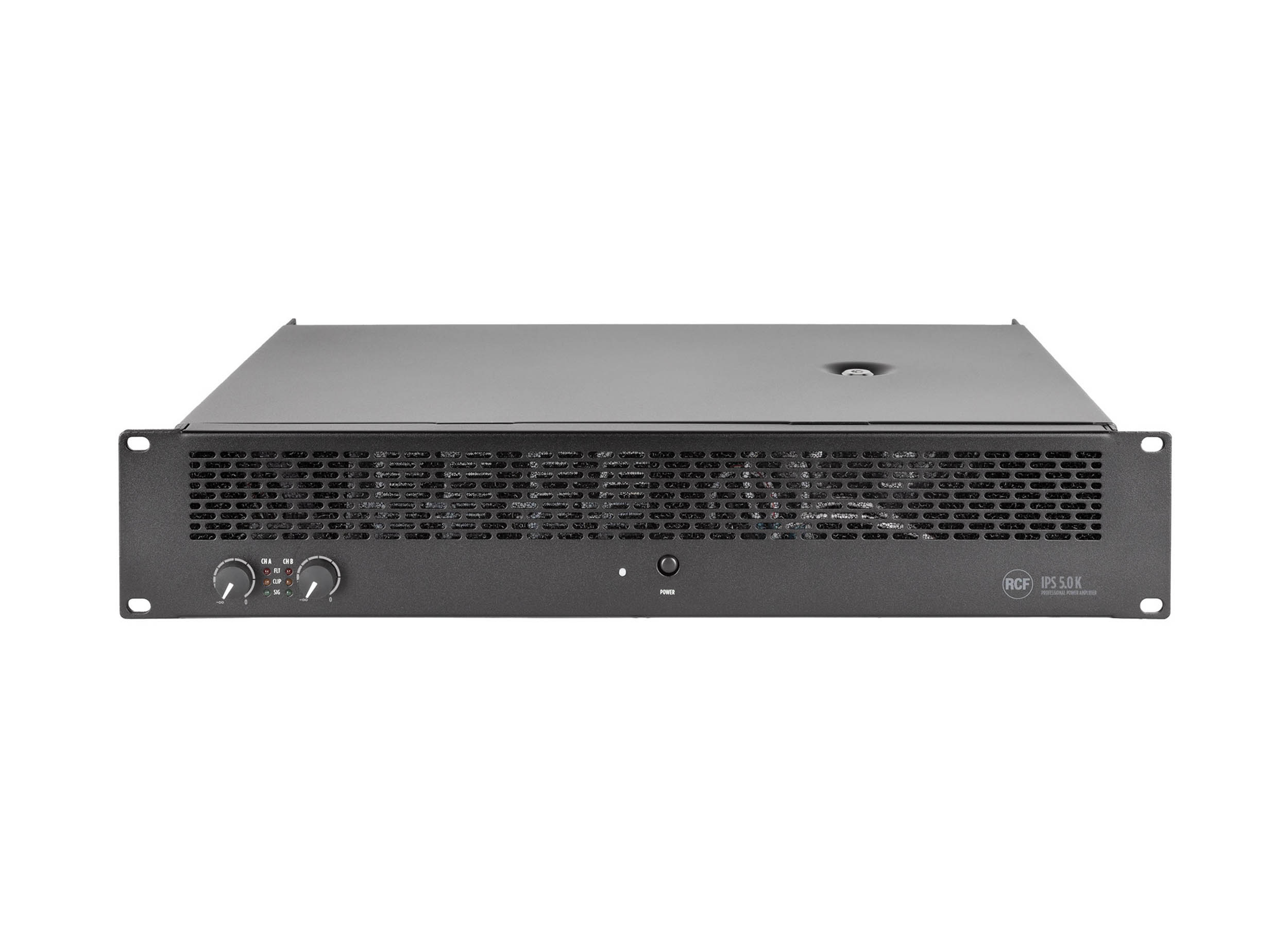

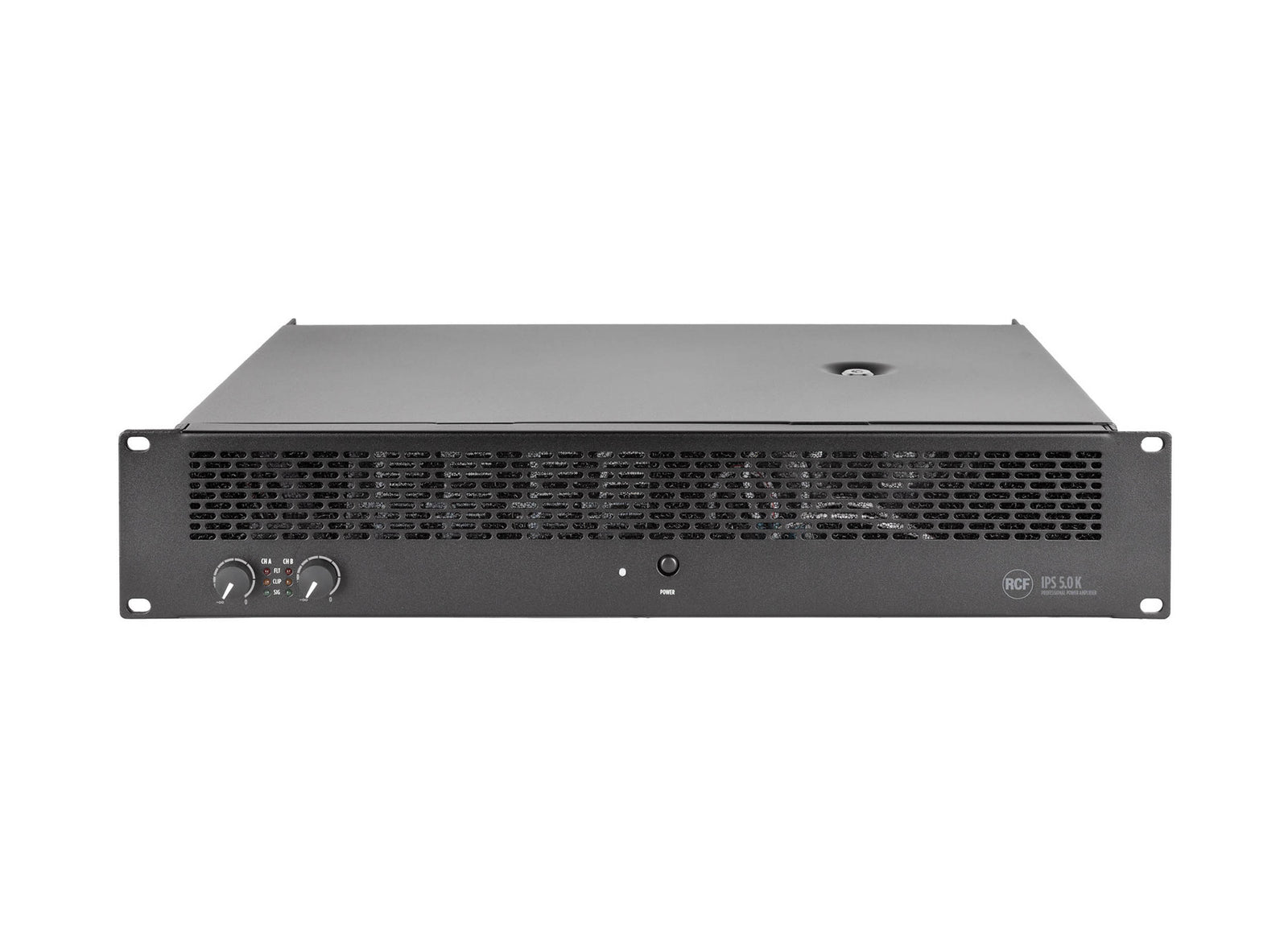

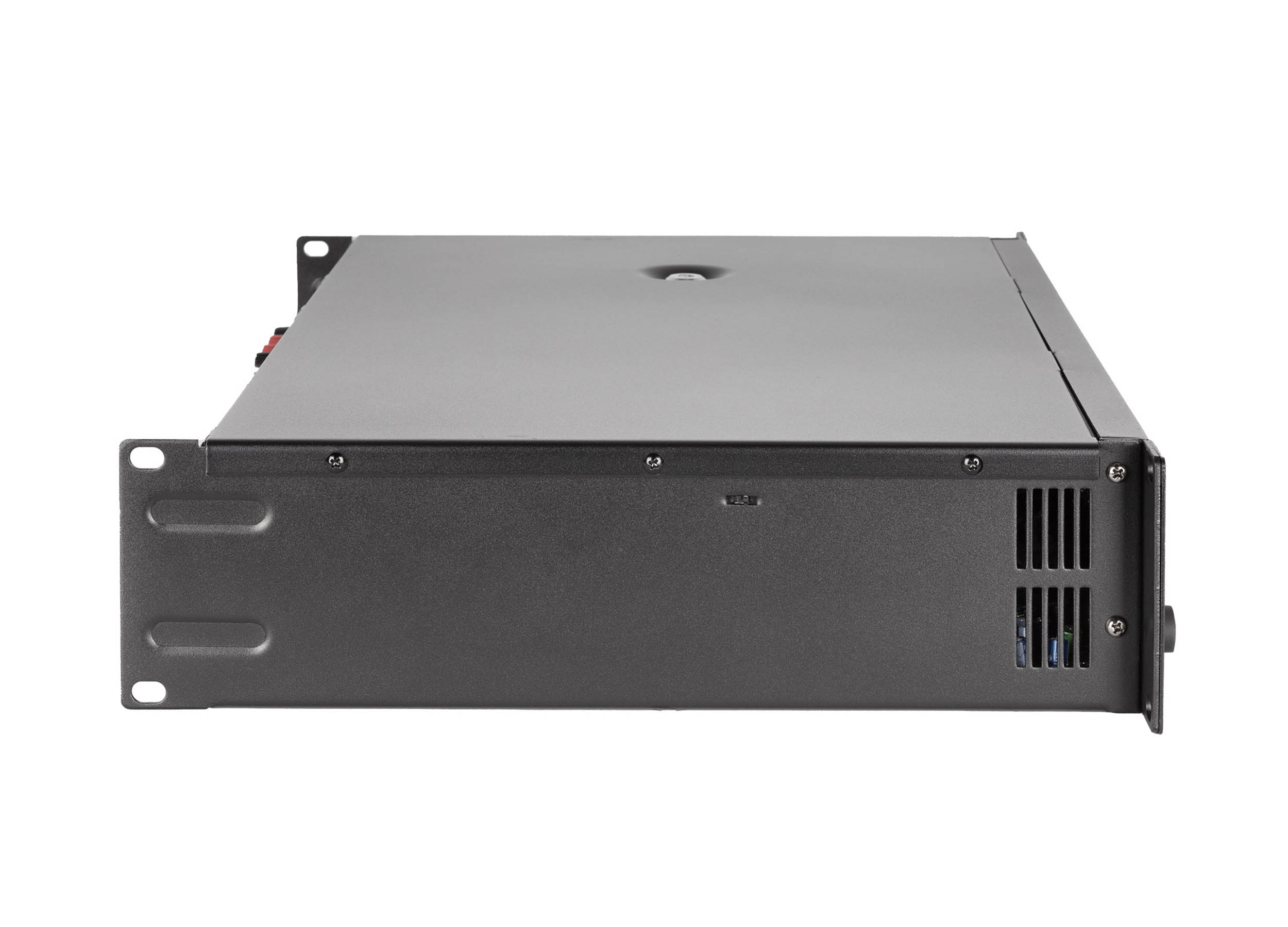

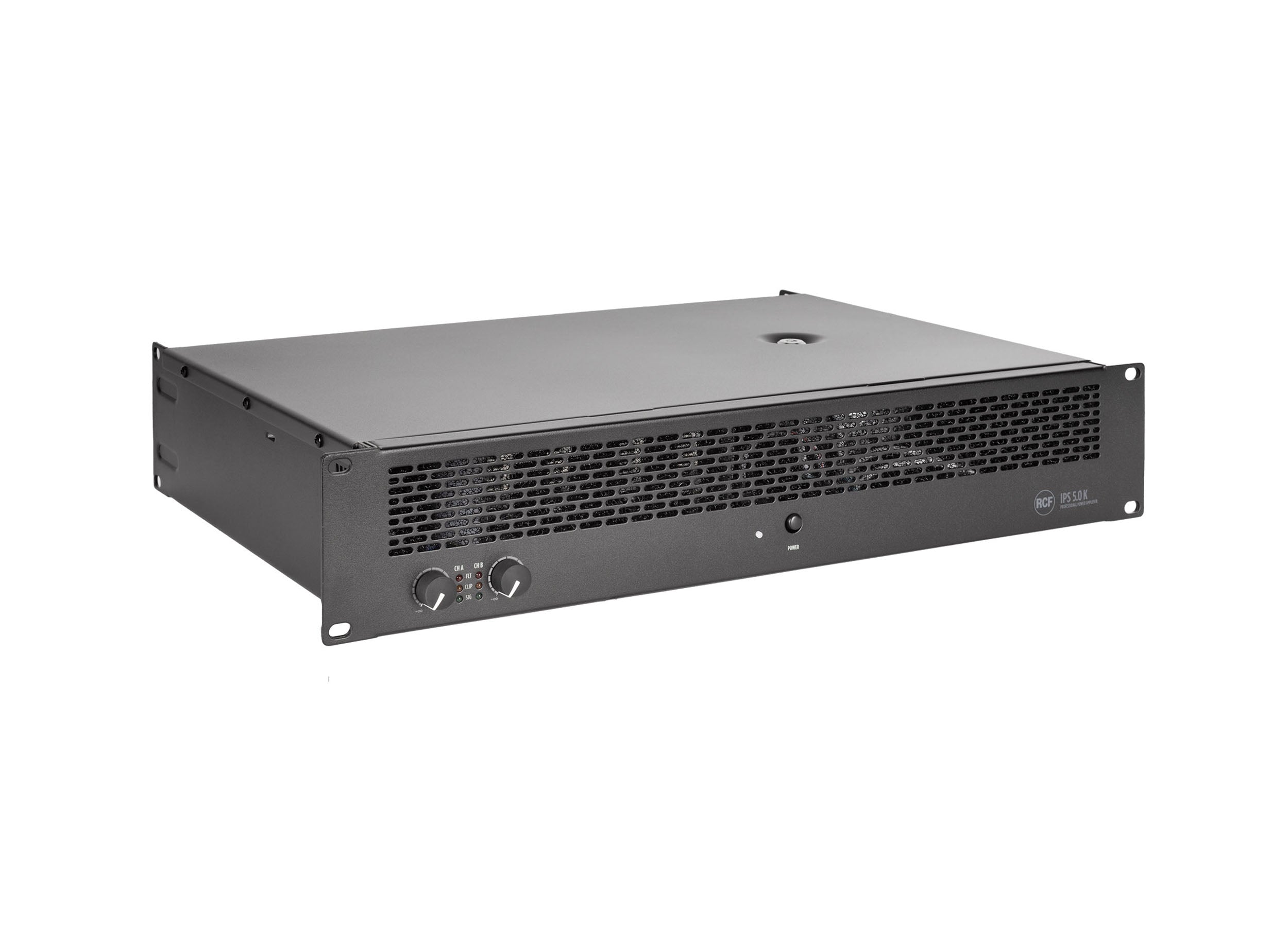

The RCF IPS 5.0K is a high-performance two-channel Class-H professional amplifier designed for demanding audio applications. Delivering up to 2600 W per channel at 4 ohms, it provides fast response, low distortion, and flexibility in stereo, parallel, or bridge modes. Featuring a self-protecting architecture with thermal, short circuit, DC, and VHF protections, the IPS 5.0K ensures reliable operation under heavy loads. Its variable-speed cooling system and high-efficiency heat sinks maintain optimal temperatures while peak limiting protects connected transducers. With XLR inputs, speakON, and binding post outputs, this amplifier offers versatile connectivity for professional sound reinforcement setups.
The Advantage of Class H:
Class-H amplifiers modulate the supply voltage to the amplifier output devices so that it is never higher than necessary to support the signal swing. This reduces dissipation across the output devices and allows the amplifier to operate with optimized efficiency, regardless of output power level. Up to full power, a Class-H design requires less energy than a pure Class-AB design and is better suited for high-power applications.
Remarkable Audio Performance:
With a very high signal-to-noise ratio, IPS amplifiers also boast very low total harmonic distortion, making them perfect for highly demanding music applications. This ensures excellent vocal intelligibility and clear audio reproduction across a wide frequency range.
Self-protecting Architecture:
IPS Amplifiers implement several safety strategies to protect both the amplifier and the connected sound system. Effective peak limiting protects the transducers, while the temperature-controlled continuous variable-speed double-fan system (front to back), combined with high-efficiency heat sinks, maintains optimal working temperature under any environmental condition. The circuit is also protected from overheating, short circuits, infrasonic DC, and Very High Frequency (VHF) peaks from non-musical signals that could damage speakers.
Product Specification:
Amplifier specifications:
Amplifier Class: H
Output Power: 2 × 2600 W @ 4 Ω
Output Power: 2 × 1500 W @ 8 Ω
Output Power (Bridge): 1 × 5200 W @ 8 Ω
Frequency Response (-3dB): 20 Hz – 22,000 Hz
Crosstalk: <70 dB
Distortion (THD+N) @ 1 kHz Nominal Power: <0.04%
Input section:
Total Number of Inputs: 2
Balanced Inputs: 2
Mono Inputs: 2
Line Inputs: 2
Line Connectors: XLR

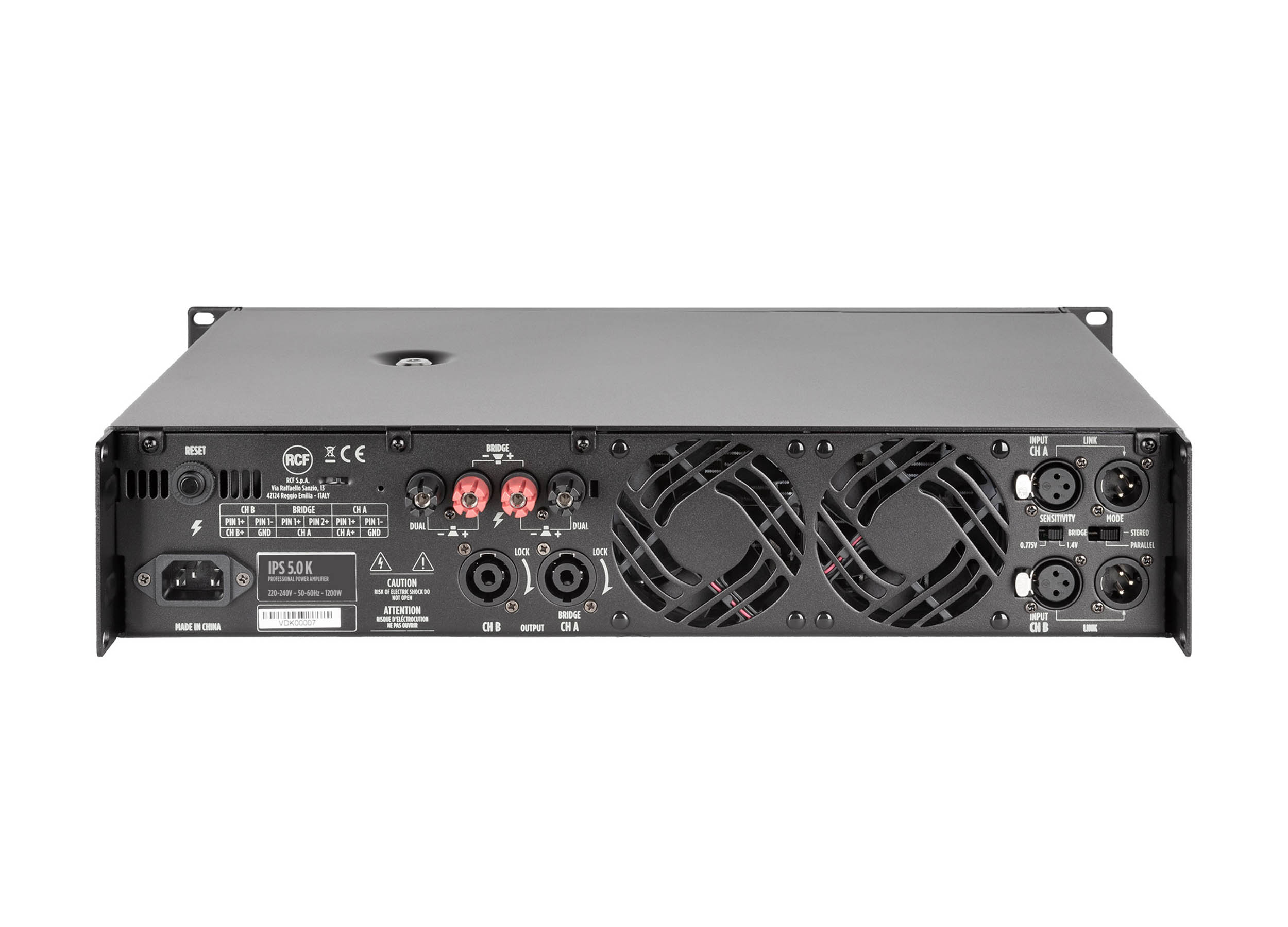

Output section:
Signal Output Number: 2
Signal Output Connectors: XLR
Power Output Connectors: Binding Post, speakON
Configuration and control:
Configuration: DIP switch, Front panel
Protections:
Cooling: Forced
Short Circuit: Yes
Thermal: Yes
DC Protection: Yes
Fuses: Yes
VHF Protection: Yes
Power requirement:
Operating Voltage: 220–240 / 115 V~ 50/60 Hz
Power Consumption (Max): 1800 W
Standard compliance:
Safety Agency: CE compliant
Physical specifications:
Cabinet/Case Material: Metal
Color: Black – RAL 9005
Rack Mounting: 19", 2U
Height: 3.46 in
Width: 18.98 in
Depth: 12.8 in
Weight: 47.62 lbs.
Shipping information:
Shipping Height: 5.51 in
Shipping Width: 21.65 in
Shipping Depth: 20.87 in
Shipping Weight: 50.93 lbs.
