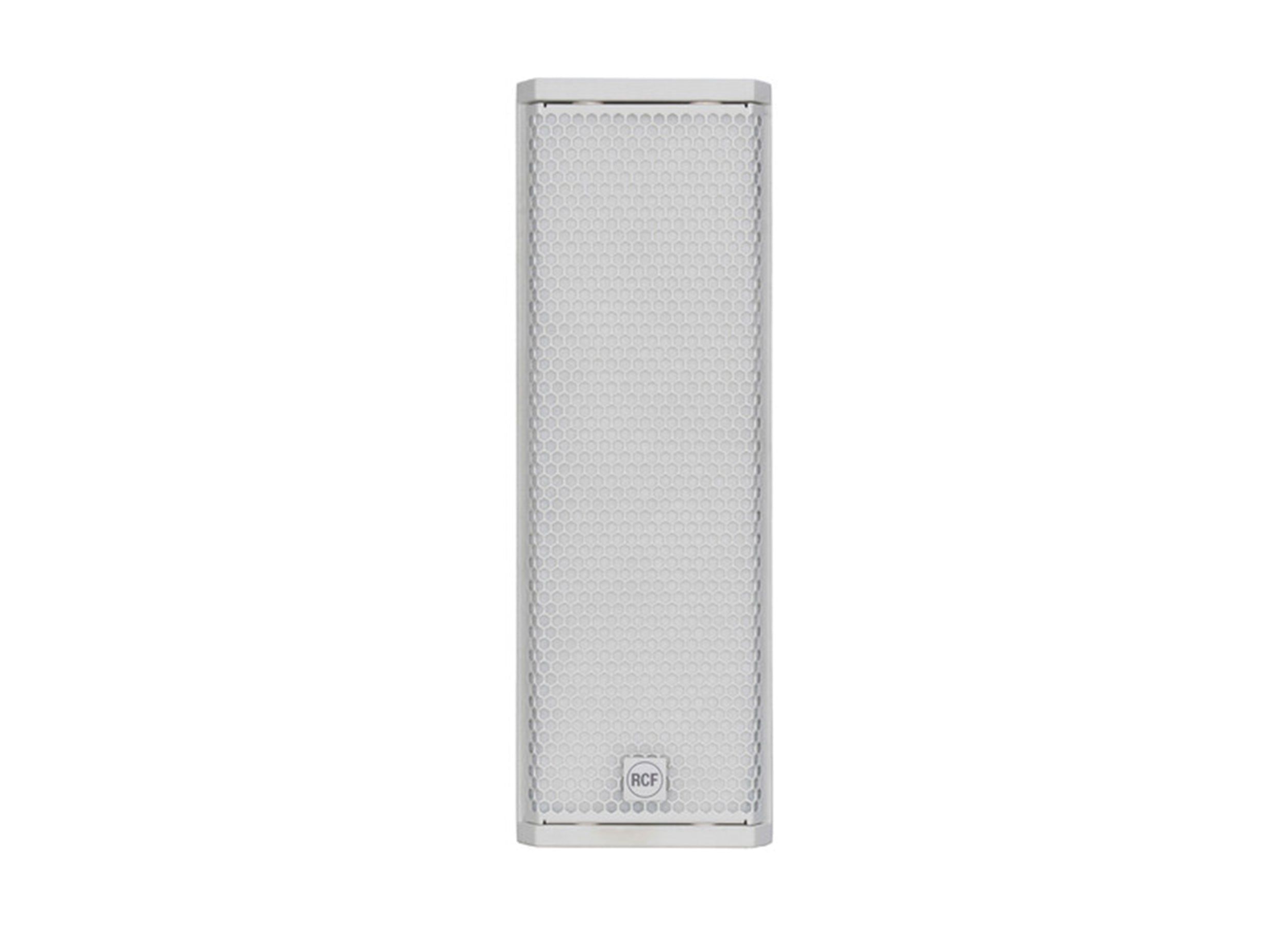

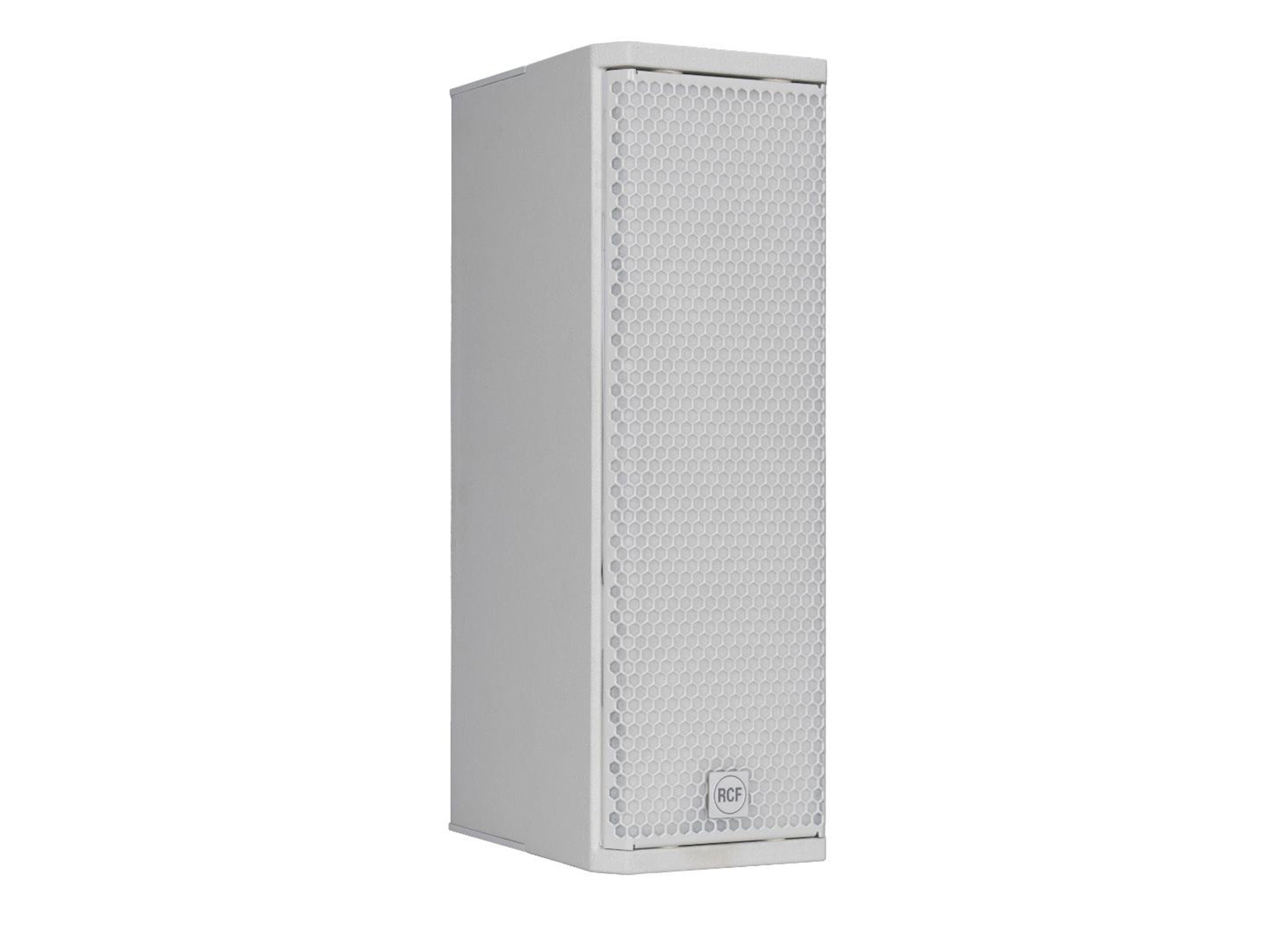

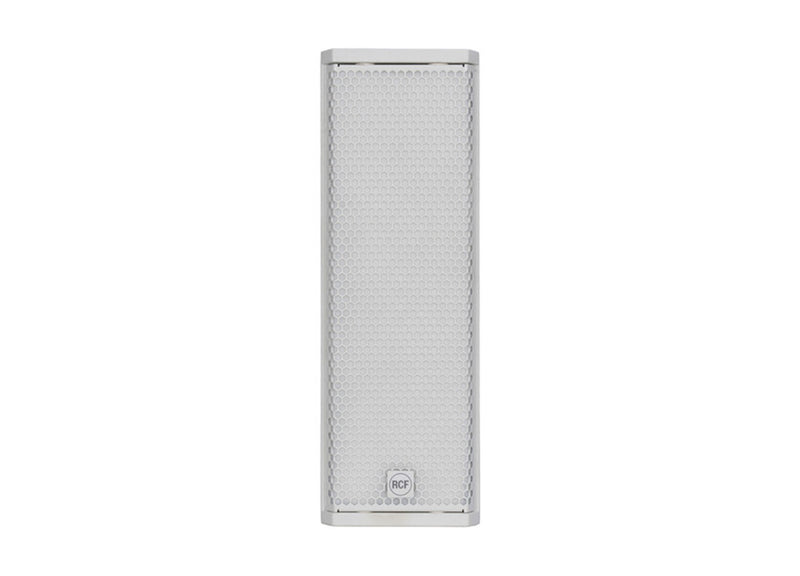

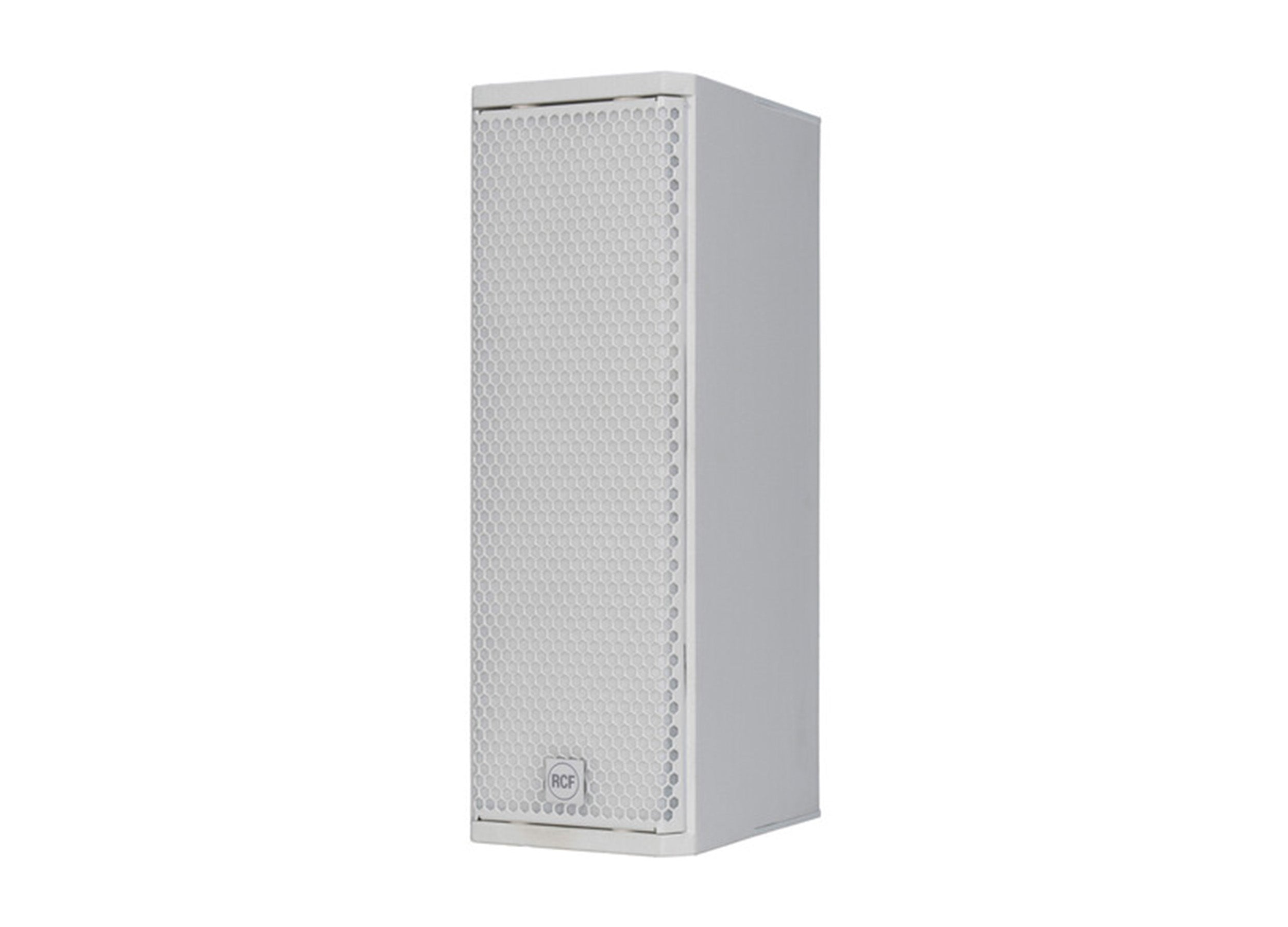

RCF KX 515-A W Professional 2-Way Active Speaker 2000W, DSP, Weatherproof - White

The RCF KX 515-A W Professional 2-Way Active Speaker 2000W, DSP, Weatherproof – White is flexibility, power, and compactness make the KX 515-A ideal for installed and portable professional applications where size and weight are critical factors. This approach combines the advantages of RCF technology such as controlled dispersion, outstanding clarity and extreme power, multiple flexible rigging accessories, weatherproof protection, and RDNET real-time monitoring and management software with recallable presets. Its transducer configuration pairs two custom-loaded 5-inch cone drivers to a rotatable CMD waveguide surrounding a titanium 1.75-inch high-frequency compression driver. Whether it’s used as a compact main system, as fills, or surrounds in a larger system, KX 515-A is quick to deploy and fast to tune.
The two-channel 2000 W (1000 W RMS) amplifier is small, ultra-silent, and fanless.

Producing a Max SPL of 127 dB, is perfect for 3D/immersive sound, nearfield systems, and productions that demand extreme sound quality.

The rotatable 100x70 degree pattern reaches a wide area, perfectly matching the directivity of the woofers.

The internal DSP has a whole range of protections for the transducers and includes special FiRPHASE and BMC processing to achieve coherent distribution of sound without phase distortion and deep, tight bass at A stunning sound system

Pair the KX 515-A with the SUB 808-AS subwoofer to extend the low-frequency range and create a powerful full-range main system with an incredibly small footprint. With multiple configuration options, the powerful DSP and RDNet remote management, there isn't a too big or too small venue.
Good things come in small packages
Uncompromising fidelity and power with KX sonic signature. This means you have perfect phase and frequency compatibility among all KX speakers so you can serve up a breathtaking sonic experience in all your applications.
An unobstructed stage
Uncompromised sound without blocking critical sightlines. The ultimate flexibility for tight spaces, small stages, and small gigs with extreme portability. You can pack a full-range stereo system with two KX 515-A, two 808-AS subwoofers, poles, and cables in less than 200-liters volume.
any volume.
100° X 70° rotatable constant-directivity waveguide
CMD horn that is easily rotatable in the field using only a screwdriver
Low Frequency
Two 5” cone drivers on a custom-designed phase plug to enhance midrange efficiency and extend horizontal coverage, matching the waveguide dispersion for perfect coverage continuity around the crossover point.
High Frequency
The high-performance 1.75" titanium dome compression driver is fitted on a 100° x 70° rotatable constant-directivity waveguide. This special waveguide and high-frequency transducer design allow excellent control of directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.
Robust and durable
The enclosure is made of high-quality Baltic birch plywood, glued with water-resistant adhesive and coated with weatherproof polyurea paint, ensuring excellent waterproofing, UV resistance, corrosion protection, and durability against abrasion, impacts, and mechanical stress. The solid machined aluminum structure efficiently dissipates heat fanlessly, improving enclosure stiffness, while the high-strength structural steel rigging ensures a high safety factor for secure weight management. Die-cast aluminum handles with ergonomic rubber grips enhance usability.
Built for everyday use
Use it as a compact and powerful main system or to supplement a larger system. The waterproof cabinet is built in high-strength baltic birch plywood coated with White, robust, and scratch-resistant polyurea paint. Attached to a solid machined aluminum structure at the back, the amplifier heat dissipation is efficient and the cabinet is sturdy and stiff. A strong powder-coated metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.
Tour Ready Construction
Attached to a solid machined aluminum structure on the rear panel, the amplifier ensures efficient heat dissipation. The enclosure is internally reinforced and sturdy, equipped with waterproof PowerCON TRUE1 TOP mains connectors, guaranteeing durability under any outdoor conditions.
Bass Motion Control
KX speakers equipped with Bass Motion Control (BMC) produce the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity. The BMC method creates a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that limits over-excursions. Traditional high-pass filters protect the woofer from over-excursion but change the phase/frequency response. In contrast, the new BMC algorithm protects the woofer allowing total freedom of signal reproduction.

Product Specifications:

Acoustical:

Frequency Response: 70 Hz - 20,000 Hz

Max SPL @ 1m: 127 dB

Horizontal Coverage Angle: 100°

Vertical Coverage Angle: 70°

Transducers:

Compression Driver: 1 x 1.0'' neo, 1.75'' v.c

Woofer: 2 x 5.0'' neo, 2.0'' v.c

Input/Output Section:

Input Signal: bal/unbal

Input Connectors: XLR, RDNet Ethercon

Output Connectors: XLR, RDNet Ethercon

Input Sensitivity: -2 dBu / +4 dBu

Processor Section:

Crossover Frequencies: 1200 Hz

Protections: Excursion limiter, Fast Limiter

Controls: Bypass, Linear/High Pass, Volume

RDNet: Onboard

Power Section:

Total Power: 2000 W Peak

High Frequencies: 600 W Peak

Low Frequencies: 1400 W Peak

Cooling: Convection

Connections: Powercon TRUE1 TOP IN/OUT

Standard Compliance:

Safety Agency: CE compliant

Physical Specifications

Cabinet/Case Material: Baltic birch plywood

Hardware: 2 x M10 TOP AND BOTTOM, 2 x PIN D.10

Handles: 2 TOP AND BOTTOM

Pole Mount/Cap: Quick-fit socket

Grille: Steel with clothing

Color: White

Size / Weight:

Height: 456 mm / 17.95 inches

Width: 154 mm / 6.06 inches

Depth: 237.5 mm / 9.35 inches

Weight: 9.8 kg / 21.61 lbs

Shipping Information:

Shipping Height: 510 mm / 20.08 inches

Shipping Width: 290 mm / 11.42 inches

Shipping Depth: 200 mm / 7.87 inches

Shipping Weight: 11.3 kg / 24.91 lbs
