Description

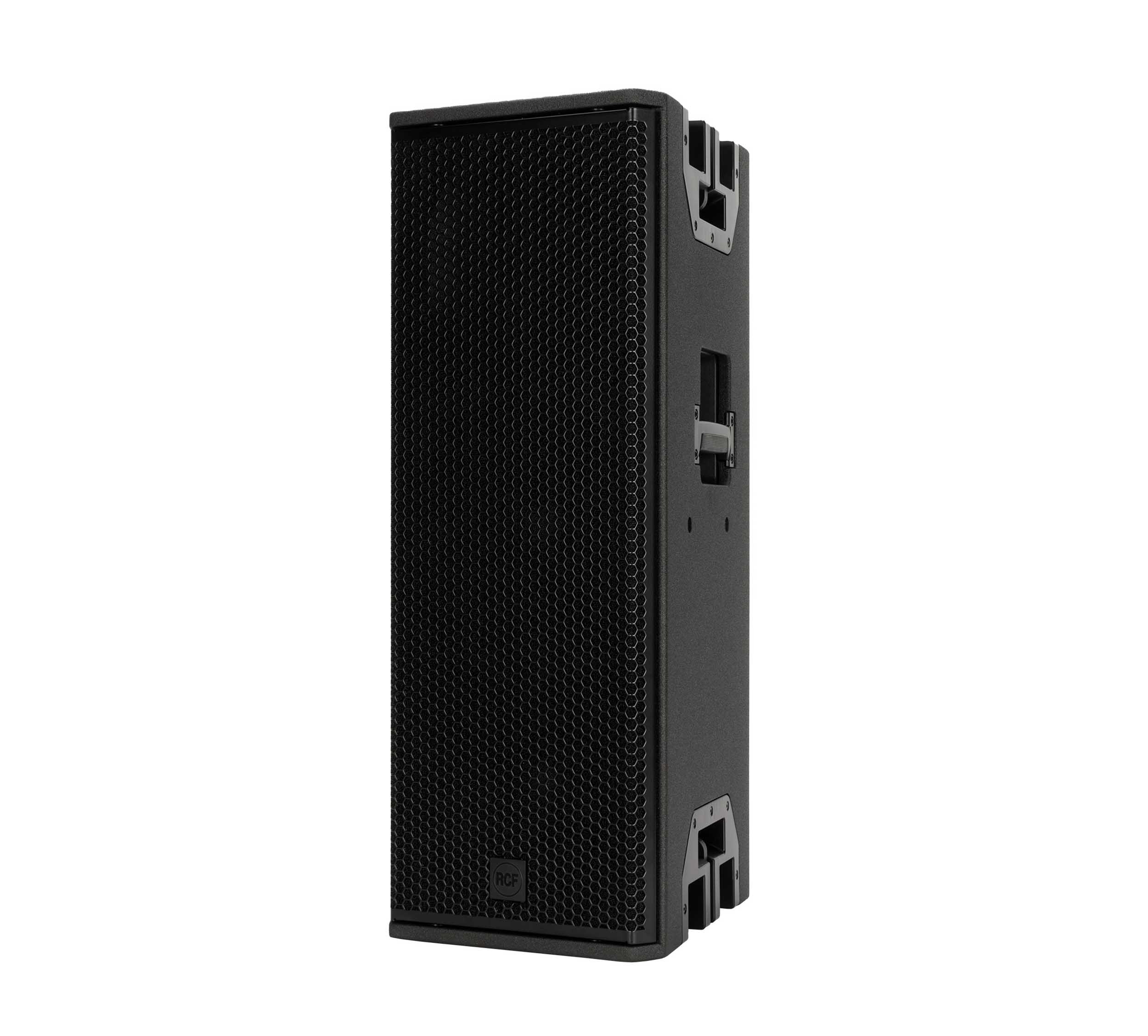

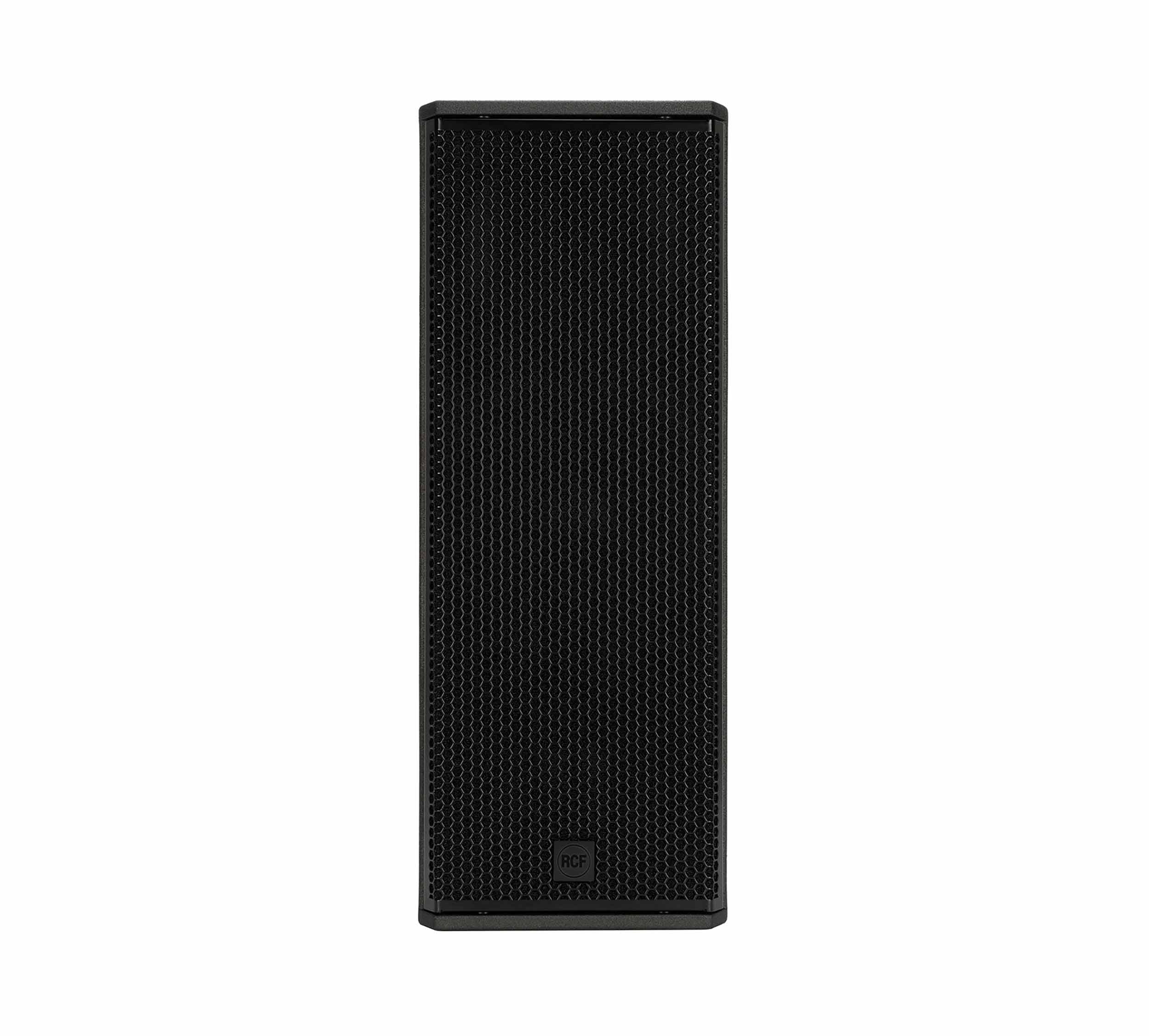

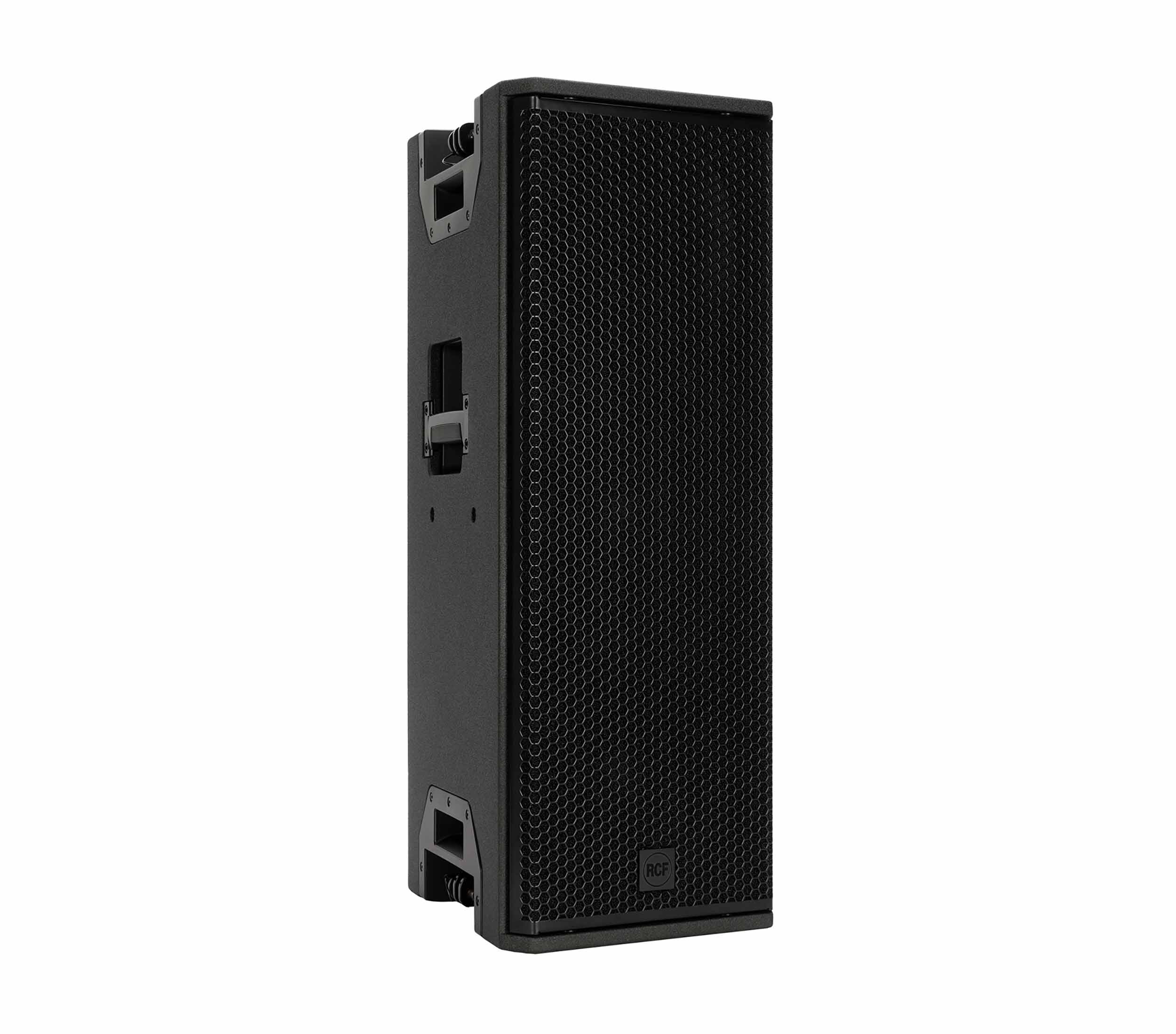

The RCF KXL 4-A is a compact, flexible high-output 2-way active speaker engineered for professional users, combining precise directivity, high SPL capability, and advanced rigging for both vertical and horizontal array configurations. The low-frequency section features two 10” neodymium drivers in a bass-reflex design; the high-frequency section comprises a neodymium compression driver with a 4” titanium dome, coupled to a rotatable 100° x 25° True Resistive Waveguide. Transducers can be swapped (firmware update required). An integrated two-channel 3200 W Class D amplifier with proprietary DSP processing and remote management via RDNet enables optimal system performance. Its weatherproof, multifunctional enclosure supports versatile deployment for ground-stacked, pole-mounted, or flown applications.
Advanced Electronics
The high-powered Class-D amplifiers, tailored for each transducer, deploy pristine sound with efficient heat dissipation at the lowest possible distortion, along with low power consumption.
High-end AD/DA conversion and onboard DSP for the best sound quality. Thanks to the proprietary RDNet networked management and control, every KX speaker provides in-depth remote monitoring through multiple sensors. The system engineer has immediate feedback of transducer status, fan speed, temperature, VU meters, limiters and much more.
100°X25° Waveguide with Coherent Directivity
This special waveguide design allows the deployment of multiple KXL 4-A for excellent control of directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.

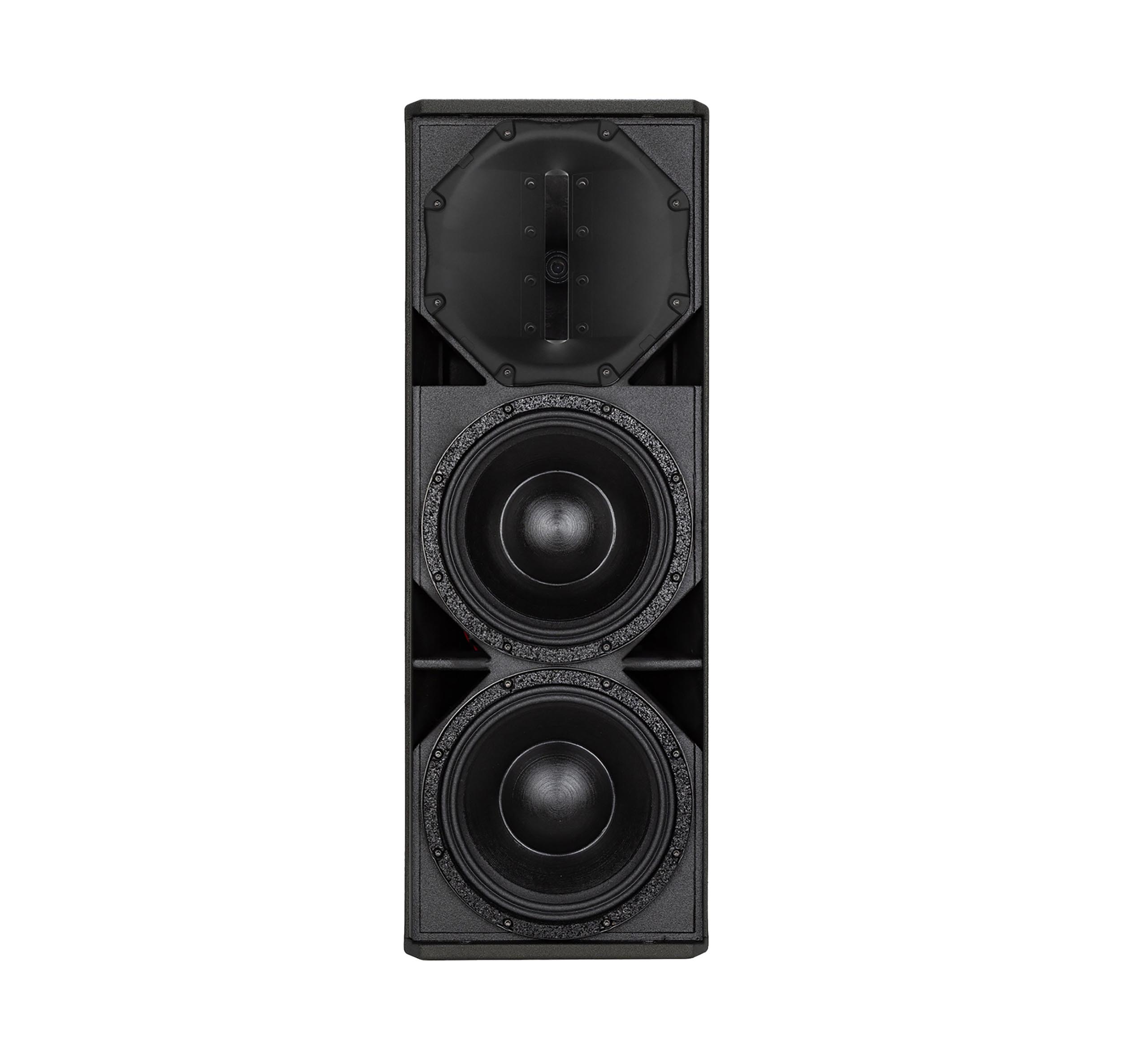

Precision Transducers
Low Frequency
The 4-inch pure titanium dome NDT995 compression driver maximizes linearity, precision and long-term reliability. Its motor structure features a high-flux density neodymium magnet assembly, ultralight edge wound aluminum wire, a 4-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. With a very low crossover point at 750 Hz, this allows a better impulse response, fast decay and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.
High Frequency
The two 10-inch Hypervented woofer of the Precision Transducers line enable a compact, slim design while delivering high power. The magnetic structure features a large neodymium magnet, ensuring extremely high flux density within the gap. The newly designed aluminum basket and magnetic assembly provide excellent heat dissipation and significantly reduce power compression. Special air-forced ventilation is incorporated into the voice coil, magnet assembly, and basket, optimizing cooling efficiency. The M-roll surround and spider design ensure superb linearity and highly accurate sound reproduction.
Networked Control and Much More
RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.
Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.
Robust and Durable

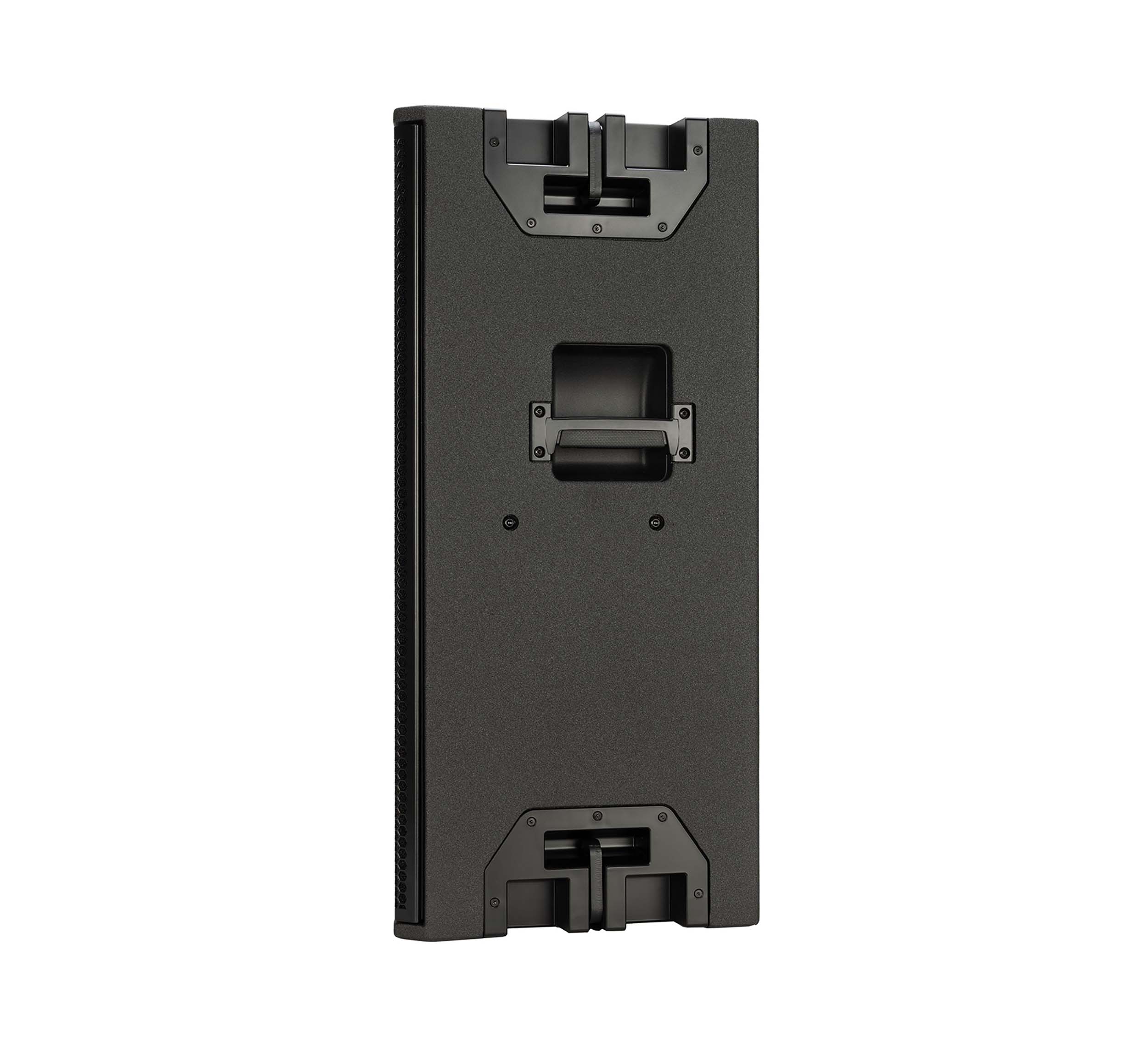

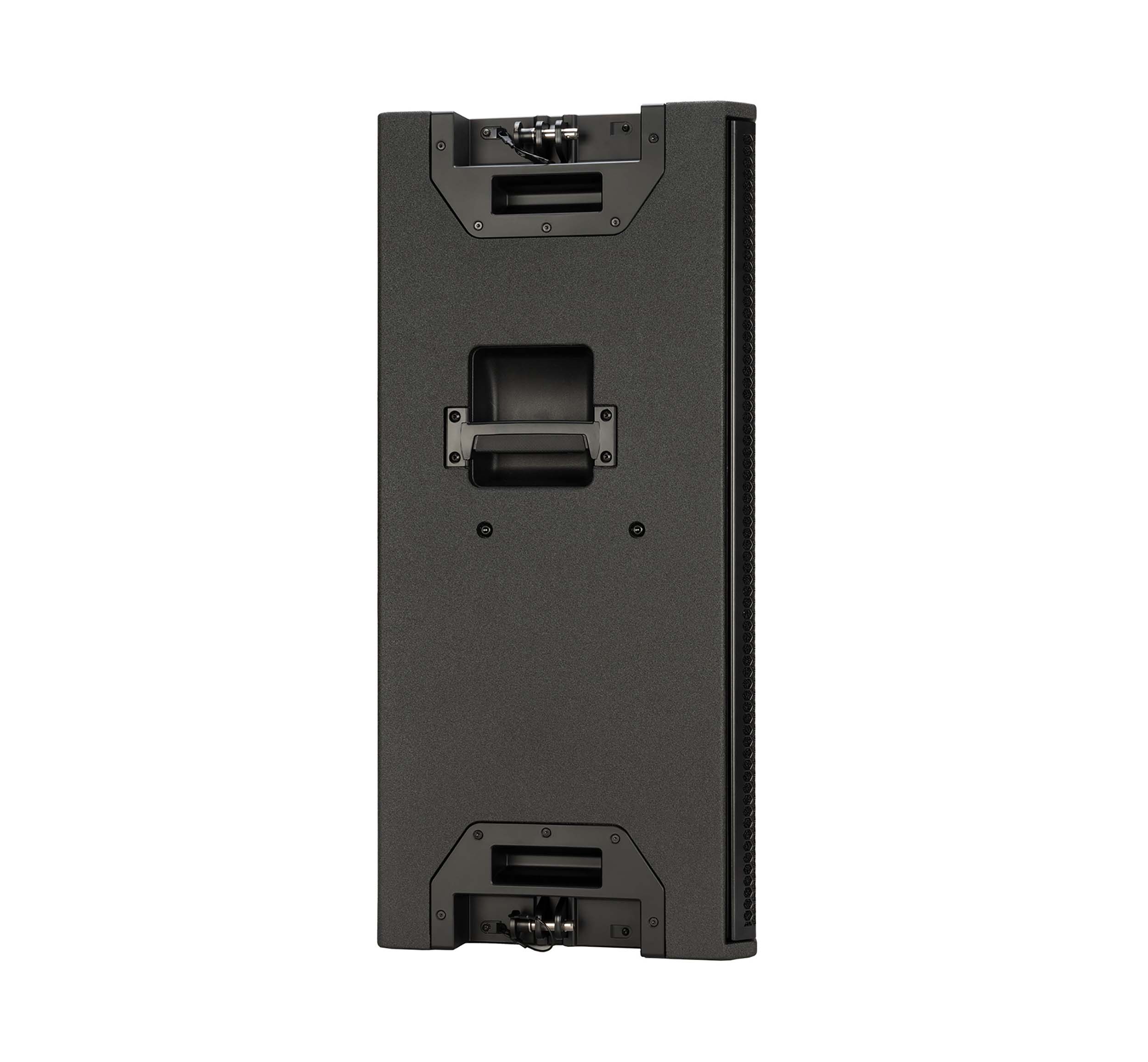

The enclosure is made of high-quality Baltic birch plywood, glued with water-resistant adhesive and coated with weatherproof polyurea paint, ensuring excellent waterproofing, UV resistance, corrosion protection, and durability against abrasion, impacts, and mechanical stress. The solid machined aluminum structure efficiently dissipates heat fanlessly, improving enclosure stiffness, while the high-strength structural steel rigging ensures a high safety factor for secure weight management. Die-cast aluminum handles with ergonomic rubber grips enhance usability.
Reinforced structural design
Water Resistant Birch Enclosure
Durable Polyurea Paint
High-strength Steel
Ergonomic handles
Machined Aluminum Heat Sink
Tour Ready Construction

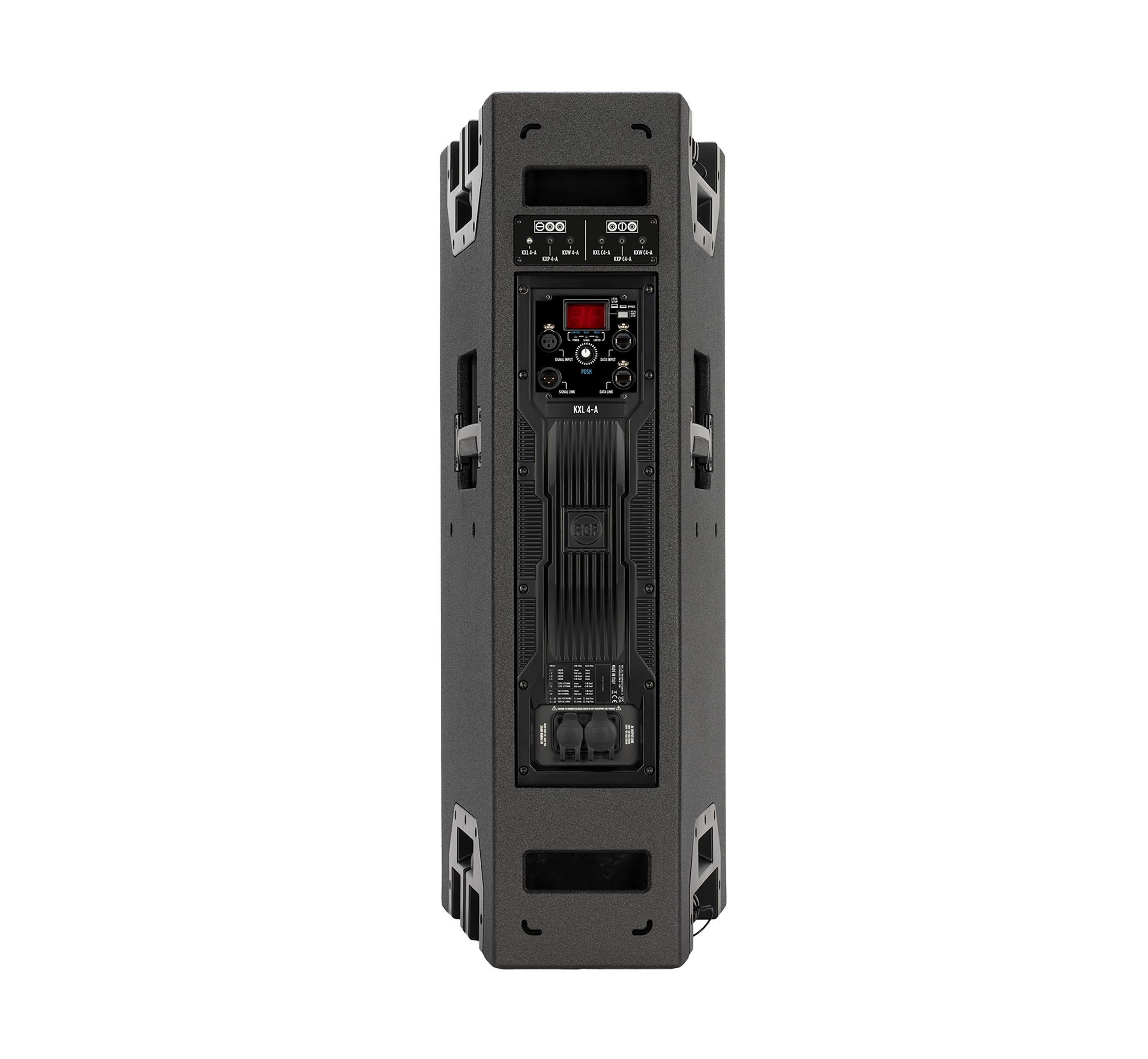

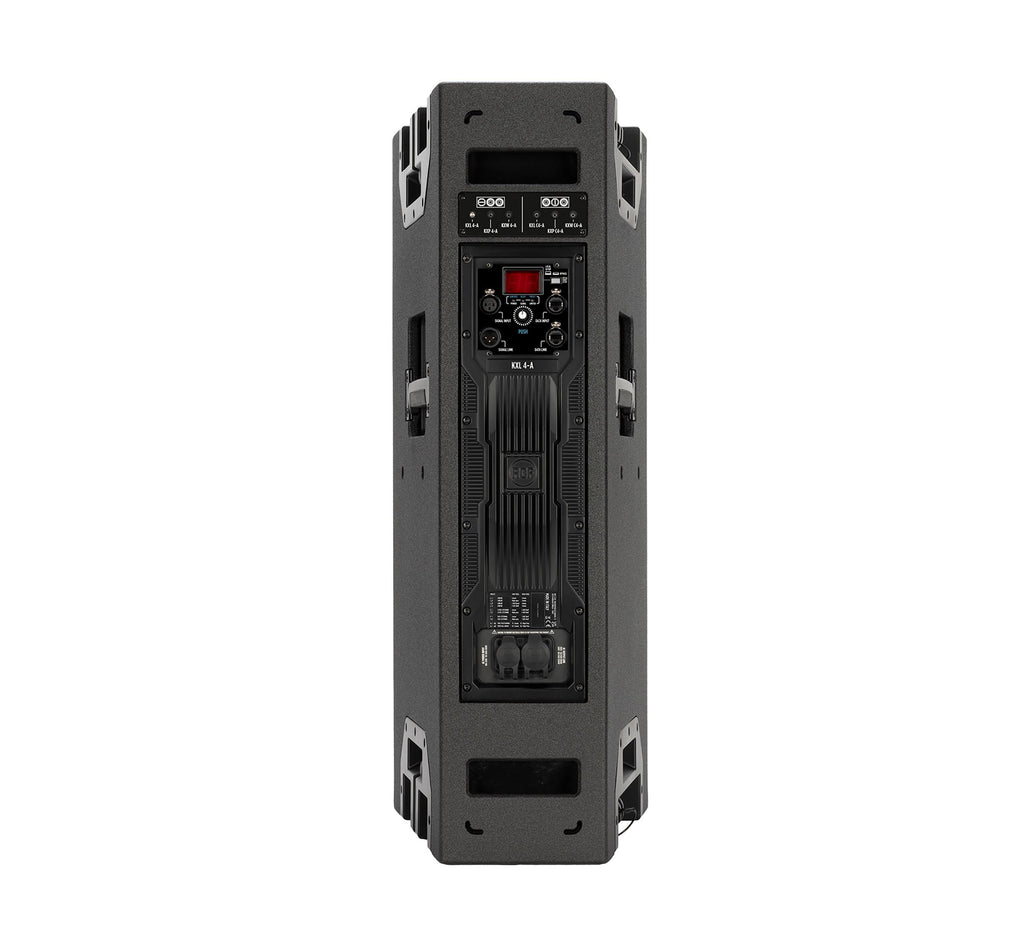

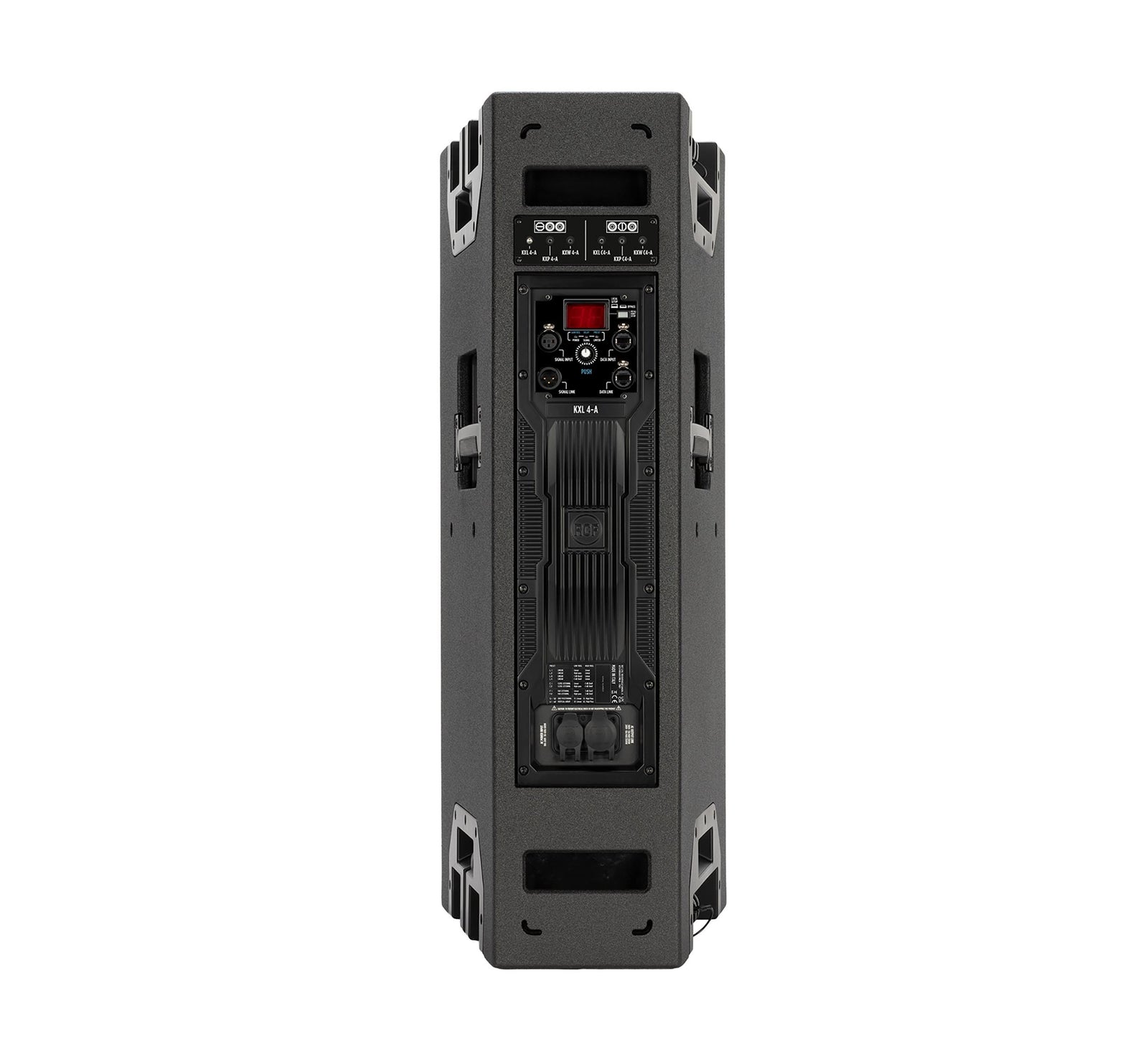

Attached to a solid machined aluminum structure on the rear panel, the amplifier ensures efficient heat dissipation. The enclosure is internally reinforced and sturdy, equipped with waterproof powerCON TRUE1 TOP mains connectors, guaranteeing durability under any outdoor conditions.
Digital Signal Proficiency
The KX DSP platform is the next-generation audio engine for RCF active speakers and DSP amplifiers. Designed as a real-time DSP engine, it offers unparalleled processing density and scalability, propelling RCF speakers to a new dimension of performance.
This groundbreaking DSP engine delivers unmatched processing power for its class.
Bass Motion Control
KX speakers equipped with Bass Motion Control (BMC) produce the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity. The BMC method creates a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that limits over-excursions. Traditional high-pass filters protect the woofer from over-excursion but change the phase/frequency response. In contrast, the new BMC algorithm protects the woofer allowing total freedom of signal reproduction.
New Perspective on Linearity
KX speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE processing distributes sound to all listeners without phase distortions, ensuring minimum latencies in the system. The algorithm corrects phase and amplitude (if necessary) by taking into account the weak points of the transducers and the resonances or cancellations due to the cabinet of the loudspeaker.
Product Specifications:
Acoustical:
Frequency Response: 45 Hz – 20,000 Hz
Max SPL @ 1 m: 135 dB
Horizontal Coverage: 100°
Vertical Coverage: 25°
Transducers:
HF: 1 × 1.4" Neodymium Compression Driver, 4.0" Voice Coil
LF: 2 × 10" Neodymium Woofers, 3.0" Voice Coils
Input / Output Section:
Input Signal: Balanced / Unbalanced
Input Connectors: XLR, RDNet Ethercon
Output Connectors: XLR, RDNet Ethercon
Input Sensitivity: +4 dBu
Processor Section:
Crossover Frequency: 900 Hz
Protections: Thermal, RMS
Limiter: Fast Limiter
Controls: Gain Reduction, Delay, Processing, 8 Selectable Presets
RDNet: Onboard
Power Section:
Total Power: 3200 W Peak (2000 W LF + 1200 W HF)
Amplifier Type: 2 × Class-D
Cooling: Convection
Power Connections: powerCON TRUE1 TOP IN/OUT
Compliance:
Safety: CE Compliant
Physical Specifications:
Cabinet Material: Baltic Birch Plywood
Finish: Weatherproof Polyurea Coating
Grille: Steel with Acoustic Fabric
Hardware: Array Fittings, 2 × M10 (Top), 2 × M8
Handles: 2 Side, 2 Rear

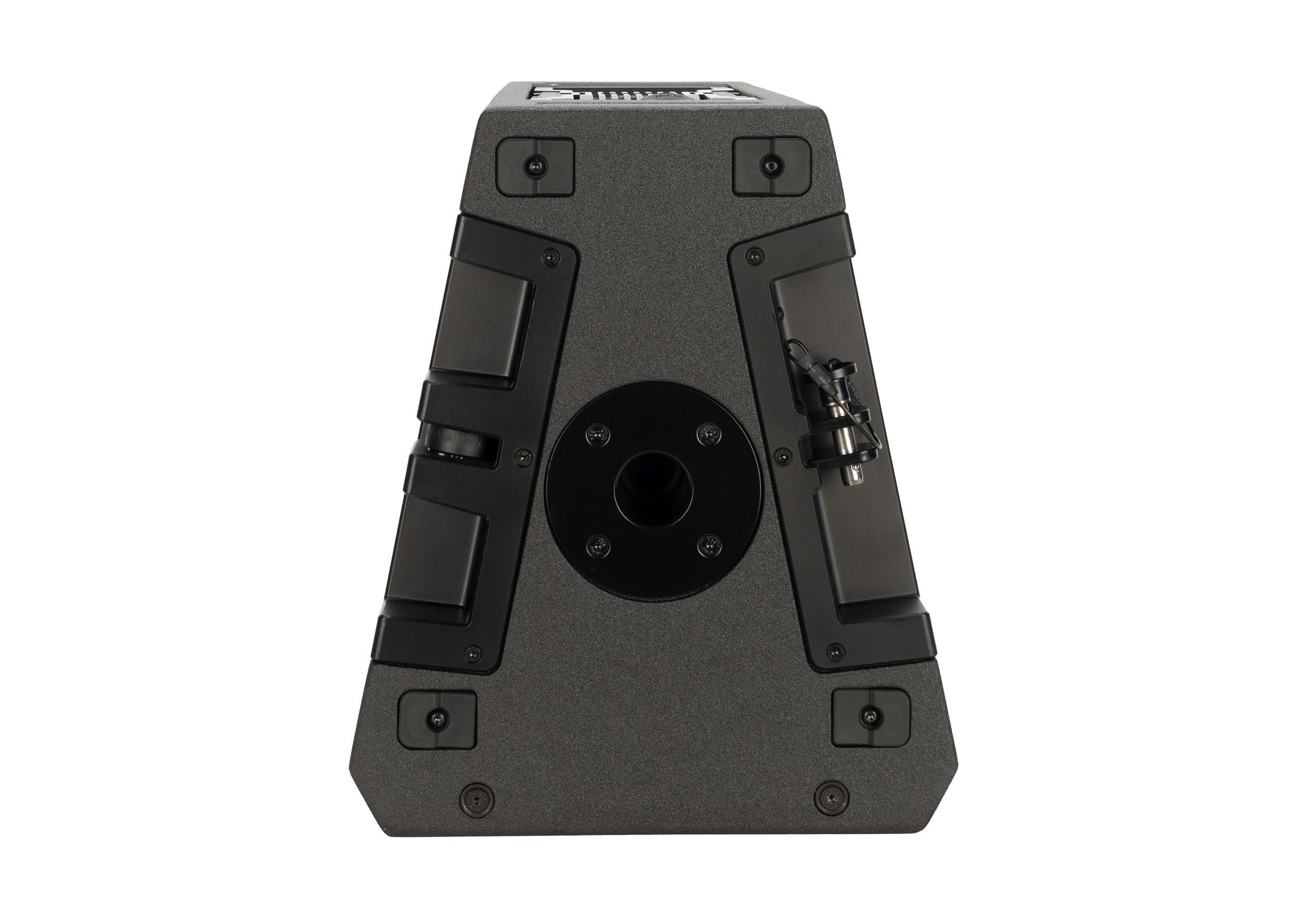

Pole Mount: 35 mm Insert
Color: Black
Product Dimensions (H × W × D): 825 × 310 × 369 mm / 32.48 × 12.2 × 14.53 in
Product Weight: 30.4 kg / 67.02 lbs.
Shipping Height: 410 mm / 16.14 in
Shipping Width: 865 mm / 34.06 in
ShippingDepth: 365 mm / 14.37 in
ShippingWeight: 33.5 kg / 73.85 lbs.
