Description

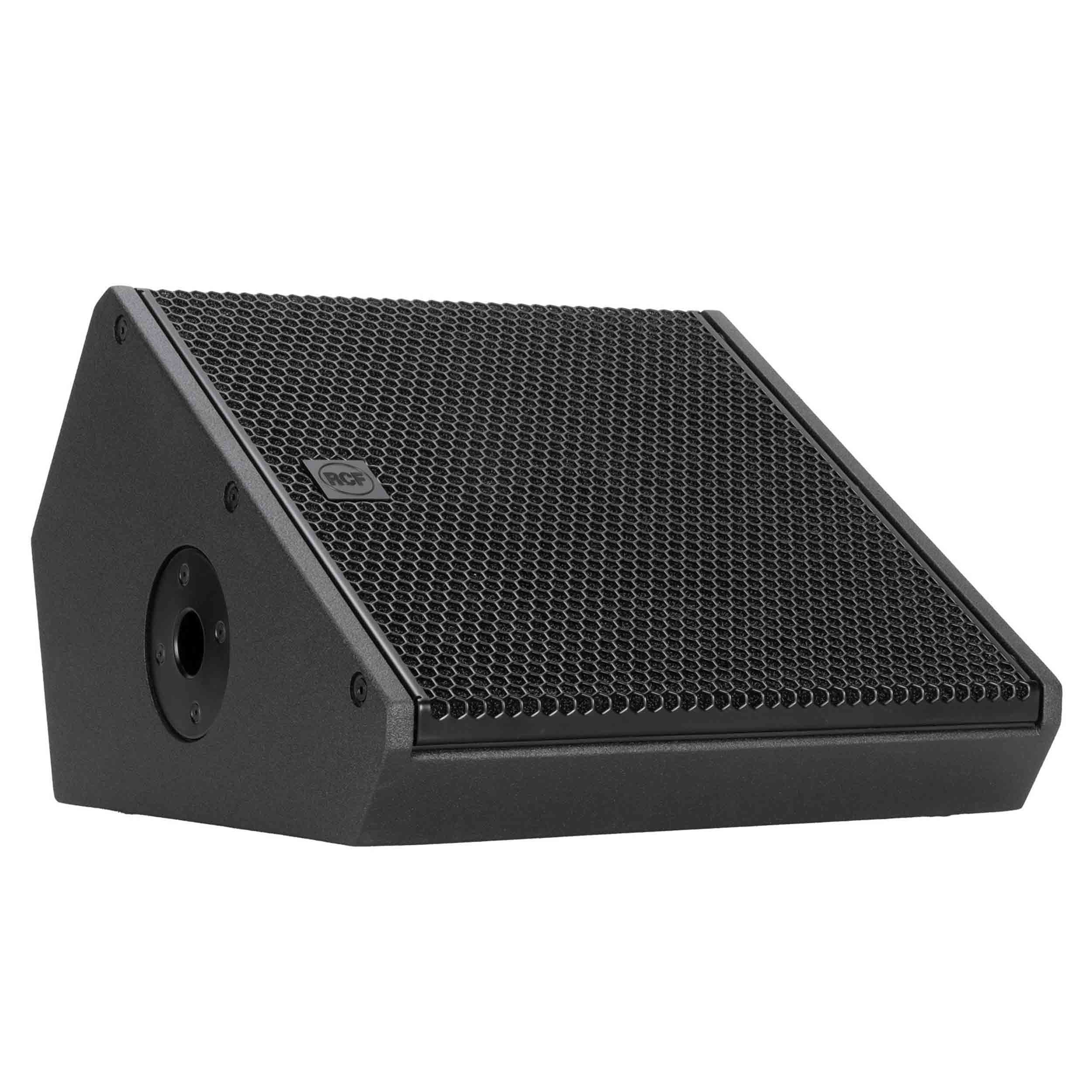

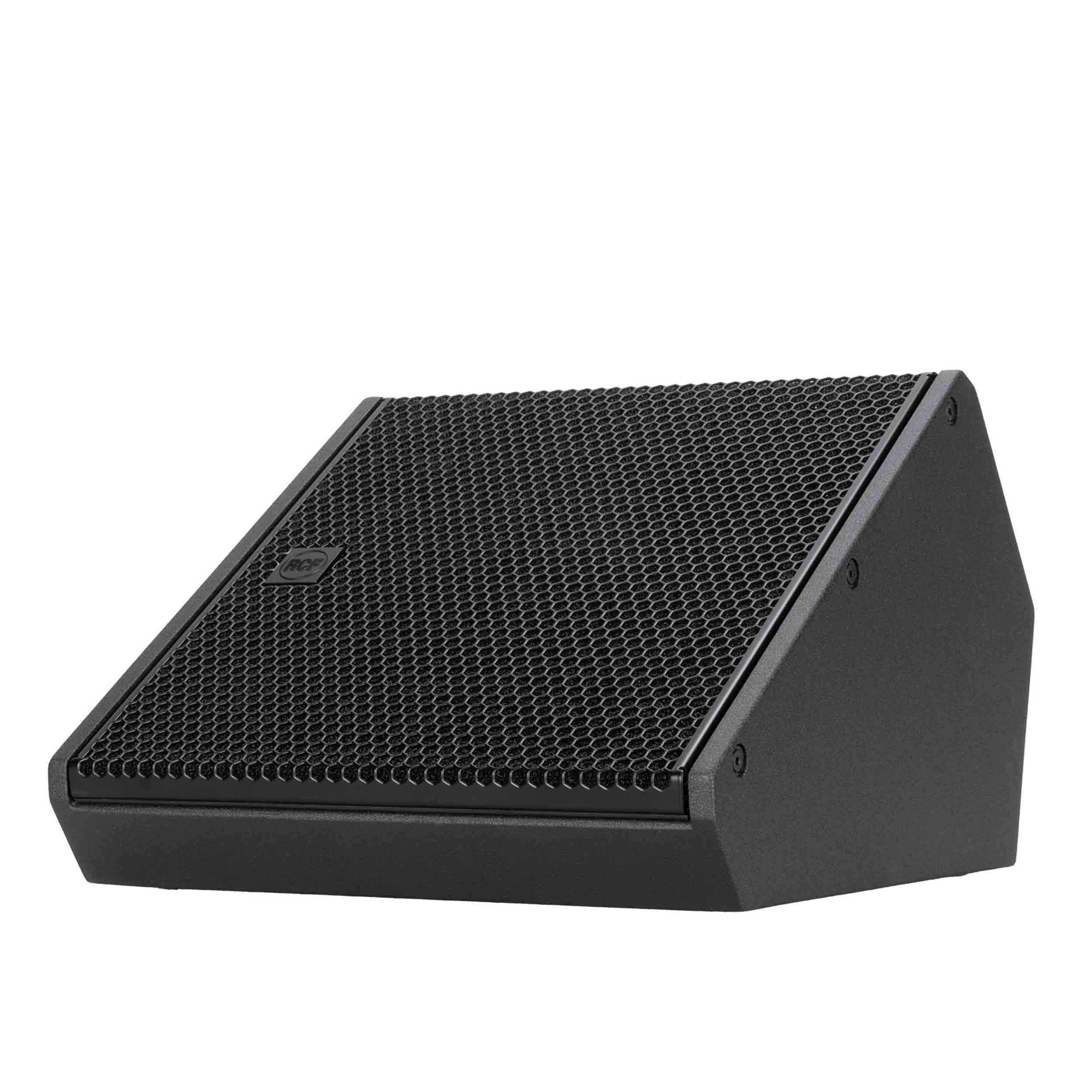

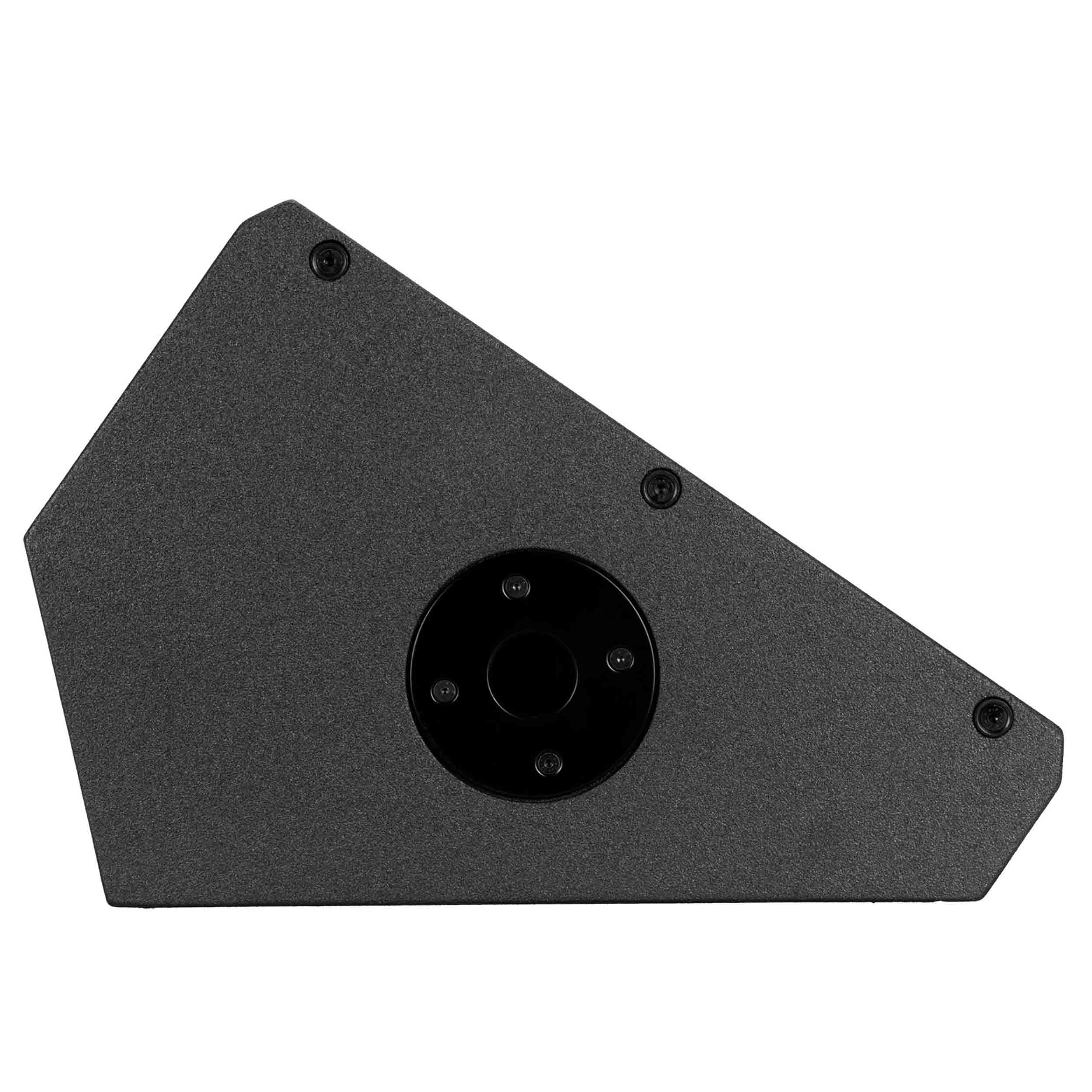

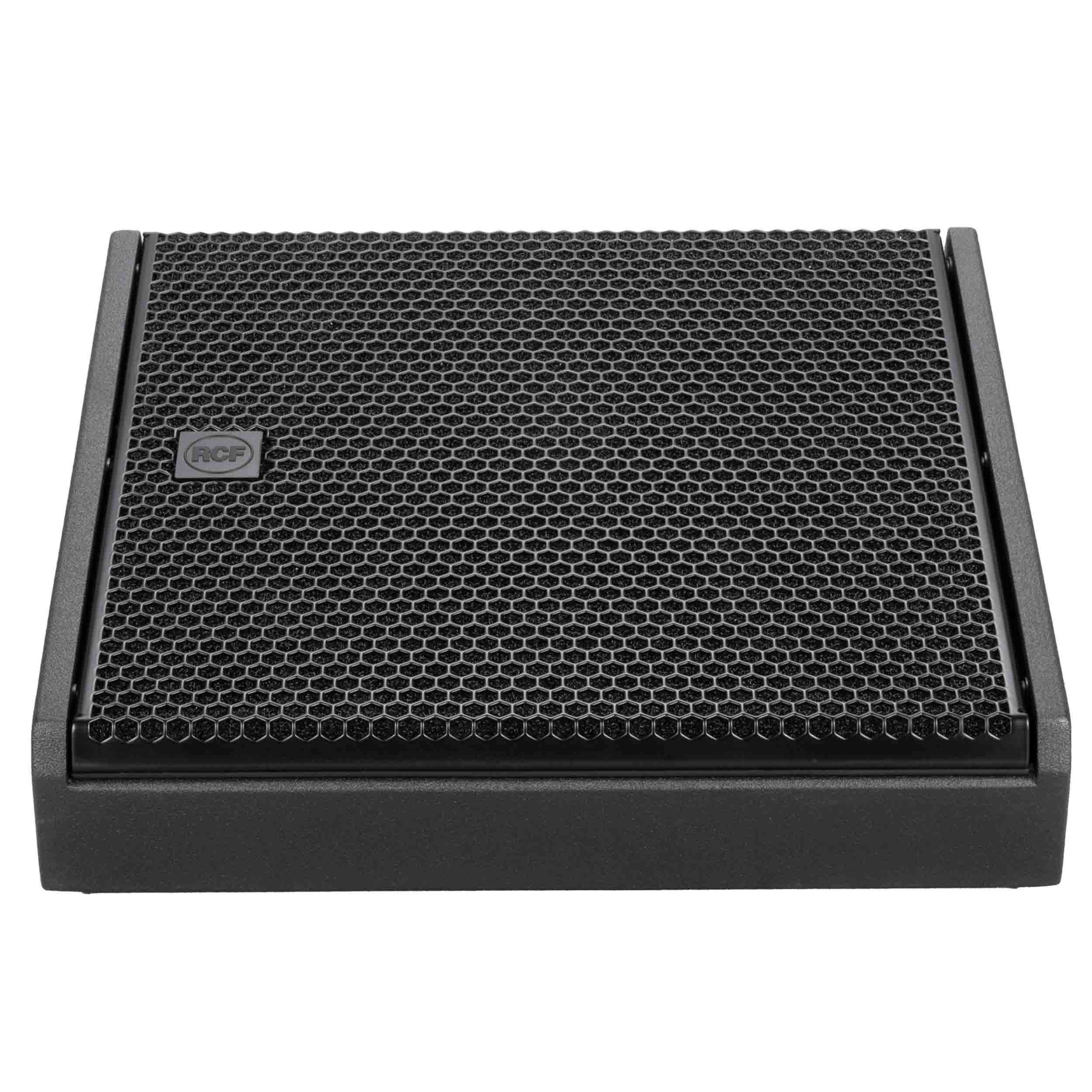

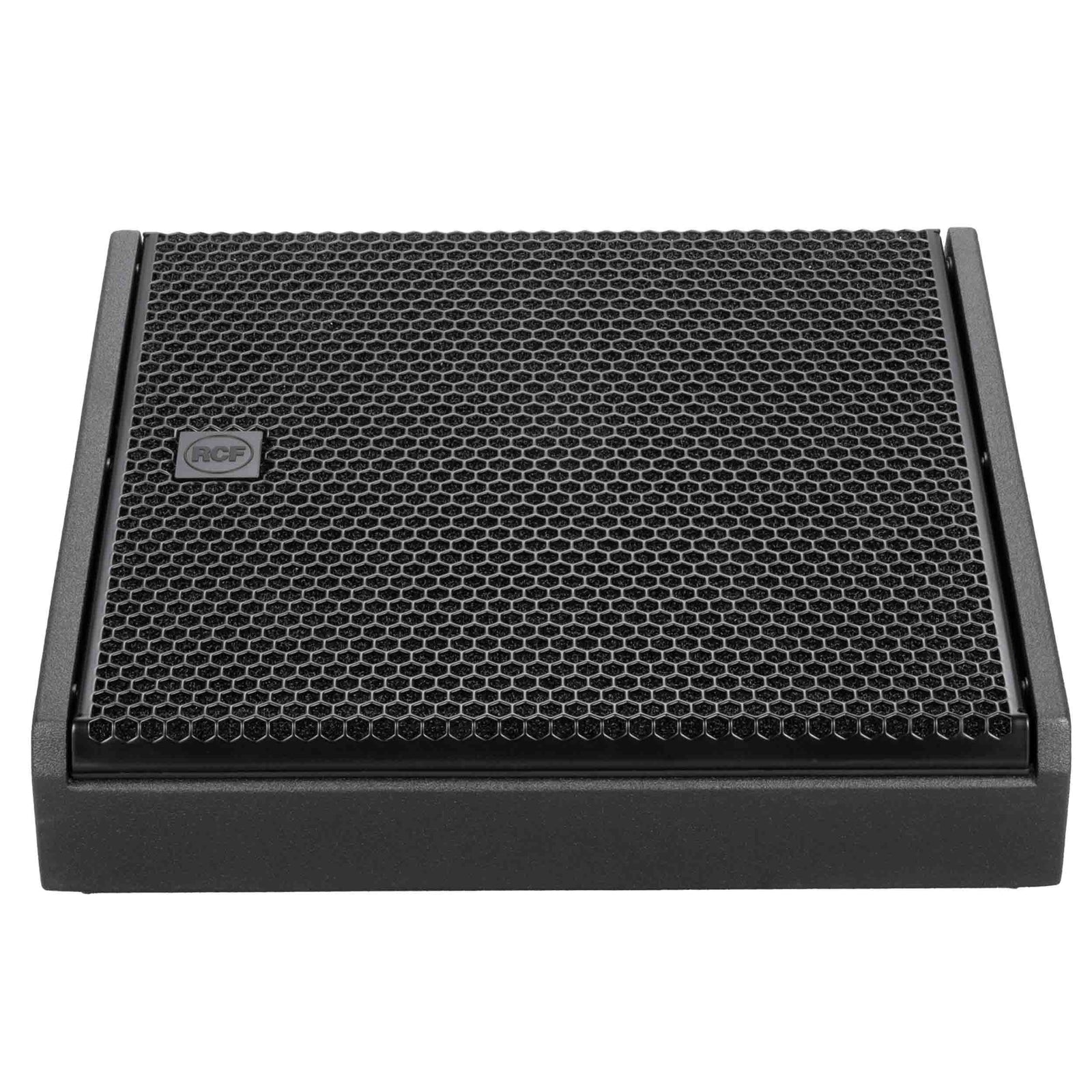

The RCF KXM-20-A is a high-output two-way active stage monitor engineered for exceptional clarity, controlled coverage, and fast deployment in professional live sound environments. Delivering up to 134 dB maximum SPL with a powerful 2000W peak Class-D amplifier, it provides precise 90° x 70° constant-directivity coverage for consistent monitoring and predictable off-axis performance. Its multifunctional cabinet design allows it to perform equally well as a stage wedge, portable FOH speaker, or fill system.
Precision Audio Performance & Advanced Electronics
The KXM-20-A features dual 8-inch high-power neodymium woofers with 2.5-inch voice coils in a symmetrical configuration for punchy low-frequency response and improved consistency across the listening area. A horn-loaded neodymium compression driver with a 3-inch voice coil delivers clear vocal projection and detailed high frequencies. Integrated FiRPHASE and Bass Motion Control DSP technologies enhance coherence, definition, and low-frequency accuracy, while the advanced KX DSP platform provides exceptional real-time processing power for superior system performance.
Tour-Ready Construction & Network Control
Built for demanding touring and installation applications, the KXM-20-A uses a reinforced wooden enclosure with internal bracing to minimize unwanted vibrations and maintain acoustic precision at high SPL levels. A heavy-duty powder-coated steel grille with internal foam protection helps shield the transducers from dust and impact during transport and daily use. Integrated RDNet networking allows centralized monitoring and control for efficient stage workflows, while powerCON® TRUE1 TOP locking connectors ensure reliable power connections even in challenging outdoor and professional environments.
Product Specifications:
Frequency Response: 60 Hz – 20 kHz
Max SPL: 131 dB @ 1m
Horizontal Coverage: 90°
Vertical Coverage: 70°
HF Driver: 1 × 1.5" Neodymium (3.0" Voice Coil)
LF Drivers: 2 × 8" Neodymium (2.5" Voice Coil)
Input Signal: Balanced / Unbalanced
Input Connectors: XLR, RDNet Ethercon
Output Connectors: XLR, RDNet Ethercon
Input Sensitivity: -2 dBu / +4 dBu
Crossover Frequency: 900 Hz
Protection: Thermal, HF Protection
Limiter: Fast Limiter
Controls: Bypass, Linear/High Pass, Volume, RDNet Onboard
RDNet: Onboard
Total Power: 2000 W Peak
HF Power: 600 W Peak
LF Power: 1400 W Peak
Cooling: Convection

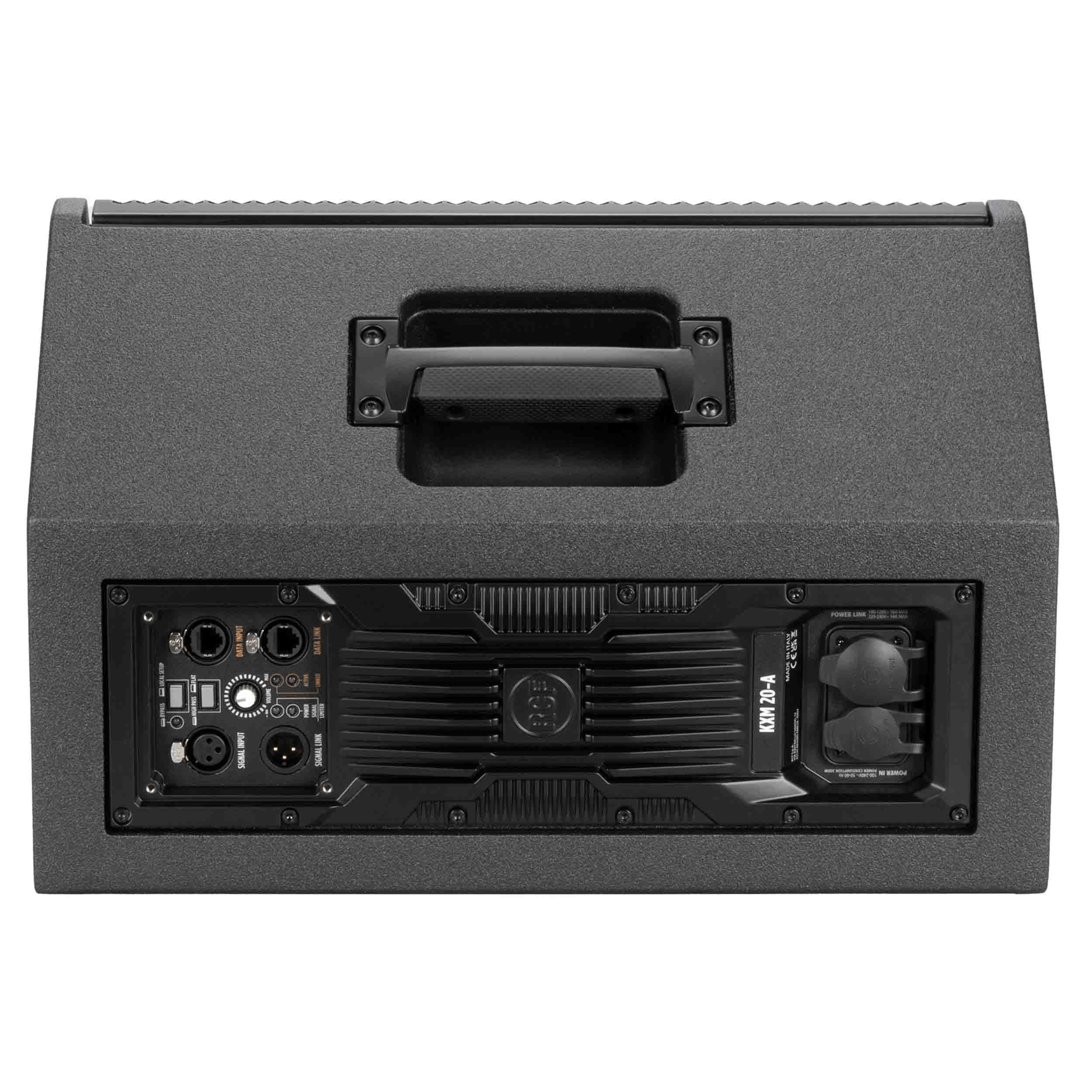

Power Connections: PowerCON TRUE1 TOP IN/OUT
Compliance: CE Certified
Cabinet Material: Baltic Birch Plywood
Handles: 1 Top Handle
Pole Mount: 35 mm Insert
Grille: Steel
Product Weight: 30.86 lbs
Product Dimensions (L × W × H): 17.72 × 17.52 × 12.52 inches
Shipping Weight: 36.16 lbs
Shipping Dimensions (L × W × H): 14.76 × 19.29 × 19.69 inches
