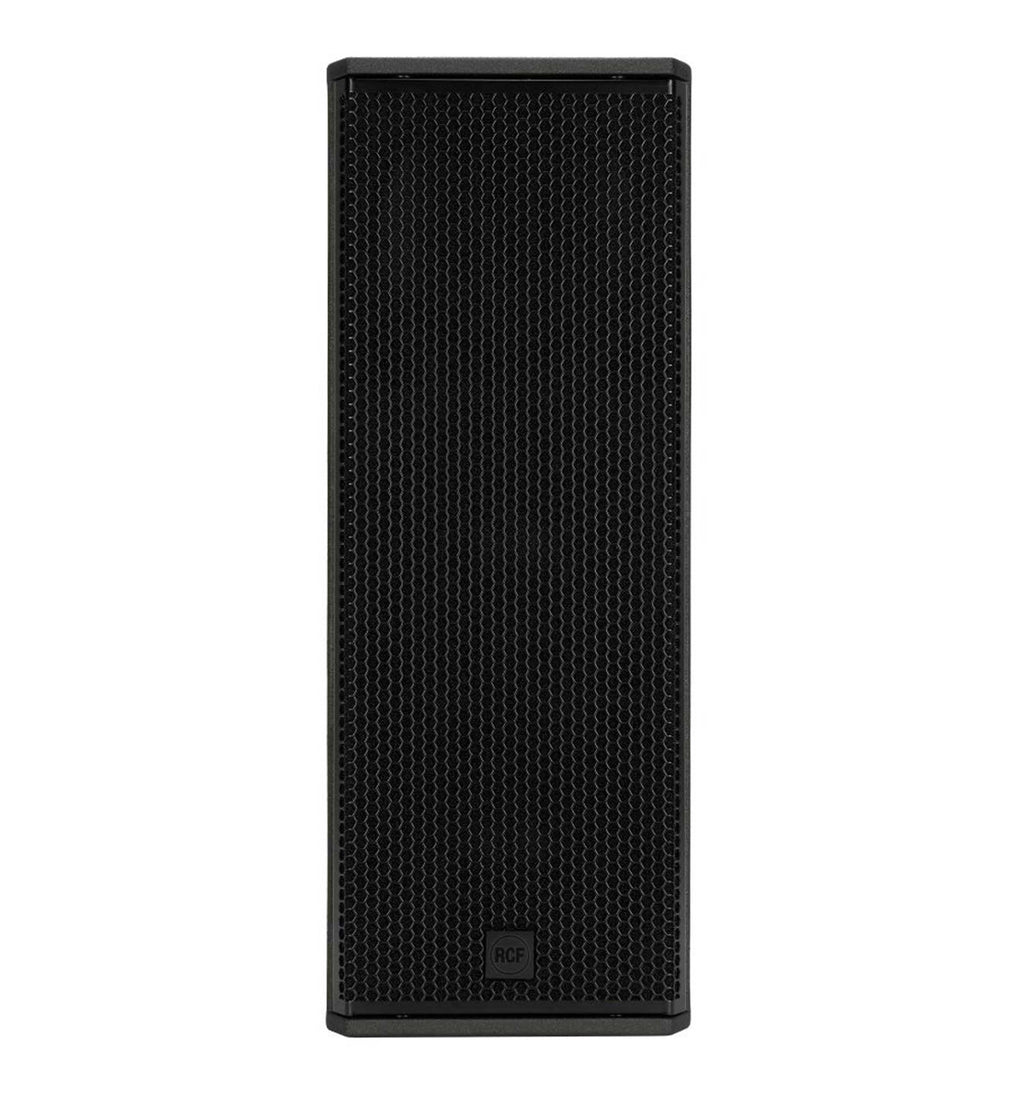

RCF KXW 4-A Wide Directivuty Active Two-Way Speaker with RDNet Control & 3200W Amplifier

The RCF KXW 4-A Wide Directivuty Active Two-Way Speaker with RDNet Control & 3200W Amplifier for professional users, combining precise directivity, high SPL capability, and advanced rigging for both vertical and horizontal configurations. The low-frequency section features two 10” neodymium drivers in a bass-reflex design; the high-frequency section comprises a neodymium compression driver with a 4” titanium dome, coupled to a rotatable 100° x 50° horn. An integrated two-channel 3200 W Class D amplifier with proprietary DSP processing and remote management via RDNet enables optimal system performance. Its weatherproof, multifunctional enclosure supports versatile deployment for ground-stacked, pole-mounted, or flown applications.
Advanced electronics
The high-powered Class-D amplifiers, tailored for each transducer, deploy pristine sound with efficient heat dissipation at the lowest possible distortion, along with low power consumption.
High-end AD/DA conversion and onboard DSP for the best sound quality. Thanks to the proprietary RDNet networked management and control, every KX speaker provides in-depth remote monitoring through multiple sensors. The system engineer has immediate feedback of transducer status, fan speed, temperature, VU meters, limiters and much more.
100°X50° waveguide with coherent directivity
This special waveguide design allows the deployment of multiple KXW 4-A for excellent control of directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.

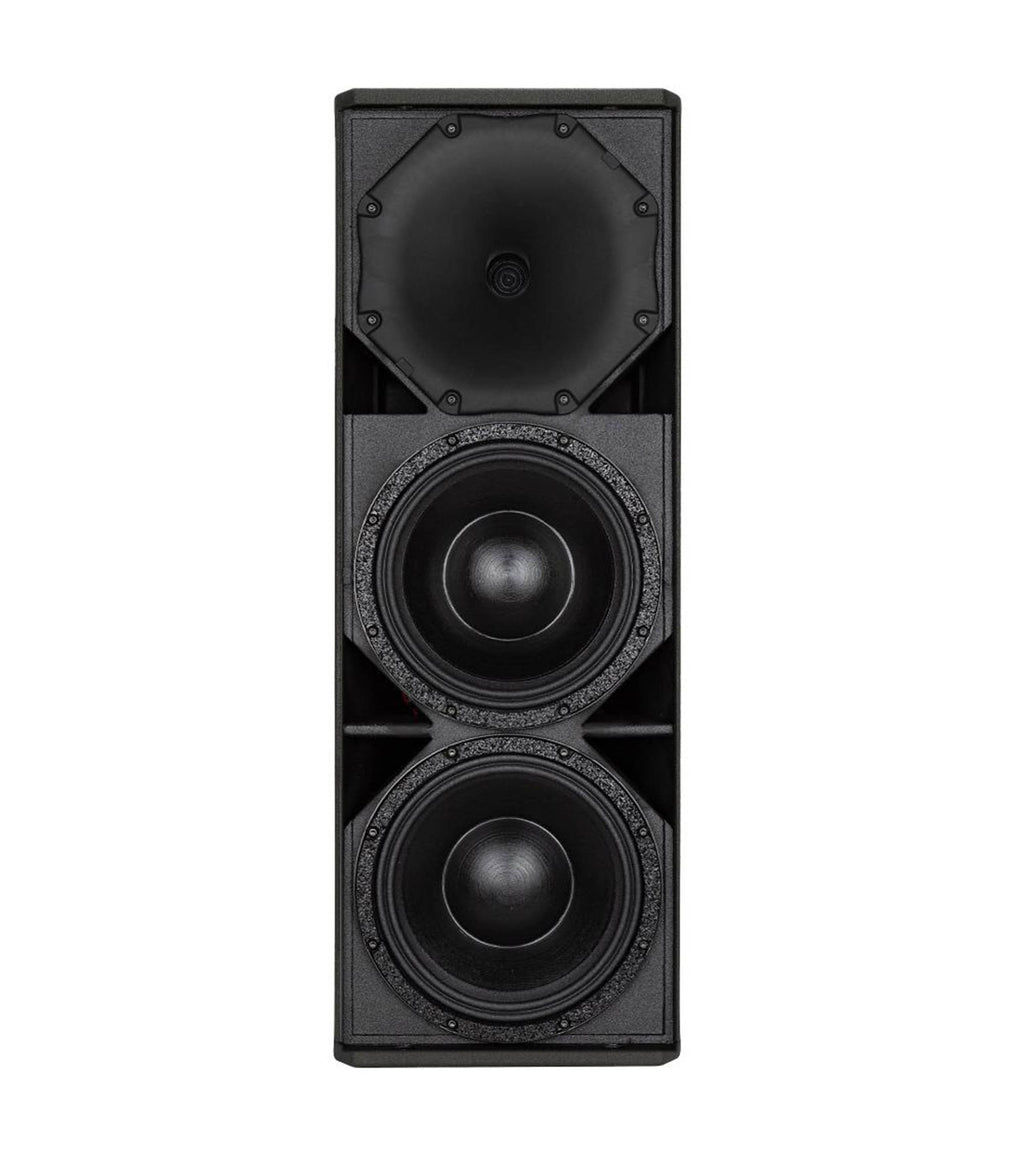

Precision Transducers
Low Frequency
The 4-inch pure titanium dome NDT995 compression driver maximizes linearity, precision and long-term reliability. Its motor structure features a high-flux density neodymium magnet assembly, ultralight edge wound aluminum wire, a 4-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. With a very low crossover point at 750 Hz, this allows a better impulse response, fast decay and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.
High Frequency
The two 10-inch Hypervented woofer of the Precision Transducers line enable a compact, slim design while delivering high power. The magnetic structure features a large neodymium magnet, ensuring extremely high flux density within the gap. The newly designed aluminum basket and magnetic assembly provide excellent heat dissipation and significantly reduce power compression. Special air-forced ventilation is incorporated into the voice coil, magnet assembly, and basket, optimizing cooling efficiency. The M-roll surround and spider design ensure superb linearity and highly accurate sound reproduction.
NETWORKED CONTROL AND MUCH MOR
RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.

Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.
Robust and durable

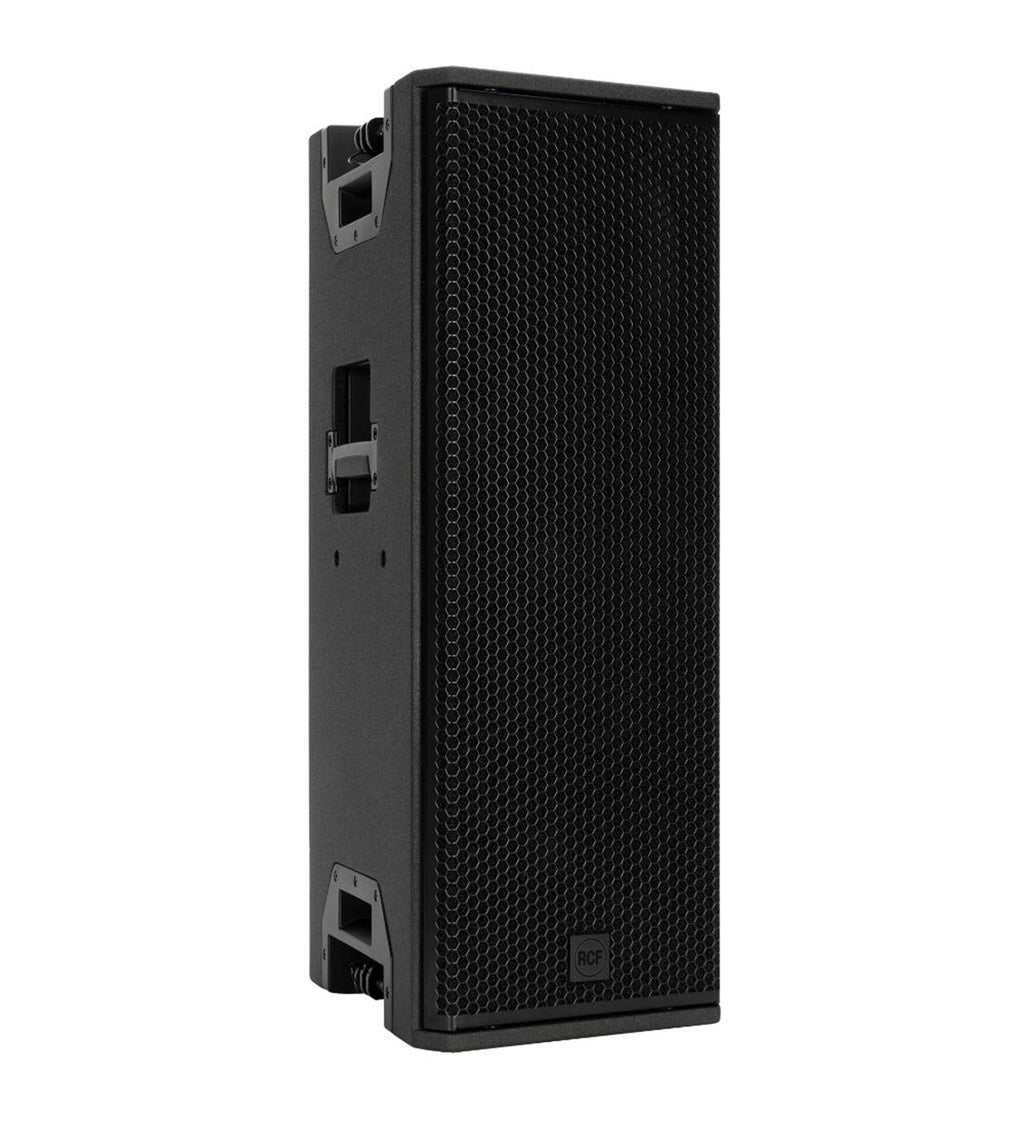

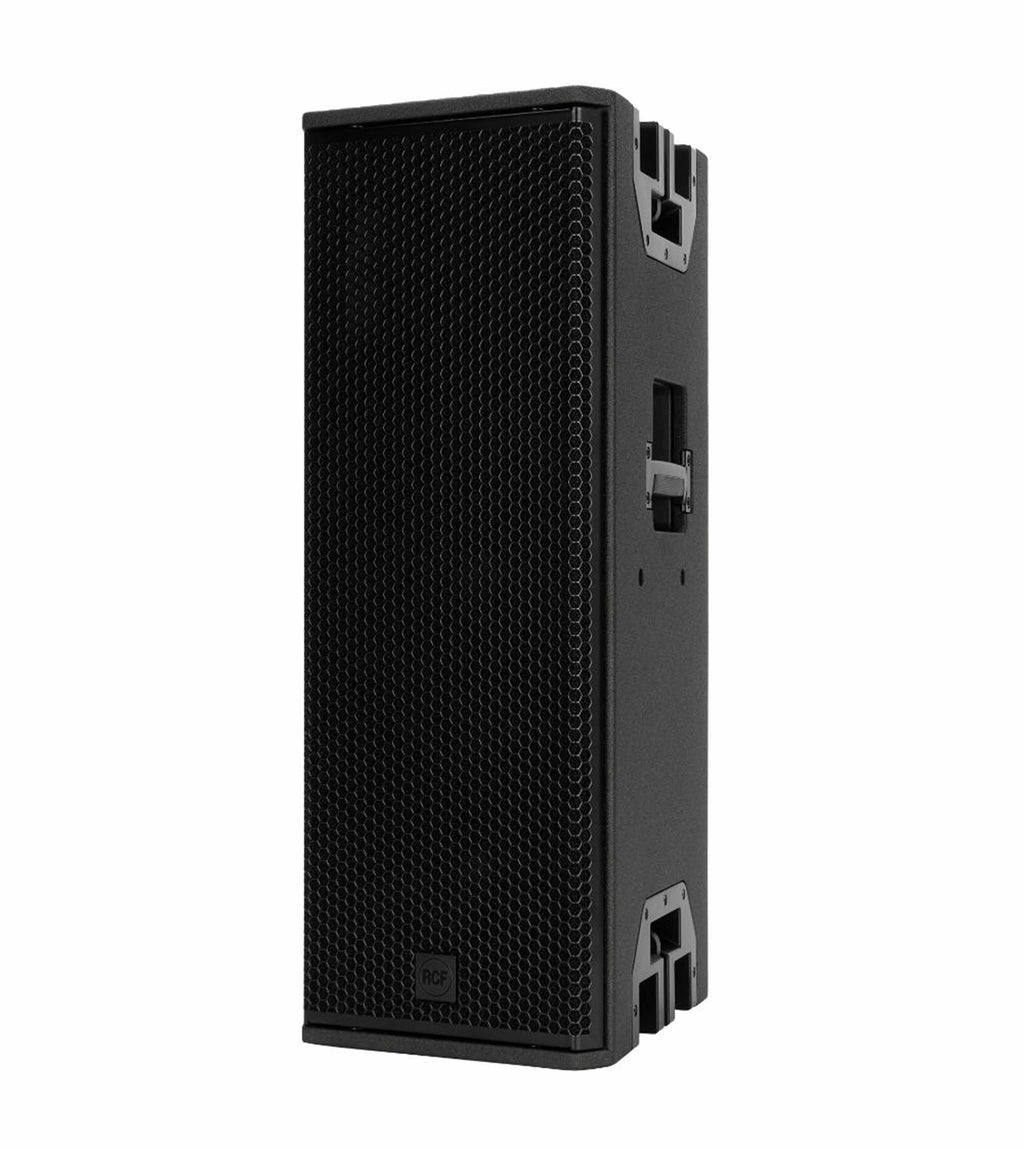

The enclosure is made of high-quality Baltic birch plywood, glued with water-resistant adhesive and coated with weatherproof polyurea paint, ensuring excellent waterproofing, UV resistance, corrosion protection, and durability against abrasion, impacts, and mechanical stress. The solid machined aluminum structure efficiently dissipates heat fanlessly, improving enclosure stiffness, while the high-strength structural steel rigging ensures a high safety factor for secure weight management. Die-cast aluminum handles with ergonomic rubber grips enhance usability.
Tour Ready Construction

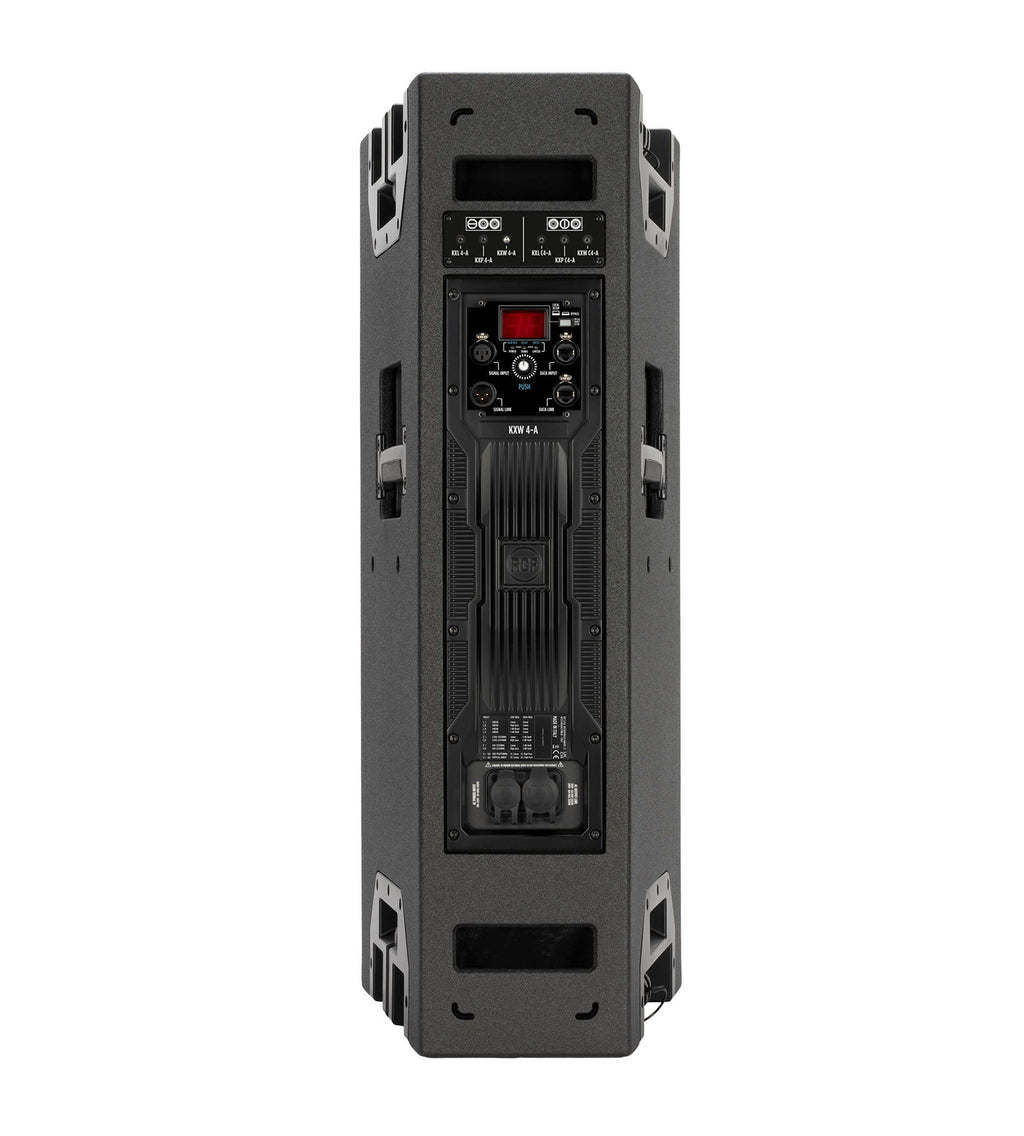

Attached to a solid machined aluminum structure on the rear panel, the amplifier ensures efficient heat dissipation. The enclosure is internally reinforced and sturdy, equipped with waterproof PowerCON TRUE1 TOP mains connectors, guaranteeing durability under any outdoor conditions.
Digital Signal Proficiency
The KX DSP platform is the next-generation audio engine for RCF active speakers and DSP amplifiers. Designed as a real-time DSP engine, it offers unparalleled processing density and scalability, propelling RCF speakers to a new dimension of performance.

This groundbreaking DSP engine delivers unmatched processing power for its class.

Product Specifications:

Acoustical specifications:

Frequency Response: 45 Hz - 20000 Hz

Max SPL @ 1m: 134 dB

Horizontal coverage angle: 100°

Vertical coverage angle: 50°

Transducers:

Compression Driver: 1 x 1.4'' neo, 4.0'' v.c

Woofer: 2 x 10'' neo, 3.0'' v.c

Input/Output section:

Input signal: bal/unbal

Input connectors: XLR, RDNet Ethercon

Output connectors: XLR, RDNet Ethercon

Processor section:

Crossover Frequencies: 900Hz

Protections: Thermal, RMS

Limiter: Fast Limiter

Controls: Gain Reduction, delay, proces., 8 sel. presets

RDNet: Onboard

Power section:

Total Power: 3200 W Peak

High frequencies: 1200 W Peak

Low frequencies: 2000 W Peak

Cooling: Convection

Connections: Powercon TRUE1 TOP IN/OUT

Standard compliance:

Safety agency: CE compliant

Physical specifications:

Cabinet/Case Material: Baltic birch plywood

Hardware: Array fittings, 2xM10 on the top, 2xM8 on each side

Handles: 2 Side, 2 Rear

Pole mount/Cap: 35 mm insert

Grille: Steel with clothing

Color: Black

Size / Weight:

Height: 825 mm / 32.48 inches

Width: 310 mm / 12.2 inches

Depth: 369 mm / 14.53 inches

Weight: 30.4 kg / 67.02 lbs.

Shipping information:

Package Height: 410 mm / 16.14 inches

Package Width: 865 mm / 34.06 inches

Package Depth: 365 mm / 14.37 inches

Package Weight: 33.5 kg / 73.85 lbs.

Shipping Weight: 63 lbs.

Shipping Dimensions: 32 x 16 x 15”
